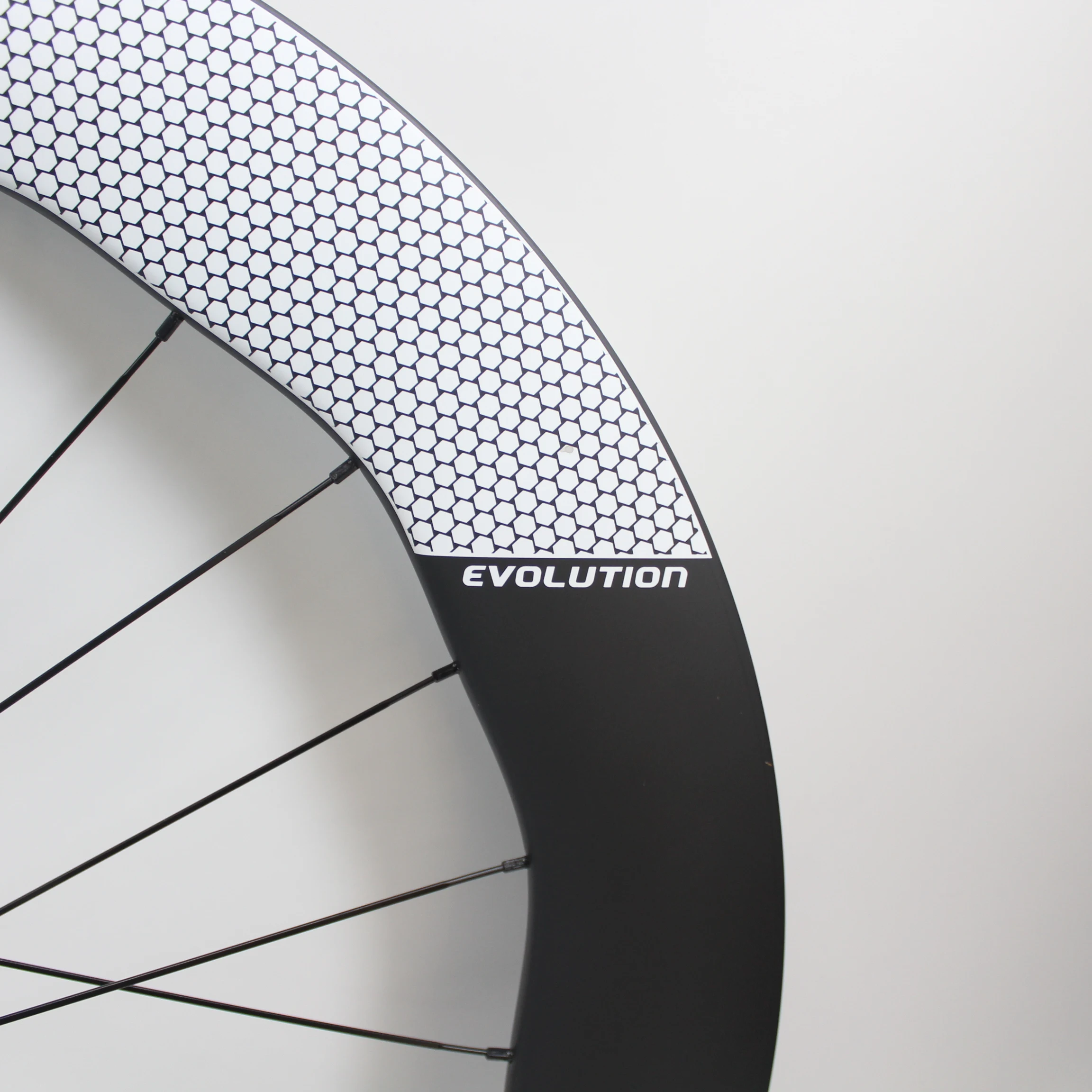

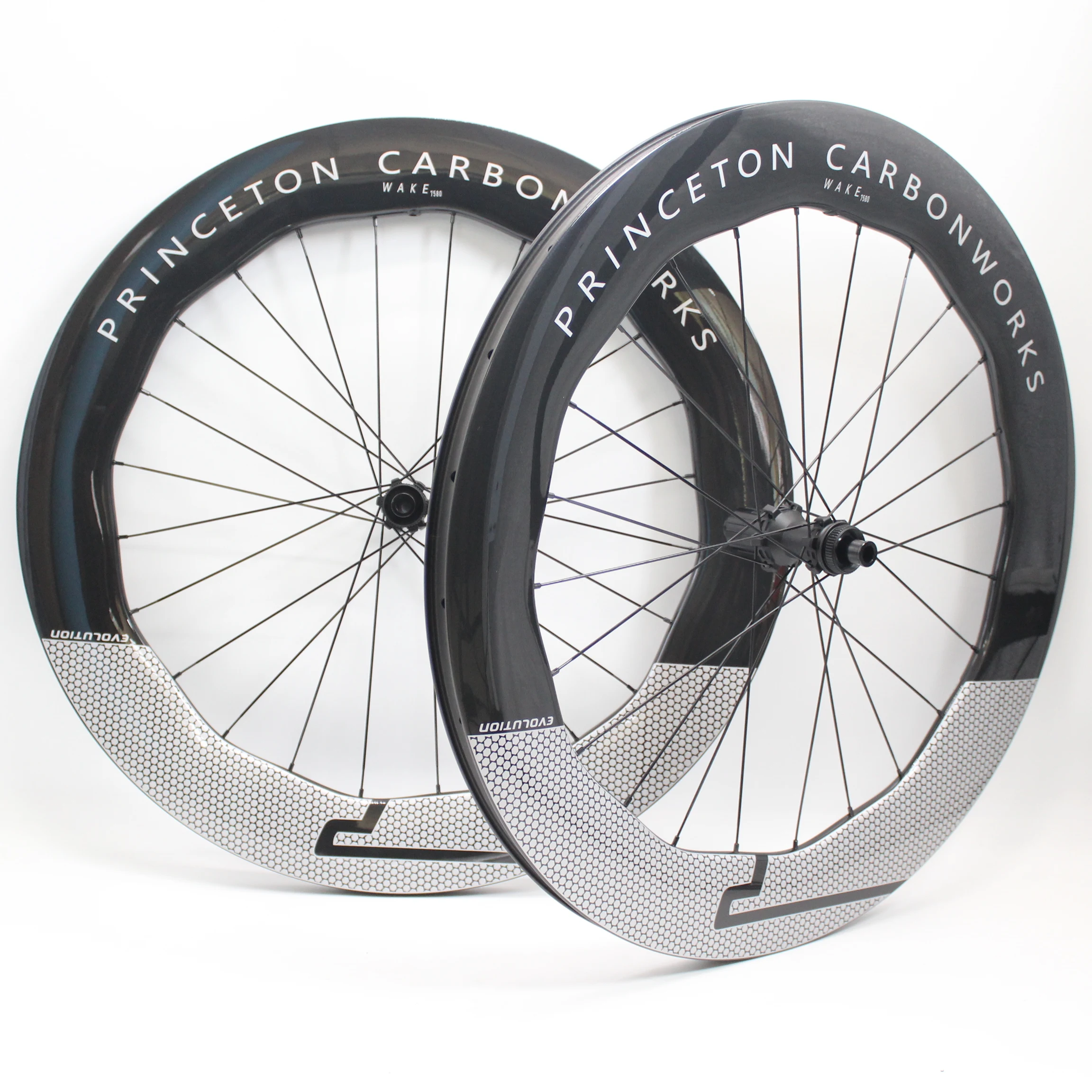

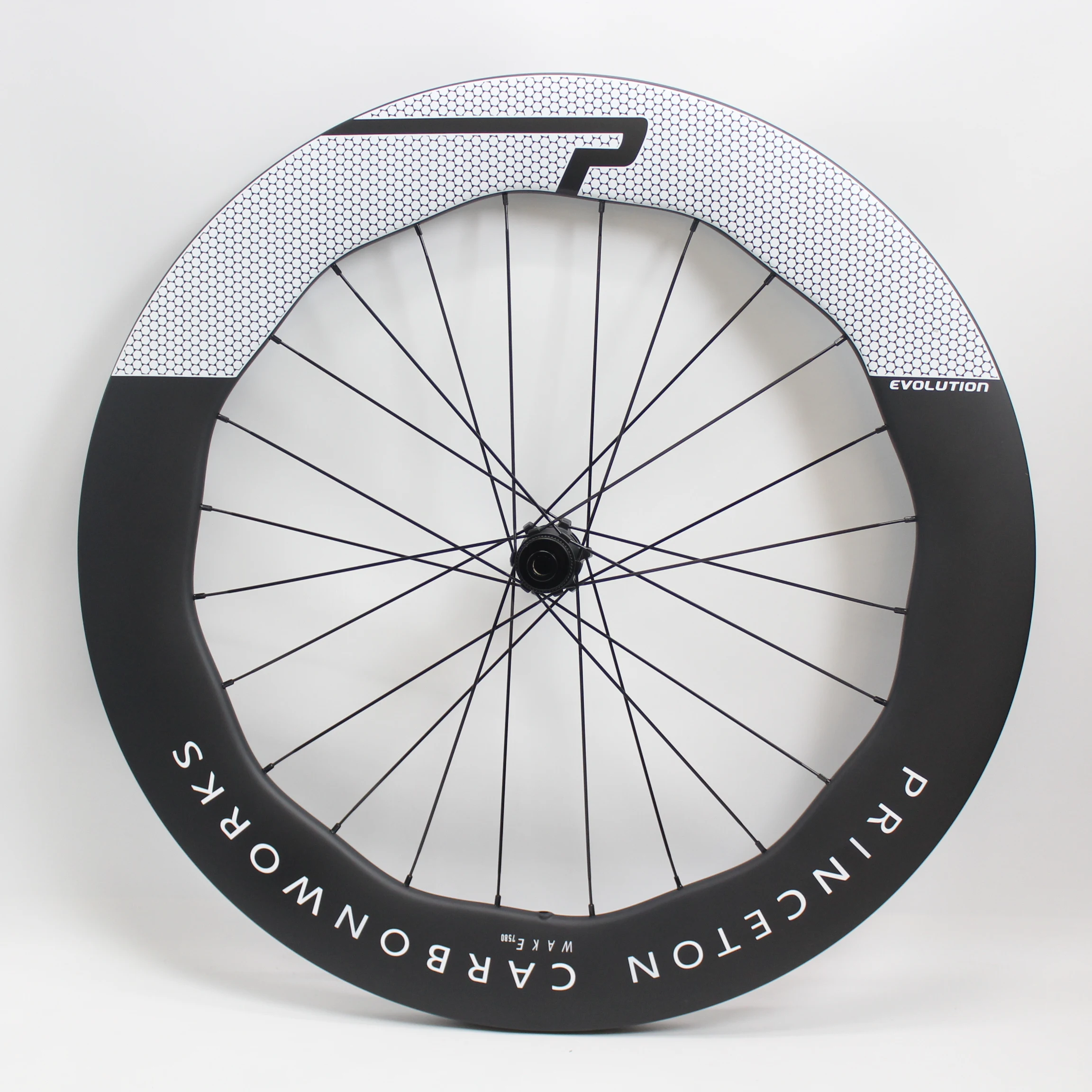

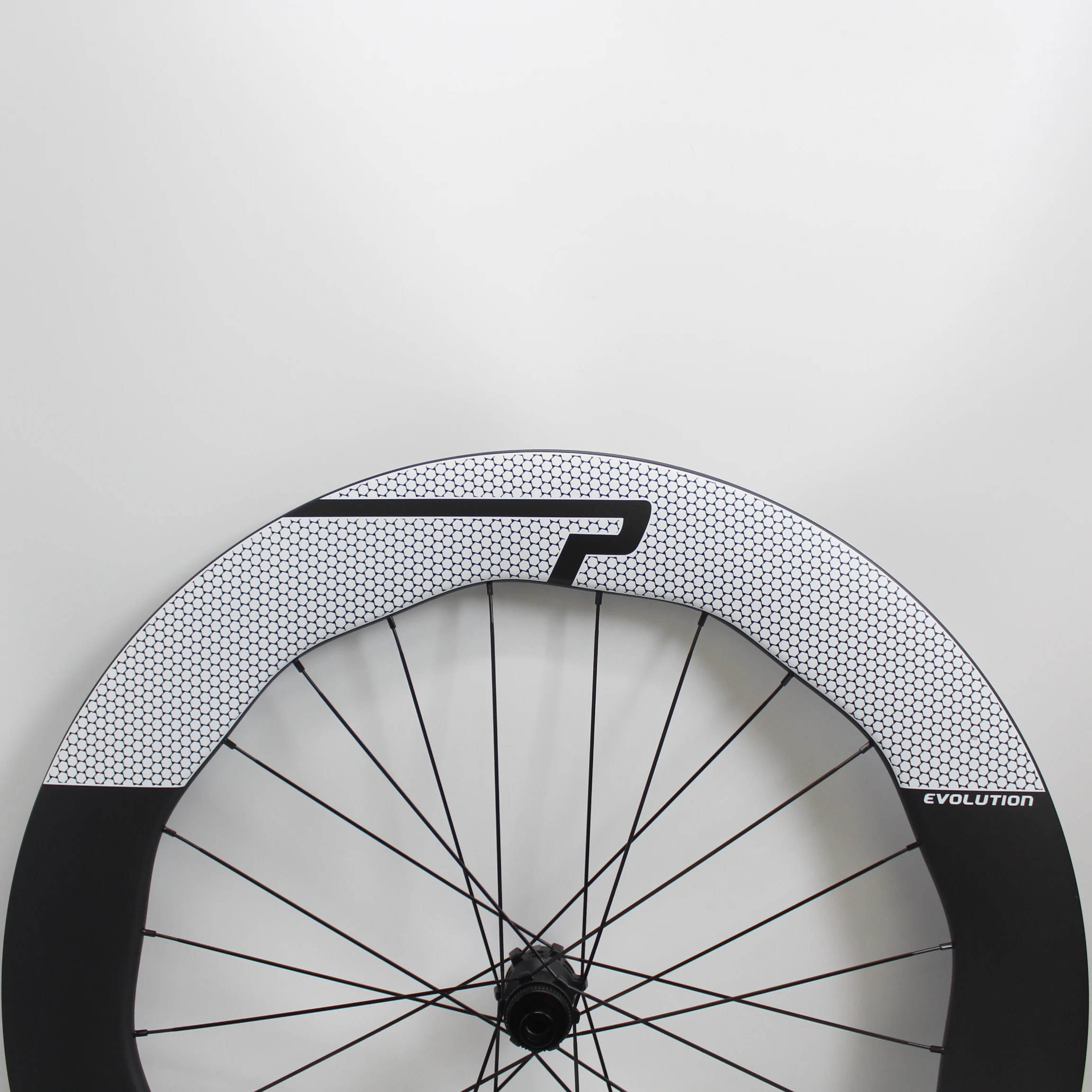

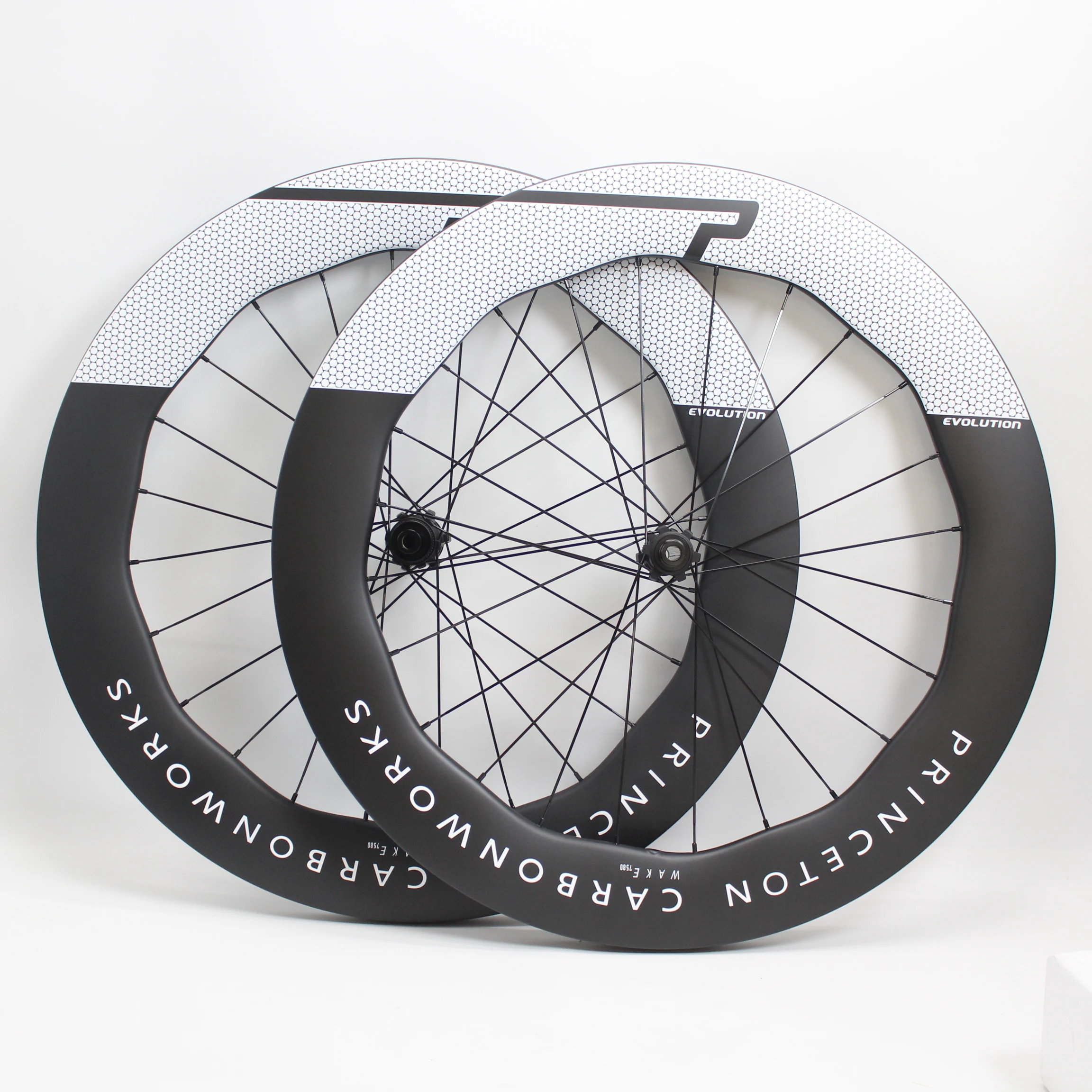

White color Thru Axle center lock style matt finish photo:

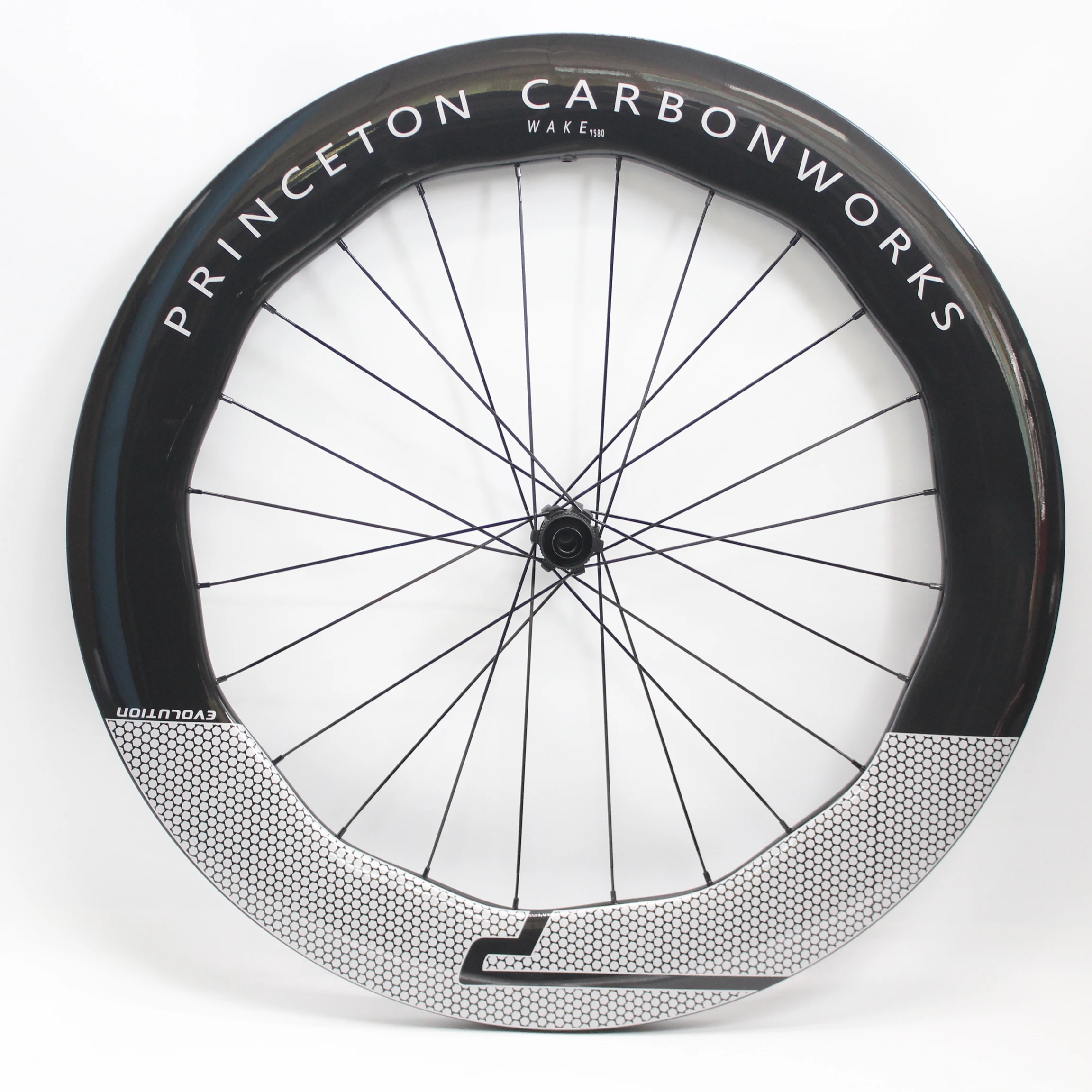

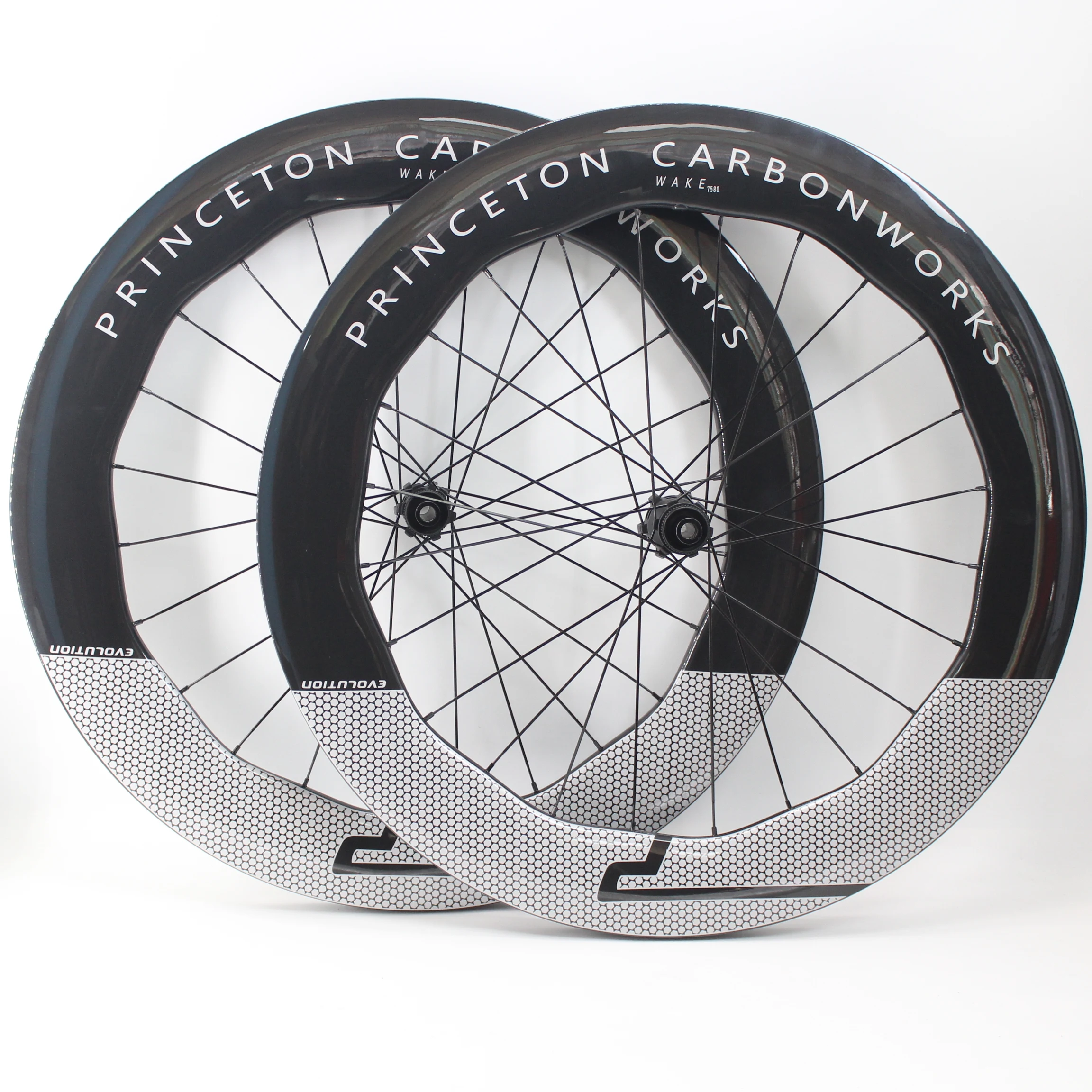

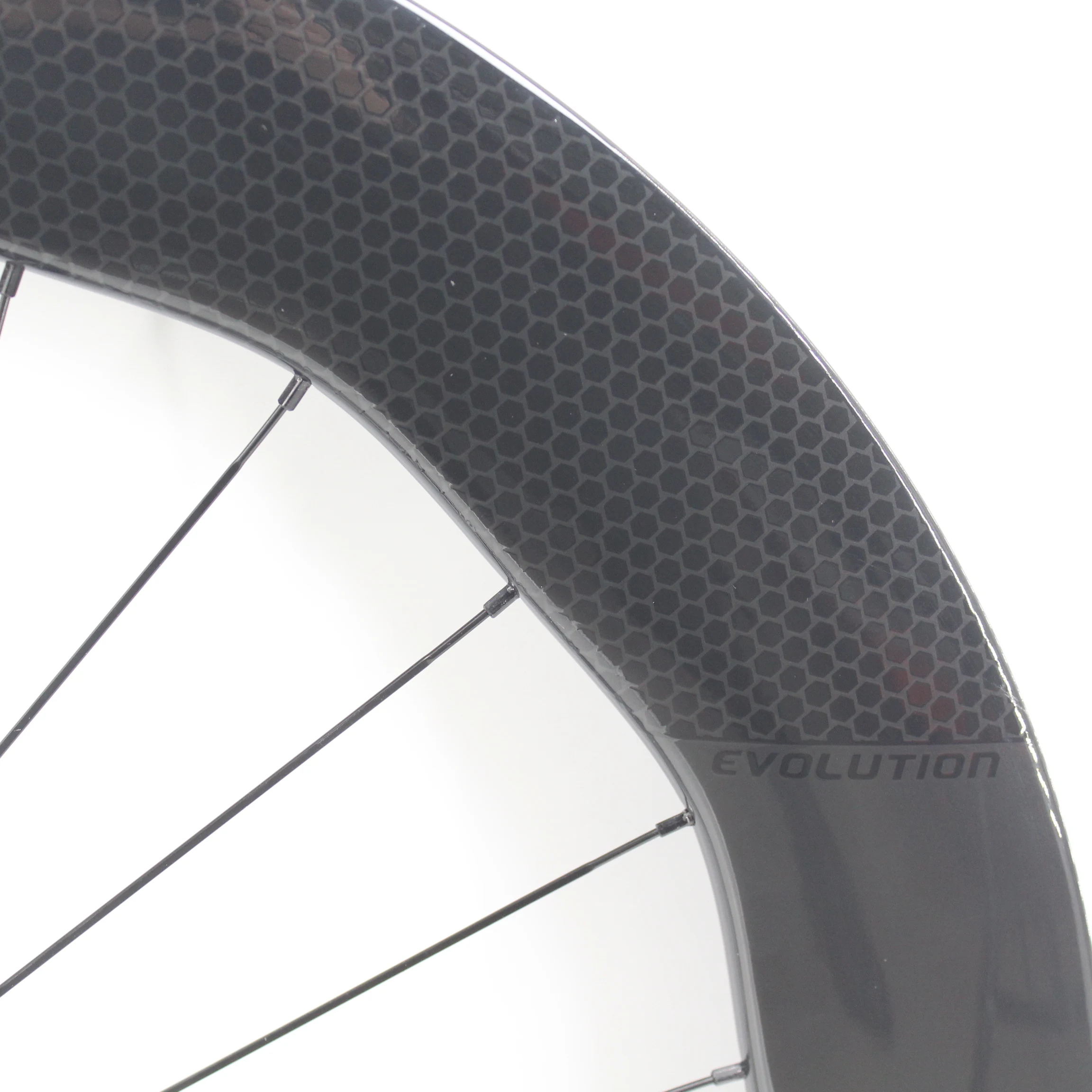

Silver color Thru Axle center lock style gloss finish photo:

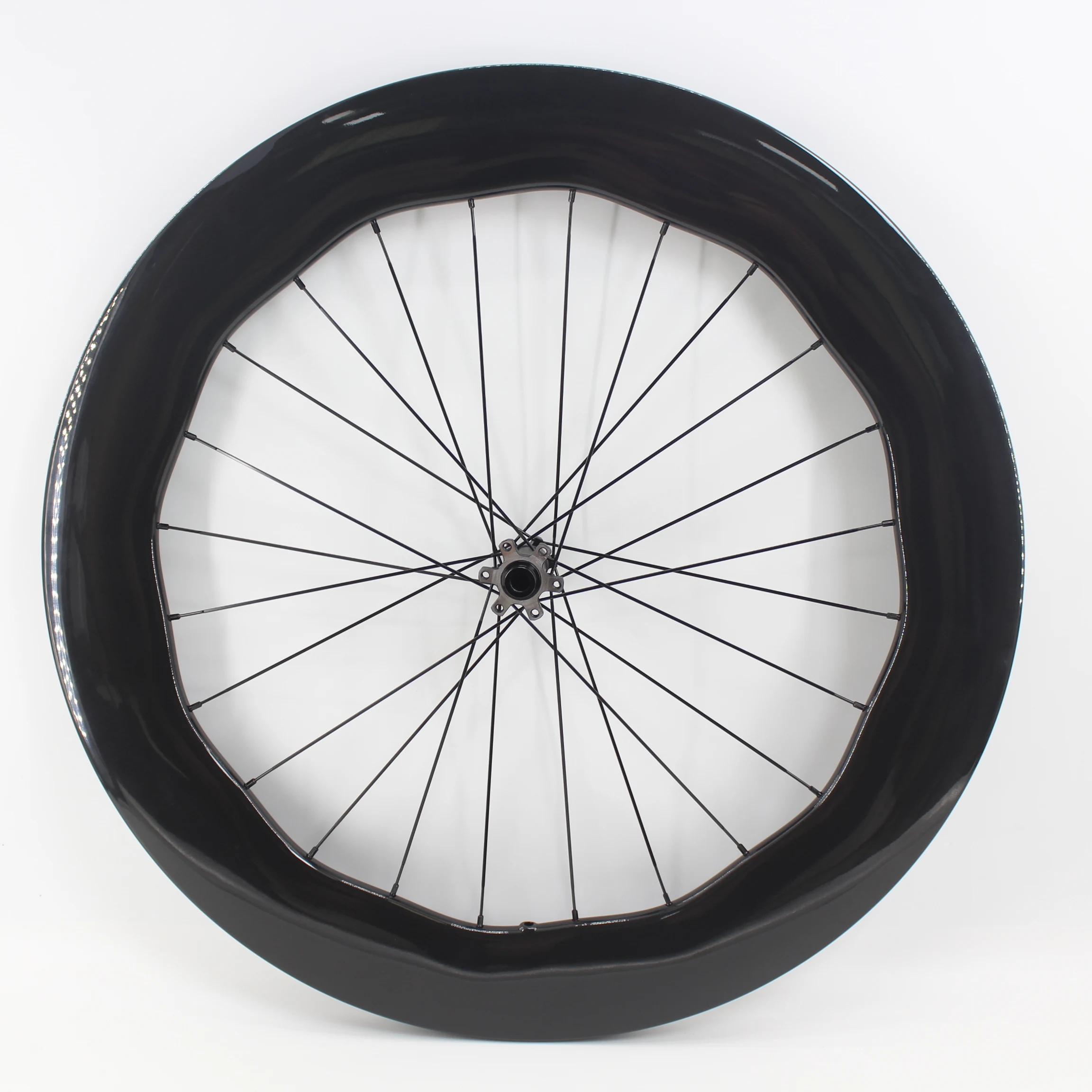

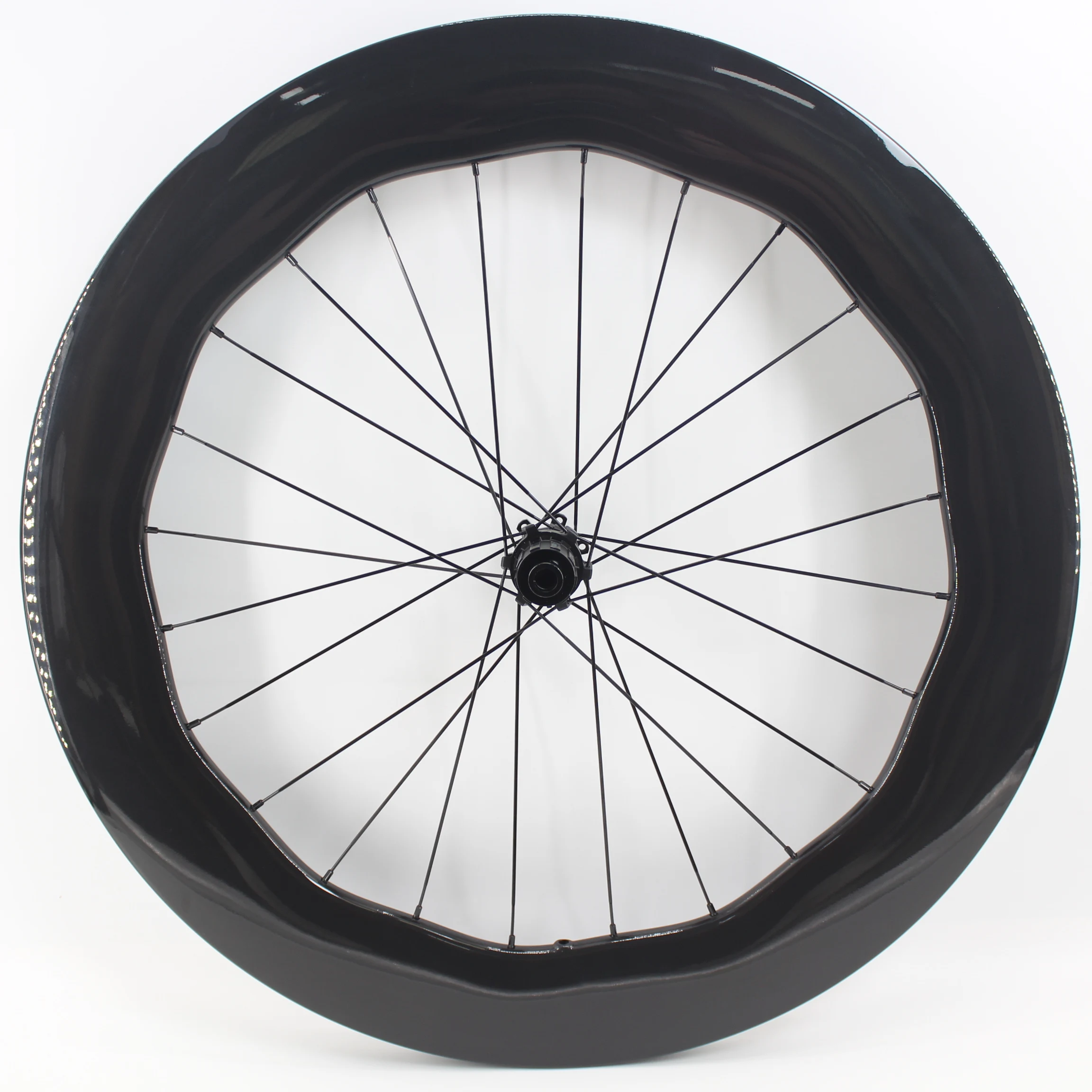

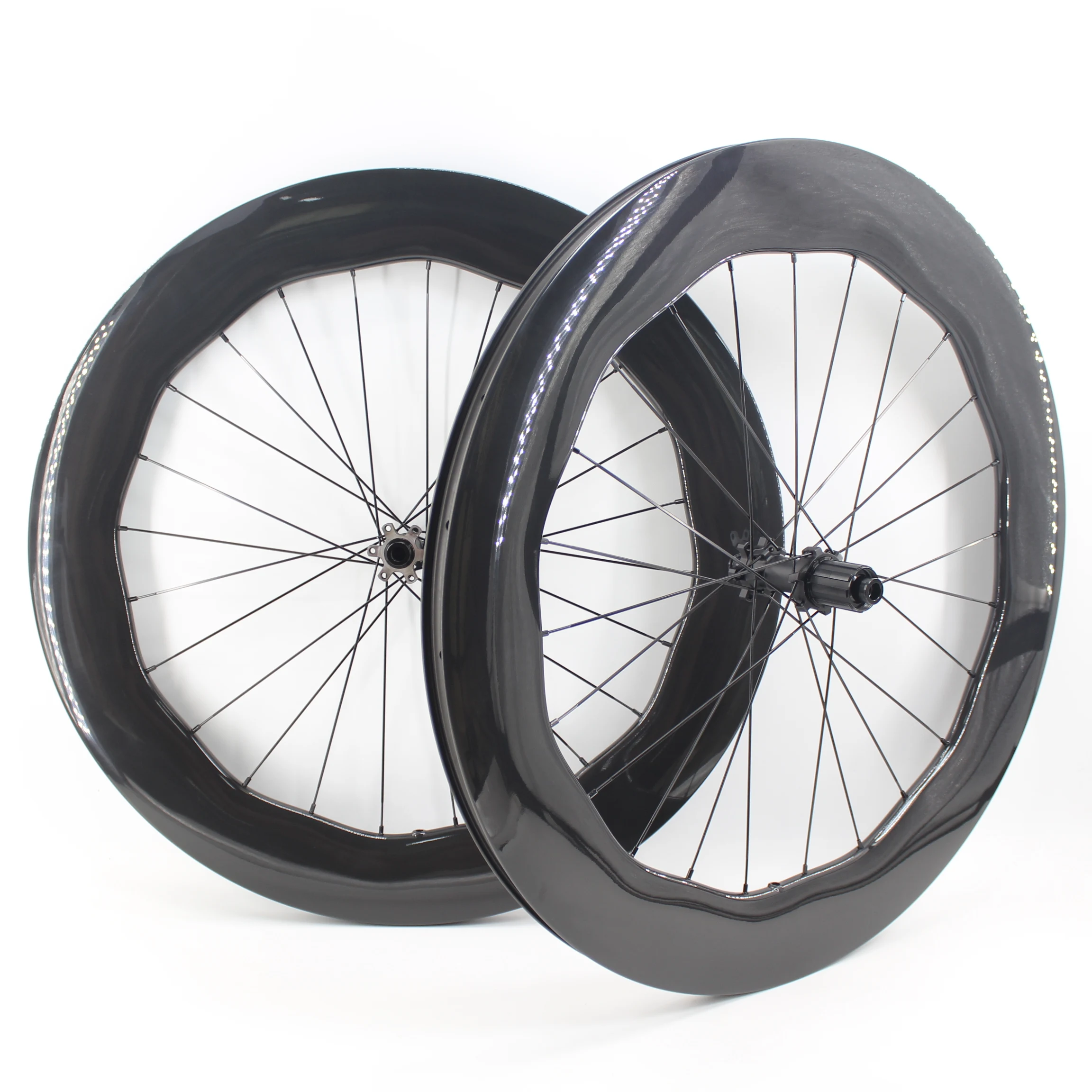

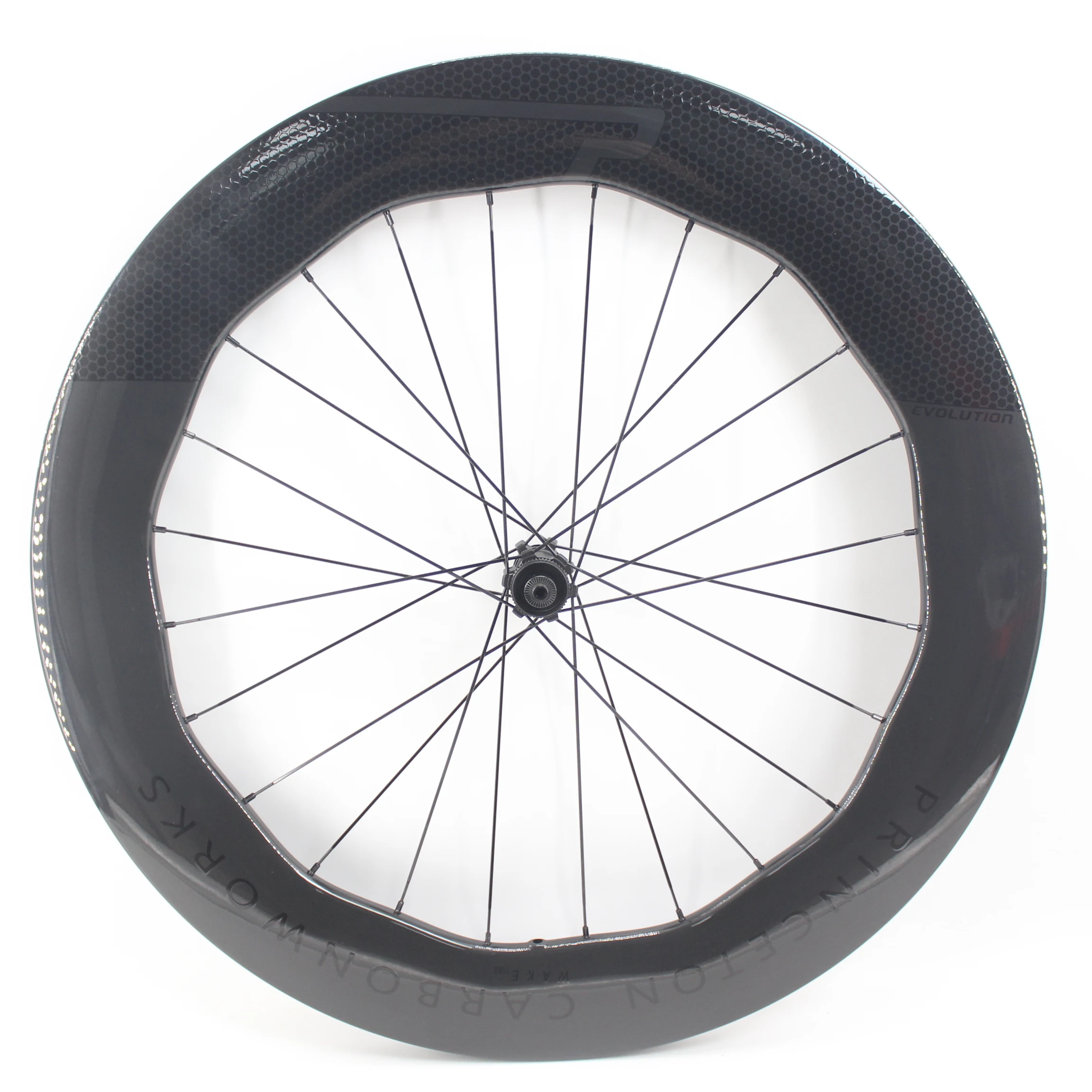

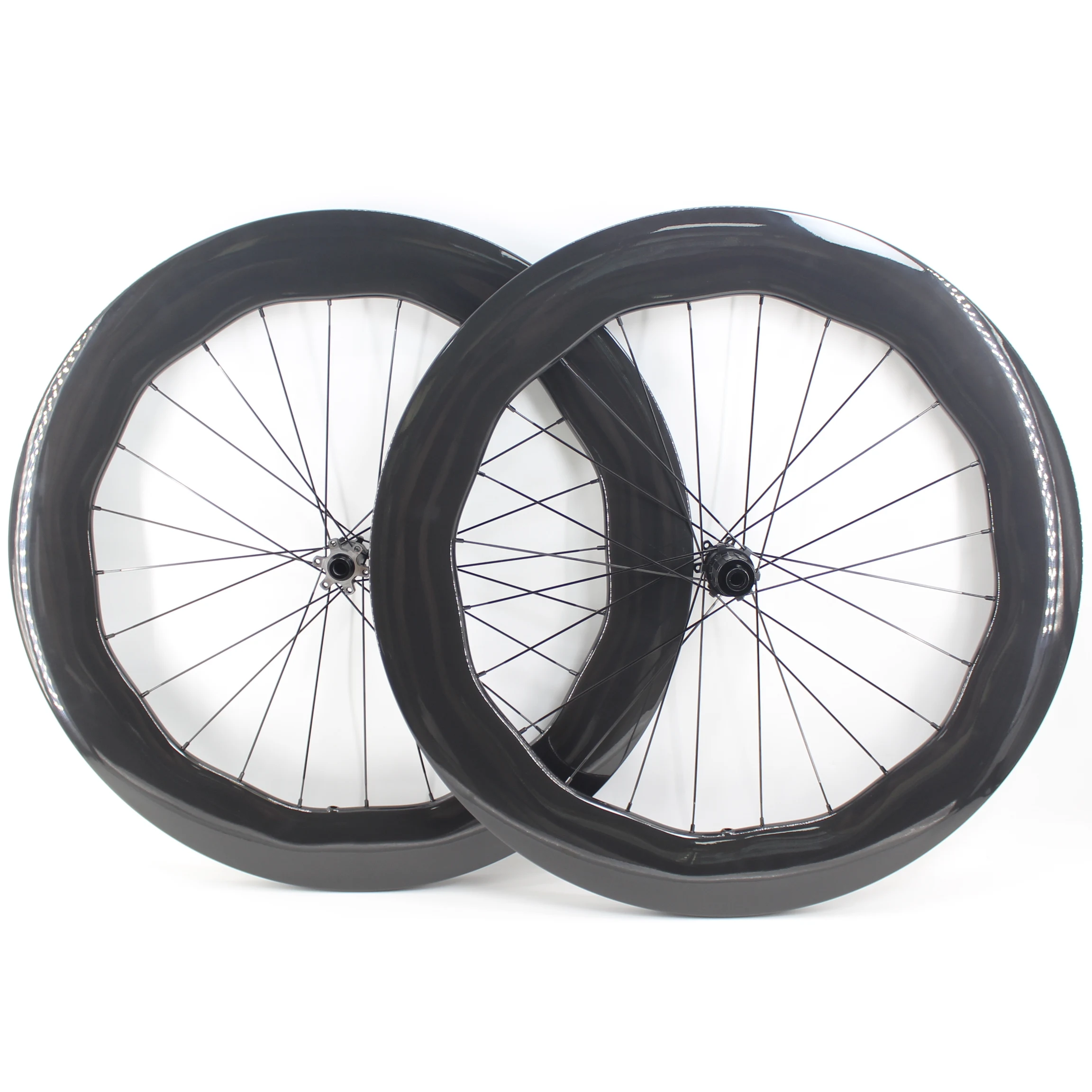

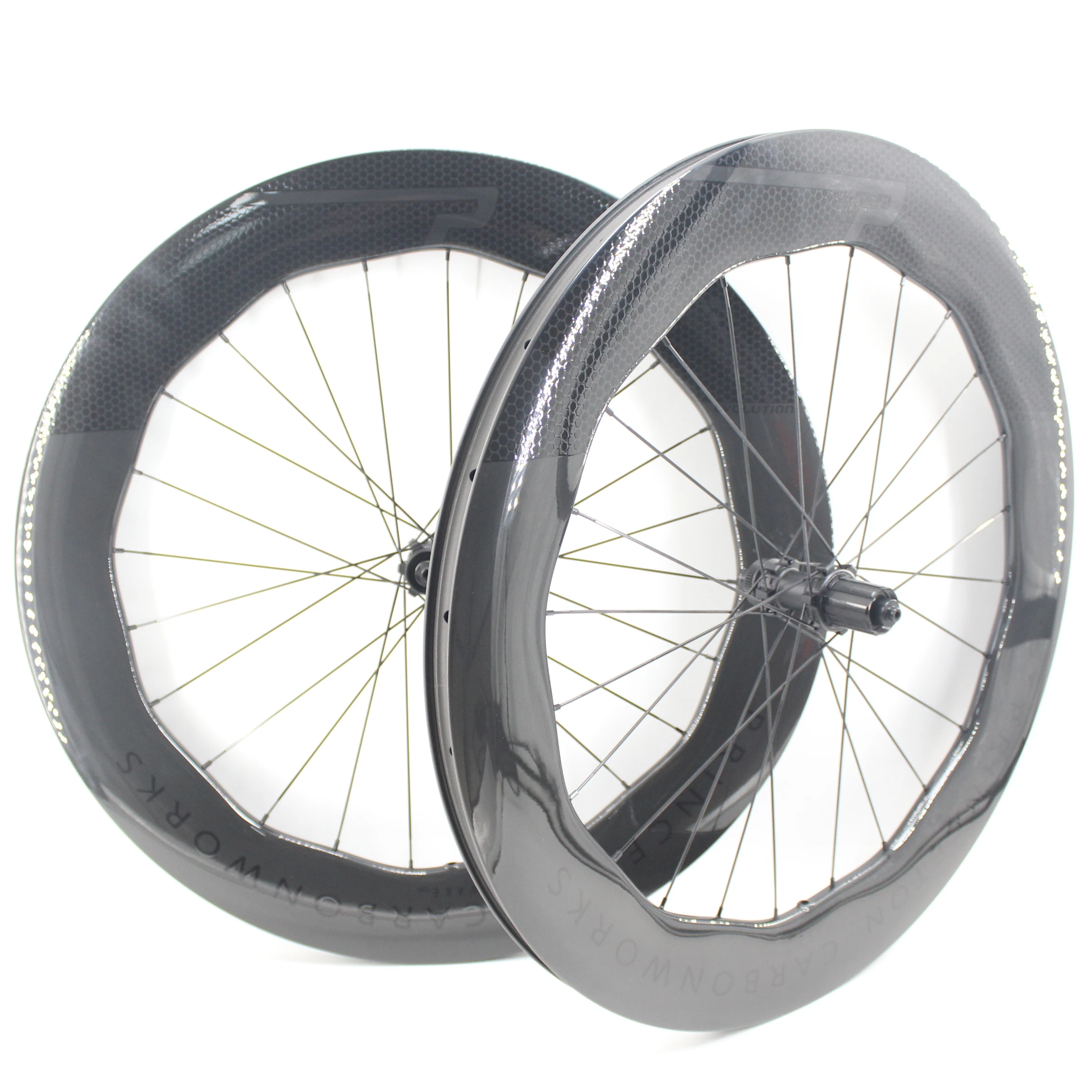

Black color Thru Axle center lock style gloss finish photo:

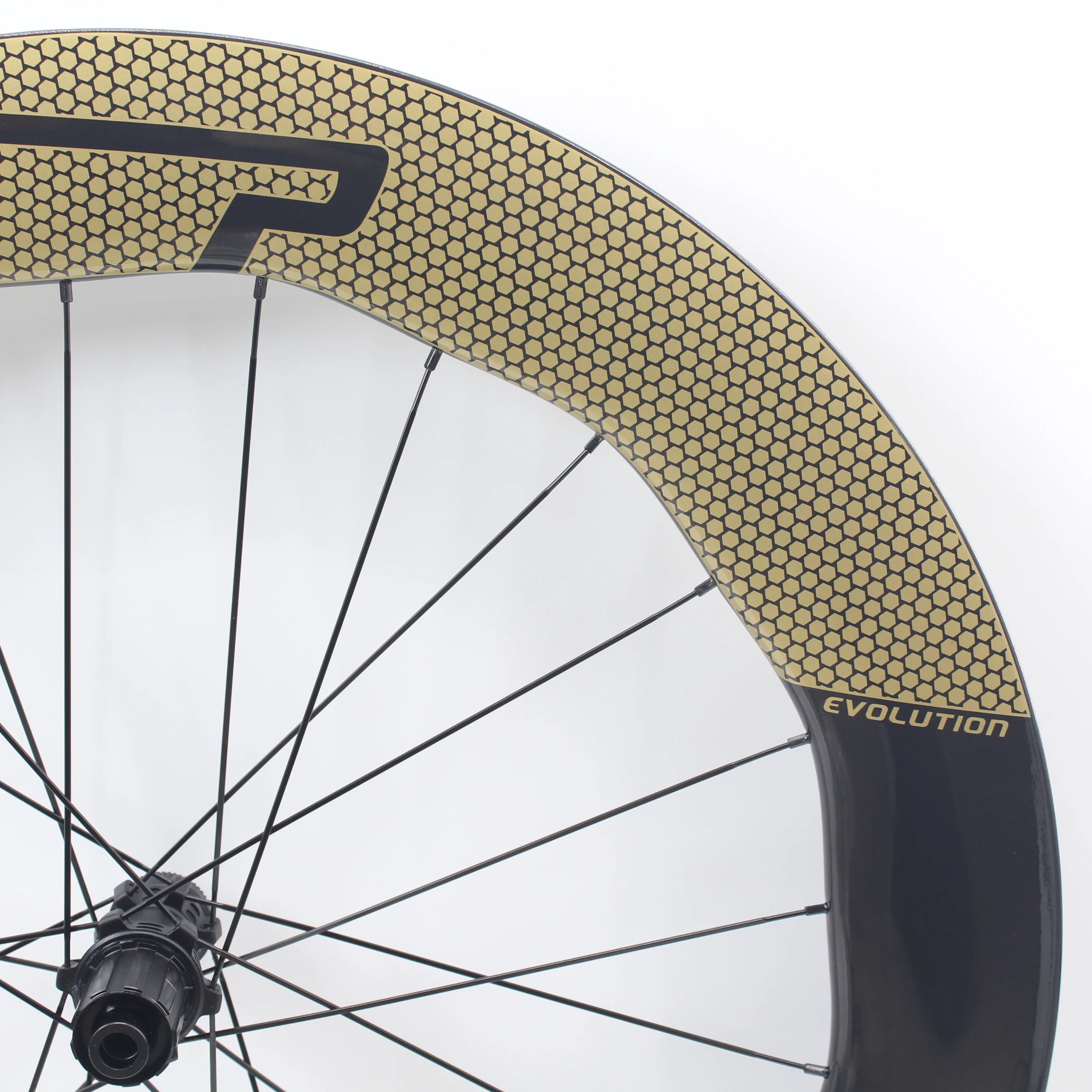

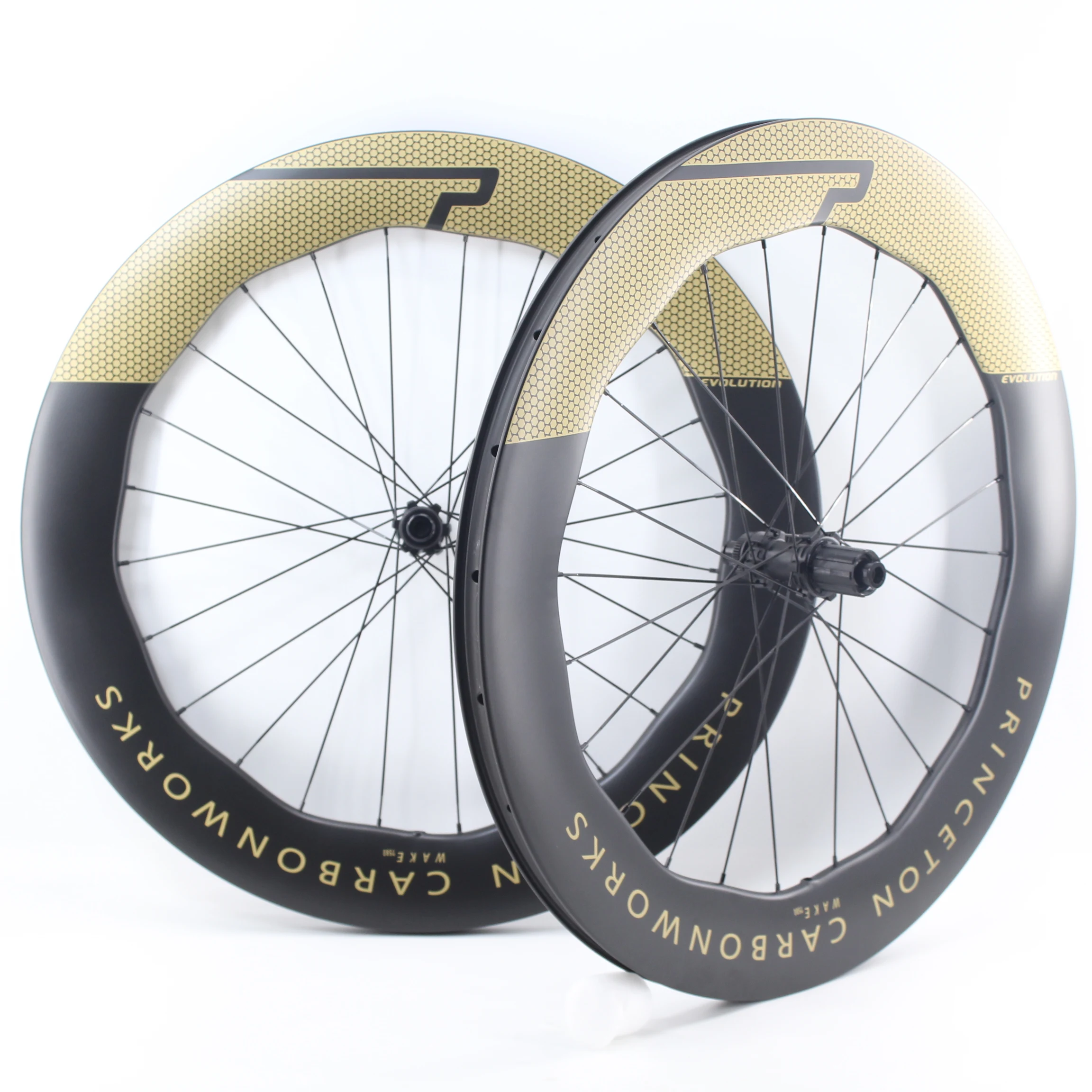

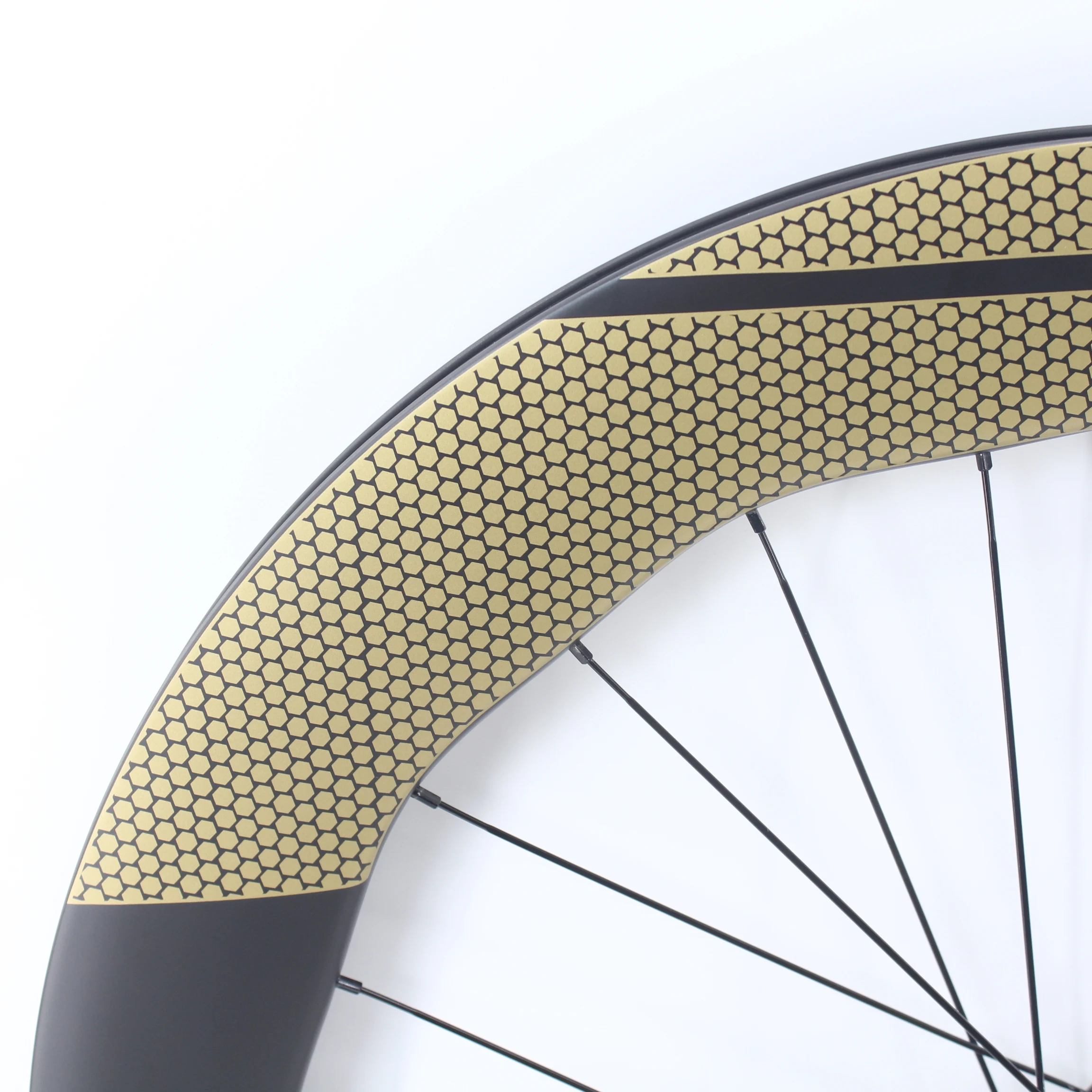

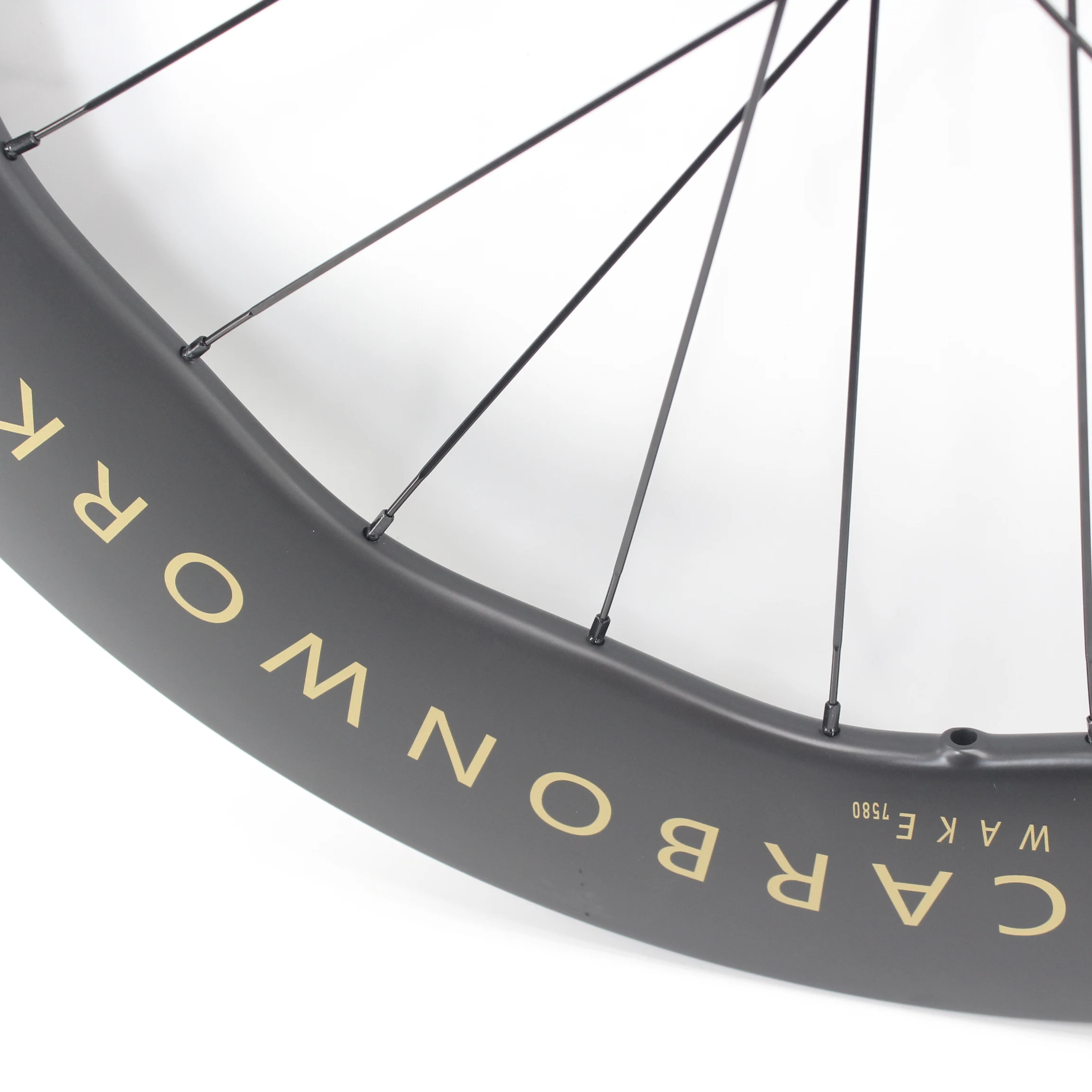

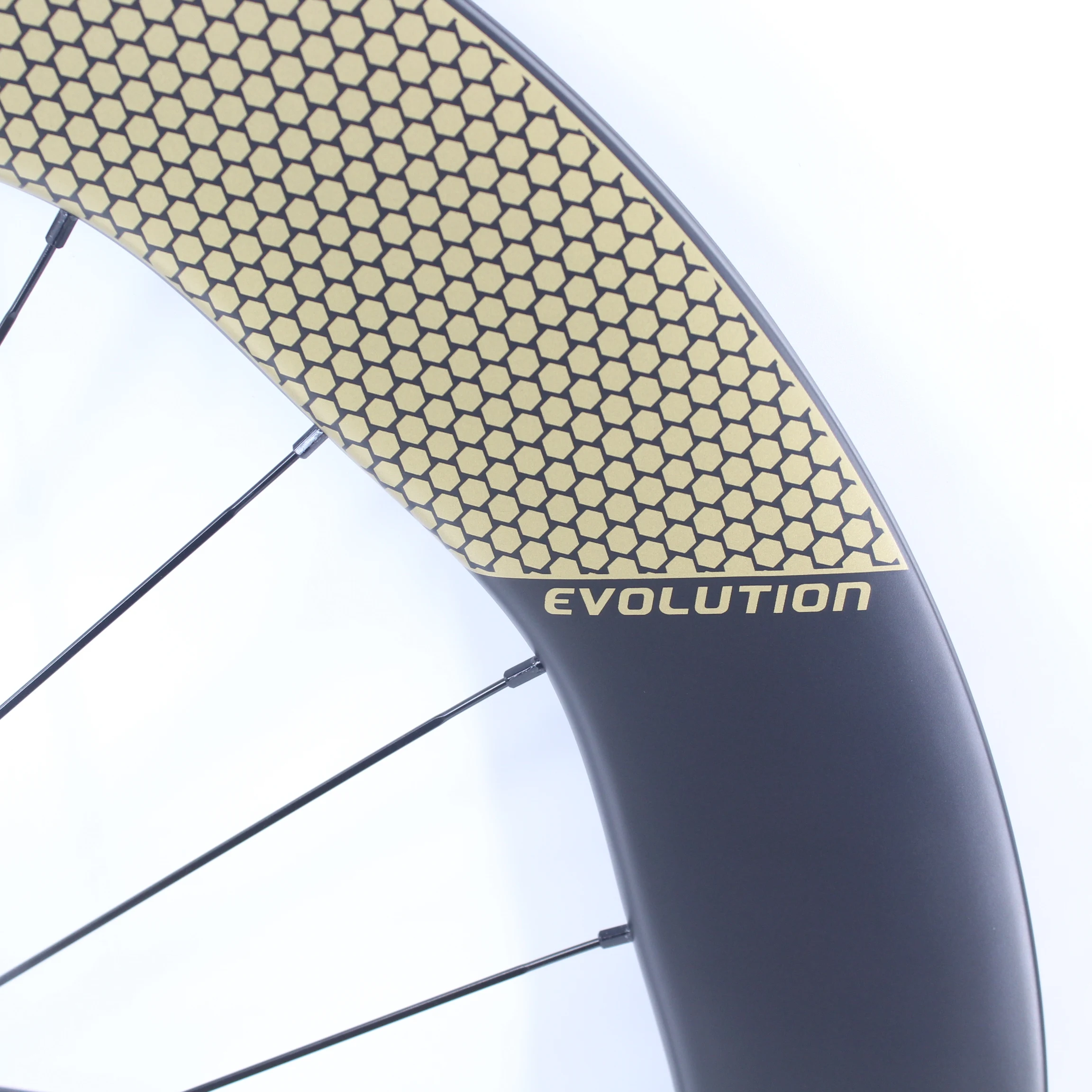

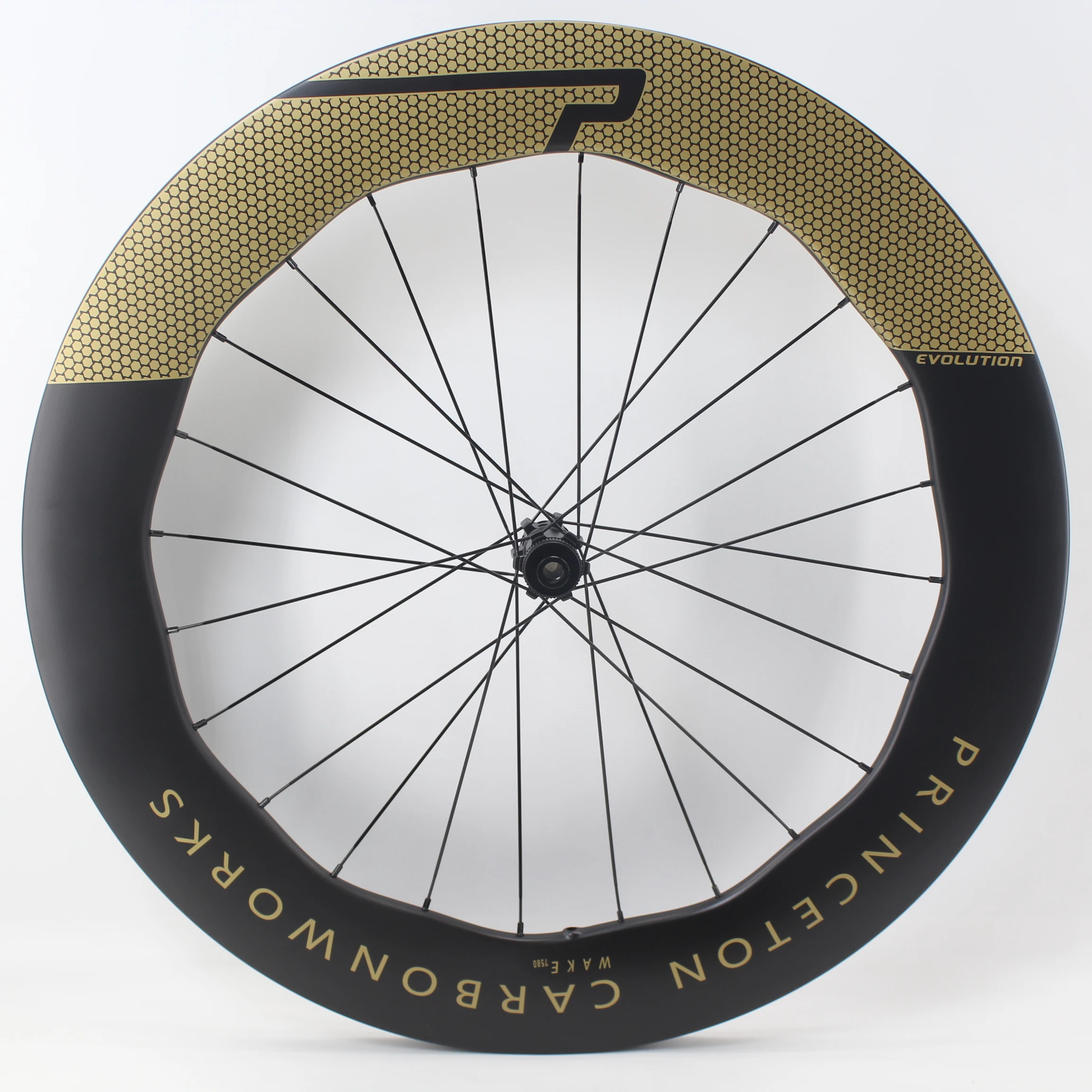

Gold color Thru Axle center lock style matt finish photo:

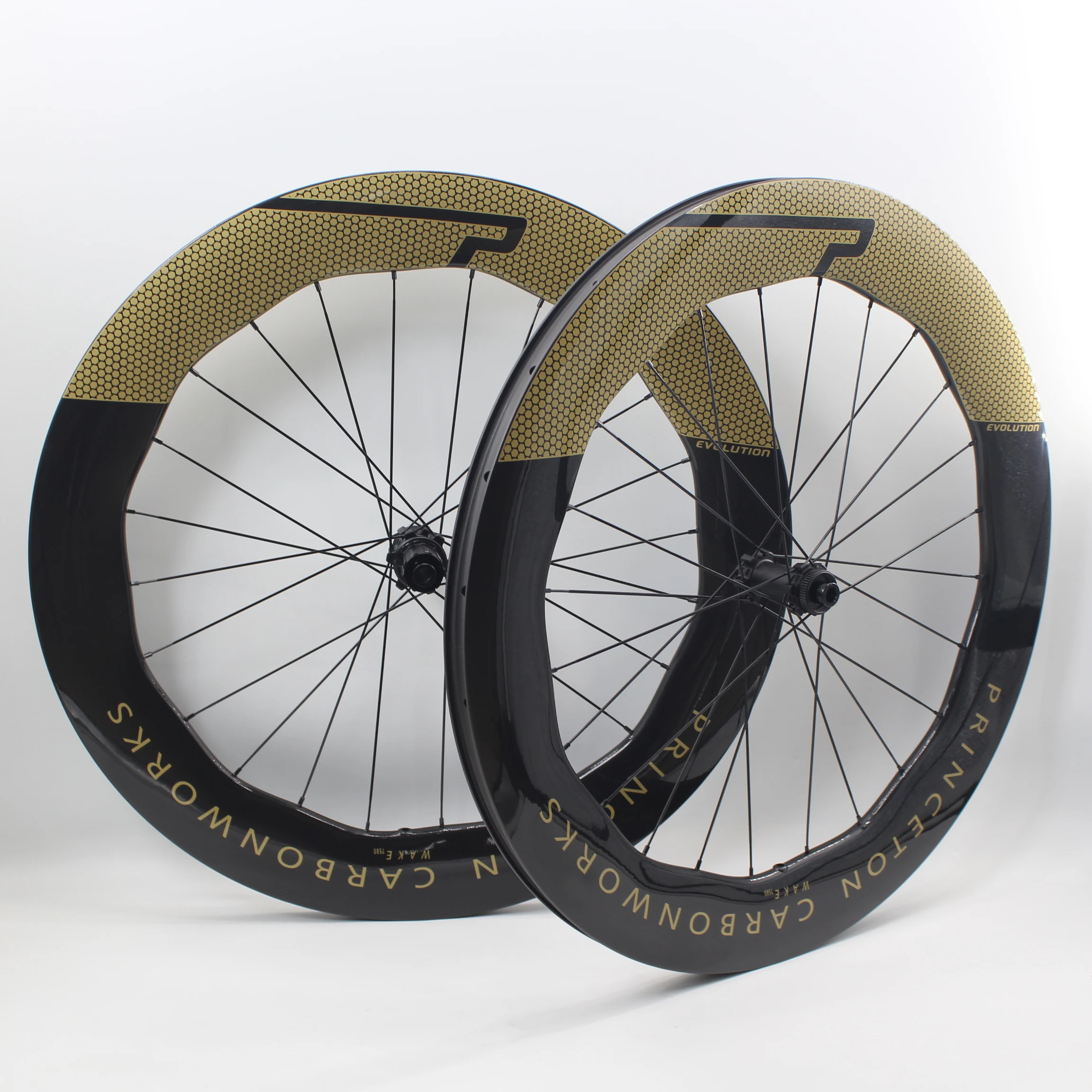

Gold color Thru Axle center lock style gloss finish photo:

no logo no Stickers Thru Axle six nails style gloss finish photo:

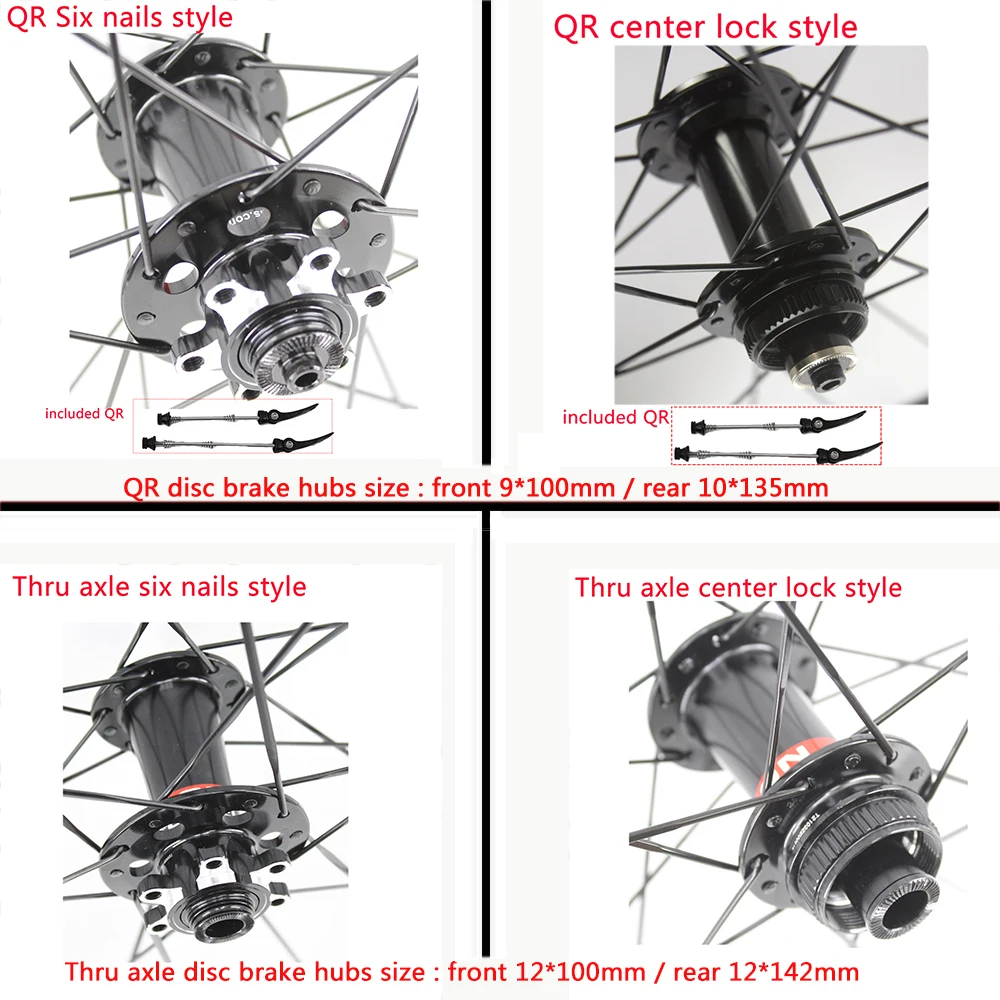

Thru Axle style and QR skewers style comparison chart:
DESCRIPTION & MATERIALS

  • Size: 700C

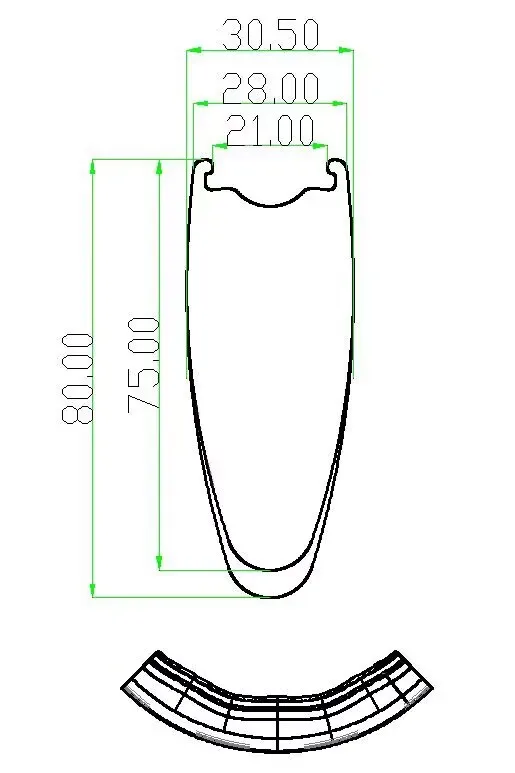

  • Model: 75/80mm wave shape clincher tubeless wheelset-disc brake

  • Rim width: 28mm

  • Finish: matt ; gloss (please choose your favorite finish)

  • Material: UD(Japan T1000 carbon fiber)

  • Color: white ; black ; silver ; gold ; blue ; red ; purple ; green ; no logo (please choose your favorite color)

  • Hole count: 24 spokes

  • 1pair wheelset(one front wheel and one rear wheel ,QR skewers style with skewers,Thru Axle style without skewers.)

  • include spokes(black color bladed spokes, Stainless steel material.)

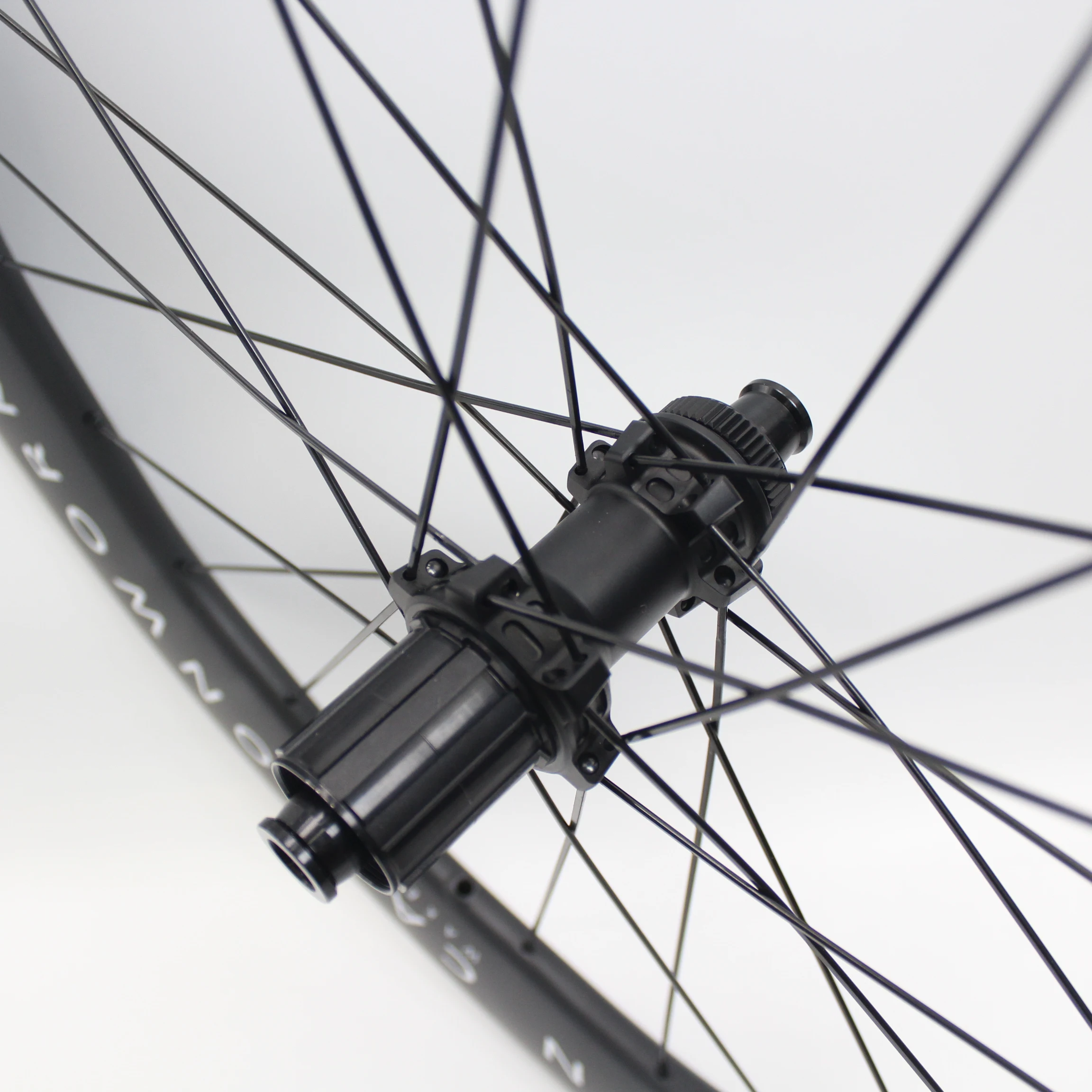

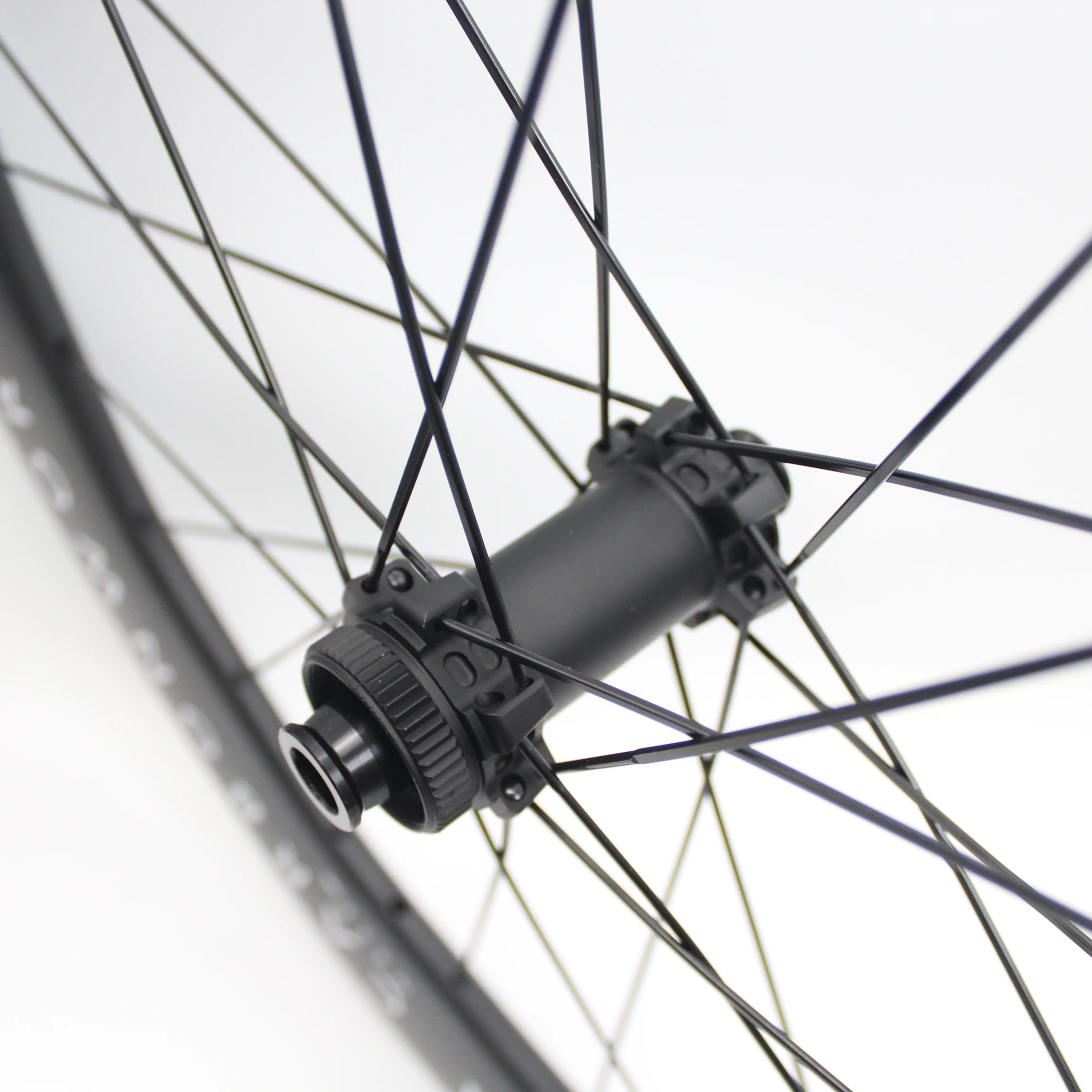

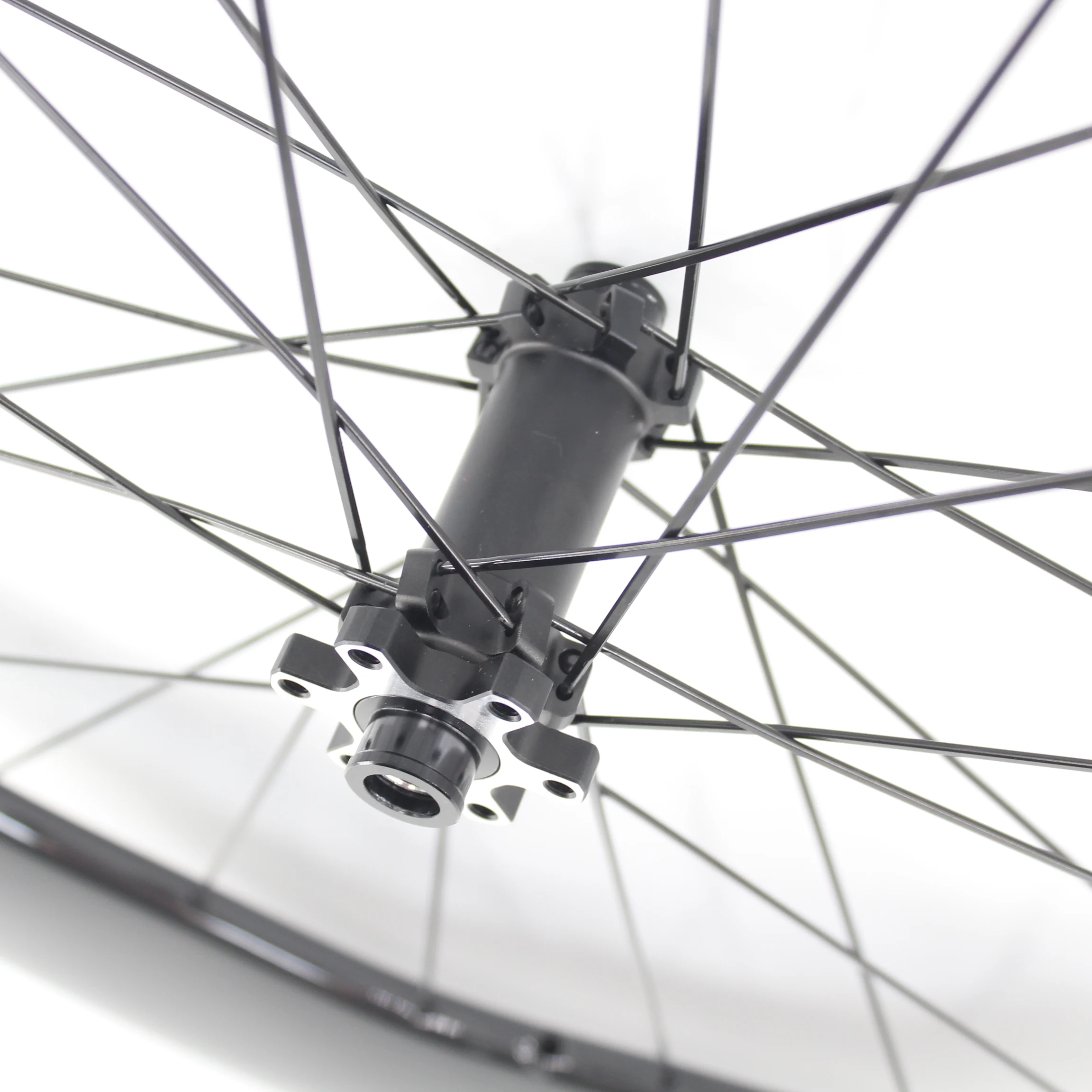

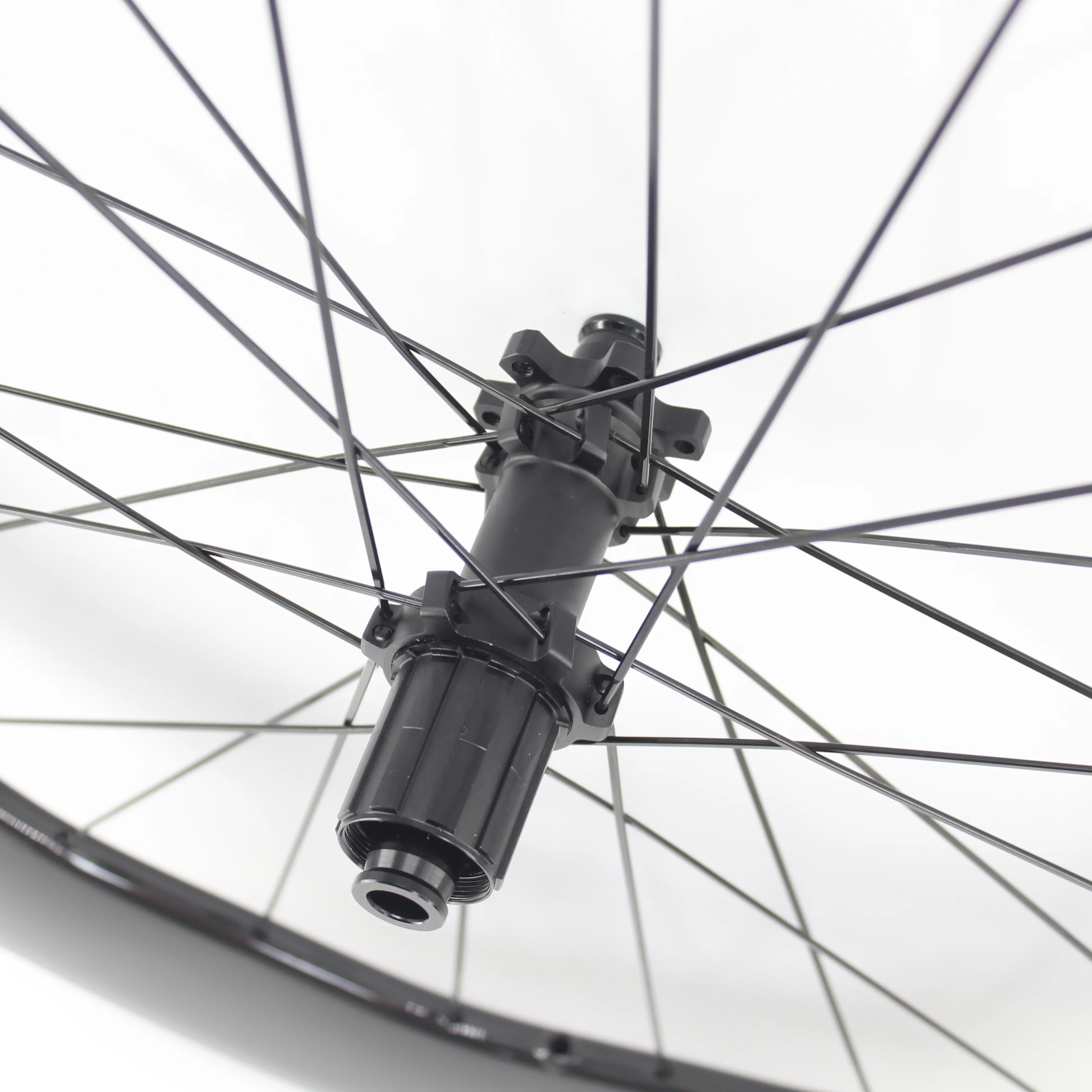

  • DK01 black Direct pull disc brake hubs(QR Skewers style or Thru Axle style, Center lock style or Six nail style ,please choose your favorite. can use for SHIMANO 8/9/10/11/12 speed freewheel, and can use for SRAM 8/9/10/11 speed freewheel.)

  • Skewers style hubs is front 9mm*100mm ,rear 10mm*135mm ; Thru Axle style hubs is front 12mm*100mm ,rear 12mm*142mm

  • Suitable for disc brake ,center lock style or six nails style support.

  • Default without brake surface

  • Bike Type: Cyclocross Travel Gravel Bike

Important parameters of the wheelset:

  Max recommend rider weight: 150KG

  Max recommend tyre pressure: clincher-120PSI ; tubular-220PSI

  Rim outer diameter: approx 633mm

  Front wheel spokes tension: approx 80-100kg

  Rear wheel spokes tension: approx 80-100 / 100-120kg

  Flatness and Yaw: <0.2mm

  Roundness: <0.5mm
