Features:
1. Ultra-Portable Design: Lightweight pocket-sized body is easy to carry, perfect for outdoor bashing, track racing and indoor RC entertainment.
2. 2.4-inch HD Color Screen: 2.4-inch high-brightness color screen supports full professional parameter adjustment with clear visibility even under direct sunlight.
3. Ultra-Low Latency & Stable Long-Range Control: 3ms ultra-fast response delivers precise and smooth control; industrial-grade anti-interference technology ensures stable 600-meter long-distance operation with adjustable 3/4/14ms servo speed and 270° servo compatibility.
4. 8CH Full-Proportional Tuning: 8 full-proportional channels support comprehensive function tuning, compatible with all RC vehicles including touring cars, off-road buggies, crawlers and engineering cars, with 30-model storage and 4 programmable mix controls.
5. Long Battery Life: Built-in 2500mAh battery provides up to 12-hour continuous runtime; real-time battery status display and fast charging support convenient on-track power topping up.
6. Smart Voice Broadcast & Skill Simulation Mode: Customizable real-time voice alerts for battery, signal and working status keep you focused; integrated simulator supports offline practice and online multiplayer races to improve driving skills.
7. Dual Trainer Modes: Wired and wireless dual trainer modes enable flexible teaching for beginners and parent-child use; universal Type-C cable supports charging, PPM output, simulator connection and firmware upgrade.
8. One-Key Adjustable Sensitivity: Easy one-key dual rate switching adapts control sensitivity for different skill levels, ideal for both professional players and family entertainment.
9. Waterproof Gyro Receiver: IPX4 splash-proof R8FG gyro receiver supports HV servos, adjustable gyro sensitivity, real-time RSSI and voltage telemetry, and SBUS output.
Description:
Description:

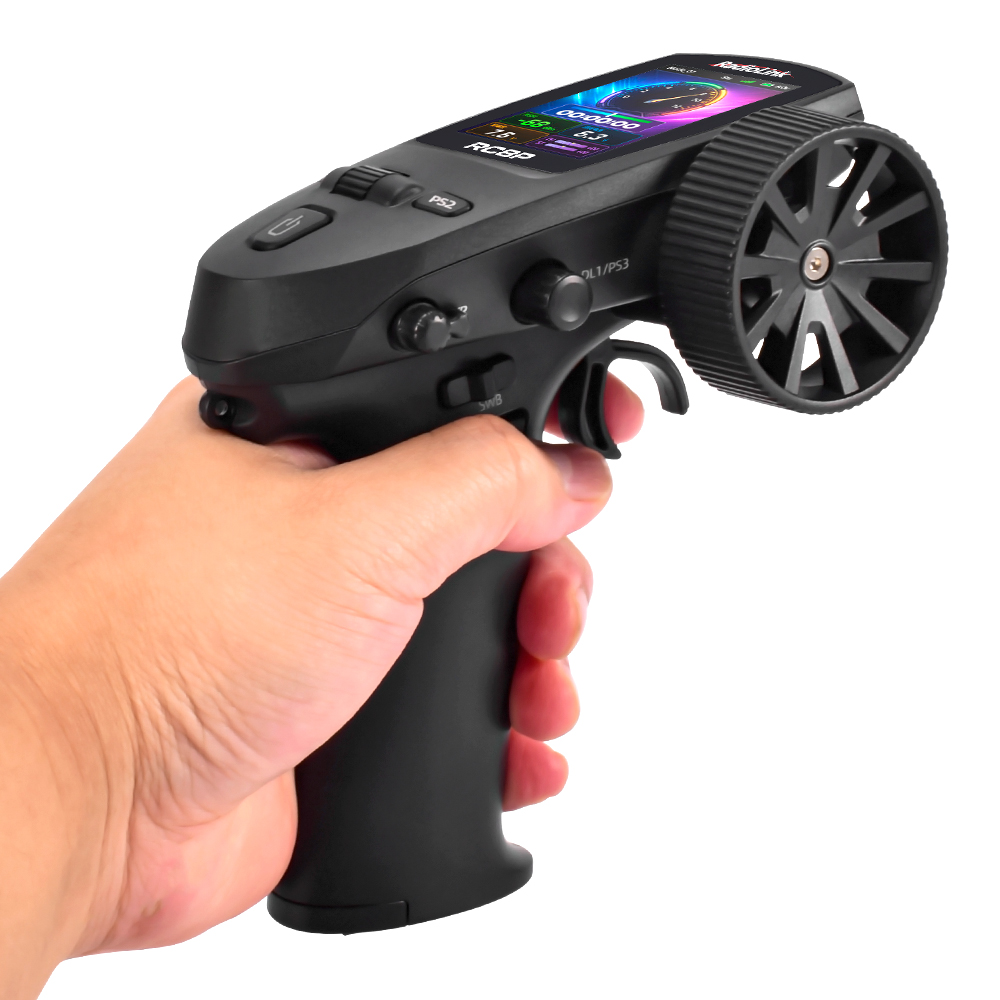

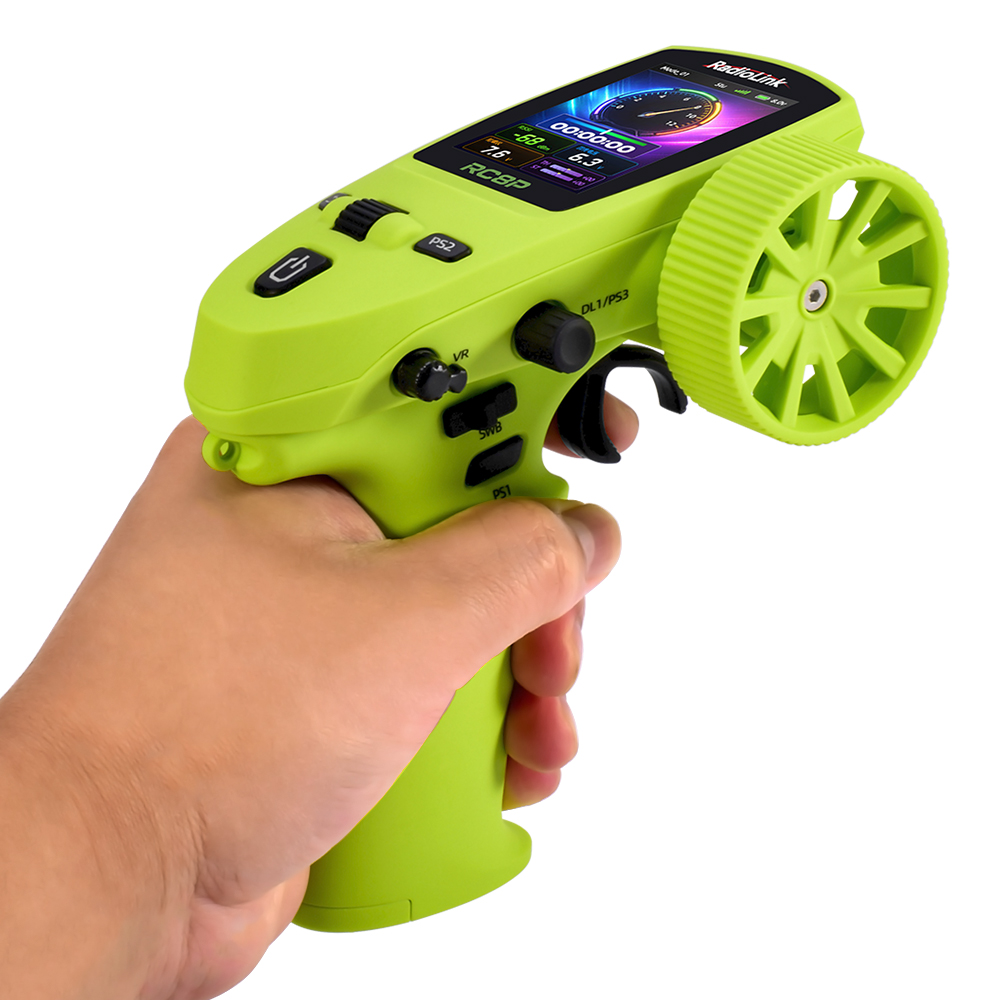

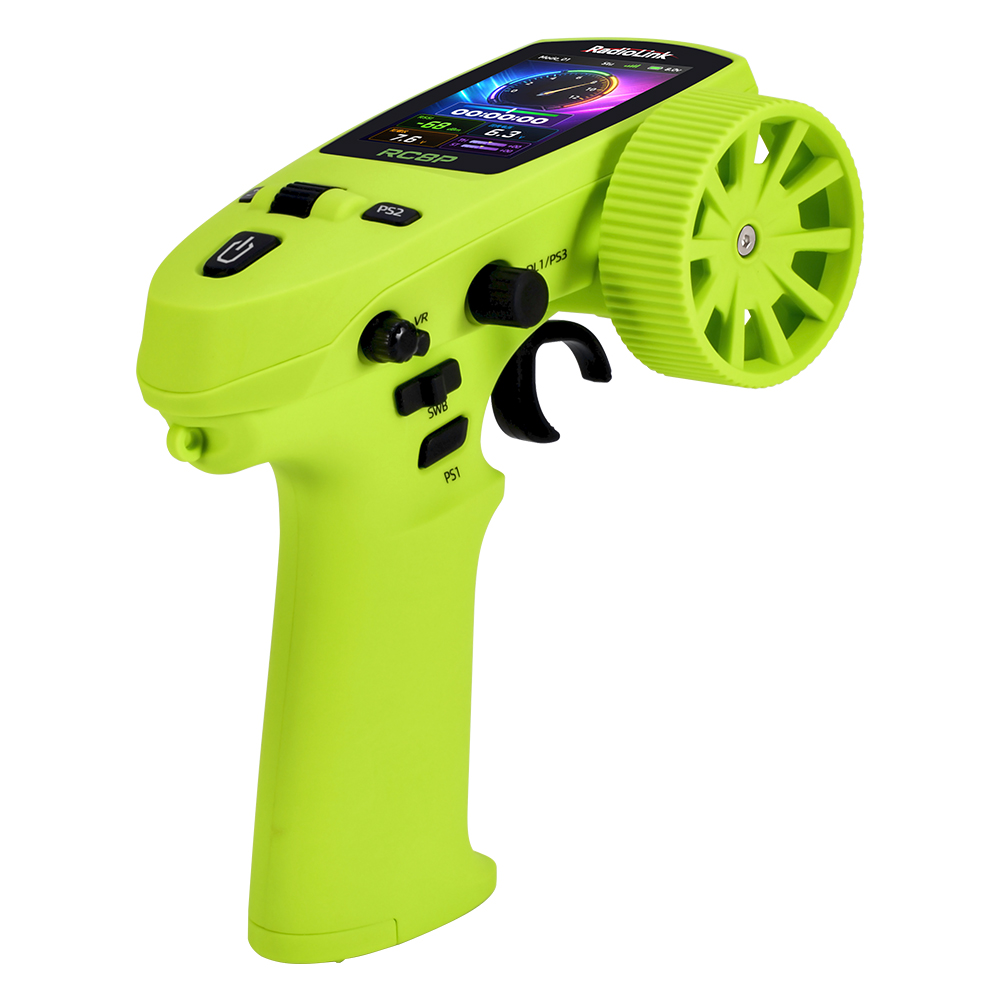

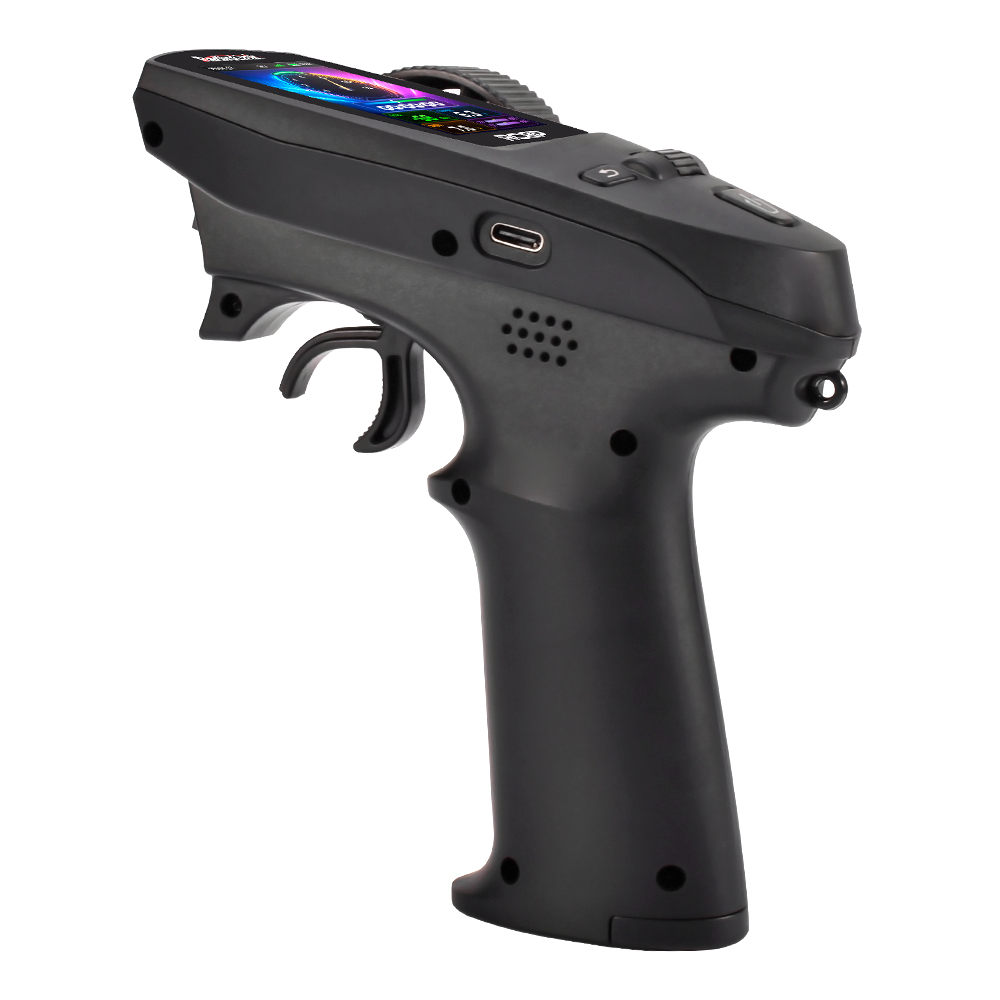

Lightweight RC8P 8-channel radio transmitter with 3ms low latency, 600m anti-interference range, built-in battery, color screen, voice prompts, simulator, dual trainer modes and an IPX4 gyro telemetry receiver for all RC vehicles.
RC8P Radio Specifications:

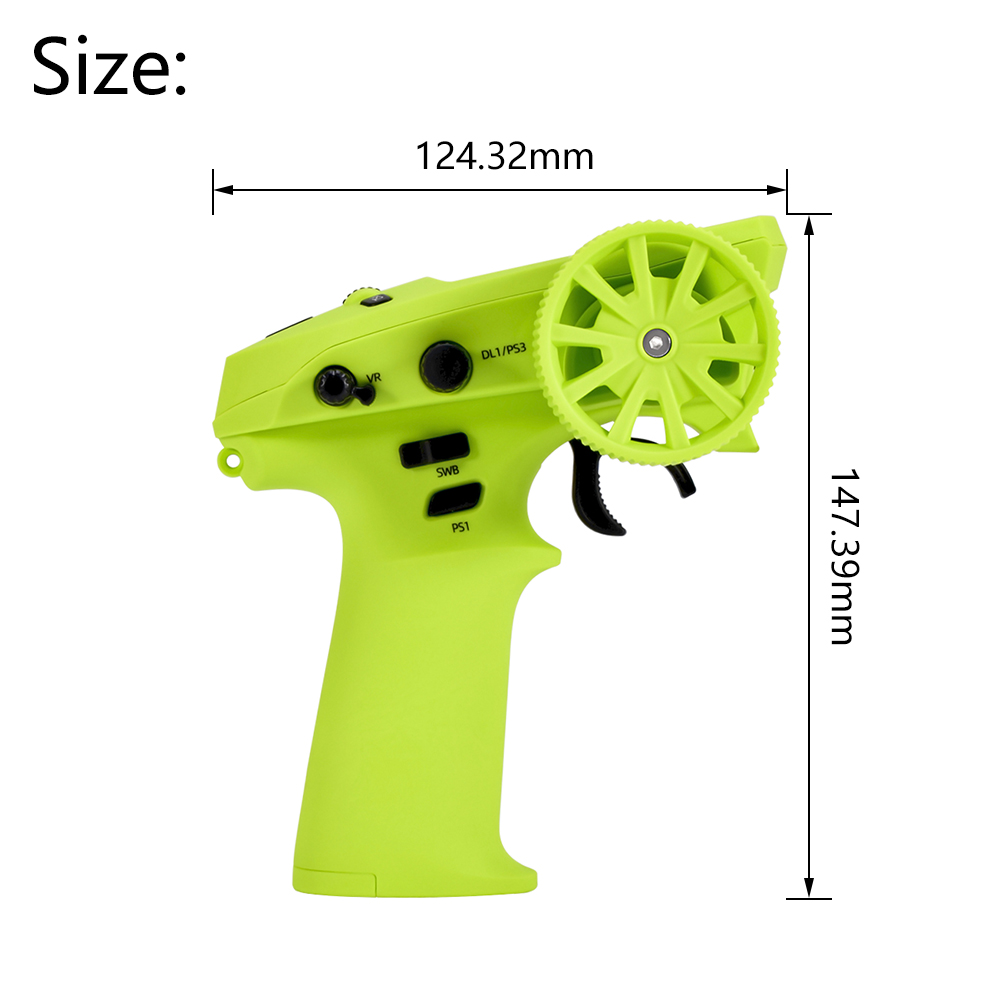

Dimension: 124.32*147.39mm(4.89"*5.8")
Channels: 8CH (The switches of all 8 channels can be customized)
Output Frequency: 2.4GHz ISMband(2400MHz~2483.5MHz)
Spread Spectrum: FHSS 67 channels pseudo-random frequency hopping
Operating Systems: FreeRTOS+LVGL GUI
Voice Broadcast: Support
Response Latency: 3ms, 4ms, 14ms can be selected
Channel Resolution: 4096 with regular jitter of 0.25us
Modulation Mode: GFSK
Transmitter Power: <100mW(20dBm)
Adjacent Channel Rejection: >36dBm
Transmission Rate: 38kbps
Reception Sensitivity: -104dBm
PWM Output Range: 875-2125
Operating Voltage: 3.4V~4.2V
Operating Current: 230mA(±15mA)@4.2V DC
Control Distance: 600 meters
Applicable Model Types: Car (Including Crawlers, Drag Racing Cars, Tanks, Caterpillars), Boat,Robot
Signal Support: PWM&SBUS&PPM
Trainer Function Signal: PPM
Storage Model Quantity: 30
Sub ID Models Quantity: 16
Simulator Function: built-in simulator
Trainer Function: Supports

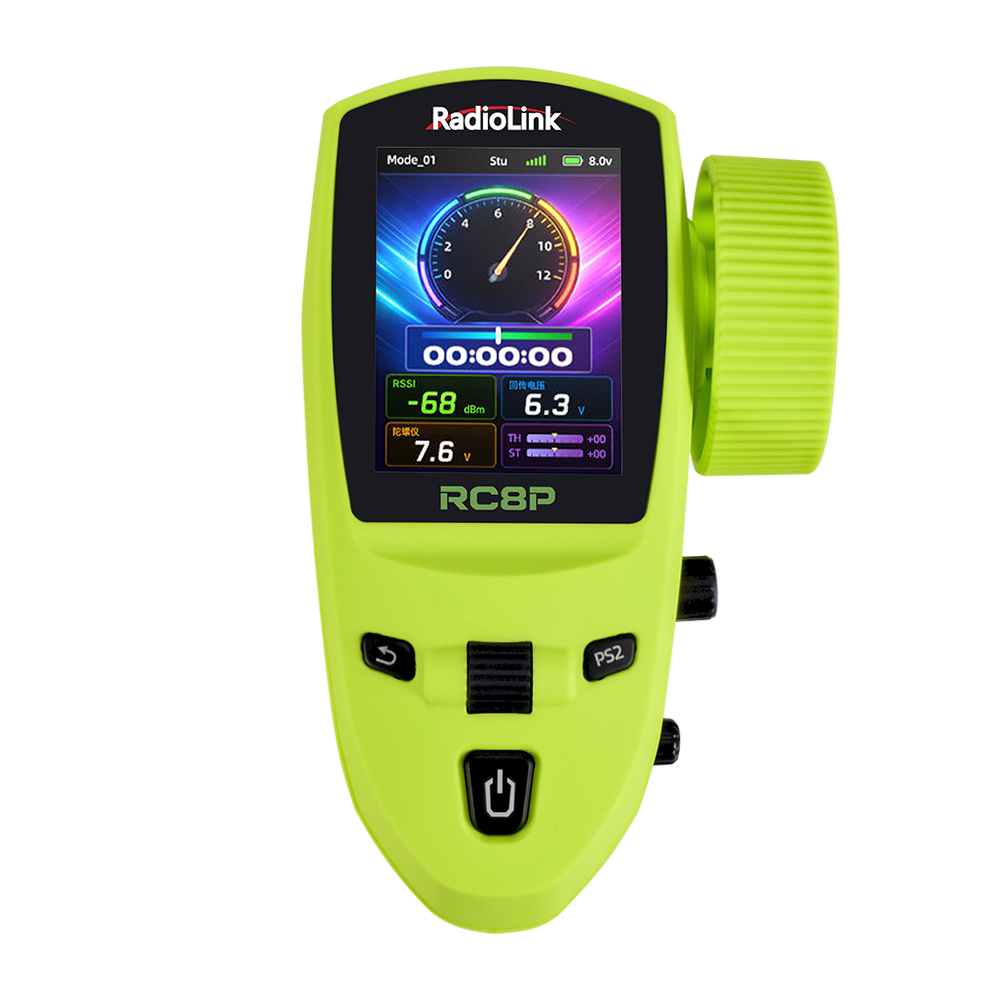

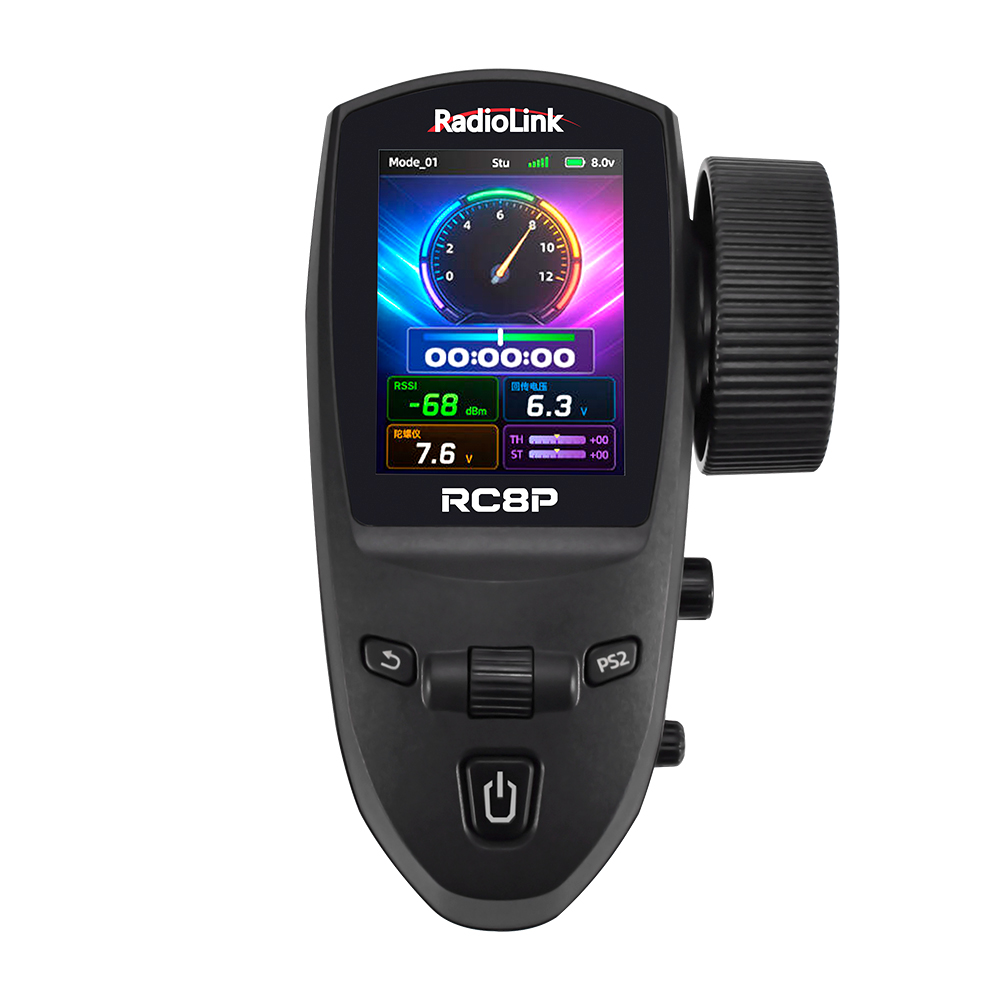

Screen: 2.4 inches, 16 colorful screens, 320*240 pixels
Compatible Receivers: R8FG,R16F,R16SM, R12F, R8FGH, R8EF, R8FM, RBSM, R8XM, R7FG,R6FG,R6F,R4FGM
R8FG Receiver Specifications:
Dimensions: 35*24*13.5mm
Weight:10.5g
Channel: 8 channels
Signals: SBUS+PWM
Operating Voltage: 3-12V
Operating Current: 35mA(5V)
Frequencies Band: 2.4GHz ISM band(2400MHz~2483.5MHz)
Spread Spectrum Mode: FHSS, 67 channels pseudo-random frequency hopping
Section Precision: 4096, 0.25us per section
Telemetry: Real-time built-in telemetry of the model battery voltage, RSSI, and receiver voltage
Gyro: with gyro
Water Splash Proof: IPX4
Applicable Model Types: Car (Including Crawlers, Tanks, Caterpillars), Boat, Robot
Response Latency: 3ms, 4ms, and 14ms can be selected
Control Distance: 600 meters
Compatible transmitter: RC8X, RC8P, RC6GS V3, RC4GS V3,RC6GS V2,RC4GS V2,RC6GS, RC4GS;T16D,T12D, T12S,T8FB,T8S

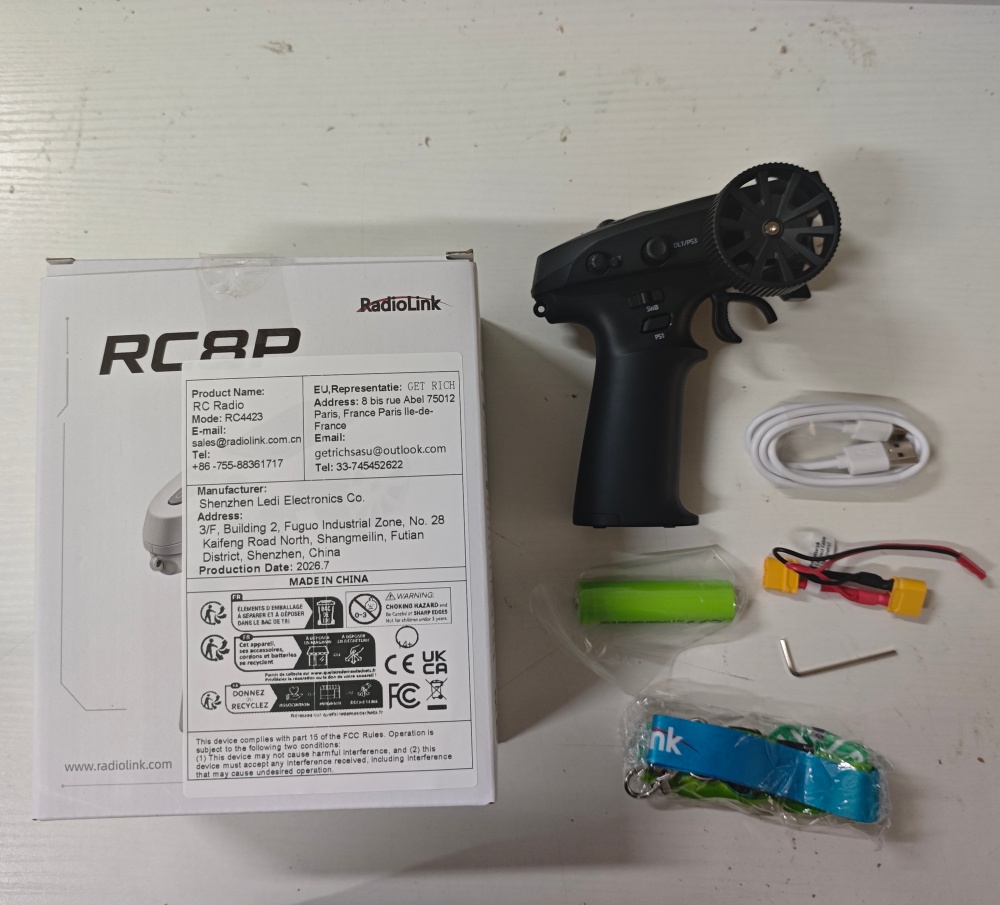

Package contents:
1* Transmitter(RC8P)
1* Receiver(R8FG)

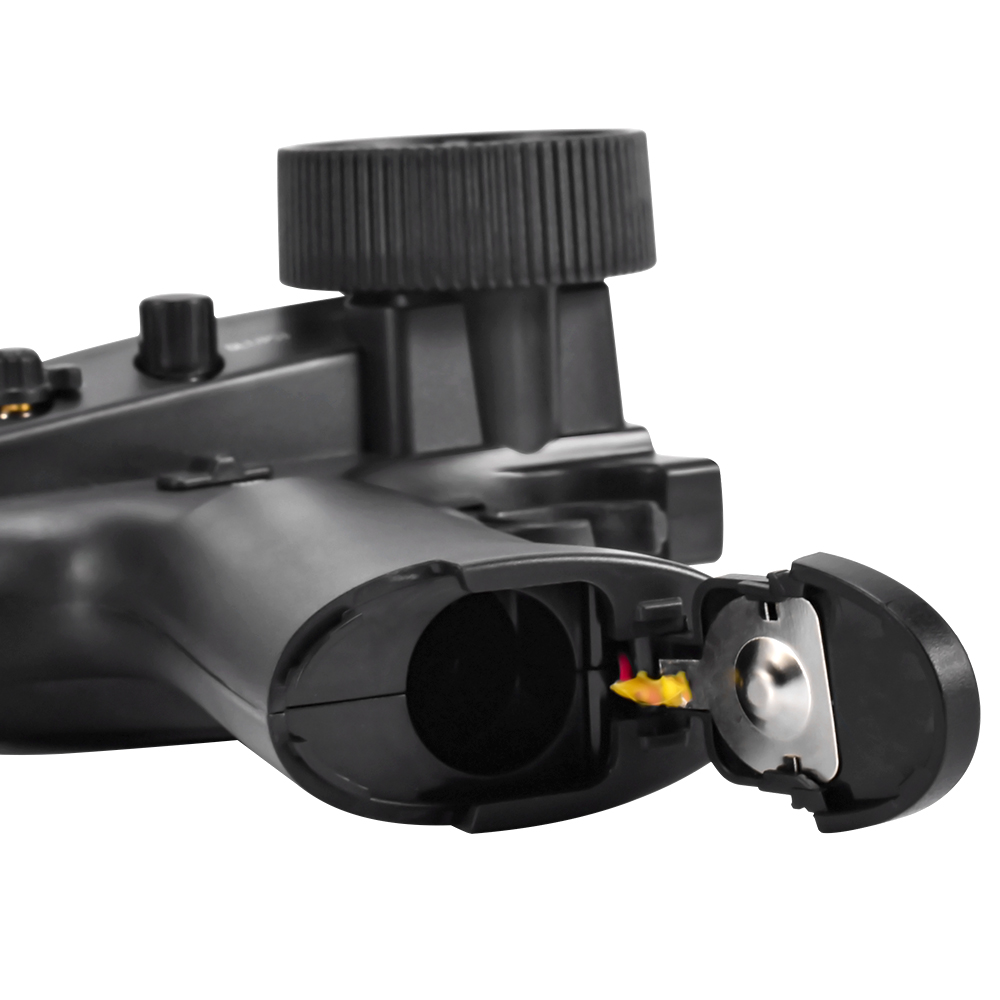

1* Battery
1* EXT Connect Cable(for R8FG)
1* Type-C Cable(for Upgrade&Charge)
1* Lanyard
1* Hex wrench(2.0mm)
1* User Manu
