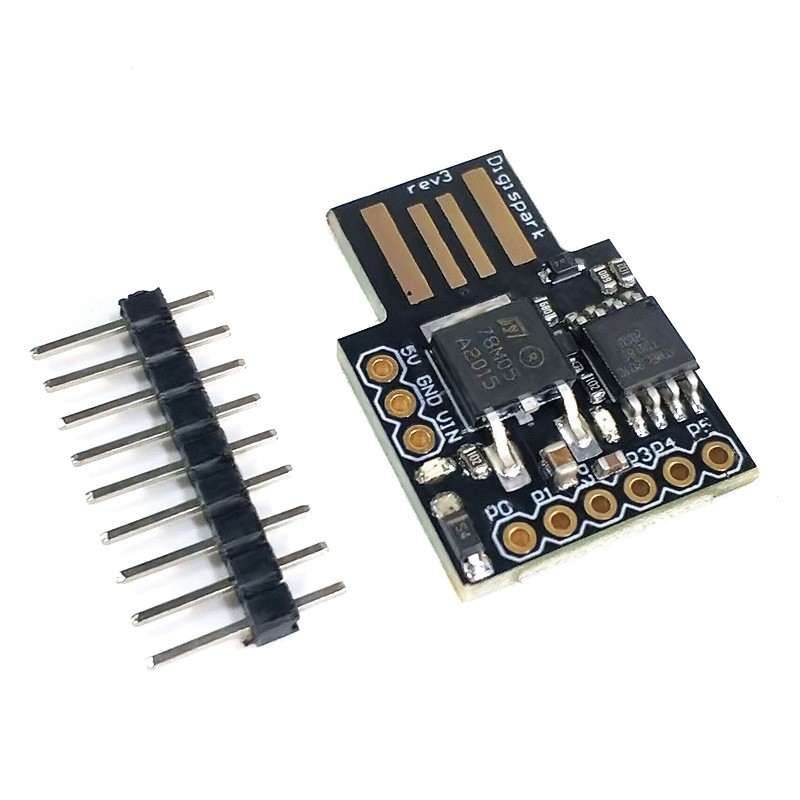

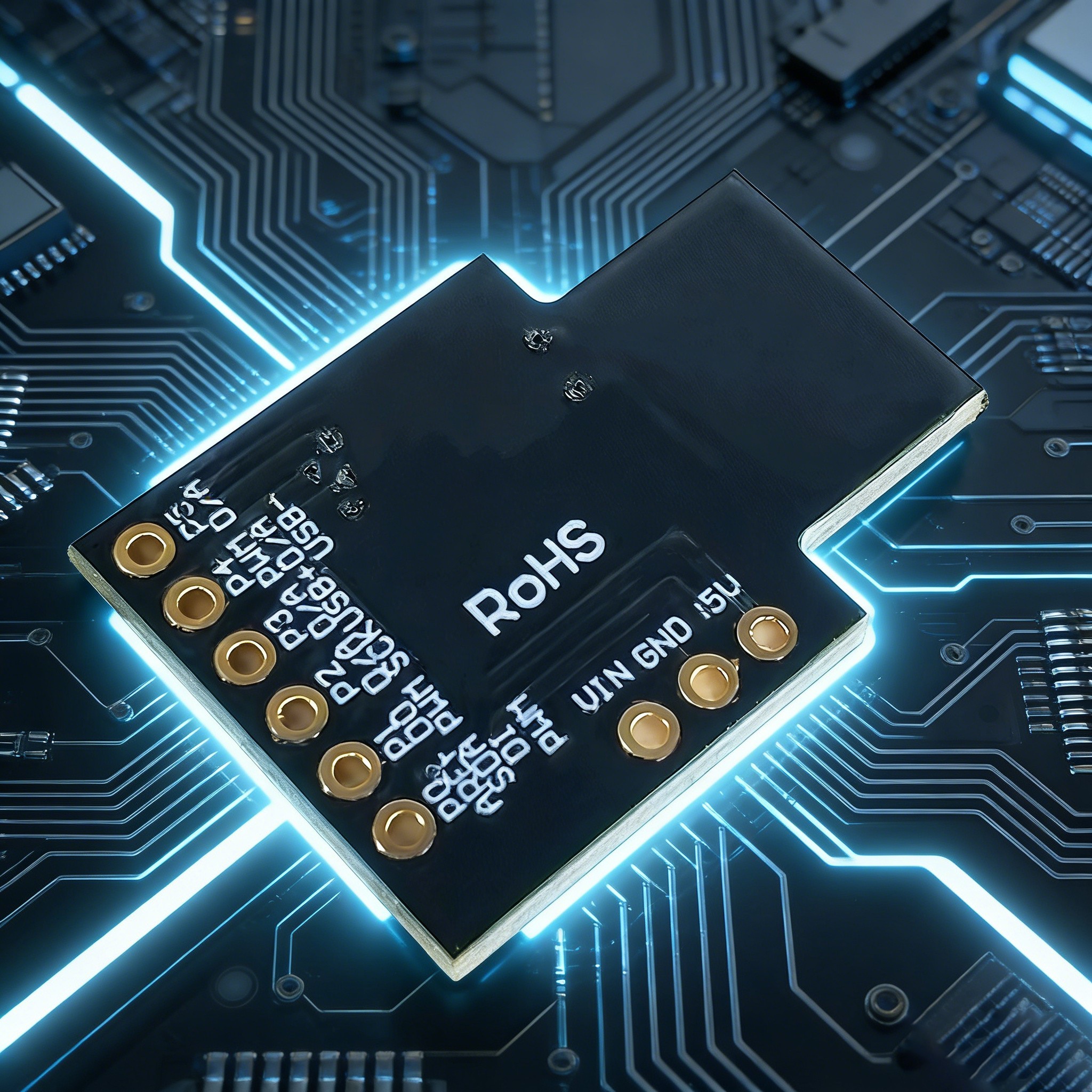

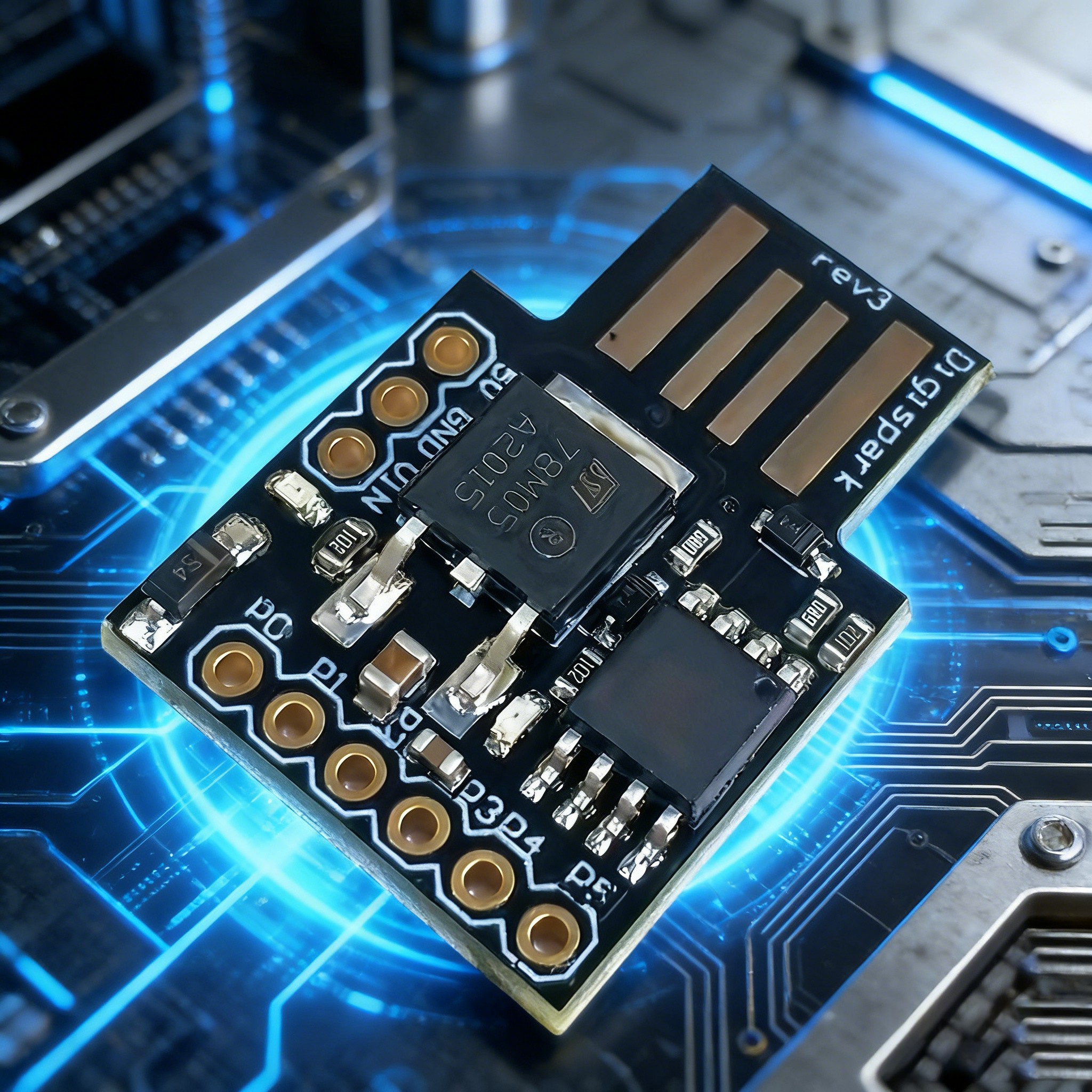

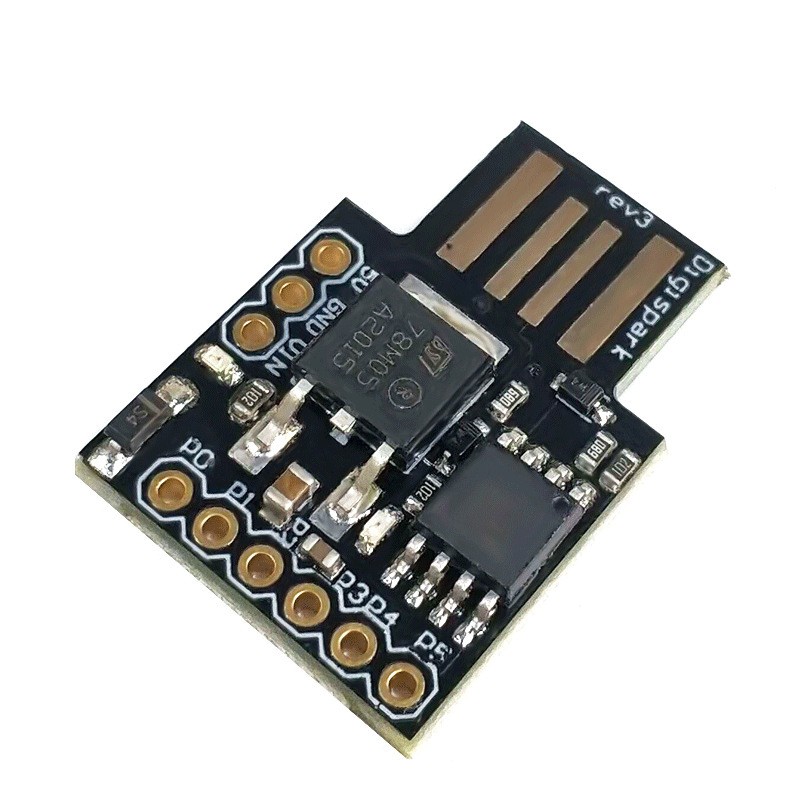

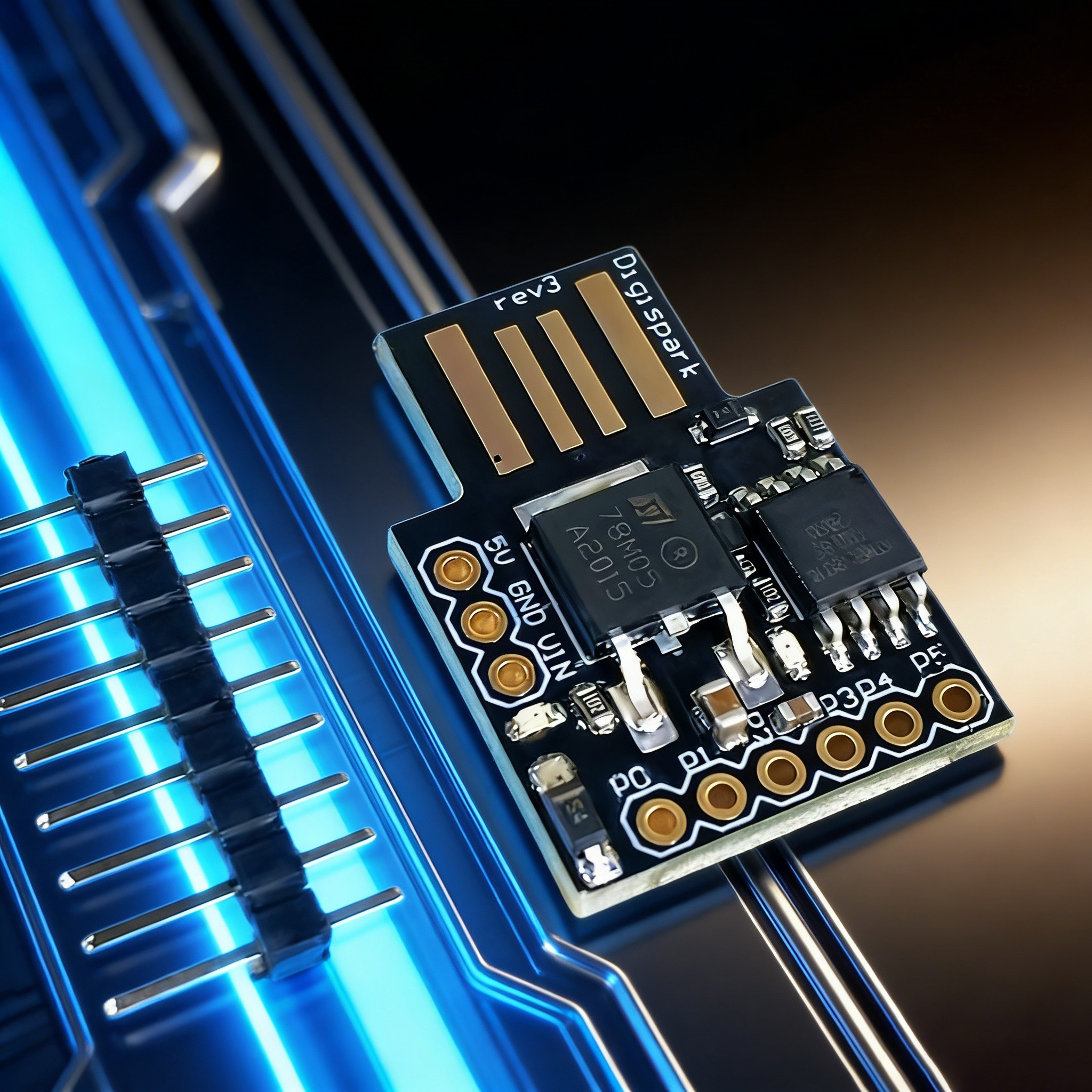

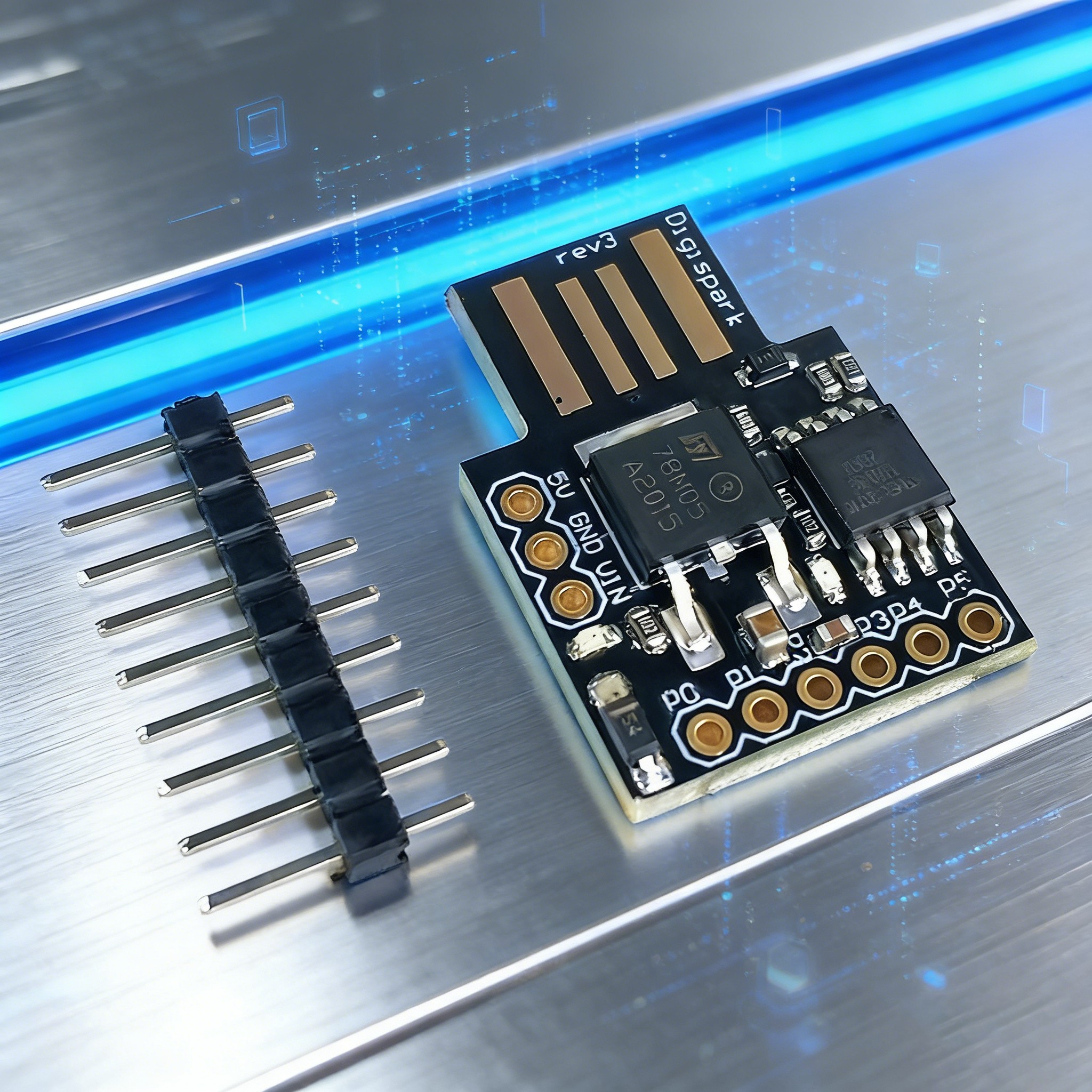

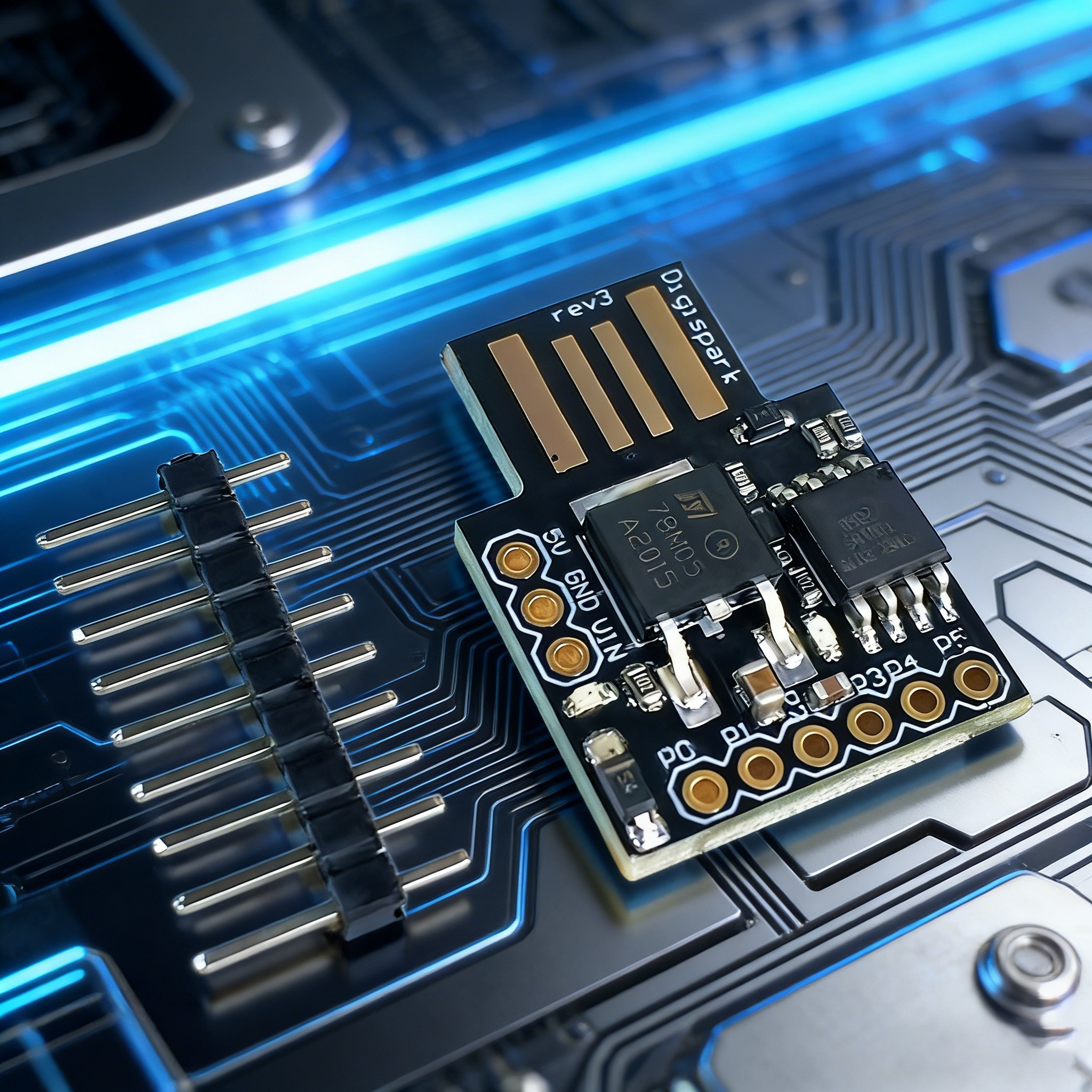

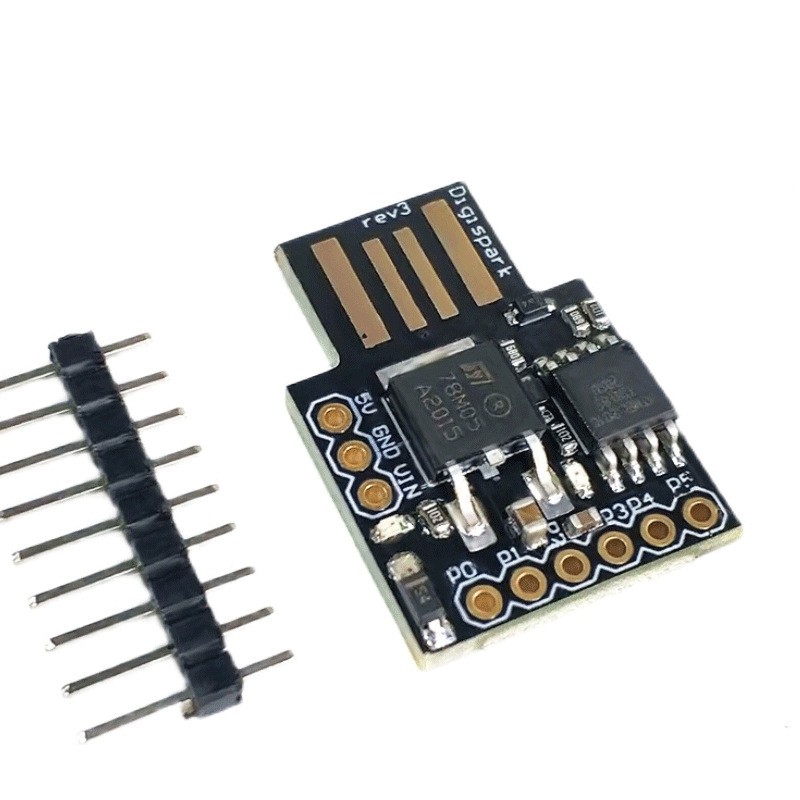

Black For ATTINY85 Dev Board with For MINI USB Port 5V Regulator and 6 I/O Pins
DESCRIPTION

Features:

*USB Interface: Features a  FOR MINI  USB for port for easy connection and programming with  FOR ARDUINO  IDE 1.0+ on various operating systems.

* for Versatile Power Options: Supports power supply via USB or external 5V-35V for Source with automatic voltage selection for flexible usage.

*Multiple I/O Pins: Offers 6 configurable I/O pins, including  FOR PWM  and for ADC capabilities for diverse project requirements.

*Compact Design: Built with an  FOR ATTINY85  microcontroller in a space-saving factor ideal for portable and embedded applications.

*Onboard Regulator: Includes a 500mA 5V regulator for stable power delivery to connected components during operation.


Specifications:

*Product Name:Development board

*Material:PBC

*Color:Black

*Size:As shown

Support for Arduino IDE 1.0+ (For OSX/ For Win/ For Linux)

Power via USB or External for Source - 5v or 7-35v (automatic selection)

On-board 500ma 5V Regulator

Built-in USB (and serial debugging)

6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)

8k for Flash Memory (about for 6k after bootloader)

I2C and for SPI (USI)

For PWM on 3 pins (more possible with Software for PWM)

for ADC on 4 pins

Power LED and Test/Status LED (on Pin0)




Package Content:

1*Development board



Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your and light brightness.
2. Please allow slight manual measurement deviation for the data.
