Feature:

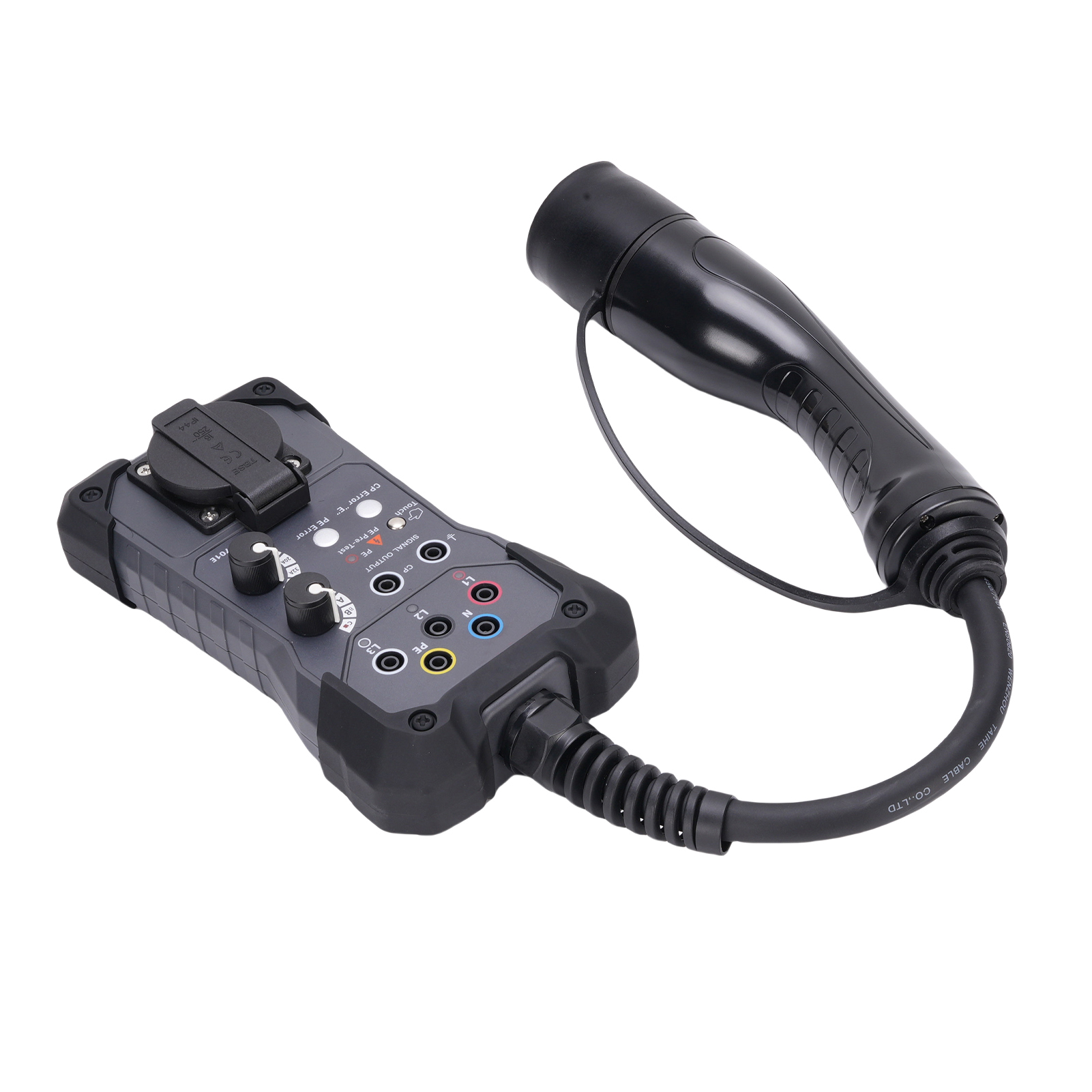

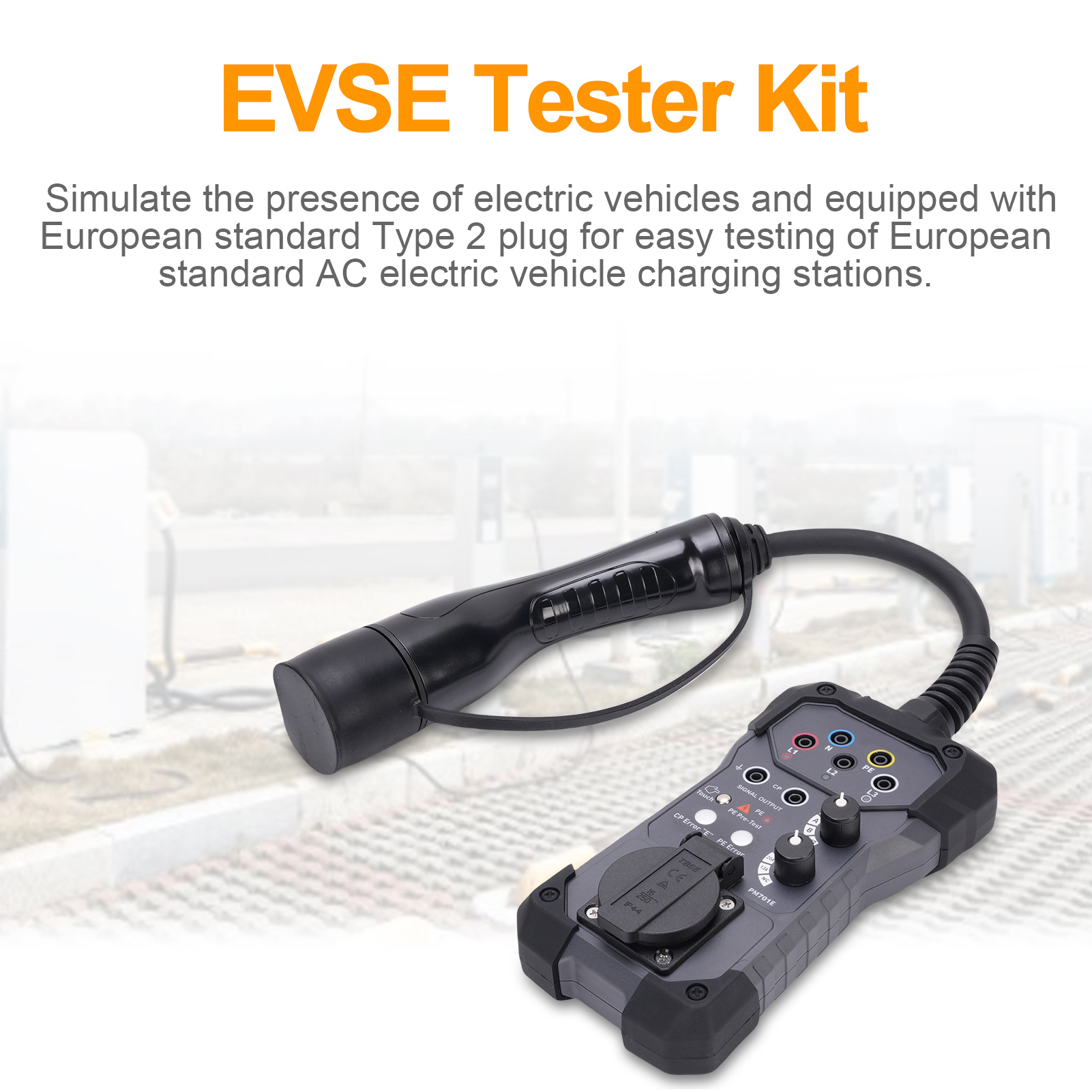

1. EVSE Tester Kit: Simulate the presence of electric vehicles and equipped with European standard Type 2 plug for easy testing of European standard AC electric vehicle charging stations.

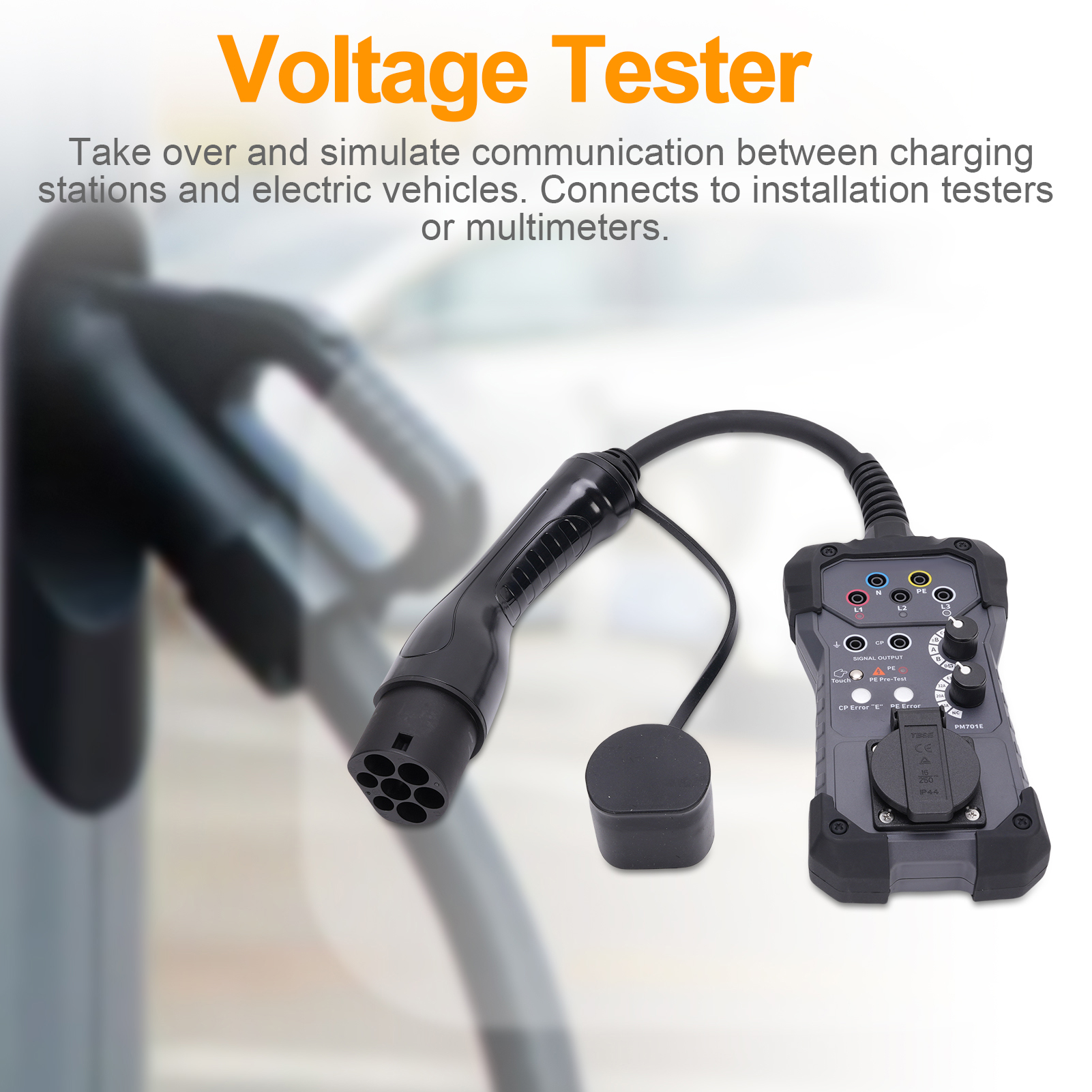

2. Voltage Tester: Take over and simulate communication between charging stations and electric vehicles. Connects to installation testers or multimeters.
3. Universal 4mm Socket: Compatible with testers, multimeters, and oscilloscopes for checking load voltage and CP signal output.
4. LED Indicator: Built-in LED lights indicate the presence of phases. Each phase can be individually checked.

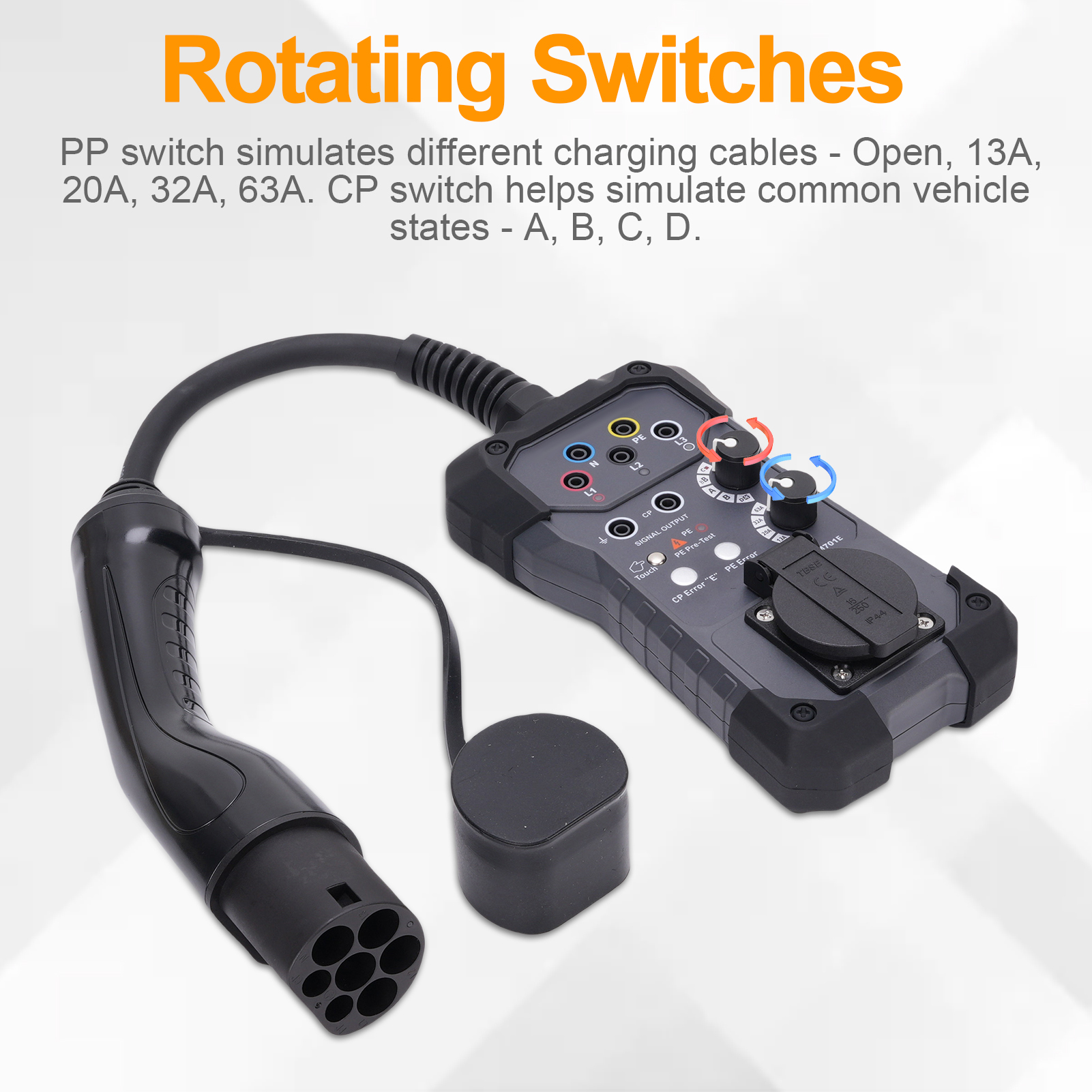

5. Rotating Switches: PP switch simulates different charging cables - Open, 13A, 20A, 32A, 63A. CP switch helps simulate common vehicle states - A, B, C, D.
Specification:
Frequency: 50/60Hz
Current: 10A

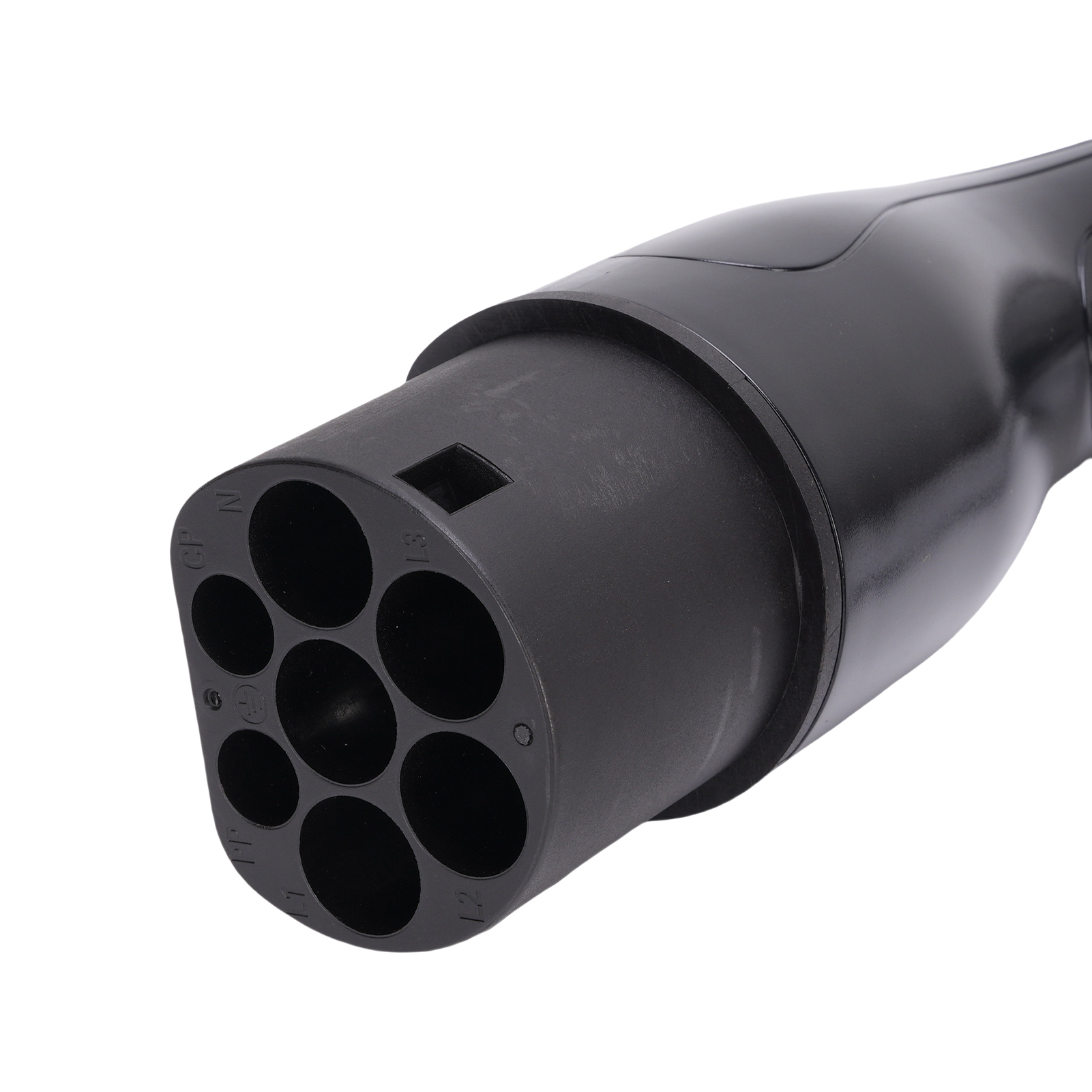

Type 2 Testing Cable: AC Charging Mode 3, suitable for IEC62196-2 Type 2 socket or fixed cable with vehicle connector (Type 2, 7 pole, three-phase)
Measurement Category: IEC/EN 61851-1/IEC/HD, 60364-7-722, 600VCATII
Protection Grade: IP54
Package List:
1 * Tester

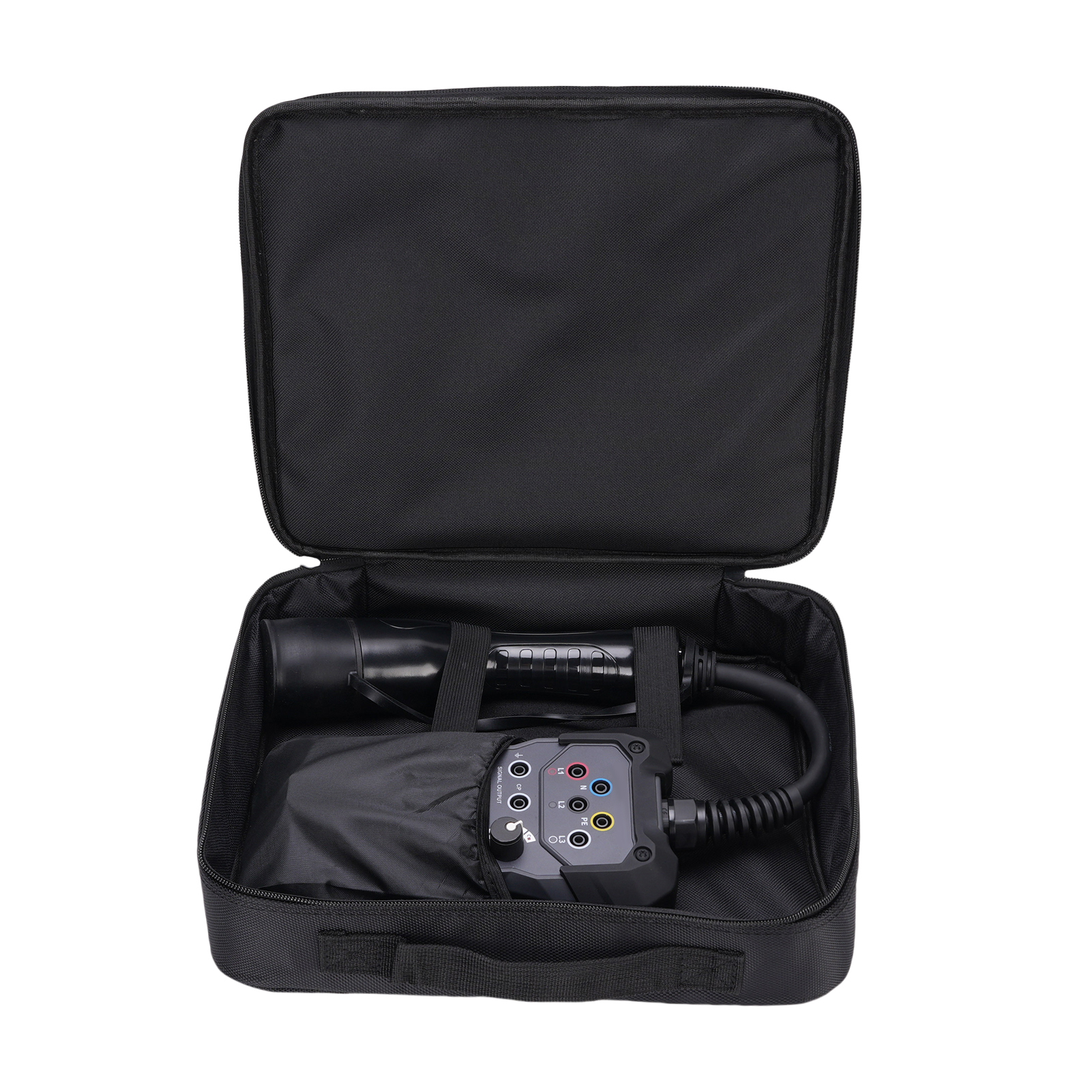

1 * EVA Case
1 * User Manual
