Options: 1) Select Adapter Thickness: 25mm Thick ×2 · 2) Select Adapter Thickness: 32mm Thick ×2 Fitment: Acura:
  • NSX 91-05
  • Legend 91-95
IMPORTANT FITMENT NOTICE: Before Install: ? for stud-and-nut hubs - the adapter fastens with the open nuts shipped on its studs ? wheel adapter with built-in studs, not a spacer - a spacer has no studs of its own ? hub side t? eBay's chart confirms thread pitch only ? unsure? Message us and we'll verify fitment before you buy.
ESPLUS
Precision wheel hardware
Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current eBay message supportApplication context stays together
Lug Nuts
Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts
Lug Bolts
Ball Seat Lug Bolts Cone Seat Lug Bolts
Wheel Locks
Locker Lug Nuts Locker Lug Bolts
Wheel Spacers
Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts
Wheel Adapters
5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter
Precision wheel hardware · Fitment-first specification

Dual Drilled Wheel Adapters

Same Bolt PatternBuilt-In StudsPre-Installed Hub NutsSelect Adapter Thickness
Two Hub Patterns Cut Into One Input Face - 25mm To 51mm Thickness Available - Open Nuts Ship On The Studs

[2] Wheel Adapters 5x4.5" for 91-05 Acura NSX Legend

Direct-fit upgrade for Acura owners ? confirm your exact year and model in the compatibility chart below before ordering. Built-In Studs, Bolts To The Hub Pre-Installed Nuts For The Hub Side Reuse Your Factory Lug Nuts Wider Track, Better Stance Same Bolt Pattern, Wheel Side
Fitment-first engineering [2] Wheel Adapters 5x4.5
01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph.
02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering.
03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement.
Variant Options

One listing. Many builds.

Pick the option that matches your setup ? each one is a complete sub-product with its own gallery and tech spec.

Option 01

Select Adapter Thickness: 25mm Thick

×2 PCS/Set

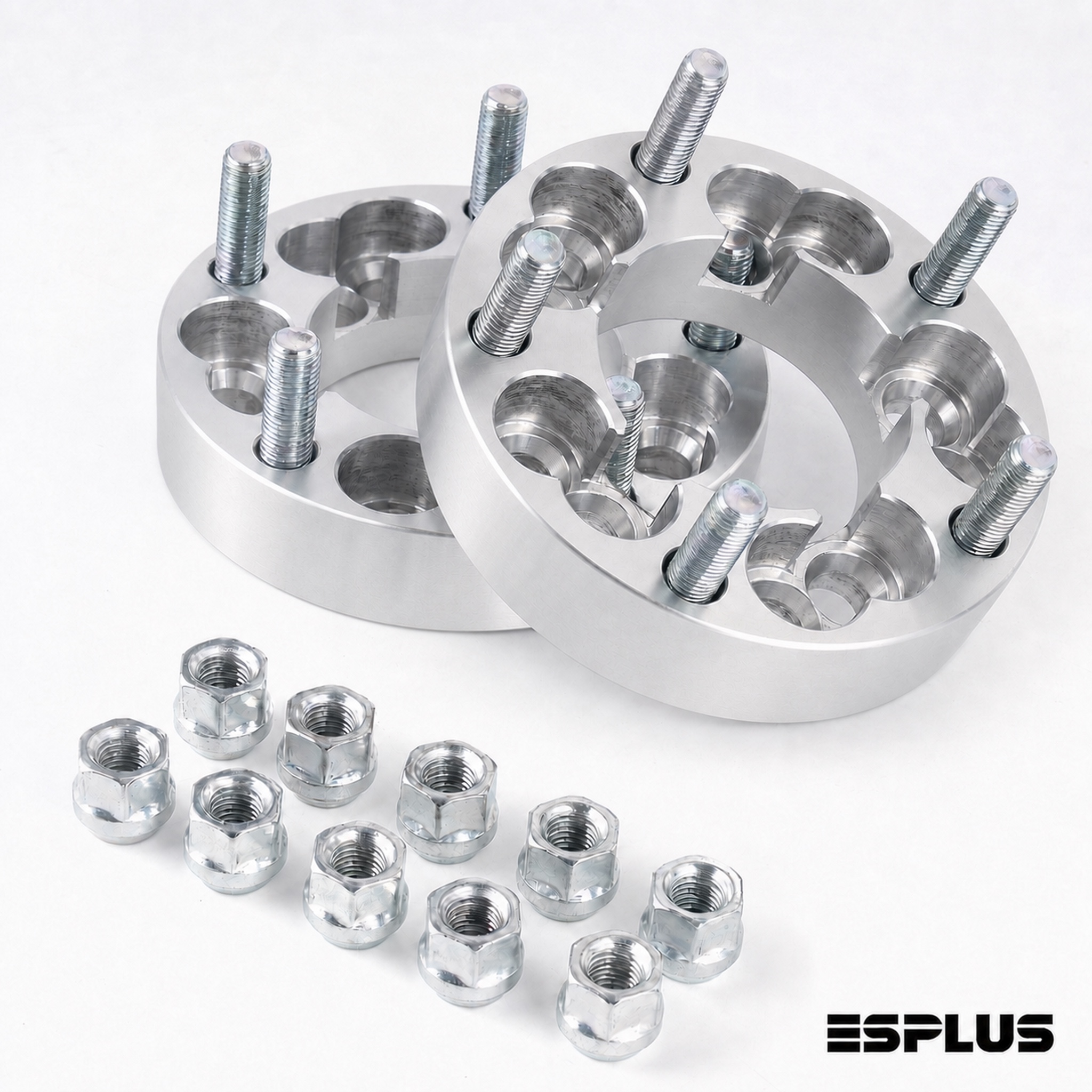

Set of 2 dual-pattern wheel adapters, 5-lug, 25 mm thick01 / 08

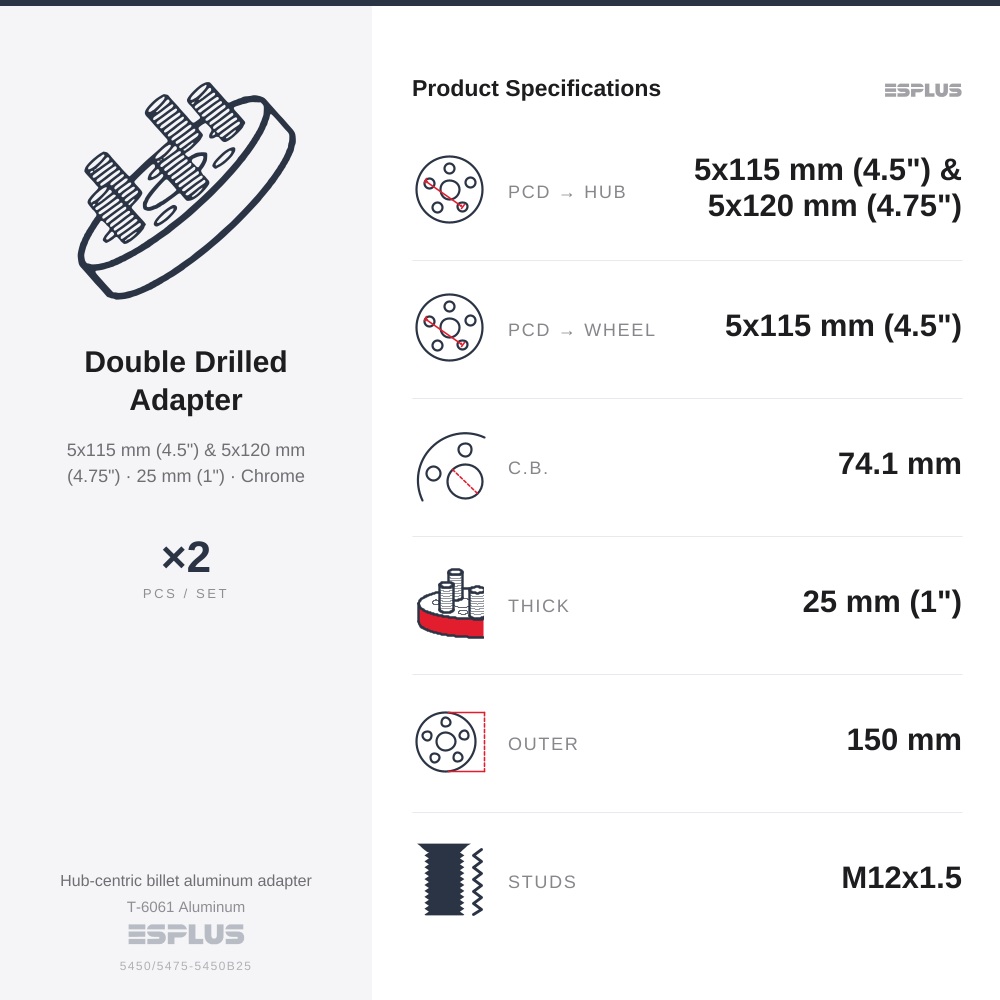

Close-up of wheel adapters, 5x4.5? or 5x4.75? to 5x4.5? bolt pattern, M12x1.5 thread, 25 mm thick, sold in sets of 202 / 08
Wheel adapters03 / 08
Wheel adapters04 / 08
Wheel adapters05 / 08
Wheel adapters06 / 08

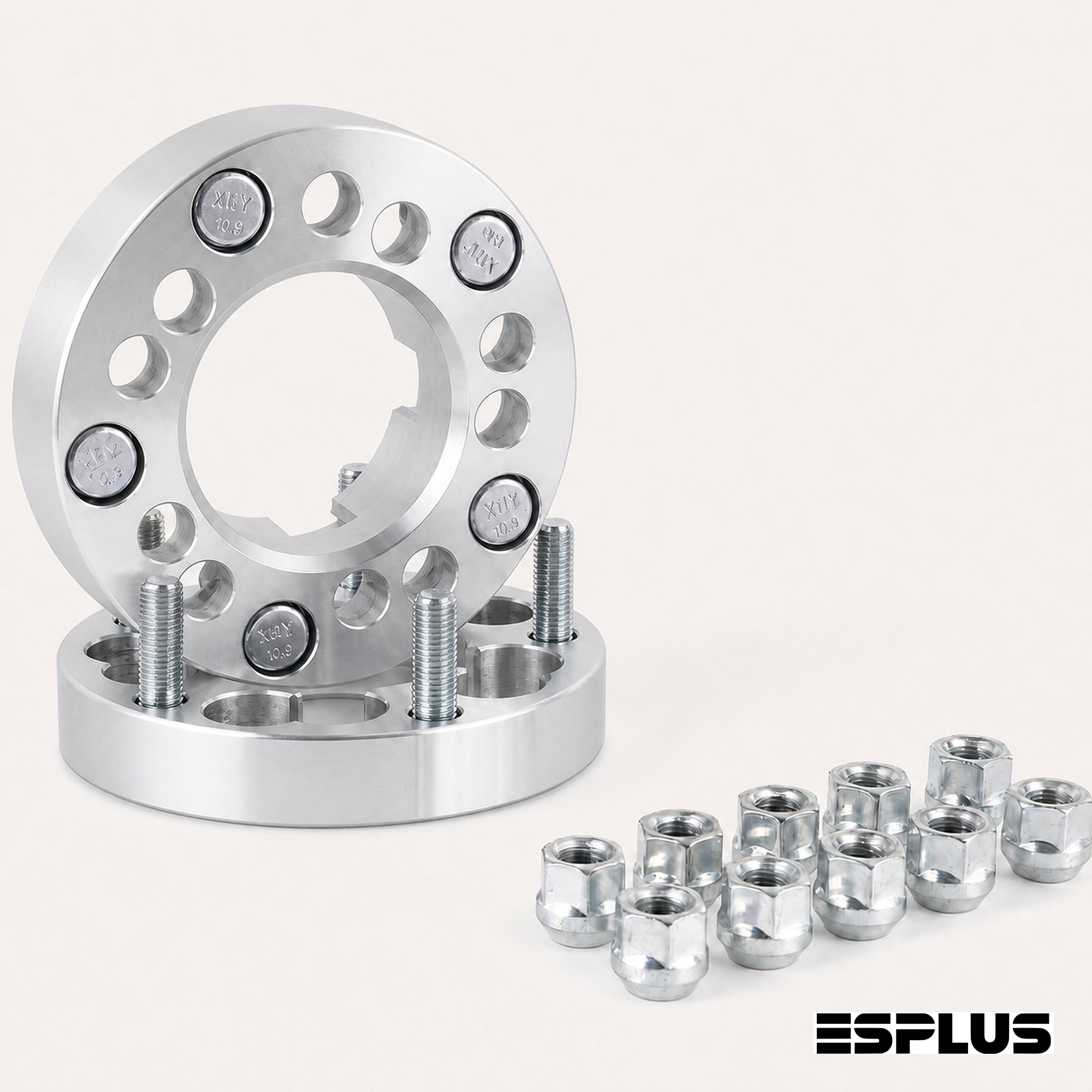

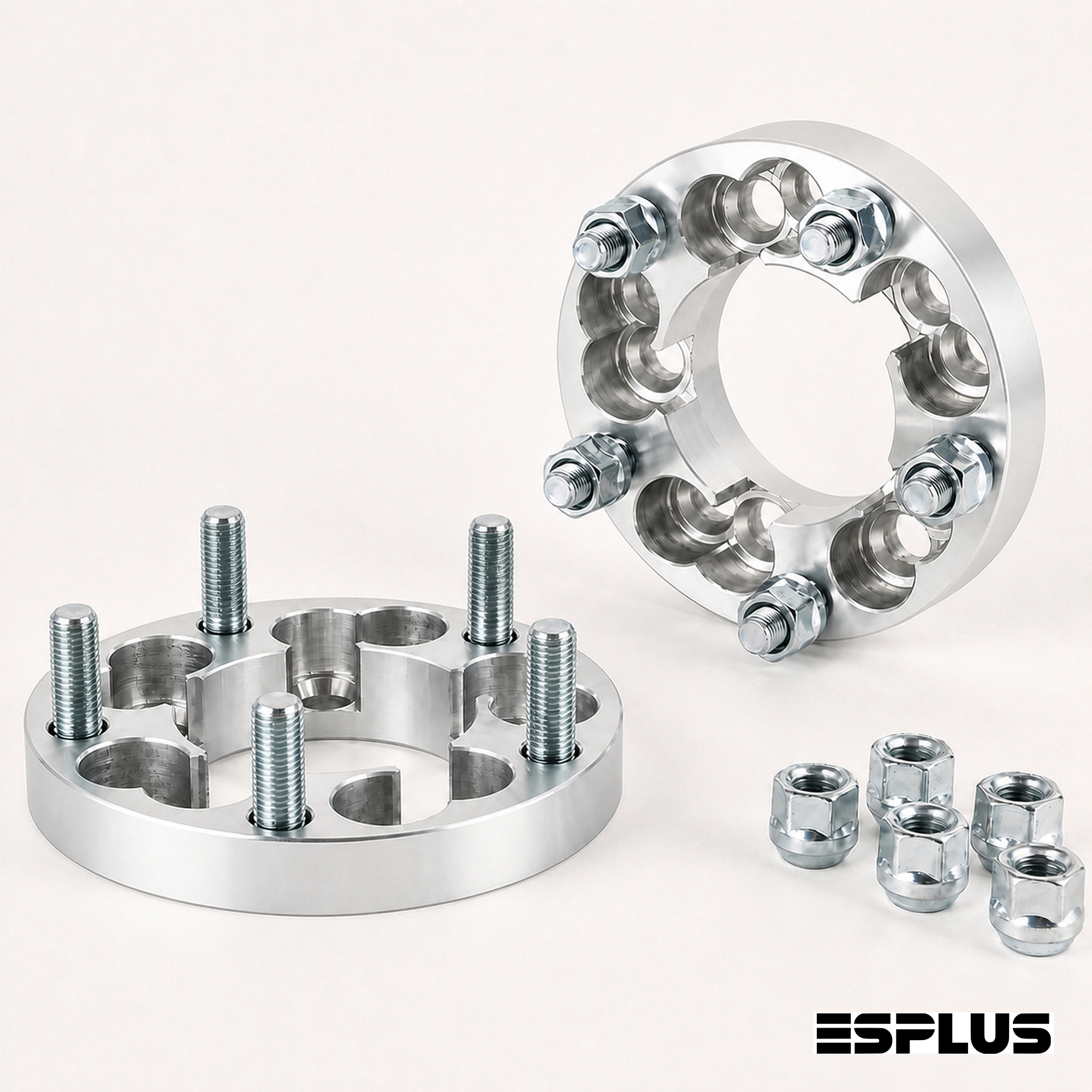

Dual-pattern wheel adapters, 5-lug, 25 mm thick07 / 08
Dual-pattern wheel adapters, 5-lug, 25 mm thick08 / 08

25mm Thick 5x115/5x120 to 5x115 Wheel Adapter

Type · Double Drilled Adapter
Bolt Pattern To Hub
5x115 mm(4.5") & 5x120 mm(4.75")
Bolt Pattern To Wheel
5x115 mm(4.5")
Adapter Center Bore
74.1 mm
Adapter Thickness
25 mm(1")
Adapter Outer Diameter
150 mm
Stud Thread Pitch
M12x1.5
Color and Finish
Chrome
Material Made
T-6061 Aluminum
Quantity Per Order
2 Pcs
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Option 02

Select Adapter Thickness: 32mm Thick

×2 PCS/Set
Set of 2 dual-pattern wheel adapters, 5-lug, 32 mm thick01 / 08
Close-up of wheel adapters, 5x4.5? or 5x4.75? to 5x4.5? bolt pattern, M12x1.5 thread, 32 mm thick, sold in sets of 202 / 08
Wheel adapters03 / 08
Wheel adapters04 / 08
Wheel adapters05 / 08
Wheel adapters06 / 08
Dual-pattern wheel adapters, 5-lug, 32 mm thick07 / 08
Dual-pattern wheel adapters, 5-lug, 32 mm thick08 / 08

32mm Thick 5x115/5x120 to 5x115 Wheel Adapter

Type · Double Drilled Adapter
Bolt Pattern To Hub
5x115 mm(4.5") & 5x120 mm(4.75")
Bolt Pattern To Wheel
5x115 mm(4.5")
Adapter Center Bore
74.1 mm
Adapter Thickness
32 mm(1.25")
Adapter Outer Diameter
150 mm
Stud Thread Pitch
M12x1.5
Color and Finish
Chrome
Material Made
T-6061 Aluminum
Quantity Per Order
2 Pcs
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Vehicle Compatibility

Fits your car.
Verified, not guessed.

Dual drilled wheel adapters with built-in studs for stud-and-nut hubs in either of two bolt patterns, same pattern on the wheel side; match your hub pattern and select the thickness you need.

1
Brands
2
Vehicles
1
Regions
AS

Japan

1 Featured

Acura

Japan · 2 models
Model
Region
Year Range
Legend
1991-1995
NSX
US
1991-2005

Not sure? Message us ? we verify your exact year & model before you buy.

Why It's Built Different

Performance you can torque down.

Mounts On Either Hub Drilling

Two factory bolt patterns are cut into the hub-side face, so one adapter body mounts on either hub drilling and the wheel keeps its original pattern on the stud side.

6061-T6 Aluminum, Faces Machined Flat

Both mounting faces are machined flat and the body is anodized against corrosion, so the adapter seats true on the hub and stays true under wheel load.

SCM Carbon Steel Press-In Studs

The wheel-side studs are pressed into the adapter from SCM Carbon Steel, ready for the factory lug nuts you already own.

No Hub Hardware To Source

The open nuts arrive threaded on the adapter studs; they come off, fasten the adapter to the hub, and the original lug nuts then hold the wheel on the studs.

Thickness Matched To Your Clearance

This listing runs 25 mm, 32 mm, 38 mm and 51 mm thick; thickness sets how far the wheel moves outward, so match it to the room behind the wheel and the hub stud length.

True Bolt-On Install

The adapter bolts to the hub studs and the wheel mounts on the adapter studs, so the install needs no cutting and makes no permanent change to the vehicle.

How to Install

3 steps to torque.

Follow the sequence below ? fitment is everything, so read Step 1 carefully.

01

Remove Nuts, Seat Adapter

Spin the pre-installed open nuts off the adapter studs, clean the hub face, and seat the adapter flat over the hub studs with the matching pattern lined up.

Adapter must sit fully flat on the hub face
02

Fasten Adapter To Hub

Thread the open nuts onto the hub studs and tighten evenly in a star pattern until the adapter sits flat.

Open nuts go on the hub studs, never on the adapter studs
03

Mount Wheel And Torque

Hang the wheel on the adapter studs, fit your factory lug nuts, and torque to your vehicle spec in a star pattern.

Re-check torque after the first 50-100 miles
Installation guide for wheel adapters
Installation guide for wheel adapters
Installation guide for wheel adapters
Installation guide for wheel adapters
01 / 4

Important Fitment Notice

Before Install:
  • for stud-and-nut hubs - the adapter fastens with the open nuts shipped on its studs
  • wheel adapter with built-in studs, not a spacer - a spacer has no studs of its own
  • hub side takes either of the two patterns cut into it - verify your hub pattern
  • wheel side keeps the same bolt pattern - verify pattern and center bore
  • hub studs must not stand past the adapter face - check stud length against the thickness selected
  • hand-start every nut - no impact guns

eBay's compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through eBay before ordering if anything is unclear.

Why ESPLUS

Clarity before checkout.

Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.

Specification First

Thread, seat, dimensions, finish and quantity are organized for direct comparison.

Fitment in Two Layers

Vehicle compatibility and wheel-specific hardware checks are presented separately.

Component-Level Detail

Combination listings keep each component's quantity, gallery and technical data distinct.

Pre-Purchase Support

Message us through eBay with your year, model, wheel and current hardware details.

Questions, answered

Check the details that decide fit.

Will this wheel hardware fit my exact vehicle?
Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement.
How do I confirm thread pitch and seat type?
Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel.
What should I verify on aftermarket wheels?
Confirm the wheel's seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone.
What torque specification should I use?
Use the vehicle or wheel manufacturer's applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation.
Where can I find current shipping and return terms?
Use the Shipping, delivery and Returns sections of this eBay listing as the current order-level terms. Those listing controls take priority over general informational text.
Shipping · Returns · Fitment

Order terms, kept current.

The controls attached to this eBay listing are the source of truth for the transaction.

Shipping

Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the eBay order when available.

Returns

The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the eBay purchase record.

Fitment Responsibility

Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through eBay before ordering.
