Tech Data: Bolt Pattern To Hub: 5x115 mm(4.5") & 5x120 mm(4.75") · Bolt Pattern To Wheel: 5x127 mm(5") · Adapter Center Bore: 74.1 mm · Adapter Thickness: 32 mm(1.25") ? full specs below Fitment: Acura:
  • NSX 91-05
  • Legend 91-95
IMPORTANT FITMENT NOTICE: Fit Check: ? run wheels drilled for 5x127 - factory wheels no longer bolt on ? match the hub-side pattern in this listing's title to your vehicle ? lug-centric plate: wheels center on the studs, so s? eBay's chart confirms thread pitch only ? unsure? Message us and we'll verify fitment before you buy.
ESPLUS
Precision wheel hardware
Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current eBay message supportApplication context stays together
Lug Nuts
Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts
Lug Bolts
Ball Seat Lug Bolts Cone Seat Lug Bolts
Wheel Locks
Locker Lug Nuts Locker Lug Bolts
Wheel Spacers
Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts
Wheel Adapters
5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter
Precision wheel hardware · Fitment-first specification

Dual Drilled Wheel Adapters

Bolt Pattern Conversion to 5x127Hub Nuts Pre-Installed
Dual Drilled Bolt Pattern Conversion Adapter - Runs Wheels Drilled For 5x127 - Made in Taiwan, 90-Day Warranty

[4] Wheel Adapters Conversion 5x4.5" to 5x5" 1.25" Thick for Acura NSX Legend

Direct-fit upgrade for Acura owners ? confirm your exact year and model in the compatibility chart below before ordering. Bolt Pattern Swap To 5x127 Two Hub Patterns, One Plate Adds Track Width, Wider Stance New 5x127 Wheels Required Pre-Installed Nuts For The Hub Side Reuse Your Factory Lug Nuts
Fitment-first engineering [4] Wheel Adapters Conversion 5x4.5
01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph.
02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering.
03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement.
Technical Data

Numbers, not adjectives.

Every dimension your wheel cares about ? measured, verified, documented.

32mm Thick 5x115/5x120 to 5x127 Wheel Adapter

Type · Double Drilled Adapter
×4 PCS/Set
Bolt Pattern To Hub
5x115 mm(4.5") & 5x120 mm(4.75")
Bolt Pattern To Wheel
5x127 mm(5")
Adapter Center Bore
74.1 mm
Adapter Thickness
32 mm(1.25")
Adapter Outer Diameter
150 mm
Stud Thread Pitch
M12x1.5
Color and Finish
Chrome
Material Made
T-6061 Aluminum
Quantity Per Order
4 Pcs
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Vehicle Compatibility

Fits your car.
Verified, not guessed.

Double drilled bolt-pattern conversion adapters that mount 5x127 wheels on a hub with a different factory pattern; match the hub-side pattern in this listing's title to your vehicle.

1
Brands
2
Vehicles
1
Regions
AS

Japan

1 Featured

Acura

Japan · 2 models
Bolt Pattern (PCD) Conv.
New PCD Wheel Required5x127
HubCentric Support
Use Same Thread Fastener
Model
Region
Year Range
Legend
1991-1995
NSX
US
1991-2005

Not sure? Message us ? we verify your exact year & model before you buy.

Product Display

A closer look at the product.

Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.

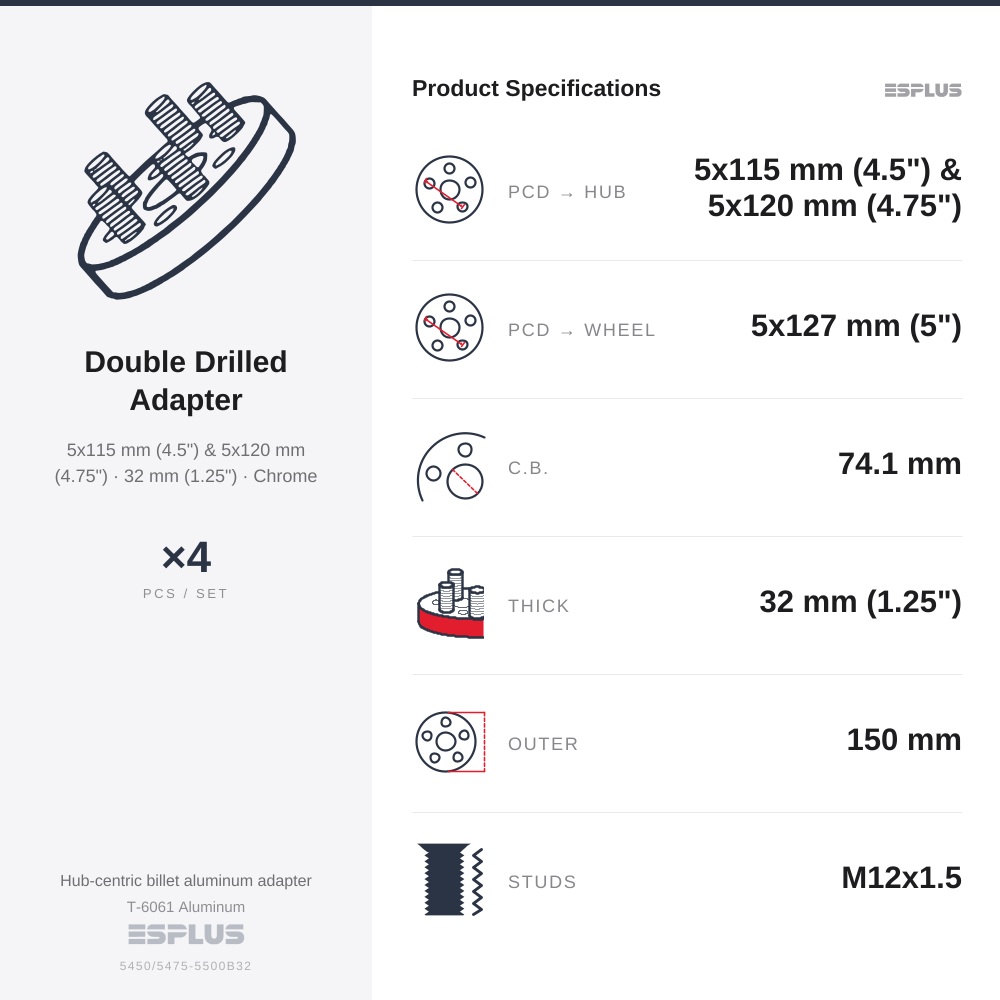

Close-up of wheel adapters, 5x4.5? or 5x4.75? to 5x5? bolt pattern, M12x1.5 thread, 32 mm thick, sold in sets of 4
Dual-pattern wheel adapters, 5-lug, 32 mm thick
Dual-pattern wheel adapters, 5-lug, 32 mm thick
Check Before You Order

Some fitment details only your vehicle can tell you.

The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.

Wheel adapters
Wheel adapters
Wheel adapters
Wheel adapters
Why It's Built Different

Performance you can torque down.

Double Drilled Hub Side

One plate machined with two hub-side bolt circles; the exact patterns this listing serves are named in its title, so a single adapter covers both hub layouts.

6061-T6 Aluminum Body, Anodized

Machined from 6061-T6 aluminum and anodized against corrosion, so the plate stands up to rain and road salt while keeping added unsprung weight low.

Both Mounting Faces Machined Flat

Hub face and wheel face are both machined flat, so the plate clamps square and your wheel runs true - full, flat contact spreads lug load evenly.

Grade 10.9 Press-In Studs

Wheel-side studs are Grade 10.9 SCM carbon steel, press-fit into the 5x127 circle so they hold steady while your factory lug nuts do the clamping.

Same Thread As Your Originals

Adapter studs carry the same thread as your vehicle's factory studs, so the lug nuts already on your car secure the new wheel - no extra fasteners to source.

Hub Hardware Ships In Place

Open nuts arrive pre-installed on the adapter studs - remove them and use them to bolt the plate to the hub; the adapter count for this listing is in the title.

How to Install

3 steps to torque.

Follow the sequence below ? fitment is everything, so read Step 1 carefully.

01

Prep The Hub Face

Remove the open nuts that ship pre-installed on the adapter studs, then clean the hub mounting face down to bare, flat metal so the plate can seat fully flush.

A rusty or uneven hub face keeps the plate from seating flat and clamp load from spreading.
02

Mount The Adapter Plate

Set the adapter over your hub studs using the drilled circle that matches your bolt pattern, thread the supplied open nuts on, and tighten evenly in a star pattern until the adapter sits flat.

Do not use your wheel torque spec on the hub-side nuts - even, flat seating is the goal.
03

Fit Wheel And Re-Torque

Hang a wheel drilled for 5x127 on the adapter studs, refit your original lug nuts, and torque them to your vehicle's wheel spec in a star pattern.

Re-check torque on hub and wheel nuts after the first short drive.
Installation guide for wheel adapters
Installation guide for wheel adapters
Installation guide for wheel adapters
Installation guide for wheel adapters
01 / 4

Important Fitment Notice

Fit Check:
  • run wheels drilled for 5x127 - factory wheels no longer bolt on
  • match the hub-side pattern in this listing's title to your vehicle
  • lug-centric plate: wheels center on the studs, so seat every nut in smooth star passes
In The Box:
  • adapters with open hub-side nuts pre-installed - the count for this listing is in the title
  • the wheel side reuses your original lug nuts
  • re-torque all nuts after the first short drive

eBay's compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through eBay before ordering if anything is unclear.

Why ESPLUS

Clarity before checkout.

Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.

Specification First

Thread, seat, dimensions, finish and quantity are organized for direct comparison.

Fitment in Two Layers

Vehicle compatibility and wheel-specific hardware checks are presented separately.

Component-Level Detail

Combination listings keep each component's quantity, gallery and technical data distinct.

Pre-Purchase Support

Message us through eBay with your year, model, wheel and current hardware details.

Questions, answered

Check the details that decide fit.

Will this wheel hardware fit my exact vehicle?
Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement.
How do I confirm thread pitch and seat type?
Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel.
What should I verify on aftermarket wheels?
Confirm the wheel's seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone.
What torque specification should I use?
Use the vehicle or wheel manufacturer's applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation.
Where can I find current shipping and return terms?
Use the Shipping, delivery and Returns sections of this eBay listing as the current order-level terms. Those listing controls take priority over general informational text.
Shipping · Returns · Fitment

Order terms, kept current.

The controls attached to this eBay listing are the source of truth for the transaction.

Shipping

Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the eBay order when available.

Returns

The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the eBay purchase record.

Fitment Responsibility

Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through eBay before ordering.
