Tech Data: Bolt Pattern To Hub: 5x115 mm(4.5") & 5x120 mm(4.75") · Bolt Pattern To Wheel: 5x100 mm · Adapter Center Bore: 74.1 mm · Adapter Thickness: 32 mm(1.25") ? full specs below Fitment: Acura:
  • NSX 91-05
  • Legend 91-95
IMPORTANT FITMENT NOTICE: Fitment: ? wheels drilled for 5x100 are required - factory wheels no longer bolt on ? double drilled - match your factory pattern to one of the two hub patterns in the title In The Box: ? adapters wi? eBay's chart confirms thread pitch only ? unsure? Message us and we'll verify fitment before you buy.
ESPLUS
Precision wheel hardware
Exact specificationsThread, seat, size and quantity Fitment before claimsVehicle and wheel checks separated Listing-level termsShipping and returns stay current eBay message supportApplication context stays together
Lug Nuts
Mag Seat OEM Lug Nuts Duplex Conical OEM Lug Nuts Regular Acorn Lug Nuts Long Acorn Lug Nuts Open End Lug Nuts Spline Lug Nuts
Lug Bolts
Ball Seat Lug Bolts Cone Seat Lug Bolts
Wheel Locks
Locker Lug Nuts Locker Lug Bolts
Wheel Spacers
Hubcentric Spacer with Ball Seat Bolts Hubcentric Spacer with Cone Seat Bolts
Wheel Adapters
5 Lug Adapter 6 Lug Adapter 8 Lug Adapter 5 Lug Hubcentric Adapter 6 Lug Hubcentric Adapter
Precision wheel hardware · Fitment-first specification

Dual Drilled Wheel Adapters Bolt Pattern Conversion

To 5x100 Bolt-On 6061-T6 Aluminum Pre-Installed Hub Nuts New 5x100 Wheels Required
Double Drilled Conversion Adapter To 5x100 - Hub-Side Nuts Pre-Installed - Made in Taiwan, 90-Day Warranty

[4] Wheel Adapters Conversion 5x4.5" to 5x100 1.25" Thick for Acura NSX Legend

Direct-fit upgrade for Acura owners ? confirm your exact year and model in the compatibility chart below before ordering. Runs 5x100 Wheels On Your Hub Built-In Studs, Bolts To The Hub Pre-Installed Nuts For The Hub Side Reuse Your Factory Lug Nuts New 5x100 Wheels Required Two Hub Patterns, One Plate
Fitment-first engineering [4] Wheel Adapters Conversion 5x4.5
01 · Order scopeConfirm the exact quantity.Use the listing title and the technical data as the order reference, not the vehicle photograph.
02 · Vehicle sideConfirm thread and application.Read the compatibility section and every fitment note before ordering.
03 · Wheel sideConfirm the actual wheel hardware.Match seat geometry, diameter, clearance, depth and usable thread engagement.
Technical Data

Numbers, not adjectives.

Every dimension your wheel cares about ? measured, verified, documented.

32mm Thick 5x115/5x120 to 5x100 Wheel Adapter

Type · Double Drilled Adapter
×4 PCS/Set
Bolt Pattern To Hub
5x115 mm(4.5") & 5x120 mm(4.75")
Bolt Pattern To Wheel
5x100 mm
Adapter Center Bore
74.1 mm
Adapter Thickness
32 mm(1.25")
Adapter Outer Diameter
150 mm
Stud Thread Pitch
M12x1.5
Color and Finish
Chrome
Material Made
T-6061 Aluminum
Quantity Per Order
4 Pcs
California Prop 65 Warning
WARNING: This product can expose you to chemicals including Nickel and Lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Vehicle Compatibility

Fits your car.
Verified, not guessed.

Bolt-on double drilled conversion adapter giving the wheel a 5x100 bolt circle; requires 5x100 wheels - your factory pattern must match one of the two hub patterns in this listing's title.

1
Brands
2
Vehicles
1
Regions
AS

Japan

1 Featured

Acura

Japan · 2 models
Bolt Pattern (PCD) Conv.
New PCD Wheel Required5x100
HubCentric Support
Use Same Thread Fastener
Model
Region
Year Range
Legend
1991-1995
NSX
US
1991-2005

Not sure? Message us ? we verify your exact year & model before you buy.

Product Display

A closer look at the product.

Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.

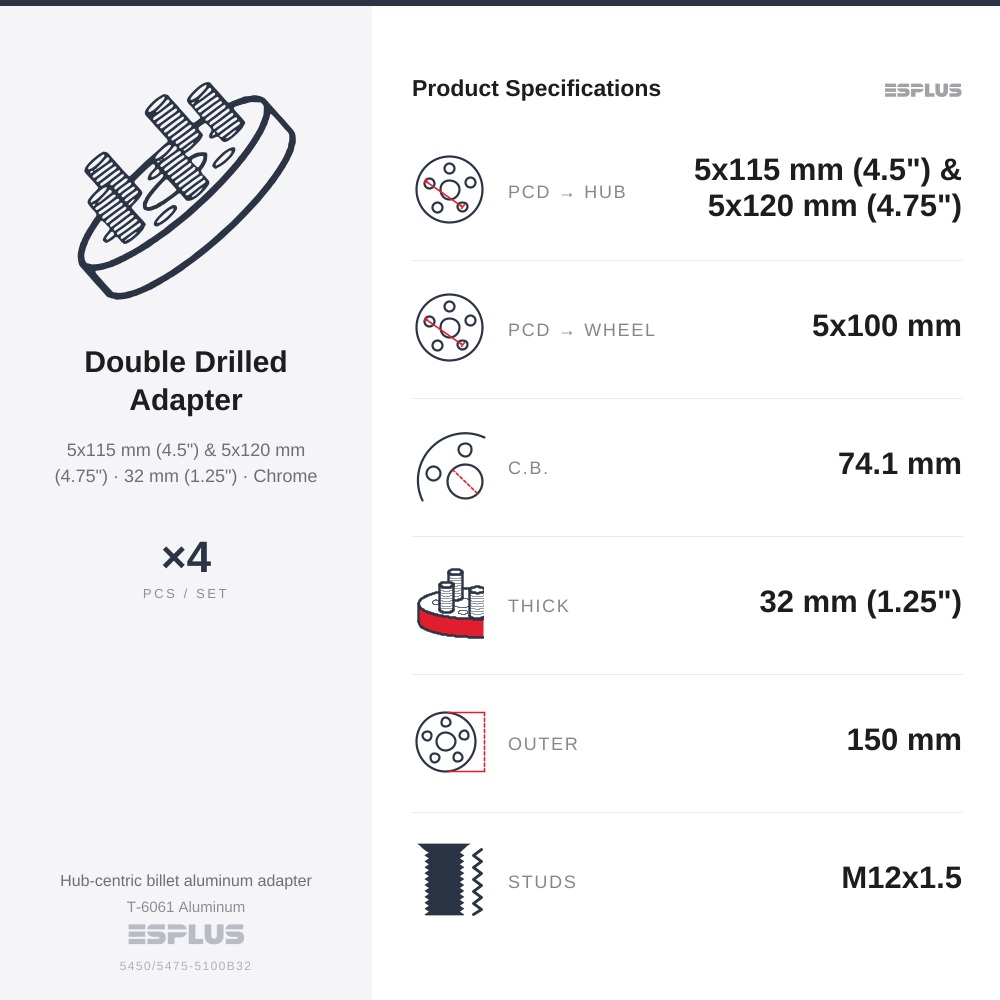

Close-up of wheel adapters, 5x4.5? or 5x4.75? to 5x100 mm bolt pattern, M12x1.5 thread, 32 mm thick, sold in sets of 4
Dual-pattern wheel adapters, 5-lug, 32 mm thick
Dual-pattern wheel adapters, 5-lug, 32 mm thick
Check Before You Order

Some fitment details only your vehicle can tell you.

The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.

Wheel adapters
Wheel adapters
Wheel adapters
Wheel adapters
Why It's Built Different

Performance you can torque down.

Bolt Pattern Conversion To 5x100

The plate bolts to your factory hub and gives the wheel a true 5x100 bolt circle, opening wheel styles your original pattern cannot take; the hub fitment sold here is carried in this listing's title.

6061-T6 Aluminum, Machined Flat Faces

The plate is 6061-T6 aluminum with both mounting faces machined flat, so hub, adapter, and wheel clamp on true, even surfaces.

Grade 10.9 SCM Steel Press-In Studs

Wheel-side studs are Grade 10.9 SCM carbon steel pressed into the plate and cut to the same thread as your factory studs, so your original lug nuts thread straight on.

Double Drilled Hub Side

One plate machined with two hub-side bolt circles; the exact patterns this listing serves are named in its title, so a single adapter covers both hub layouts.

Complete Hub-Side Hardware Included

Open nuts arrive pre-installed on the adapter studs - remove them, bolt the plate to your hub with them, then refit your factory lug nuts for the wheel. Nothing extra to buy for the hub side.

How to Install

3 steps to torque.

Follow the sequence below ? fitment is everything, so read Step 1 carefully.

01

Mount Adapter To Hub

Remove the pre-installed open nuts. Clean the hub face, set the adapter on the drilled circle that matches your bolt pattern, and thread those nuts onto the vehicle studs by hand.

Grit between hub and adapter keeps the plate from seating flat.
02

Torque In A Star Pattern

Tighten the hub-side nuts evenly in a star pattern until the adapter sits flat against the hub with no gap at any point on the plate.

A plate that does not sit flush must come off - find and clear the obstruction first.
03

Fit Wheel And Lug Nuts

Hang your new 5x100 wheel on the adapter studs, refit your original lug nuts, and torque in a star pattern to your vehicle's wheel spec. Recheck both nut sets after the first drive.

Confirm your lug nut seat matches the new wheels before final torque.
Installation guide for wheel adapters
Installation guide for wheel adapters
Installation guide for wheel adapters
Installation guide for wheel adapters
01 / 4

Important Fitment Notice

Fitment:
  • wheels drilled for 5x100 are required - factory wheels no longer bolt on
  • double drilled - match your factory pattern to one of the two hub patterns in the title
In The Box:
  • adapters with open nuts pre-installed on the studs
  • piece count for this listing is in the title
Install:
  • stud-equipped bolt-on adapter - a slip-over spacer has no studs
  • lug-centric: torque hub nuts in a star pattern until the plate sits flat
  • recheck torque after the first drive

eBay's compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through eBay before ordering if anything is unclear.

Why ESPLUS

Clarity before checkout.

Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.

Specification First

Thread, seat, dimensions, finish and quantity are organized for direct comparison.

Fitment in Two Layers

Vehicle compatibility and wheel-specific hardware checks are presented separately.

Component-Level Detail

Combination listings keep each component's quantity, gallery and technical data distinct.

Pre-Purchase Support

Message us through eBay with your year, model, wheel and current hardware details.

Questions, answered

Check the details that decide fit.

Will this wheel hardware fit my exact vehicle?
Start with the vehicle compatibility section, then read every fitment note. Compatibility data does not replace wheel-side checks such as seat type, hardware dimensions, hole clearance and usable thread engagement.
How do I confirm thread pitch and seat type?
Compare one piece of your existing hardware with the technical data and the Check Before You Order images. Match the thread on the vehicle side and the seat geometry required by the wheel.
What should I verify on aftermarket wheels?
Confirm the wheel's seat profile, fastener-hole diameter, tool clearance, installed depth and required engagement. These wheel-specific facts are not established by year, make and model alone.
What torque specification should I use?
Use the vehicle or wheel manufacturer's applicable specification and installation procedure. If the two sources differ or the application is modified, consult a qualified installer before installation.
Where can I find current shipping and return terms?
Use the Shipping, delivery and Returns sections of this eBay listing as the current order-level terms. Those listing controls take priority over general informational text.
Shipping · Returns · Fitment

Order terms, kept current.

The controls attached to this eBay listing are the source of truth for the transaction.

Shipping

Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the eBay order when available.

Returns

The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the eBay purchase record.

Fitment Responsibility

Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through eBay before ordering.
