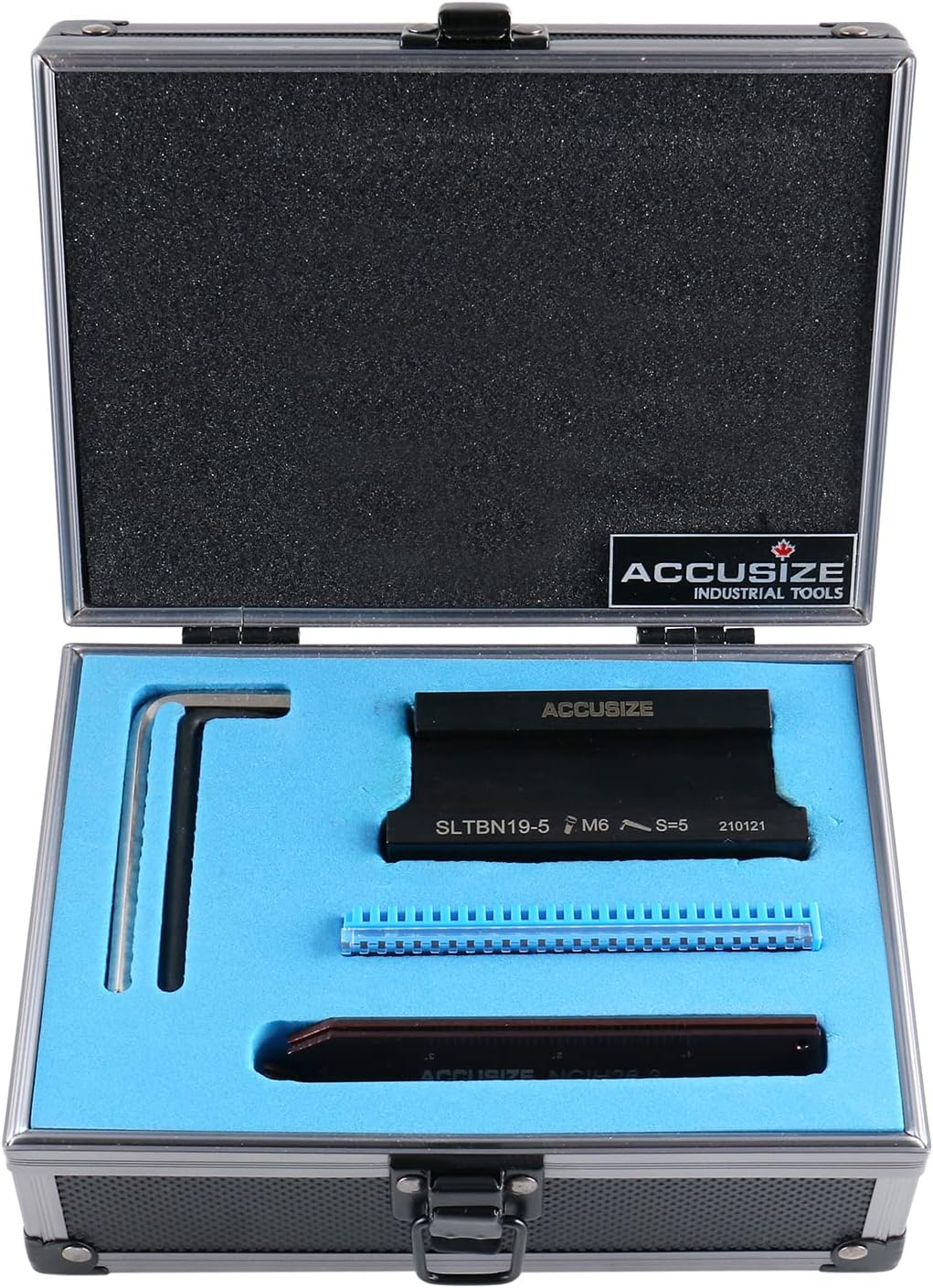

Accusize Industrial Tools 3/4'' Self-Lock Block Sltbn19-5 with 5 Pcs Gtn-3 Inserts, 5 Pcs Gtn-4 Inserts, Blade Ncih26-3 and Blade Nich26-4, 2410-0013

Description

Manufacturer	Accusize Co., Ltd.
Part Number	2410-0013
Item Weight	2.2 pounds
Product Dimensions	11.81 x 3.15 x 7.87 inches
Item model number	2410-0013
Size	SLTBN19-5, NCIH26-3, NCIH26-4
Material	Hardened Steel
Item Package Quantity	1

Product description

Accusize 3/4" Self-lock Carbide Cut-off Tool Set

This cut-off tool kit is a time-saver. The block, blade holder, works with any toolholders that can hold 3/4" (AXA) lathe turning bits.

• [1pc] SLTBN19-5 Tool Block 3/4“
• [1pc] NCIH26-3 Adjustable Blade, 0.120" insert width
• [1pc] NCIH26-4 Adjustable Blade, 0.160" insert width
• [5pcs] GTN-3 Carbide Inserts, Grade C6, 0.120" insert width, TiN Coated
• [5pcs] GTN-4 Carbide Inserts, Grade C6, 0.160" insert width, TiN Coated
• [1pc] Insert wrench/ Insert extractor
• [1pc] Allen key
• All kits are packed in an aluminum fitted case.

Figure of SLTBN19-5 Tool Block 3/4 inch

The HD version of the specification is downloadable in Product Document.

NCIH26-3 and NCIH26-4 Adjustable Blade

• Blade marked with vernier increasing line in 32nd
• The material of the blade body is standard spring steel, which is 60Si2Mn (equivalent to the American steel ASTM9260). The Rockwell hardness after hardened is HRC40.
• Chemical Composition:

• C (0.56~0.64)
• Mn (0.60～0.90)
• Si (1.50～2.00)
• Cr (≤0.35)
• Ni (≤0.35)
• Cu (≤0.25)
• P (≤0.035)
• S (≤0.035)

GTN-3 and GTN-4 Carbide Insert (Grade C6)

• Grade C-6: a general-purpose grade for cutting all steel and stainless steels
• TiN coated for extra strength at higher speeds
• Width of NCIH26-3: 0.120"; NCIH26-4: 0.160"
• We also supply the inserts separately for the tool kit to cut aluminum (GTN-3 Inserts: 2403-8004x5 OR GTN-4 Inserts: 2403-8005x5) and stainless steel(GTN-3 Inserts: 2403-6004x5 OR GTN-4 Inserts: 2403-6005x5).
• The insert with the blade and the tool holder can achieve the following lathe tooling operations

• Cut-off
• Grooving
• Parting-off
• Chamfering
• Single-sided notation

Work with CXA Quick Change Tools Post or 3/4" Toolholders

CXA Quick Change Tool Post Set.

SKUs:

• 0251-0338
• 0251-0333
• 0251-0300

Accusize GTN-3 (2403-2004) and GTN-4 (2403-2005)Inserts for machining Steel

• Replacements of Inserts for machining steel are available.

SKUs:

• GTN-3 Inserts
  • 2403-2004
• GTN-4 Inserts
  • 2403-2005

Accusize GTN-3 (2403-8004) and GTN-4 (2403-8005)Inserts for machining Aluminum

• Replacements of Inserts for machining Aluminum are available.

SKUs:

• GTN-3 Inserts
  • 2403-8004
• GTN-4 Inserts
  • 2403-8005

Accusize GTN-3 (2403-6004) and GTN-4 (2403-6005)Inserts for machining Stainless Steel

• Replacements of Inserts for machining Stainless Steel are available.

SKUs:

• GTN-3 Inserts
  • 2403-6004
• GTN-4 Inserts
  • 2403-6005

Add to Cart Add to Cart Customer Reviews 4.2 out of 5 stars 82 4.7 out of 5 stars 121 3.6 out of 5 stars 4 4.8 out of 5 stars 15 Price $41.97$41.97 $57.27$57.27 — no data — no data Item # 2402-0006 2403-2004x10 2403-8004x10 2403-6004x10 Insert width 0.120" 0.120" 0.120" 0.120" Carbide grade C6 C6 C6 Coating no data TiN Coated Uncoated PVD Coated Application no data Cutting Steel Cutting Aluminum Cutting Stainless Steel

• Item : 2410-0013. Include the followings:
• 1 pc SLTBN19-5 Tool Block 3/4". 1 pc NCIH26-3 adjustable blade, 0.120" insert width. 1 pc NCIH26-4 adjustable blade, 0.160" insert width
• Blades marked with Vernier increasing line in 32nd.
• 5pcs GTN-3 carbide inserts, Grade C6, 0.120" insert width, TiN Coated. 5pcs GTN-4 carbide inserts, Grade C6, 0.160" insert width, TiN Coated
• All kits include 1 insert wrench, 1 allen wrench and packed in fitted case
• Includes 1 SLTBN19-5 Tool Block (3/4"), NCIH26-3 (0.120" insert width), NCIH26-4 (0.160" insert width) blades for versatile cutting.
• Comes with 5 GTN-3 and 5 GTN-4 TiN-coated carbide inserts, Grade C6, enhancing durability and performance.
• Blades feature Vernier increasing line in 32nds for precise adjustments, improving machining accuracy.
• Set contains insert wrench and Allen key, ensuring easy setup and adjustments, packed in an aluminum case for protection.
• Compatible with a wide range of lathe machines, ideal for precision cut-off and grooving operations in metalworking.
