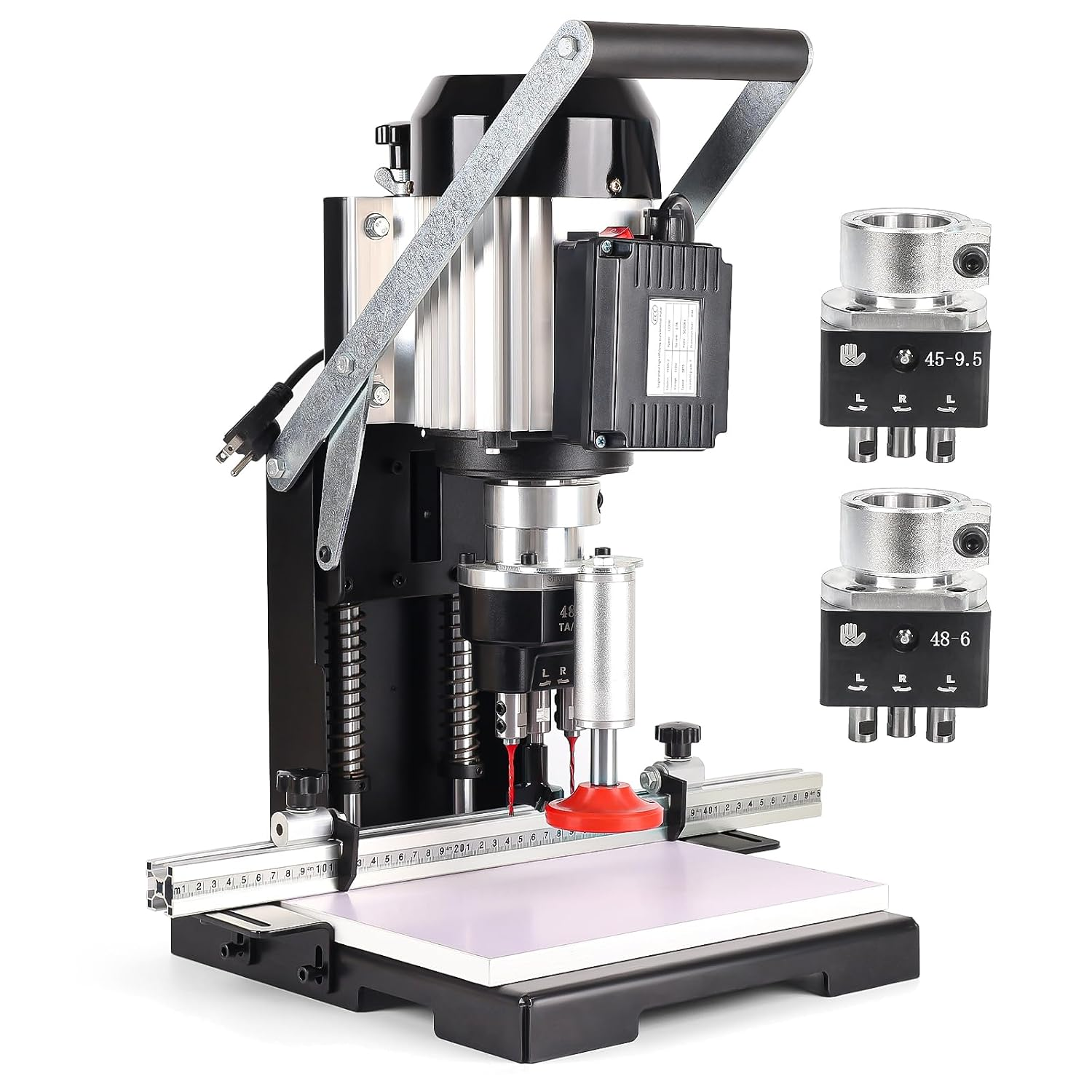

ADWAN Manual Hinge Drilling Machine Woodworking Boring Includes Two Drill Bits 45-9.5 and 48-6

Description

Brand Name	ADWAN
Set Name	Two Drill Bits Set
Unit Count	2 Count
Number of Packs	1
Manufacturer	ADWAN
Part Number	11
Number of Pieces	2
Included Components	11
Cutting Diameter	35 millimeters
Item Dimensions	12 x 23 x 15 inches
Minimum Bore Diameter	3 millimeters
Finish Types	Uncoated
Shank Type	Straight
Surface Recommendation	Wood
Tool Flute Type	1
Number of Flutes	2
Finish Type	Uncoated
Brand	ADWAN
Item dimensions L x W x H	12 x 23 x 15 inches

Product description

Manual Hinge Drilling Machine

Drill hinge holes more efficiently

• Simultaneous drilling of hinge holes and double screw holes.
• Adjustable drilling depth 0-40 mm
• Drilling position can be set on a flat surface by using a dial.
• The machine weighs 40LB and can be easily picked up for mobile work.
• Hinge Drill is suitable for bulk drilling of holes in cabinets, closets and other hinges.

TECHNICAL SPECIFICATIONS

VOLTAGE 110 V WEIGHT 19KG MOTOR POWER 1100 W MOTOR SPEED 2840 RPM TABLE SIZE 500 X 350 MM LENGTH OF GUARDRAIL 500 MM DIMENSIONS 500 X 500 X 520 MM DRILL DIAMETER 35 MM*1 3 MM*2 TYPE OF OPERATION MANUAL CONTROL MAXIMUM TABLE/SPINDLE DISTANCE 85 MM MAXIMUM TABLE/DRILL DISTANCE 50 MM TABLE TRAVELLING DISTANCE 105 MM

• Function: The product includes two kinds of drill bits, 48-6 type drill bit kit and 45-9.5 drill bit kit, and the hinge drill bit can complete the drilling of hinge holes and double screw holes at the same time.
• UPGRADED LIMITERS: Drilling depth can be adjusted from 0-40 mm by means of a nut on the rear side of the machine. the motor is mounted on the limit base, which is widened and thickened to be perpendicular to the ground for more accurate drilling dimensions.
• HIGHLY ACCURATE DIAL: Dial is 19.6 inches/50 cm long and the clamps on both sides slide on the dial so you can set the exact drill position on a flat surface.
• PORTABLE AND EFFICIENT: Hinged drill weighs 40lb and is easy to carry. the motor is made of solid copper coils, has a speed of 2840 r/min, and is equipped with a gas spring compressor that holds the flat surface in place during operation, ensuring accurate and efficient drilling.
• VERSATILE USE: Hinge drill is suitable for drilling holes in cabinets, wardrobes and other hinges in batches to increase work efficiency and drilling accuracy. it is an excellent tool for a variety of woodworking tasks.
