Woodpeckers Slab Flattening Mill Pro, Extended, 48"X134" Capacity, USA Made Wood Slab Leveling Jig, Integrated Dust Collection, Router Sled, Rails, Clamping Dogs

Description

Brand Name	Woodpeckers
Number of Items	1
Manufacturer	Woodpeckers
Unit Count	1 Count
Manufacturer Part Number	SLBFPRO-XL
Cutting Depth	2.5 inches
Cutting width	48.5 inches
Style Name	Extended
Item Dimensions L x W x H	134"L x 48.5"W x 2.5"H
Brand	Woodpeckers
Product Dimensions	134"L x 48.5"W x 2.5"H
Style	Extended

Product description

Square and Flatten Live Edge Slabs for Perfect Designs

Imagine being able to mill a flat face on a live edge slab over 4-feet wide and up to 3-3/8" thick without having to shimming the rails or your work piece. Or go the other way and imagine milling something just a fraction of an inch thick, again without shimming either your stock or the rails. Imagine milling slabs with virtually all the shavings being captured by your dust collector. It’s time to stop imagining and start milling with Woodpeckers NEW Slab Flattening Mill PRO. Working with feedback from thousands of Slab Flattening Mill customers we’ve redesigned the router carriage with a greater thickness range and integrated dust capture right at the source. The “PRO” details don’t stop with the feature-packed new carriage. We also extended the rails, increasing the standard width capacity to a massive 48-1/2" wide (using a 2” cutter…even more with a larger bit).

The hottest trend in interior design these days is live edge slabs. And, why not? The natural curves of the trunk give an organic feel. The crazy grain patterns in crotches and burls are eye-catching. Even cracks that would have sent lumber to the burn pile just a few years ago are being controlled and enhanced with butterfly patches and epoxy inlays. However, slabs present some challenges in the shop. Overall width and weird grain changes make the use of a jointer and thickness planer impractical if not impossible. But now you can accurately flatten live-edge slabs and other oversized stock faster and easier than you ever thought possible.

Woodpeckers Slab Flattening Mill PRO guides your router over your slab in a controlled plane. Since you’re using a router instead of a planer-style cutterhead, tear-out is minimal…and thanks to our uniquely engineered rails and enhanced solid steel carriage, the surface will only need light sanding afterwards. The router carriage is the main feature that sets the Slab Flattening Mill PRO apart from the earlier Slab Flattening Mill. The new carriage adjusts in height by a full 2-1/2". Depending on your router and router bit, you can work on stock just a fraction of an inch thick or up to 3-3/8” without ever shimming either the rails or the slab.

Using the Slab Flattening Mill-PRO is as easy as sliding your router across the slab and back, moving over and repeating until you’re done. This process produces lots of shavings. Judging by the number of customers who added the optional dust collection shroud to the original Slab Flattening Mill, dust collection is a highly sought-after feature. So, we decided to make it an integrated part of the new carriage. The twin pick-up points and rugged, full-surround curtain capture well over 90% of all shavings and dust.

Don’t beat yourself up if you bought the original and now love the features of the PRO…the Upgrade Kit puts the new router carriage on your existing rails. We also offer a range of surfacing router bits including ones with interchangeable carbide tips. For edge milling we offer down-cut solid carbide spiral bits in several diameters and cutting lengths.

Just like the original, you can get the Slab Flattening Mill PRO in either a Basic or Extended configuration. The Basic includes one pair of base rails which gives you a maximum slab length of 58". The Extended adds a second set of rails, extending the maximum slab length to 134" (that’s right…over eleven feet!)

Like all Woodpeckers products, the Slab Flattening Mill PRO is precisely machined and carefully inspected in our Strongsville, Ohio factory (just south of Cleveland). Don’t put off that natural edge project you’ve been dreaming about any longer.

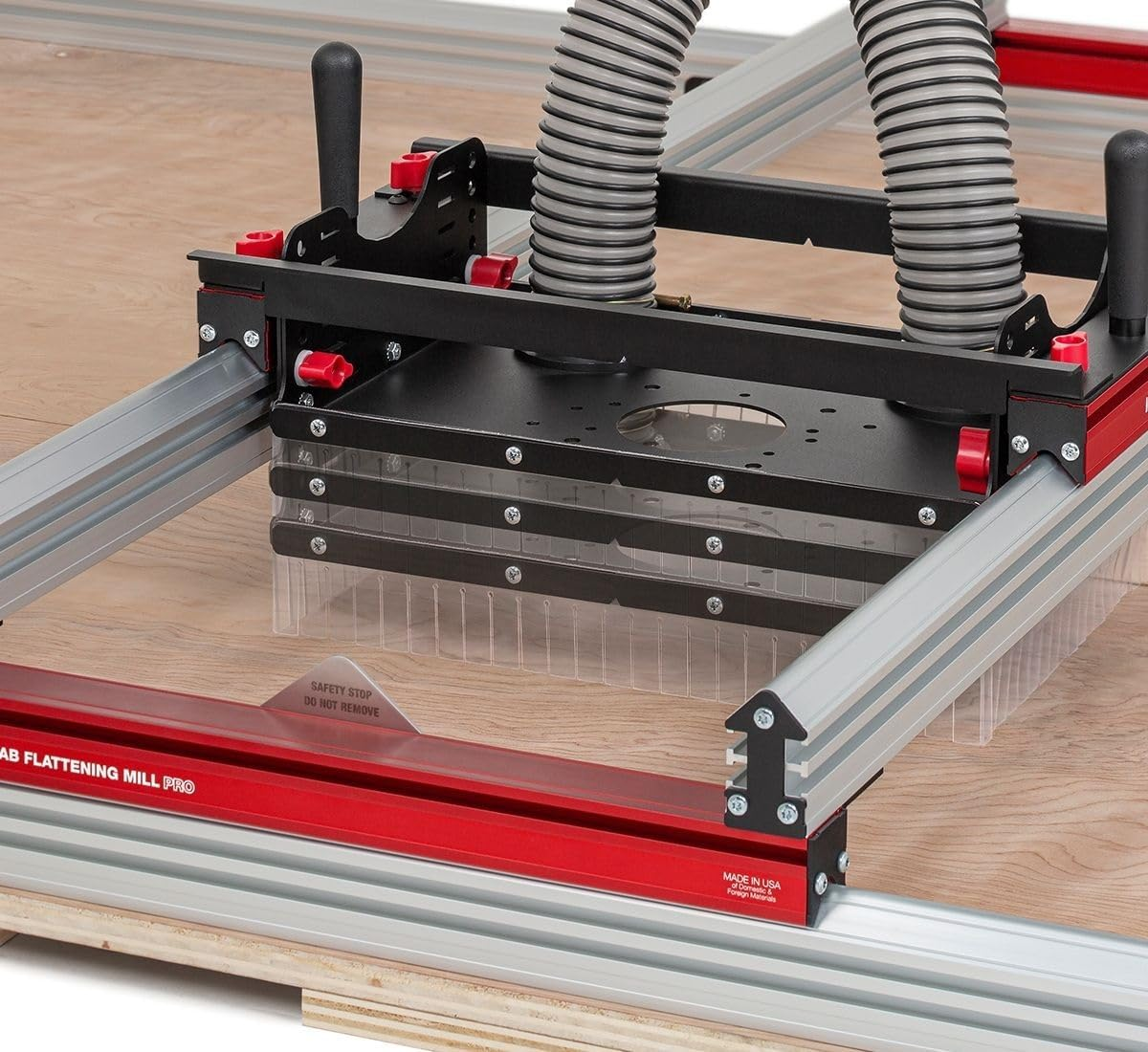

Upgraded Router Carriage

Router carriage adjust to 5 different positions with a total range of 2-1/2". No tools needed for perfectly accurate carriage adjustment

Basic Size

The Basic Woodpeckers Slab Flattening Mill has a maximum slab size of 48.5 x 58 inches.

Extended Size

The Extended Woodpeckers Slab Flattening Mill has a maximum slab size of 48.5 x 134 inches.

Work on Thin Stock

Work on stock as thin as 3/4" using the supplied clamping dogs. Stock even thinner can be machined using double-faced tape.

Flexible Dust Apron

Flexible segemented apron conforms to your slab and controls dust & chips. Twin pick-ups remove over 90% of all chips & dust.

Accommodates 3-3/8" Thick Stock

With the router carriage in its highest position, you can machine slabs a full 3-3/8" thick.

Add to Cart Add to Cart Add to Cart Customer Reviews 3.8 out of 5 stars 3 — — Price $179.99$179.99 $219.99$219.99 $21.99$21.99 Includes Bit ✓ ✓ No

• SPECS – The Extended Slab Flattening Mill PRO has a slab capacity of 48.5" × 134". Rail lengths are 59" × 152". Includes (4) 76" rails, (2) 59" cross rails, (1) router sled with integrated dust collection, (4) slab clamping dogs, and all assembly hardware. Does not include plywood or MDF base.
• THICKNESS ADJUSTMENT - The PRO carriage adjusts through a full 2-1/2" height range, allowing you to flatten stock from under 1/4" thick up to 3-3/8", depending on your router.
• BIG CAPACITY - Designed to flatten very wide and very long slabs, including dining tables, conference tables, benches, and countertops that exceed the capacity of even some industrial planers or jointers.
• EFFICIENT DUST COLLECTION - The upgraded PRO carriage features twin dust pickup ports and a full-surround curtain that captures over 90% of shavings and dust—keeping the surface visible and the shop cleaner during heavy slab surfacing.
• MADE IN USA - Like all Woodpeckers products, the Slab Flattening Mill Pro is proudly machined and carefully inspected in our Strongsville, OH facility, just south of Cleveland.
