Dual Drilled Wheel Adapters Conversion Kit

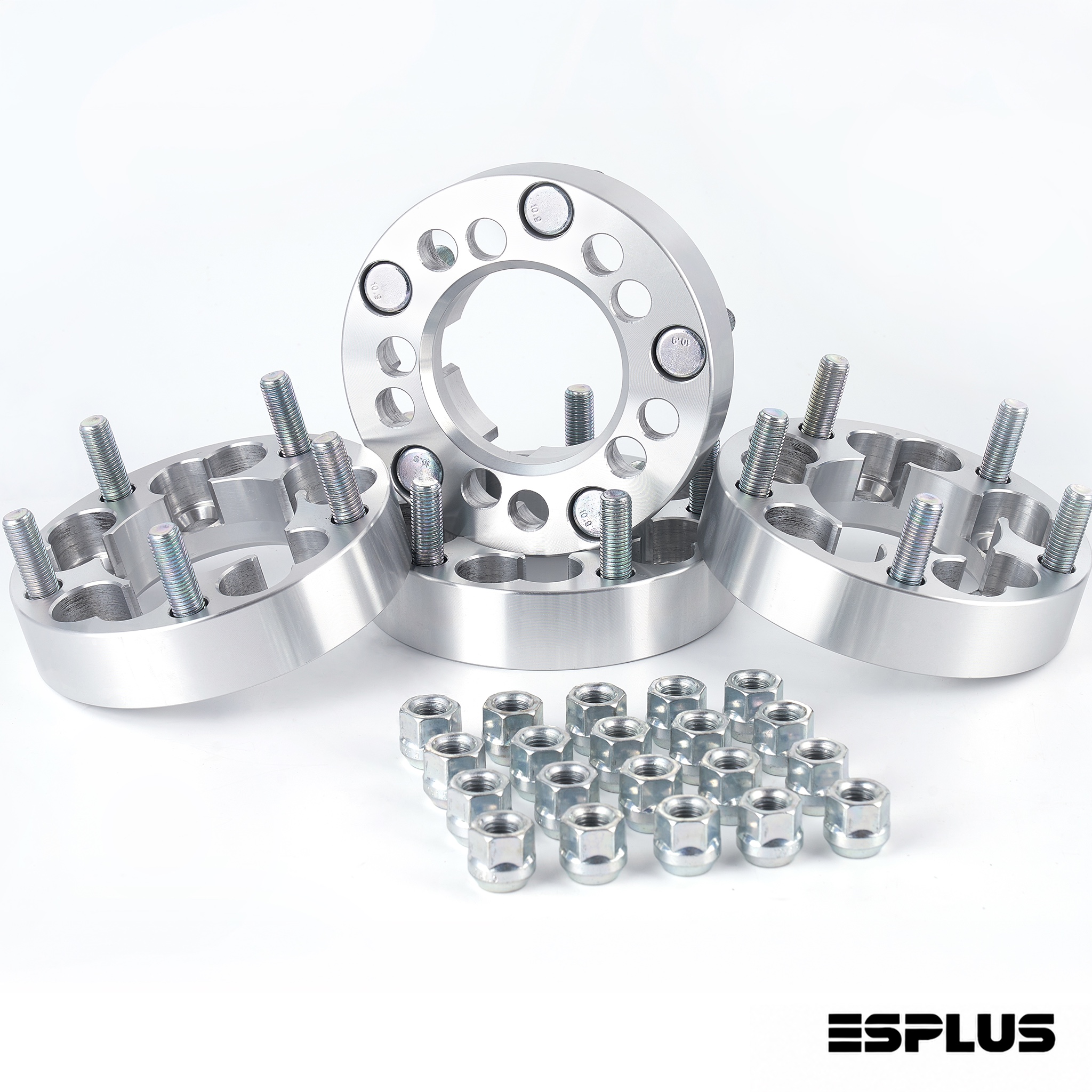

[4] Wheel Adapters Conversion 5x4.75" to 5x112 1.25" Thick for 09-23 Acura NSX
![[4] Wheel Adapters Conversion 5x4.75](https://img.topmorrowusa.com/products/4x-dual-pattern-wheel-adapters-5-lug-32mm-thick/4x-dual-pattern-wheel-adapters-5-lug-32mm-thick-main.jpg?v=26081300&t=LkrXf87hNZUUgiy1IfZJxQ)
Two parts. One kit.
Each order ships as a complete, ready-to-install set ? measured and matched.

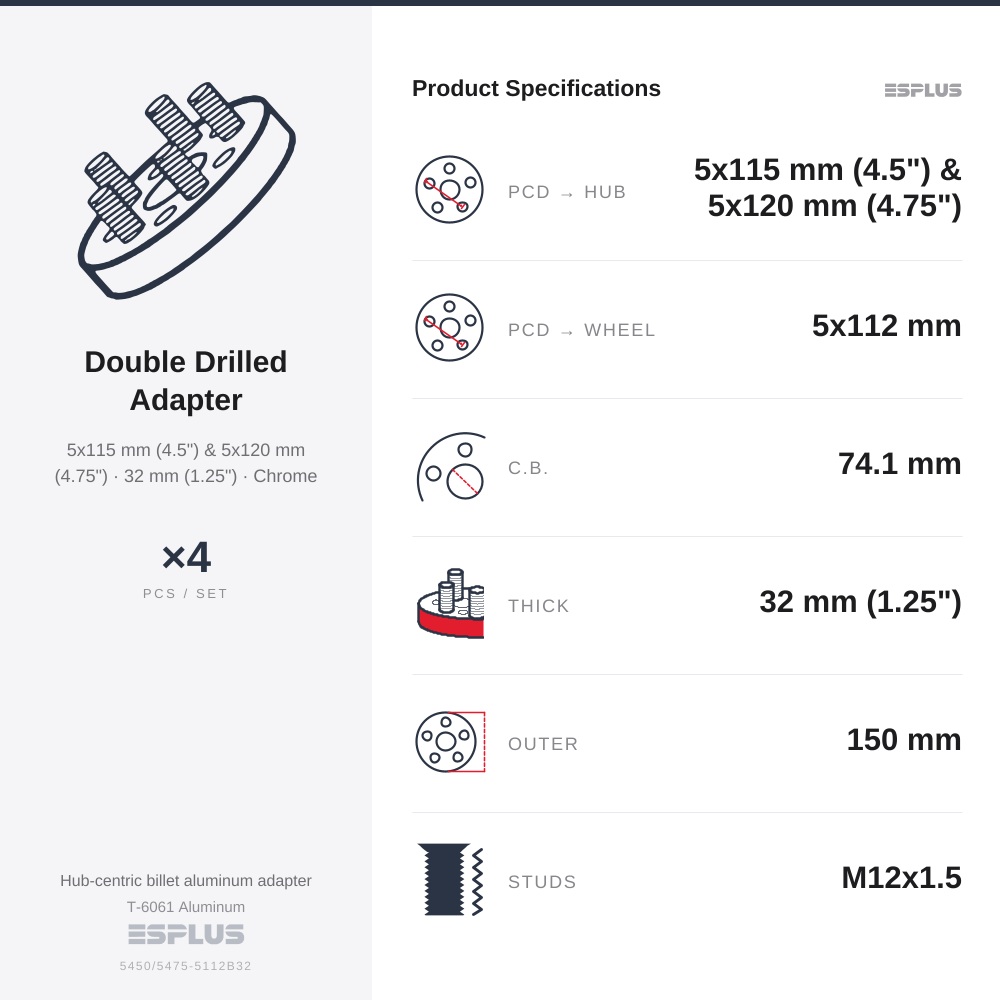

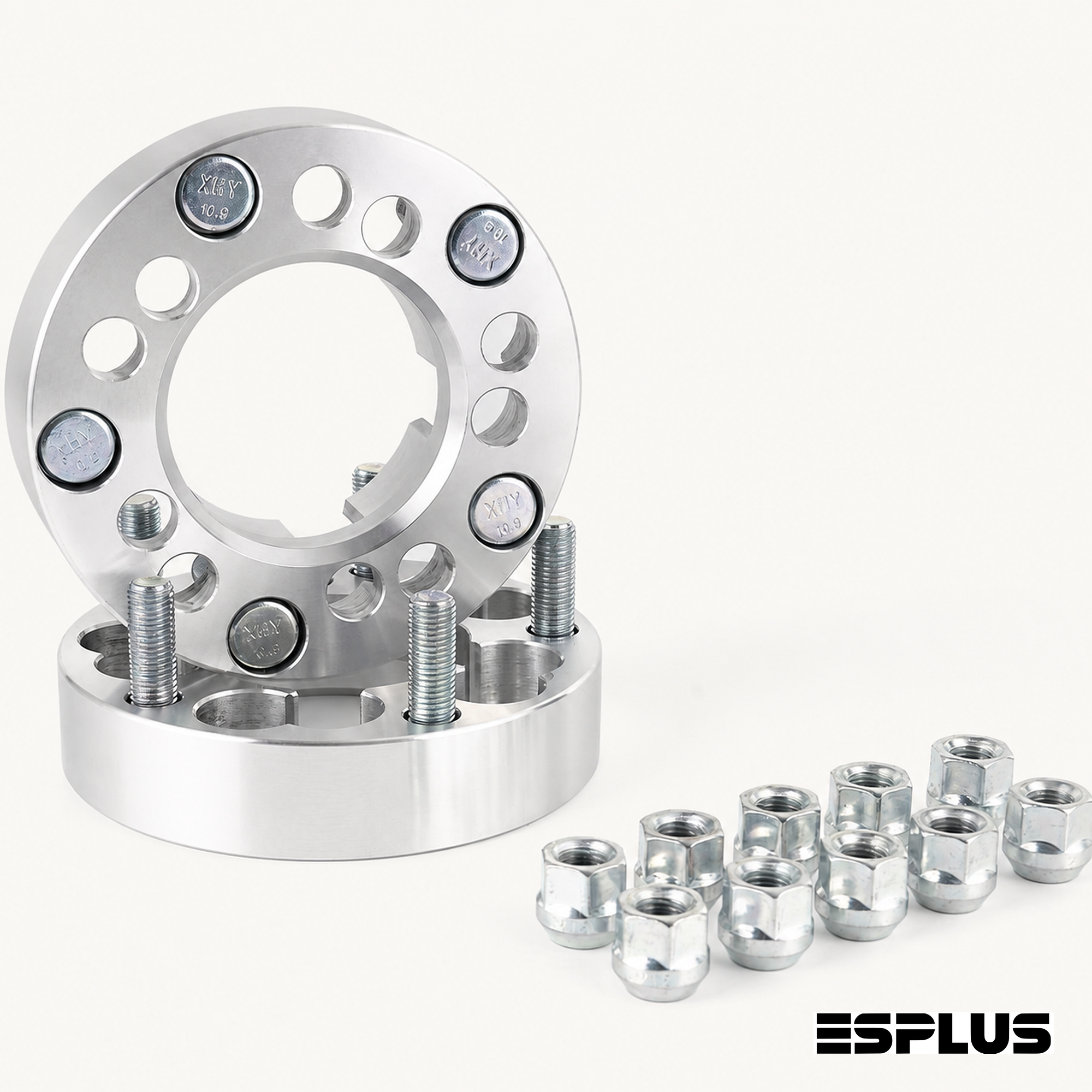

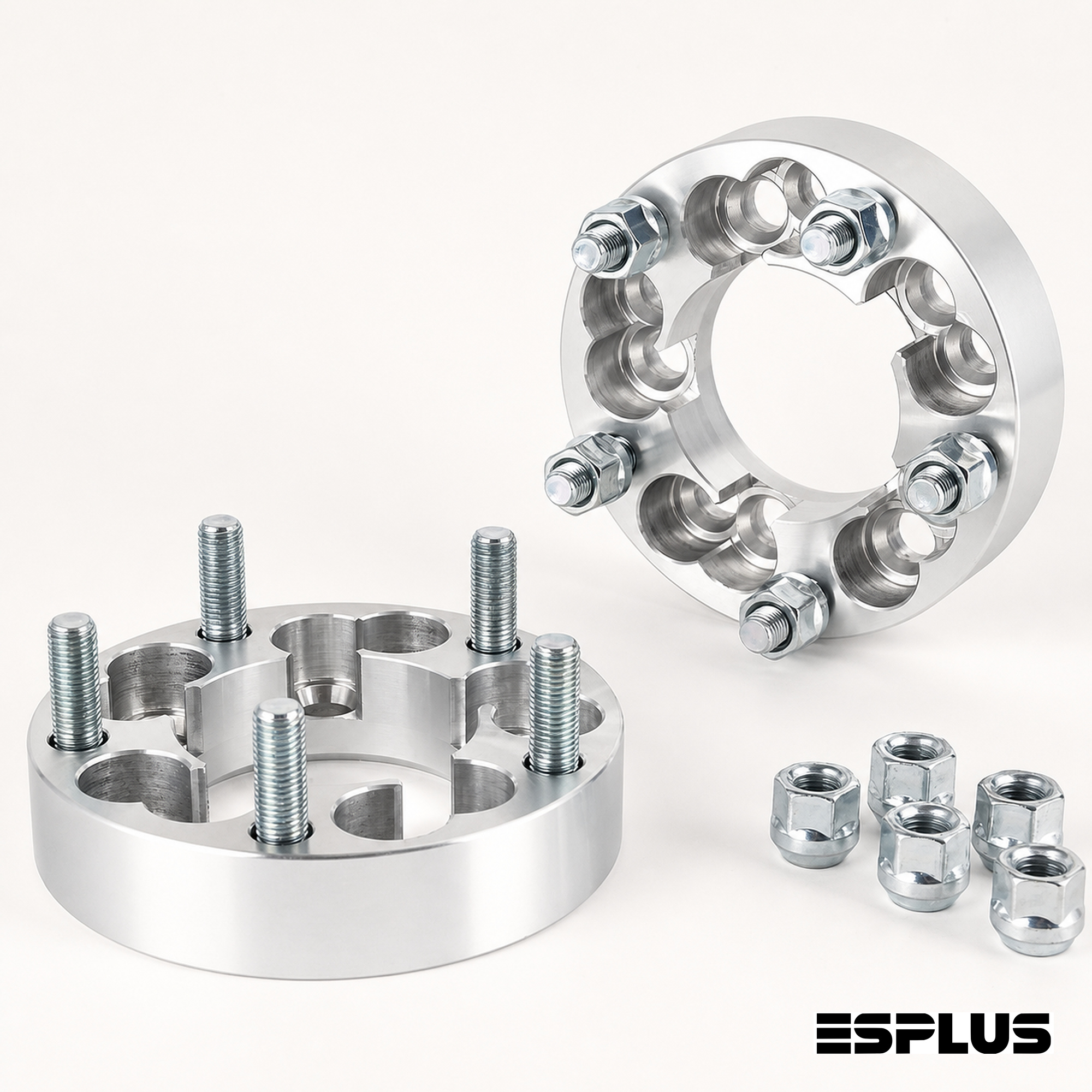

32mm Thick 5x115/5x120 to 5x112 Wheel Adapter
M14x1.5 Open End Lug Nut
Fits your car.
Verified, not guessed.
Dual Drilled bolt-pattern conversion adapters with M12x1.5 press-in studs; kitted with hub-side open lug nuts; made for hubs that use press-in studs and lug nuts, running wheels drilled for 5x112.
Japan
1 FeaturedAcura
Not sure? Message us ? we verify your exact year & model before you buy.
A closer look at the main part.
Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.
A closer look at the included hardware.
Finish, geometry, and packaging — from every angle. Tap a thumbnail to view.

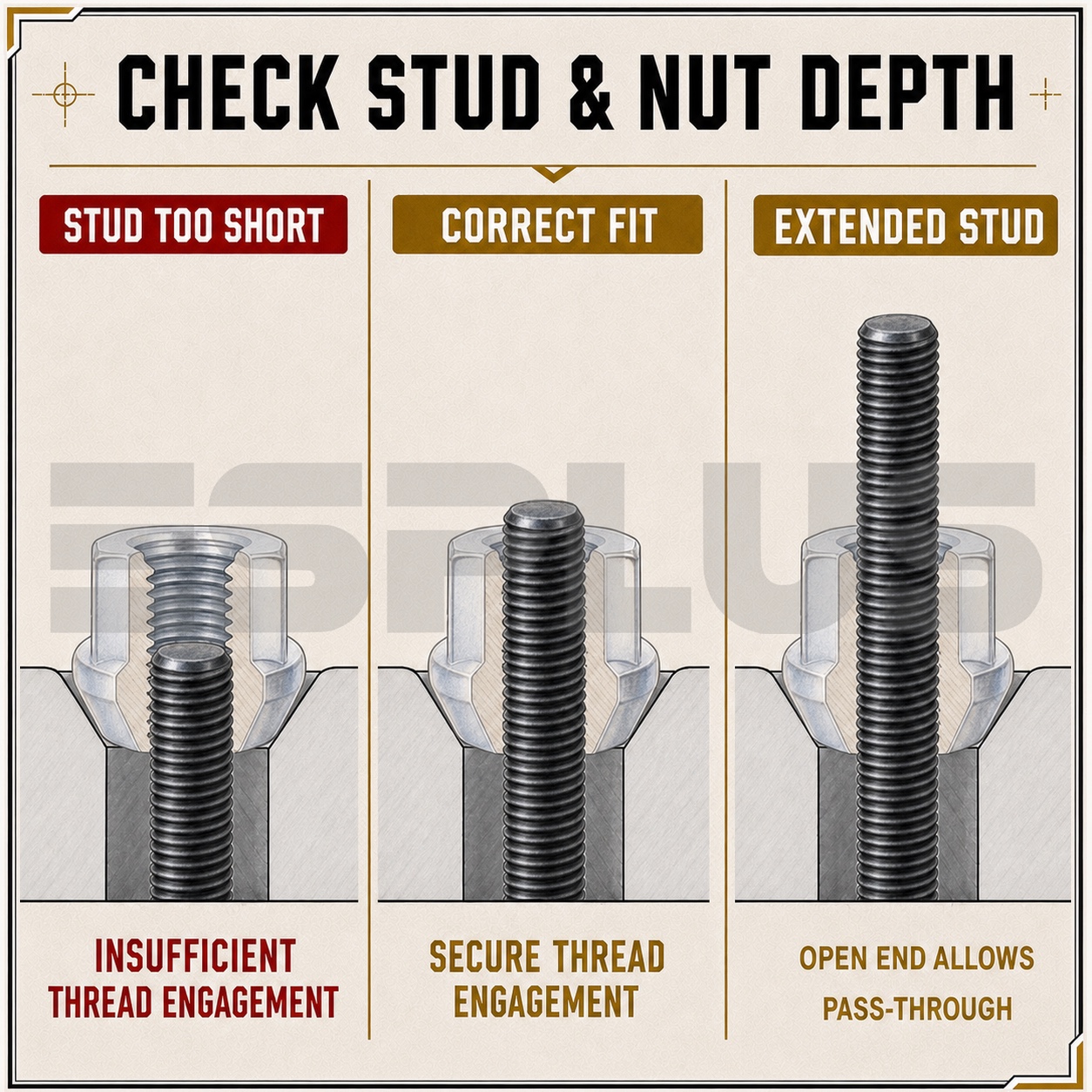

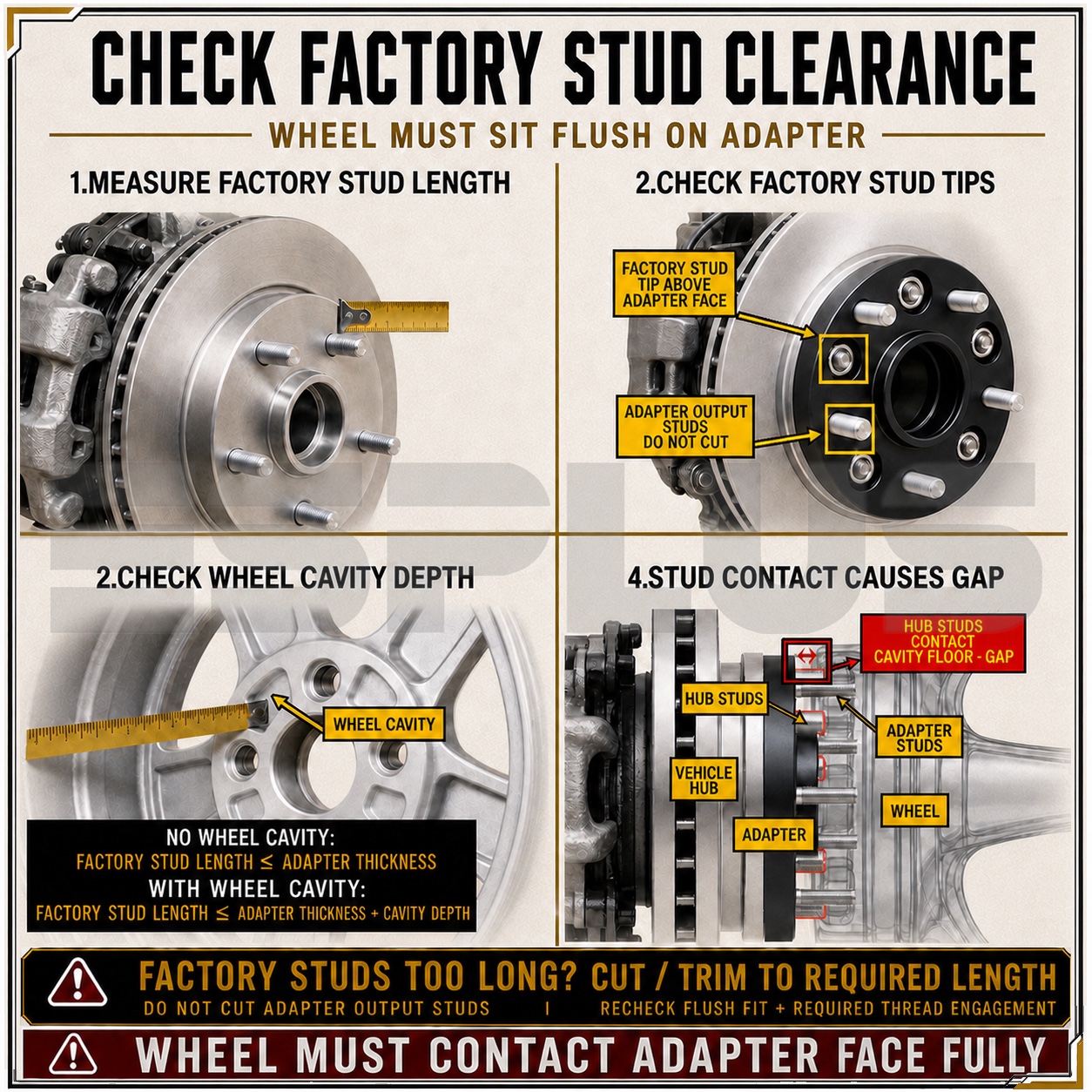

Some fitment details only your vehicle can tell you.
The vehicle list above confirms your year, make and model. The points below are not part of that list — they depend on the wheels and hardware currently on your vehicle. Please verify them before ordering.
The same applies to the included hardware.
These checks apply to the hardware included in this kit. They depend on what is currently fitted to your vehicle, not on the year, make and model above.
Performance you can torque down.
6061-T6 Aluminum, Both Faces Machined Flat
The plate is 6061-T6 aluminum with both mounting faces machined flat, so it clamps square between hub and wheel; an anodized surface shields the alloy against corrosion.
Grade 10.9 SCM Carbon Steel Press-In Studs
Each M12x1.5 wheel stud is SCM carbon steel in Grade 10.9, pressed into the plate so your wheel torques against fixed studs rather than loose hardware.
M12x1.5 Studs - Your Choice Of Wheel Nuts
The wheel side takes M12x1.5 lug nuts in the seat style your new wheels call for, so aftermarket alloy or steel wheels can both be run; wheel-side nuts are not included.

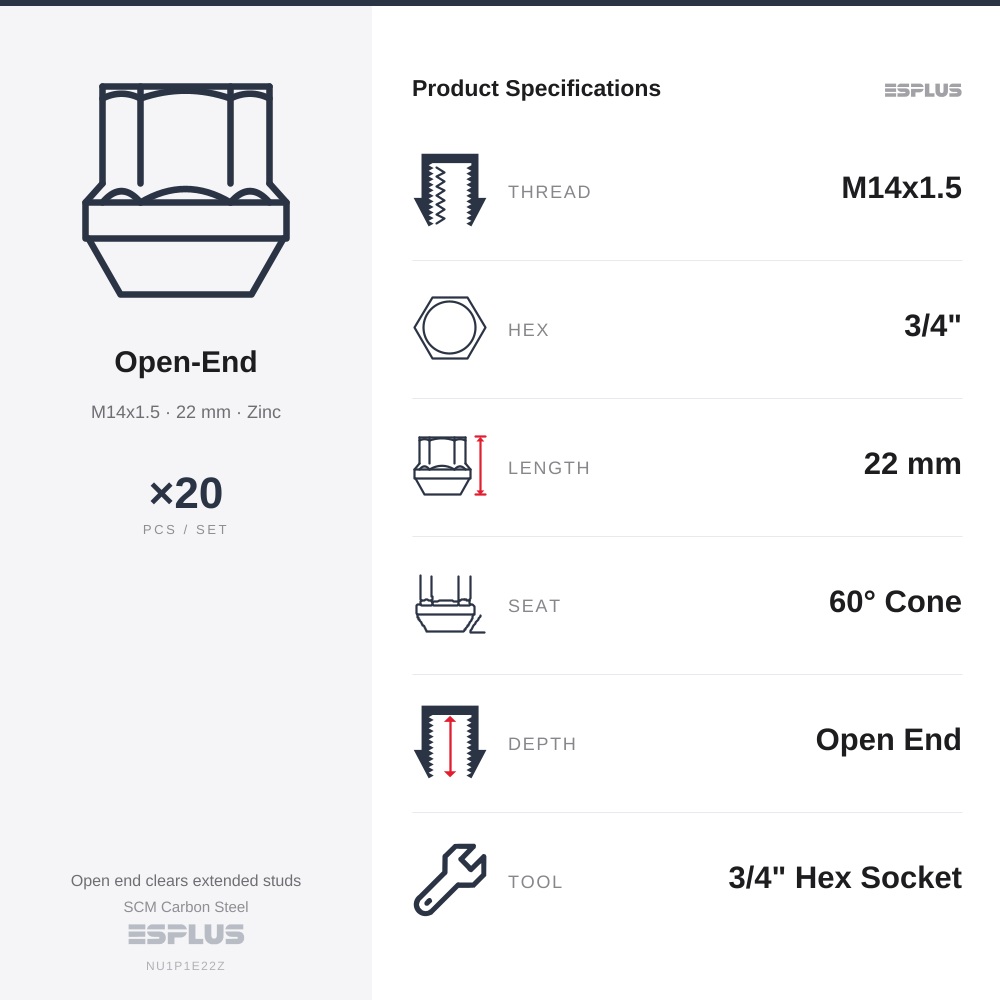

Hub-Side Open Lug Nuts In The Box

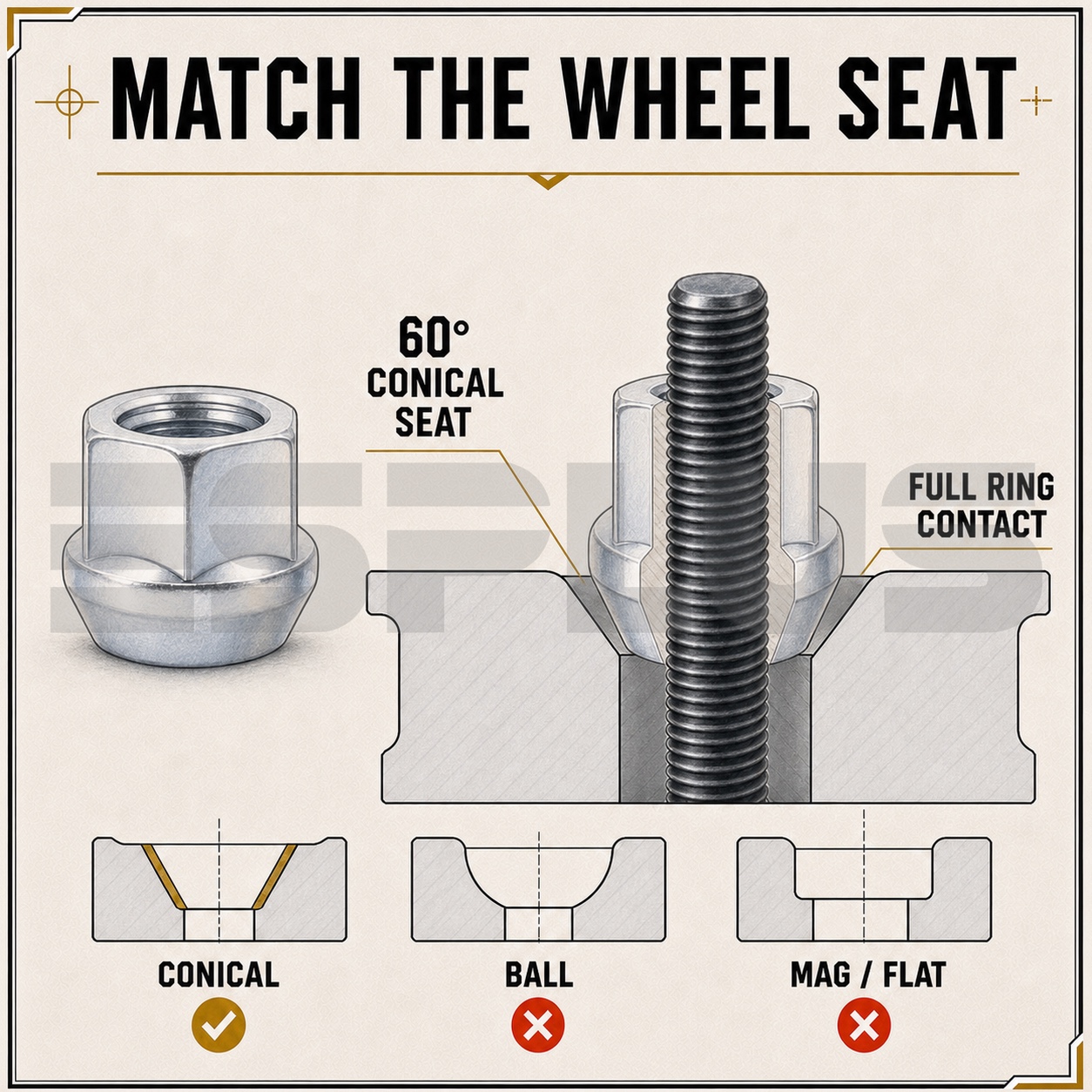

Open-end nuts with a 60 degree conical seat (a plain tapered cone), 22 mm height and 23 mm (0.9 in) flange bolt the plate to your factory studs with a 3/4 in hex socket; the nut count is in the title.
Dual Drilled Hub Face Covers Two Patterns

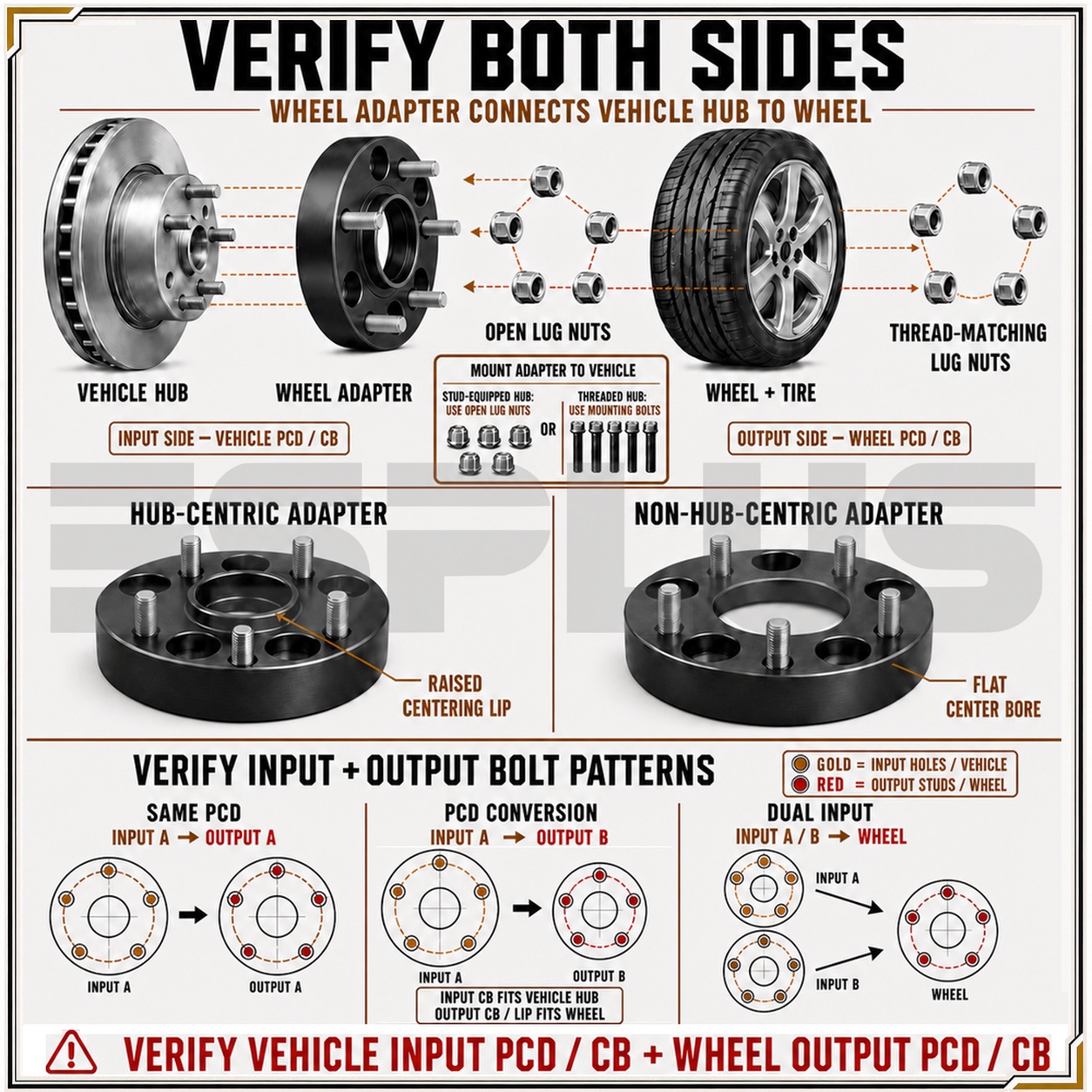

The hub side is double drilled, so one plate bolts up to either of two factory patterns while the nuts' conical seats center it on your studs; this listing names its patterns in the title.
Wider Track And Caliper Clearance Headroom

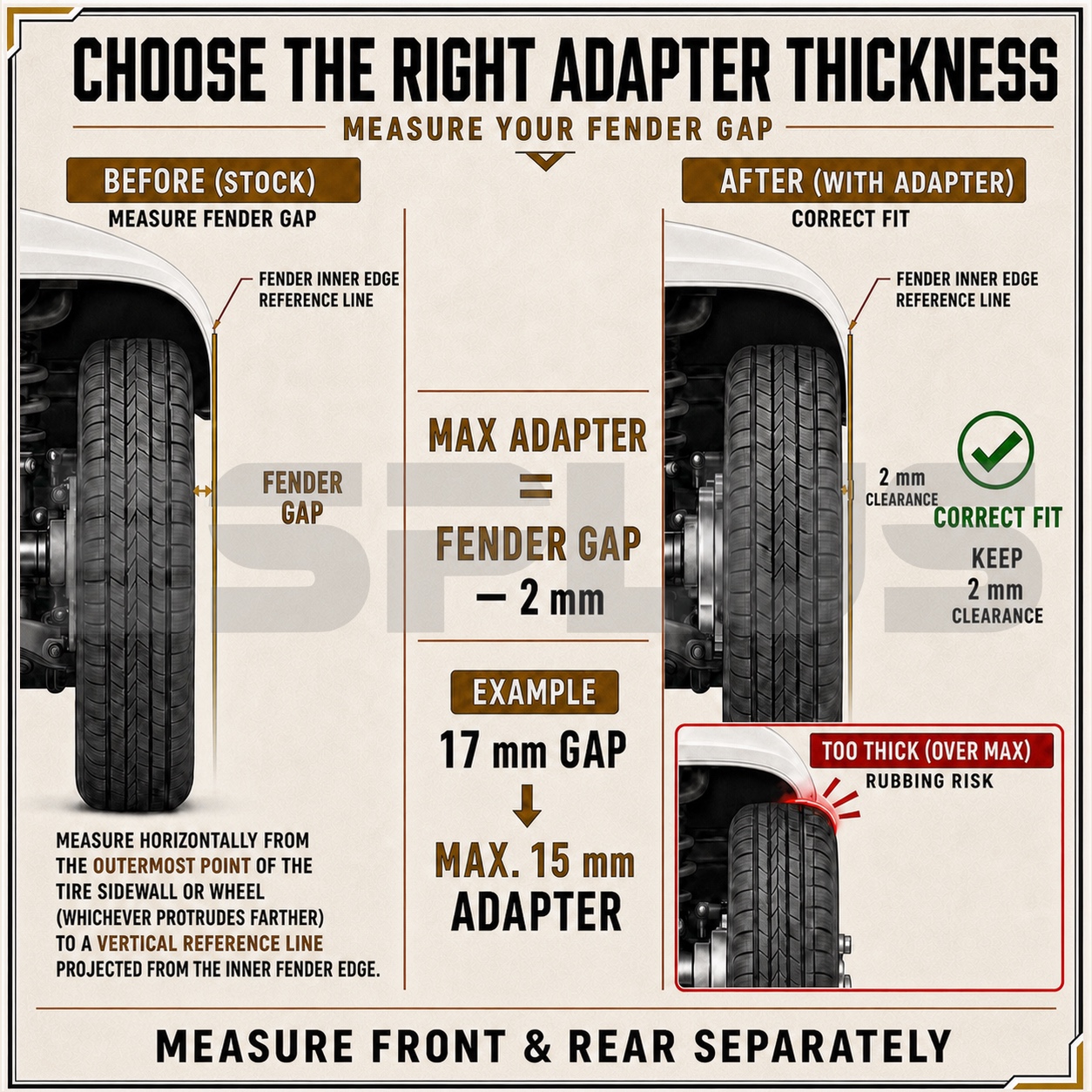

Moving the wheel outboard adds track width and can open caliper clearance for aftermarket wheels; the gain equals the adapter thickness carried in this listing's title.
3 steps to torque.
Follow the sequence below ? fitment is everything, so read Step 1 carefully.

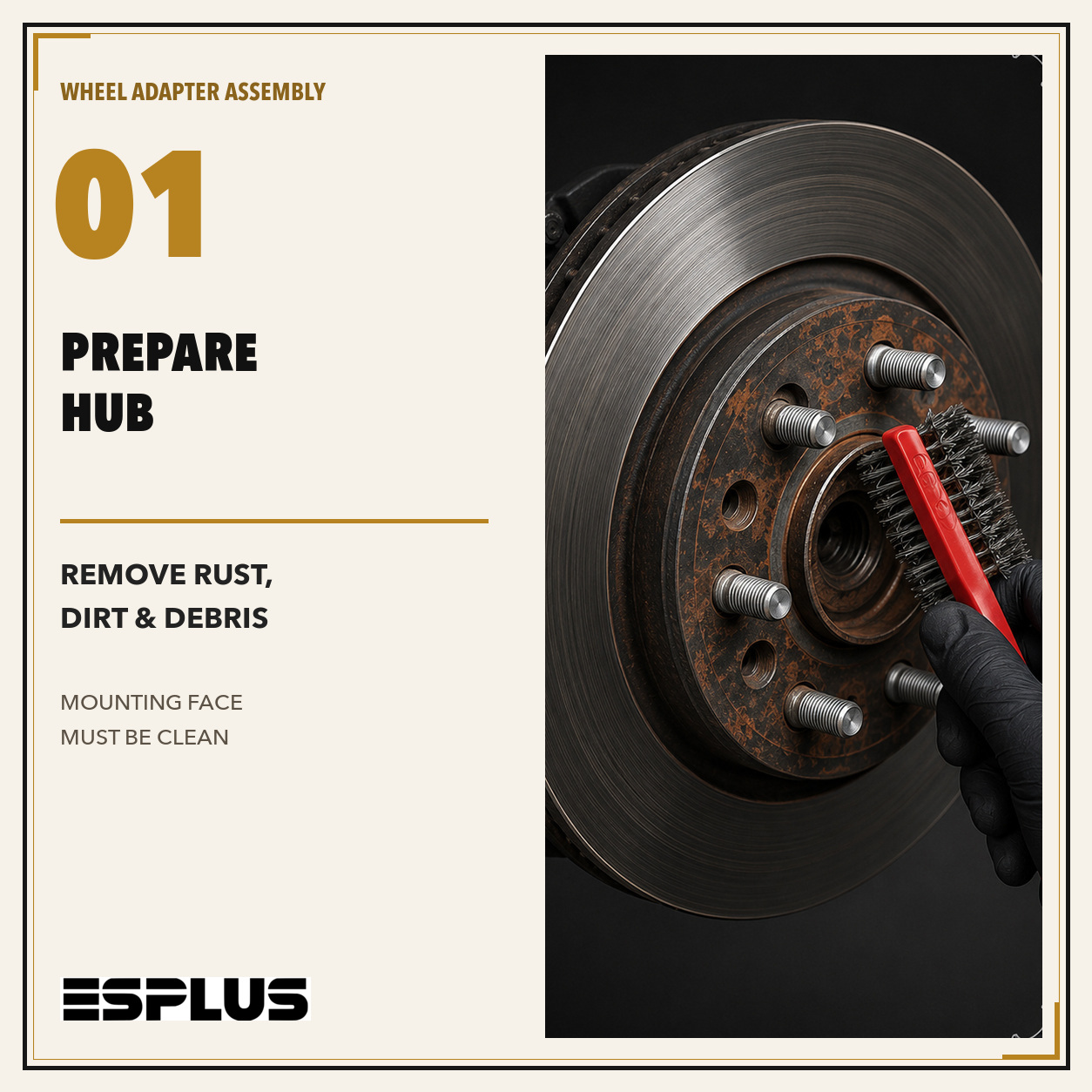

Match Patterns, Dry Fit
Confirm the hub's factory bolt pattern matches this plate and that your new wheels are drilled 5x112, then dry-fit the bare adapter on the clean hub face.

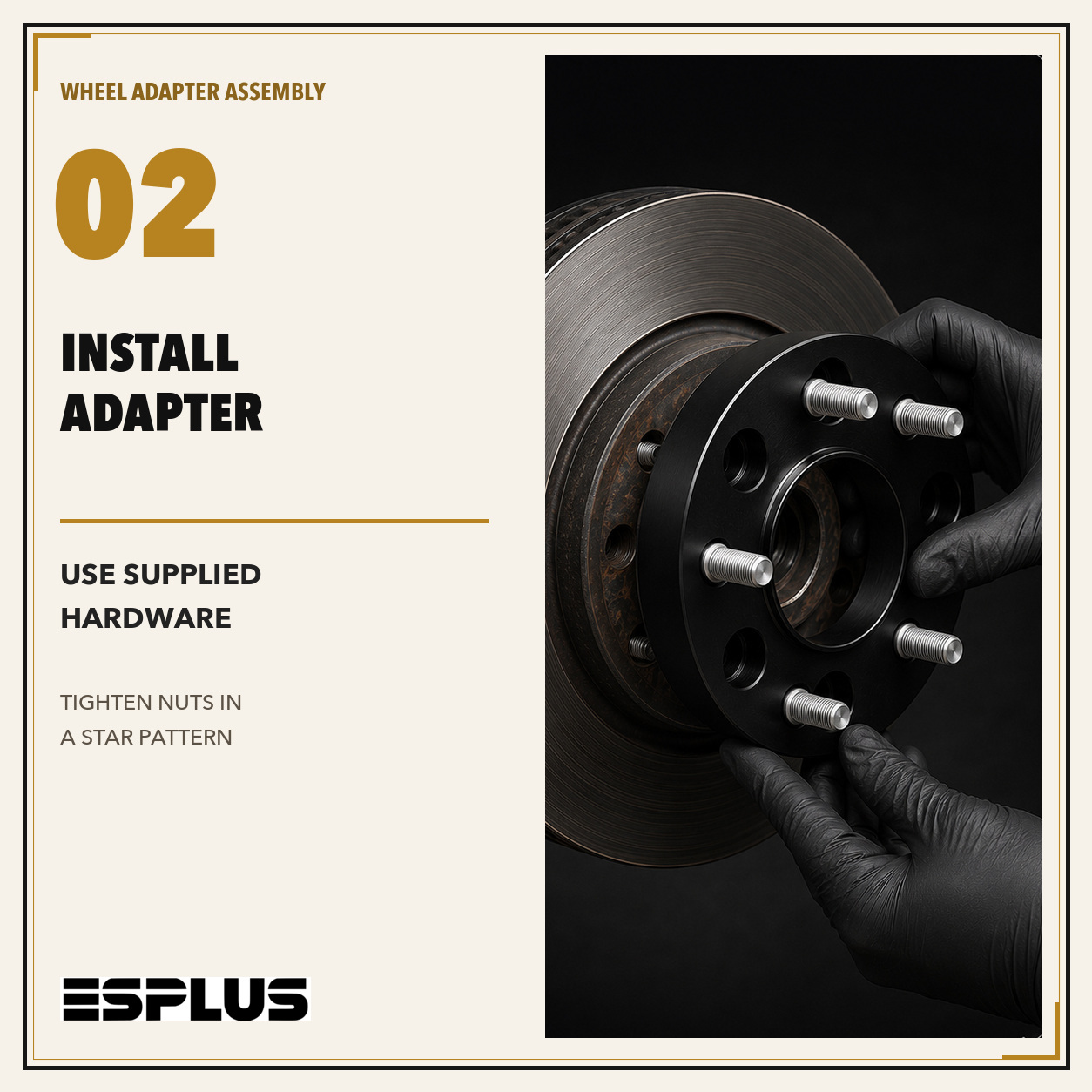

Bolt Adapter To The Hub
Seat the included open-end nuts on the vehicle's own studs with a 3/4 in hex socket and tighten evenly in a star pattern until the adapter sits flat.

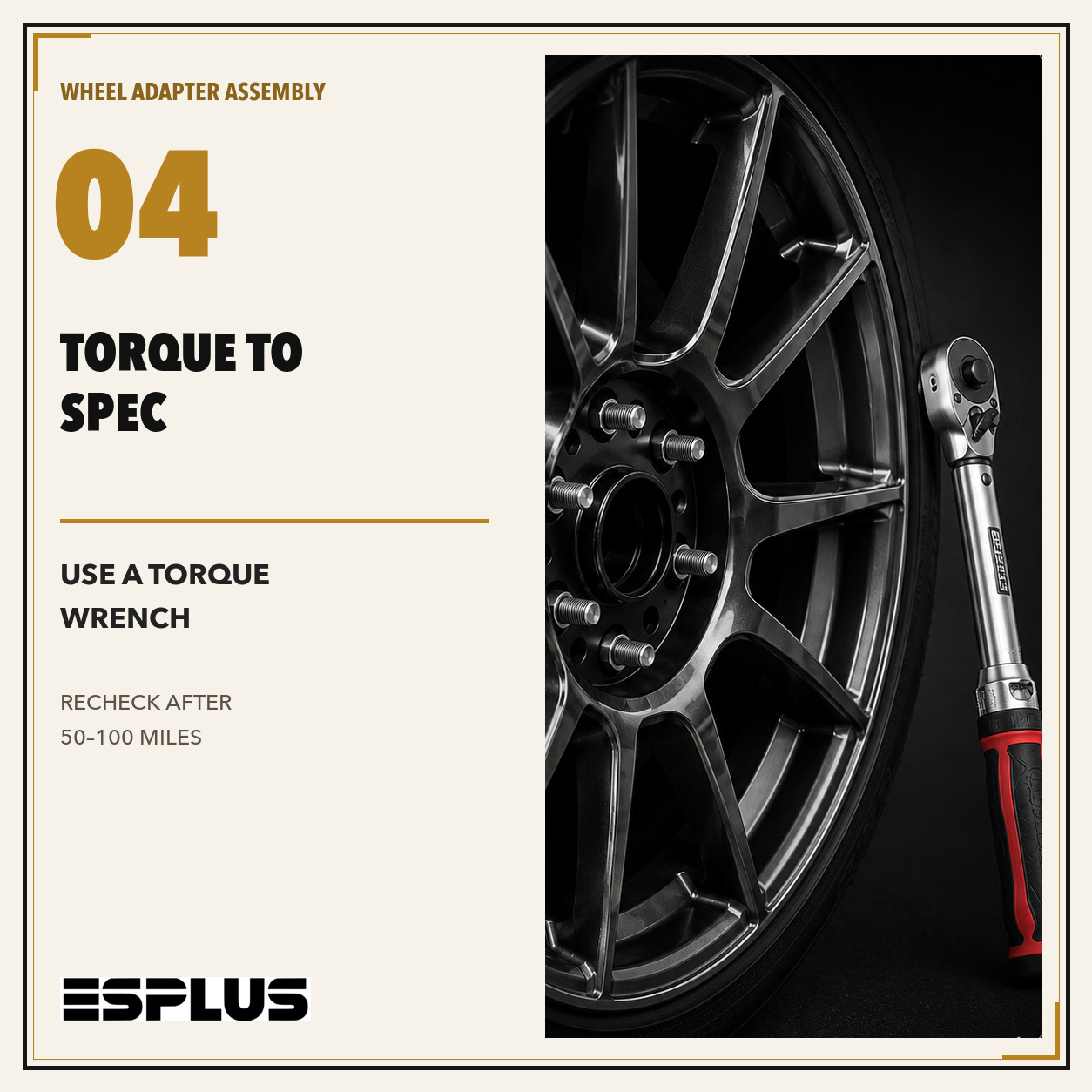

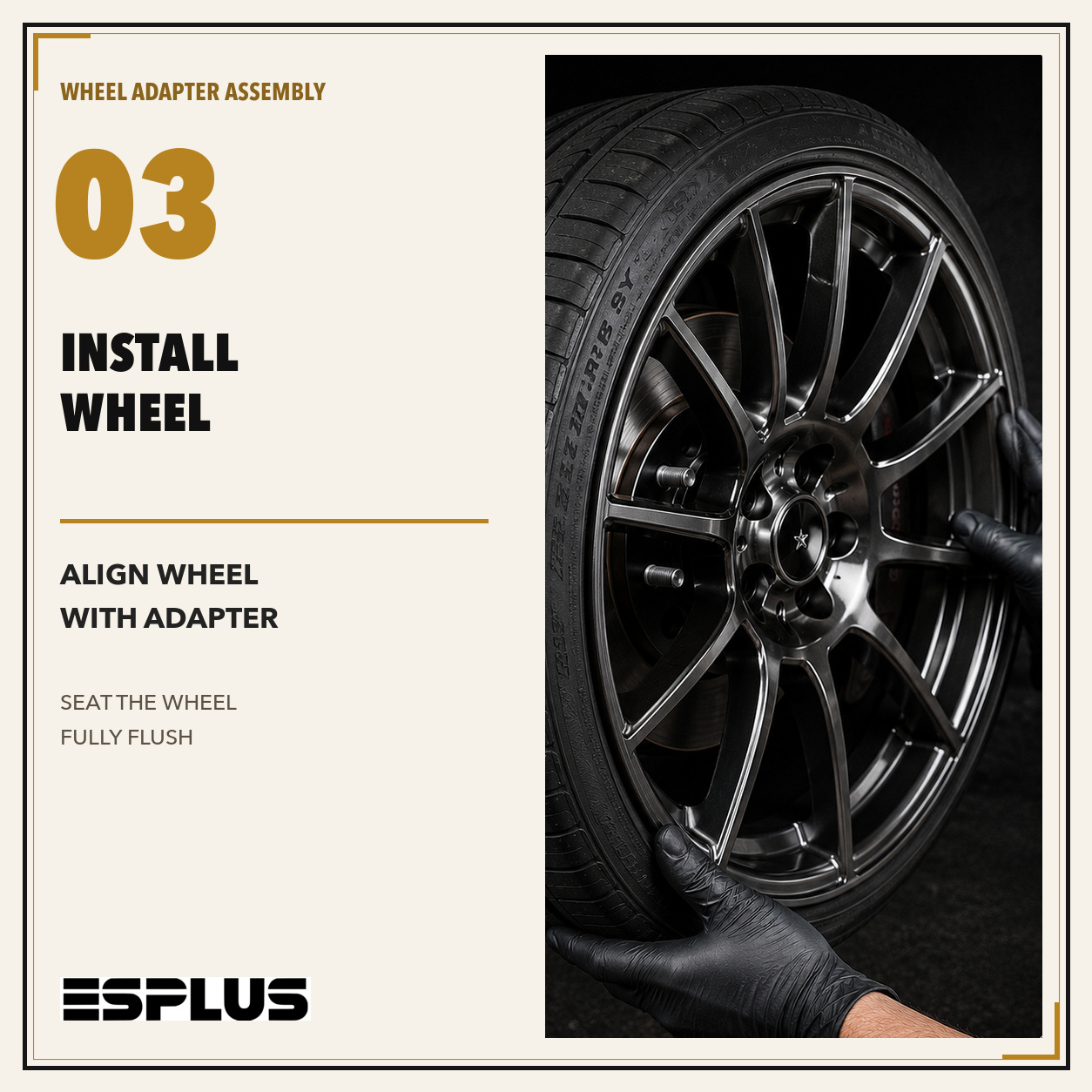

Mount Wheel, Torque Nuts
Hang the 5x112 wheel on the M12x1.5 studs, fit your own wheel-side nuts, and torque in a star pattern to the wheel maker's spec; recheck torque after the first drive.
Important Fitment Notice
- bolt-pattern conversion - your wheels must be drilled 5x112
- factory wheels no longer fit
- fits hubs with press-in studs and lug nuts
- included open nuts are hub-side, sized to your vehicle's studs
- wheel-side lug nuts not included - buy M12x1.5 to match the adapter studs
- counts for this kit are in the title

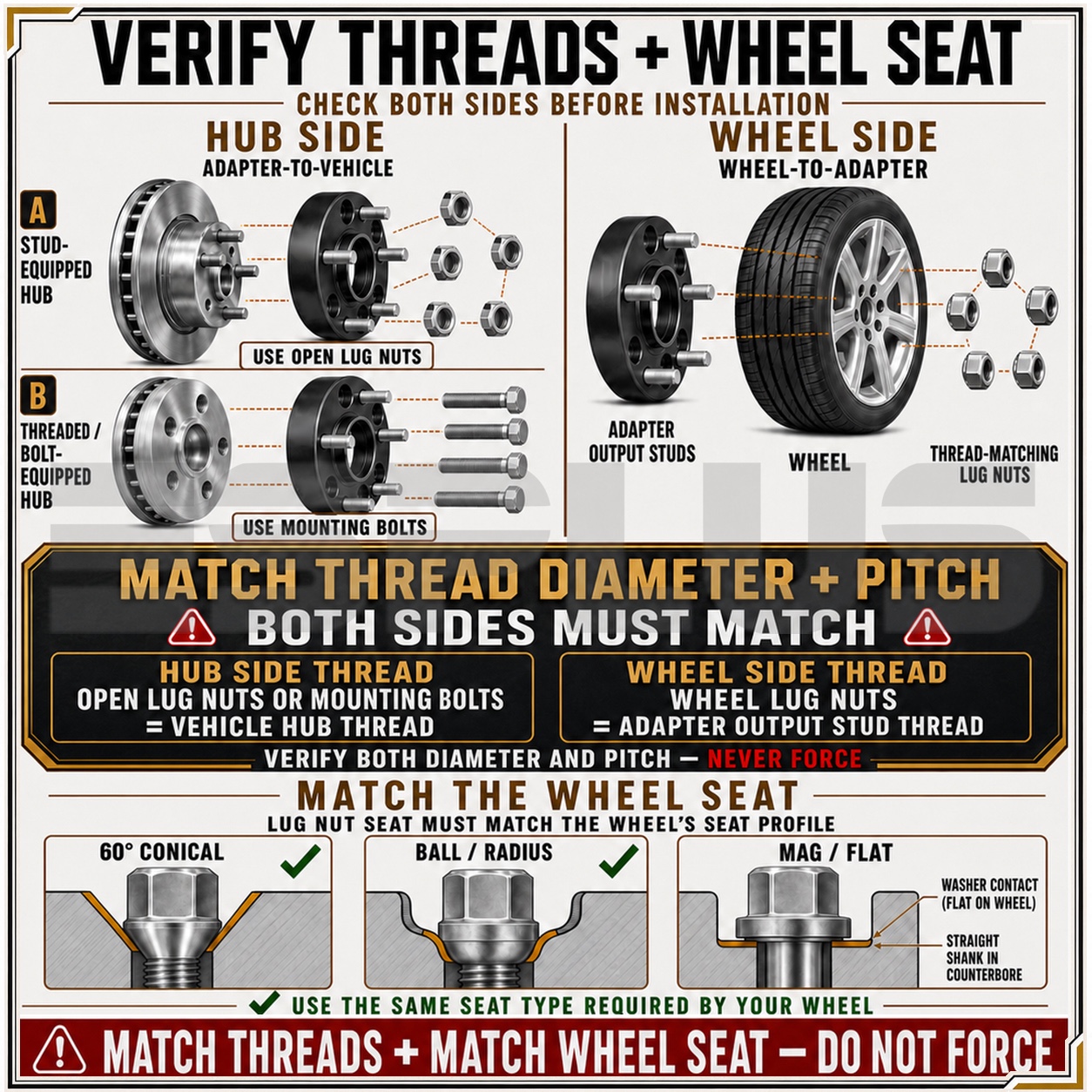

- lug-centric - the conical seats do the centering, tighten evenly
- a wheel nut on the wrong seat can work loose and let the wheel leave the vehicle

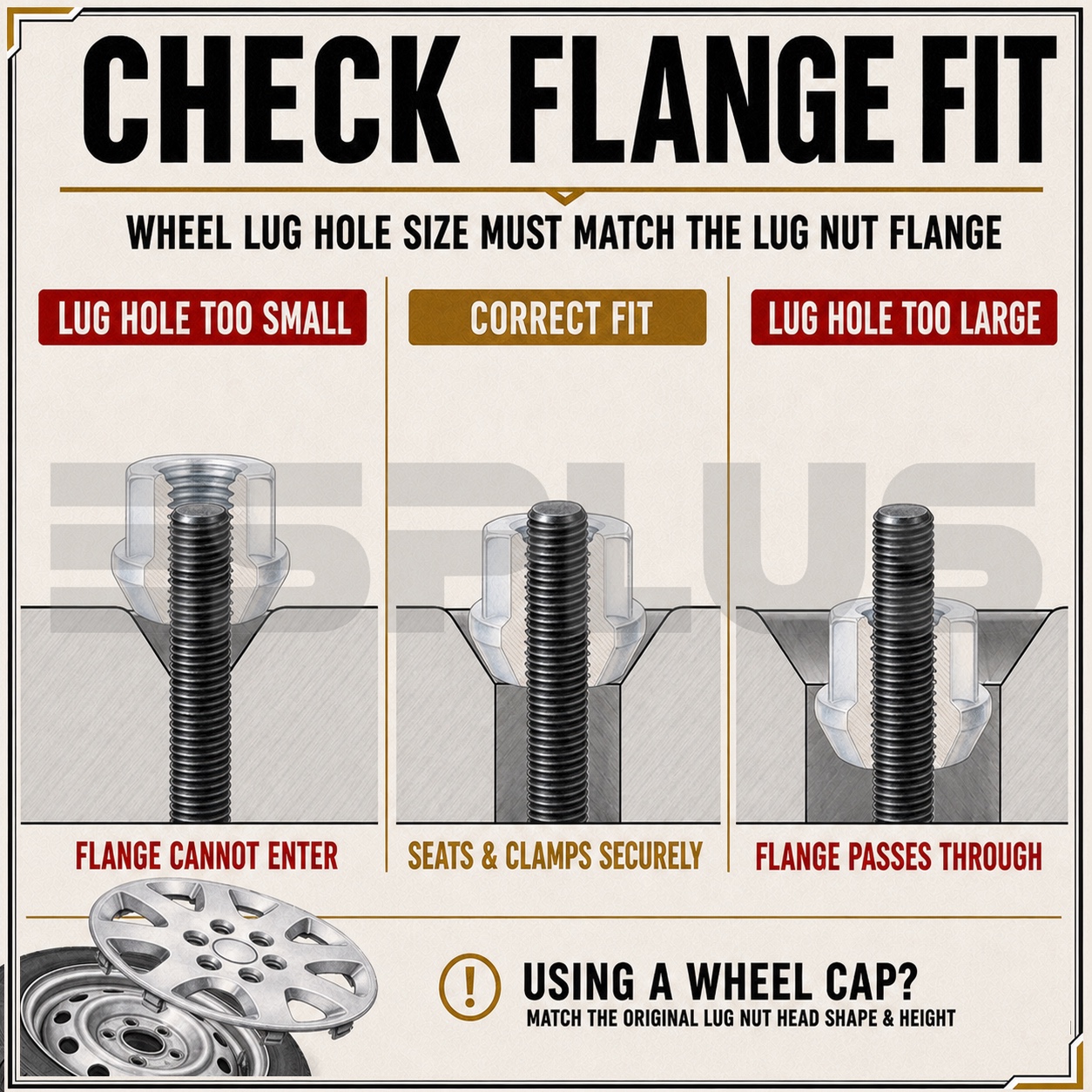

eBay's compatibility list matches by vehicle only. The wheel-side facts above — seat geometry, hole clearance, installed depth and usable thread engagement — still need your own check. Message us through eBay before ordering if anything is unclear.
Clarity before checkout.
Wheel hardware is fit-critical. Our listing structure keeps the evidence a buyer needs in the order it should be checked.
Specification First
Thread, seat, dimensions, finish and quantity are organized for direct comparison.
Fitment in Two Layers
Vehicle compatibility and wheel-specific hardware checks are presented separately.
Component-Level Detail
Combination listings keep each component's quantity, gallery and technical data distinct.
Pre-Purchase Support
Message us through eBay with your year, model, wheel and current hardware details.
Check the details that decide fit.
Will this wheel hardware fit my exact vehicle?
How do I confirm thread pitch and seat type?
What should I verify on aftermarket wheels?
What torque specification should I use?
Where can I find current shipping and return terms?
Order terms, kept current.
The controls attached to this eBay listing are the source of truth for the transaction.
Shipping
Review the handling time, delivery estimate and available services shown on this listing. Tracking is provided through the eBay order when available.
Returns
The return window, eligibility and conditions shown in this listing govern the order. Start any return request from the eBay purchase record.
Fitment Responsibility
Confirm the listed thread, seat, dimensions, clearance and quantity before installation. When uncertain, message us through eBay before ordering.
Precision wheel hardware.
Clarity built into every listing.
ESPLUS focuses on wheel fastening hardware and fitment-critical accessories. We organize product specifications, vehicle application data, wheel-side checks and installation guidance so buyers can compare the right facts before ordering.
