SDS200S 1PCS:

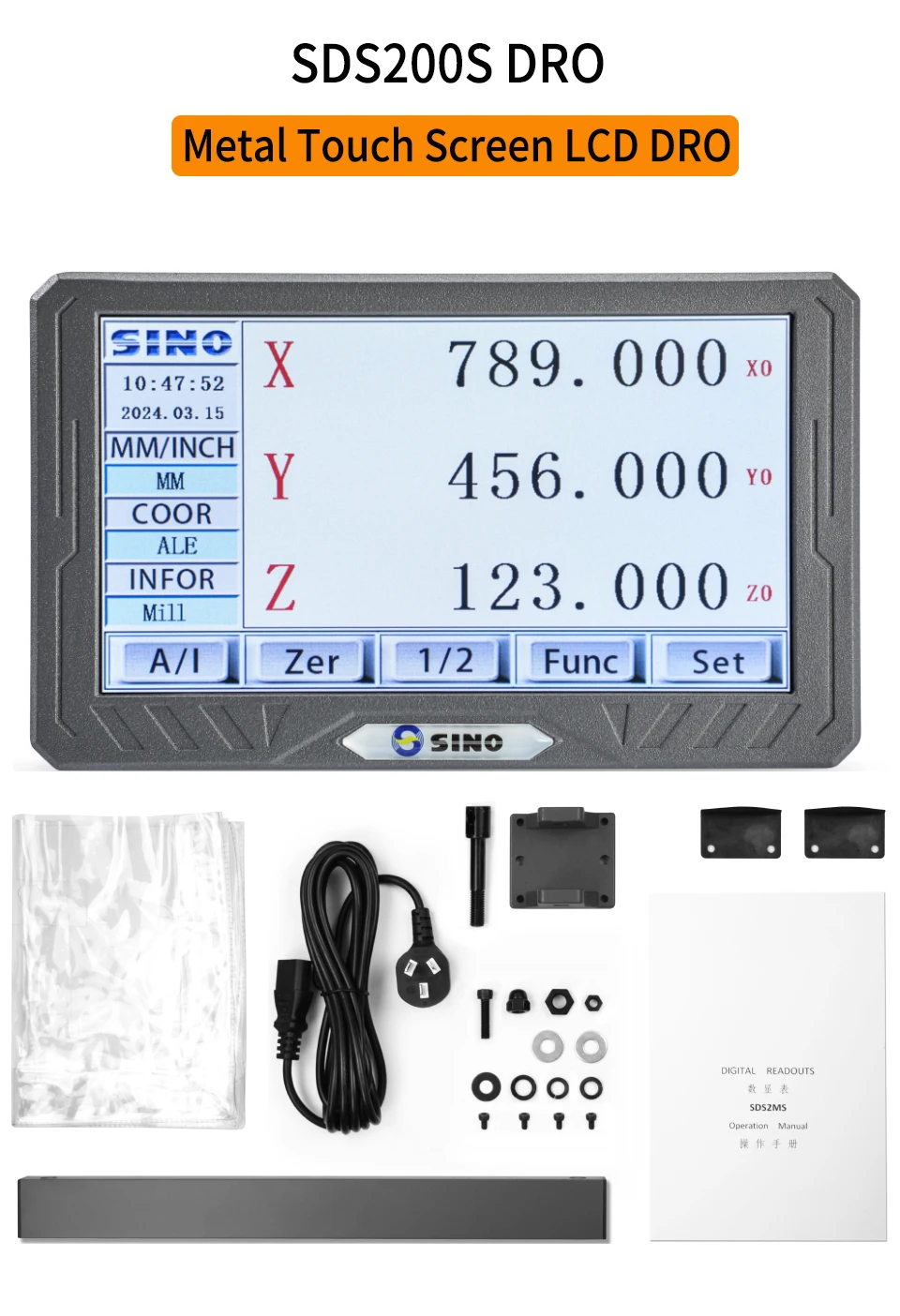

1 piece SINO SDS200S Touch Screen LCD display, user manual, mounting bracket, power cable, screw bag

2-Axis DRO Kit:

1 piece SINO SDS200S Touch Screen LCD LCD display, user manual, mounting bracket, power cable, screw bag

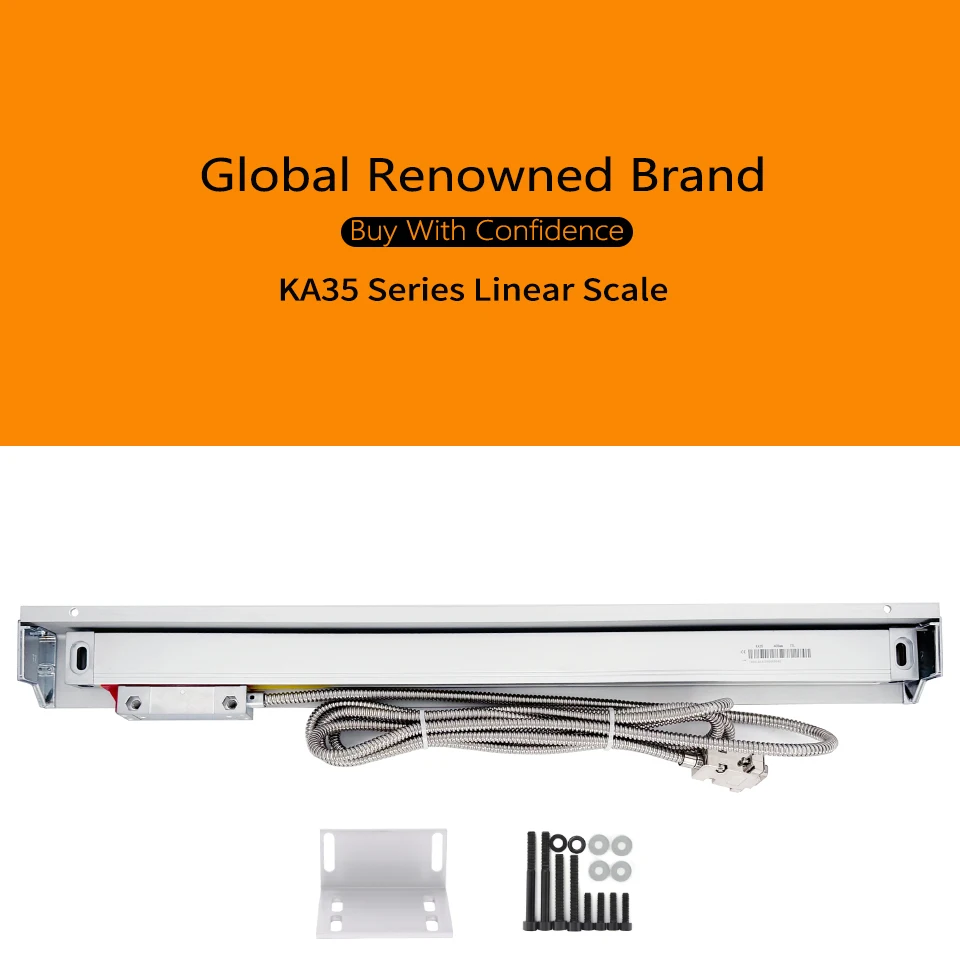

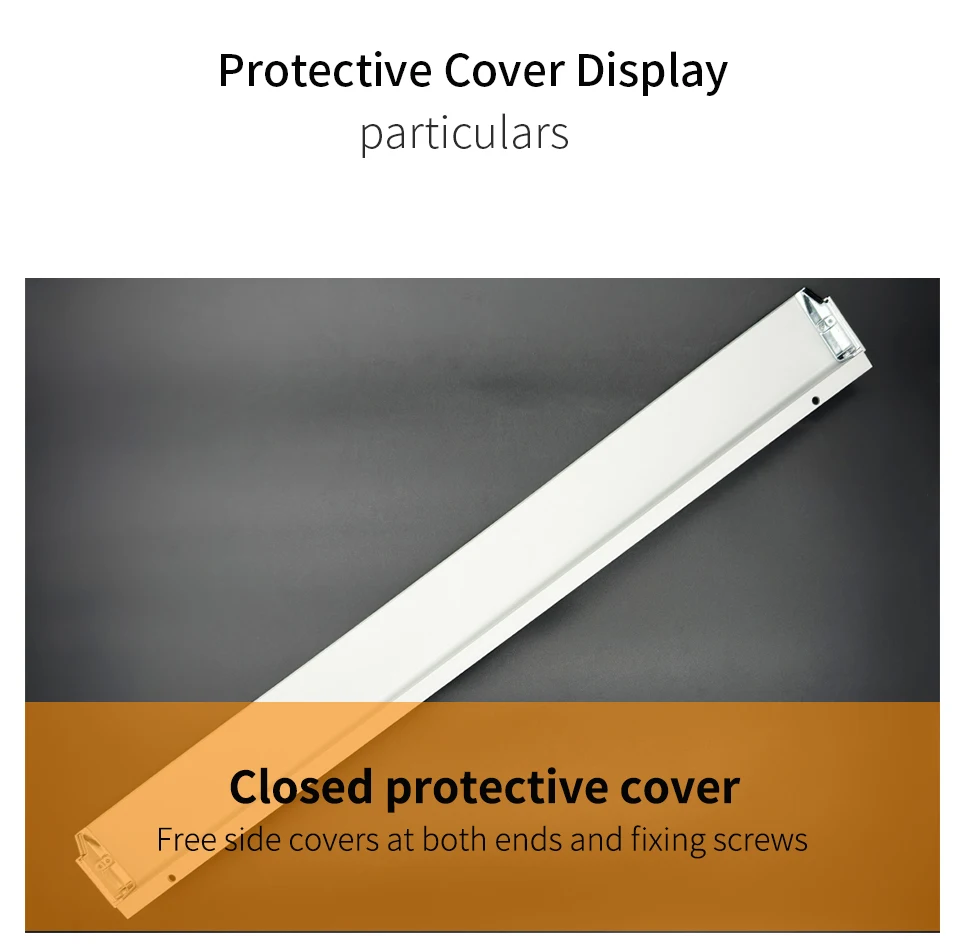

2 pieces 0.005mm Sino KA35 scales, scale covers, mounting brackets & screw bags【Travel length can be freely selected within 100mm~1000mm】

3-Axis DRO Kit:

1 piece SINO SDS200S Touch Screen LCD LCD display, user manual, mounting bracket, power cable, screw bag

3 pieces 0.005mm Sino KA35 scales, scale covers, mounting brackets & screw bags【Travel length can be freely selected within 100mm~1000mm】

1.How to select scales length?

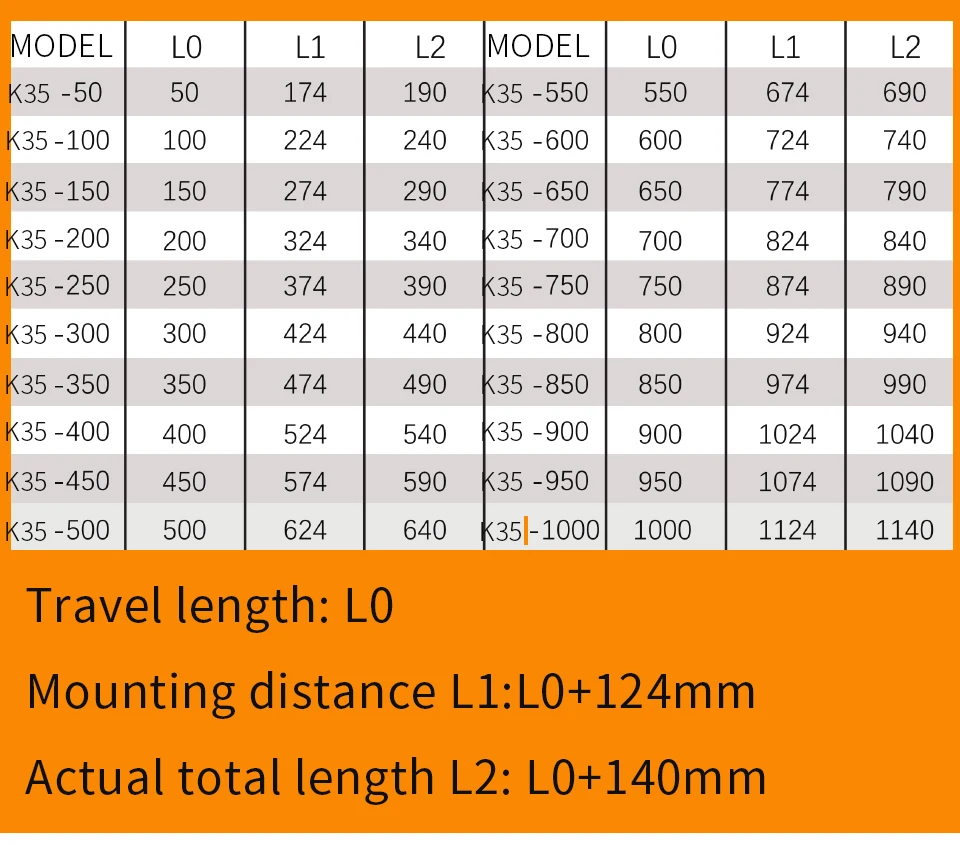

For model: KA35, 100mm,150mm,200mm,250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm，600mm,650mm,700mm,750mm，800mm，850mm，900mm，1000mm for choose.

Scale length means scales working travel length.

If there is no message left, 2 Axis DRO Kit we will deliver the goods according to the travel lengths of 250mm and 700mm.3 Axis DRO Kit we will deliver the goods according to the travel lengths of 250mm and 350mm and 700mm.

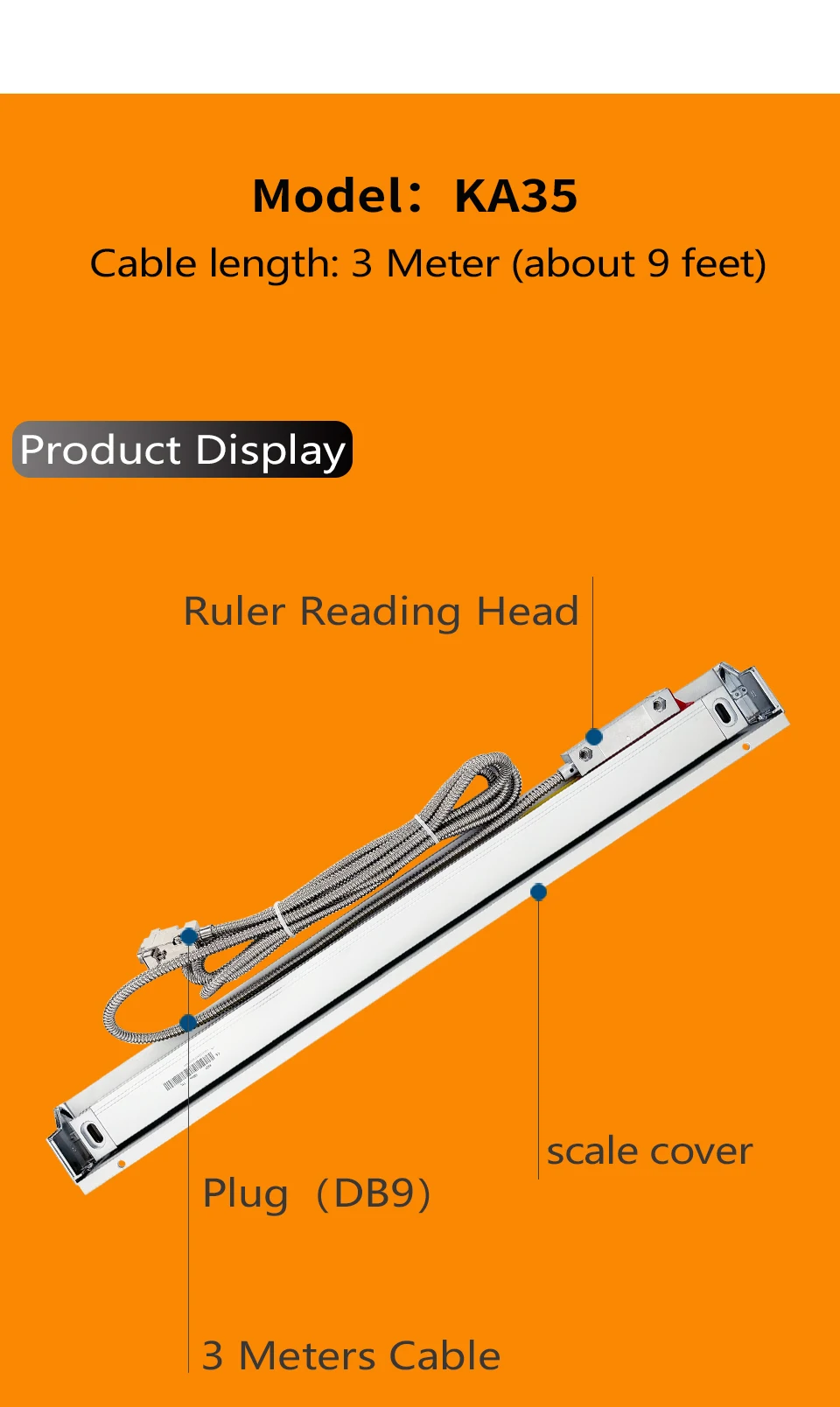

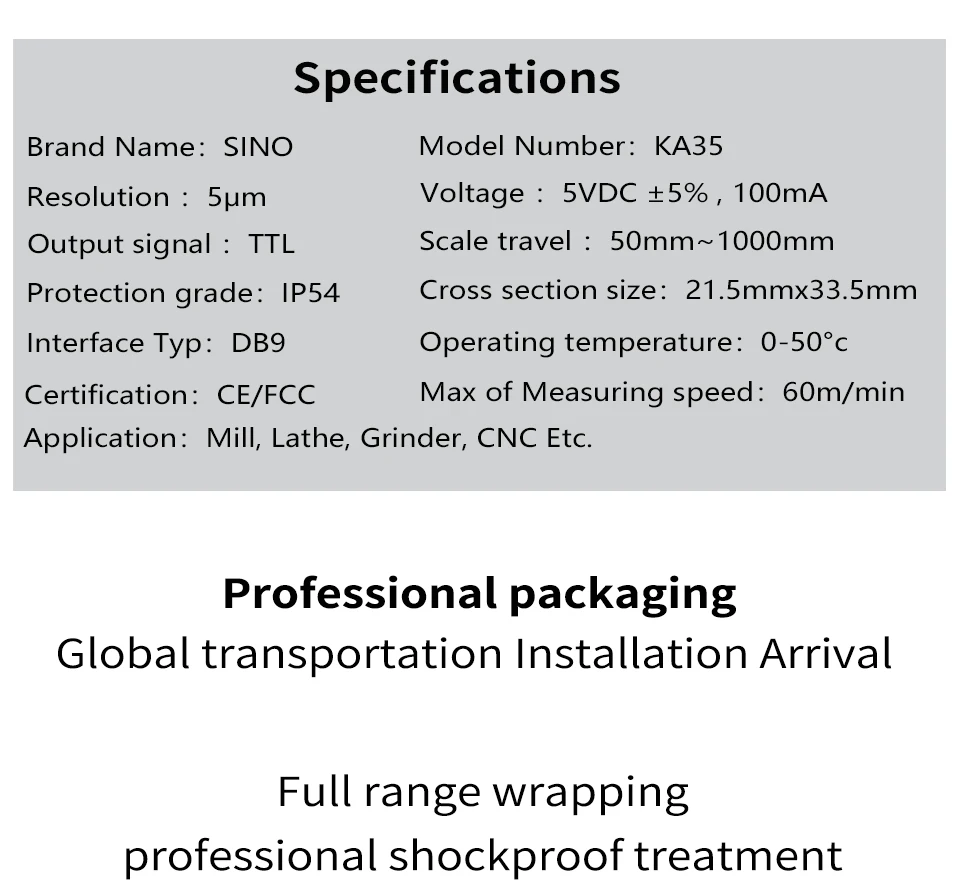

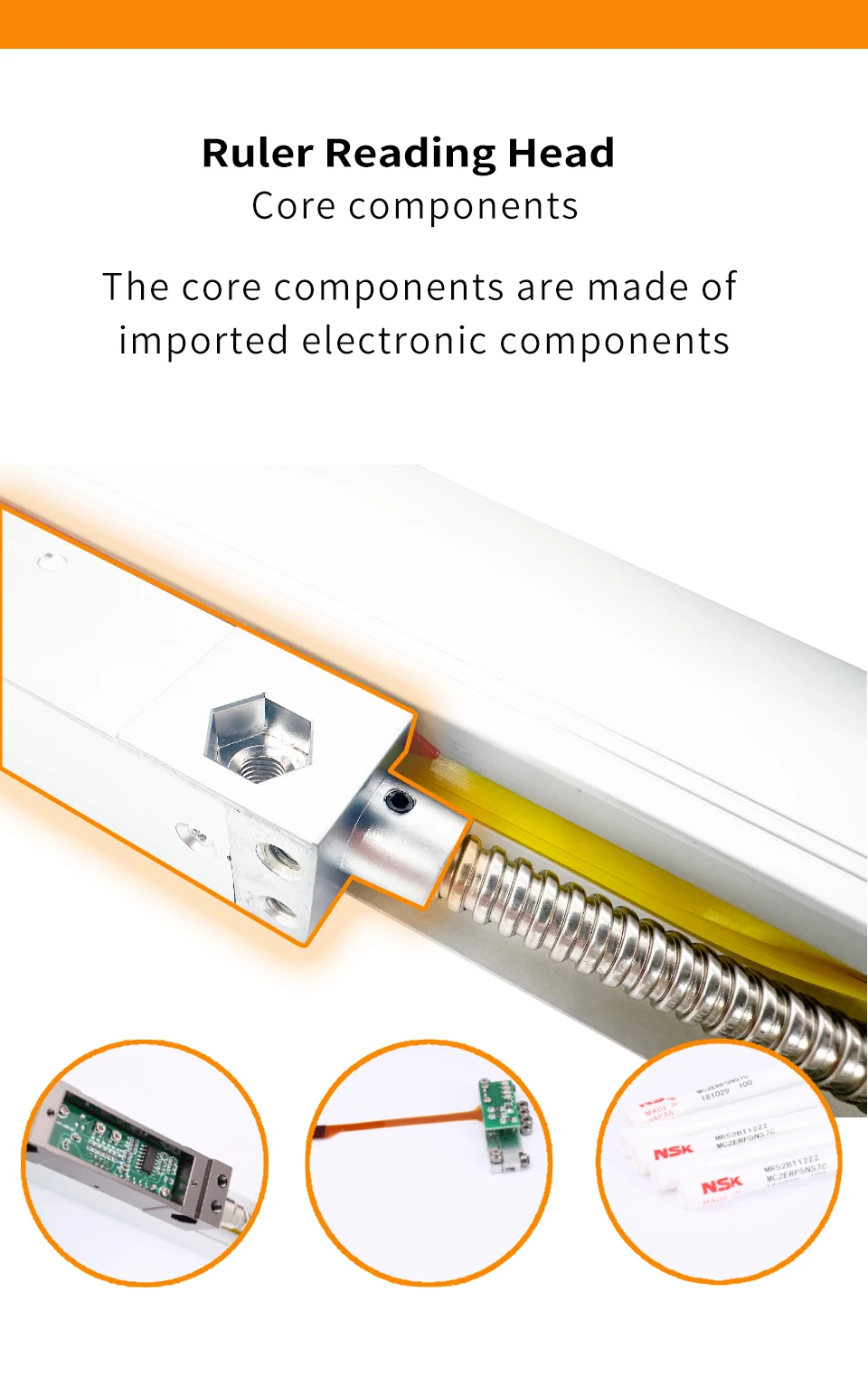

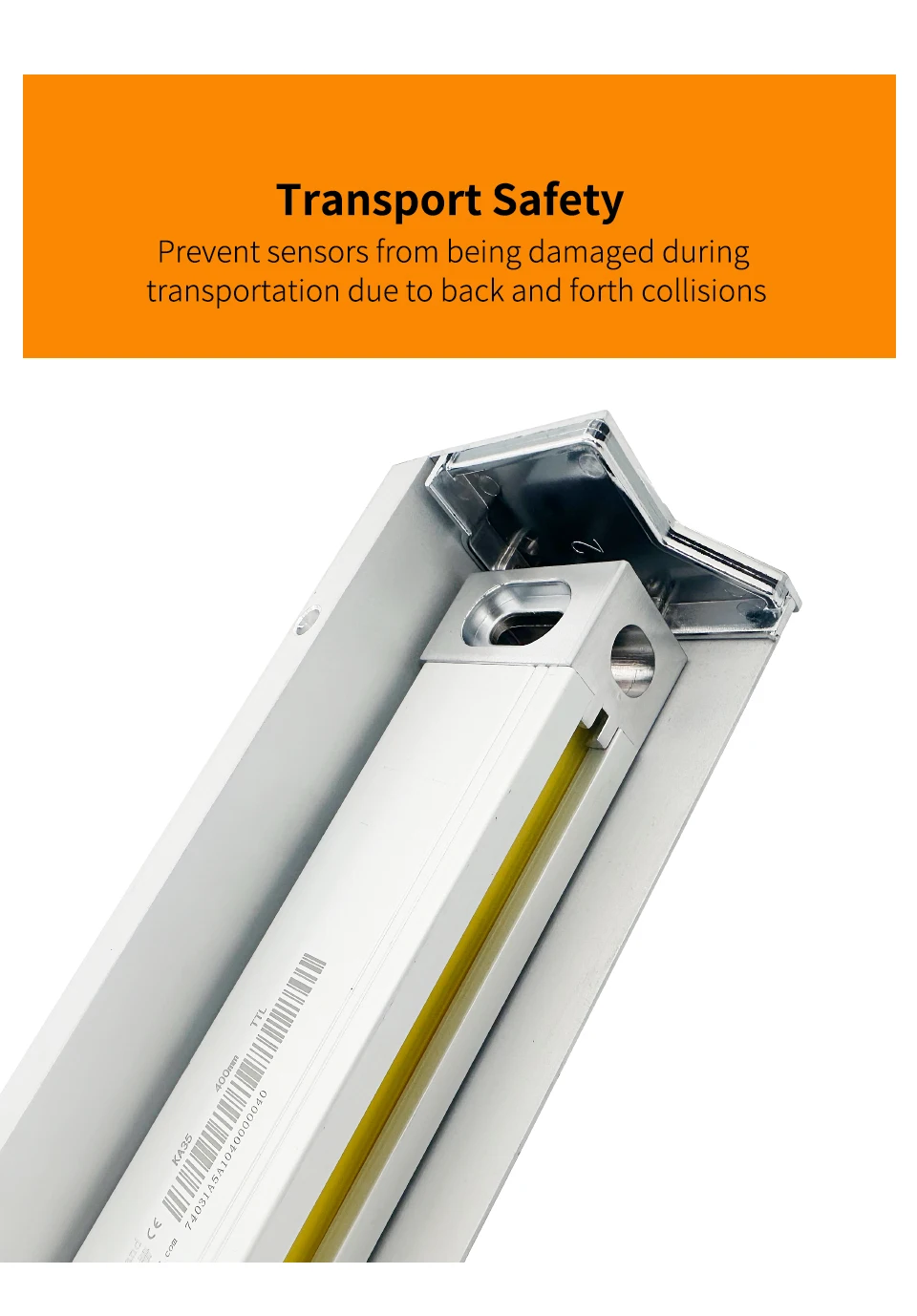

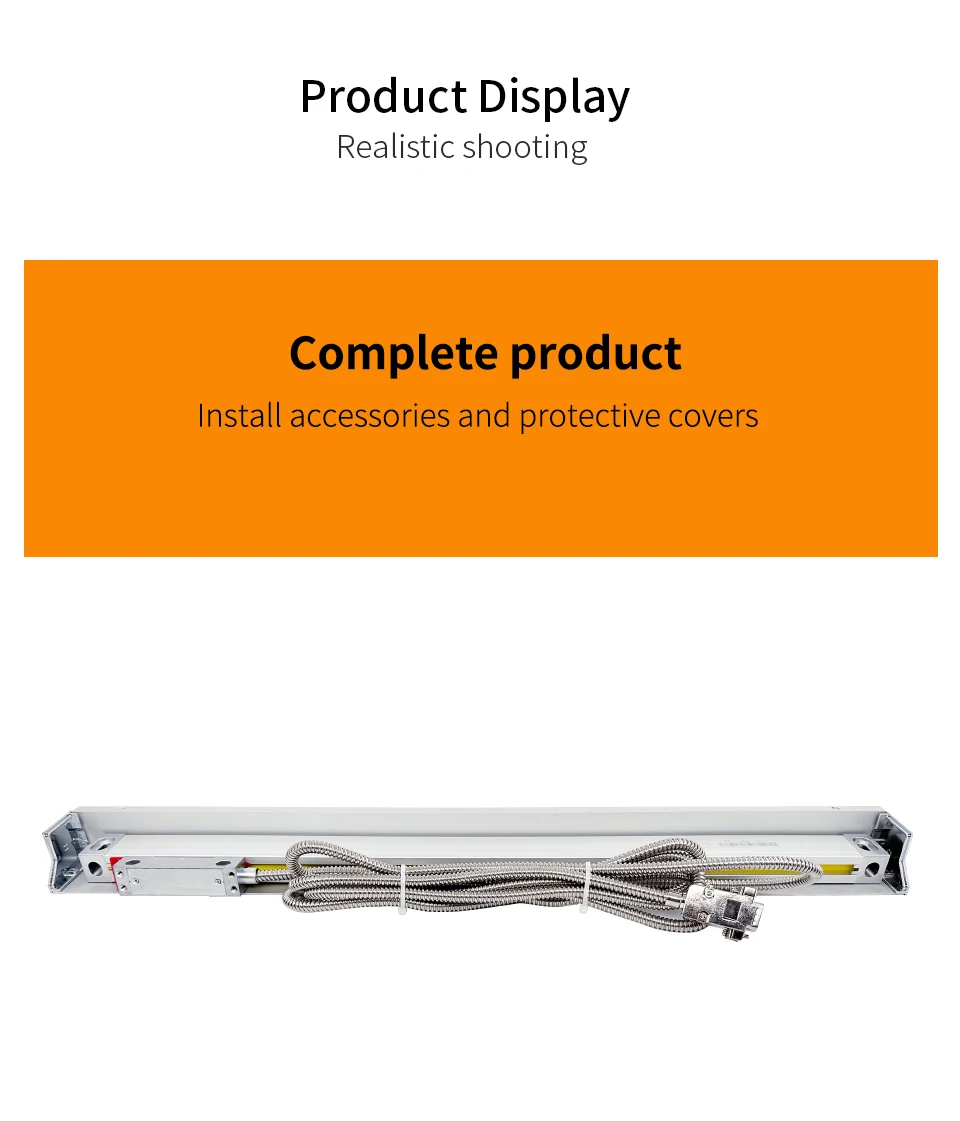

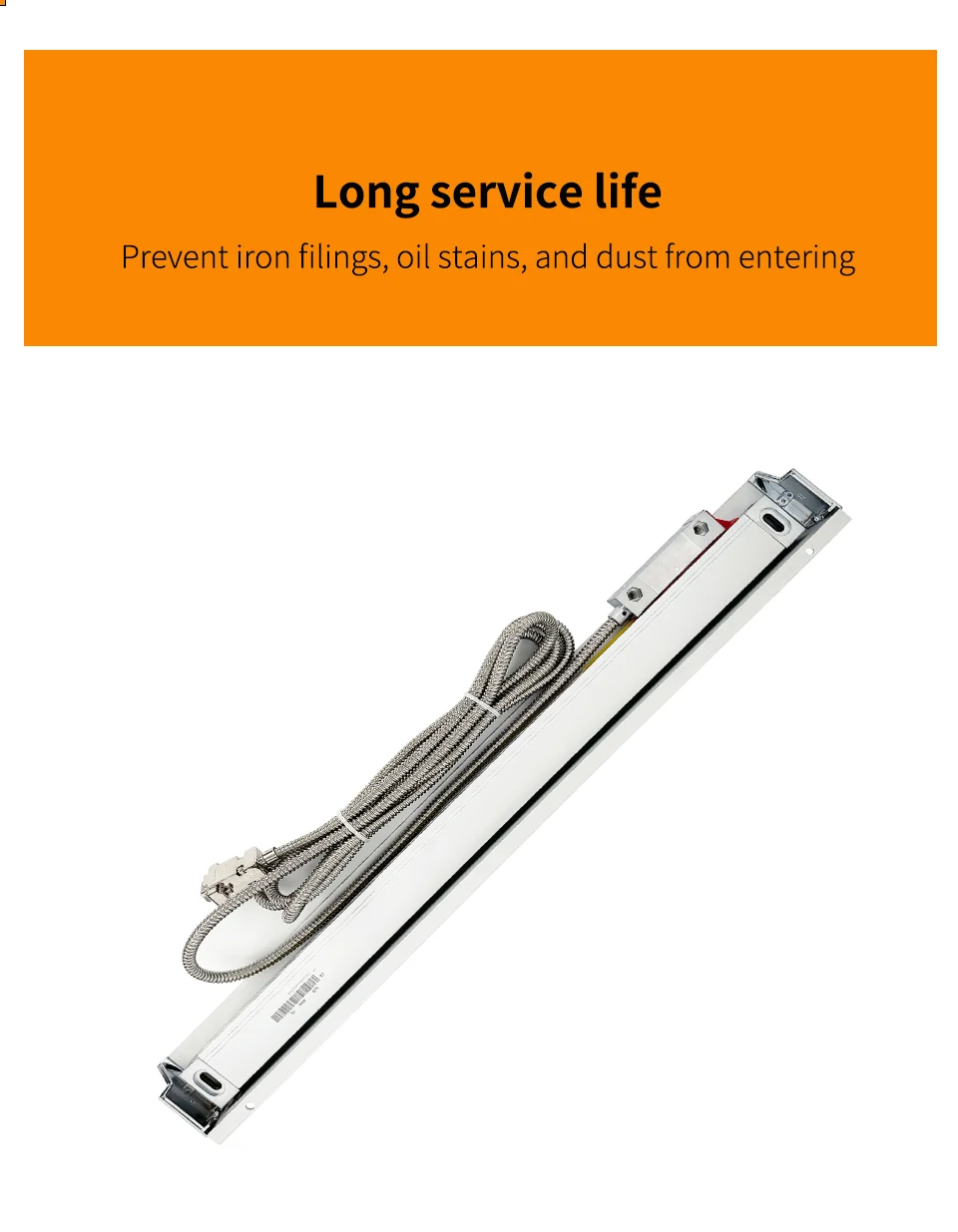

Model: KA35

Available measurement: 100mm to 1000mm

Total length: measurement +140mm

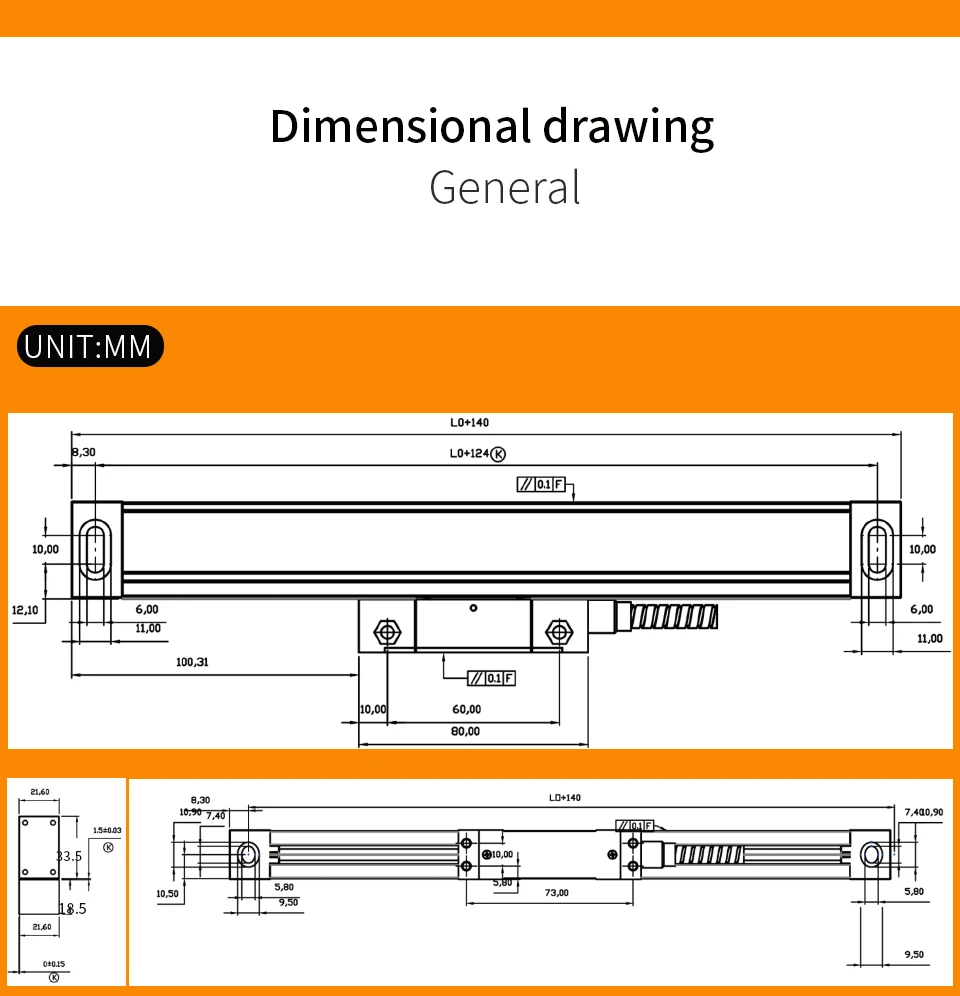

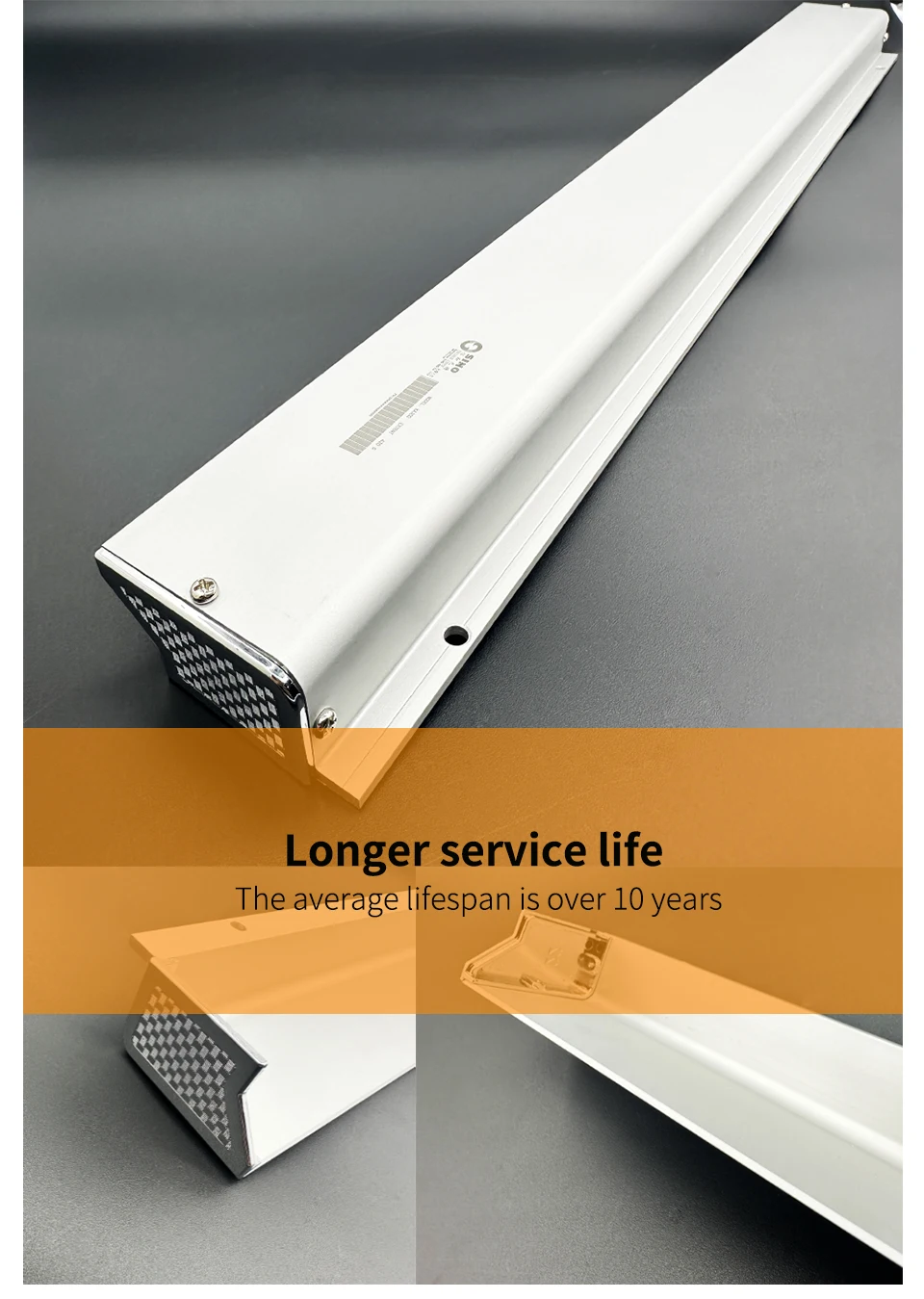

Dimensions Cross section dimensions: 21.5mmx33.5mm

Input voltage: 5VDC

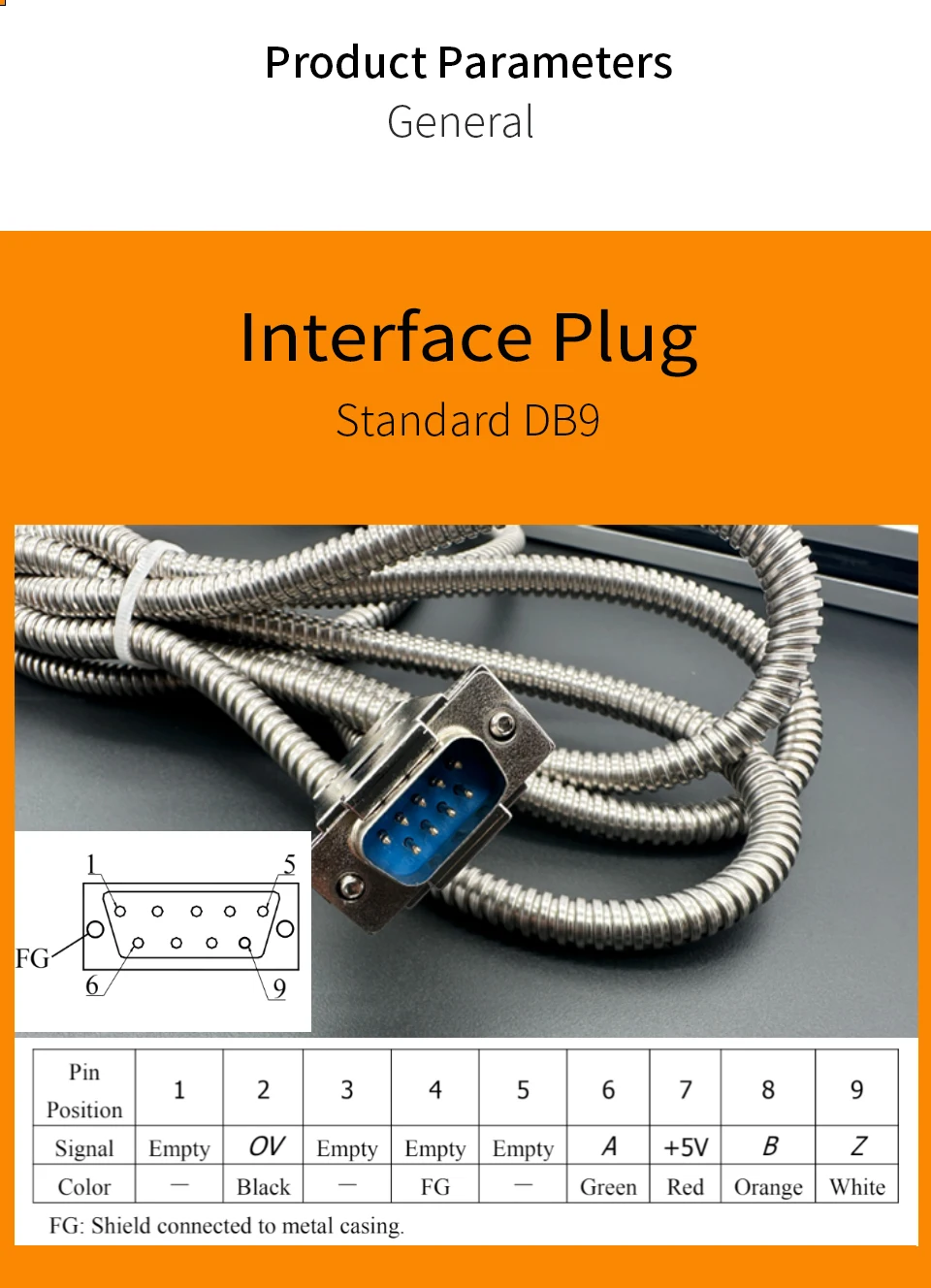

Output signal: TTL

Resolution: 5um/0.005mm

Cable length: 3 meters

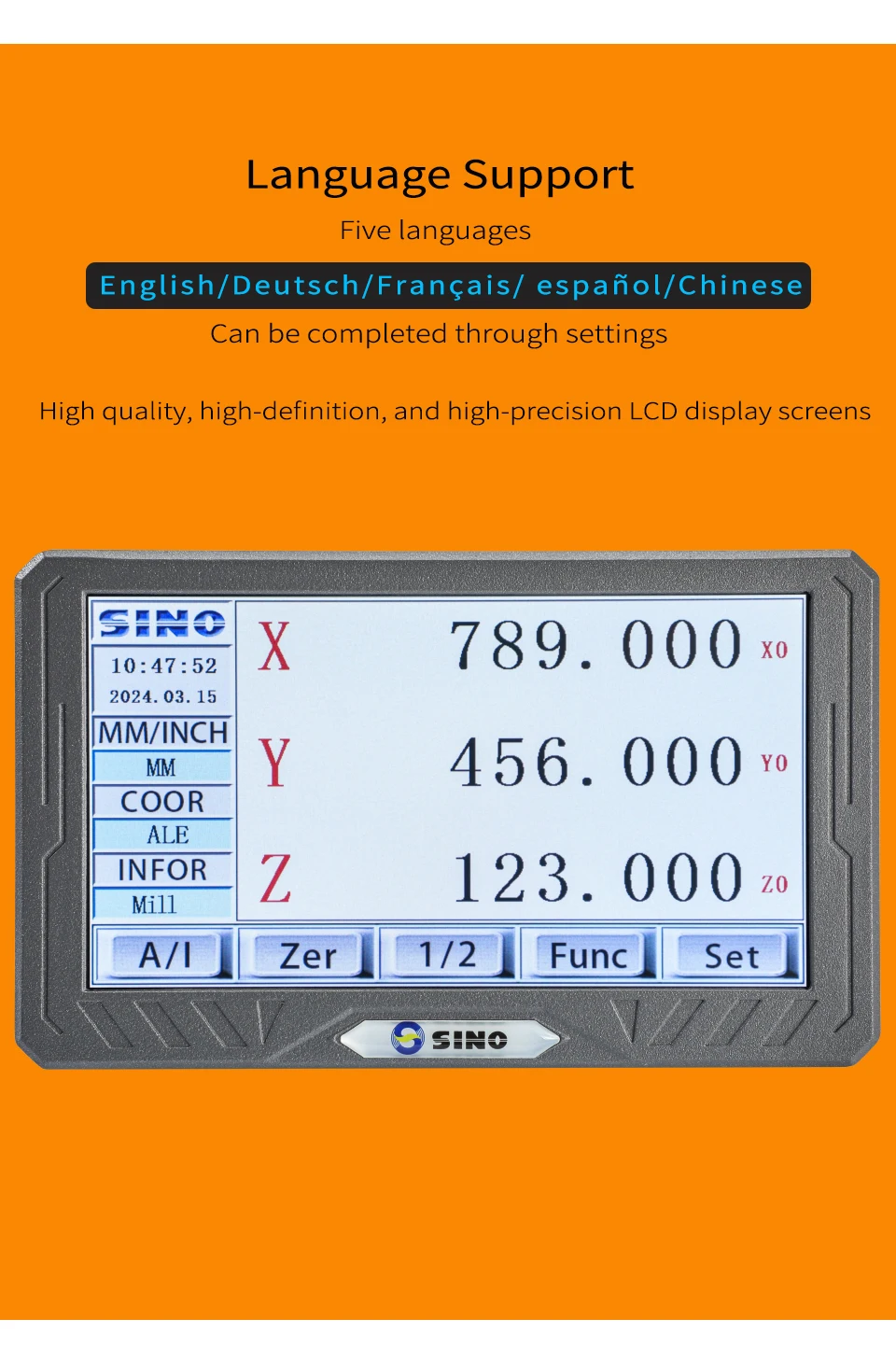

Support 5 languages, including Chinese, German, French, English, Spanish

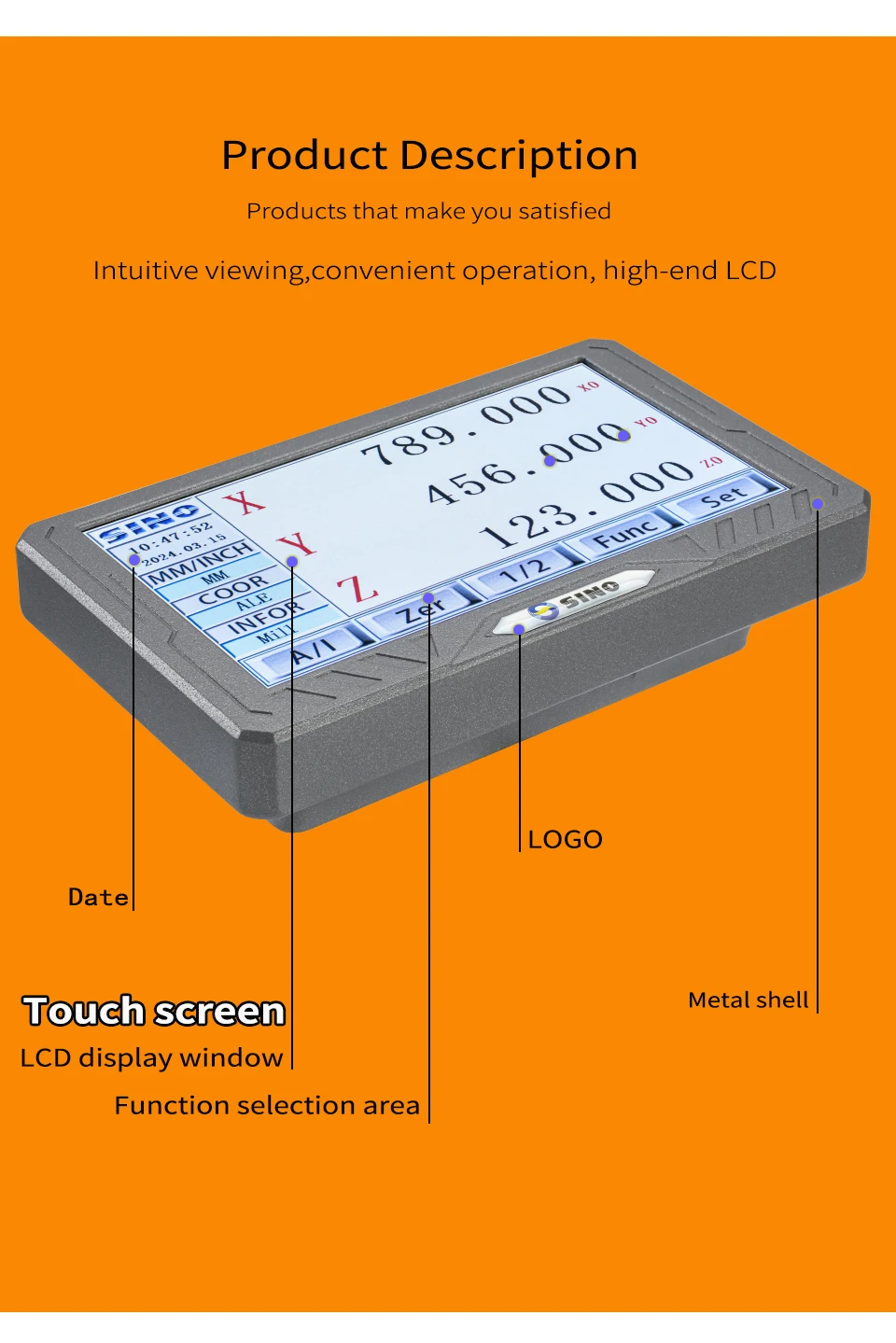

SINO 3 Axis LCD DRO SDS200S Full Touch Screen Digital Readout Metal Cover Linear Scale Display Counter For Milling Lathe

Product Parameters

- Model: SDS200S

- Input voltage: AC80V-240V

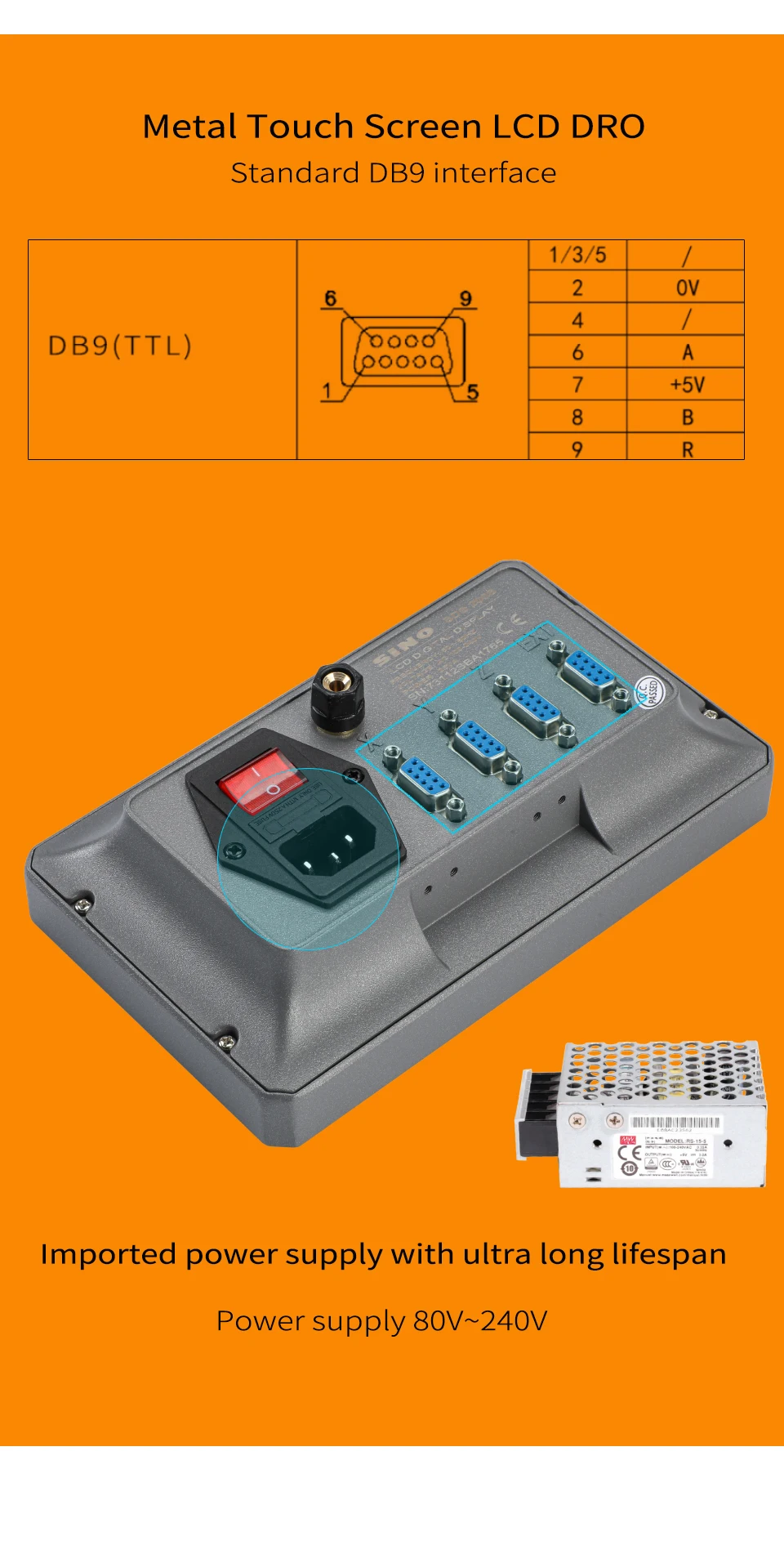

- Input signal: TTL and RS-422

- Material: Metal cover

- Plug: AU, EU, US, UK, CN etc.

DRO Advantages

- Support 5 languages, including Chinese, German, French, English, Spanish

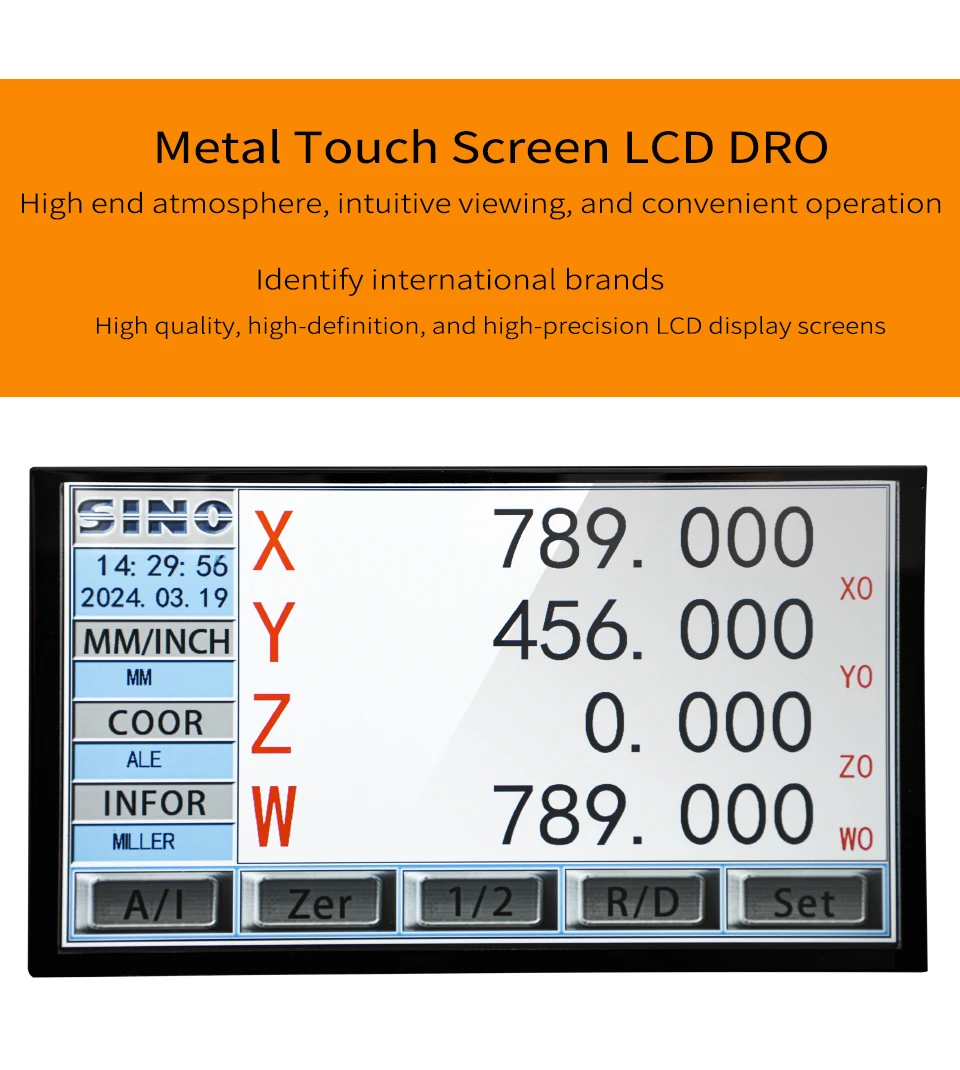

- Touch Screen, simple to use

- Simple system, easy to operate

- Big LCD display, clearly show

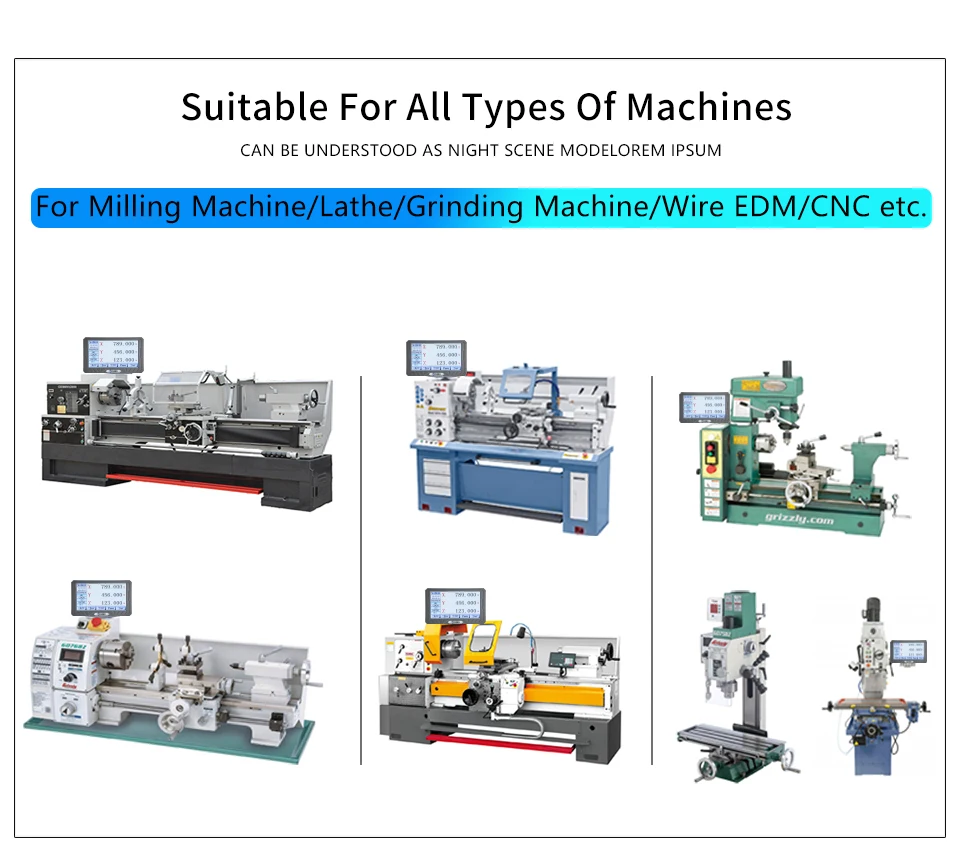

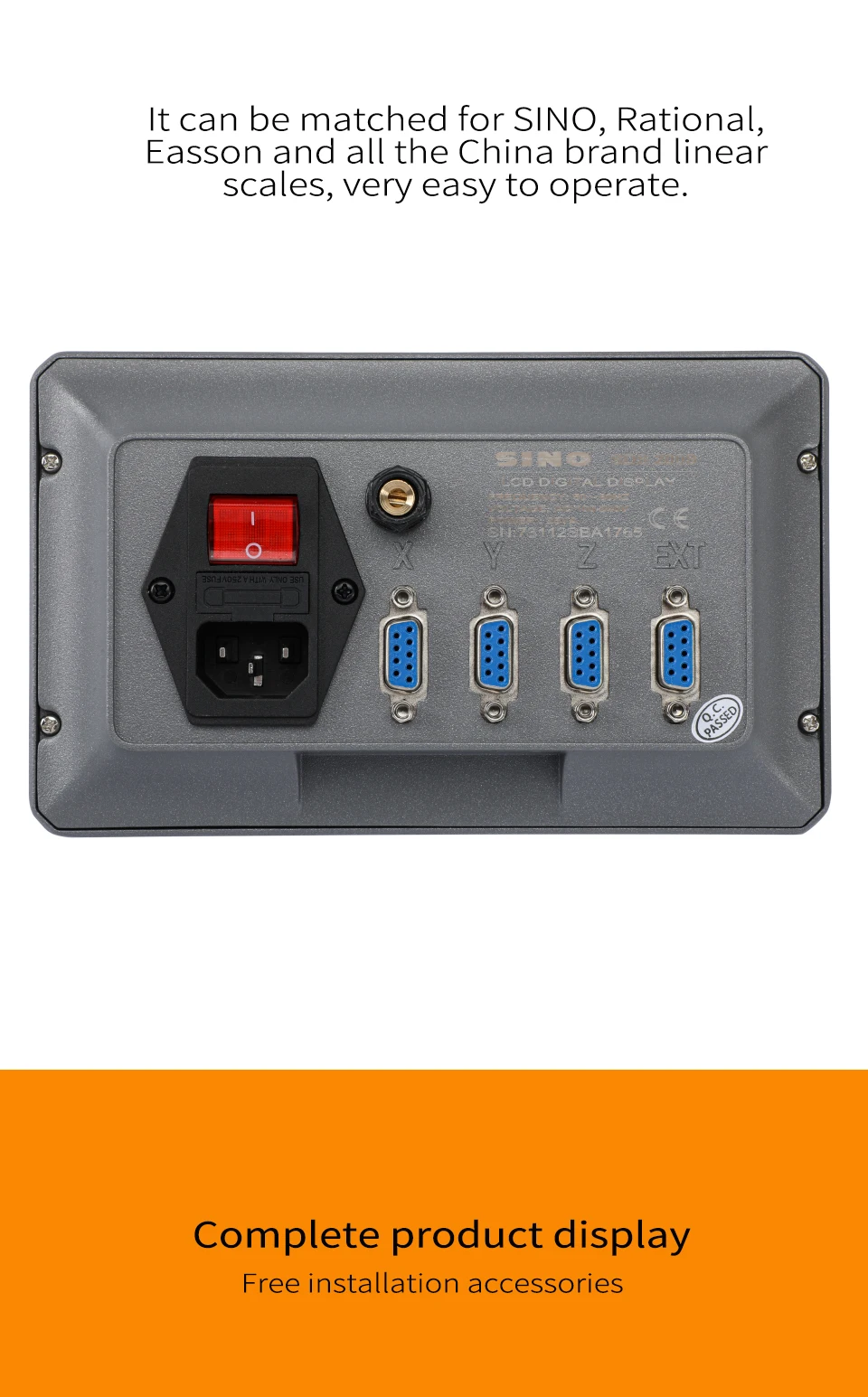

- The LCD display accepts all Chinese optical linear glass scales and widely used for lathe, drilling, boring and milling machine.

- It can exchange 5 languages by system in one display, more functional for lathe & milling machine for the users from different countries.

DRO Specifications

- The SDS200S offers a high performance universal display console with Milling, Lathe and Grinding functions.

- This 3 axis model allow up to 3 linear encoders to be connected. Additional interfaces are available to combine axis or convert the input to suit other manufacturers equipment. Please see the encoder compatibility guide below.

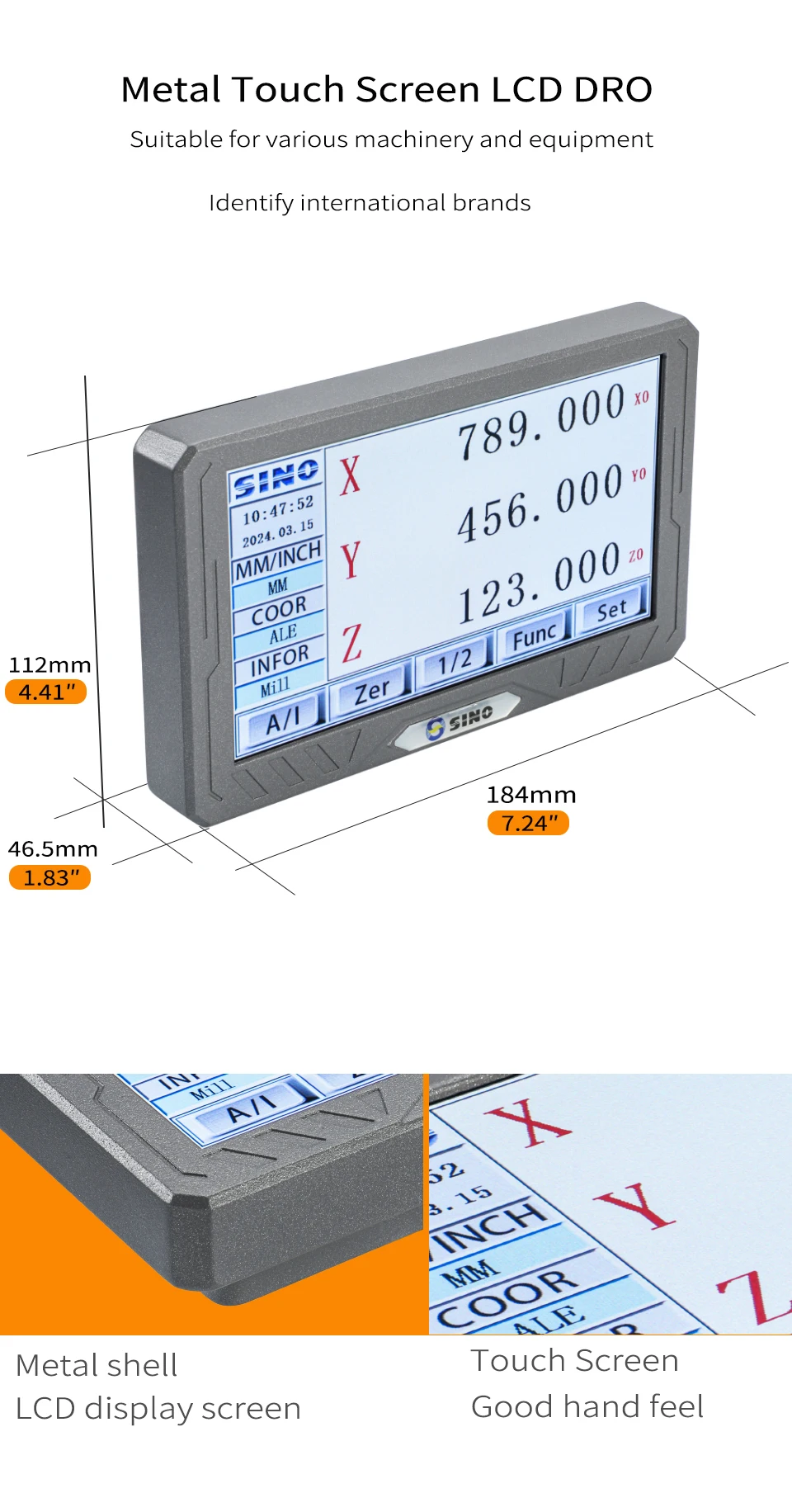

- Durable front panel membrane with tactile switches and robust die cast housing.

- Large easy to read LCD display.

- Functions include; PCD, line of holes, 200 zero memory, radius/diameter display, tool offsets.

- The DRO SDS200S is a Multifunctional 3 axis digital readout. It can adapt the different needs of machining by modifying the system parameters. It has many graphics machining functions, such as: Arc Calculation function, circular equally dividing holes, drilling hole along an oblique line, Angular Surface Processing, Calculation function, Measurement for Taper Function, Digital Filter Function. These functions bring the easiness for the graphics function. The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.

DRO Basic Functions

- 200 Points Auxiliary Zero Position Function

- Mid-split Function

- "mm/inch" Conversion Display

- Radius/Diameter Switch Display

- Segmented Error Compensation

- Linear Error Compensation

- Power Interruption Memory

- Sleep Switch

- Mathematics calculation

- RS-232-C ineterface (option)

Machining Functions

- PCD circumferential division (Applicable to milling machine and spark tester)

- Involute chamber machining function (Applicable to milling machine)

-- Bevel machining/Angular Surface Processing (Applicable to milling machine)

- N3 function (Applicable to milling machine)

- Diagonal boring (Applicable to milling machine)

- R-arc function (Applicable to milling machine)

- Taper measuring function (Applicable to lathe)

- 200-tool library (Applicable to lathe)

- Anti-dithering function (Applicable to grinding machine)
