4x PISTON RING KIT 08-423700-00 STD FOR J20A 2.0L J18A 1.8L 4cyl

Description

Manufacturer Part Number	08-423700-00
Cylinder Bore [mm]	84,00
Component Number	1.2mm 001IF NT ST
Component Number	1.5mm 026 CR P GOE13
Component Number	2.5mm 712 NT ST
Standard Size [STD]
Cylinder Bore [mm]	84

Components

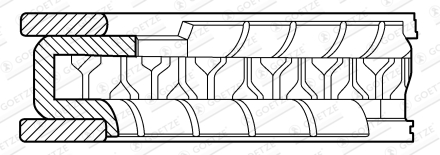

2.5mm 712 NT ST
	Width [mm]	2,500
	Material	Steel
	Surface	Nitrified
	Quantity	1

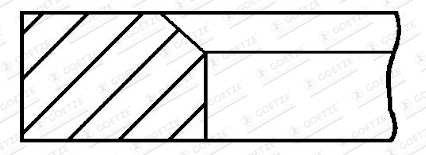

1.2mm 001IF NT ST
	Width [mm]	1,200
	Material	Steel
	Surface	Nitrified
	Quantity	1

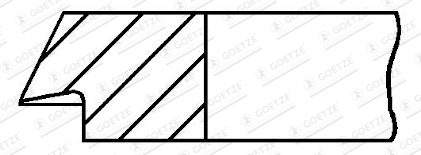

1.5mm 026 CR P GOE13
	Width [mm]	1,500
	Material	Cast Iron with Flake Graphite
	Machining	honed
	Surface	Chromed
	Surface	Phosphatized
	Quantity	1

Original(OEM) Reference

Brand	Reference
SUZUKI	12140-77E00

Aftermarket Reference

Brand	Reference
FRECCIA	FR10-909900

Vehicle List

Make	Model	Vehicle	Year From	Year To	Capacity(CC)
SUZUKI	BALENO Hatchback (EG)	1.8 GTX (SY418)	1996-03	2002-05	1839
SUZUKI	BALENO (EG)	1.8 GTX (SY418)	1996-03	2002-05	1839
SUZUKI	BALENO Estate (EG)	1.8 i 16V (SY418)	1996-08	2002-05	1839
SUZUKI	VITARA Cabrio (ET, TA)	2.0 16V (TA51, SV420)	1996-12	1999-03	1995
SUZUKI	VITARA (ET, TA, TD)	2.0 16V All-wheel Drive (SV420)	1996-12	1998-03	1995
SUZUKI	GRAND VITARA I (FT, HT)	2.0 4x4 (TA52, TL52, SQ 420)	1998-03	2003-07	1995
GEO	TRACKER Cabrio	2.0 i 16V	1988-01	1998-12	1995
GEO	TRACKER Station Wagon	2.0 i 16V	1988-01	1998-12	1995
SUZUKI	GRAND VITARA II (JT, TE, TD)	2.0 All-wheel Drive (TD54, JB420)	2005-10	2015-02	1995
SUZUKI	GRAND VITARA II (JT, TE, TD)	2.0 (JB420)	2005-10	2015-02	1995
GEO	TRACKER	2.0 All-wheel Drive	1998-11	2003-06	1995
SUZUKI	GRAND VITARA I (FT, HT)	2.0 4x4 (SQ 420)	1998-04	2005-08	1995
SUZUKI	SX4 (EY, GY)	2.0 (RW415, RW416, RW420)	2006-06		1995
SUZUKI	SX4 (EY, GY)	2.0 4x4 (RW415, RW416, RW420)	2006-06		1995
SUZUKI	SX4 Saloon (GY, RW)	2.0 (RW415, RW416, RW420)	2007-10	2010-01	1995
MARUTI SUZUKI	GRAND VITARA	2.0 All-wheel Drive	2007-01	2009-12	1995
SUZUKI	LIANA (ER, RH_)	2.0	2001-10	2004-03	1995
SUZUKI	LIANA (ER, RH_)	2.0 AWD	2002-09	2003-12	1995
SUZUKI	LIANA Hatchback	2.0	2001-09	2003-12	1995
SUZUKI	BALENO (EG)	1.8 (SY418)	1999-09	2002-05	1839
SUZUKI	BALENO Estate (EG)	1.8 (SY418)	1999-09	2002-05	1839
SUZUKI	VITARA (ET, TA, TD)	1.8 All-wheel Drive	1995-09	1998-12	1839
SUZUKI	VITARA (ET, TA, TD)	1.8	1996-09	1998-12	1839
SUZUKI	GRAND VITARA I (FT, HT)	2.0 (SQ 420, SQ420W)	1998-09	2003-12	1995
SUZUKI	SX4 Saloon (GY, RW)	2.0 AWD	2007-10	2009-12	1995
SUZUKI	GRAND VITARA I (FT, HT)	2.0 4x4 (SQ 420)	1998-08	2000-12	1995
CHEVROLET	GRAND VITARA	2.0 4WD	2004-01	2006-12	1995
SUZUKI	GRAND VITARA I (FT, HT)	2.0 4x4 (SQ 420)	1998-09	2003-12	1995
SUZUKI	GRAND VITARA I Open Off-Road Vehicle (GT)	2.0 4x4 (SQ 420)	1998-03	2003-07	1995
CHEVROLET	GRAND VITARA	2.0 4WD	1999-09	2003-08	1995
SUZUKI	GRAND VITARA II (JT, TE, TD)	2.0 All-wheel Drive (JB420)	2007-07	2010-02	1995
SUZUKI	GRAND VITARA II (JT, TE, TD)	2.0 (JB420)	2010-01		1995
SUZUKI	GRAND VITARA II (JT, TE, TD)	2.0 (JB420)	2005-10		1995
SUZUKI	VITARA (LY)	2.0 (SV 420)	2016-10		1995
SUZUKI	GRAND VITARA II (JT, TE, TD)	2.0 (JB420)	2006-08		1995
SUZUKI	GRAND VITARA II (JT, TE, TD)	2.0 All-wheel Drive (JB420W)	2013-03		1995
SUZUKI	VITARA (ET, TA, TD)	2.0 16V All-wheel Drive (TD52W)	1997-11	2000-03	1995
SUZUKI	GRAND VITARA I (FT, HT)	2.0 4x4 (TA52, TL52, SQ420)	1998-03	2003-07	1995
SUZUKI	SX4 (EY, GY)	2.0 4x4 (RW415, RW416, RW420, YB41S)	2006-06	0	1995
SUZUKI	GRAND VITARA I Open Off-Road Vehicle (GT)	2.0 4x4 (SQ420)	1998-03	2003-07	1995
SUZUKI	GRAND VITARA II (JT, TE, TD)	2.0 All-wheel Drive (TD54V, JB420)	2005-10	2015-02	1995

Engine List

Make	Engine Code	kW	HP	Valves	Cylinders
SUZUKI	J18A	89	121	16	4
SUZUKI	J20A	94	128	16	4
GEO	J20A	94	128	16	4
MARUTI SUZUKI	J20A	89	121	16	4
MARUTI	J20A	90	122	16	4
CHEVROLET	J20A	88	120	16	4
SUZUKI	J18A	89	121	16	4
SUZUKI	J20A	94	128	16	4
GEO	J20A	94	128	16	4
MARUTI SUZUKI	J20A	89	121	16	4
MARUTI	J20A	90	122	16	4
CHEVROLET	J20A	88	120	16	4
