AGT MX50R 1.1 Ton Mini Excavator with 28HP RATO Gasoline Engine
Built for trenching, landscaping, farm maintenance, property improvement, and small construction projects. Pilot controls, a hydraulic thumb, swing boom, rubber tracks, and a factory-installed dozer blade deliver practical capability in compact work areas.
Compact Power for Demanding Small Jobs
The MX50R combines a compact 1,100 kg operating weight with a 28HP RATO R825 gasoline engine, 0.23 m³ bucket, and 8.8 kN breakout force. Its narrow 45-inch overall width helps it work in areas where larger equipment may be difficult to position.
1,100 kg
21 kW
1,983 mm
3,211 mm
Key Features

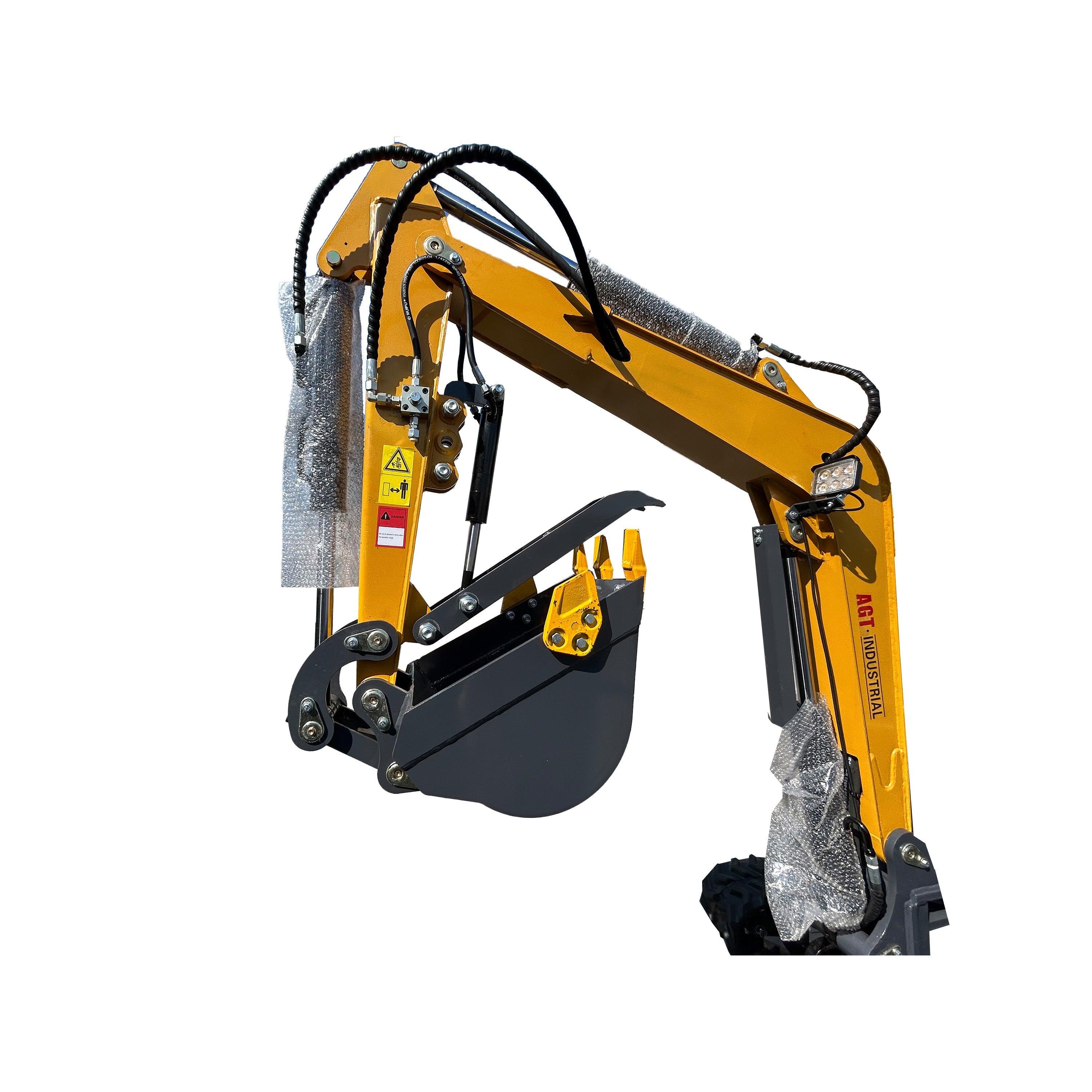

Hydraulic Thumb
The factory-installed hydraulic thumb works with the bucket to help grip logs, rocks, brush, demolition debris, and other irregular material.

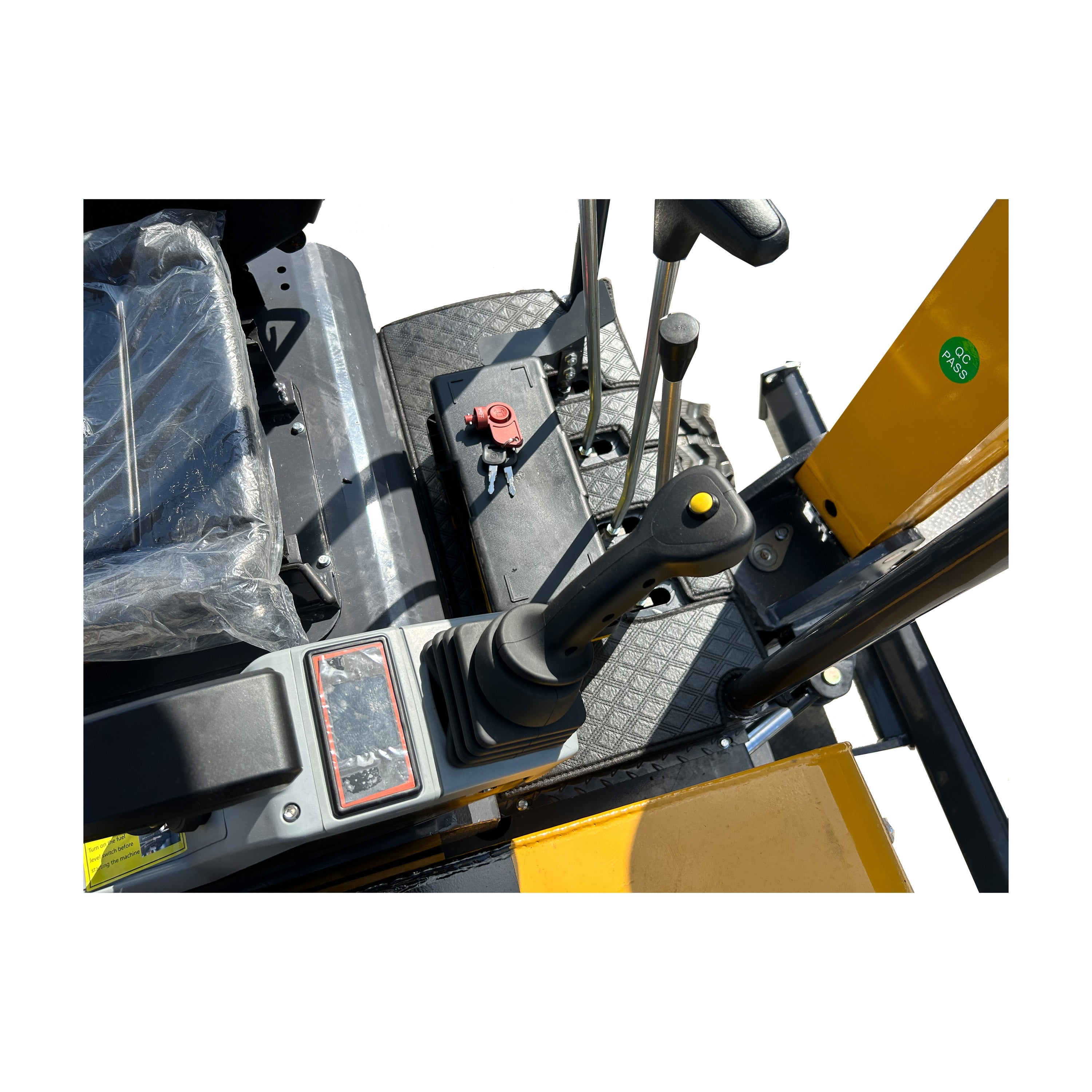

Pilot Control
Pilot-operated joysticks provide an operator-focused control layout for digging, positioning, and material-handling tasks.
Swing Boom
The side-swing boom supports digging along walls, fences, foundations, and other tight-access areas.
Dozer Blade
The 52-inch factory-installed blade supports backfilling, light grading, cleanup, and machine stabilization.
Rubber Tracks
Tracked mobility provides a stable footprint and helps the machine maneuver across landscaping, farm, and property work areas.
LED Work Light
An integrated LED work light helps illuminate the working area when conditions are less than ideal.
Working Range
1,983 mm
2,755 mm
2,180 mm
3,211 mm
RATO R825 Engine & Capacity
28HP Gasoline Power
The MX50R is powered by a RATO R825 two-cylinder, air-cooled gasoline engine rated at 21 kW (28 HP), with 825 cc displacement. The machine is designed for maneuverability and reliable performance in compact jobsite applications.
Fluid Capacities
Fuel tank capacity is 28 L (7.4 gal), and hydraulic tank capacity is 20 L (5.3 gal). Always follow the operator manual for the correct fuel, hydraulic fluid, inspection, and maintenance procedures.
Technical Specifications
| Model | AGT MX50R |
|---|---|
| Machine Type | Compact mini excavator |
| Operating Weight | 1,100 kg (2,425 lb / 1.1 ton class) |
| Overall Length | 2,812 mm (110 in.) |
| Overall Width | 1,140 mm (45 in.) |
| Overall Height | 2,400 mm (94.5 in.) |
| Bucket Capacity | 0.23 m³ |
| Breakout Force | 8.8 kN |
| Maximum Digging Depth | 1,983 mm (78 in.) |
| Maximum Digging Height | 2,755 mm (108.5 in.) |
| Maximum Dumping Height | 2,180 mm (85.5 in.) |
| Maximum Reach at Ground | 3,211 mm (126 in.) |
| Blade Width | 1,316 mm (52 in.) |
| Blade Height | 247 mm (9.5 in.) |
| Blade Maximum Lift Height | 250 mm (10 in.) |
| Blade Maximum Drop Depth | 340 mm (13 in.) |
| Engine Brand / Model | RATO R825 |
| Fuel Type | Gasoline |
| Engine Configuration | Two-cylinder, air-cooled |
| Rated Power | 21 kW (28 HP) |
| Displacement | 825 cc |
| Fuel Capacity | 28 L (7.4 gal) |
| Hydraulic Tank Capacity | 20 L (5.3 gal) |
| Climbing Ability | 30% |
| Attachment Pin Size | 35 mm |
| Included Features | Hydraulic thumb, swing boom, pilot control, LED light, dozer blade |
Fast U.S. Warehouse Shipping
Inventory is positioned across three U.S. warehouse regions. The shipping location is selected according to inventory availability and the delivery destination to support efficient order processing and transit.
Freight Delivery Requirements
- Provide a valid physical street address. Freight carriers cannot deliver this machine to a P.O. box.
- Provide an accurate daytime phone number through the eBay checkout process so the freight carrier can arrange delivery.
- Confirm that the destination is accessible to a full-size freight truck.
- The buyer is responsible for providing a forklift, loading dock, tractor, ramp, or other suitable unloading method unless another service is confirmed before purchase.
- Inspect the shipment before signing the delivery receipt. Note any visible damage on the carrier paperwork and photograph the shipment immediately.
One-Year Limited Warranty
This machine includes one-year limited warranty support. Warranty service is intended for covered defects under the applicable warranty terms. Normal wear, consumable items, misuse, accidents, unauthorized modification, improper maintenance, and damage caused by incorrect operation are not covered.
Before First Use
Read the operator manual, complete the required pre-operation inspection, verify all fluid levels, check fasteners and hydraulic connections, and operate only after receiving appropriate equipment training.
Warranty Assistance
For warranty assistance, contact the seller through eBay Messages and provide the order number, machine serial number, operating hours, photos or video, and a clear description of the issue.
Before You Buy
- Confirm the delivery ZIP code, address type, truck access, and unloading capability before ordering.
- Verify that the machine dimensions and operating weight are suitable for your trailer, gate, storage area, and jobsite.
- Confirm local registration, permitting, emissions, safety, and operating requirements that may apply in your area.
- Product appearance, labels, protective wrapping, and minor production details may vary slightly by inventory batch without changing the listed model specifications.
AGT MX50R — Compact Size, Practical Capability
A 28HP gasoline mini excavator with pilot controls, hydraulic thumb, swing boom, LED work light, dozer blade, and three-region U.S. warehouse support. Please review the complete specifications and freight requirements before purchase.
