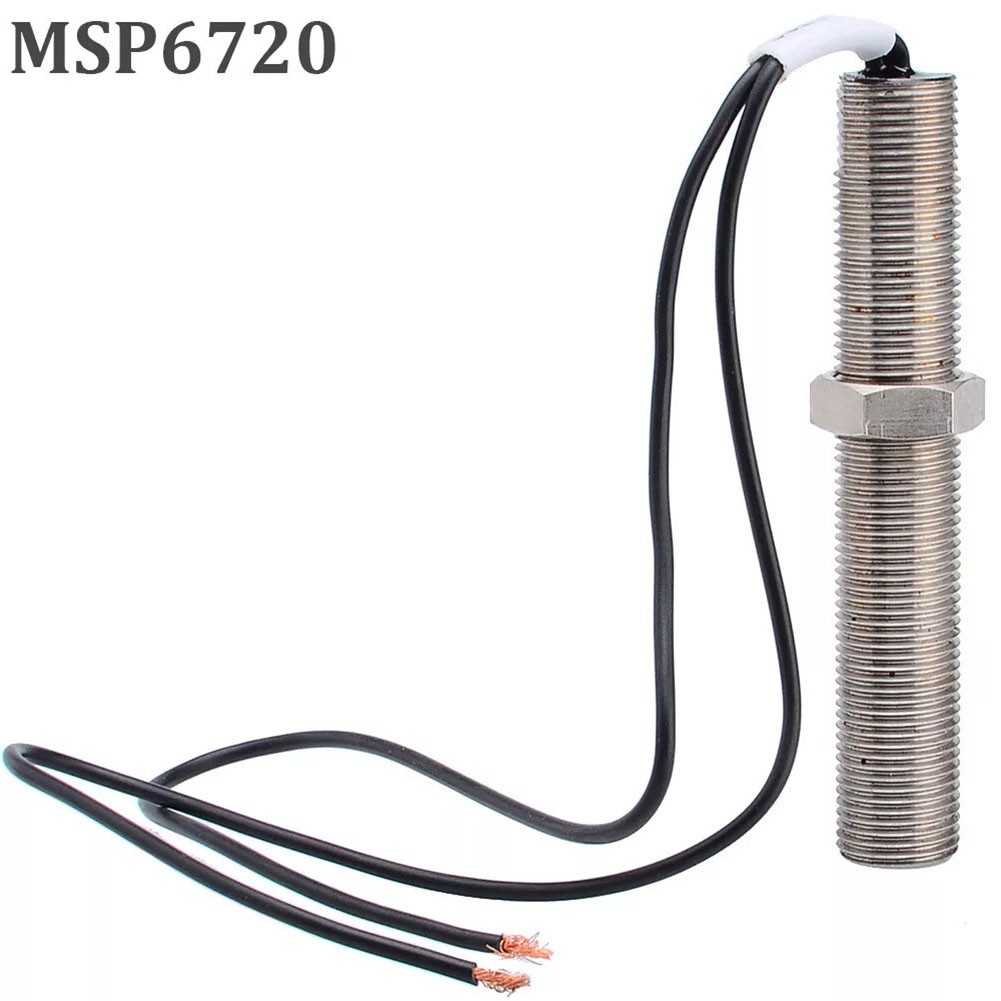

MSP6720 Magnetic Pickup Sensor for Generator Rotational 50 to 5000Hz
DESCRIPTION


Features:
* Strict quality control standards to build and test.
* Stable performance, high reliability.
* MSP6720 Pickup MPU Generator Sensor Rotation Sensor RPM.

Specifications:
Part Name: Sensor
Part Number: MSP6720
Material: Metal
Color: As shown in the picture
Size: As shown in the picture
Range: 50-5000Hz
Inductance: 142MH+25%
Resistance: 300Ω MAX
Thread: 5/8-18UNF-2A
Tooth Pitch: 0.64-0.89mm
Temperature Range: -55℃ for Celsius to 105℃
Idle Output: .5V AC Min.
Max Output: 30V AC

Package Contents:
x MSP6720 Sensor

Note:
.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
