DSE6120 Three Phase Generator Sensing Controller with Utility Monitoring
DESCRIPTION


Features:
* for Supports 0-10 V and 4-20mA oil pressure.
* Provides flexibility for multiple sensors and engine types.
* Heated display option.
* Ensures display continues to operate in extremely cold weather conditions.
* Three-phase generator sensing.
* Provides true generator sensing.
* Three-phase power (utility) monitoring.
* Provides true generator and power (utility) sensing.
* Generator/load current monitoring and for protection.
* Provides the convenience of generator monitoring and for protection or load current monitoring.
* Configurable analog/digital inputs (9).
* Provides multiple mounting options.
* Configurable DC, voltage and step load outputs (6).
* Provides complete generator load control.
* CAN, MPU and alternator sensing (selectable based on engine for type).
* Ensures can be used with multiple engine types.
* Tier 4 CAN engine support.
* Ensures control can be used with the latest modern electronic engine technology.
* Configurable event log (100 entries).
* Provides for access to historical alarms and operating status.
* DSE Configuration Suite PC software.
* Provides complete user-friendly configuration and easy-to-use advanced system control and monitoring.
* Fuel and start output (configurable on CAN).
* Provides multiple installation options.
* DSE6120 is used for single generator sets. The LCD display can display Chinese.
* The can be used for electric and non-electric adjustment units to provide more advanced engine monitoring and for protection functions.

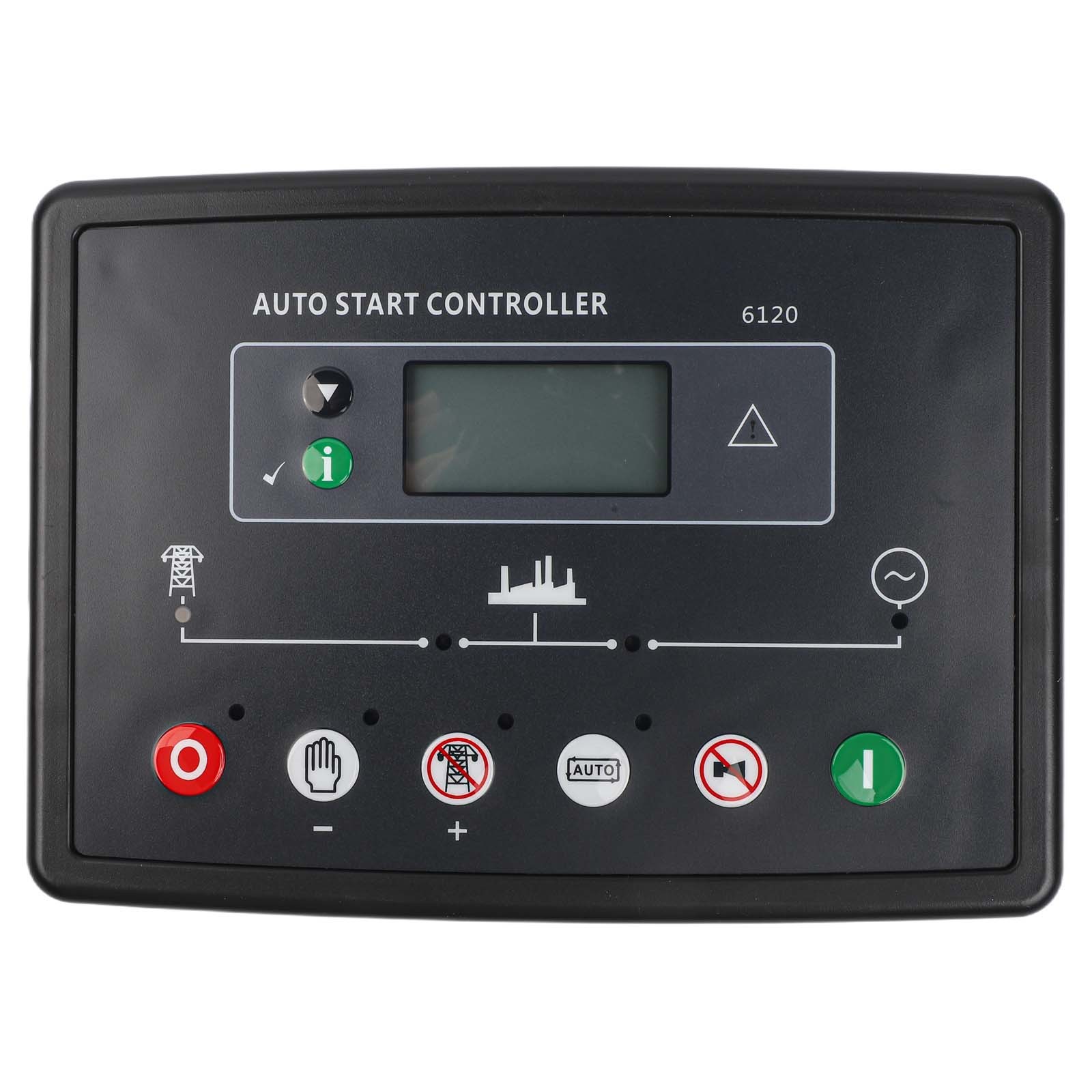

* The has a backlit LCD display that can clearly display the operating status of the engine at any time.
* The can monitor , for Frequency, voltage, current, oil pressure, water temperature and oil level.
* The can display engine alarms and has automatic shutdown for protection.
* The includes 6 digital inputs, 3 analog inputs and 6 digital outputs.
* The MPU version is configured with for 2 outputs and the CAN version is configured with 6 outputs.
* Users can set the data of the using the front panel buttons or other setting software.

Specifications:
Part Name: Generator Controller
Model: DSE6120
Material: Plastic, Metal
Color: Black
Size: Standard
Weight: 526g/18.6oz
DC Power Supply: Continuous voltage rating is 8 V to 35 V continuous
Startup voltage sag: Capable of sustaining 50 for ms at 0 V provided the power supply was at least 10 V before the voltage sag and then the power returns to 5 V. This is achieved without an internal . LEDs and backlighting will not remain on during startup.
for Maximum operating current: 100 mA at 12 V, 105 mA at 24 V
for Maximum standby current: 60 mA at 12 V, 55 mA at 24 V
for Maximum sleep current: 40 mA at 12 V, 35 mA at 24 V
Generator and mains (utility)；
Voltage range: 15 V to 415 V AC (Ph to for N); 26 V to 719 V AC (Ph to Phase)
for Frequency range: 3.5 Hz to 75 Hz
Inputs: Digital inputs A to F, Negative switching analog input A
Configurable as；
Negative switching digital input
0 V to 10 V
4 mA to 20 mA
0 Ω to 240 Ω
Analog inputs B to D
Configurable as: Negative switching digital input 0 Ω to 480 Ω
Outputs:
Output A (fuel)
10 A short term, 5 A continuous,
at mains voltage
Output B (start)
10 A short term, 5 A continuous,
at mains voltage
Auxiliary outputs for C, D, E and F
for 2 A DC at mains voltage

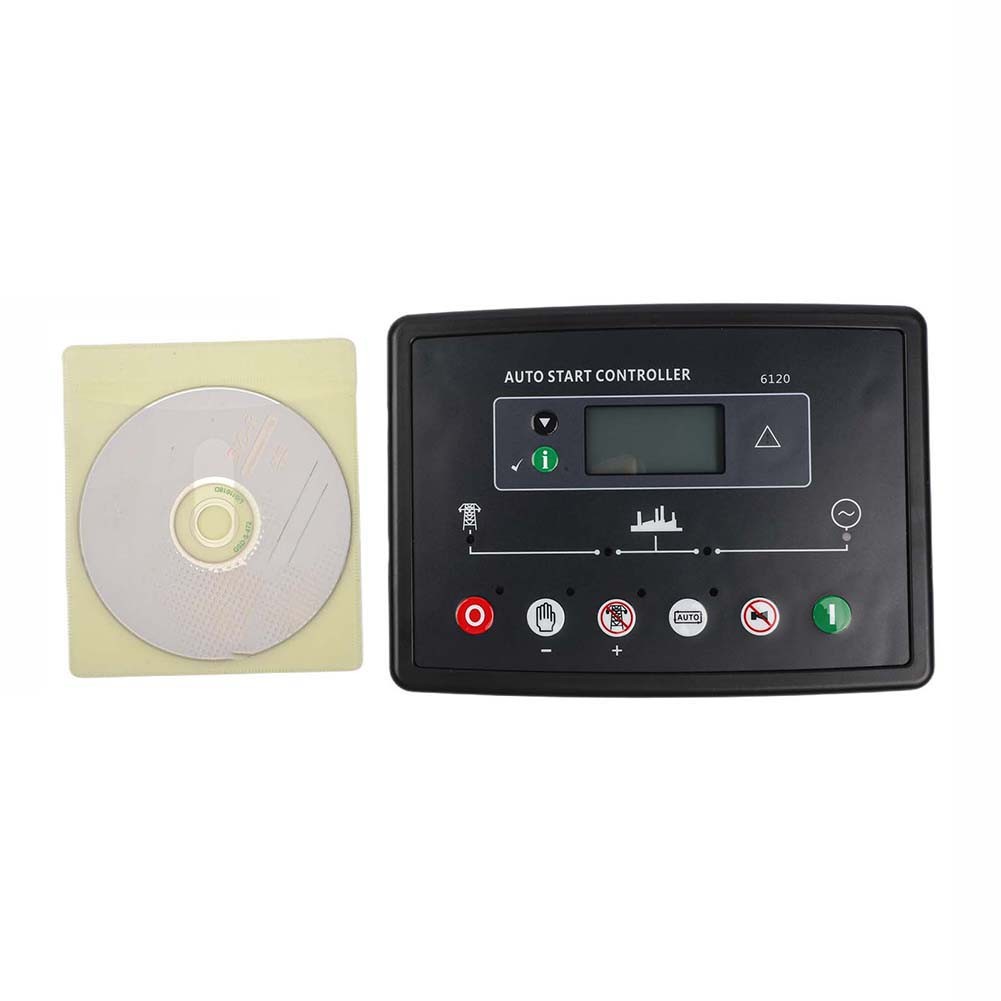

Package contents:
1 x generator controller
for 2 x fixing screws

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
for 2.Please allow slight manual measurement deviation for the data.
