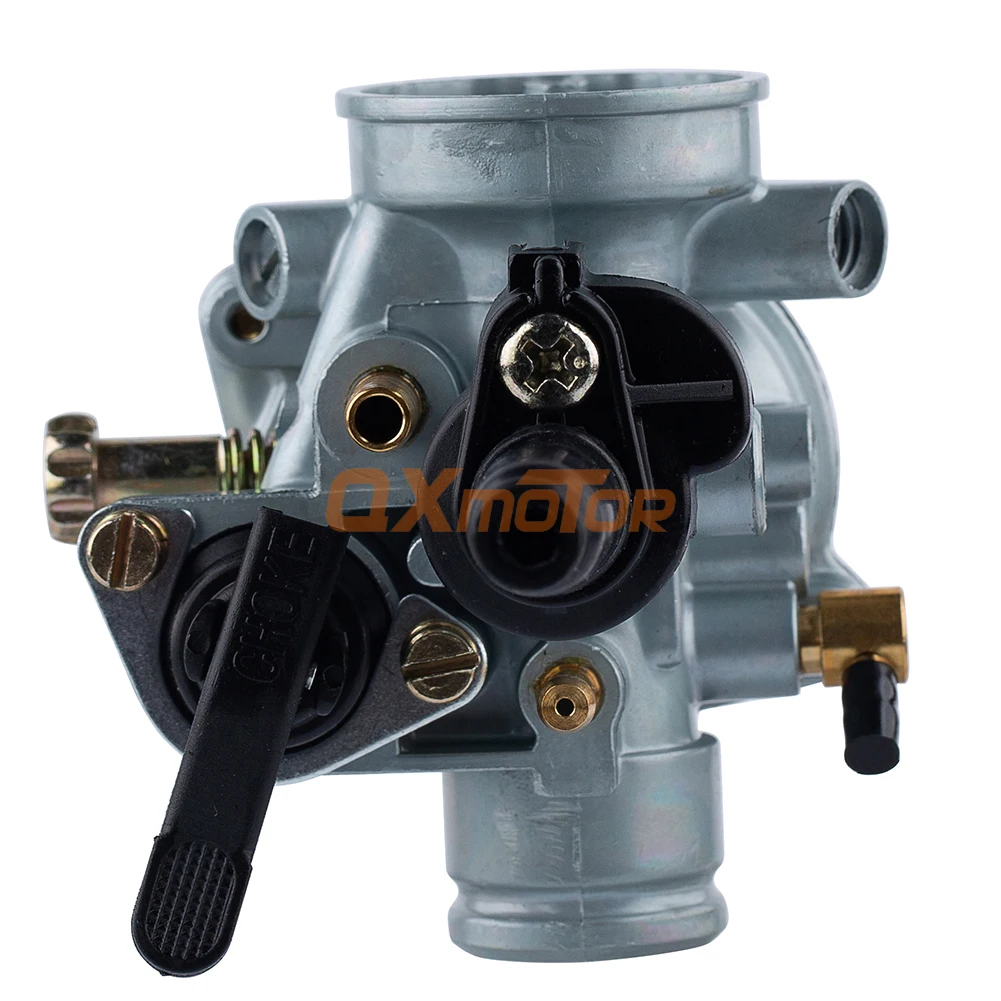

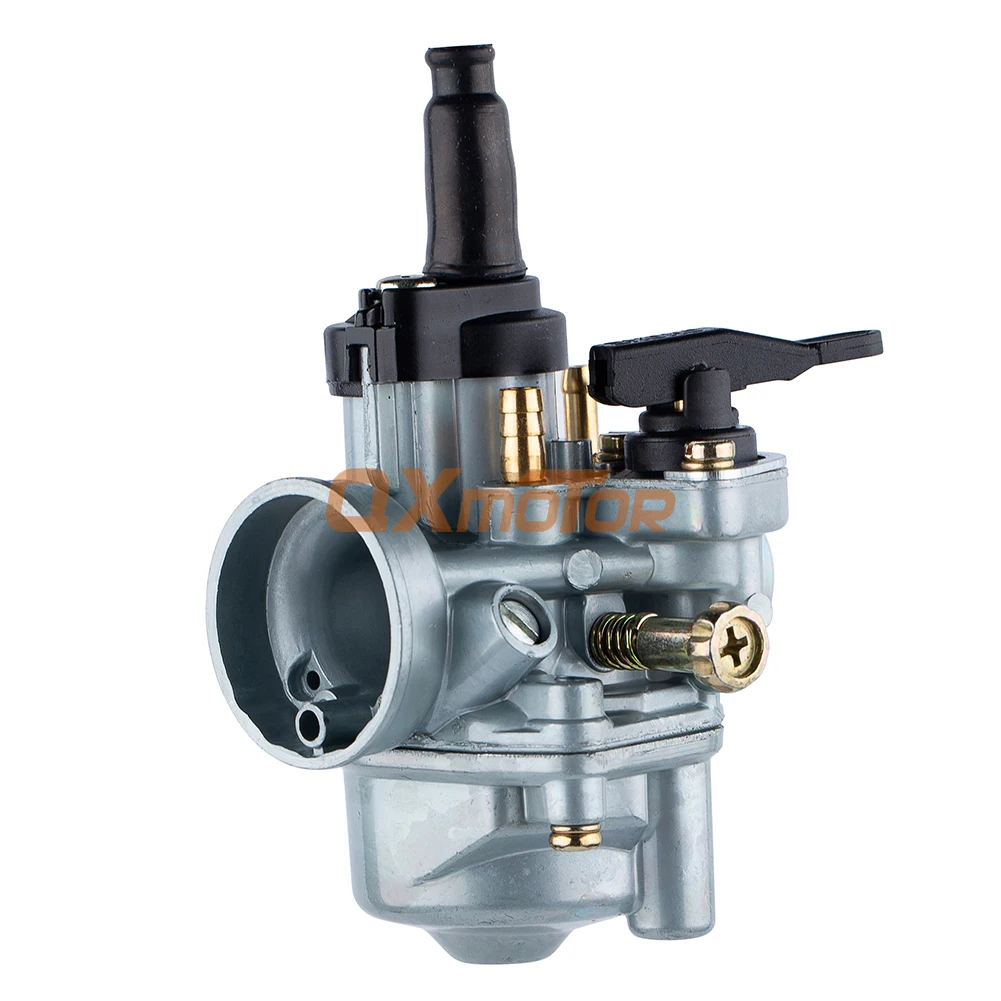

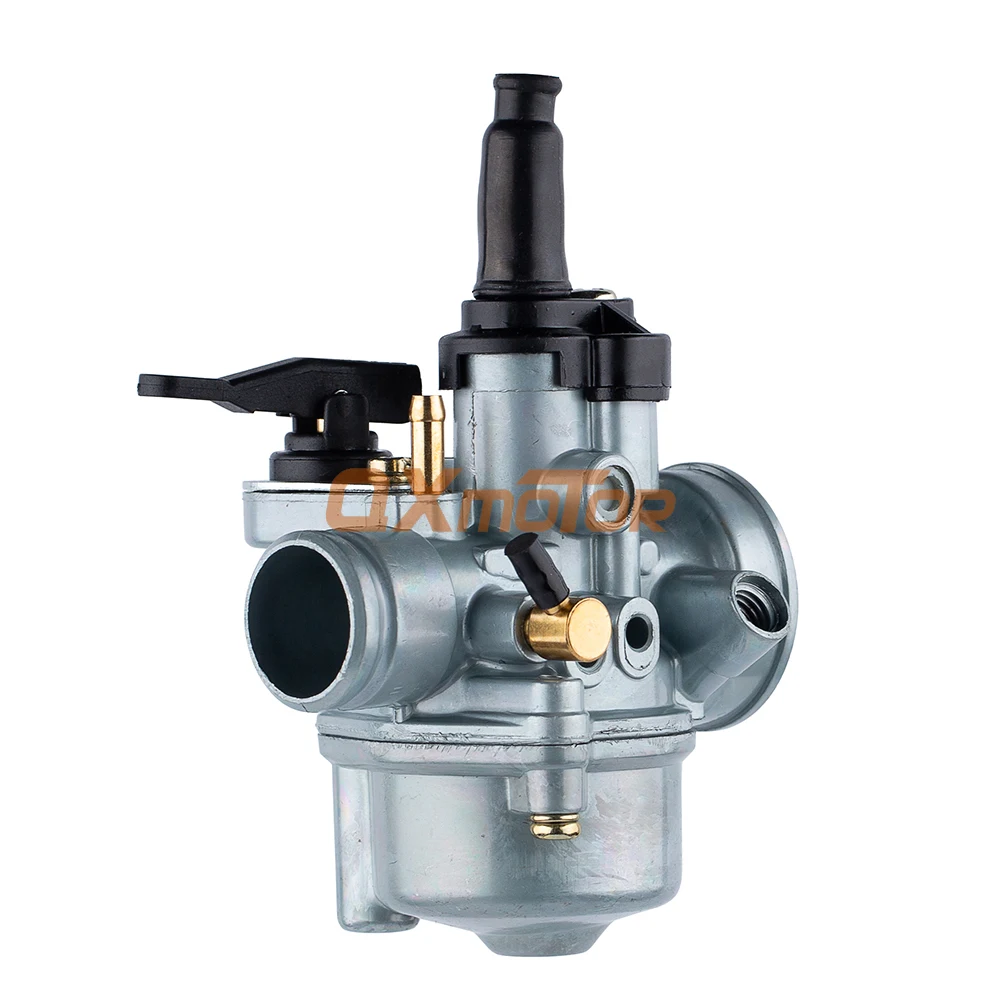

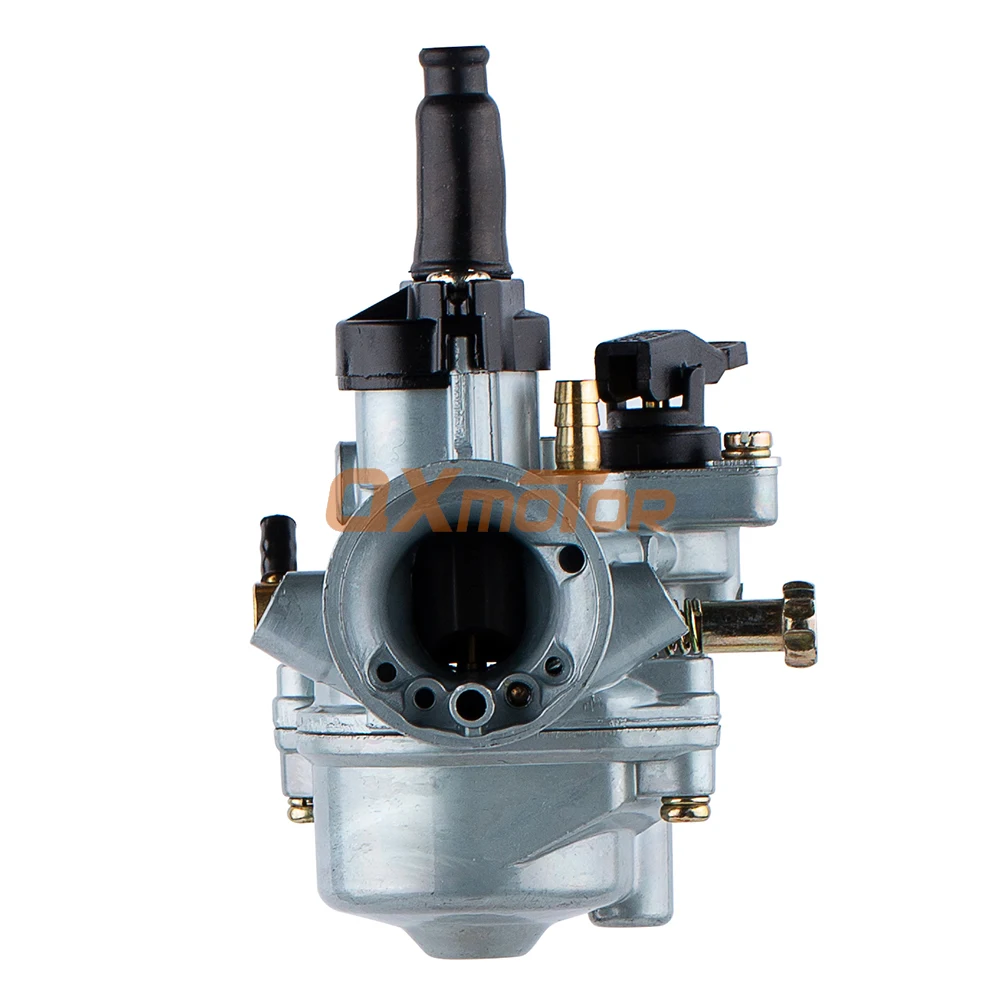

17.5mm PHVA 17.5 ED Carburetor for Derbi Senda Gilera Bultaco EBE EBS 50cc

Replace a worn or defective scooter/moped carburetor with this 17.5mm PHVA 17.5 ED replacement carburetor. Designed for compatible 50cc 2-stroke applications, it works with the original-style intake manifold and air box on suitable models.

Ideal for replacement, maintenance, restoration and compatible performance applications.

🔧 KEY FEATURES

• 17.5mm PHVA-style carburetor

• Designed as a replacement for compatible original carburetors

• Suitable for compatible 50cc 2-stroke engines

• Designed to work with the original air box and intake manifold on listed applications

• Manual lever choke

• Factory jet configuration for compatible standard applications

• Simple replacement design

• Suitable for Derbi, Gilera, Bultaco and other compatible moped/scooter projects

📋 SPECIFICATIONS

• Type: PHVA 17.5 ED

• Carburetor Bore: 17.5mm

• Engine Connection: 24mm

• Air Filter Connection: 35mm

• Main Jet: M6 #083

• Pilot Jet: M4 #034

• Choke Jet: M5 #050

• Float: 13700.1

• Carburetor Slide: 40

• Needle: A7

• Choke: Manual Lever

• Application: 50cc 2-Stroke Motorcycle / Moped / Scooter

🛵 COMPATIBILITY

Bultaco

• Bultaco Lobito 50 — EBE050

Derbi Senda 50

• Senda 50 R 1999 — EBE50

• Senda 50 R 2000–2001 — EBE050

• Senda 50 R DRD 2003 — EBE050

• Senda 50 R DRD Racing 2004–2005 — EBE050

• Senda 50 R DRD Racing LTD 2005 — EBE050

• Senda 50 R Racer 2003 — EBE050

• Senda 50 R X-Race 2004 — EBE050

• Senda 50 R X-Race 2005 — EBE050

• Senda 50 RX-Treme 2002–2003 — EBE050

• Senda 50 R X-Treme 2004 — EBE050

• Senda 50 RX-Treme 2005 — EBE050

• Senda 50 SM 2000–2001 — EBE050

• Senda 50 SM Black Edition 2003–2004 — EBE050

• Senda 50 SM DRD 2003–2004 — EBE050

• Senda 50 SM DRD Black Edition 2005 — EBE050

• Senda 50 SM DRD Racing LTD 2005 — EBE050

• Senda 50 SM X-Race 2004–2005 — EBE050

• Senda 50 SM X-Treme 2002–2005 — EBE050

Gilera

• Gilera GSM 50 2001–2002 — EBS050

• Gilera RCR 50 2003–2005 — EBE050

• Gilera SMT 50 2003–2005 — EBE050

• Gilera Zulu 50 — up to 2002 — EBS050

🏁 MODIFICATION APPLICATIONS

This carburetor can also be considered for compatible Puch, Tomos A55 and other 50cc–80cc moped, scooter, dirt bike and mini-bike projects, provided the mounting dimensions, intake connection and throttle/choke arrangement match.

For modified engines, carburetor jetting may need adjustment depending on the exhaust, air filter, cylinder, elevation and other engine modifications.

📦 PACKAGE INCLUDES

1 × 17.5mm PHVA 17.5 ED Carburetor

⚠️ IMPORTANT FITMENT INFORMATION

Please compare your existing carburetor before ordering. Check:

• Carburetor type

• Bore size

• Intake connection: 24mm

• Air-filter connection: 35mm

• Choke configuration

• Throttle cable arrangement

• Mounting dimensions

Although this carburetor is designed for the applications listed above, fitment should always be confirmed using dimensions and your original component.

Professional installation is recommended. After installation, check idle speed, throttle response and fuel mixture before riding.
