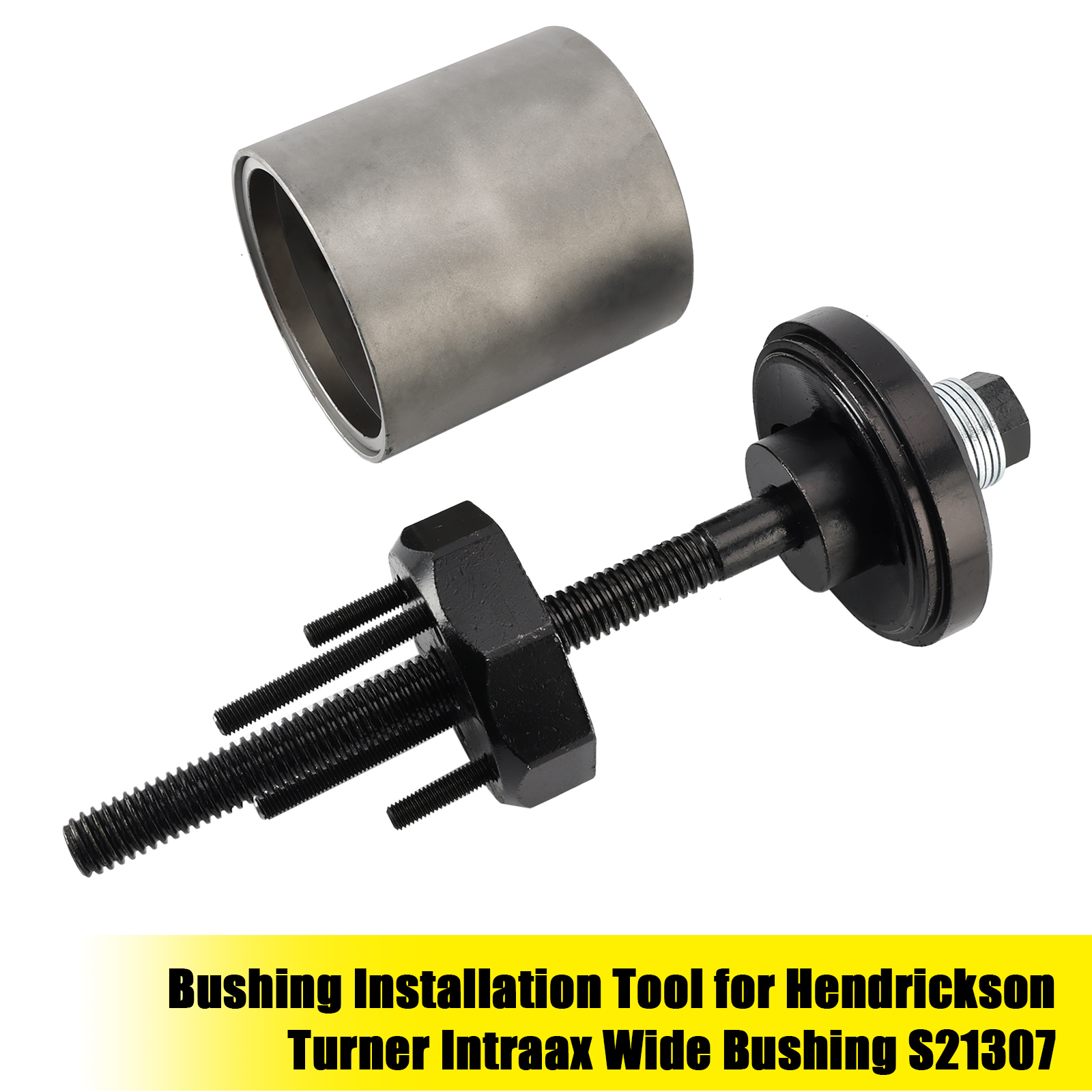

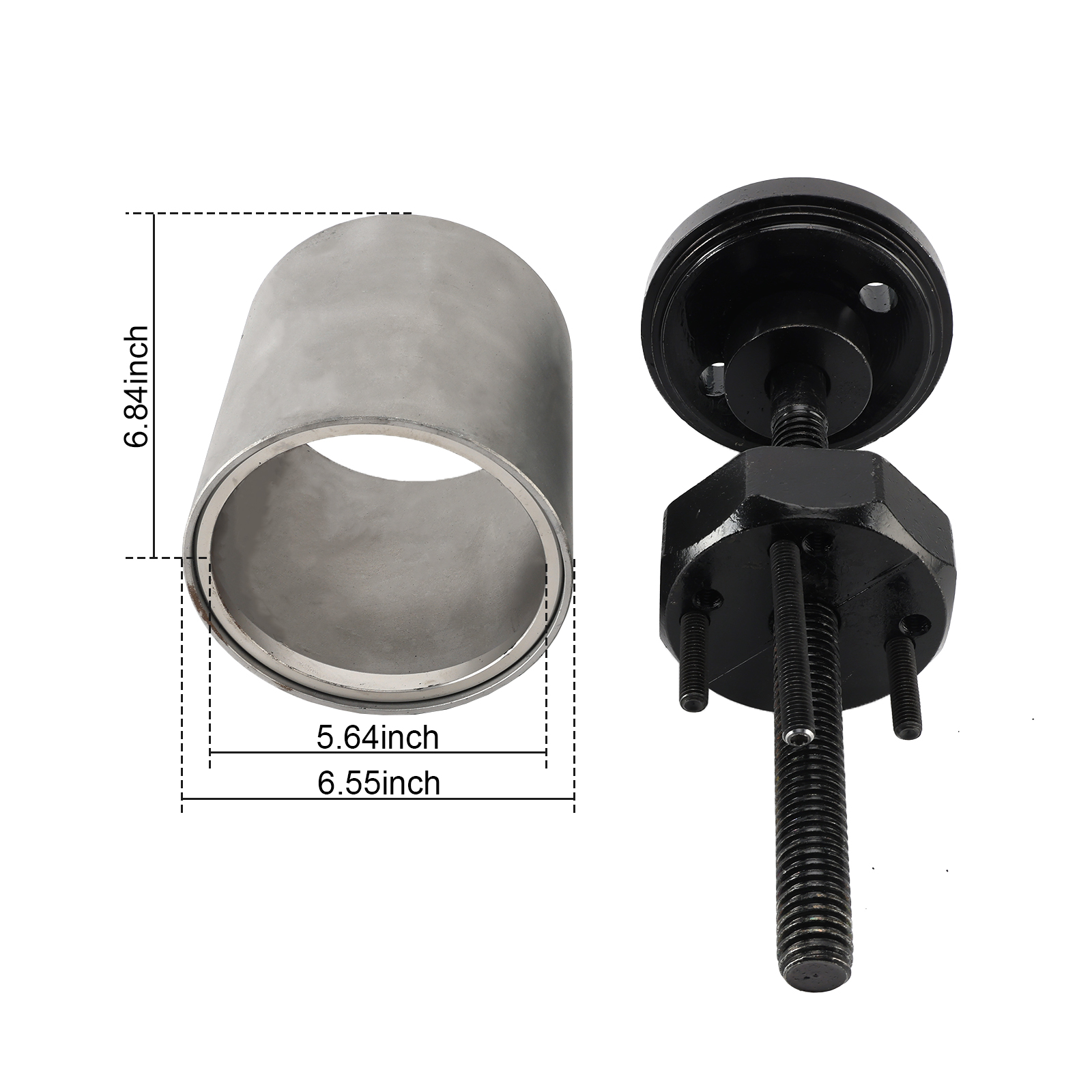

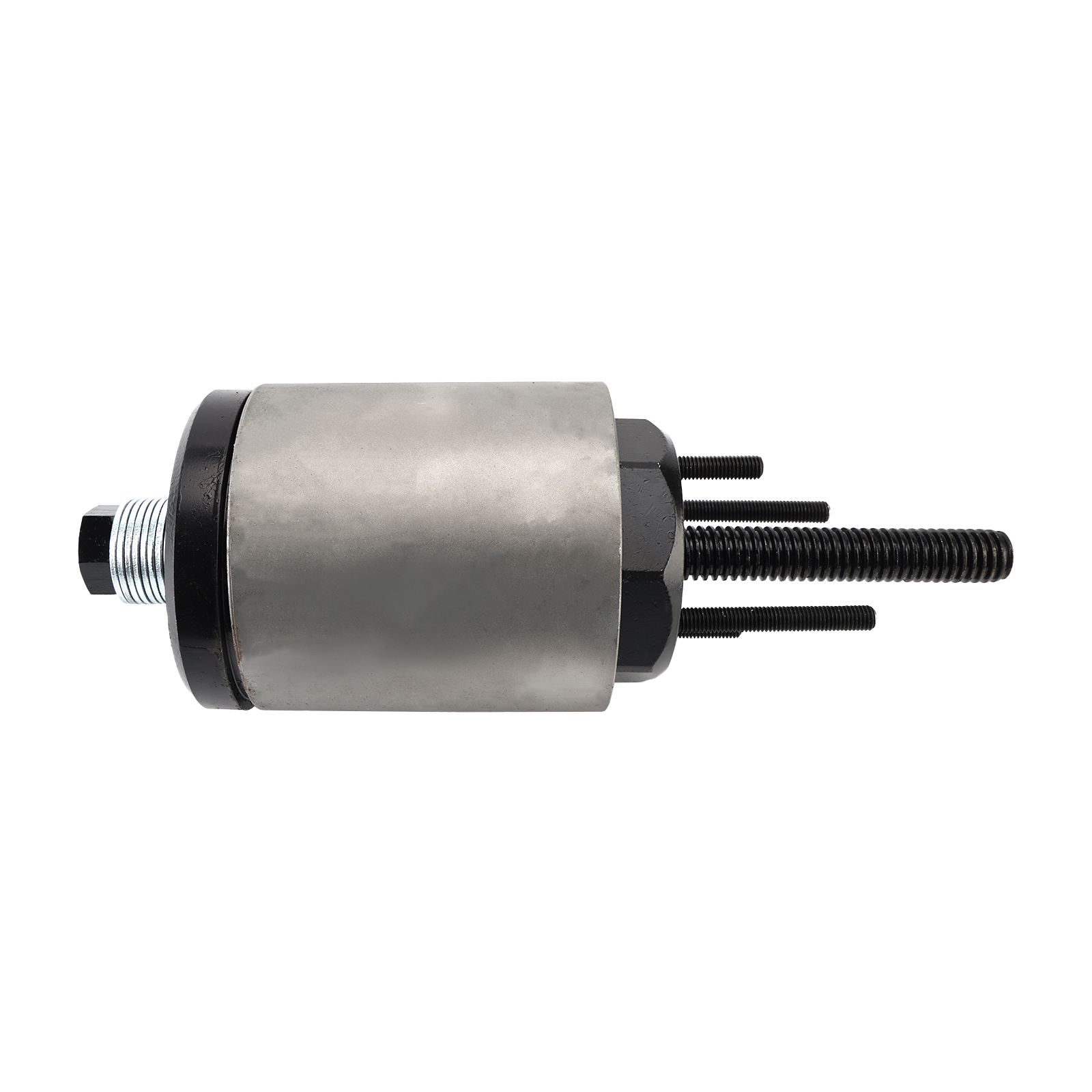

Bushing Installation Tool for Hendrickson Turner Intraax Wide Bushing S21307
Feature:
For use with Hendrickson Tri-Functional Wide Beam Bushing Kits
Ensure that threads on tool are well lubricated before and during use to avoid damaging threads
Bushing Installation Tool for Hendrickson Replace Part # S21307, E9575, TRB5912-T Automann
This kit will easily remove and install the Hendrickson Intraax Tri-Functional bushing while the suspension remains on the trailer. Made to service most Hendrickson, Hendrickson Turner, Watson Chalin, and Automann bushings
Specifications:
Condition: 100% Brand New
Manufacturer Part Number:S21307
Bushing Type:Wide Beam Bushing
Fitment:
For BWP HE9AA-T
For Dayton 334-936
For Euclid E-9575
For Hendrickson S-21307
For Meritor R309575
For Sirco SH2034
For Tiger Tool 15040

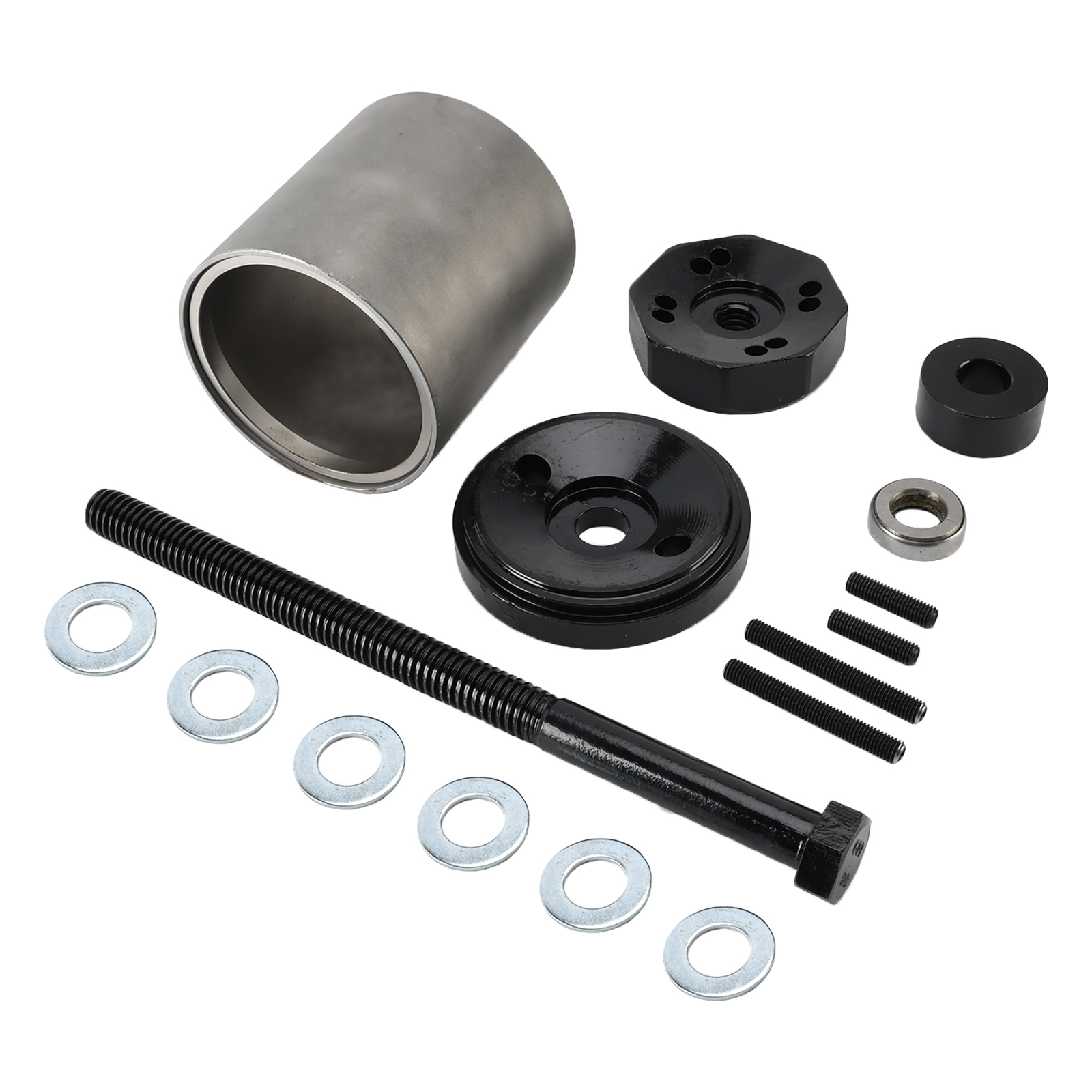

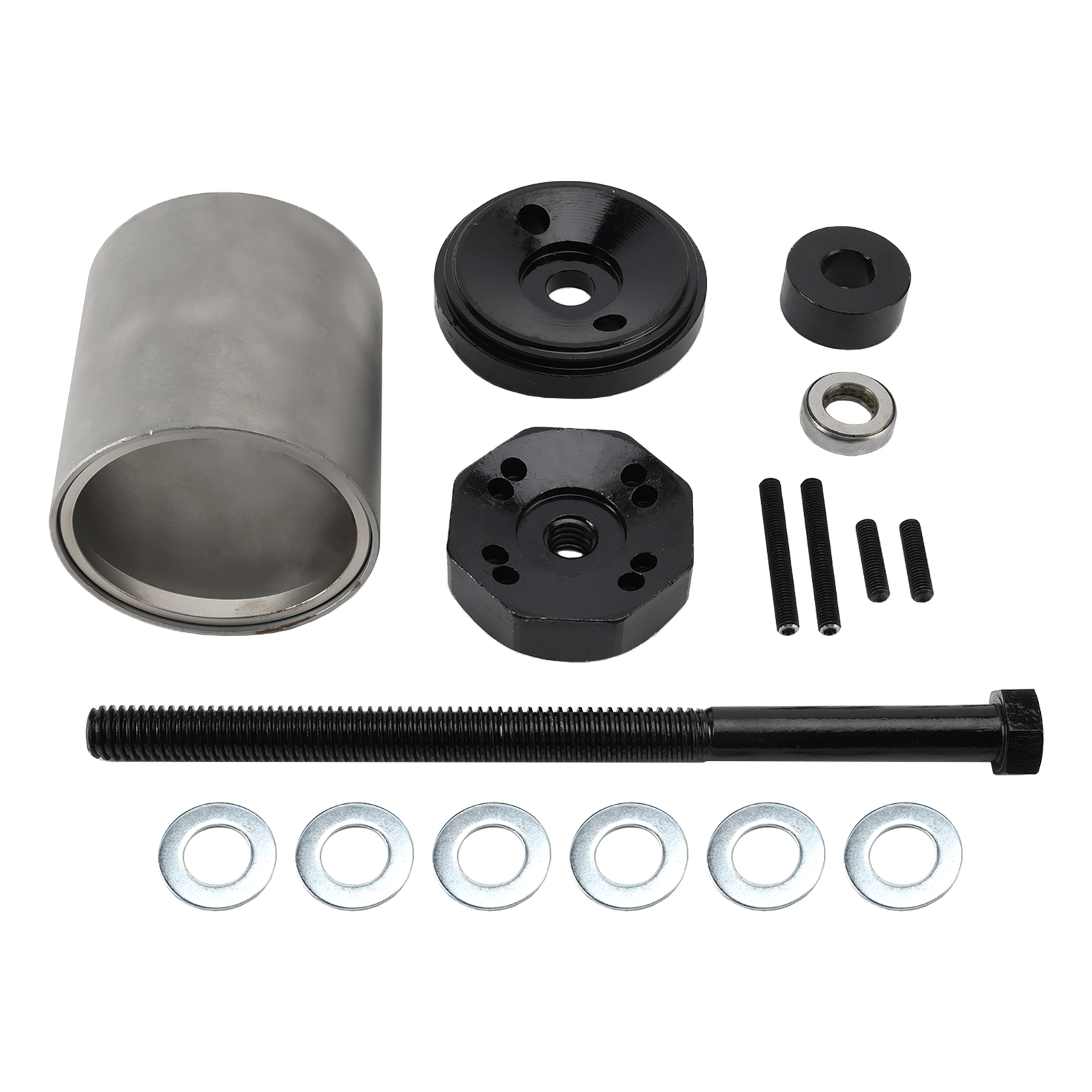

Package included:
1 x Bushing Installation Tool
Removal of Bushing：
1.Scribe the bushing orientation on the beam tube and compression tube.
2.The spring pins are not required to line up with the bushing holes during removal.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Hook up hydraulics and begin removal operation.
4.After each 2 inch stroke, re-tighten nuts to take up slack. (Most bushing will require 3-4 adjustments)
Installation of Bushing：
1.Lubricate the bushing and insert the bushing into compression cylinder.
2.Place the plunger on top of the bushing, align the mark on the bushing with the mark on the plunger. The 4 corresponding pins to the bushing type you are installing should seat into the bushing.
3.Tighten retaining nuts to remove slack. Thread on hammer adapter in the event the bushing becomes seized. Confirm the plunger is aligned with the scribed mark on the beam tube and the pins are still engaged in the bushing. Hook up hydraulics and begin installation operation.
4.After each 2 inch stroke, retighten nuts to take up slack. (Most bushing will require 3-4 adjustments)
