The three rulers of the three-axis group can be matched arbitrarily within the stroke range (KA-300: 70--1020mm; KA-500: 70--520mm) For example: 220*520*620 /320*420*870 / 320*470 *1020…

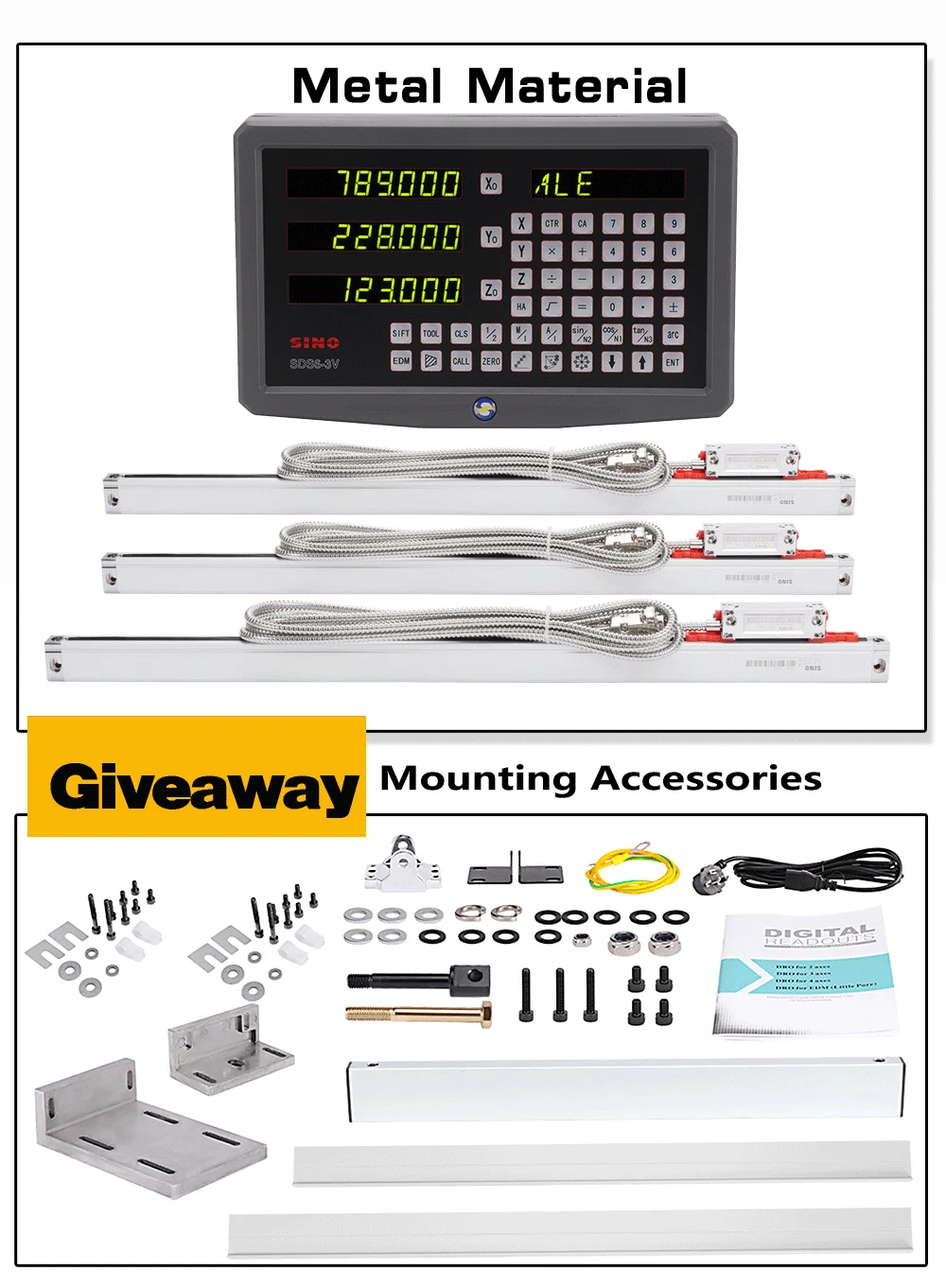

The package includes:

0.005mm complete kit (pack one) 1. 1 piece of Sino SDS6D-3V 3-axis display (including user manual, mounting arm, screw bag, power cord); 2. 3 pieces of Sino KA-300 linear scale reading resolution 0.005mm linear Ruler (with cover, mounting bracket, screw pocket)

0.005mm complete kit (pack of two) 1. 1 piece of Sino SDS6D-3V 3-axis monitor (including user manual, mounting arm, screw bag, power cord); 2. 2 pieces of Sino KA-300 linear ruler and 1 piece of Sino KA- 500 reading resolution 0.005mm linear scale (with cover, mounting bracket, screw pocket)

0.001mm complete kit (pack of three) 1. 1 piece of Sino SDS6D-3V 3-axis display (including user manual, mounting arm, screw bag, power cord); 2. 3 pieces of Sino KA-300 linear scale reading resolution 0.001mm linear Ruler (with cover, mounting bracket, screw pocket)

0.001mm complete kit (pack of four) 1. 1 piece of Sino SDS6D-3V 3-axis monitor (including user manual, mounting arm, screw bag, power cord); 2. 2 pieces of Sino KA-300 linear scales and 1 piece of Sino KA- 500 reading resolution 0.001mm linear scale (with cover, mounting bracket, screw pocket)

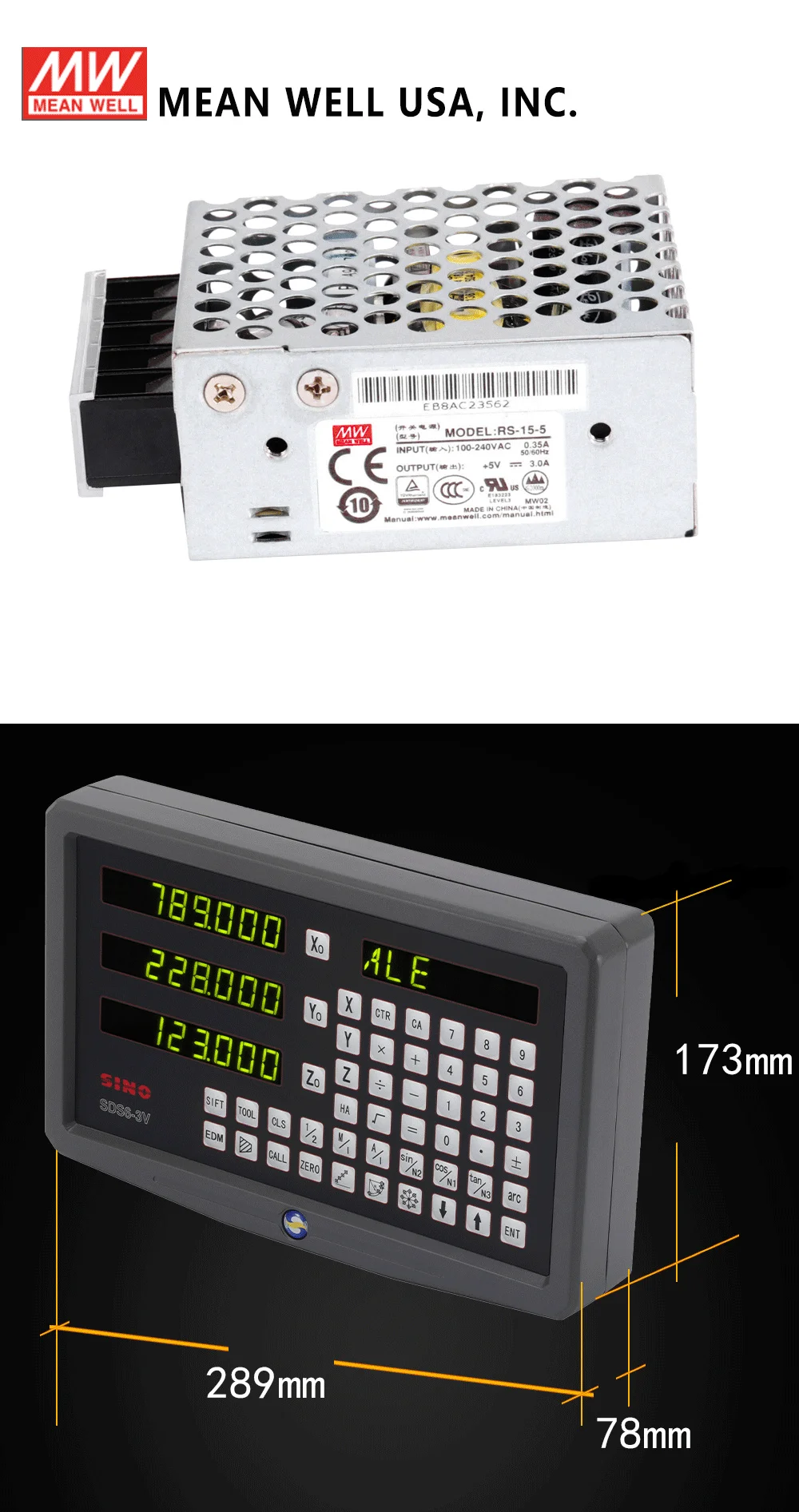

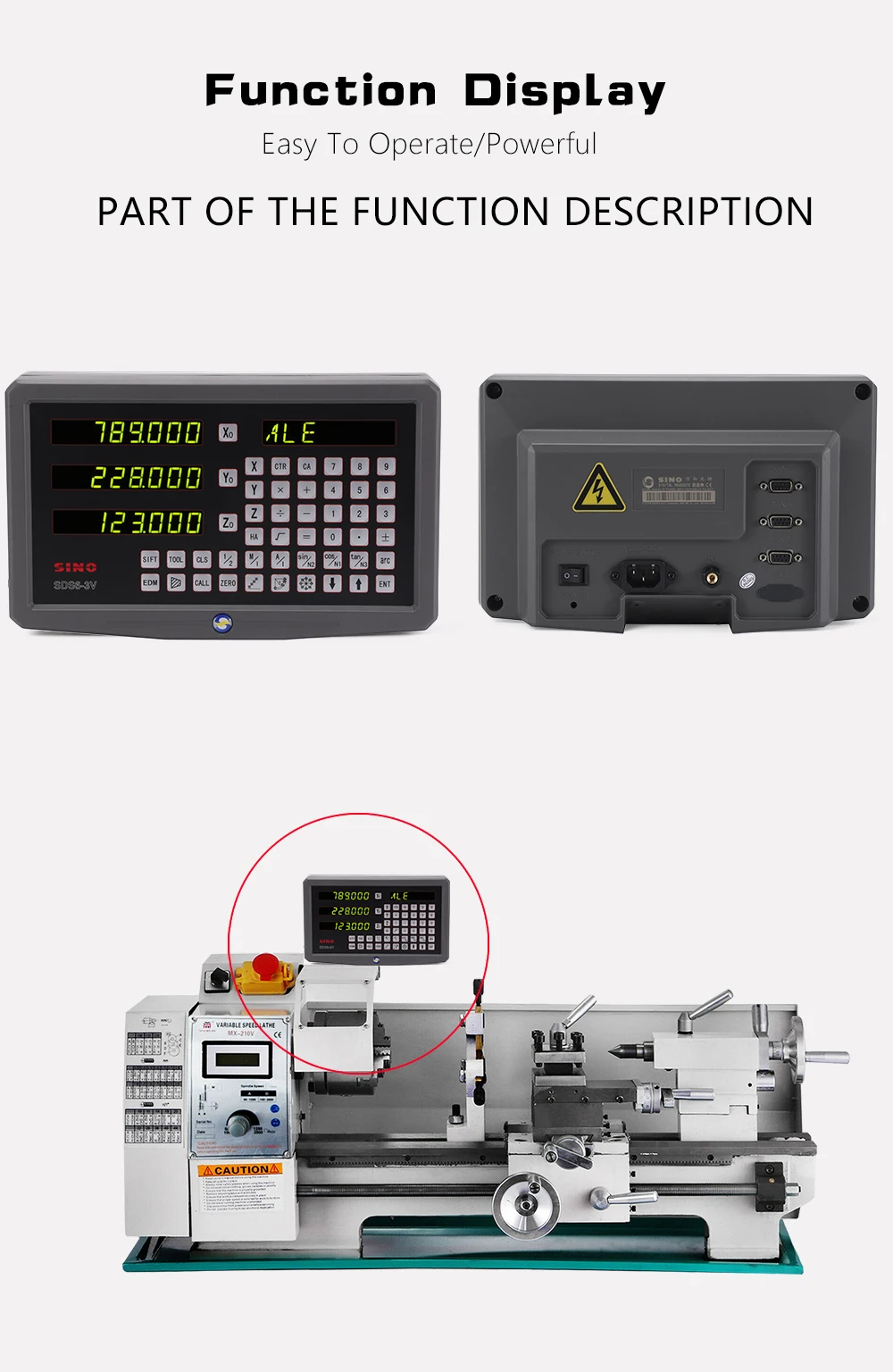

Sino SDS6D-3V Digital Display Parameters

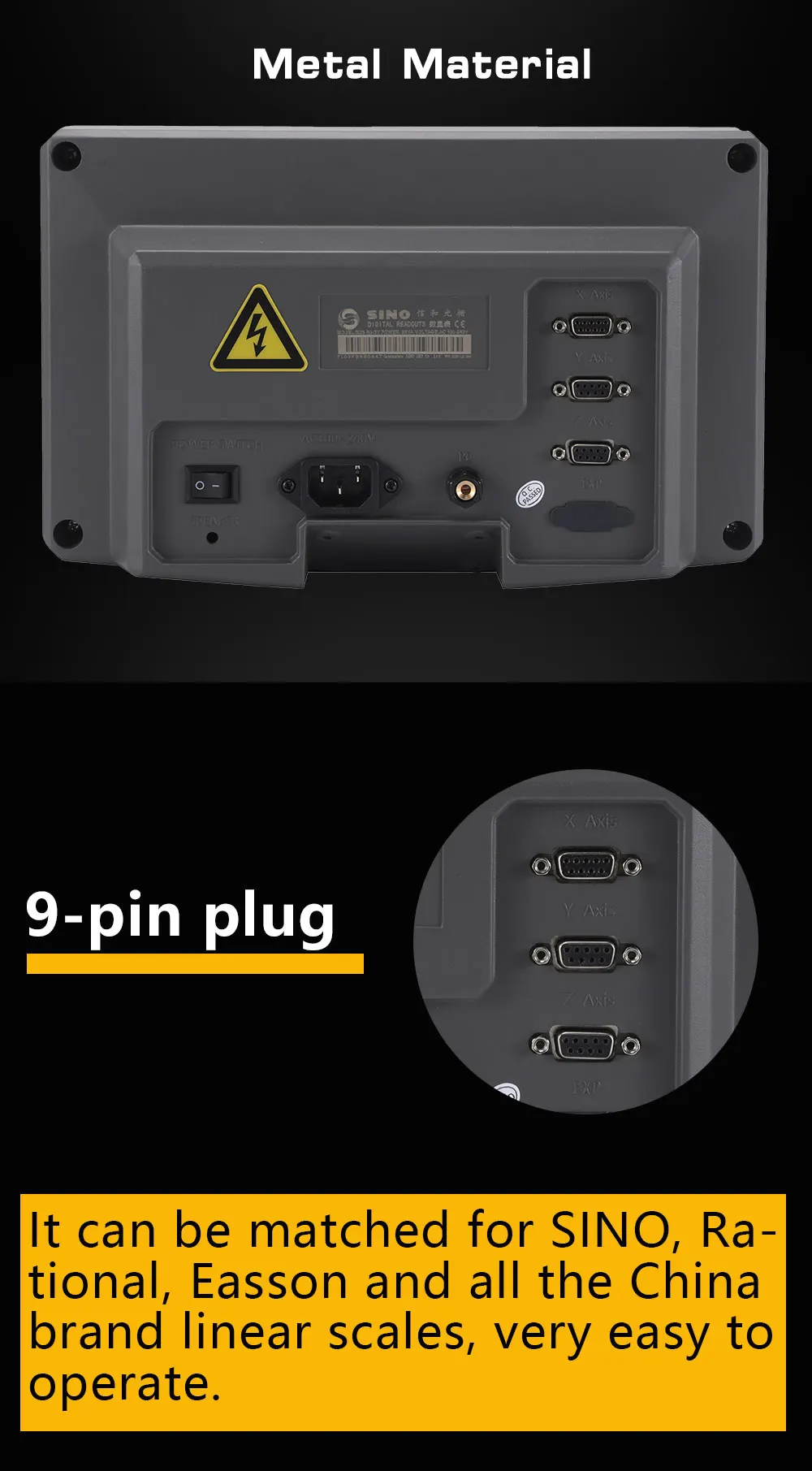

1. Voltage range: AC100 v ~ 240 v / 50 Hz ~ 60 Hz; 2. Power consumption: 25 VA; 3. Coordinate number: three coordinates; Word display characters; 5. Input signal: TTL, RS-422; 6. Allowable input signal frequency: >100 KHz; 7. Resolution: 10 microns, 5 microns, 2 microns, 1 microns, 0.5 microns, 0.2 microns, 0.1 microns

Advantages of digital display:

1. Humanized design experience, different users have different requirements for display brightness, hereby added 7-level brightness adjustment function, users can adjust the brightness independently to adapt to the use environment; the button shape of the panel is designed to be square, combined with ergonomics, convex The height is more reasonable, making the hand feel better, the operation more efficient and comfortable; 2. The chip adopts low power consumption, high sampling rate and high precision main chip, which has more powerful performance and greatly improves the stability of program operation, providing powerful data processing for the main board. 3. The digital tube, driven by bus technology, is more reliable than the old version using discrete components such as triodes, and greatly optimizes the consistency of the display brightness of the digital tube; 4. The panel, the panel window is adjusted to a more suitable perspective Light rate, enable more vivid and outstanding color division function of key area, higher appearance, bring higher efficiency to work on the basis of relieving visual fatigue; 5. Aluminum alloy watch box, powerful hardware design and professional software With the cooperation, it can achieve more advanced EMC test indicators, and the anti-interference ability is significantly improved to meet the needs of different processing environments.

basic skills

mm/inch conversion, absolute/relative conversion, 200-point auxiliary zero function, function calculator, R arc function, bisecting circle function, slope machining function, tool compensation function, taper measurement, EDM function, etc.

Option three:

Three-axis display accessories are:

Stand rod/screws/user manual/stand holder/power cord/protective cover

Professional packaging
