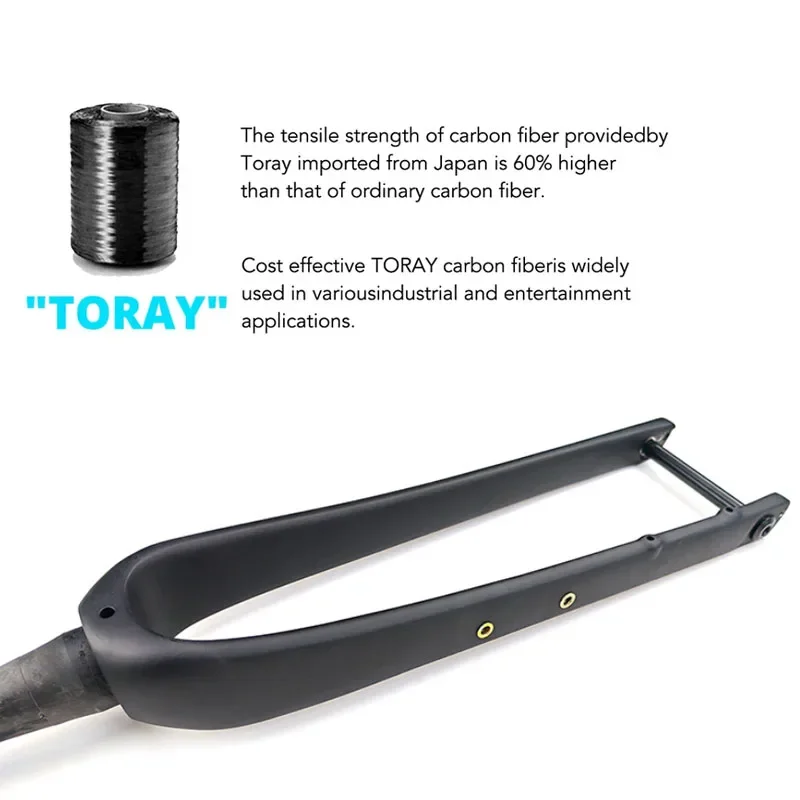

Carbon Fiber Material
Crafted from high-quality carbon fiber, this bike fork offers superior strength and lightweight performance for enhanced cycling experience.

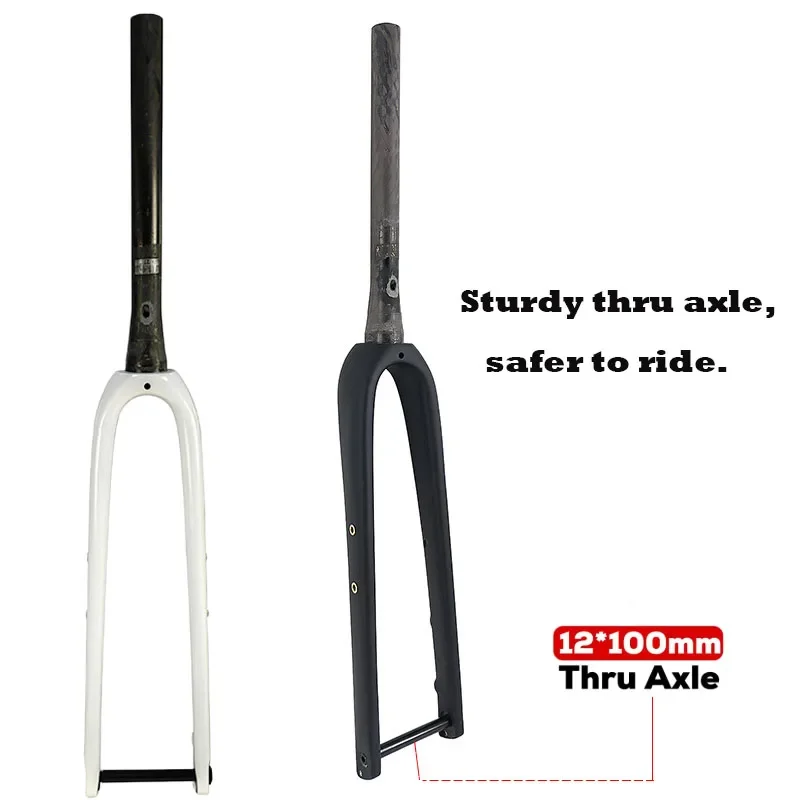

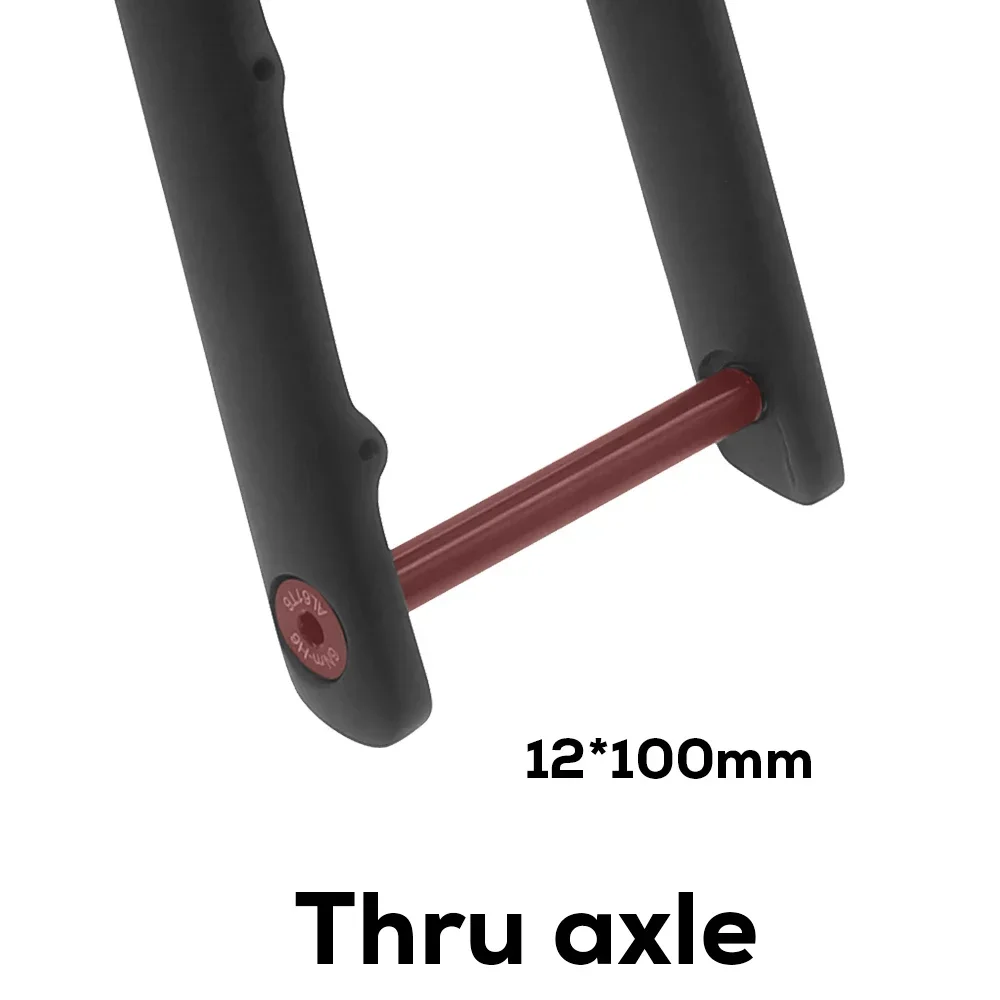

Thru Axle Compatibility
Equipped with a 12x100mm thru axle, this fork ensures stability and safety during rides, especially on rough terrains.

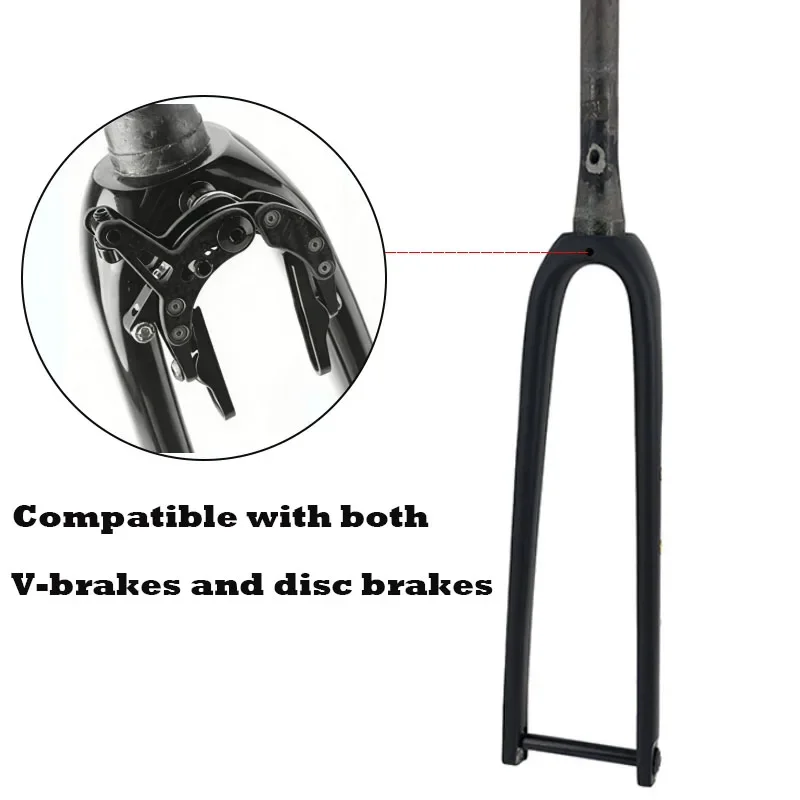

Fit for V Brake
This fork is specifically designed to work seamlessly with V brake systems, providing reliable stopping power.
Versatile Tire Compatibility
Designed to accommodate tires up to 700C x 45C, this fork offers versatility for various gravel biking terrains.

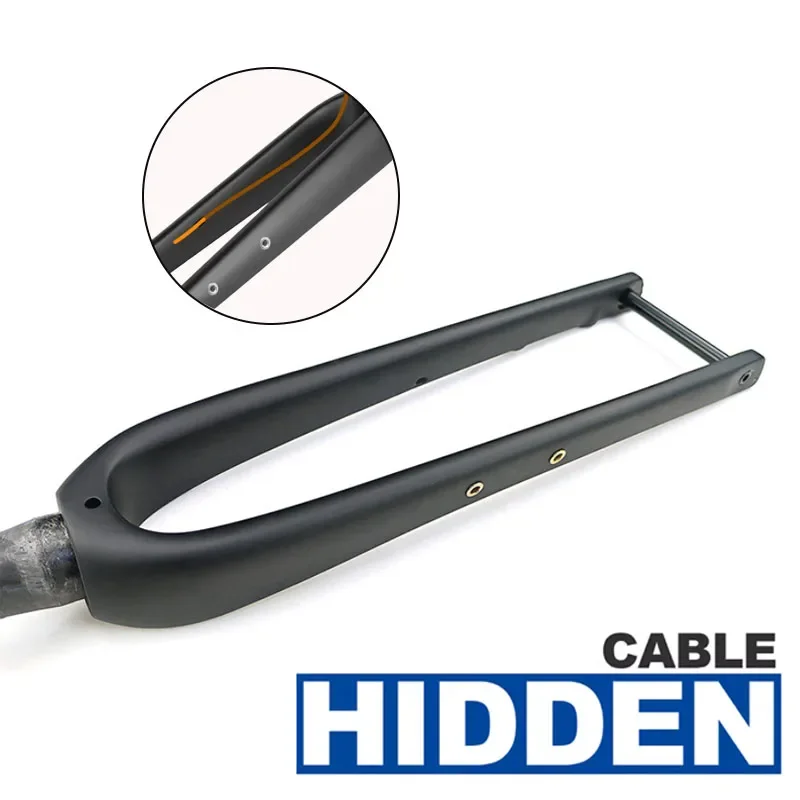

Internal Cable System
The half internal cable system provides a clean, sleek look and reduces friction, ensuring smooth and efficient gear shifting.
-
Product Name: Gravel Front Fork / Cyclocross Front Fork
-

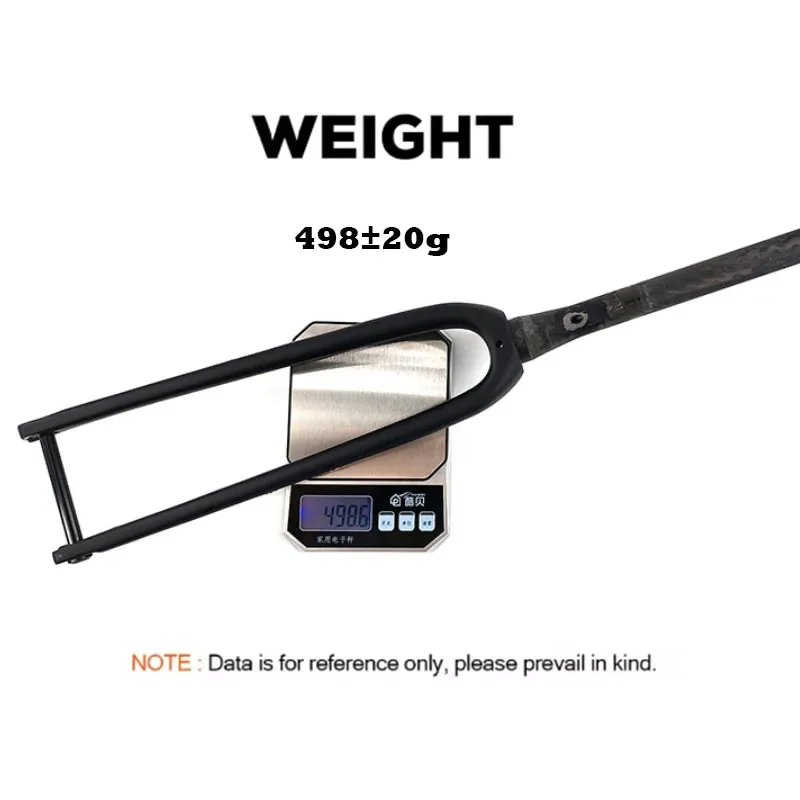

Weight: Approximately 500g ±20g (thru-axle version)
-

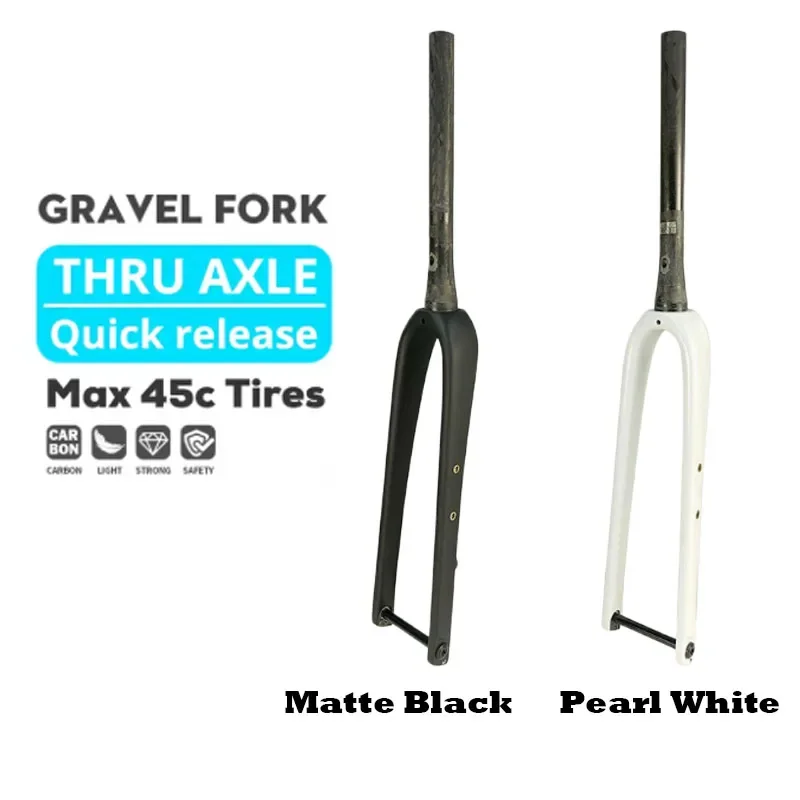

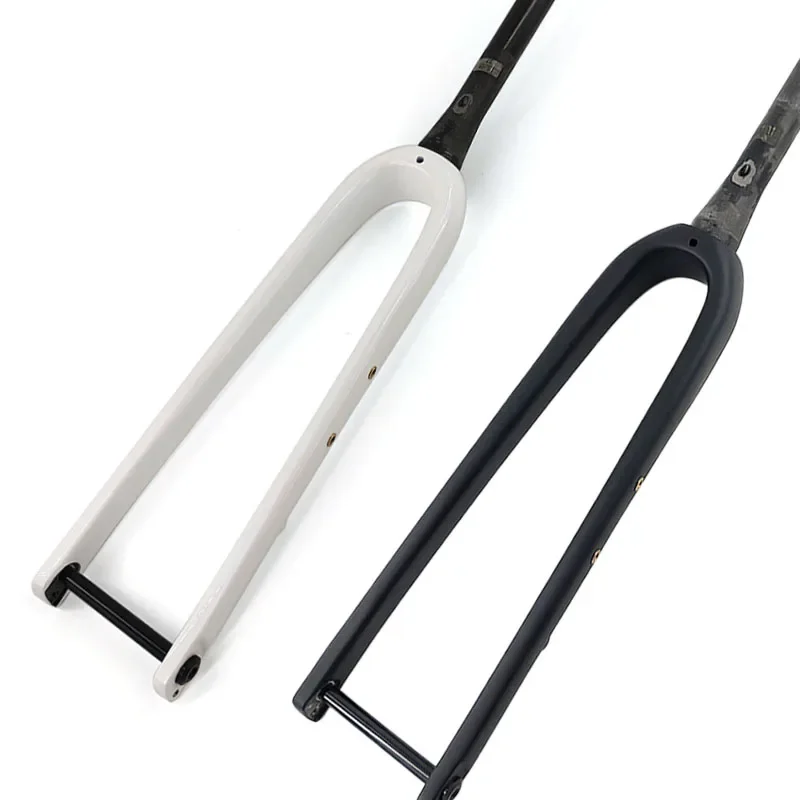

Appearance: Matte black / Pearl white glossy
-
Fork Dimensions:
-

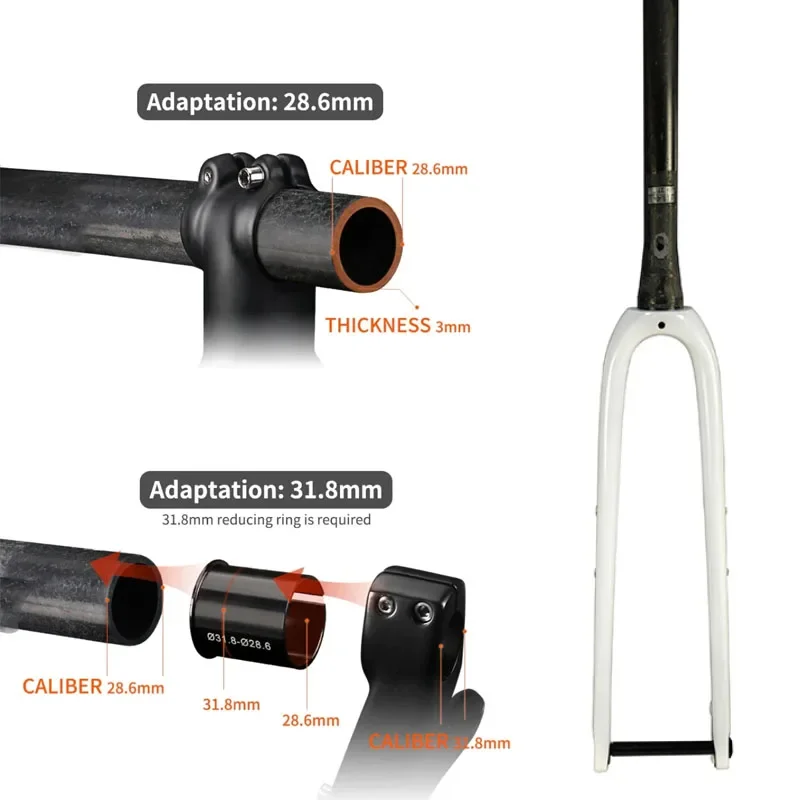

Steerer tube diameter: 28.6mm
-
Steerer tube length: 300mm
-
Lower fork length: 400mm (measured as the straight-line distance from the bottom bracket to the center of the fork dropouts)
-
-
Bottom Bracket Size: Tapered 39.8mm
-
Fork Spacing: 100mm (Carbon forks have normal elasticity with a ±3mm tolerance, which does not affect installation and use)
-
Inner Width of Fork: 60mm
-
Crown Height: 22.5mm
-
Tapered Crown Width: 55mm
-
Thru-Axle Size: M12 (includes thru-axle)
-
Cable Routing: Fully internal routing
Product Specification: Gravel Front Fork / Cyclocross Front Fork
