Rugged Heavy Duty Launching Wheels, Quick Release Model.

Aluminium Frame and parts, makes it light weight and prevents rust. Not to be confused with similar wheels made from Steel which are heavier and will rust.

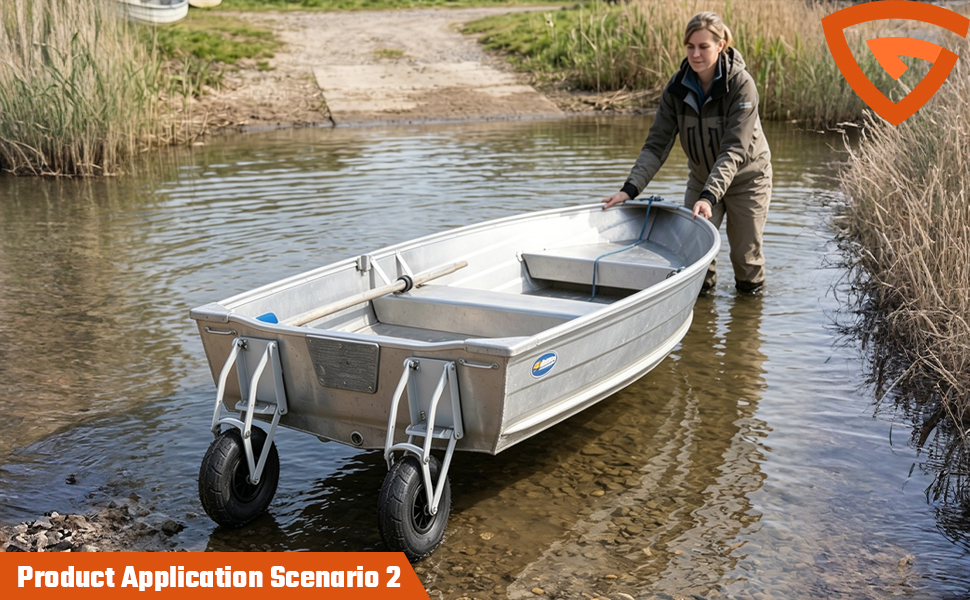

A set of quality Retracting Aluminium Framed Pneumatic Wheels suitable for fitting onto transom. Very convenient when transferring to launching site, with an outboard attached and other equipment in the boat.

• Low Profile appearance and unhindered operation of outboard.
• Recommended working load 120kg. Do not exceed 200kg.
• Launching and returning on shore: Use the handle to retract and extend the wheels. Wheel automatically locks in place in both positions.

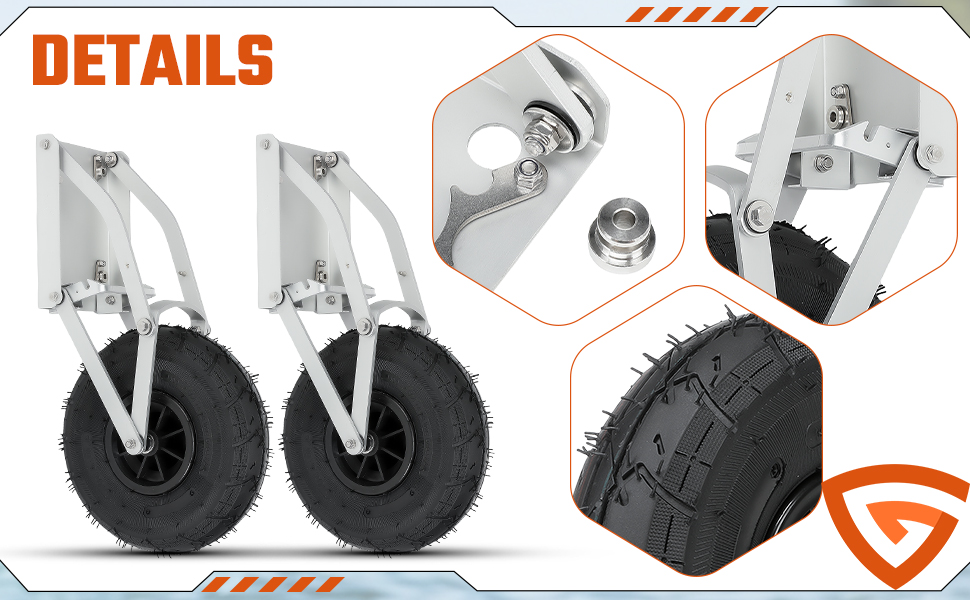

• Construction: Strong aluminium frame, pneumatic wheels.

With Quick Release mounting studs (available only on Quick Release Model (SKU: MD1390/R): ideal for roll up inflatables when the wheels have to be removed from the transom for transport or storage.

• Fit and remove wheels quickly for storage and transport: Wheel bracket is placed on studs on transom, and locked in position with thumb catches. Wheel brackets are removed quickly by unlatching the catches.

Installation:

• When extended, wheels reach 30 cm below bottom of fixing plate.
• When retracted, wheels remain 11 cm above fixing plate.
• Dimensions of Bracket to fit on transom plate : 14 cm x 20 cm.
• Transom Plate holes: 6.5 mm holes, 10 cm x 13 cm centre.
• Tyre pressure: Not more than 25 psi
• Replacement wheel Size: 4.10/3.50-4

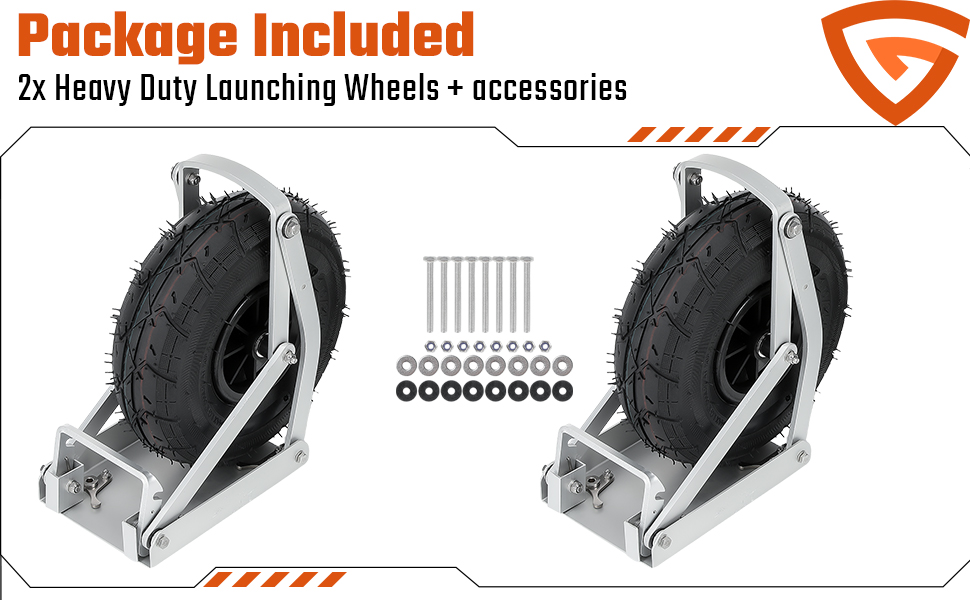

• Includes 6mm fixing bolts, nylon nuts and SS washers.
• 8 Stainless Steel Transom Studs for Quick Release Model (SKU: MD1390/R) only.

Regular Maintenance: Application of marine grease to wheel axle will produce smooth operation and improve service life.

Warning: Not for highway towing.
