KA200 Parameter

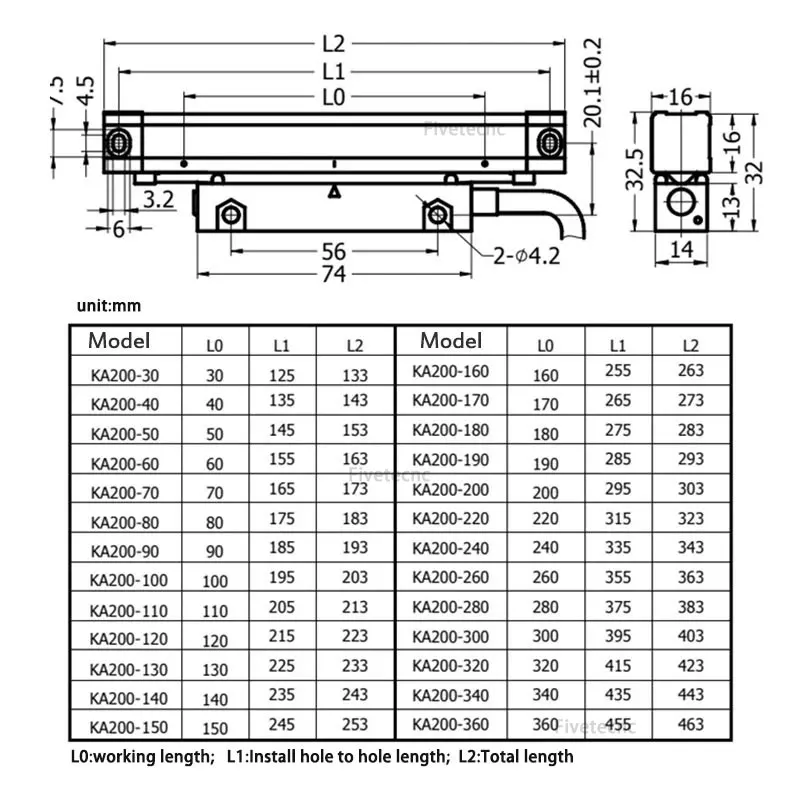

Working length: 30-360mm

Operating Voltage: 5V

Signal: TTL

Cross-sectional area: 16mm*16mm

Operating temperature: 0℃-40℃

Resolution: 1μm/0.001mm/5um/0.005mm



Slim KA-200 Parameter
Available Measrus Length: 30mm-360mm

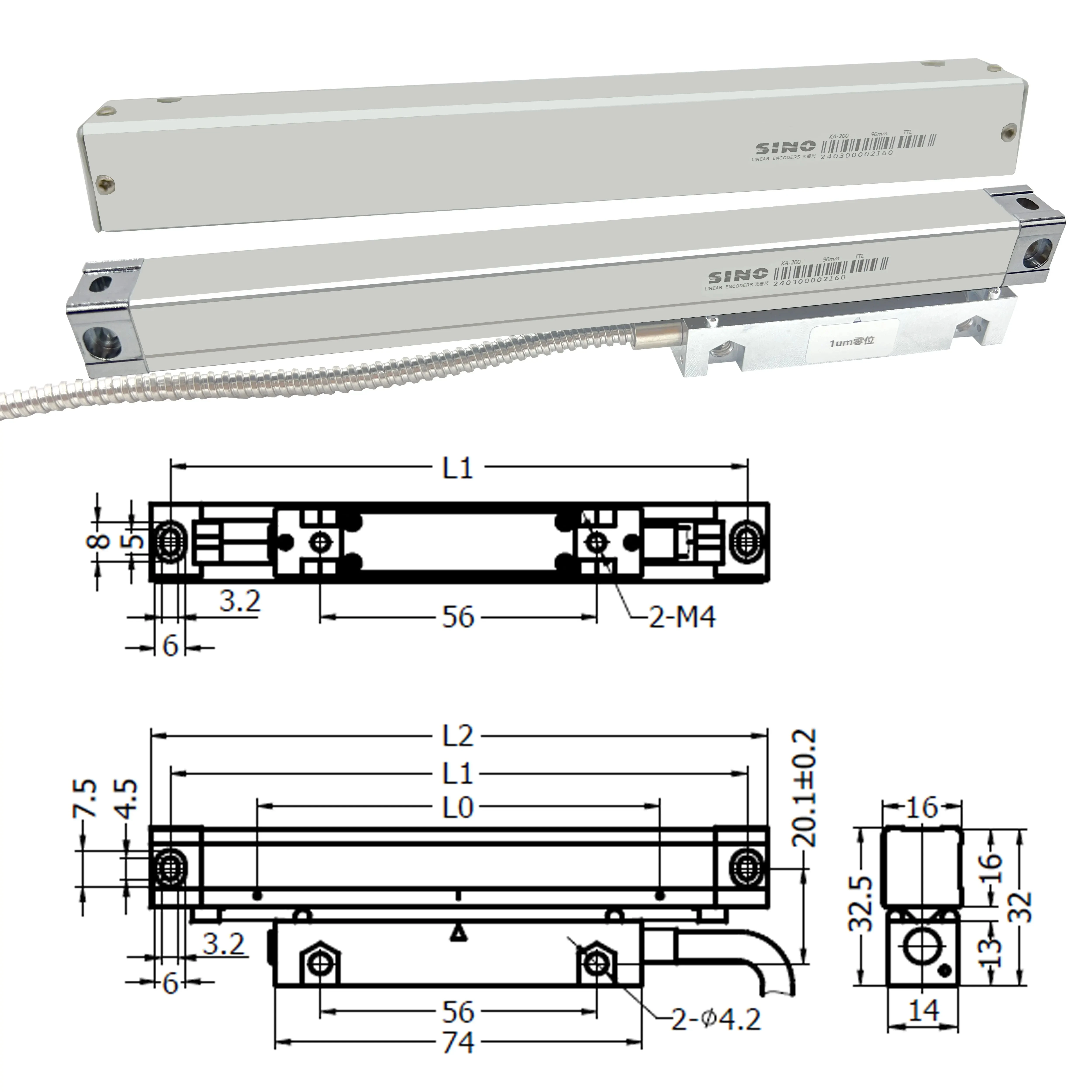

Cross Section: 16mm X 16mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Reference Point: one unit per 50mm
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 1um(0.001mm)
Output signal: TTL
Cable standard: 2 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 egree centigrade
Connetor: 9 Pins



Packing

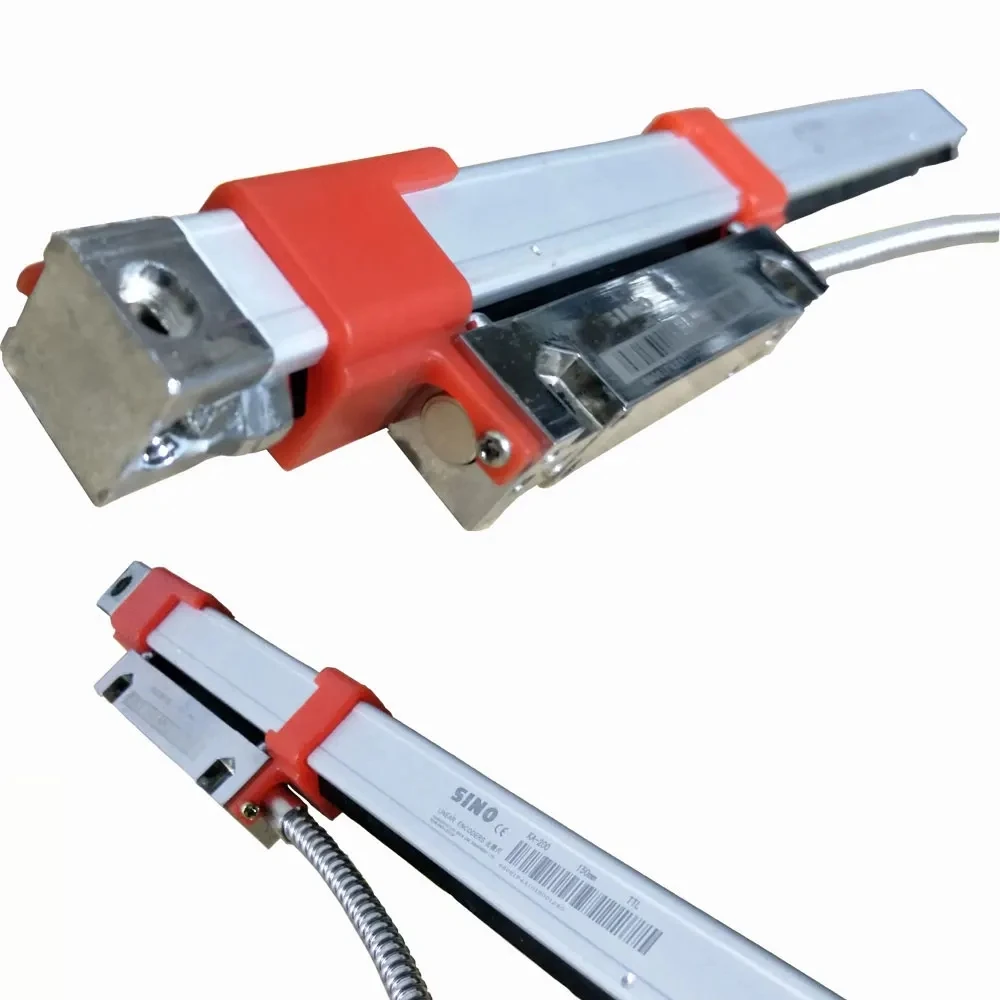

-1 piece Sino KA-200 scale,
-1 piece scale cover
-1 bag screwsPrecautions
1 Safety Precautions
2 Installation Steps
3 Wiring & Parameter Settings

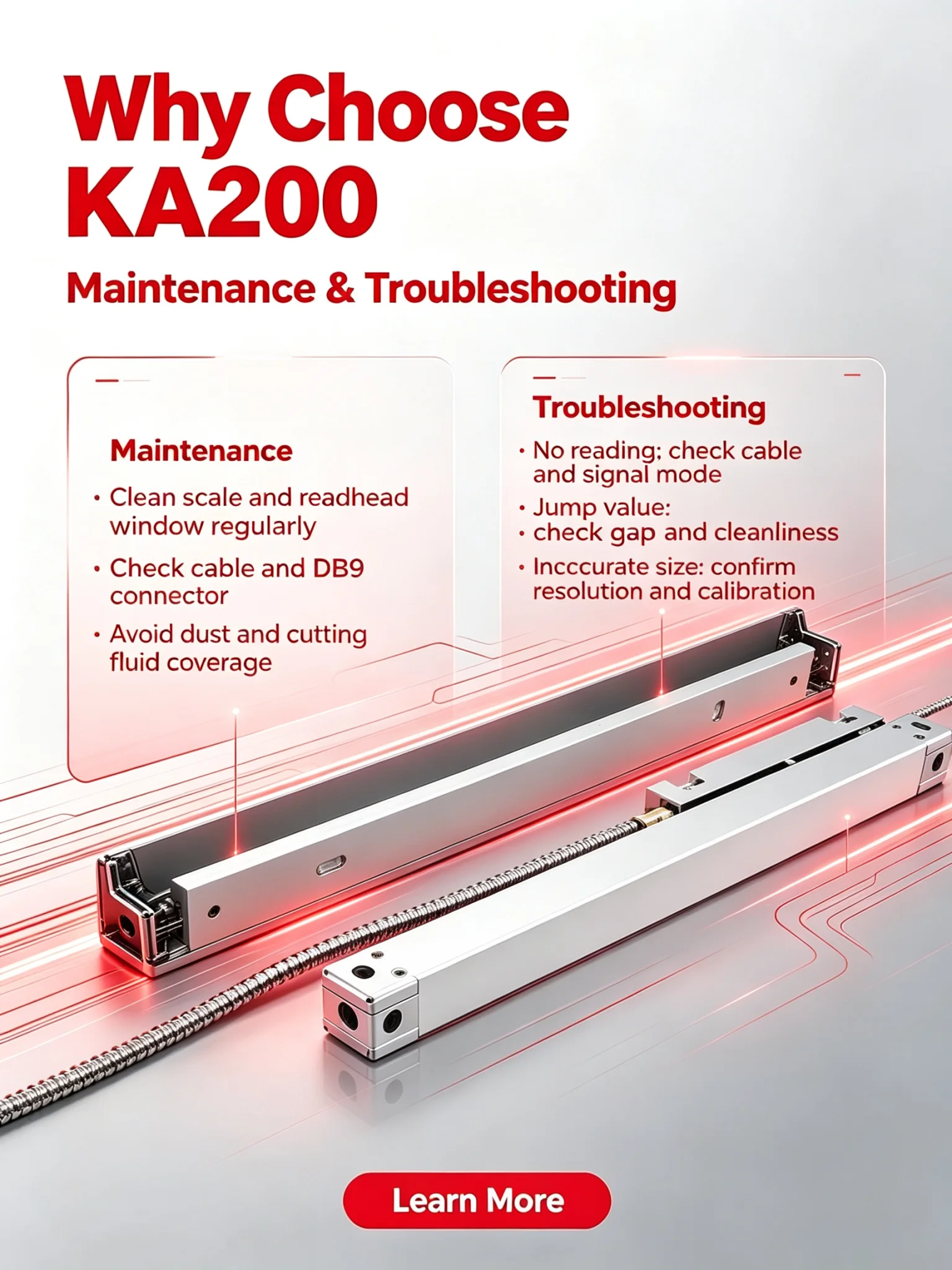

4 Maintenance & Troubleshooting
Product Brief：
KA-200, a mini-encoder smaller than KA-500, is designed based on kA-500 by
optimizing the internal and external structure. It is suitable to the equipment on which
the installation is restricted and the space is even smaller. The length is 30-360mm.
1. technical parameters
1.1, pitch:
1.2, resolution:
1.3, accuracy:
1.4, range:
0.02 mm (50 line /mm)
5 m, 1 m, 0.5 M
+ 3 + 5, M + 15, m m/m (20 + 0.1 C)
30~3000mm
1.5, moving speed: high speed ruler 120 m/min (need to be customized)
Ordinary ruler 60m/min
1.6, power supply:
+5V + 5%, 80mA
1.7, the length of the cable: Standard 2M (special length can provide according to the needs of the user)
1.8, working temperature: 0~45
1.9, plug foot instructions:
