SINO DRO Linear Scale 5um TTL Lathe Mill Machine KA300 70mm 120mm 170mm 220mm 270mm 320mm 370mm 420mm Grating Ruler Optical Encoder

What in package

1 piece scale, scale cover, mounting bracket, screw bag

Scale fufures

Parameter

Model: KA300

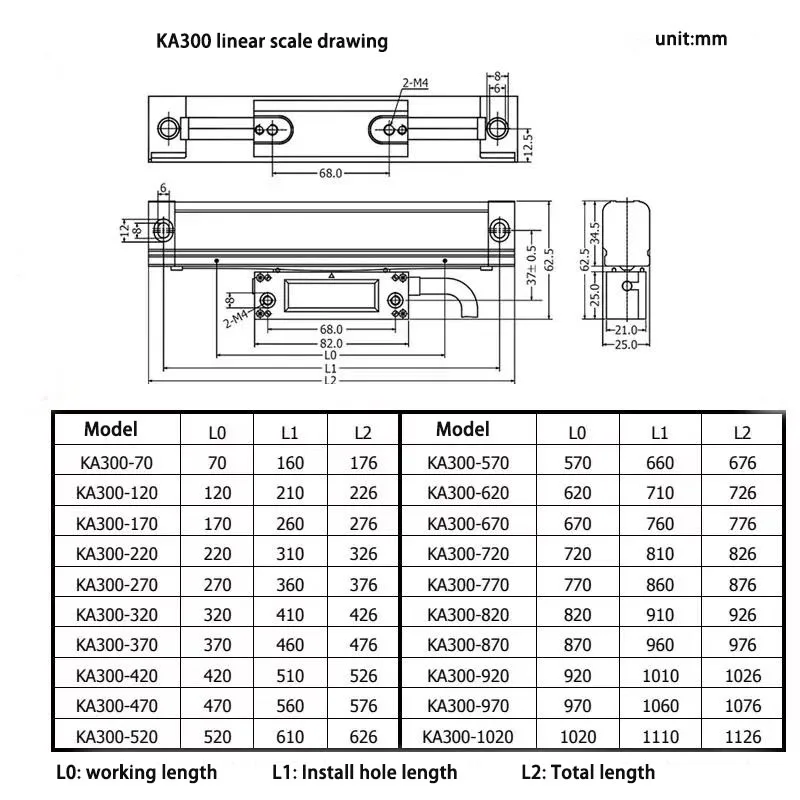

Available measurement: 70mm to 1020mm

Total length: measurement+112mm

Size cross section size: 21mmx34mm

Input voltage: 5VDC

Output signal: RS422

Resolution: 1um/0.001mm

Cable length: 3meters

1 Safety Precautions

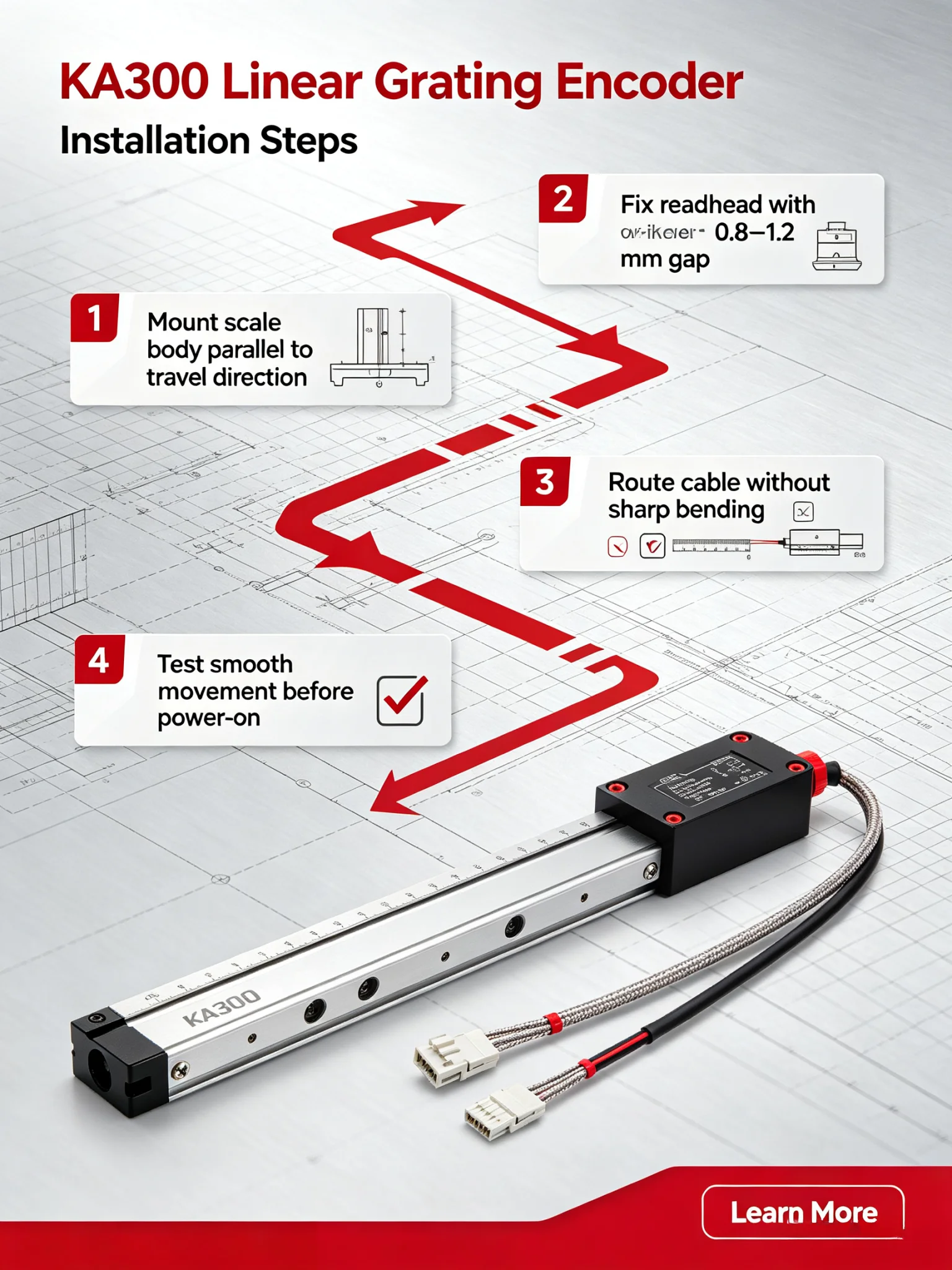

2 Installation Steps

3 Wiring & Parameter Settings

4 Maintenance & Troubleshooting

High Accuracy

Achieve precision measurements with the KA300 Optical Linear Grating Scale, offering an impressive 5μm accuracy.

DRO Position Sensor

The KA300 serves as an effective DRO Position Sensor, providing accurate positioning for various applications.

CE Certified

Trust in the KA300's quality assurance as it bears the CE certification, meeting European safety standards.

Simple Installation

Ease of use with the KA300's simple installation process, making it a hassle-free addition to your toolkit.

Strong Stability

Reliable performance every time with the KA300's strong stability, ensuring consistent results in your measurements.
