Note:

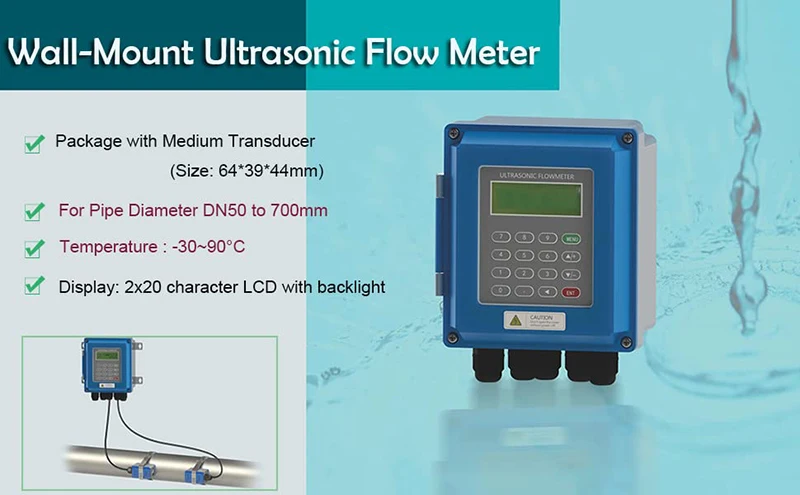

This flow meter comes with Clamp-on Transducer TM-1 Medium Clip(size: 64*39*44mm ) for Pipe Diameter

DN50 to 700mm, Temperature : -30~90°C.

If you want to know other types Transducer, please see the parameters in upper picture and contace us .

Introduction:

• Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67, transducer protection class IP98.
• A variety of liquid applications can be accommodated: ultra-pure liquids =, portable water, chemicals, raw sweage, reclaimed watere, cooling water, river water, plant.etc

Specifications:

• Main Unit:
• Principle: transit-time ultrasonic flowmeter
• Accuracy: +/-1%
• Display: 2x20 character LCD with backlight, support the language of Chinese, English, Italy, Turkish
• Signal output:
• 1)1way 4-20mA output, electric resistance 0-1K, accuracy0.1%
• 2)1 way OCT pulse output(Pulse width-1000ms, default is 200ms)
• 3)1 way Relay output
• Signal input:
• 1)3 way 4-20mA input, accuracy 0.1%, acquisition signal such as temperature, press and liquid level
• 2)Connect the temperature transducer P100, can finish the heat/energy measurement.
• 3)Insulate Rs485 serial interface, upgrade the flowmeter software by computer, support the MODBUS.
• Special Cable:Twisted-pair cable, generally, the length under 50 meters, select the Rs485, transmission distance can over 1000m
• Pipe Installation Condition:
• 1)Pipe material: Steel, stainless steel, cast iron, copper, cement pipe, PVC, Aluminum, glass steel product, liner is allowed
• 2)Pipe diameter: 25-6000mm
• 3)Straight pipe: Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump.
• Measuring Medium:
• Type of liquid: Single liquid can transmit sound wave; such as water (hot water ,chilled water, city water, sea water, waste water, etc); sewage with small particle con tent, oil(curde oil, lubricating oil, diesel oil, fuel oil, etc); chemicals(alcohol, etc); plant effluent; beverage; Ultra-pure liquids, etc
• Temperature: -30-160℃
• Turbidity: No more than 10000ppm and less bubble
• Flow rate: 0-±7m/s
• Temperature: Convertor; -20-60℃; Flow Transducer: -30-160℃
• Humidity: Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m
• Working Environment:
• 1)Temperature Convertor; -20-60℃; Flow Transducer: -30-160℃
• 2)Humidity: Convertor: 855RH; Flow Transducer: can measure under water, water depth≤2m
• Power Consumption: 1.5W
• Dimension: 132*150*85mm(convertor)

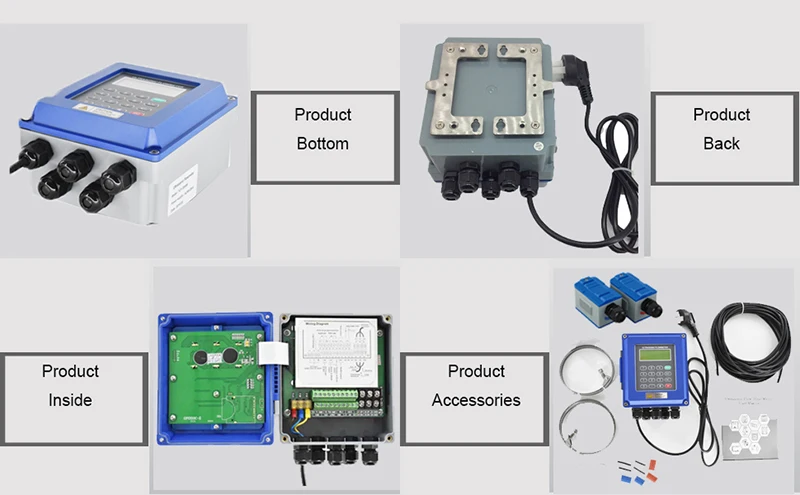

• Standard Packing: Host, Steel Belt, TM-1 Ultrasonic Transducer, 2 x 5m Flow Signal Cable
• Optional Accessories: Other Transducer, if you need, please contact me.
