Application:

• For Chevrolet Silverado C1500 1/2 Ton Extended Cab 1988-1998
• For GMC Sierra C1500 1/2 Ton Extended Cab 1988-1998
• For Chevrolet Silverado C2500 3/4 Ton All Cabs 6 Lug 1988-1998
• For GMC Sierra C2500 3/4 Ton All Cabs 6 Lug 1988-1998
• For GMC Sierra C1500 1/2 Ton Standard Cab 1992-1998
• For Suburban C1500 1/2 Ton  1992-1999
• For Suburban C2500 3/4 Ton  6 Lug 1992-1999
• For Chevrolet Tahoe 2Dr & 4Dr 1995-1999
• For GMC Yukon 2Dr & 4Dr 1995-1999

Note：

• Please measure your rotor thickness
• These spindles fit trucks with 1.25" Thick Front Brake Rotors only
• Not fit C1500 Standard Cab 1988-1991 which are 1" thick rotor
• Use drop spring only realising 5" drop
  Replace the O.E.M. top isolator with provided spring spacers and drop coils will realise 4" drop.

Specification:

Lowering Height:Front 4"or 5"

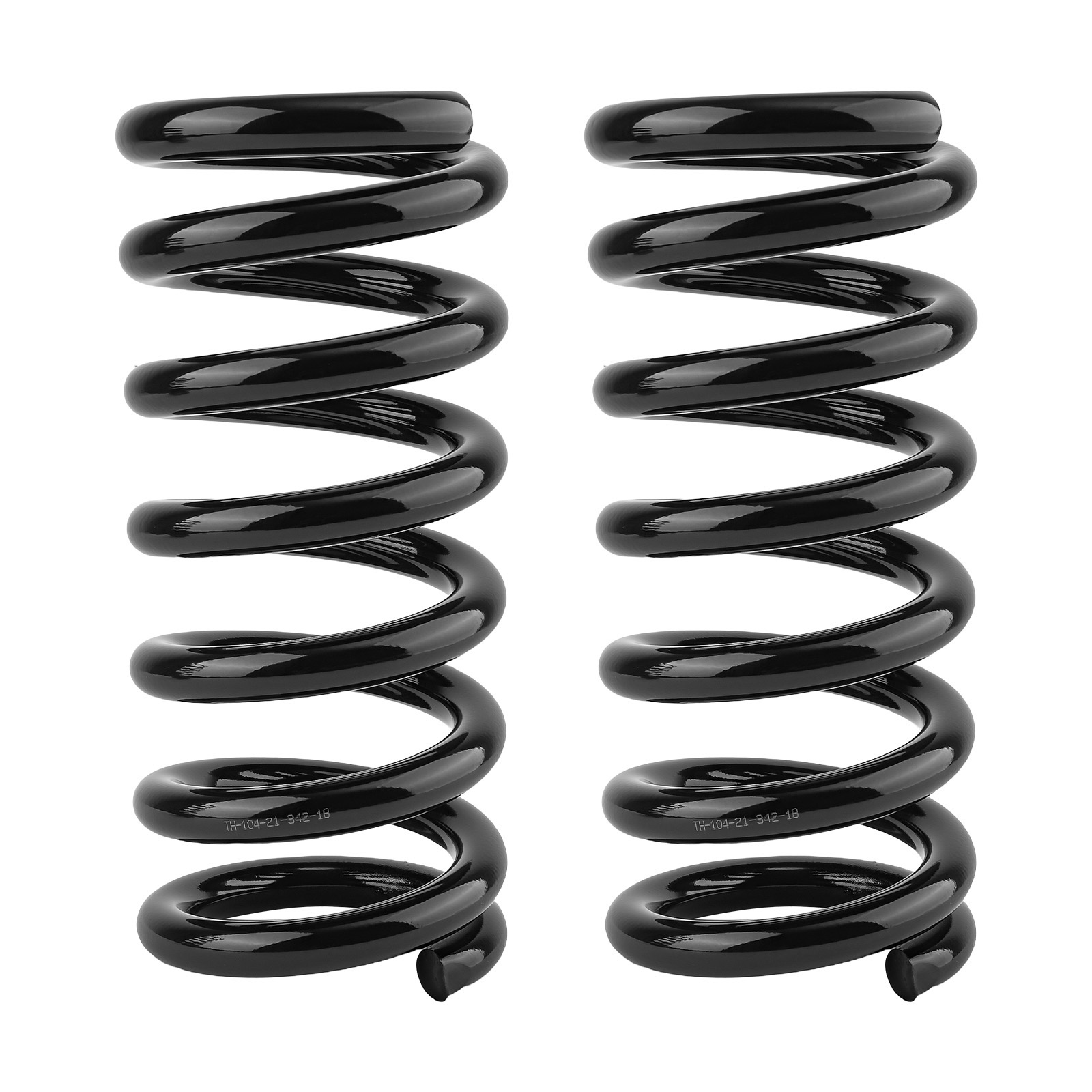

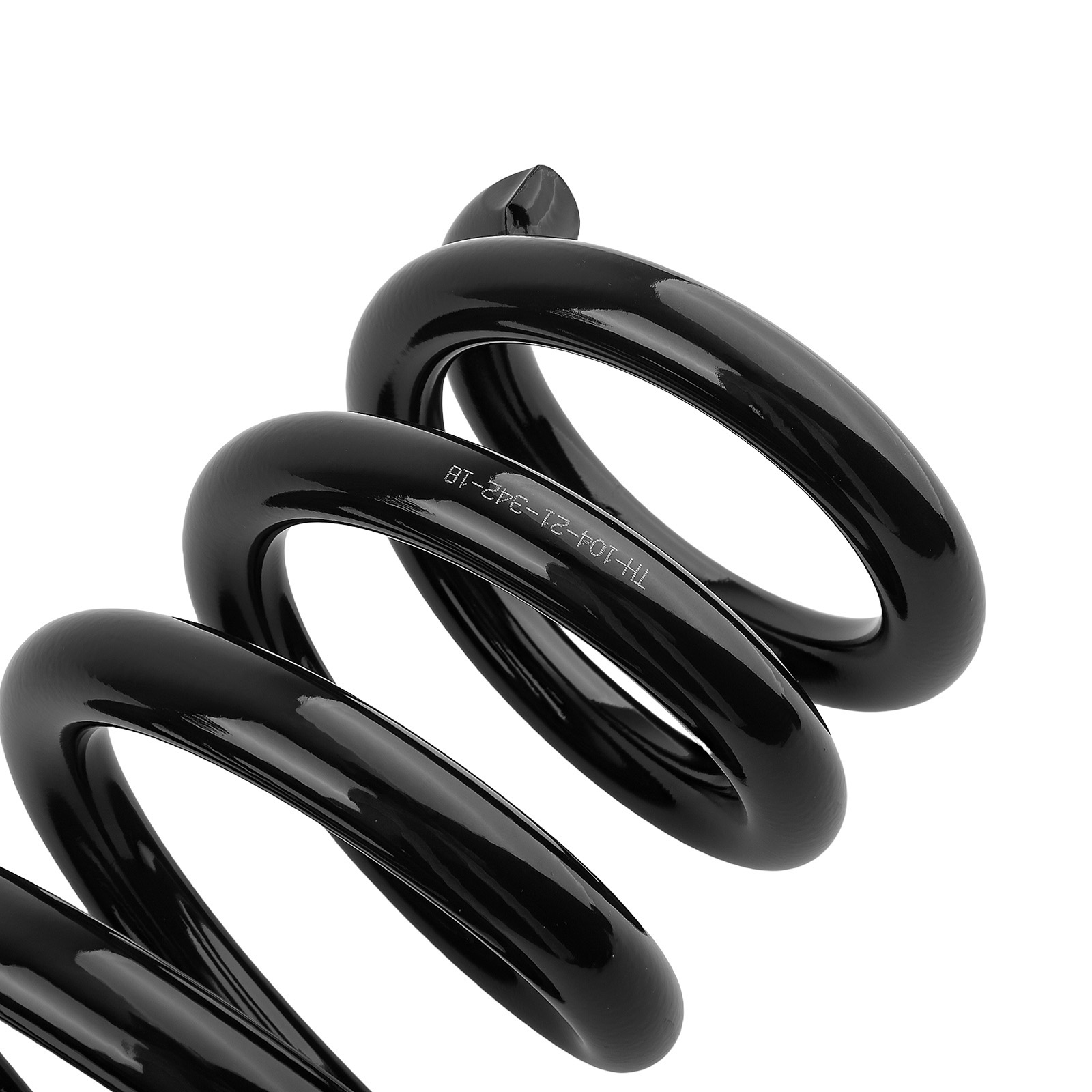

Lowering spring

• Material: （55CrSi）  steel
• Finish: powder-coated
• Spring length: 342mm/13.46"
• Spring rate: 18kg/mm(1007.95lb/inch)

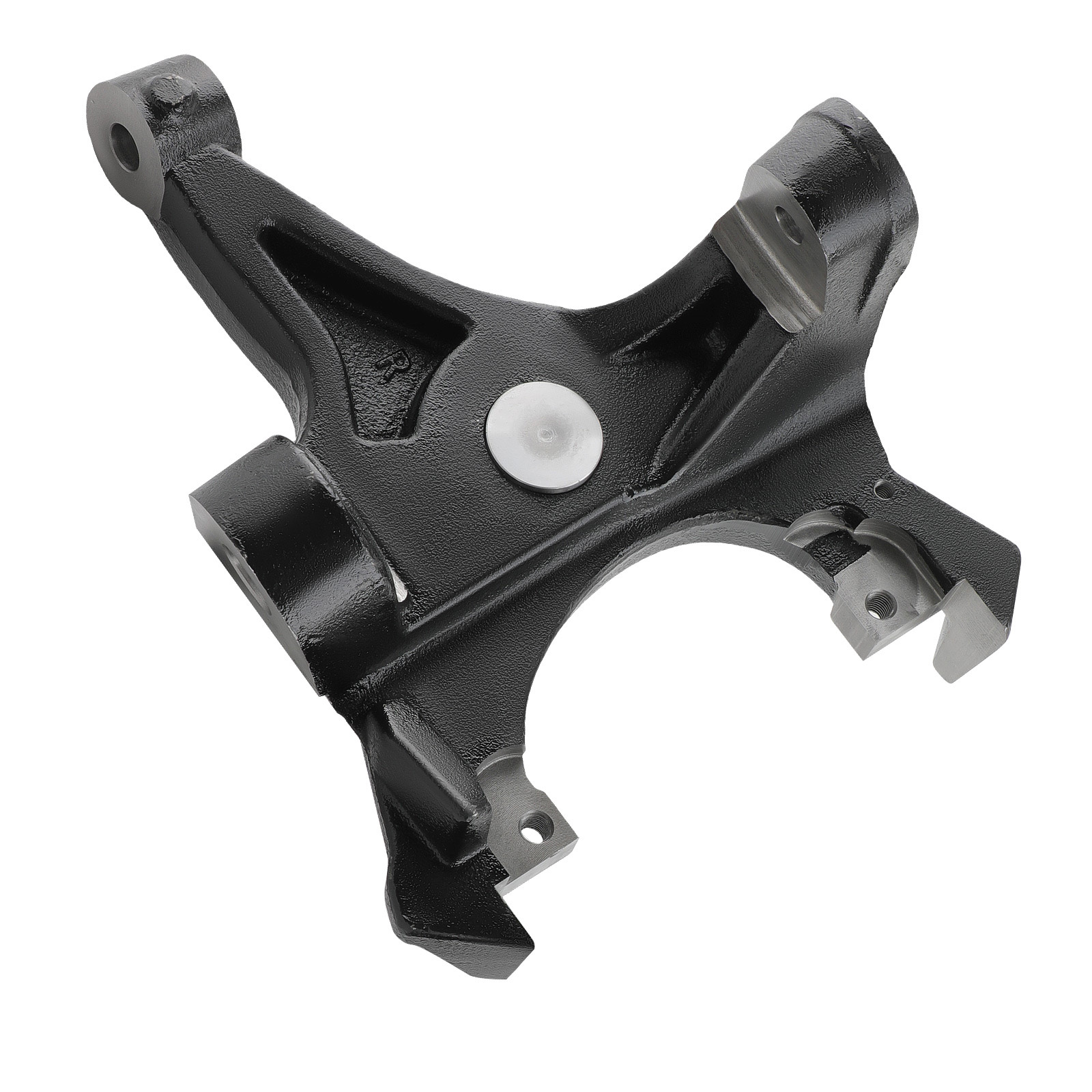

Spindle

• Material:Ductile Iron
• Finish：E-coat

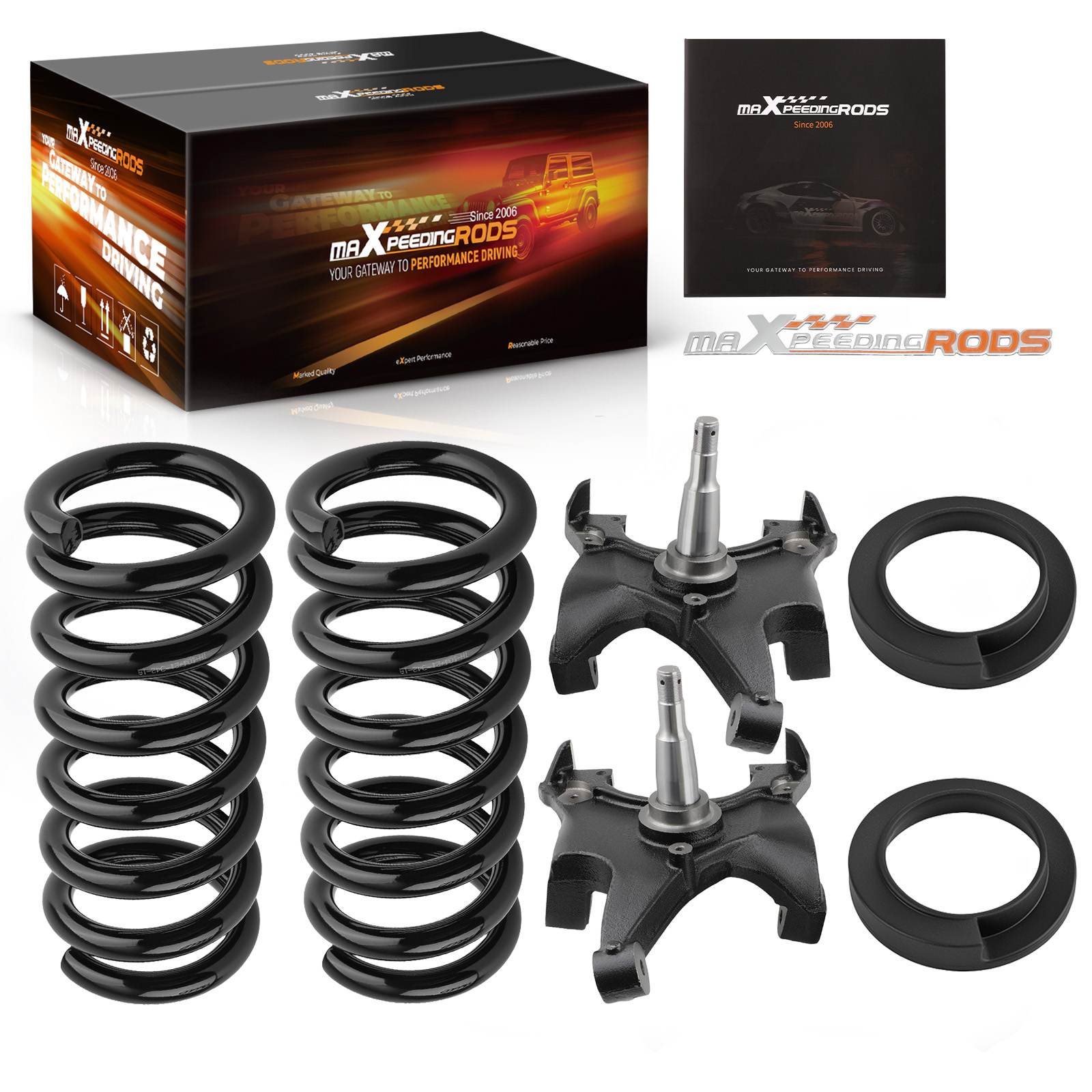

Package included:

• 2x Front drop spindles
• 2x Front drop coils

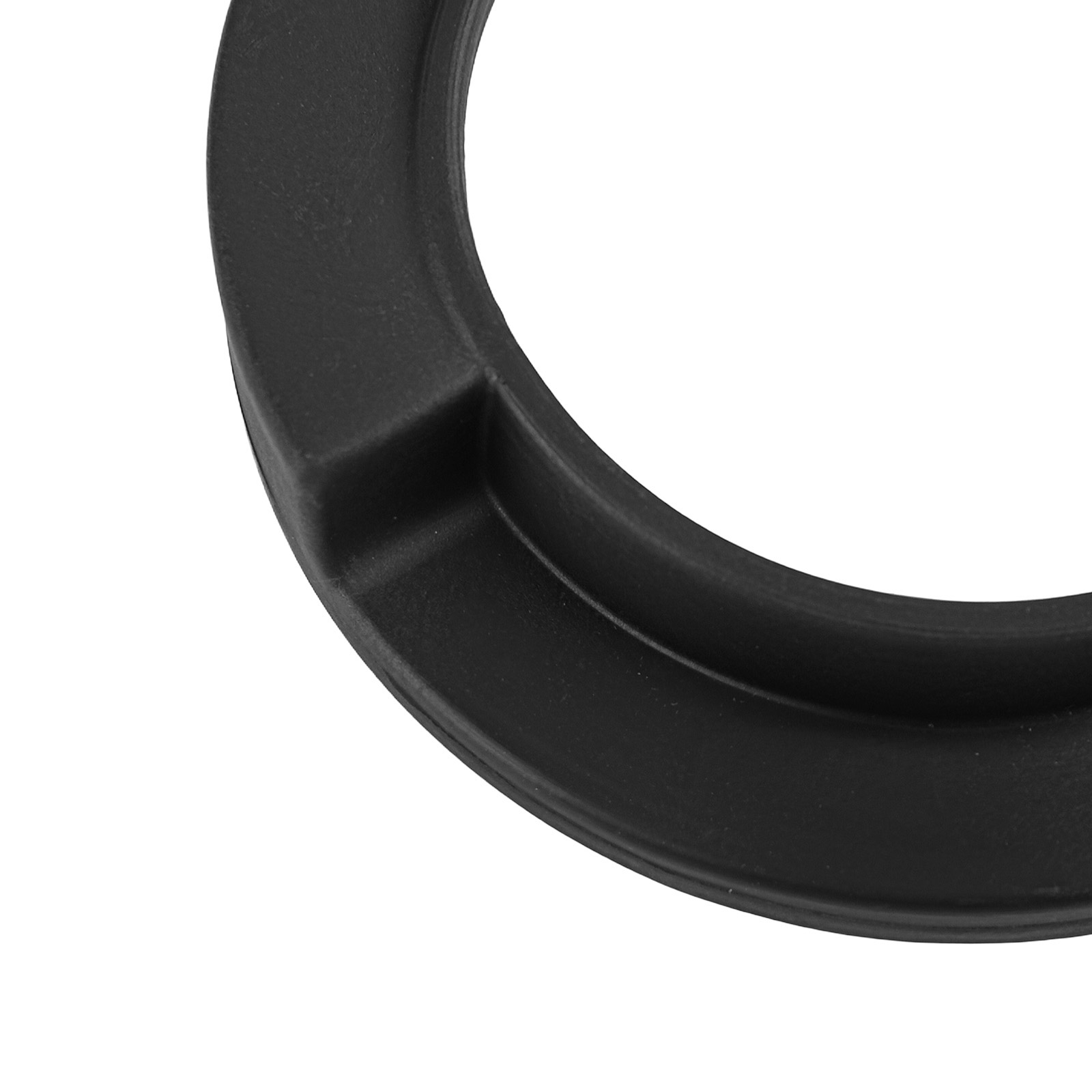

• 2x Spring spacers
