Transparent G1/2" Water Controller Fluid Flow Meter Water Flow Sensor Switch








Water flow sensor is mainly consists of plastic valve body, rotor assembly and Hall Current Sensor
Inlaid with stainless steel impeller shaft, durable wearable
Can use for Water heaters, credit card machines, water vending machine, flow measurement device.
Mounted vertically, should not exceed 5 degrees inclination.Temperature of Medium should not exceed 120°C
Seal Ring with the upper and lower force structure never leaks
Specifications:
Material: Plastic / monocrystalline
Color: Transparent, Black
Working voltage: DC 5~15V
Maximum operating current: 15 mA (DC 5V).
Working voltage range: DC 5~15 v.
Load capacity: <=10 mA (DC 5V).
Work temperature: <=80°C
Work humidity range: 35%~90%RH (no frost)
Allowing pressure: pressure 1.75Mpa
Storage temperature: -25~+80 °C
Save humidity: 25%-95%RH
Flow Range: 1-30L/min
Insulation resistance:> 100MOmega
Accuracy (in 1 ~ 30L MIN): ± 10%
Flow pulse characteristics (5xQ): Q = L / Min ± 3%
Output pulse duty cycle: 50% ± 10%
External threads: Approx. 1/2"
Interface Type:1/2" (1/2" Tubing)

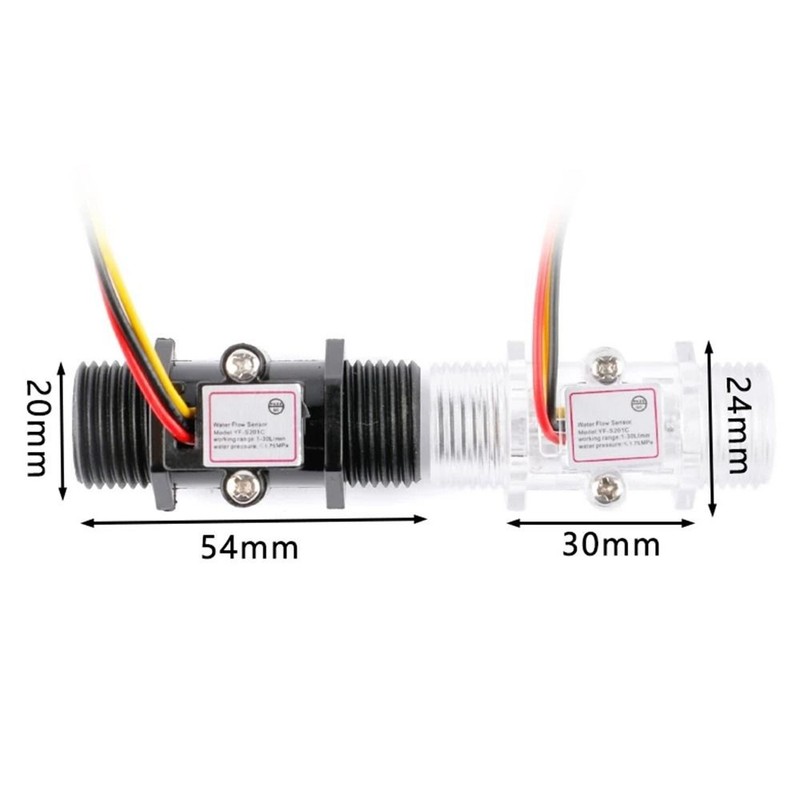

Dimension:54 x 29mm/2.13 x 1.14" (L x W)
Quantity: 1 Pcs
Connection mode: Red positive (IN), black negative (GND), yellow signal output (Out)
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-3cm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Include:
1PC x Water Flow Sensor G1/2" Fluid Flow Meter
