Feature:

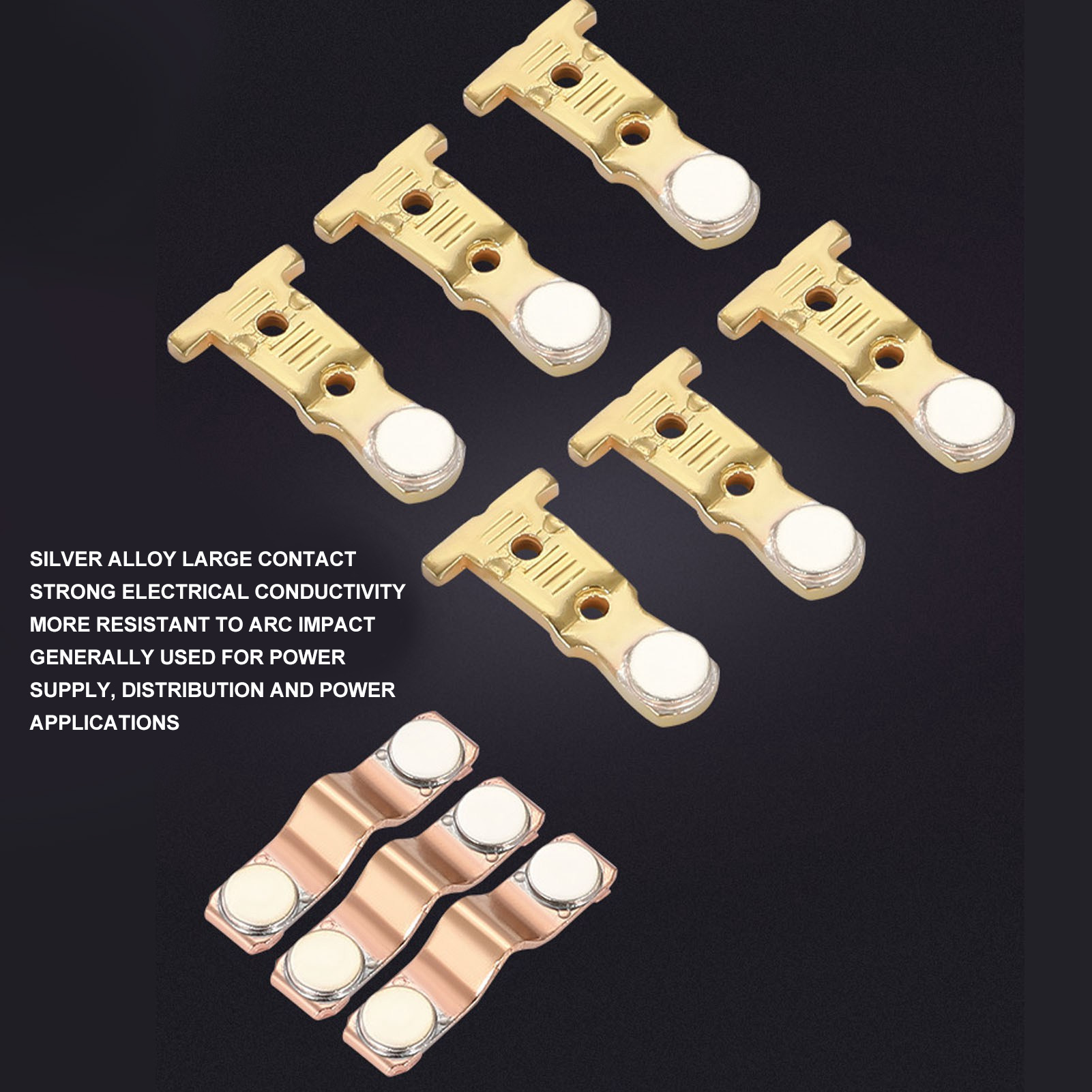

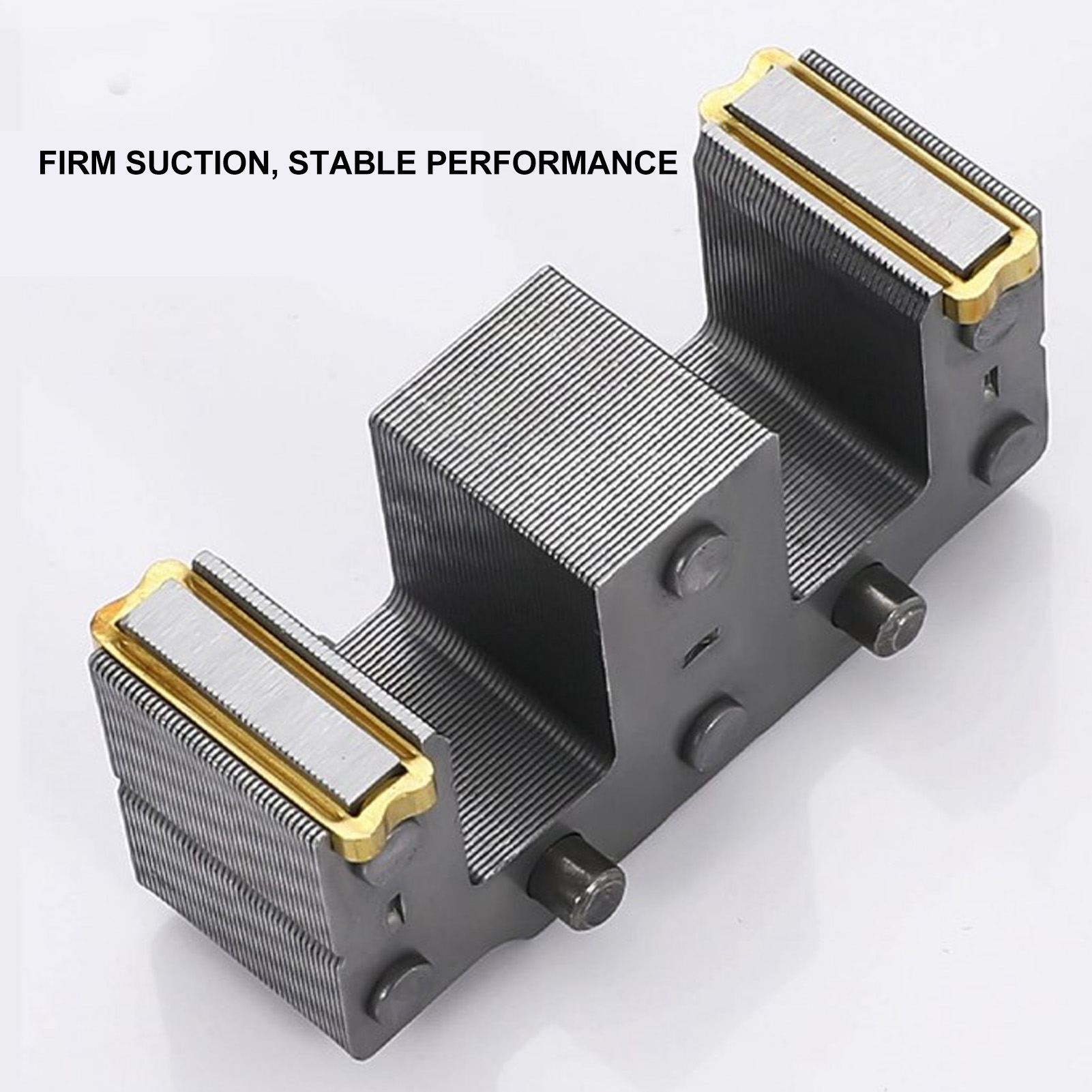

1. Strong Performance: Silver alloy contacts with strong conductivity, carrying greater current, smoother suction, with quality assurance 32 pieces of iron .

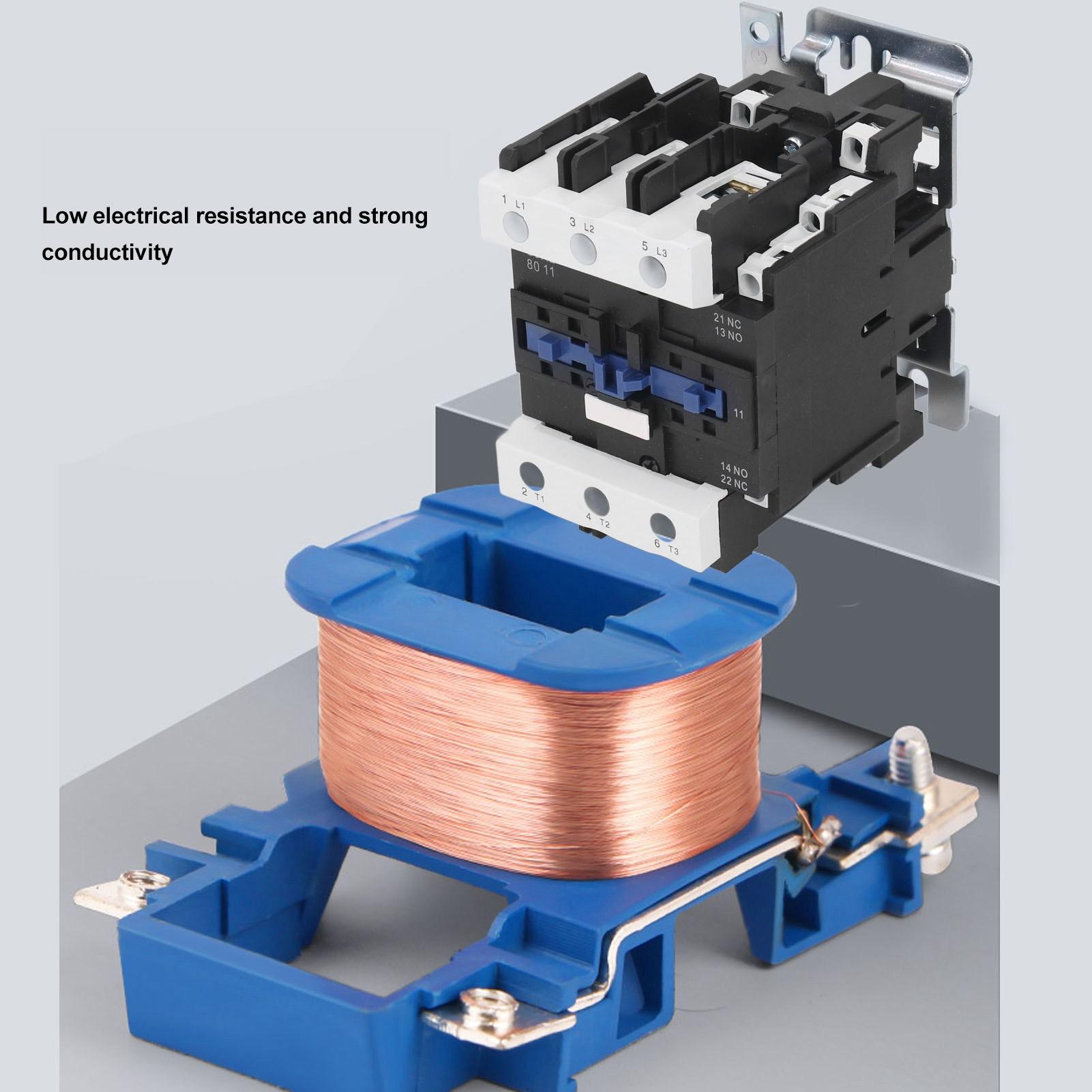

2. Full Turn Copper Coil: AC contactor uses a strong resistance coil to current to produce a magnetic field that closes the contacts to achieve electrical installation to control the load of industrial appliances.
3. For ANSYS Analysis: The designer based on the electromagnetic system suction reaction study, and then according for ANSYS and other software combined with the interrupting structure, and finally with a copper coil.
4. High Sensitivity: The AC contactor adopts a PC flame retardant shell, high performance engineering plastics to protect the safety of electricity, with high sensitivity and high bearing capacity.

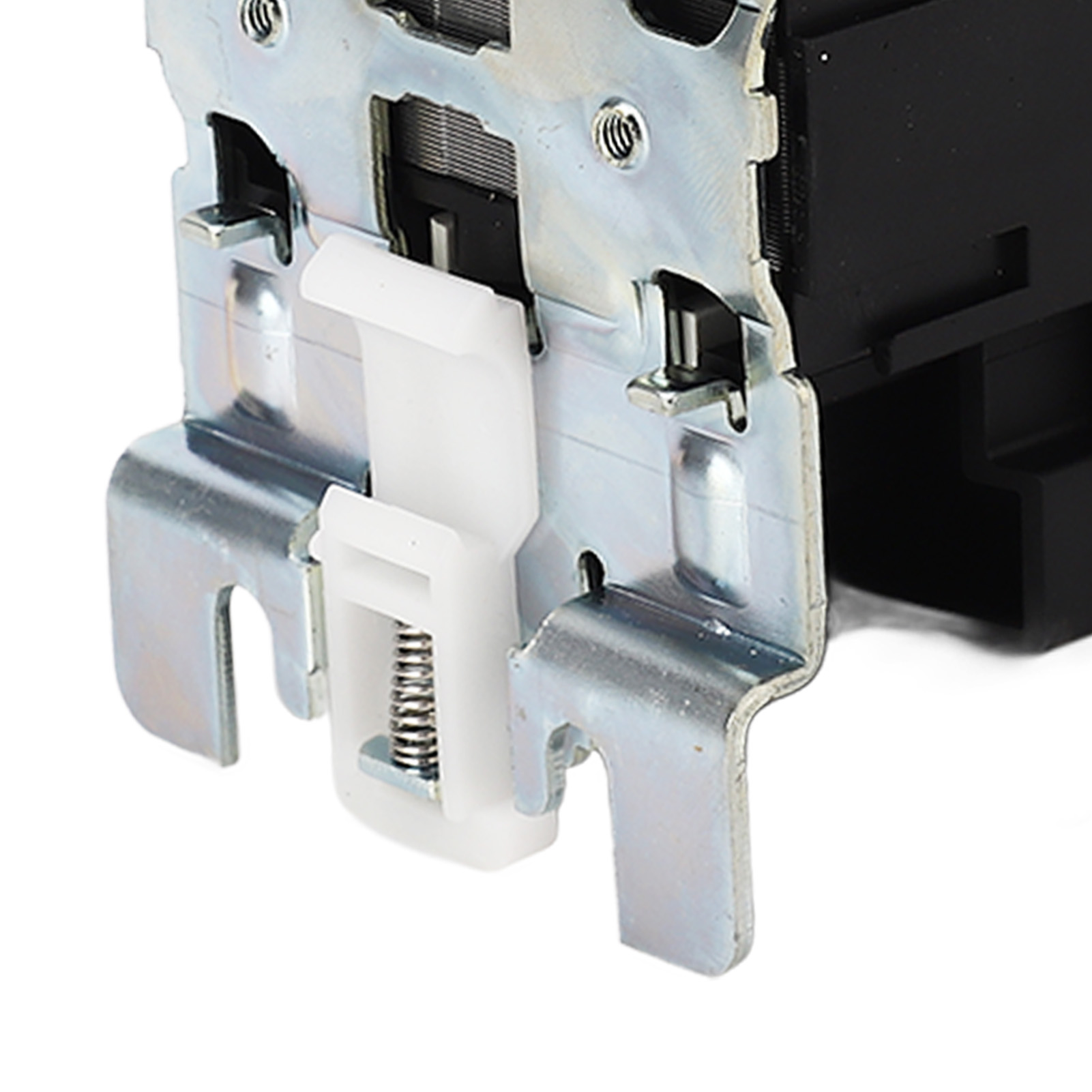

5. Easy to Install: AC contactor adopts a convenient anti crack snap design. Can be mounted with standard 35mm and 75mm type rails in addition to screw mounting. Generally used for power supply, distribution and power applications.

Specification:

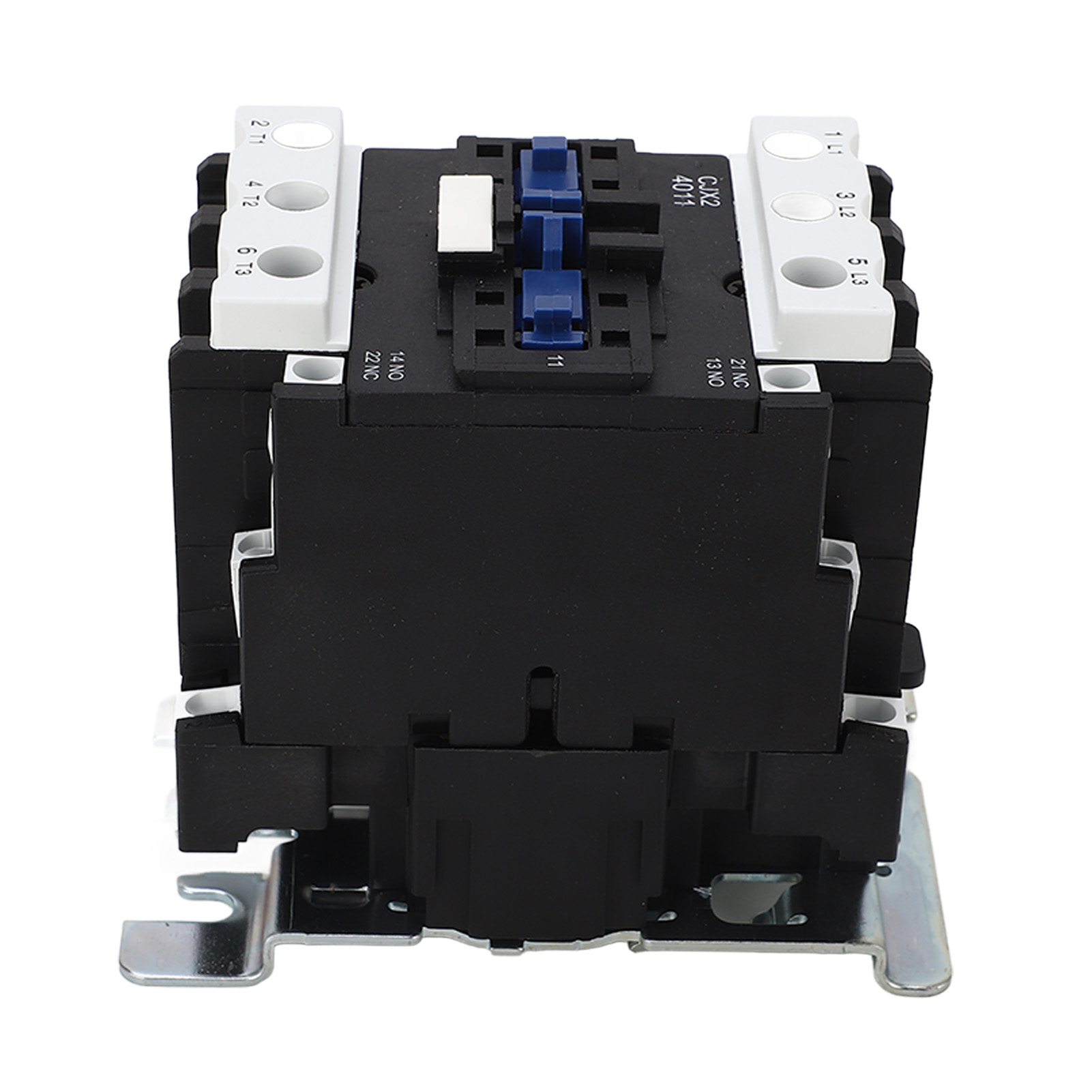

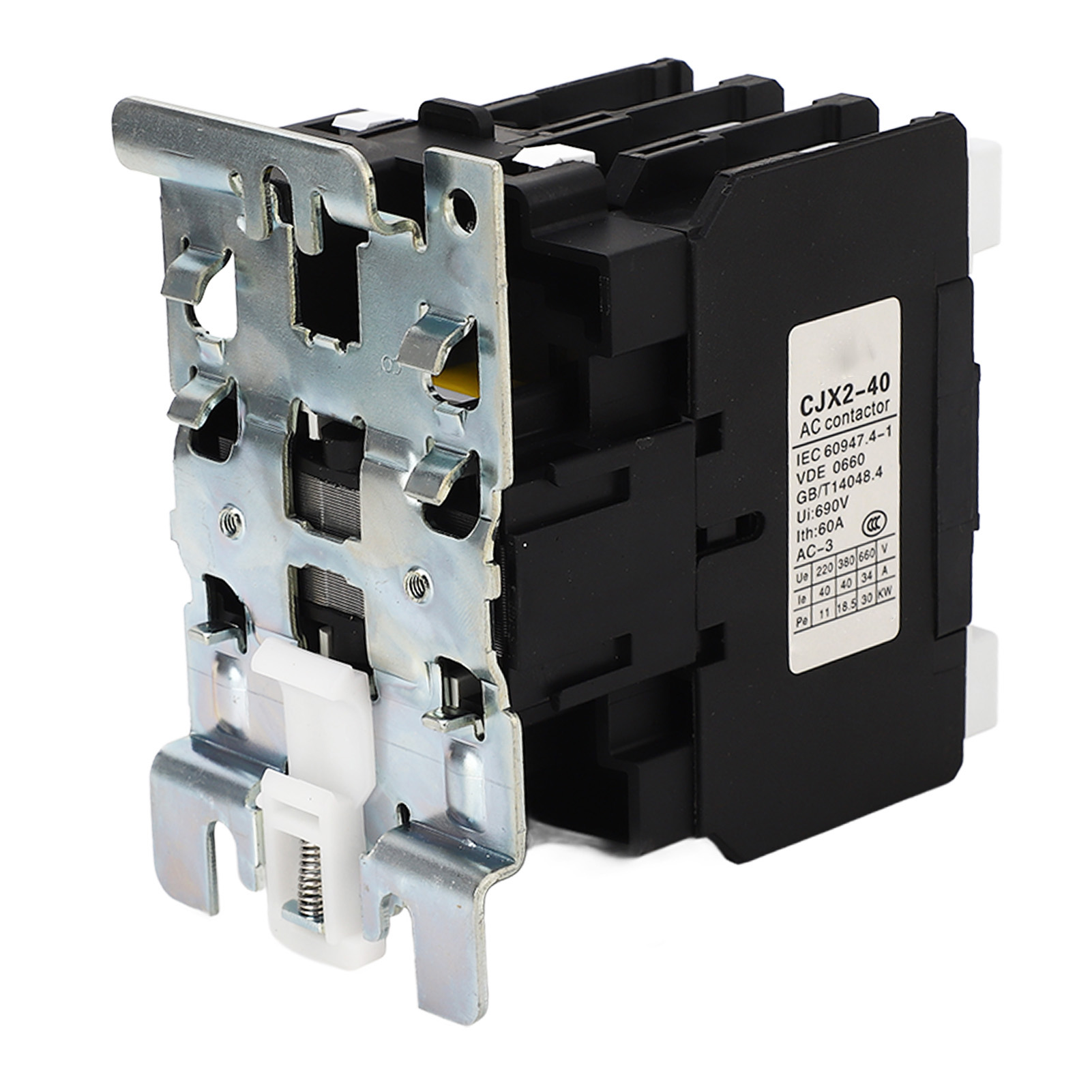

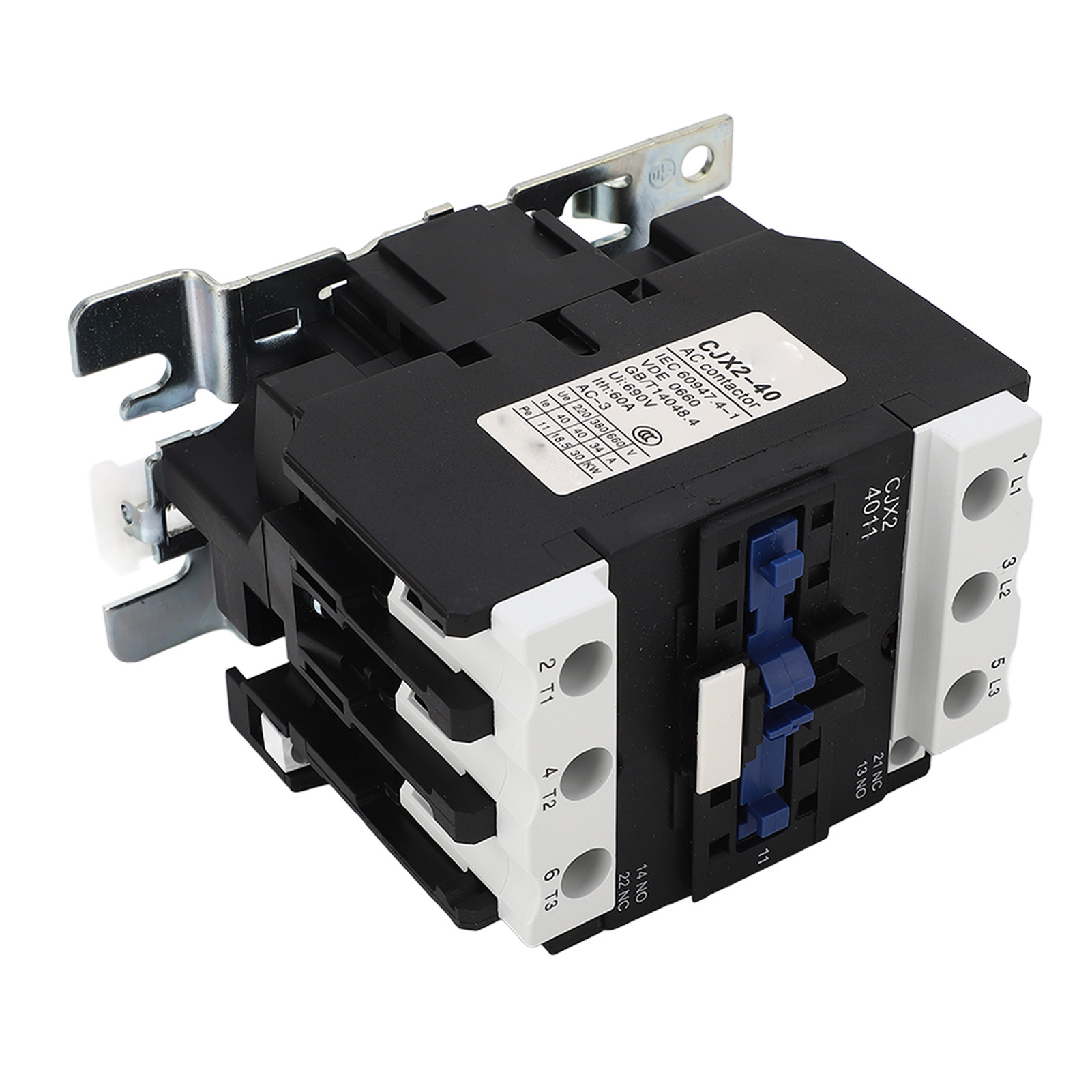

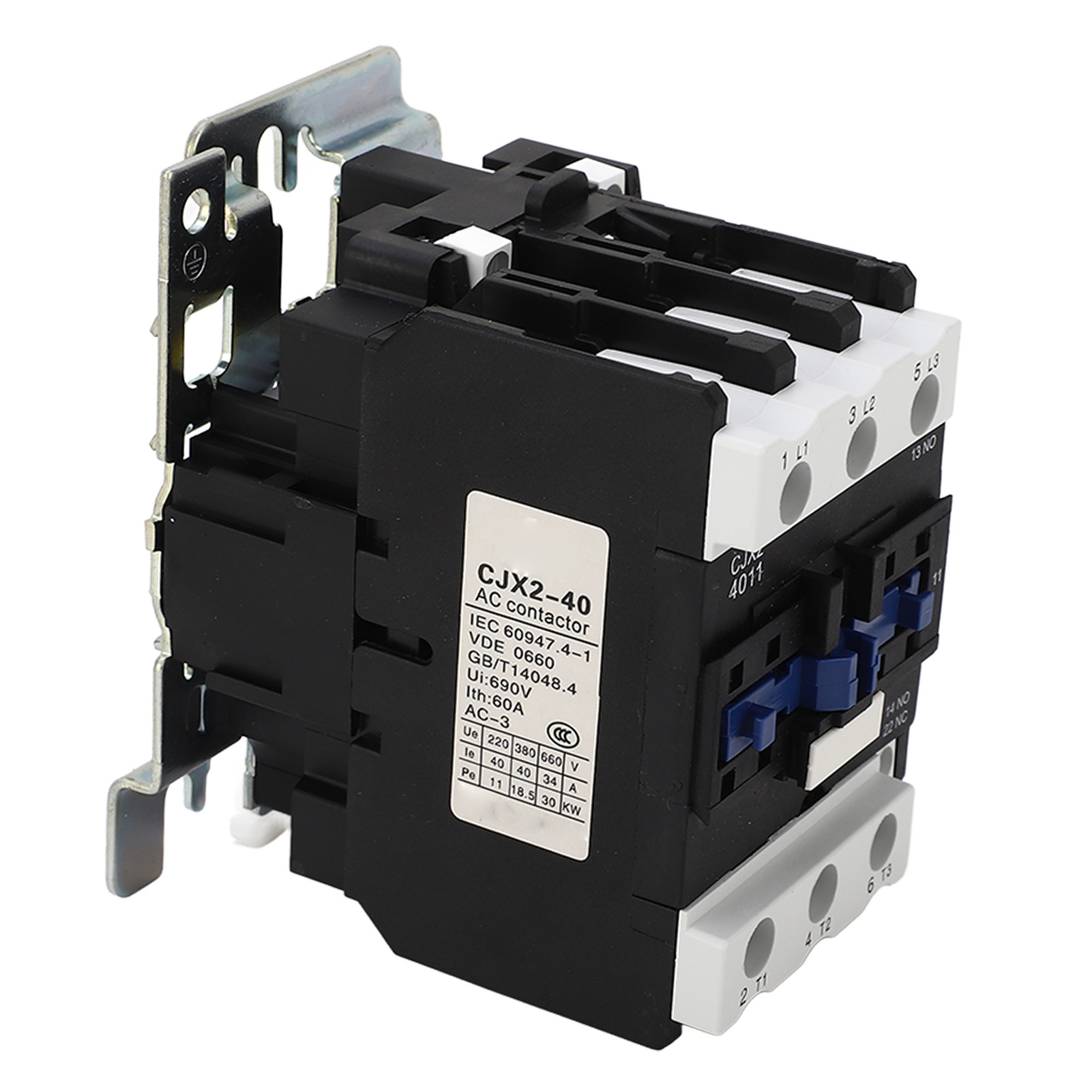

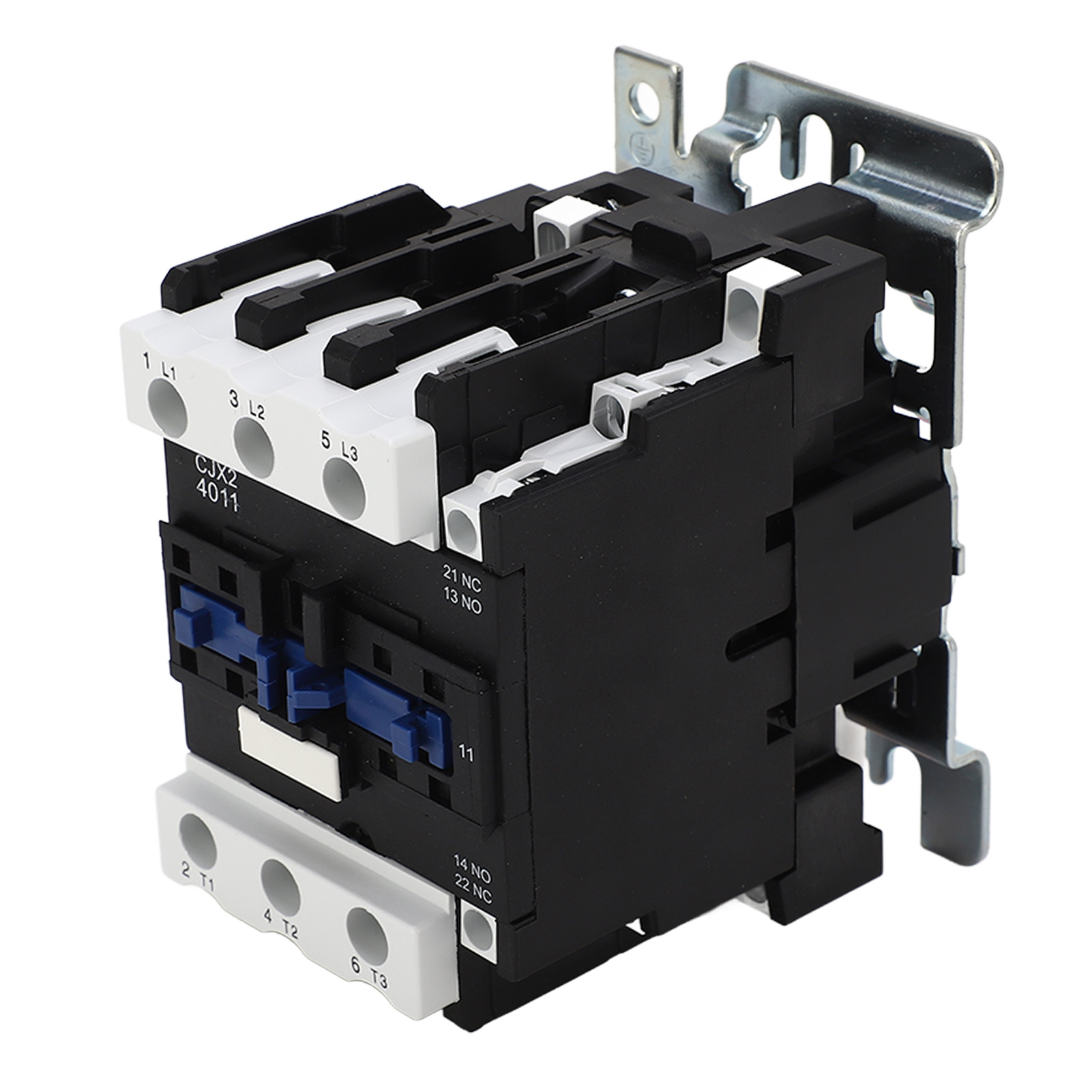

Item Type: AC Contactor
Material: PC, copper, iron and silver

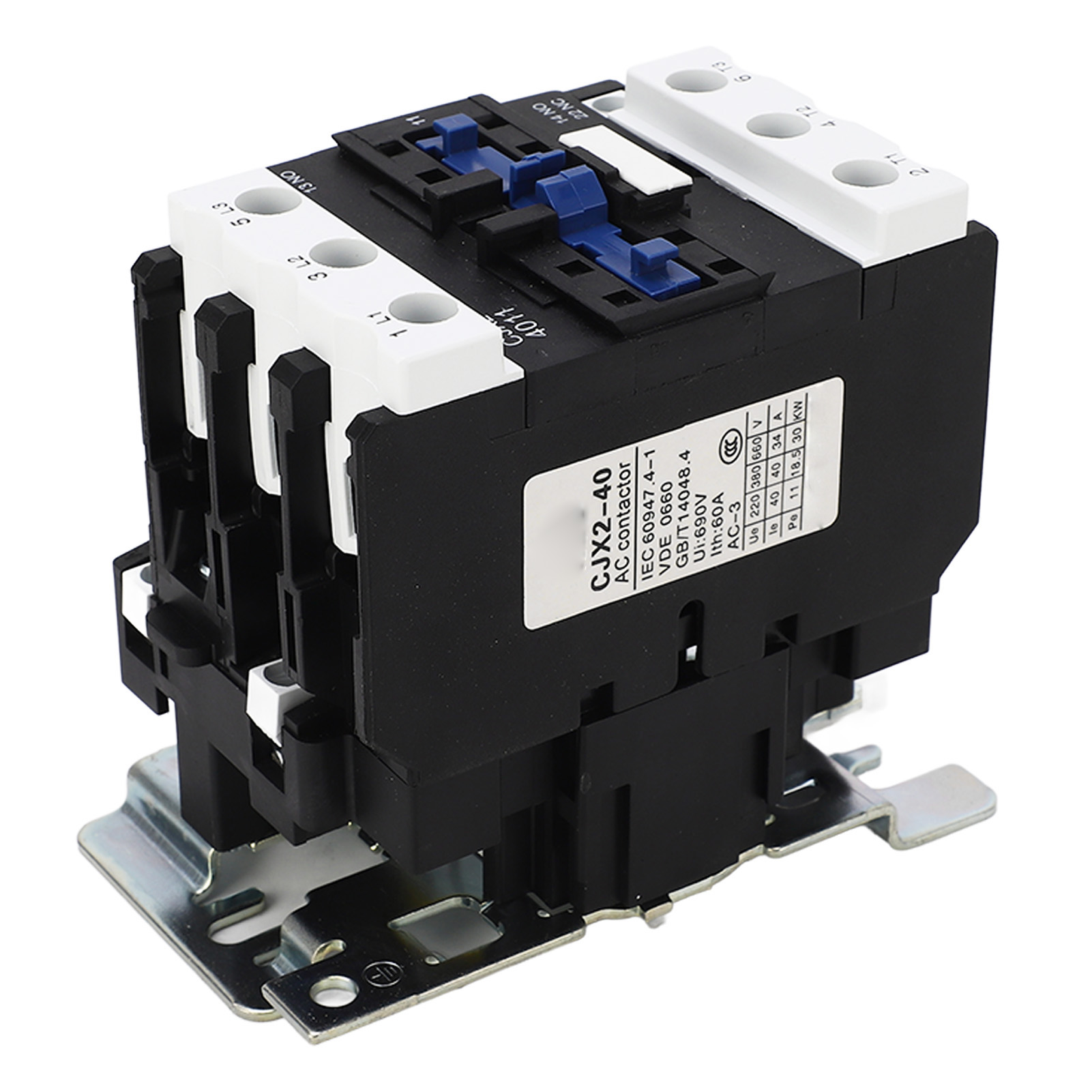

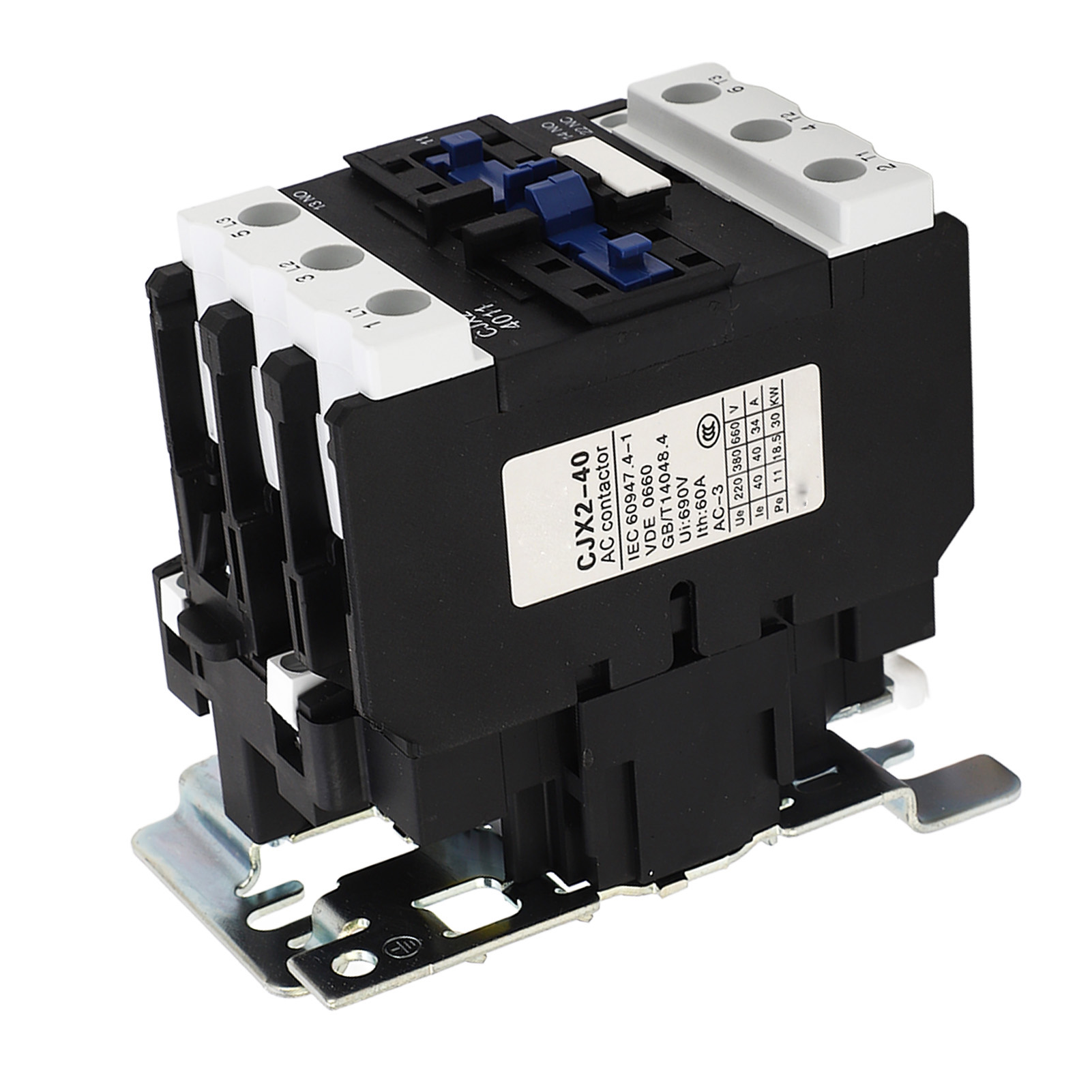

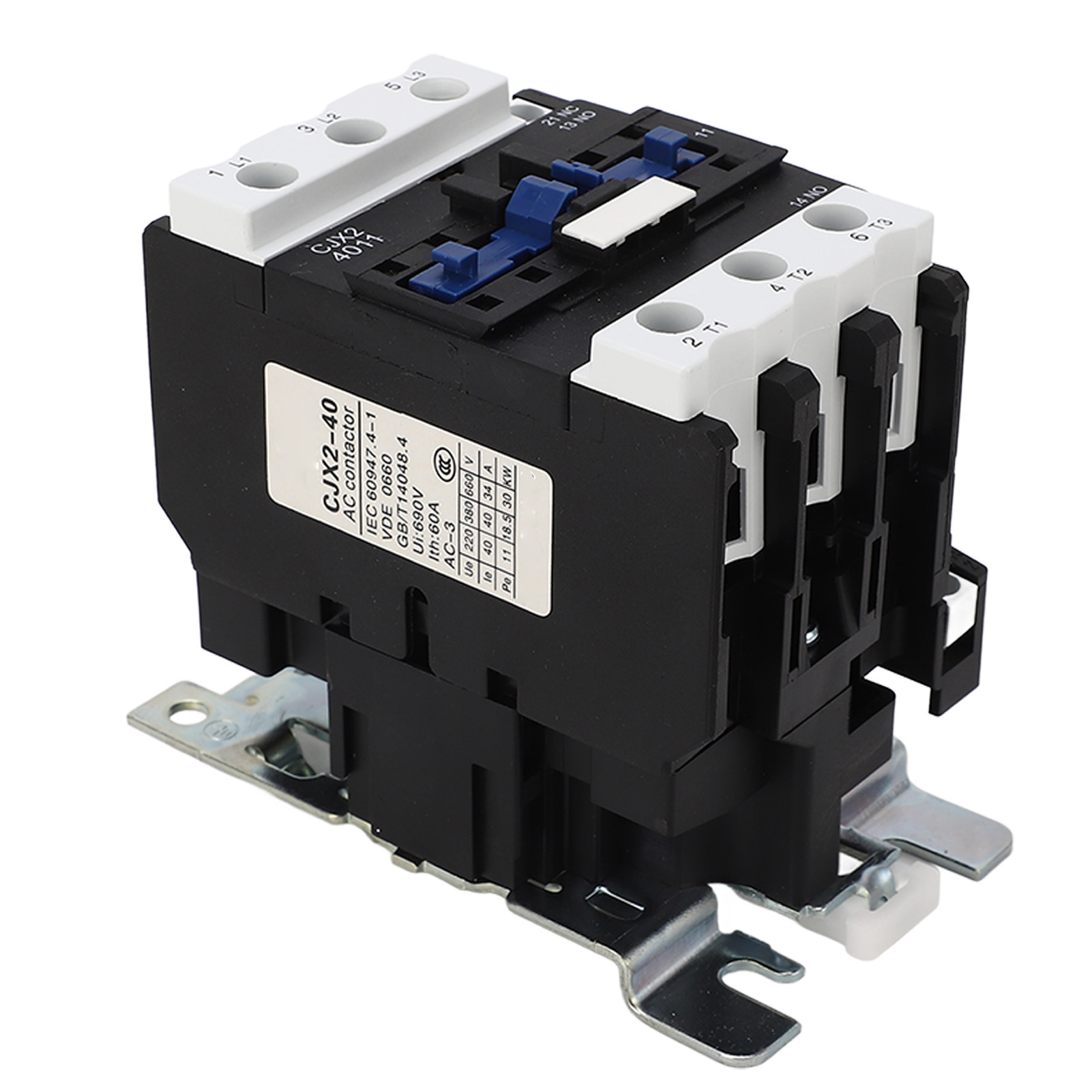

Model: CJX2 40
Uses: Power supply, distribution, and power applications
Rated Current: 40A

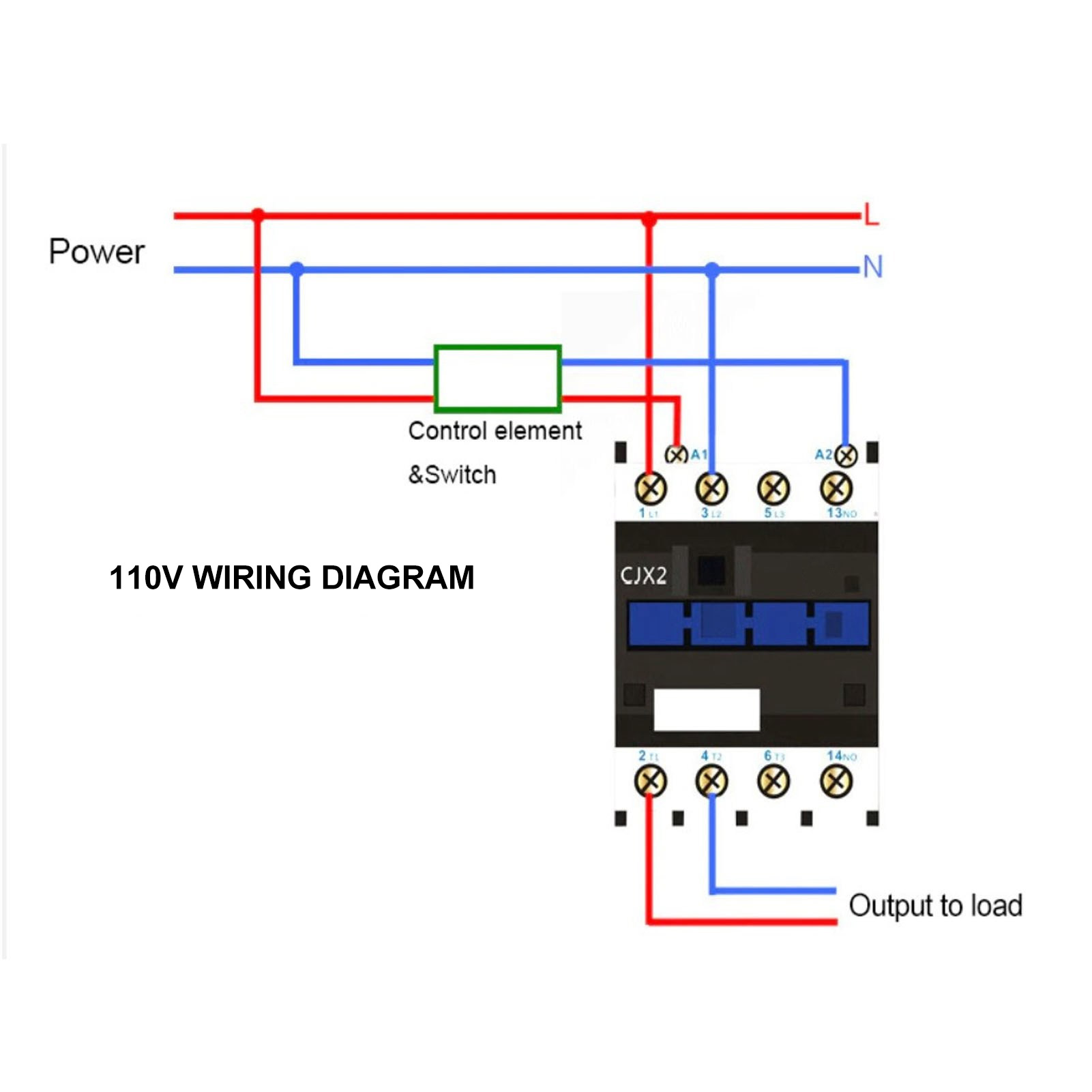

Coil Voltage (AC): 110V

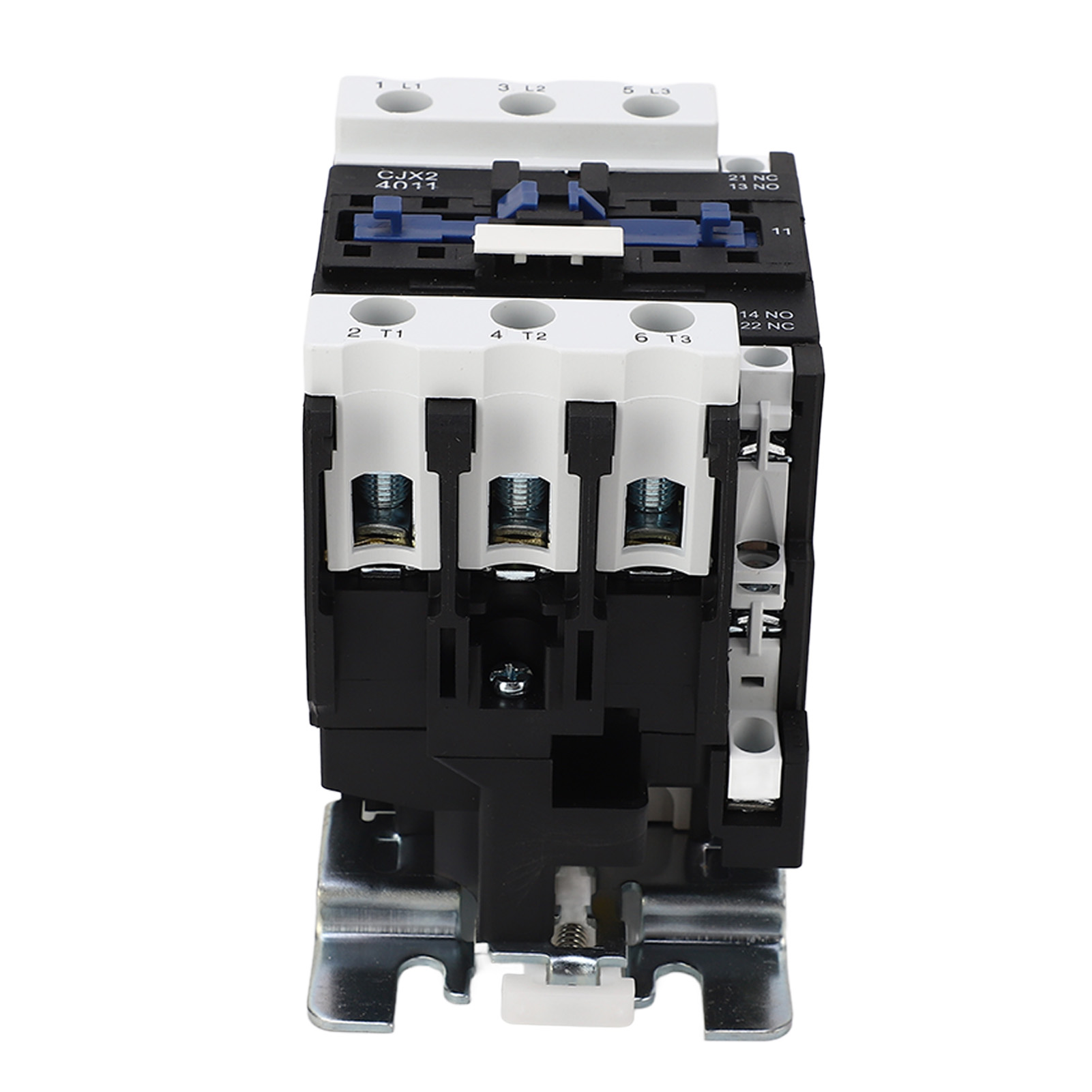

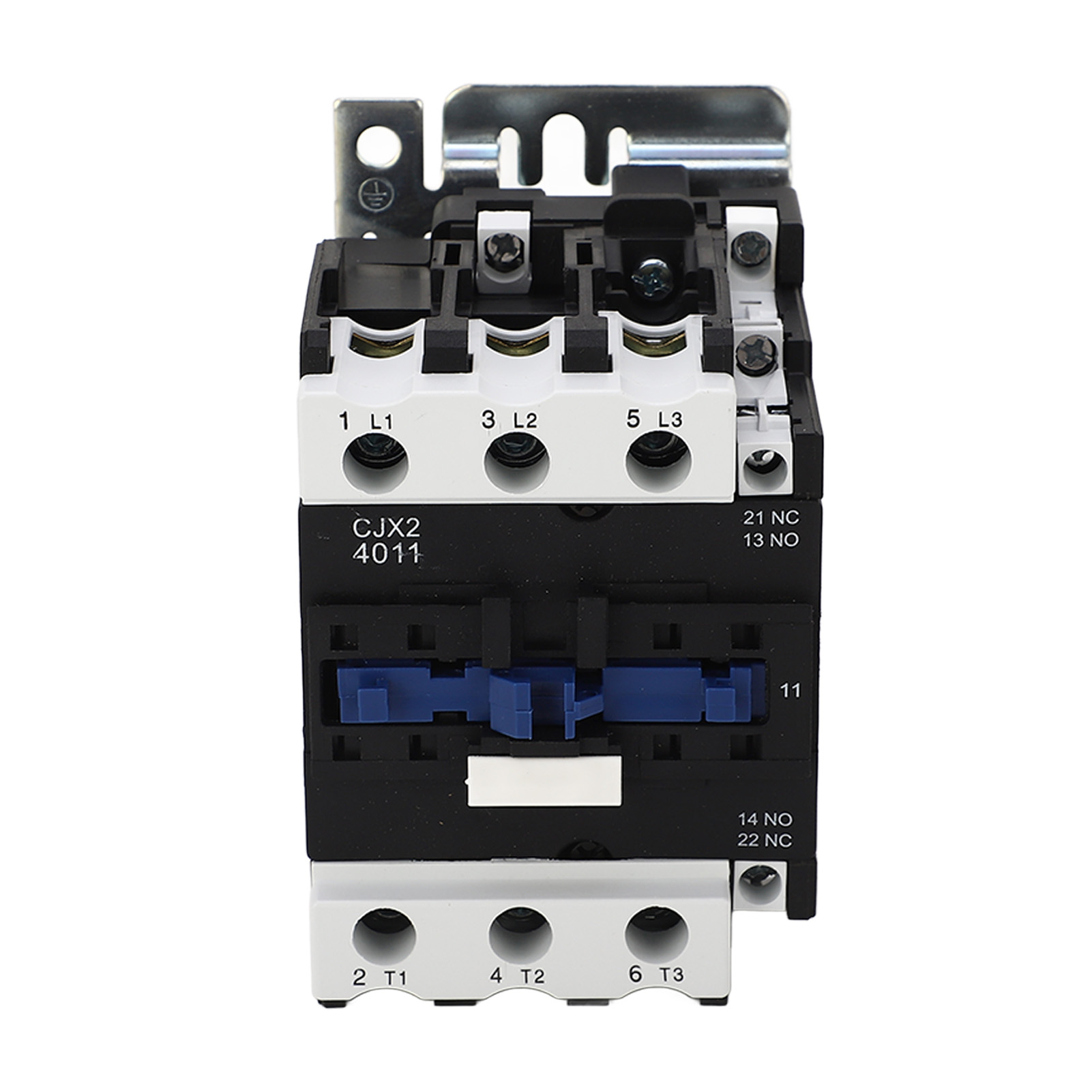

Contact Type: Auxiliary contact 1 normally open 1 normally closed and 3 normally open main contacts
Contact Material: Silver
Coil Frequency: 50HZ
Thermal Stability Current(lth): 60A
Insulation Voltage(UI): 690v
Rated Impulse Withstand Voltage: 8KV
Ambient Temperature: -5℃ to +40℃

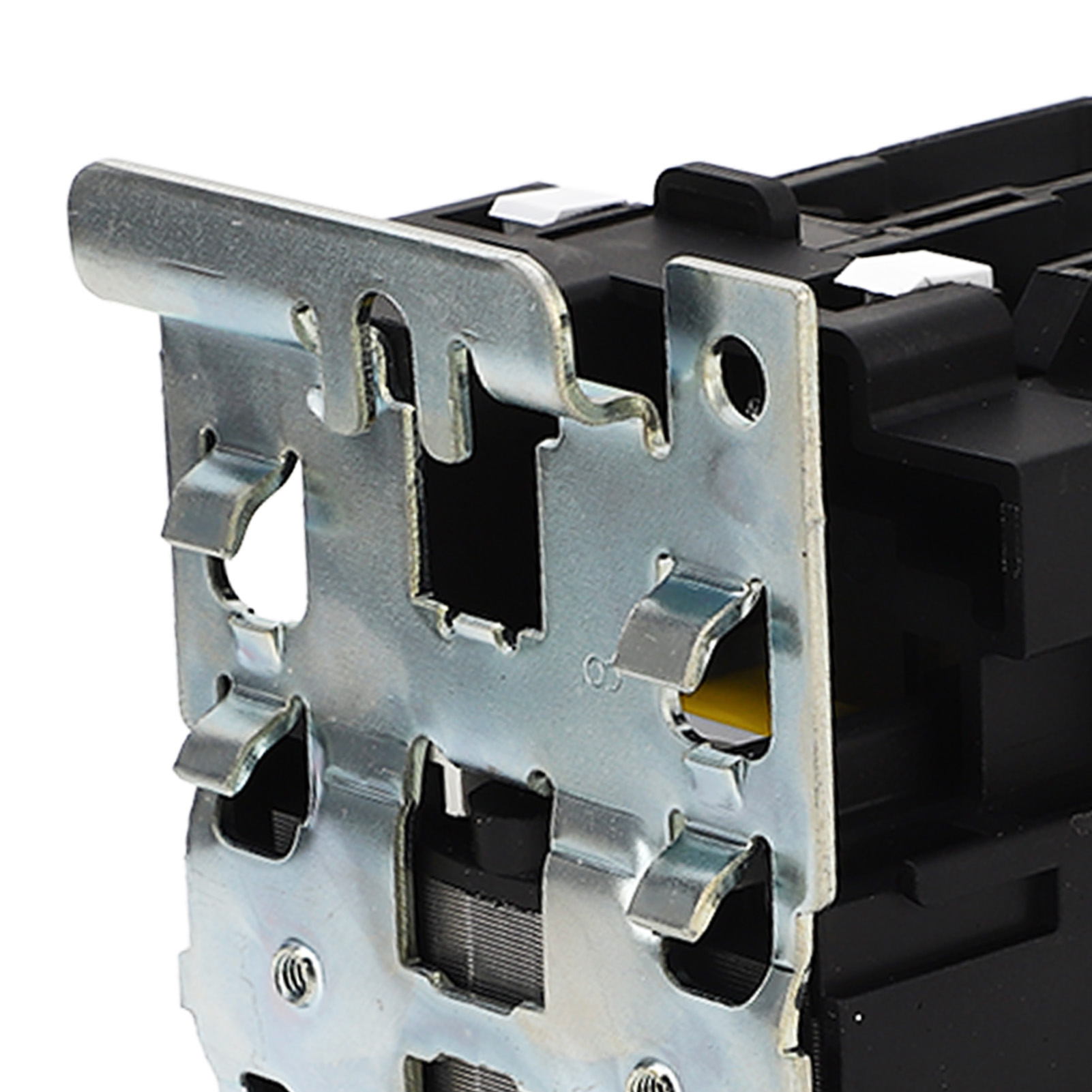

Installation Method: Guide rail or M5 screw installation

Package List:

1 x AC Contactor
