Feature:

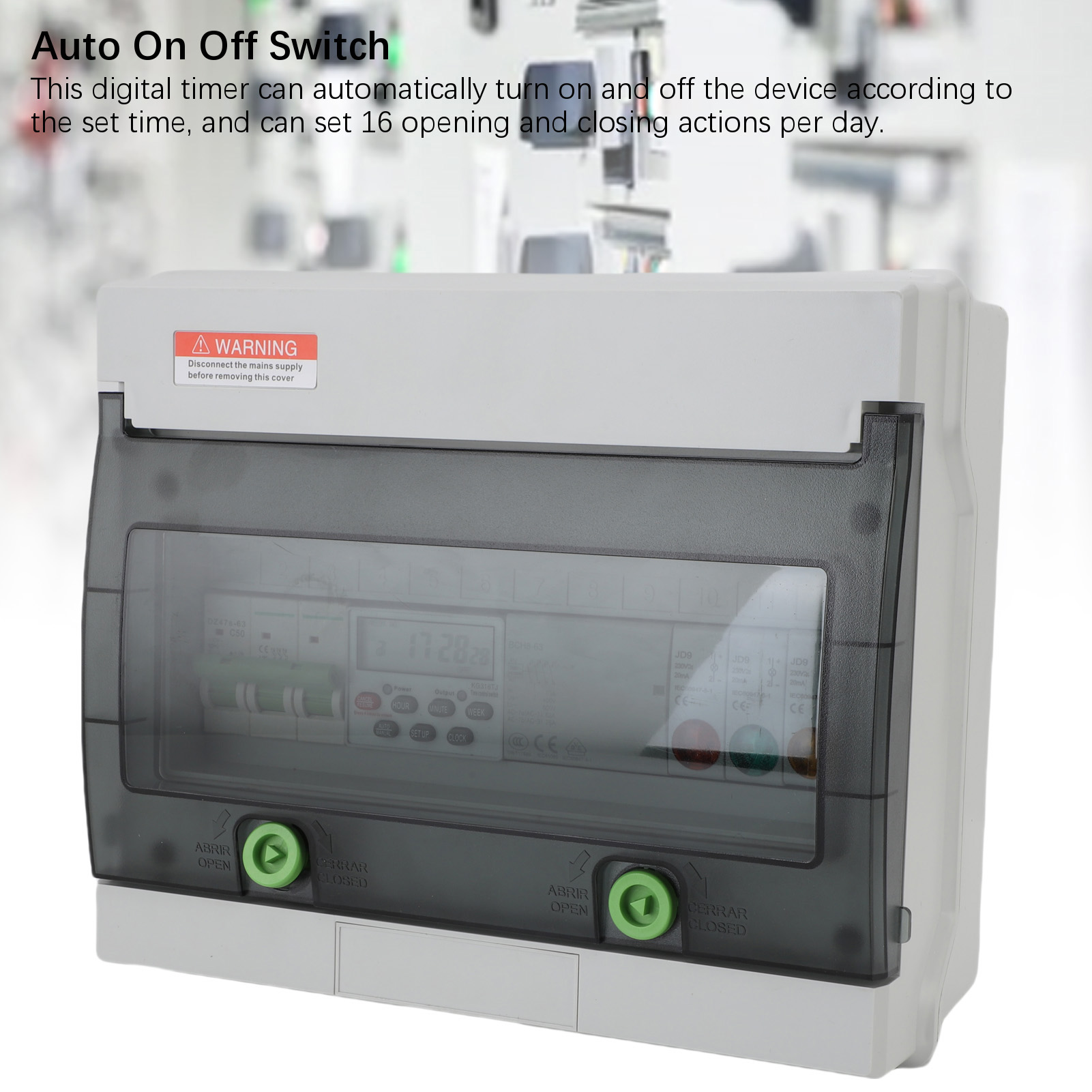

1. Auto On Off Switch: This digital timer can automatically turn on and off the device according to the set time, and can set 16 opening and closing actions per day.

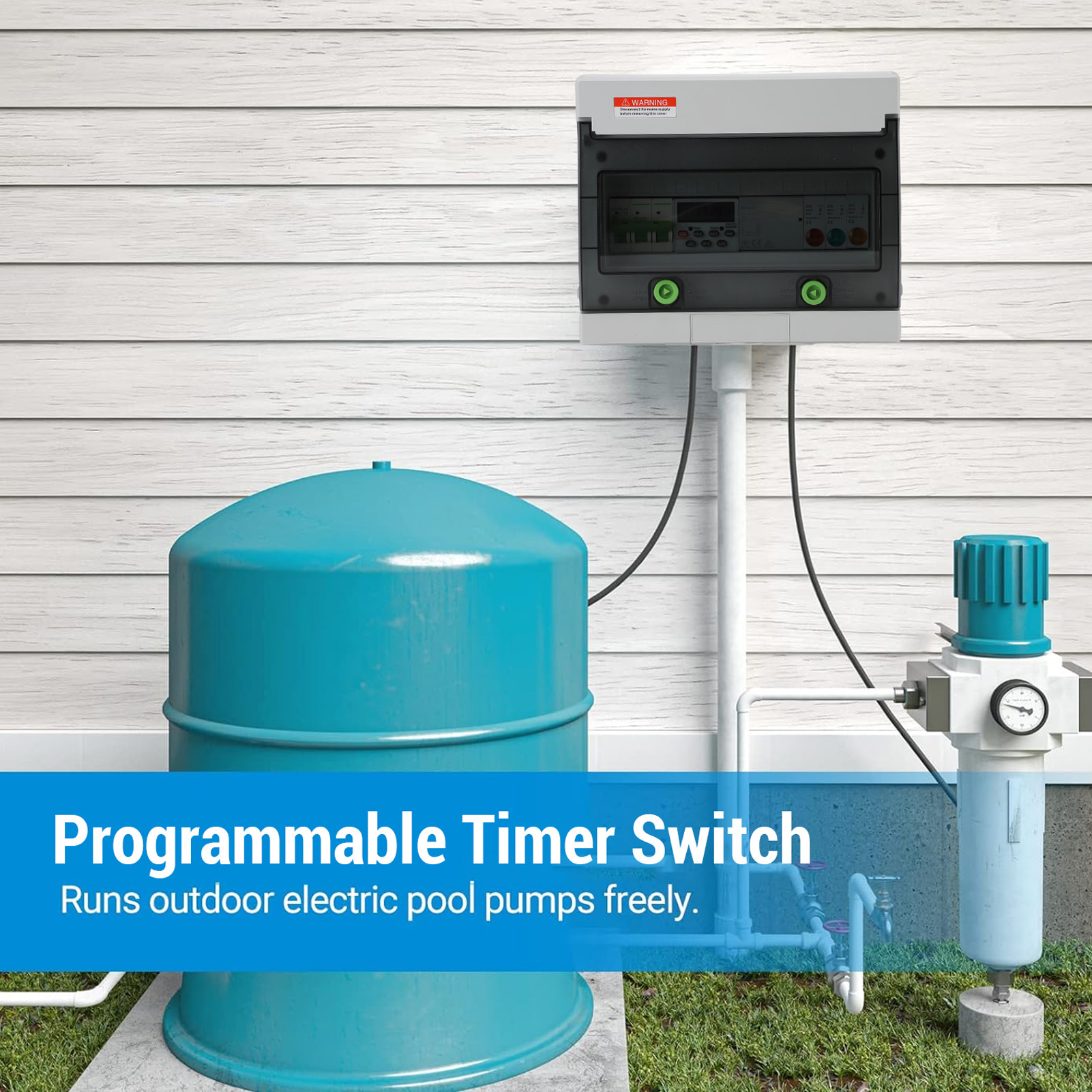

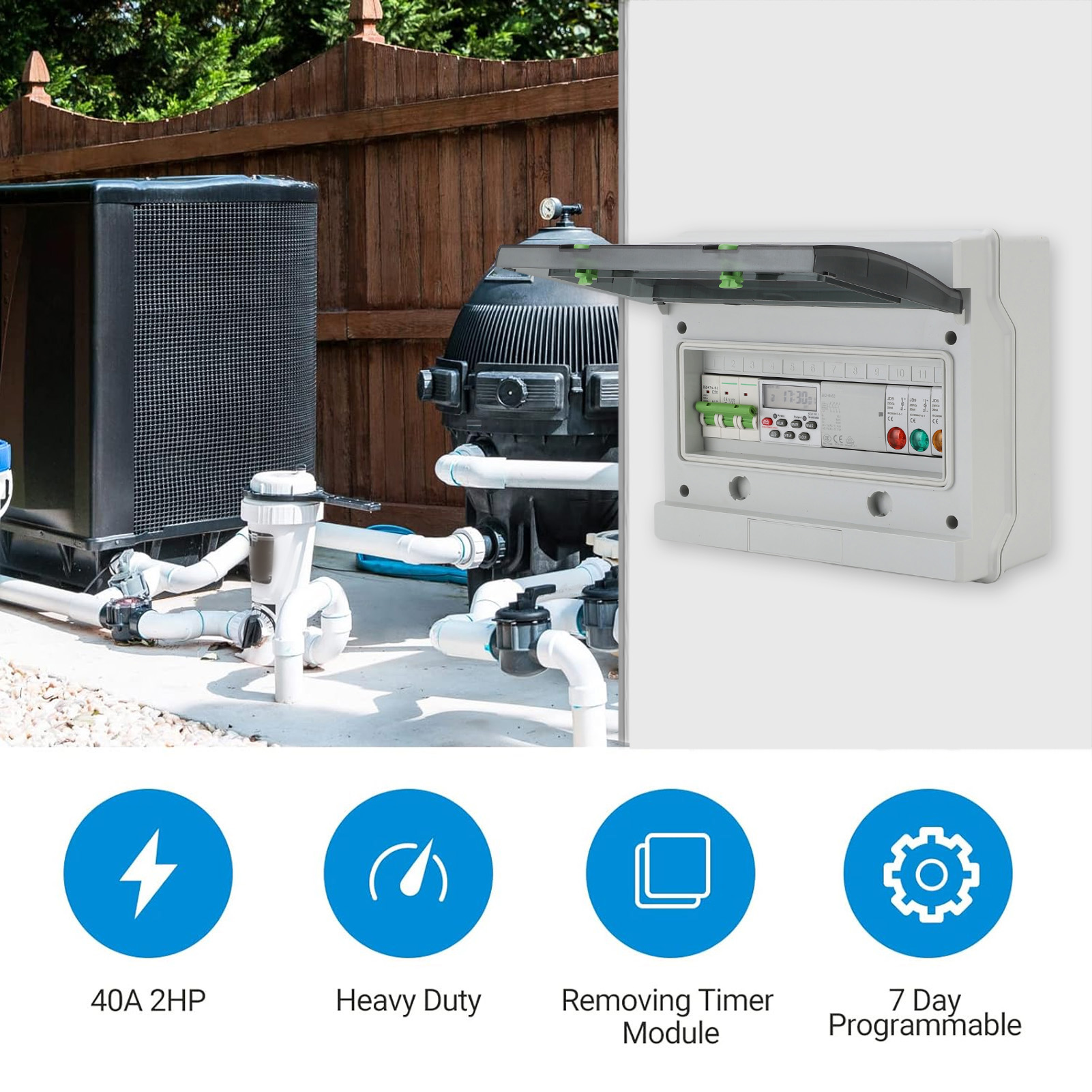

2. Wide Application: The digital time switch can control various electrical devices, including street lights, neon lights, billboards, speaker equipment, warehouses, heating systems, etc.

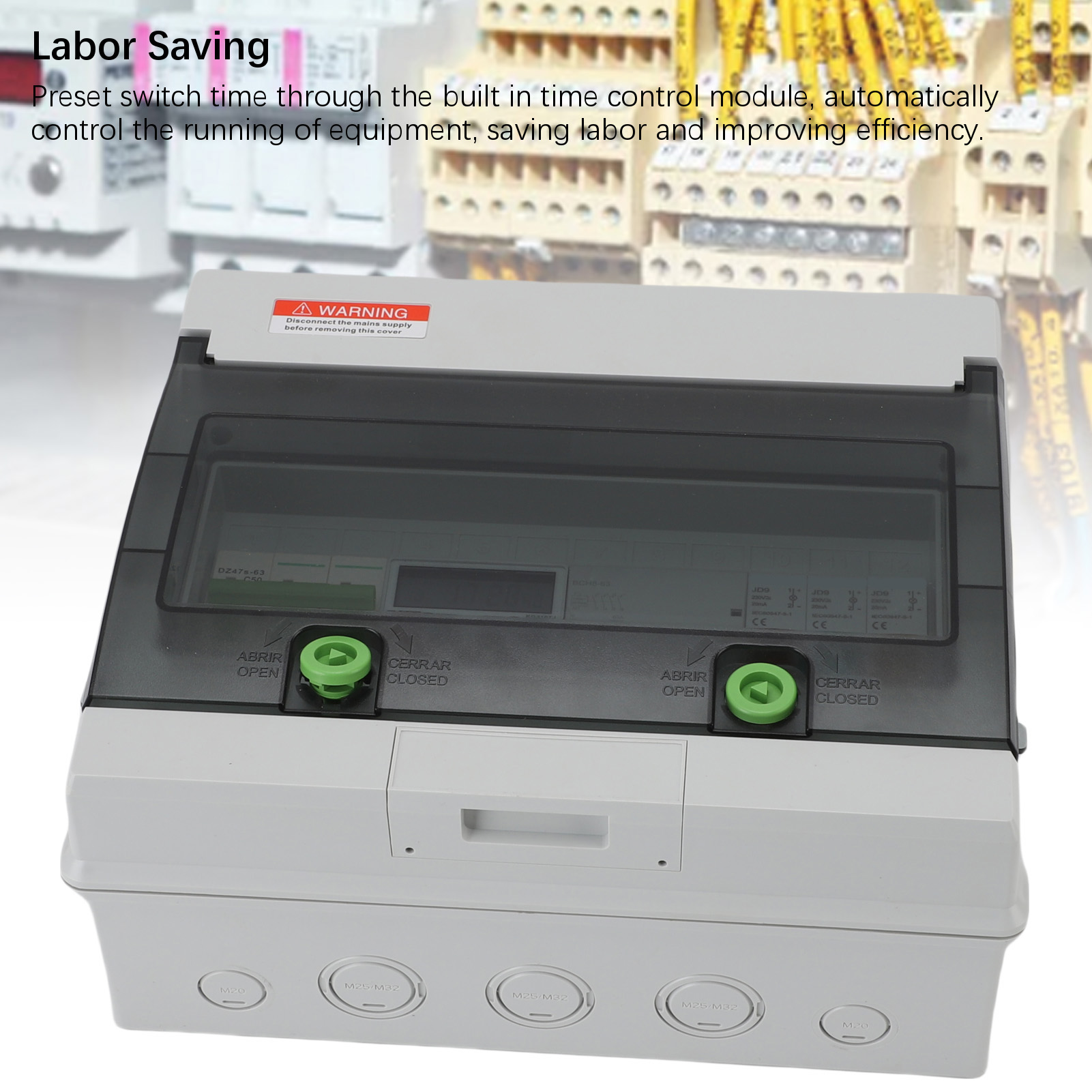

3. Labor Saving: Preset switch time through the built in time control module, automatically control the running of equipment, saving labor and improving efficiency.

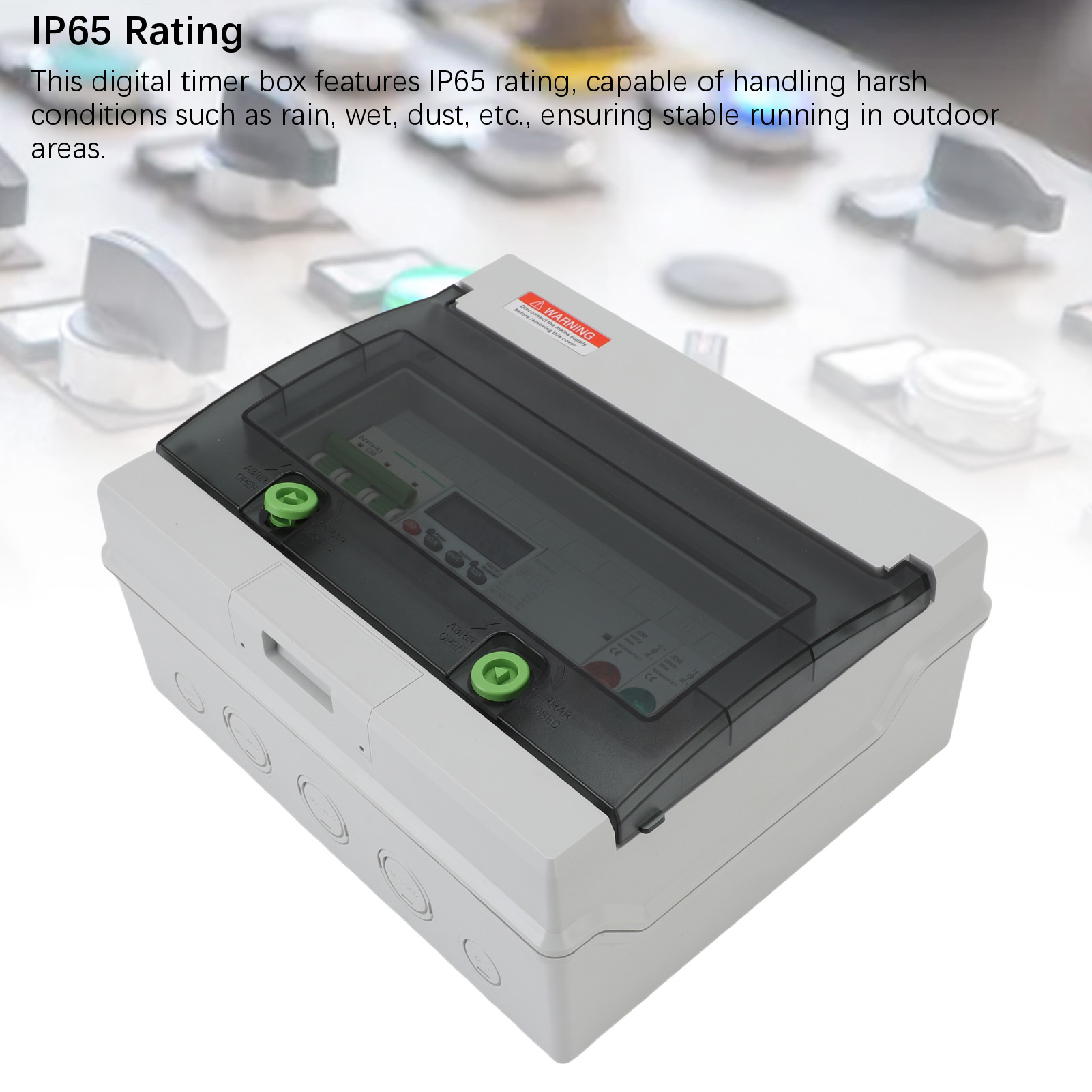

4. IP65 Rating: This digital timer box features IP65 rating, capable of handling harsh conditions such as rain, wet, dust, etc., ensuring stable running in outdoor areas.
5. Energy Saving: Precisely control the running time of equipment, reducing ineffective energy consumption, suitable for energy saving scenarios such as landscape lighting.
Specification:
Material: ABS, PCV, Pa66
IP Rating: IP65
Air Switch:
Rated Voltage: 400V AC
Rated Current: 50A

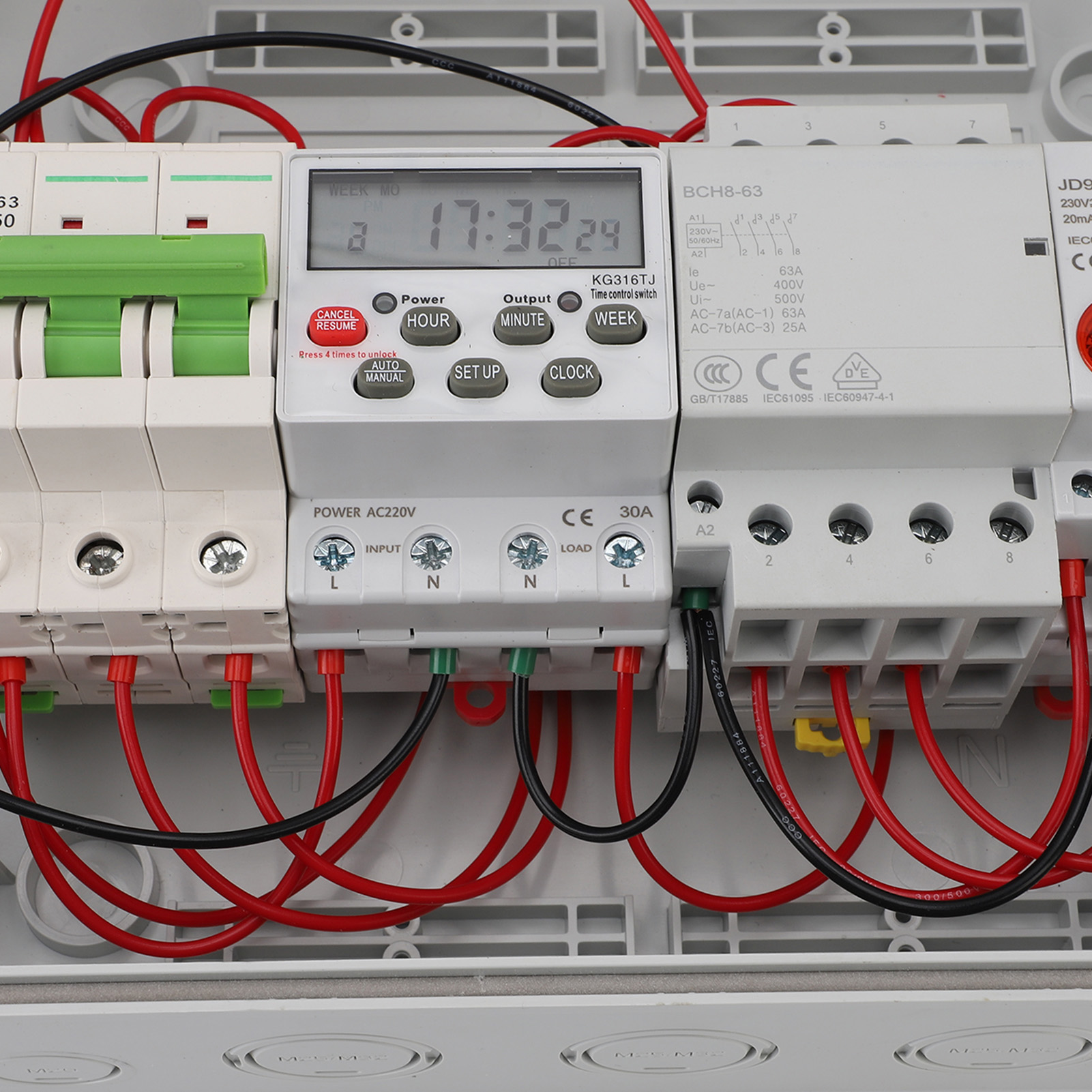

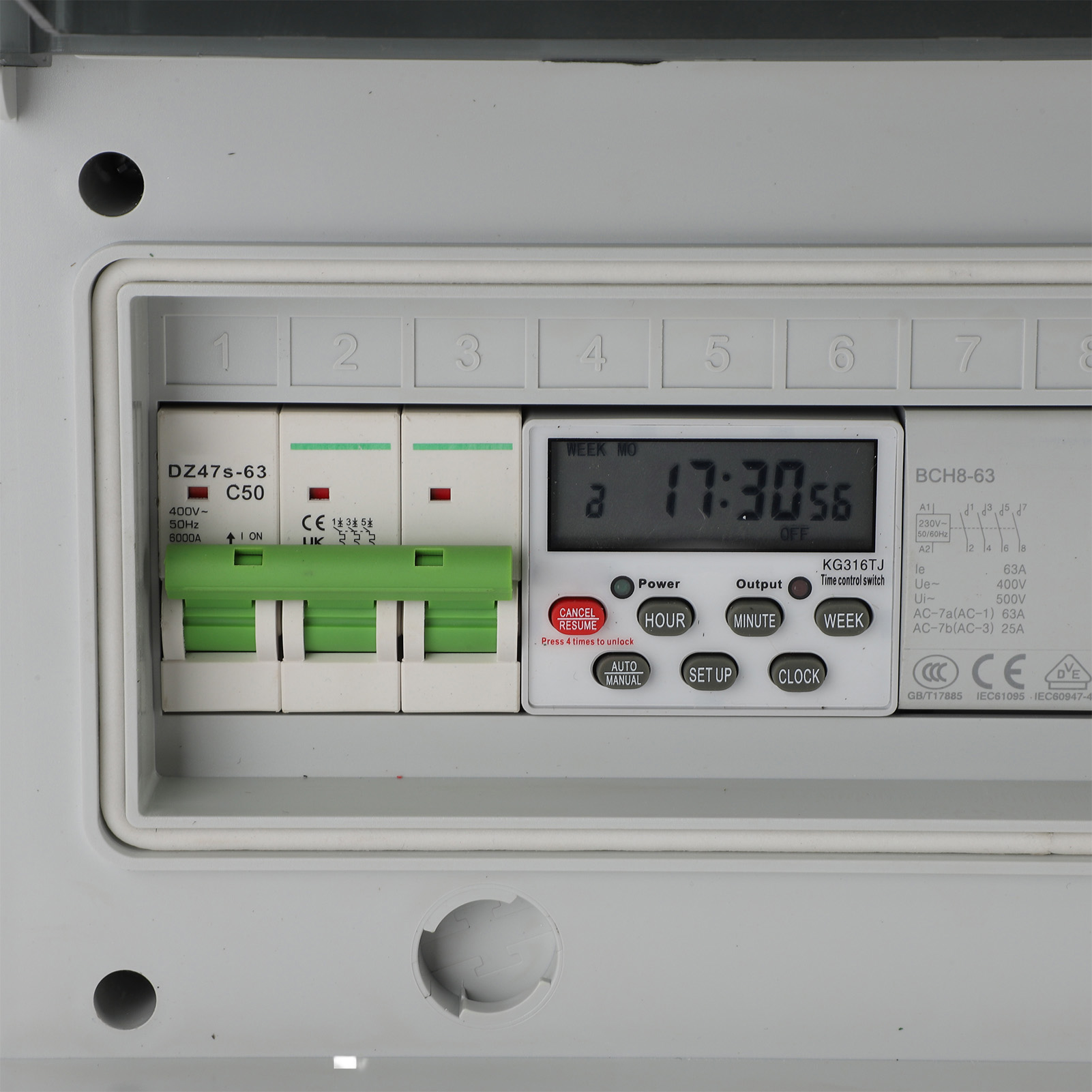

Time Controlled Switch:
Rated Insulation Voltage Ui: AC380V
Rated Impulse Withstand Voltage Uimp: AC 1.5kV
Rated Control Power Supply Voltage Us: AC50/60Hz 380V
Pollution Level: 3
Housing IP Rating: IP50
Load Power: Resistive Load: 6KW; Inductive Load: 1.8KW; Motor Load: 1.2KW; Lamp Load: 0.9KW
Daily Travel Time Error: ≤2 seconds
Features:
1. 16 opening and closing actions can be set daily
2. The switch time can be cycled daily or weekly
3. The maximum time control is 168 hours, and the minimum time control is 1 minute
Mechanical Life: ≥100,000 times
Electrical Life: ≥10,000 times
Note: The coordination and cooperation with the short circuit protector (SCPD) refers to the relay not causing damage to personnel and equipment in the event of a short circuit, and not continuing to be used until the components are repaired or replaced.
Time Controlled Switch Display Power Supply: 1 x 380mAh AAA battery (built in)

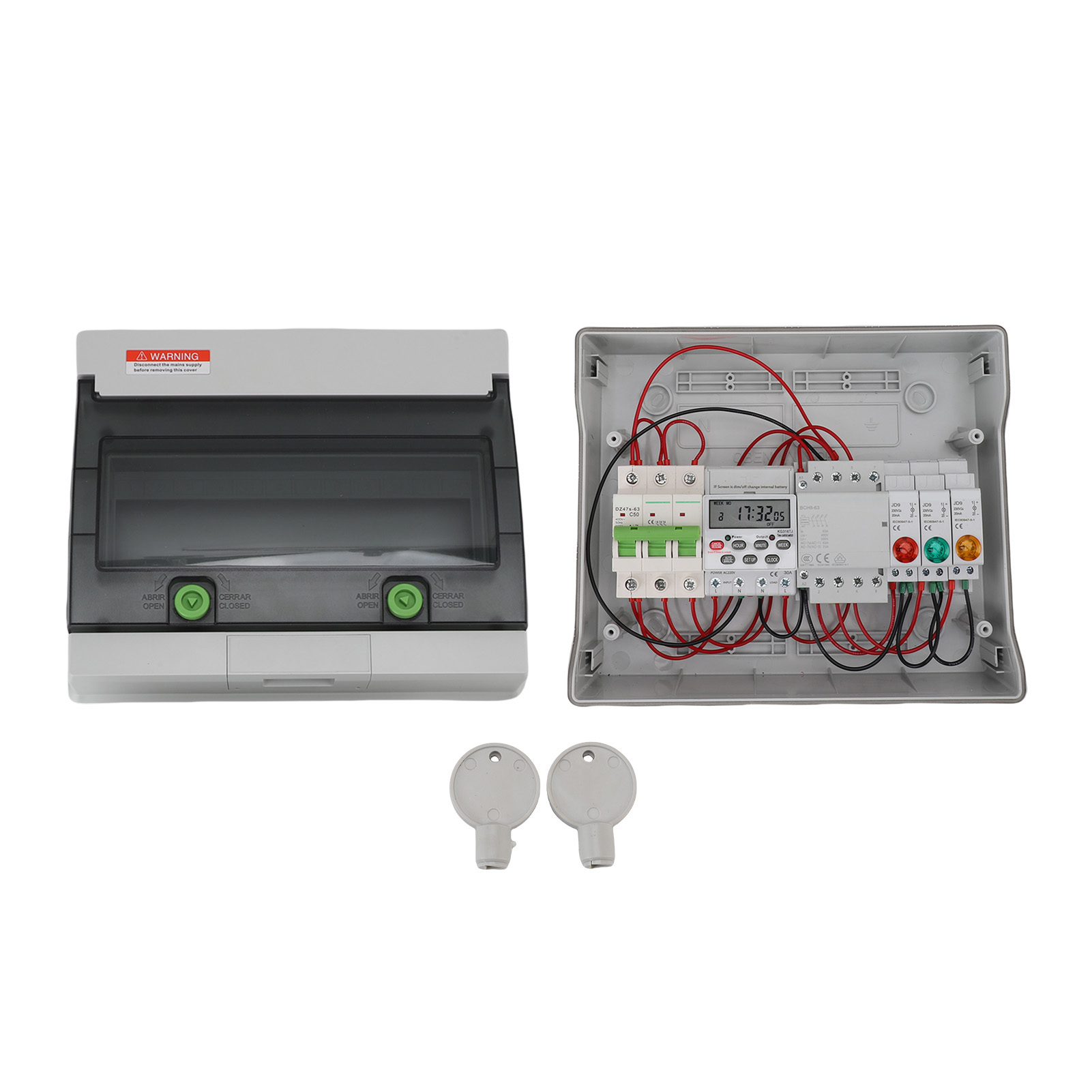

Package List:

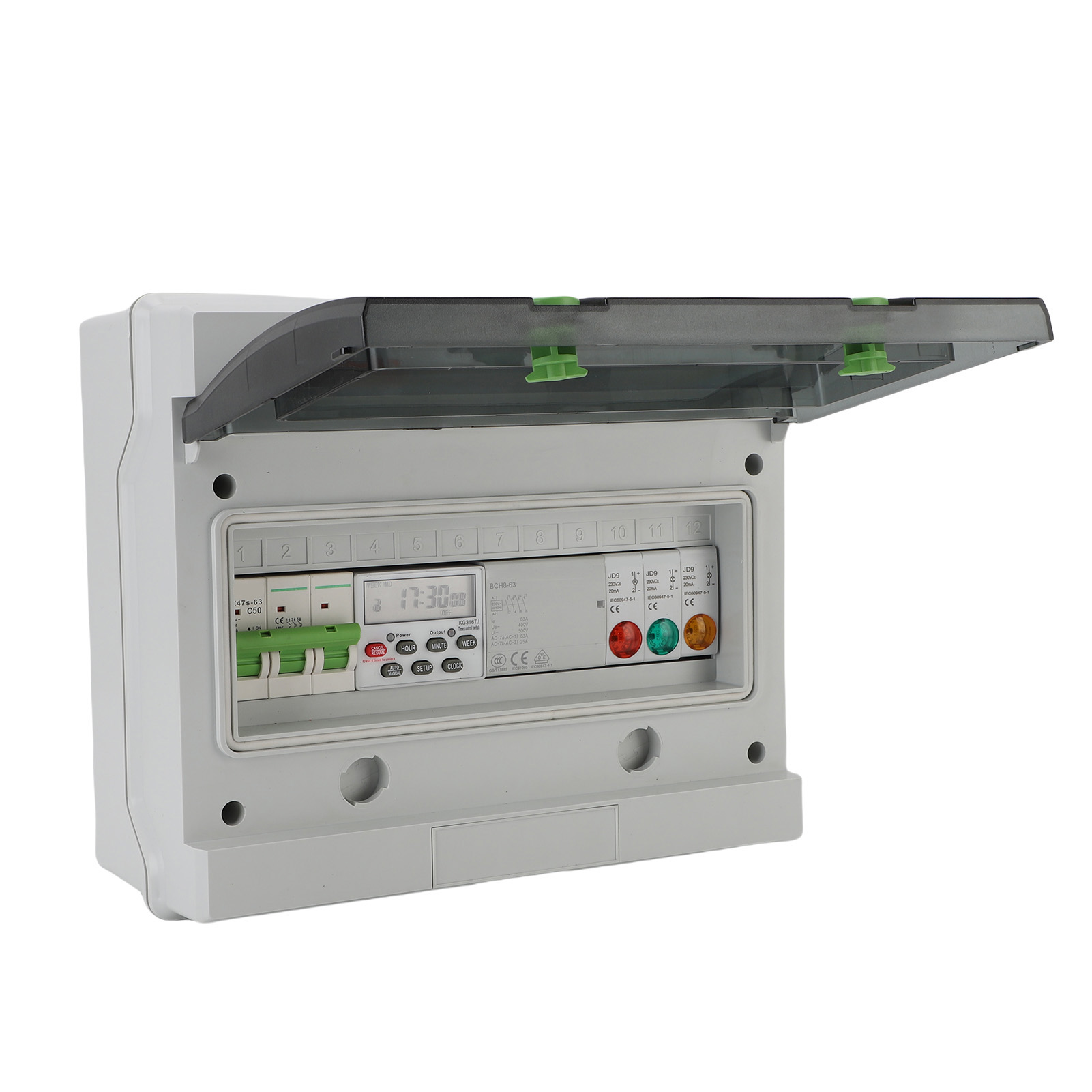

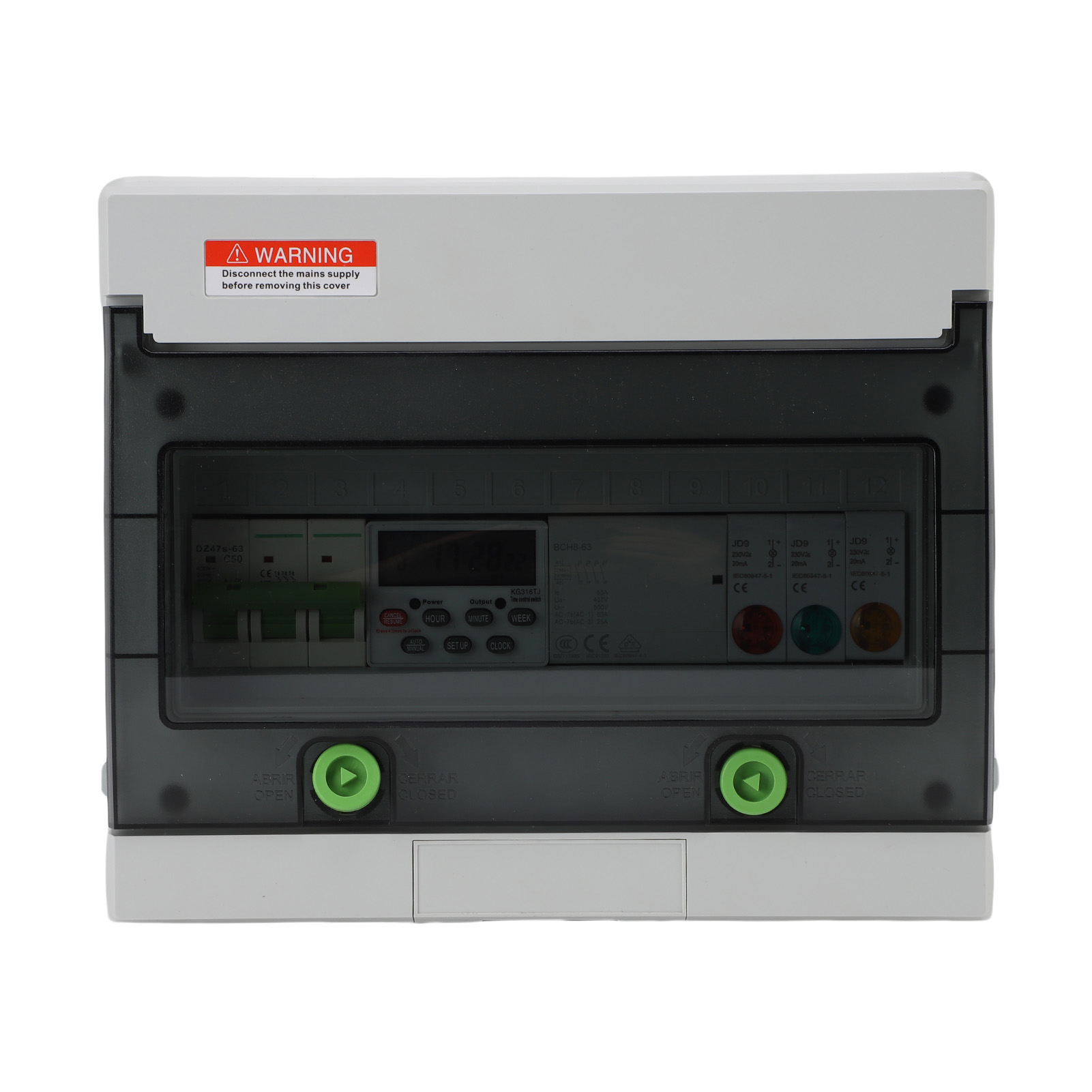

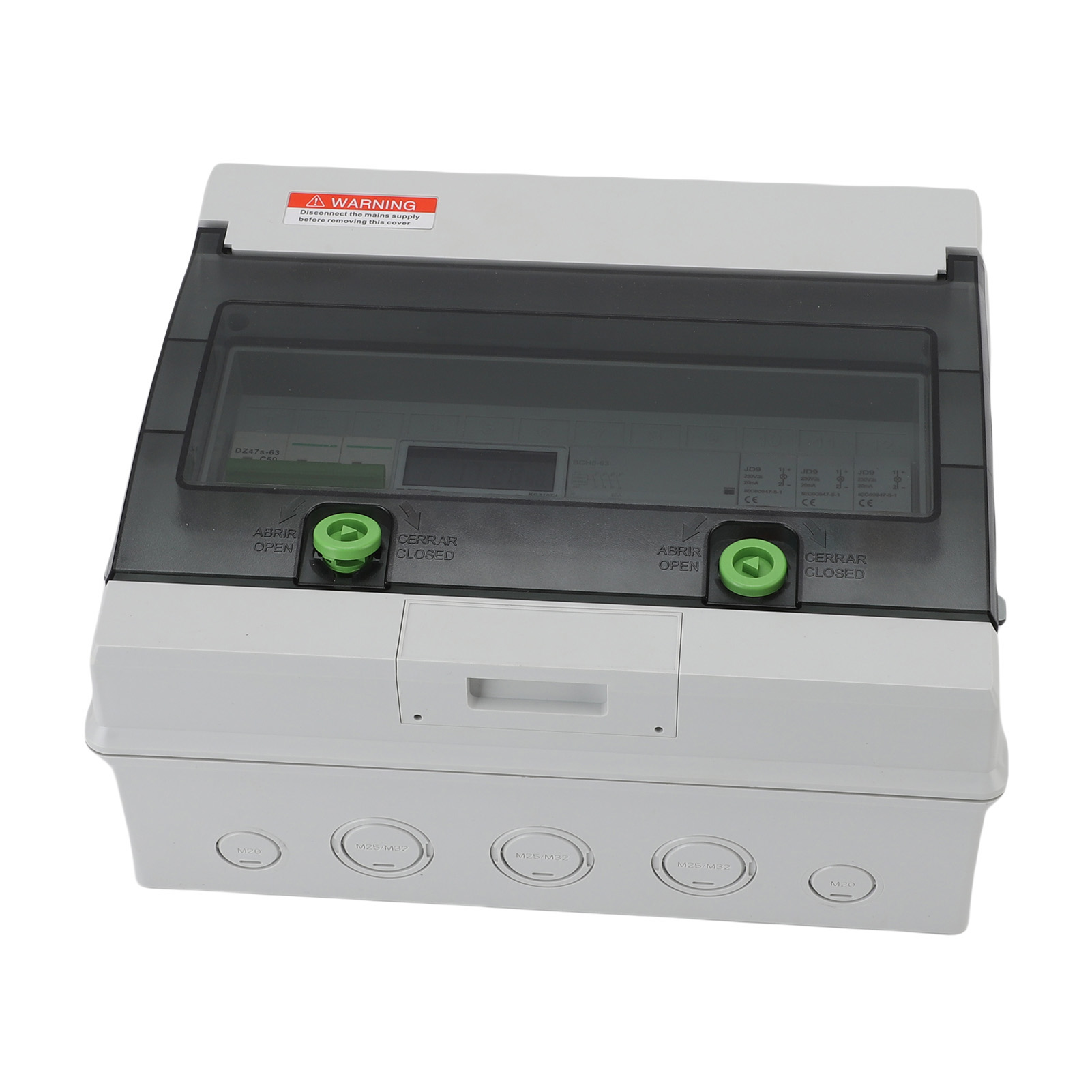

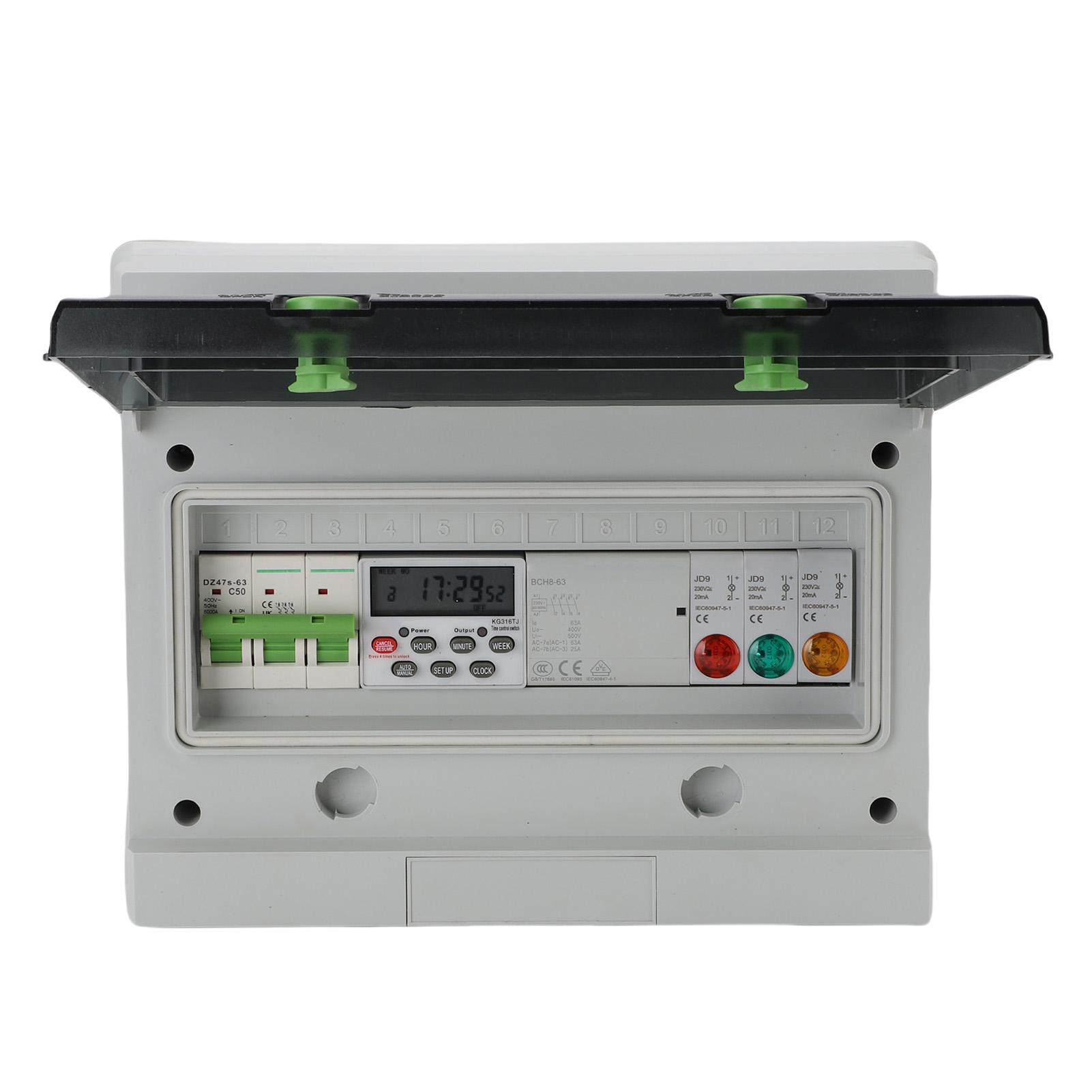

1 x Digital Time Switch Box
2 x Dust Proof Cover Key
