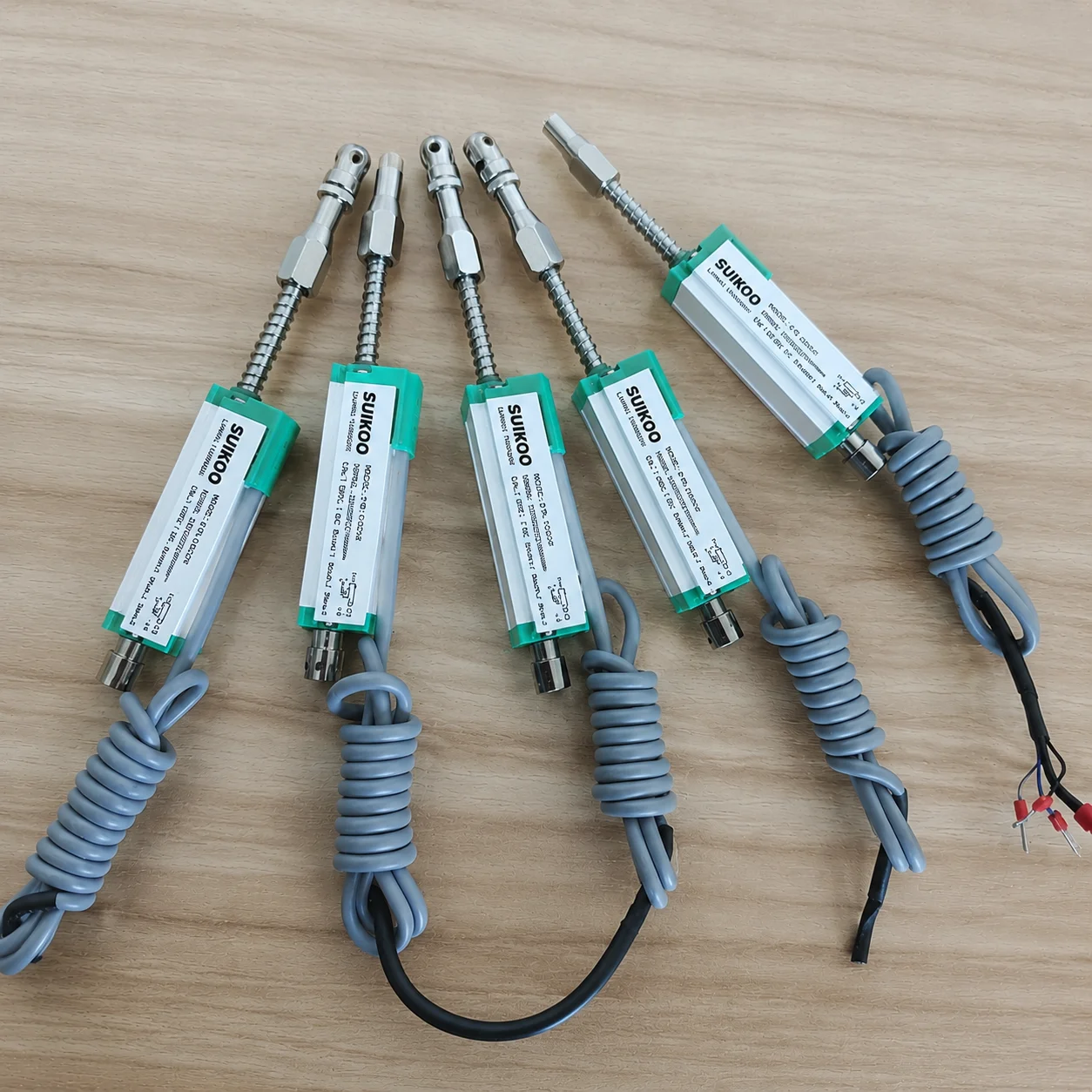

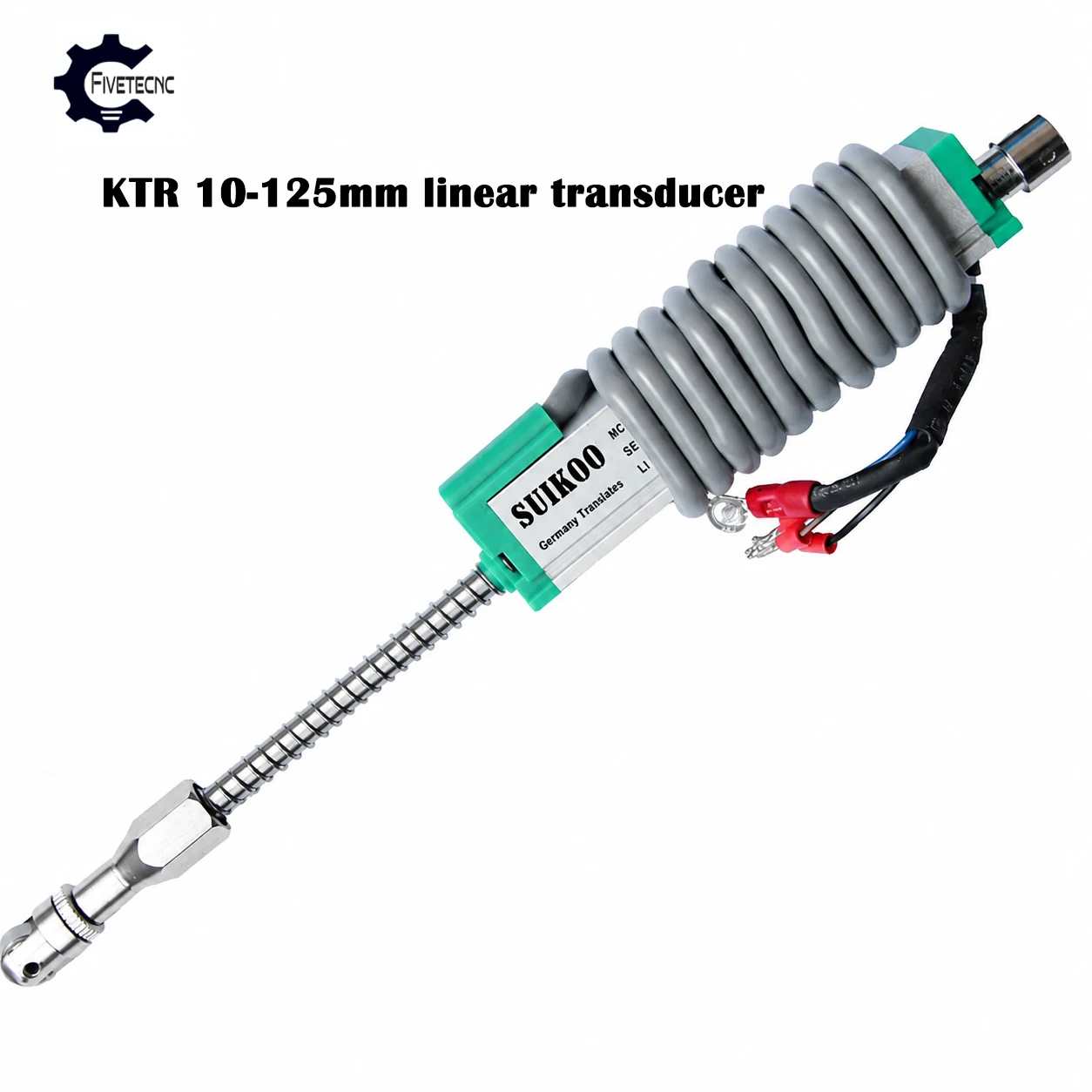

Automatic Reset KTR Mini Type Linear Transducer 10/25/50/75/100/125mm travel for injection machines etc
Package include:
KTR Linear transducer x 1 piece
Screws x 1 bag
Features
1. Quality conductive plastic material, long life time
2. Life time: about 100 million times
3. High precision;
4. Miniature automatic reset KTR;
5. Measuring length: 0-10mm;0-25mm;0-50mm;0-75mm;0-100mm;0-125mm
Parameters:
|
Model |
KTR-10 |
KTR-25 |
KTR-50 |
KTR-75 |
KTR-100 |
KTR-125 |
|
Travel length |
10mm |
25mm |
50mm |
75mm |
100mm |
125mm |
|
Mechanical stroke |
13mm |
28mm |
53mm |
78mm |
103mm |
128mm |
|
Resistance+/- 10% Kilo Ohm |
1Kilo Ohm |
2Kilo Ohm |
2Kilo Ohm |
5 Kilo Ohm |
||
|
Linear accuracy (+/-FS) |
0.05% |
|||||
|
Linear accuracy |
0.1 |
|||||
|
Repeat accuracy |
0.01mm |
|||||
|
Resolution |
infinite |
|||||
|
Working voltage |
5-24VDC(Input 5V output 5V; Input 10V output 10V; Input 12V output 12V; Input 24V output 24V |
|||||
|
Current |
≤10 uA |
|||||
|
Working temperature |
-60 to 150 degrees celsius |
|||||
|
Max working speed |
5 m/s |
|||||
|
Over length |
120mm |
152mm |
206mm |
260mm |
314mm |
350mm |
|
Output type |
0 to work voltage (voltage change with moving change) |
|||||
Cross section size: 18* 18MM;( Mechanical travel: effective travel 6mm (buffer 3mm for each end);
The installation reservation length must be greater than 4mm and must exceed the buffer area.
There are round types and share types connectors, we send both screws together.
There are many KTR transducers in stock and we will ship out within 1 working days after clear payment. It will ship by Aliexpress standard shipping and takes 1-3 weeks to most of the countries in the world.
