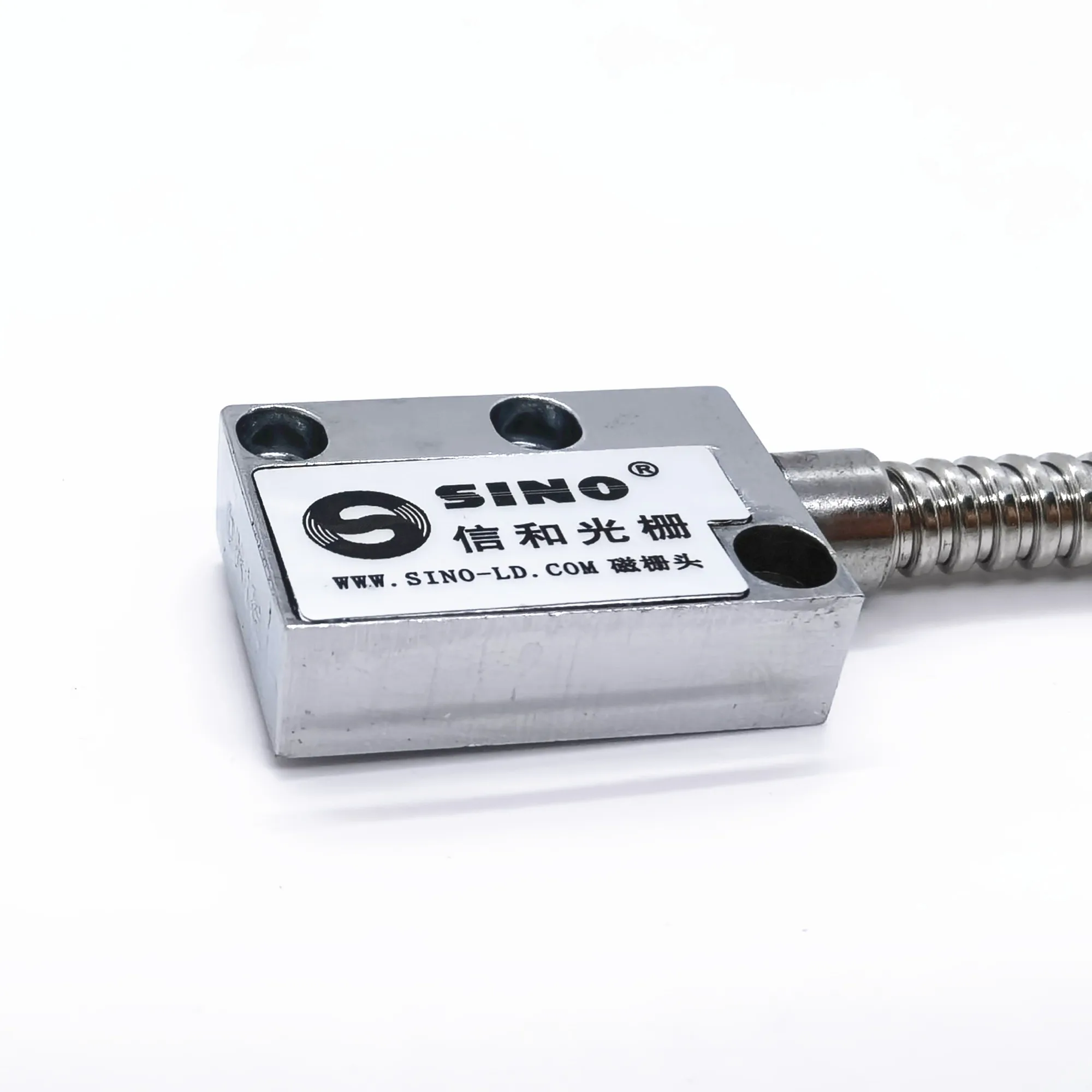

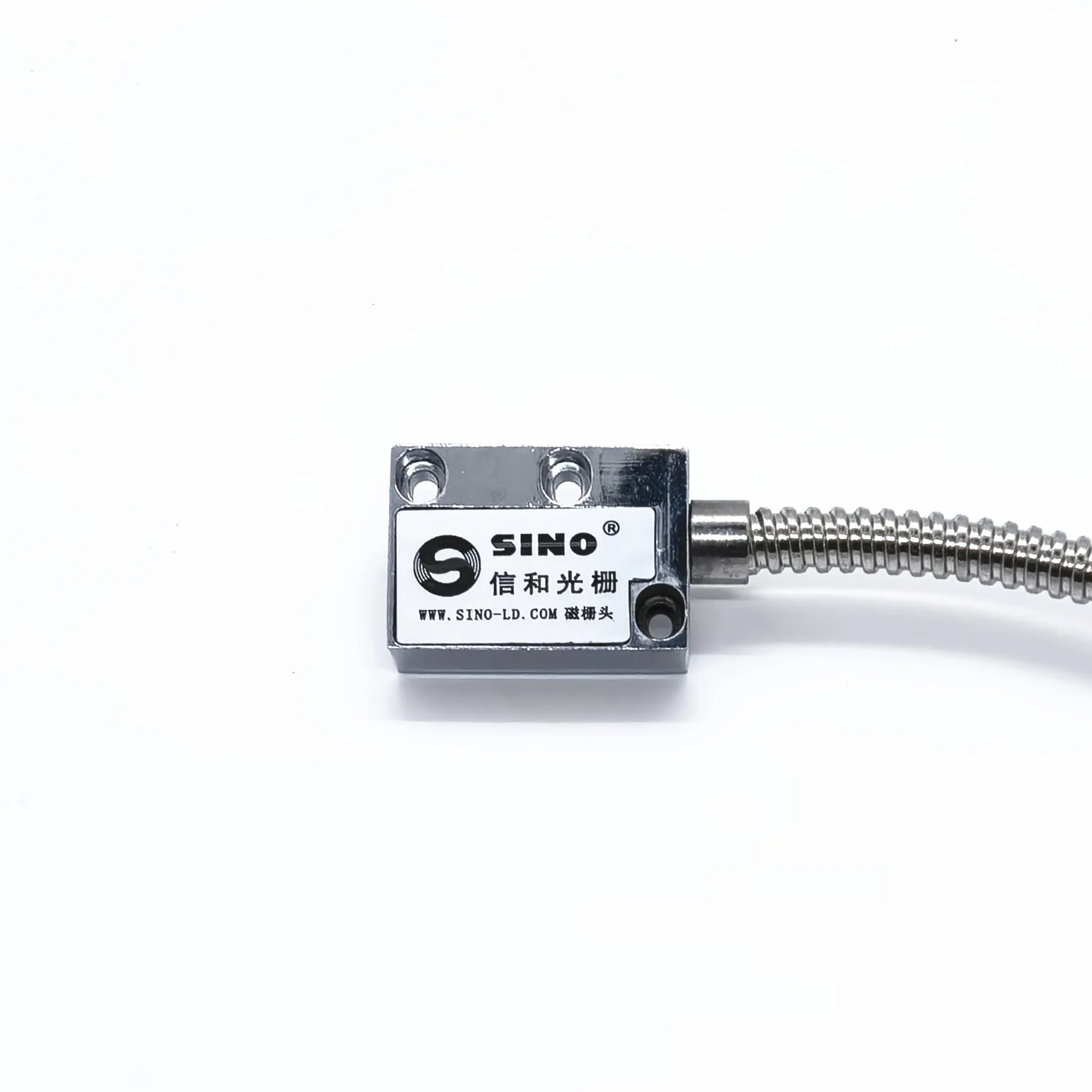

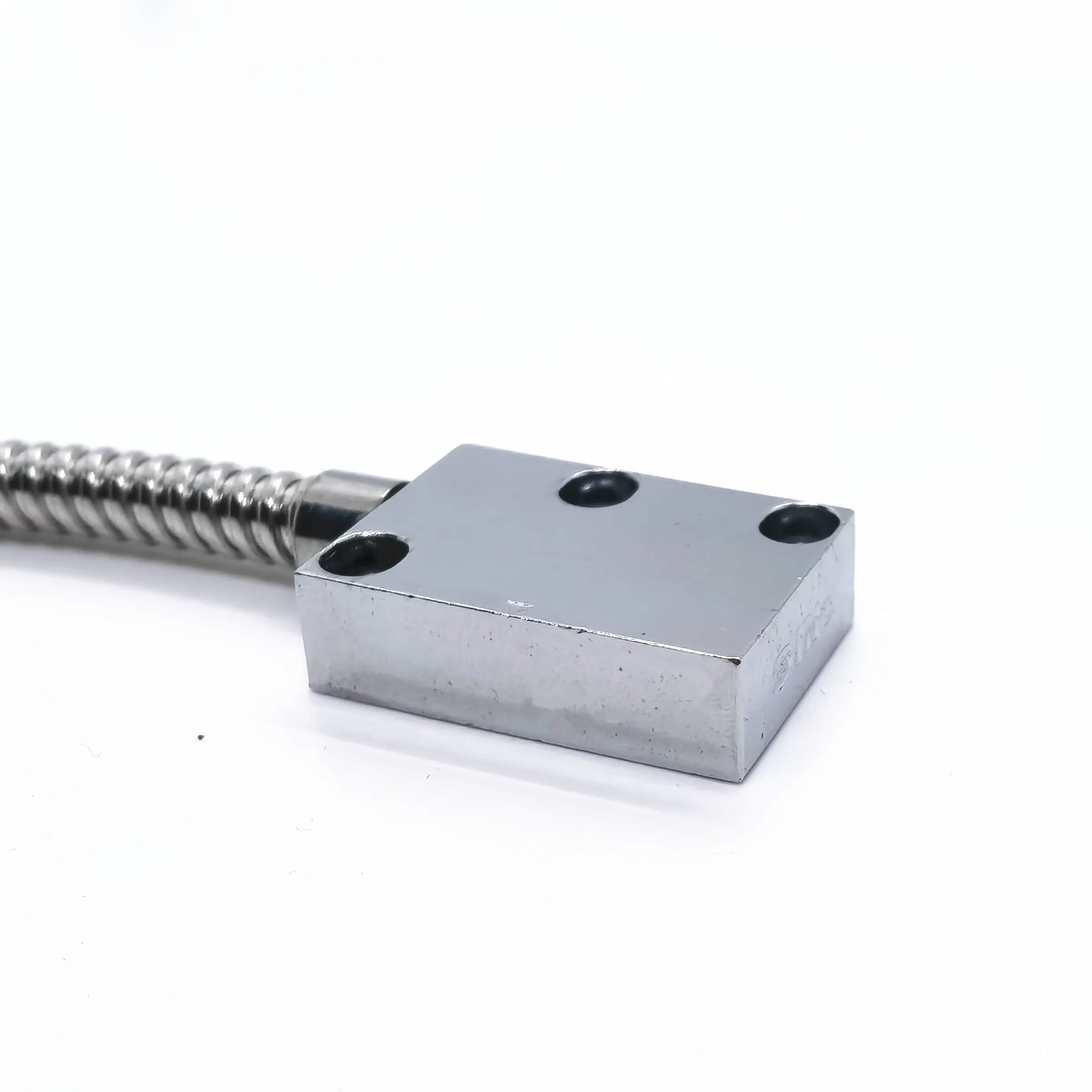

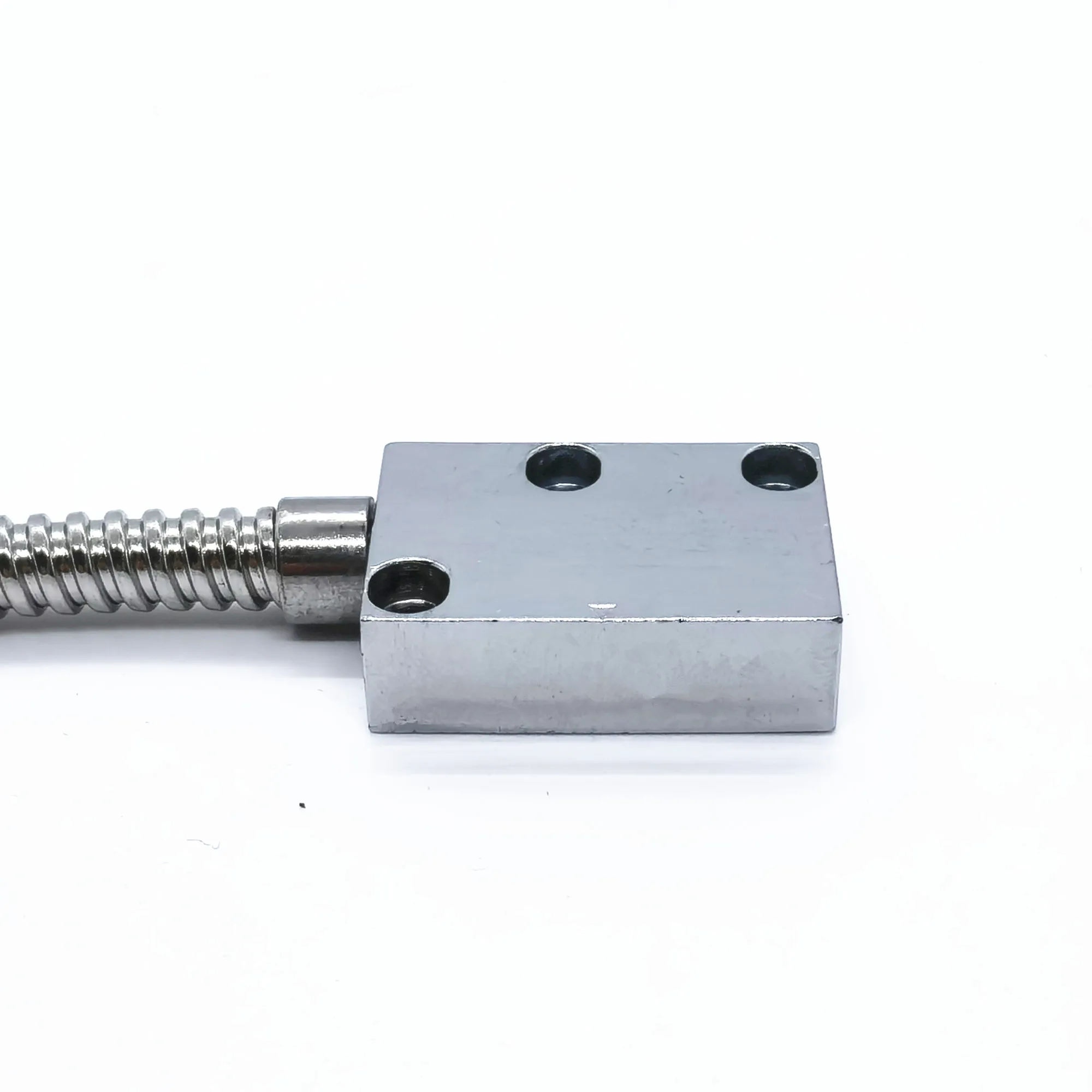

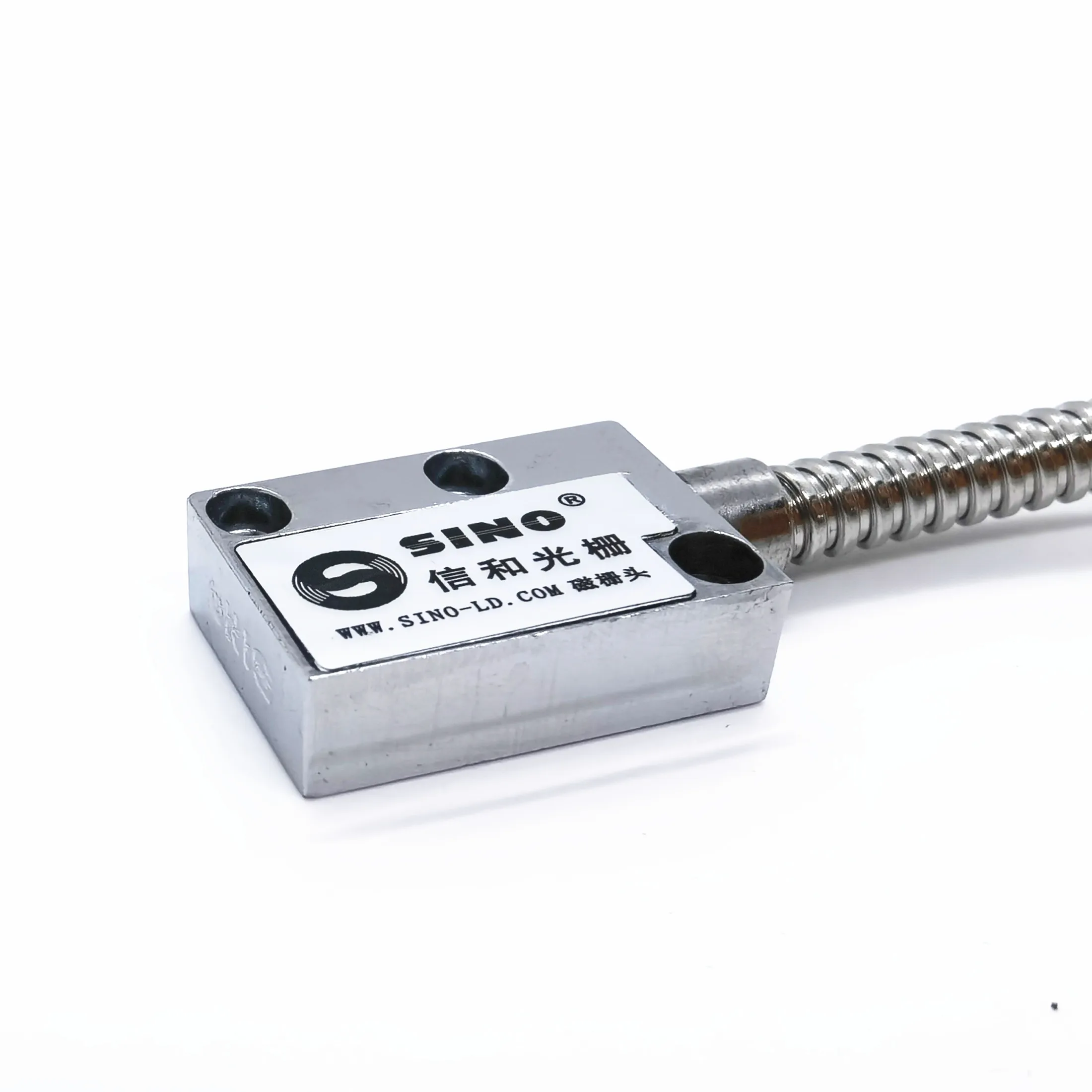

Sino KA800MC Magnetic Scale Sensor Reader Head 5V TTL Linear Displacement Ruler Magnet Encoder for Lathe Wooden Stone Machine

Sino KA800MC with TTL output works for ALL China DRO like Sino, Easson, Hymseann with other linear glass scale.

Widely used in large lathes, milling machines and various machine tools, with low cost and long service life

What in package

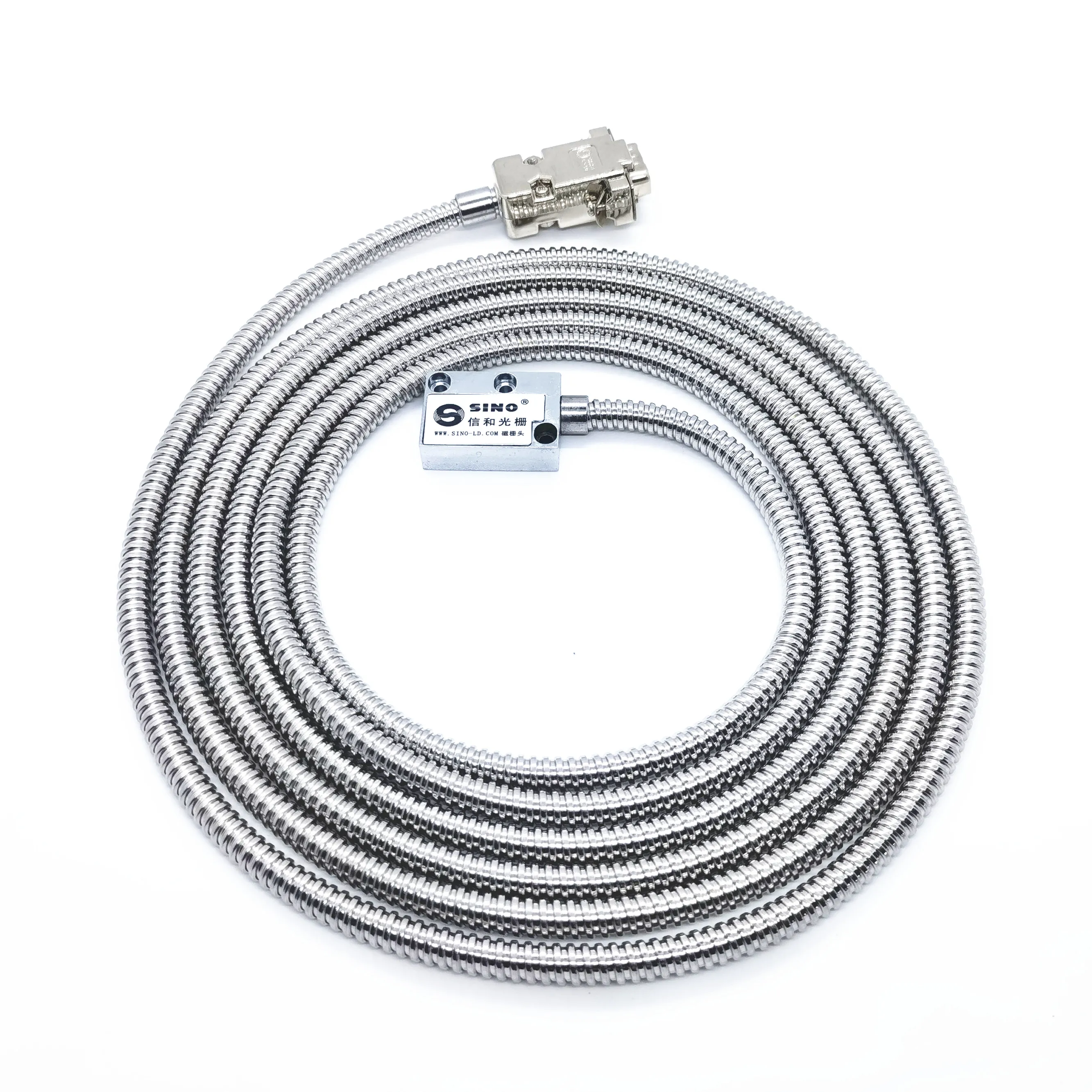

-1 piece magnetic reader with 3meter cable

Tips
This order only includes a Sino KA800MC magnetic sensor(reading head), not include strip or holder.

Magnetic scale futures

Parameter
Model: KA800MC
Input: 5VDC (24V option and require with seller)
Reader cable length: 3 meters
Installation distance: max. 4mm （2mm recommended）

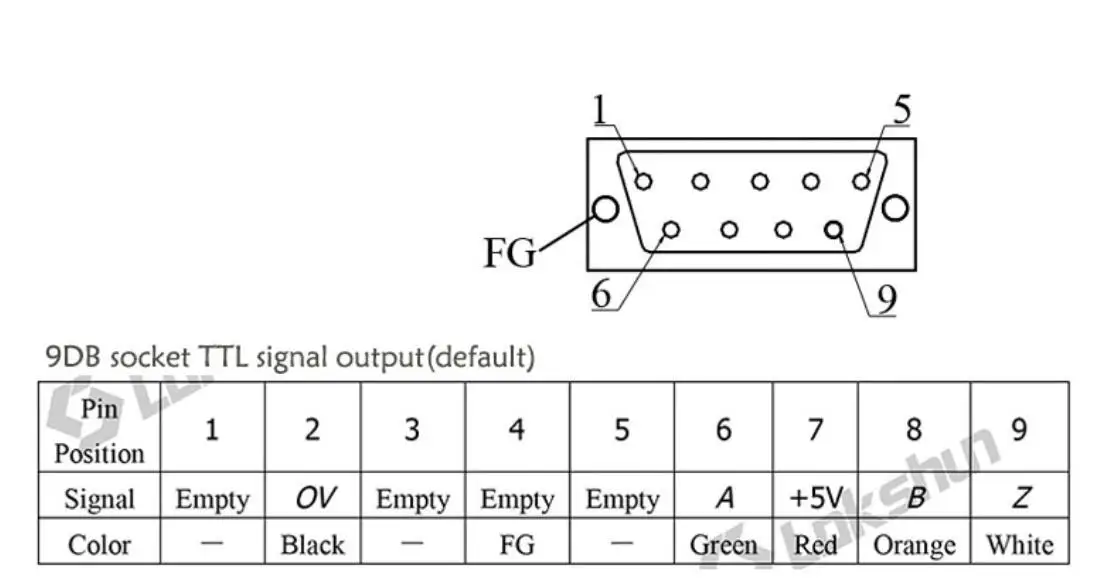

Output: TTL
Working speed: Max. 20m/s
Operating temperature: -10~+70℃
Waterproof level: IP67
If works with glass sacle for Same one DRO: YES
Suitable DRO: All China TTL DRO

Advantage

KA800MC magnetic scale is mainly suitable for middle and low precision
Wood, stone, machine tools, digital display, etc. need to be processed and measured.
Location and measurement in material processing.
Ulnar band TR50 at 5 + 5mm intervals
Use stainless steel belt, smooth paste
Special aluminum shell and special protective steel
Adhesive tape makes the tape better anti oil and waterproof.
Dust prevention, improve the service life.

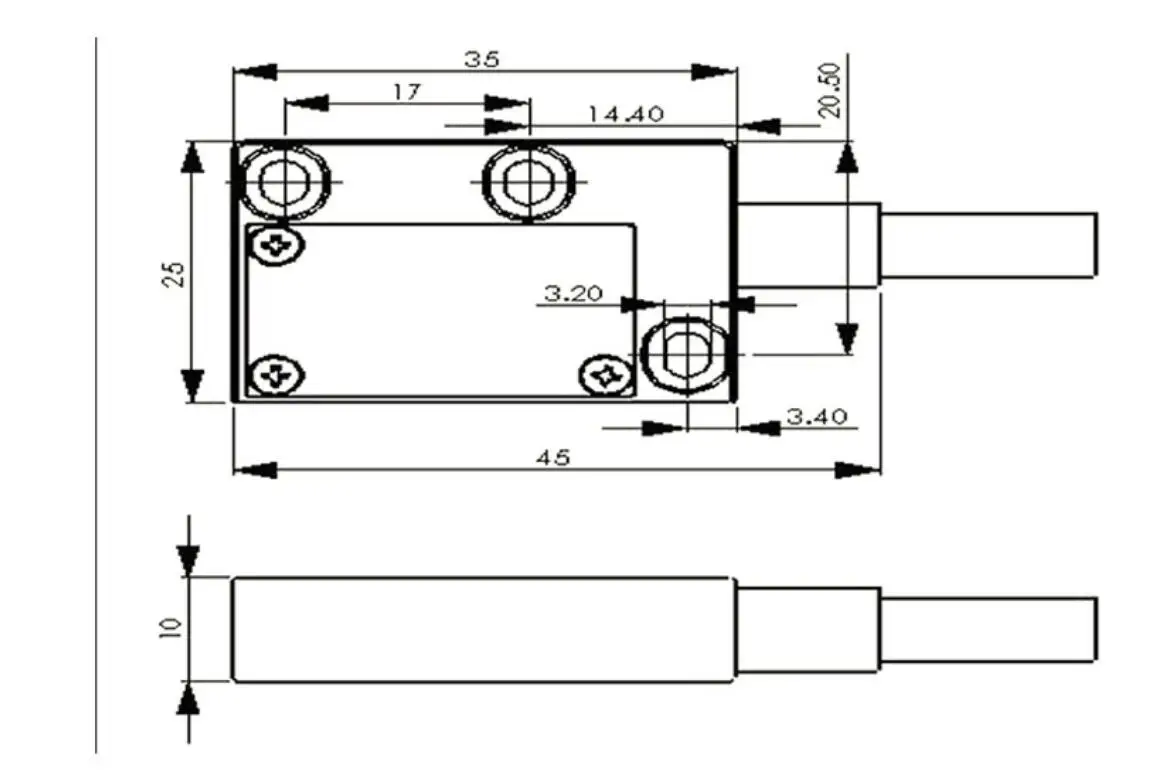

Small volume, reading head, small space, easy to install.
