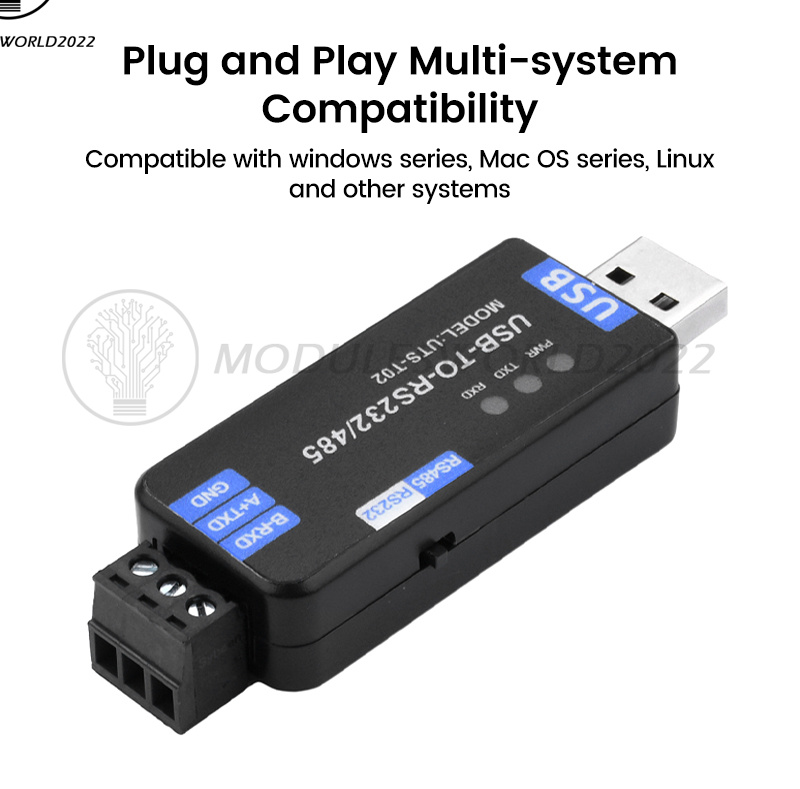

2. Adopts the new CH343G chip, plug and play, compatible with windows series, MacOS series, Linux and other systems.
3. On-board TVS (transient voltage suppression tube) can effectively suppress the surge voltage in the circuit, the instantaneous spike voltage, lightning protection and anti-static.
4. On-board self-recovery fuses and protection diodes to ensure stable current and voltage output, prevent overcurrent and overvoltage, improve shock resistance.
5. On-board three LED indicators, easy to view the power signal transceiver status.

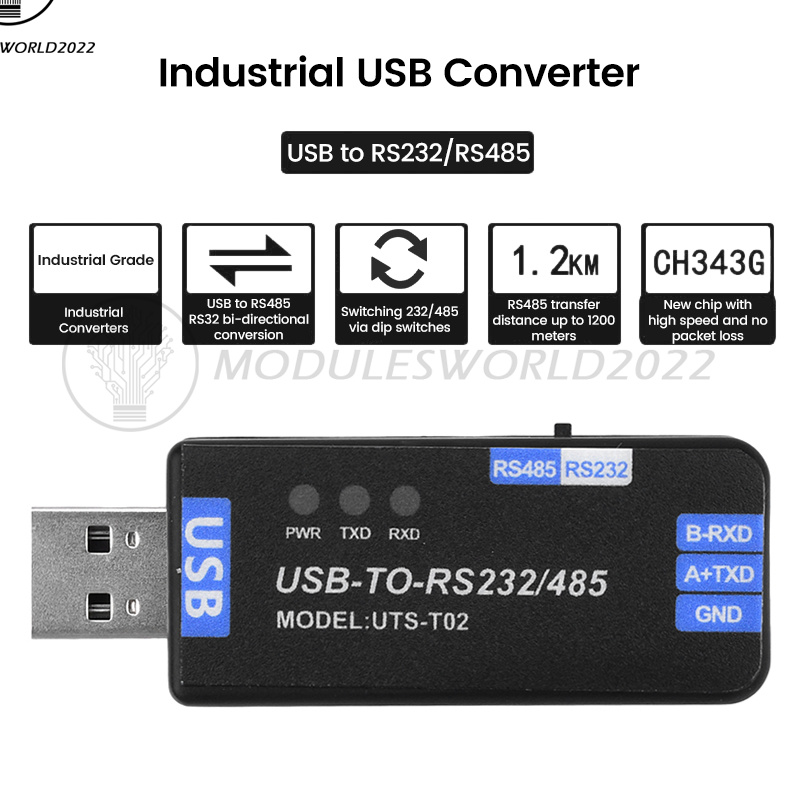

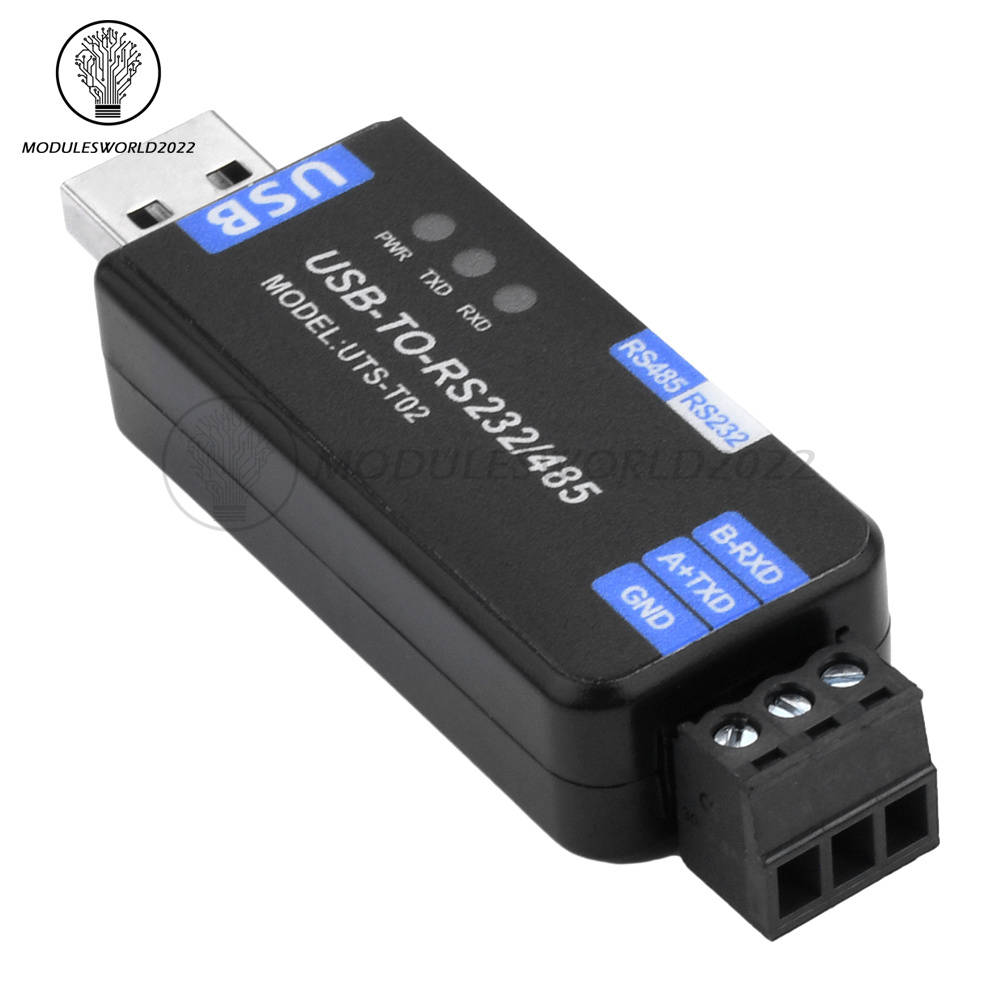

Product type: industrial grade USB to RS485/232 converter
Communication rate: 50bps~1000000bps
Host interface: USB
Device interface: RS485/RS232 (switch through the dip switch)
USB interface:
Operating level: 5V
Interface form: USB-A type interface
Interface protection: 200MA recovery fuse, ESD electrostatic protection
Transmission distance: about 5 meters
RS485/RS232 interface:
Interface form: terminal block
Interface pins: GND, A+ (TXD),B-(RXD)
Direction control: hardware automatically identify and control the direction of data transmission
Interface Protection: Provide 600w lightning protection, surge and 15KV electrostatic protection (on-board 120R balancing resistor)
Transmission distance: RS485 (about 1200 meters), RS232 (about 10 meters) at low rates
Transmission mode: point-to-multiple (up to 32 nodes, 16 nodes or more is recommended to add a repeater RS232 (point-to-point an interface can only be connected to a device, need to connect more than one to add a repeater)

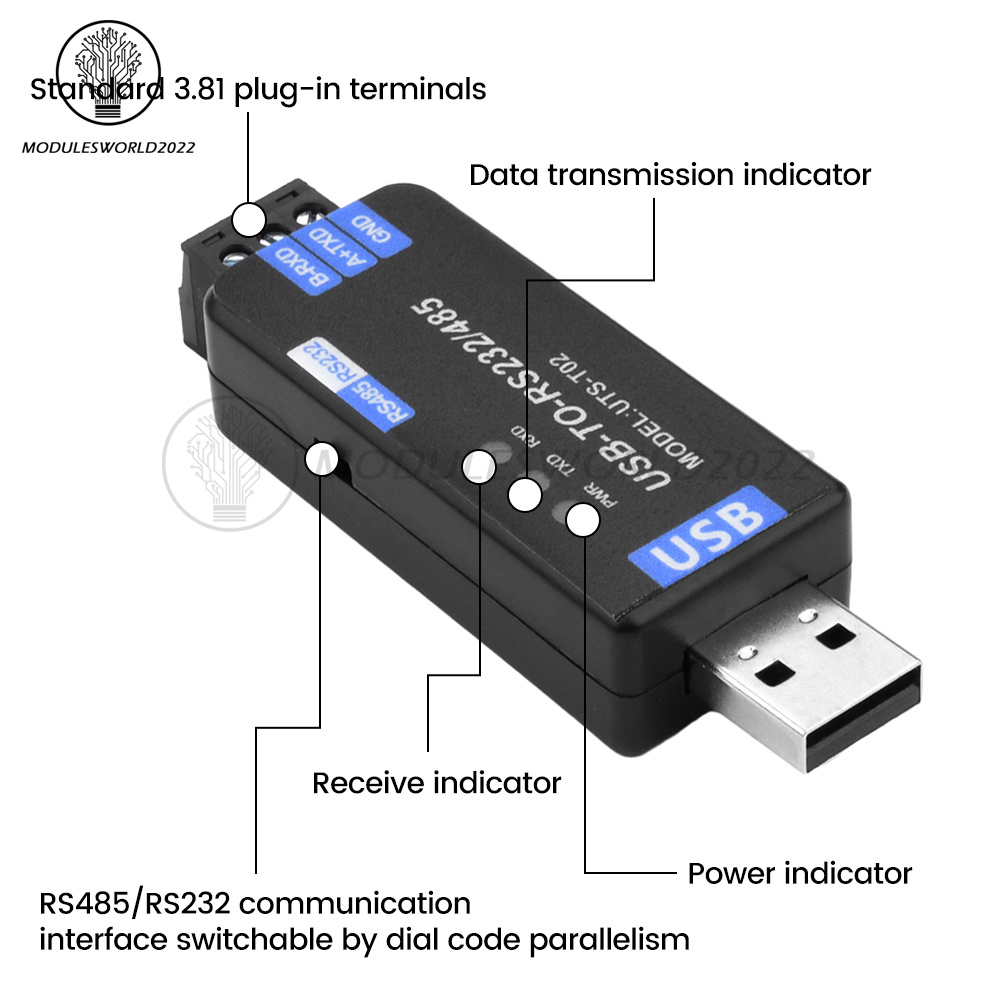

Indicator light:
PWR: power indicator, connected to the USB, detect the voltage is lighted
TXD: send indicator, there is data from the USB port when the light is on
RXD: Receive indicator Jie, USB interface has data received when the light is on

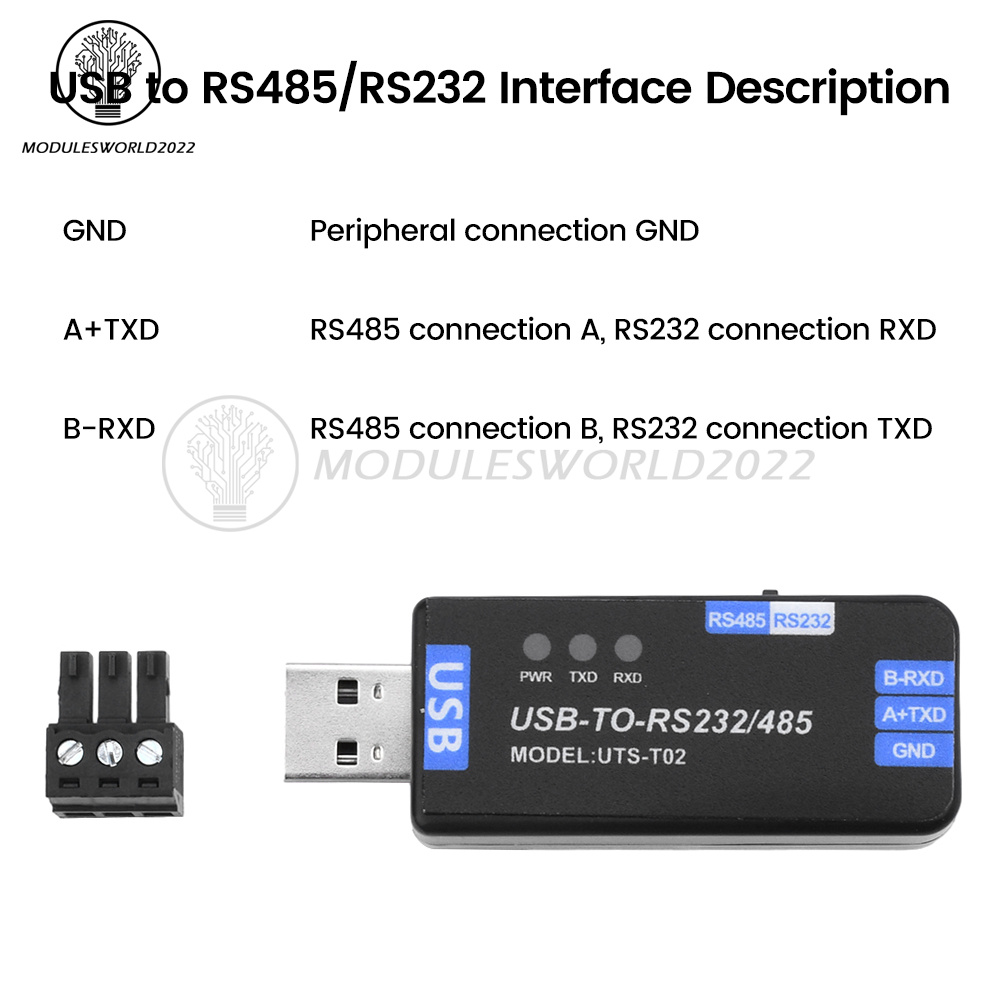

USB to RS485/RS232 interface description:
GND: peripheral connection GND
A+TXD: RS485 connects to A, RS232 connects to RXD.
B-RXD: RS485 connection B, RS232 connection TXD
1 x Module
