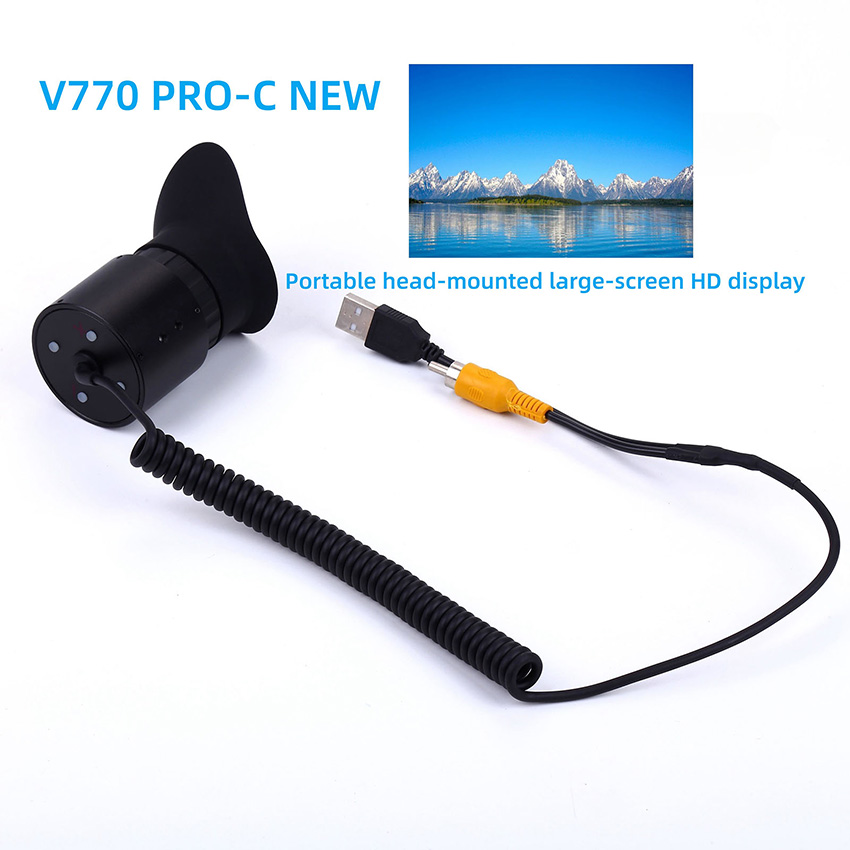

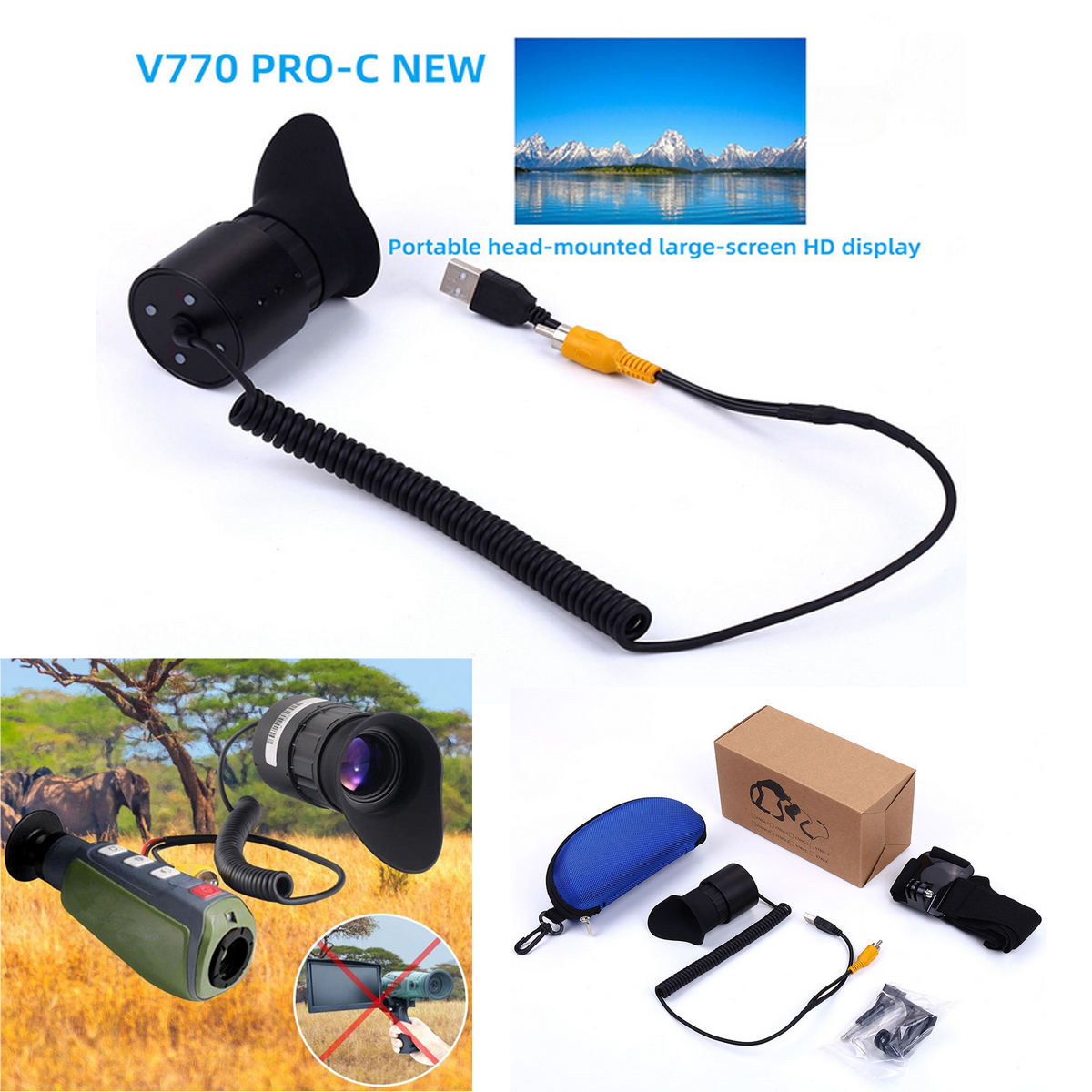

V770 Pro C New Wearable HD Large
Screen Portable Display
Features:
l 1024*768 active matrix color 0.39 inch OLED panel module uses single crystal silicon transistor
l The display module can be equivalent to 2 meters distance virtual 80 - inch screen,
l VGA pixels of micro display chip, image as well as the light source system, high-performance optical engine, the drive control circuit
l FPV model aircraft display, easy to plug in both the user to carry and operate
l Monocular display suite, night vision, medical, information, infrared detection, power monitoring electronic suite viewfinder
l Metal case with internal fixing bracket, waterproof, dustproof and shockproof
l Equipped with 38MM eyepieces, custom hoods

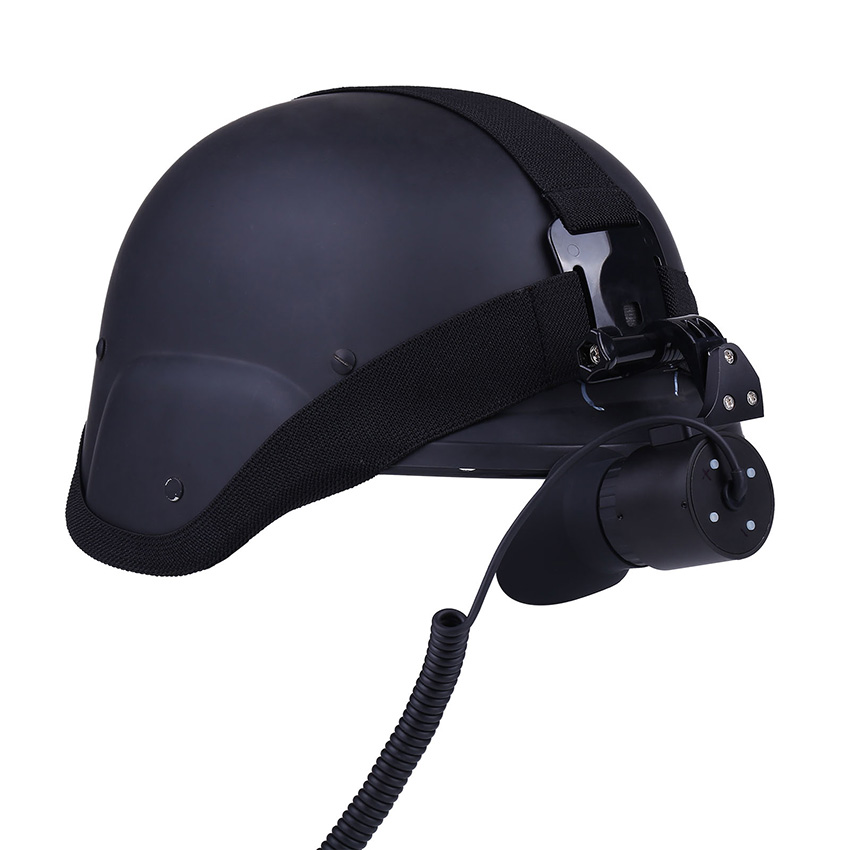

l User-friendly straps are comfortable and convenient, while supporting up and down adjustment
Specification:
l Display:0.39 inch OLED
l Resolution: 1024*768
l Screen Ratio: 4:3
l Color Depth: 24-bit input
l Viewing Angle: 45° diagonal
l Video input: Composite AV/CVBS
l Video Signal: NTSC/PAL/SECAM automatic selection
l Working voltage: 3.7-5V
l Working current: 5MA
l Power consumption: 0.1W
l Display frame frequency: 60HZ（NTSC）,50HZ(PAL
l An exit pupil distance: 20mm
l An exit pupil diameter: 1-2m
l Eyepiece: 16x optical
l Quantity: 1 Set
l Size: 18x8x9CM

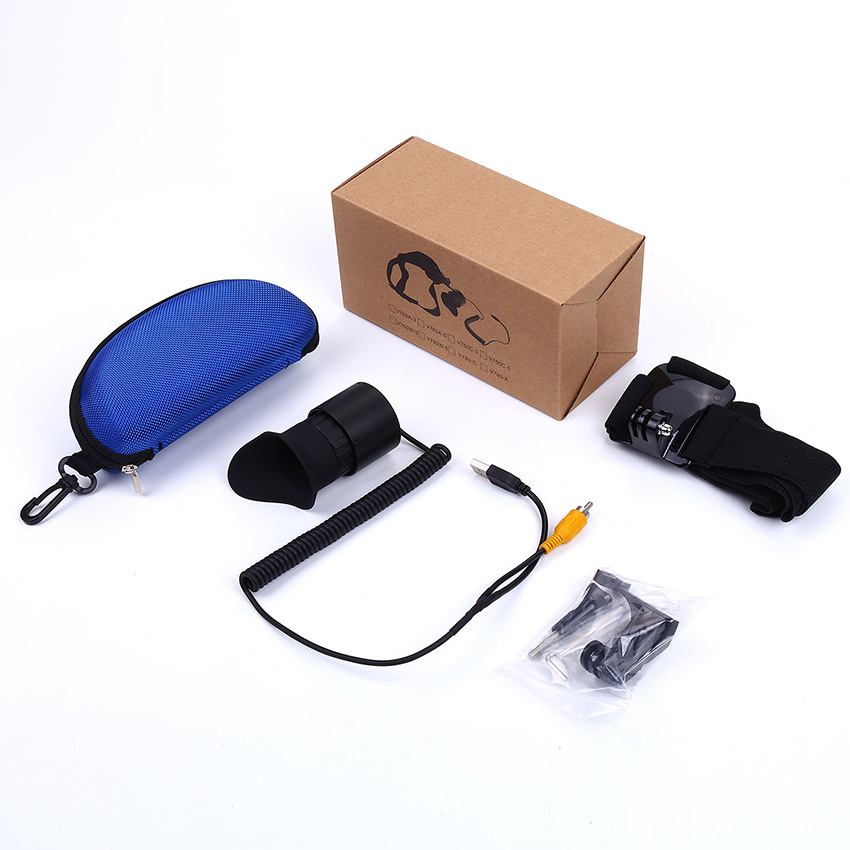

Package:
l 1x Display, 1x Bind, 1x User's Manual
