Product features:

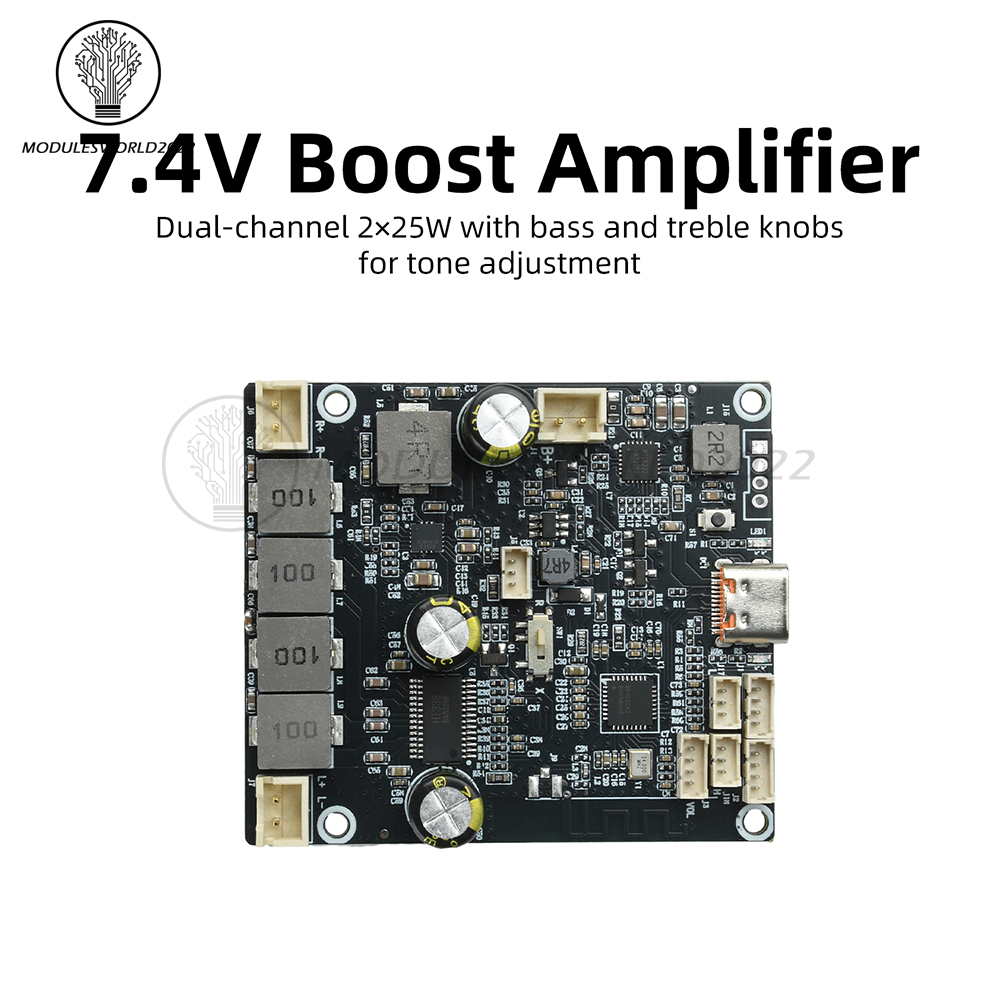

1. 7.4V boost amplifier, dual-channel 2×25W, with treble and bass controls
2. Type-C charging; compatible with standard mobile phone chargers; clear charging indicator

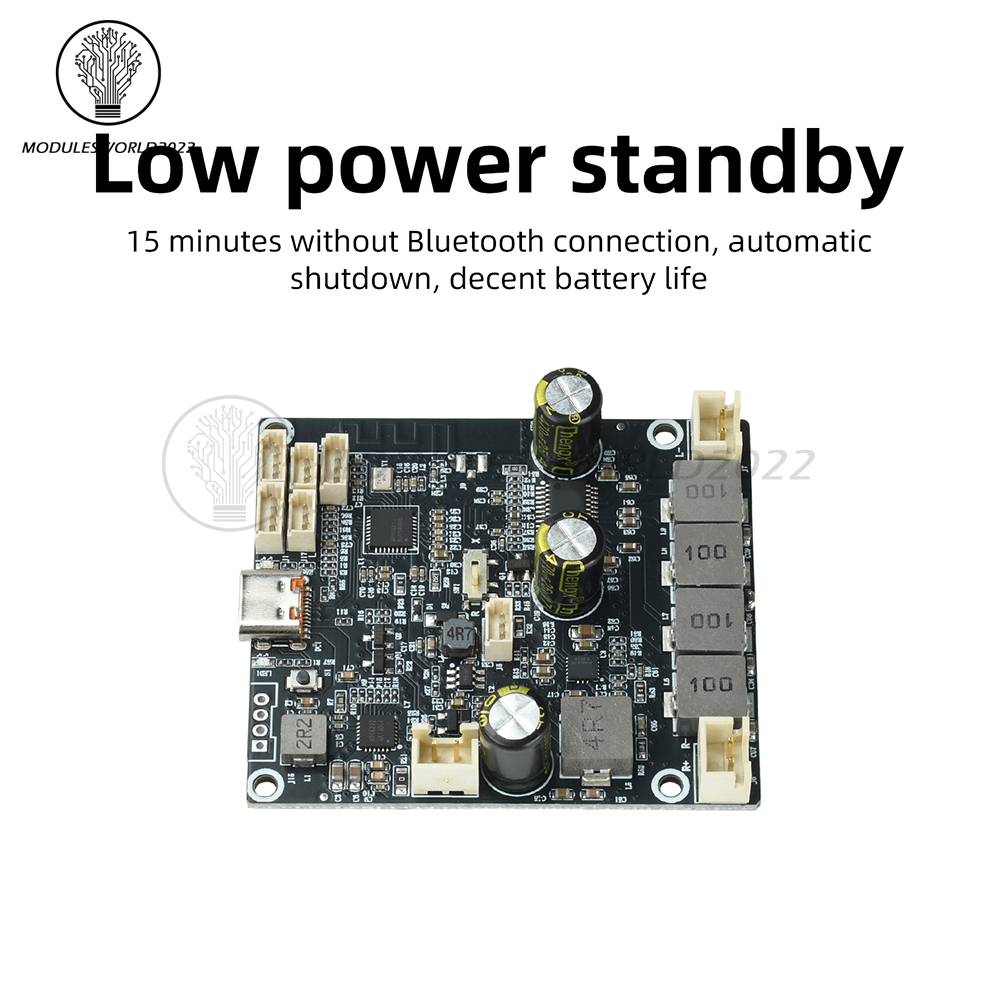

3. Low-power standby mode; automatically switches off after 15 minutes without a Bluetooth connection; impressive battery life

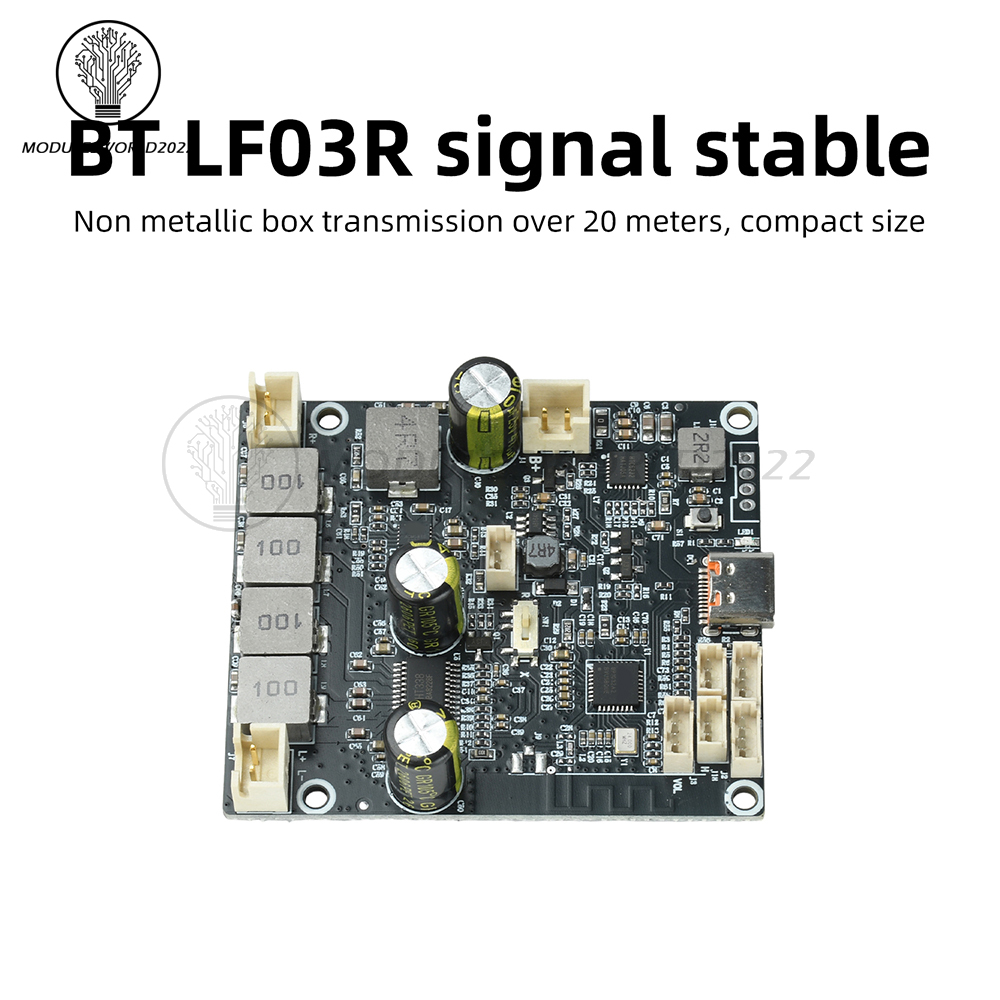

4. Stable LF03R Bluetooth signal; transmission range exceeds 20 metres in non-metallic enclosures; compact size

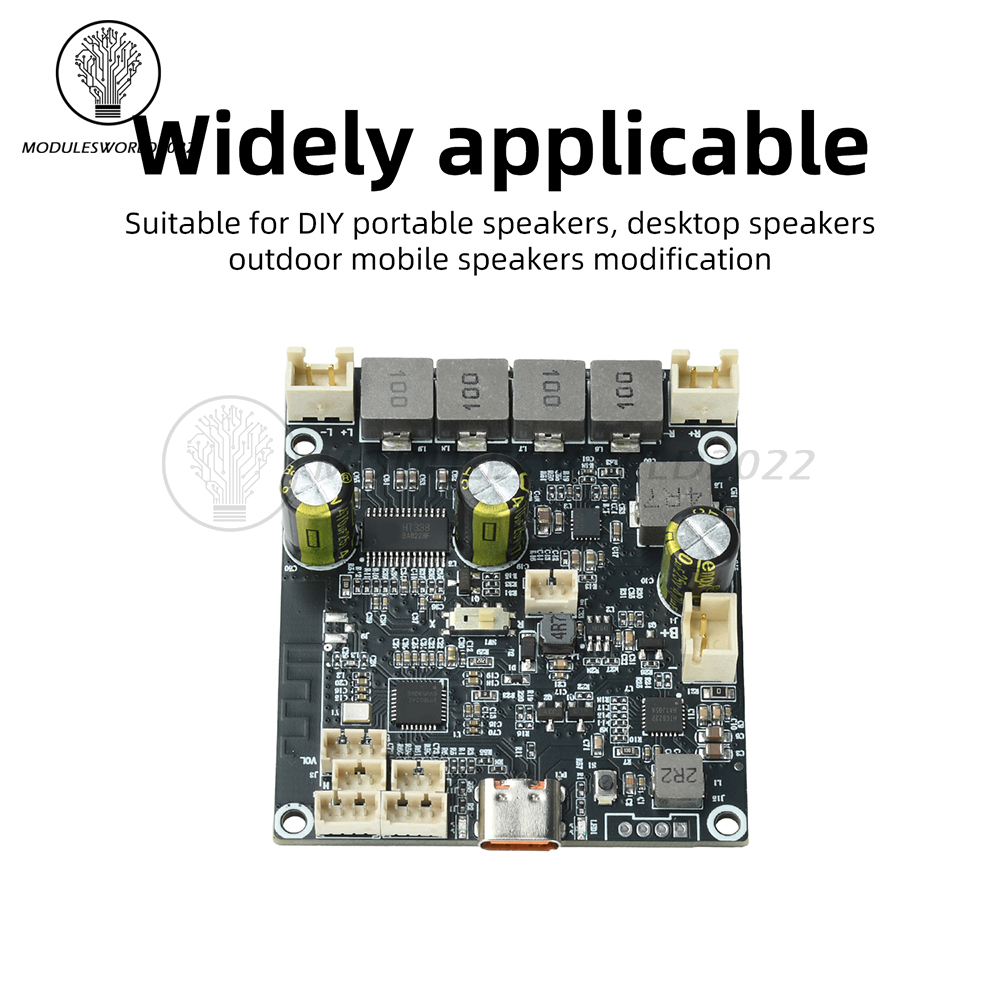

5. Suitable for DIY portable speakers, desktop audio systems and outdoor portable speaker modifications
1. 7.4V boost amplifier, dual-channel 2×25W, with treble and bass controls
2. Type-C charging; compatible with standard mobile phone chargers; clear charging indicator
3. Low-power standby mode; automatically switches off after 15 minutes without a Bluetooth connection; impressive battery life
4. Stable LF03R Bluetooth signal; transmission range exceeds 20 metres in non-metallic enclosures; compact size
5. Suitable for DIY portable speakers, desktop audio systems and outdoor portable speaker modifications

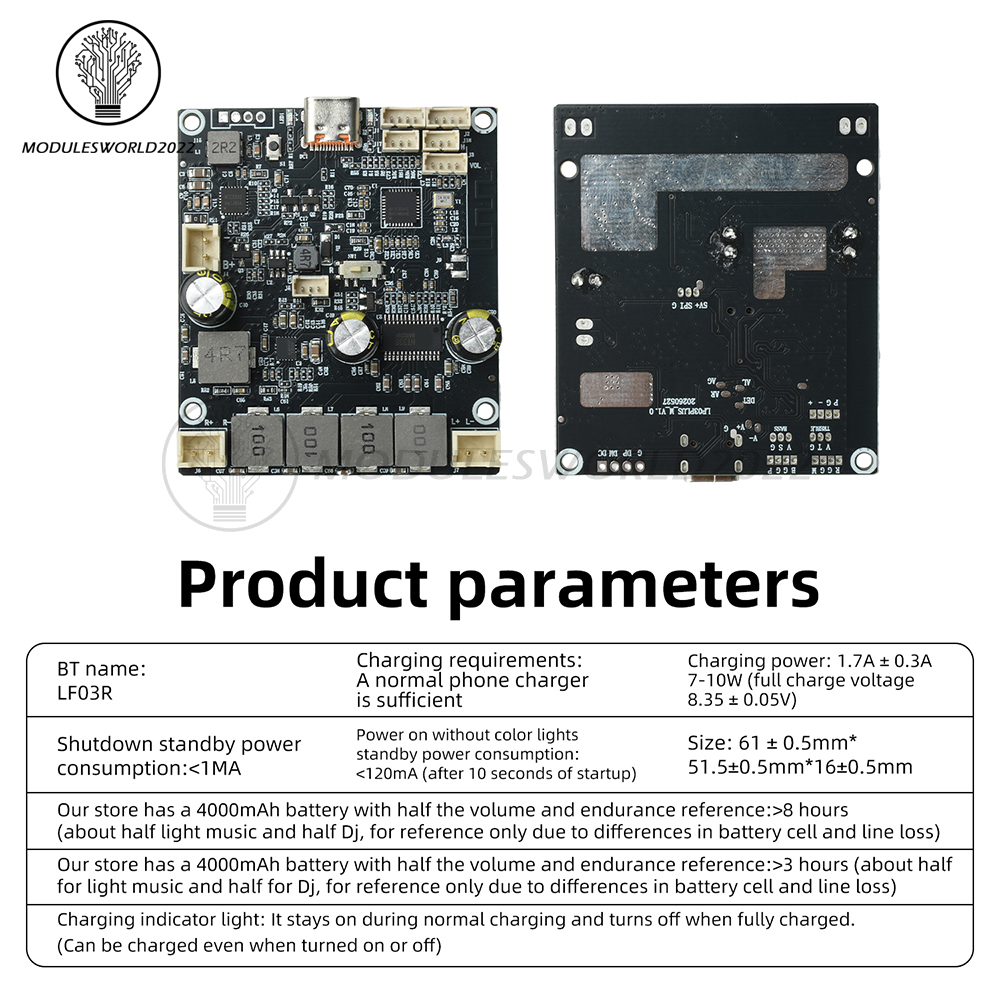

Product Specifications:
Bluetooth Name: LF03R
Charging Requirements: Standard mobile phone charger is sufficient
Charging power: 1.7A ± 0.3A / 7–10W (full charge voltage 8.35 ± 0.05V)
Power consumption in standby mode (power off): <1mA
Power consumption in standby mode (power on, no coloured lights): <120mA (10 seconds after powering on)
Reference battery life for our shop’s 4000mAh battery at half volume: >8 hours (approximately half light music and half DJ tracks; for reference only due to variations in battery cells and cable losses)
Battery life reference for our 4000 mAh battery at half volume: >3 hours (approximately half light music and half DJ tracks; for reference only due to variations in battery cells and cable losses)
Charging indicator: Remains lit during charging; turns off when fully charged. (Can be charged whilst powered on or off)
Dimensions: 61±0.5 mm × 51.5±0.5 mm × 16±0.5 mm
Bluetooth Name: LF03R
Charging Requirements: Standard mobile phone charger is sufficient
Charging power: 1.7A ± 0.3A / 7–10W (full charge voltage 8.35 ± 0.05V)
Power consumption in standby mode (power off): <1mA
Power consumption in standby mode (power on, no coloured lights): <120mA (10 seconds after powering on)
Reference battery life for our shop’s 4000mAh battery at half volume: >8 hours (approximately half light music and half DJ tracks; for reference only due to variations in battery cells and cable losses)
Battery life reference for our 4000 mAh battery at half volume: >3 hours (approximately half light music and half DJ tracks; for reference only due to variations in battery cells and cable losses)
Charging indicator: Remains lit during charging; turns off when fully charged. (Can be charged whilst powered on or off)
Dimensions: 61±0.5 mm × 51.5±0.5 mm × 16±0.5 mm

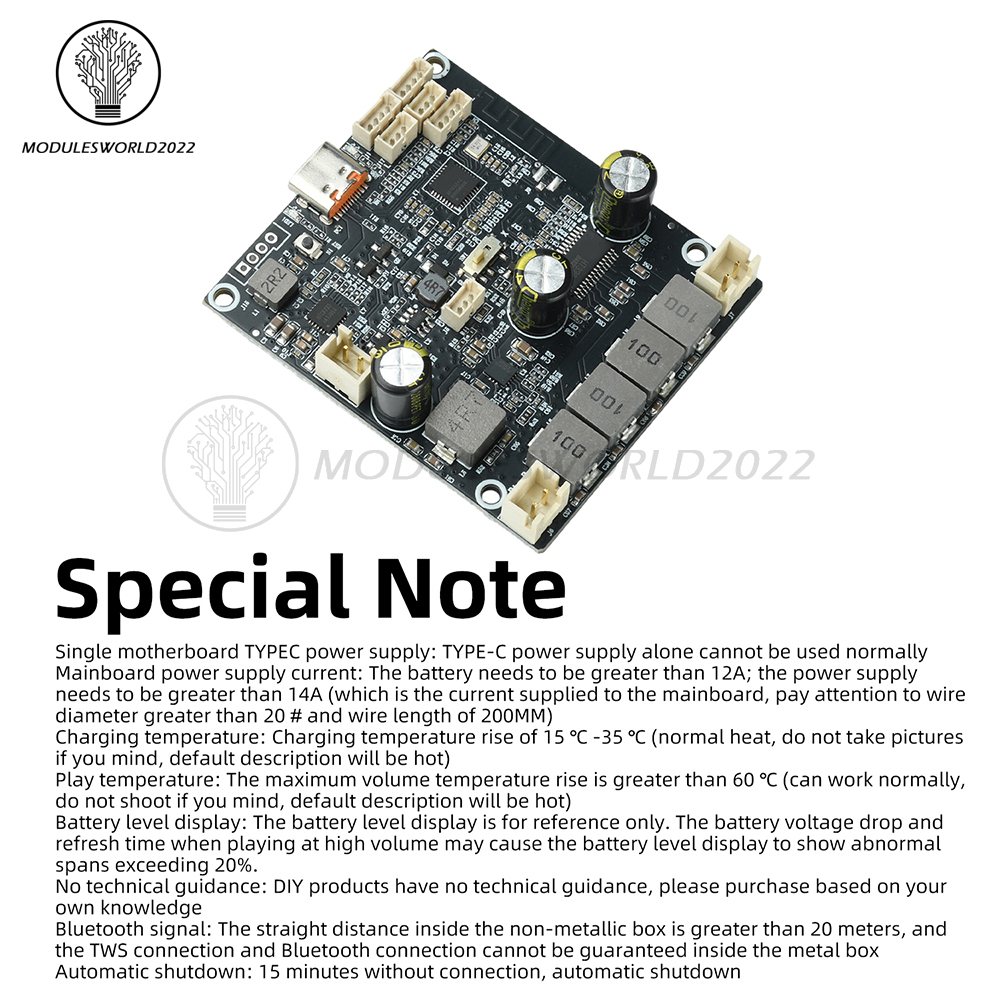

Special notes:
Single-motherboard Type-C power supply: The device will not function properly if powered solely via Type-C.
Motherboard power supply current: The battery must supply more than 12A; the power supply must supply more than 14A (this refers to the current supplied to the motherboard; please ensure the cable gauge is greater than 20# and the length is 200 mm).
Charging temperature: Temperature rise during charging: 15°C–35°C (normal heat generation; please do not purchase if this is a concern; the product description states by default that it may be hot to the touch)
Playback temperature: Temperature rise at maximum volume exceeds 60°C (operates normally; please do not purchase if this is a concern; the product description states by default that it may be hot to the touch)
Battery level display: The battery level display is for reference only; battery voltage drop and refresh intervals during high-volume playback may cause the battery level display to show an abnormal fluctuation of over 20 per cent.
No technical guidance: As this is a DIY product, no technical guidance is provided; please purchase based on your own knowledge
Bluetooth signal: Line-of-sight range > 20 metres in non-metallic enclosures; TWS and Bluetooth connections cannot be guaranteed within metallic enclosures
Auto-shutdown: Automatically shuts down after 15 minutes without a connection
Single-motherboard Type-C power supply: The device will not function properly if powered solely via Type-C.
Motherboard power supply current: The battery must supply more than 12A; the power supply must supply more than 14A (this refers to the current supplied to the motherboard; please ensure the cable gauge is greater than 20# and the length is 200 mm).
Charging temperature: Temperature rise during charging: 15°C–35°C (normal heat generation; please do not purchase if this is a concern; the product description states by default that it may be hot to the touch)
Playback temperature: Temperature rise at maximum volume exceeds 60°C (operates normally; please do not purchase if this is a concern; the product description states by default that it may be hot to the touch)
Battery level display: The battery level display is for reference only; battery voltage drop and refresh intervals during high-volume playback may cause the battery level display to show an abnormal fluctuation of over 20 per cent.
No technical guidance: As this is a DIY product, no technical guidance is provided; please purchase based on your own knowledge
Bluetooth signal: Line-of-sight range > 20 metres in non-metallic enclosures; TWS and Bluetooth connections cannot be guaranteed within metallic enclosures
Auto-shutdown: Automatically shuts down after 15 minutes without a connection

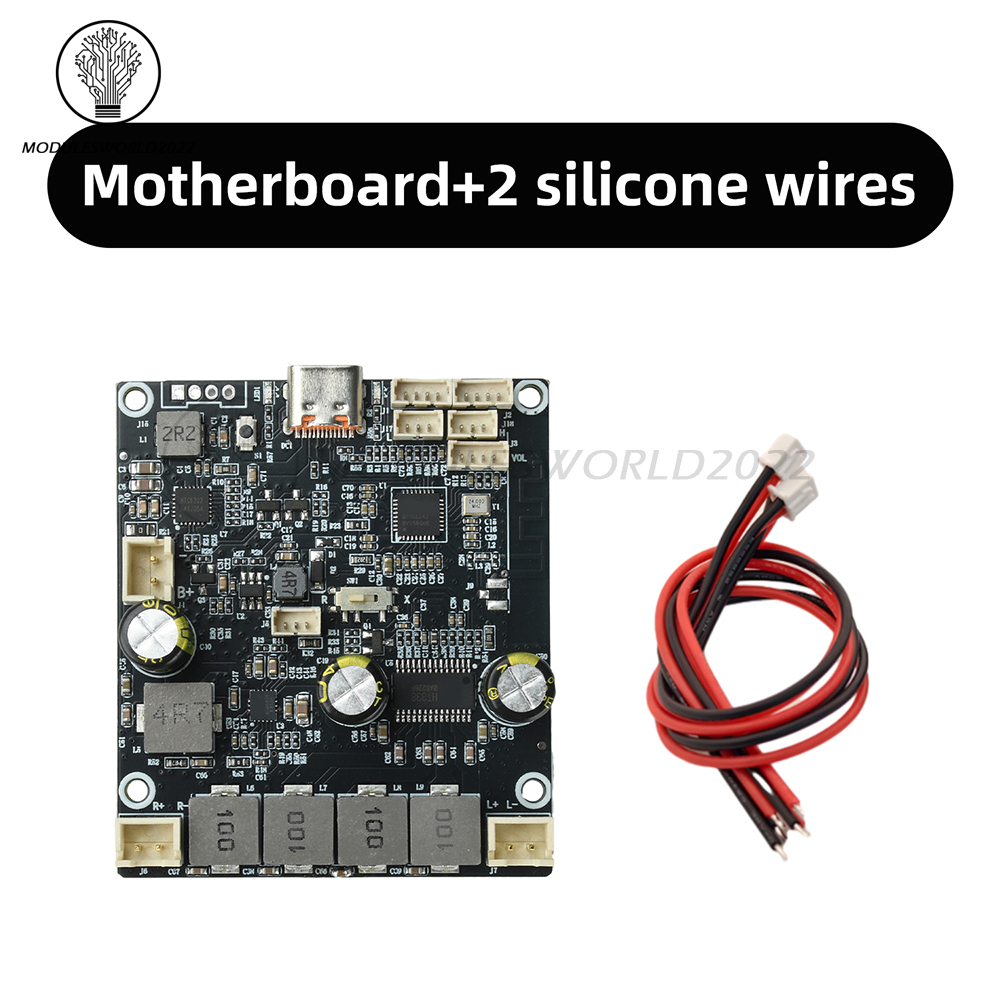

Product contents:

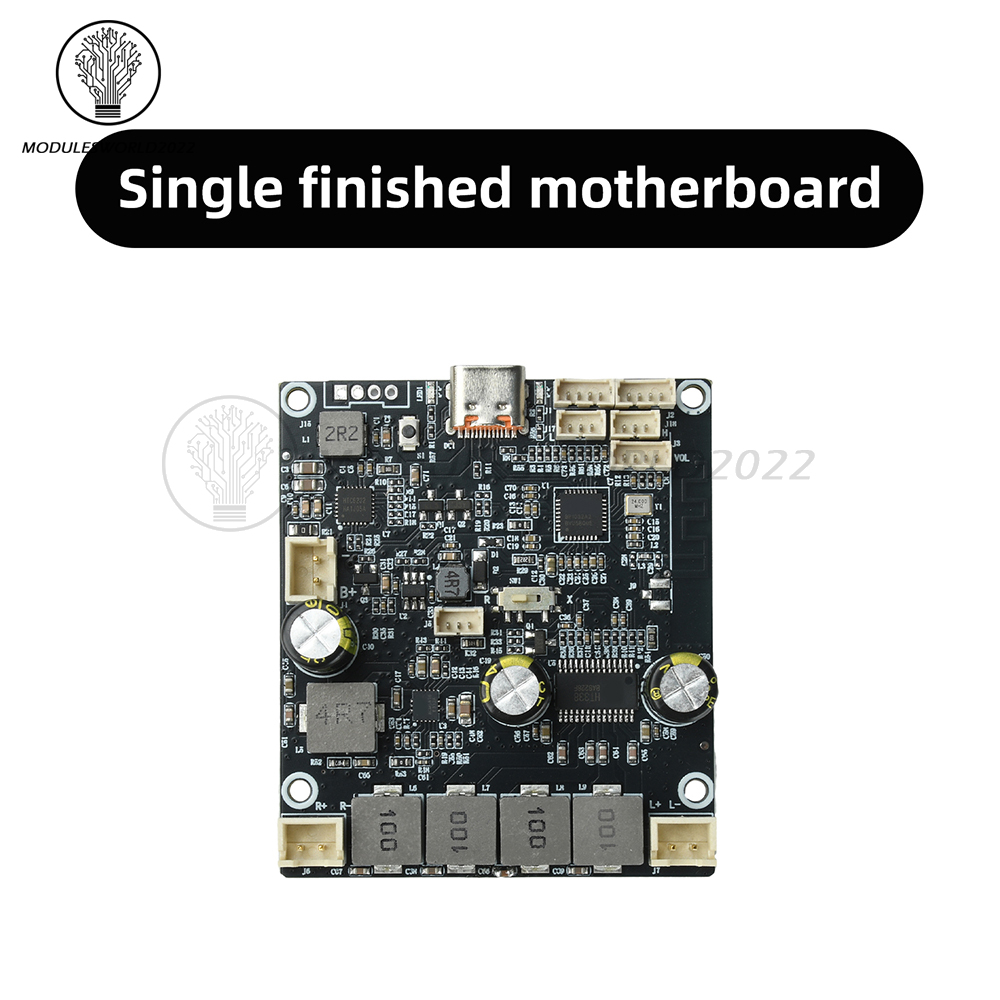

1 x Amplifier board
1 x Amplifier board
