Features

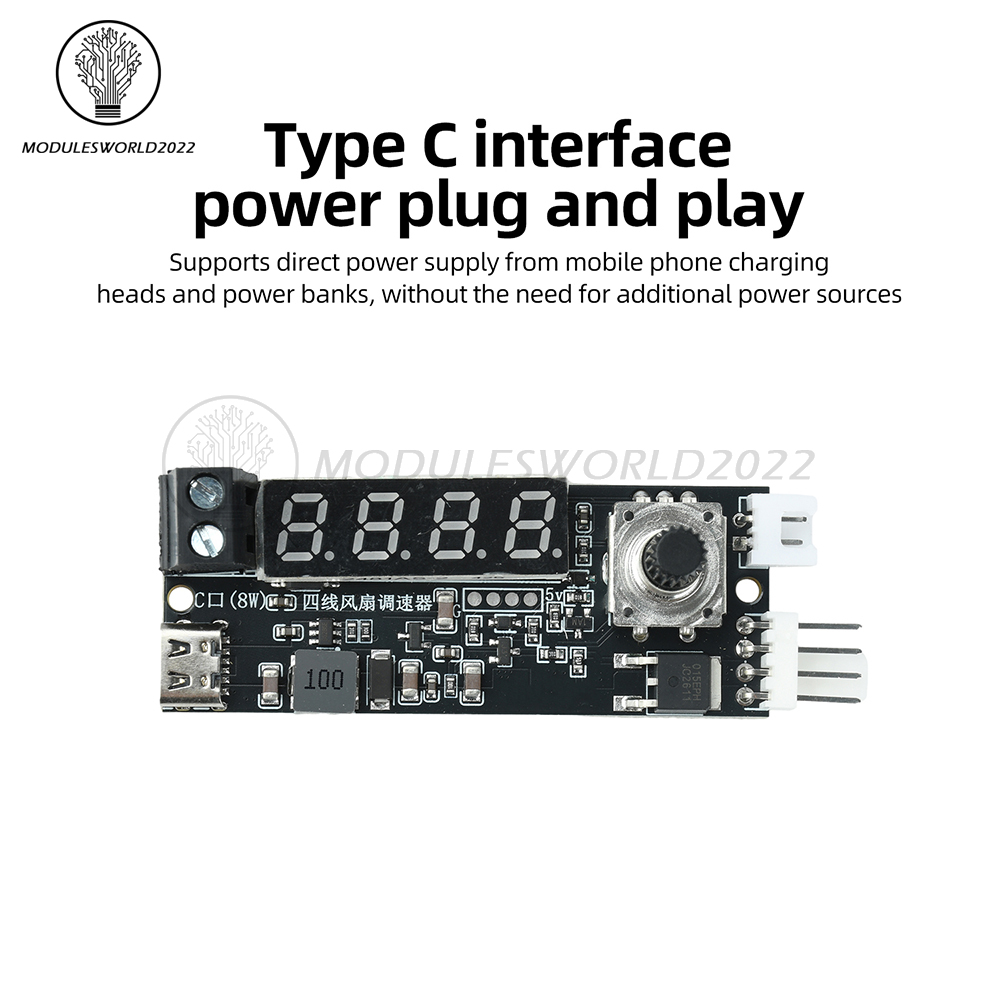

1. Type C interface power supply, plug and play; Supports direct power supply from mobile phone charging heads and power banks, without the need for additional power sources
After the temperature reaches the preset value, the PWM duty cycle increases linearly and smoothly from 10% to 100%, and the air volume changes with temperature
3. High definition digital display, one click switch to display real-time temperature or current speed, intuitive and controllable status
4. Integrated digital display and precise speed regulation, achieving professional level temperature control at low cost
5. Compatible with various four wire PWM fans, suitable for computer cooling, motor cooling, computer rooms, greenhouses, fish tanks and other scenarios
1. Type C interface power supply, plug and play; Supports direct power supply from mobile phone charging heads and power banks, without the need for additional power sources
After the temperature reaches the preset value, the PWM duty cycle increases linearly and smoothly from 10% to 100%, and the air volume changes with temperature
3. High definition digital display, one click switch to display real-time temperature or current speed, intuitive and controllable status
4. Integrated digital display and precise speed regulation, achieving professional level temperature control at low cost
5. Compatible with various four wire PWM fans, suitable for computer cooling, motor cooling, computer rooms, greenhouses, fish tanks and other scenarios
Parameters
Working voltage: 5V for Type C port and 12.0V for terminal power supply
Adjustment method: Encoder adjustment
Maximum output current: 5A (C port power supply 8W)
Output frequency: 25KHz (adjustable)
Temperature range: -25 ° C~120 ° C
L value range: -25 ° C-119 ° C
H value range: -24 ° C-120 ° C
Return temperature range: 0-15 ° C
Speed/temperature display: Short press to switch temperature/speed display
Temperature probe: NTC10K3950B, wire length 30CM
Working voltage: 5V for Type C port and 12.0V for terminal power supply
Adjustment method: Encoder adjustment
Maximum output current: 5A (C port power supply 8W)
Output frequency: 25KHz (adjustable)
Temperature range: -25 ° C~120 ° C
L value range: -25 ° C-119 ° C
H value range: -24 ° C-120 ° C
Return temperature range: 0-15 ° C
Speed/temperature display: Short press to switch temperature/speed display
Temperature probe: NTC10K3950B, wire length 30CM

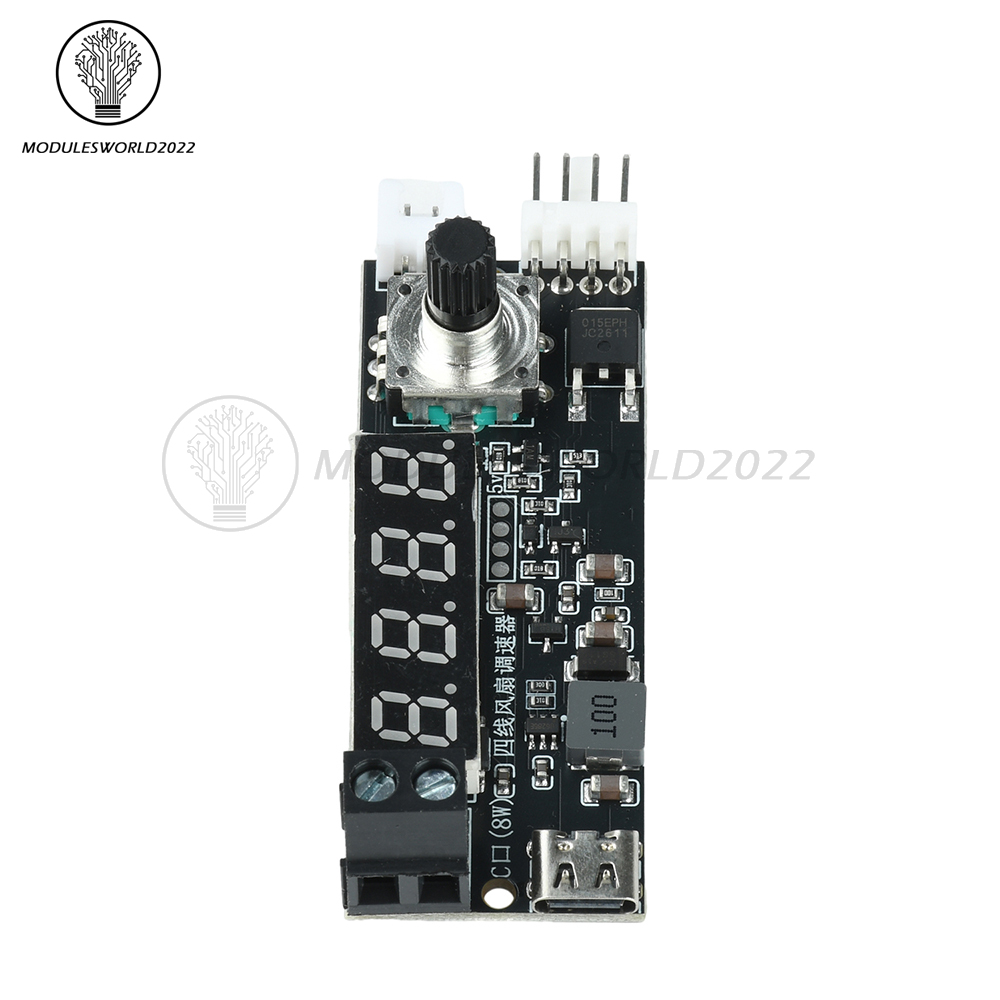

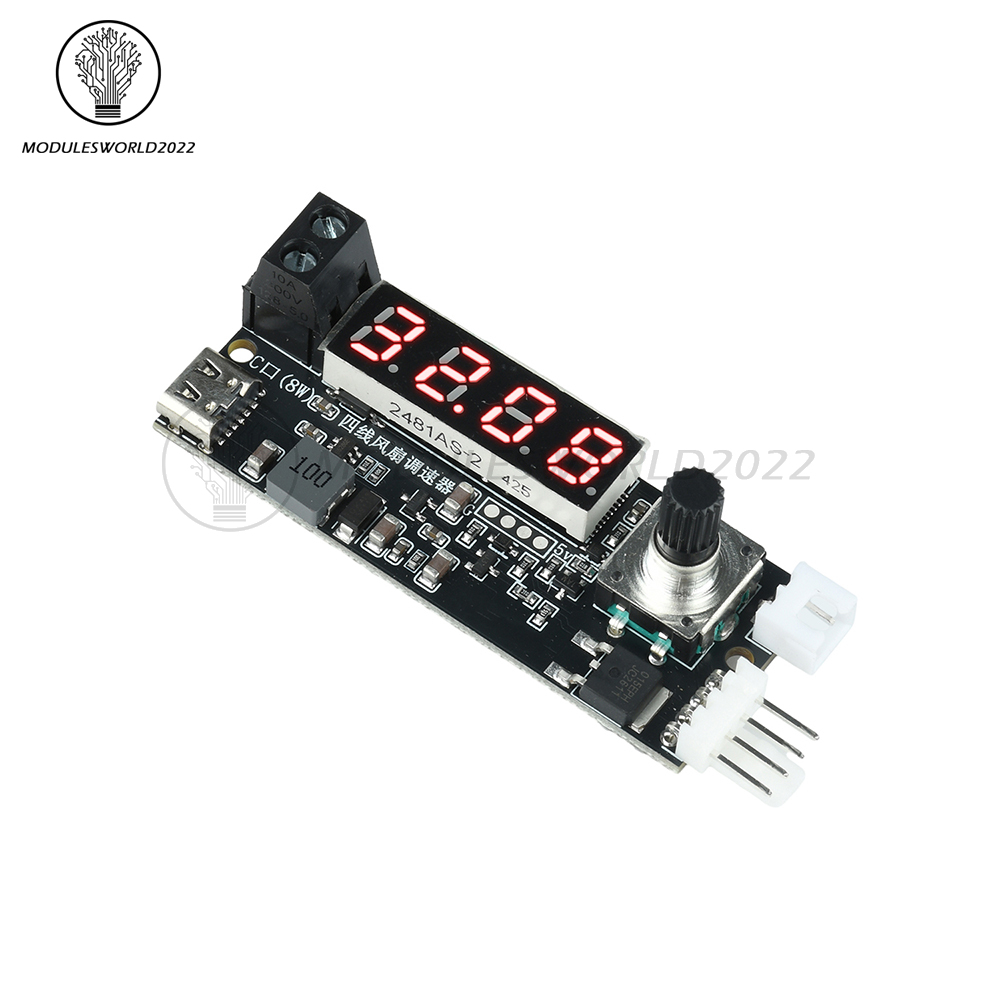

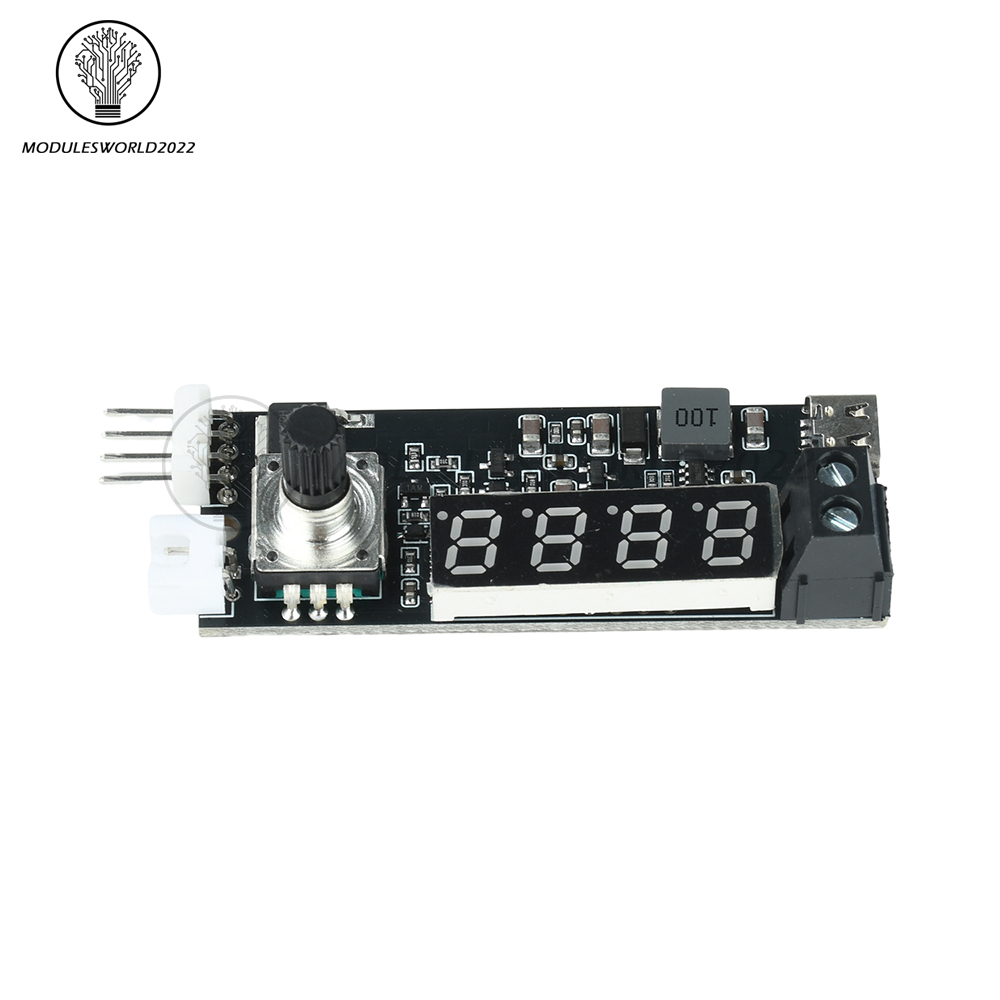

Module Introduction
The Type C interface four wire PWM fan temperature control module is a low-cost temperature to PWM adjustable fan speed module with digital display. The C port can be powered by a mobile phone charging head and can output PWM duty cycle according to temperature changes. When the temperature reaches the preset temperature L, the PWM starts to output 10%. As the temperature rises, the PWM duty cycle gradually increases. When the temperature reaches the preset H value, the maximum duty cycle is output to make the motor run at full speed. It can also display temperature or speed. Mainly used in heat dissipation and temperature control application scenarios, coupled with motor drive, it can be extended to many applications. Application areas: computers, motors, computer rooms, greenhouse planting, fish tanks, etc.
The Type C interface four wire PWM fan temperature control module is a low-cost temperature to PWM adjustable fan speed module with digital display. The C port can be powered by a mobile phone charging head and can output PWM duty cycle according to temperature changes. When the temperature reaches the preset temperature L, the PWM starts to output 10%. As the temperature rises, the PWM duty cycle gradually increases. When the temperature reaches the preset H value, the maximum duty cycle is output to make the motor run at full speed. It can also display temperature or speed. Mainly used in heat dissipation and temperature control application scenarios, coupled with motor drive, it can be extended to many applications. Application areas: computers, motors, computer rooms, greenhouse planting, fish tanks, etc.

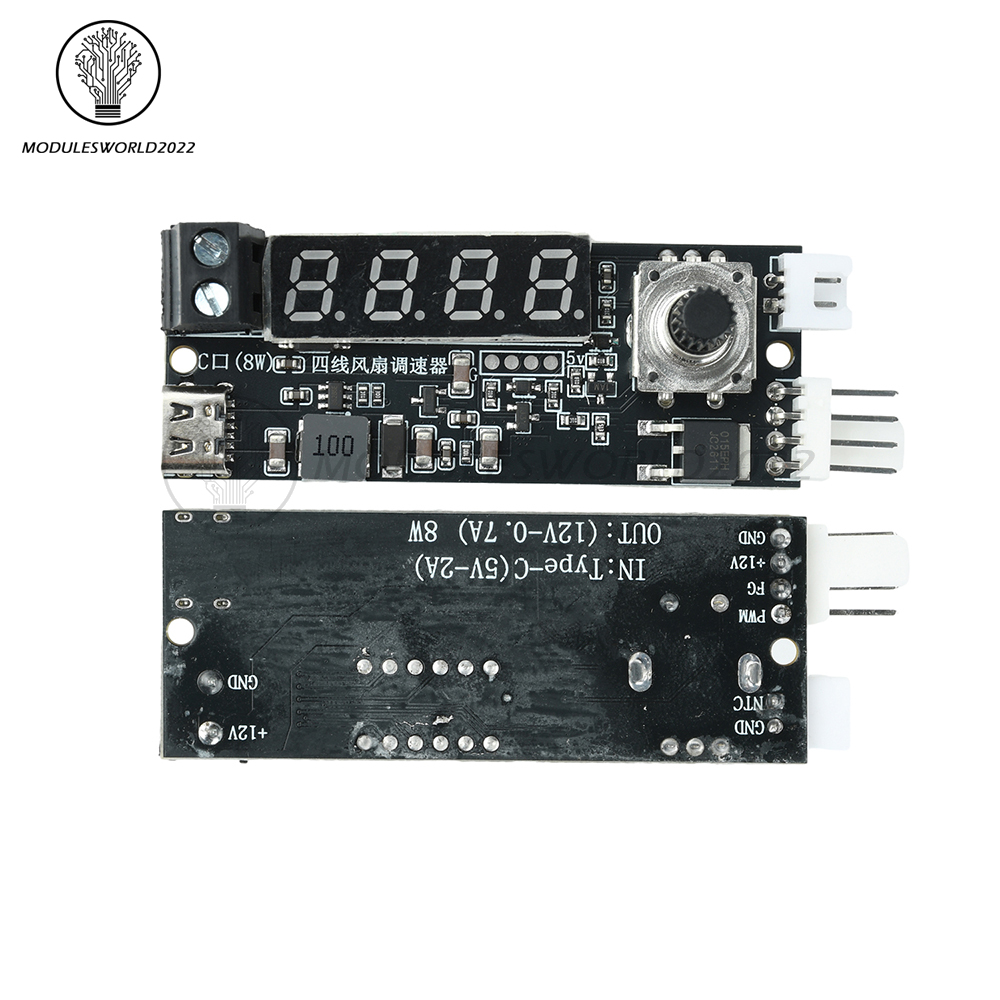

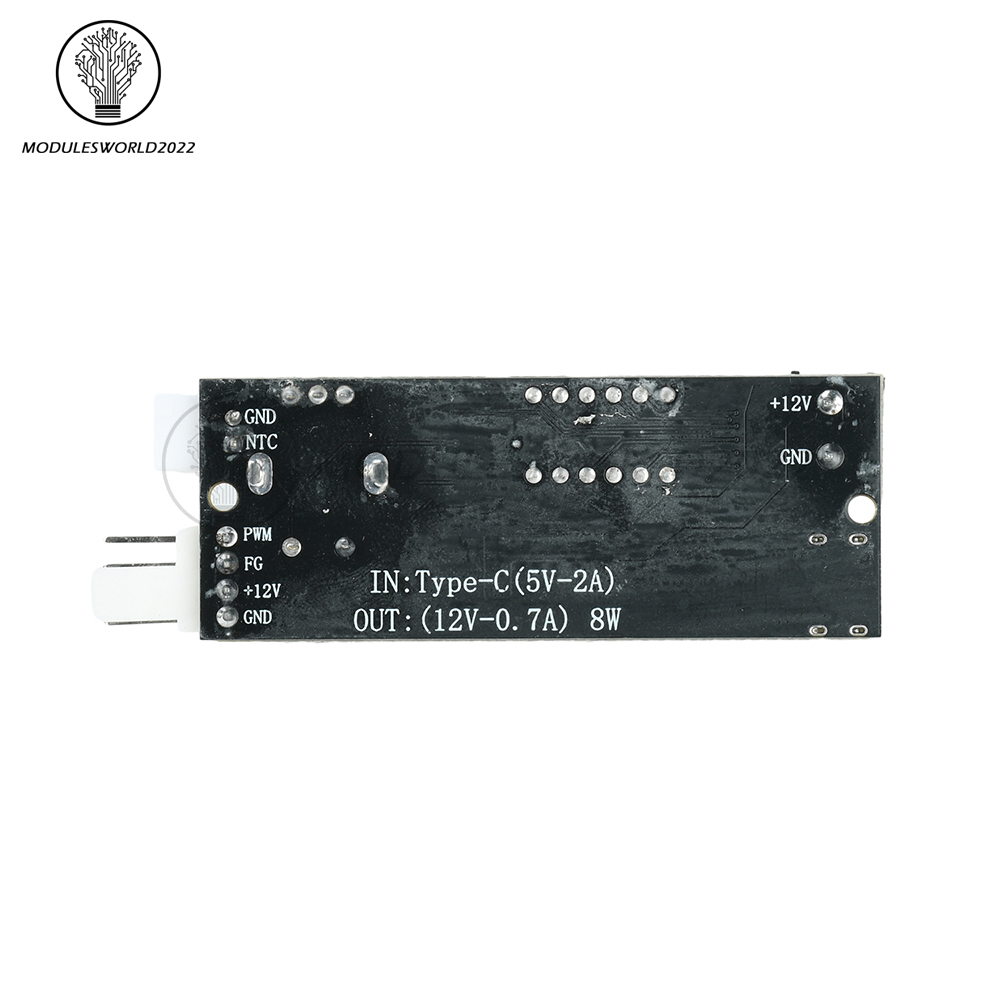

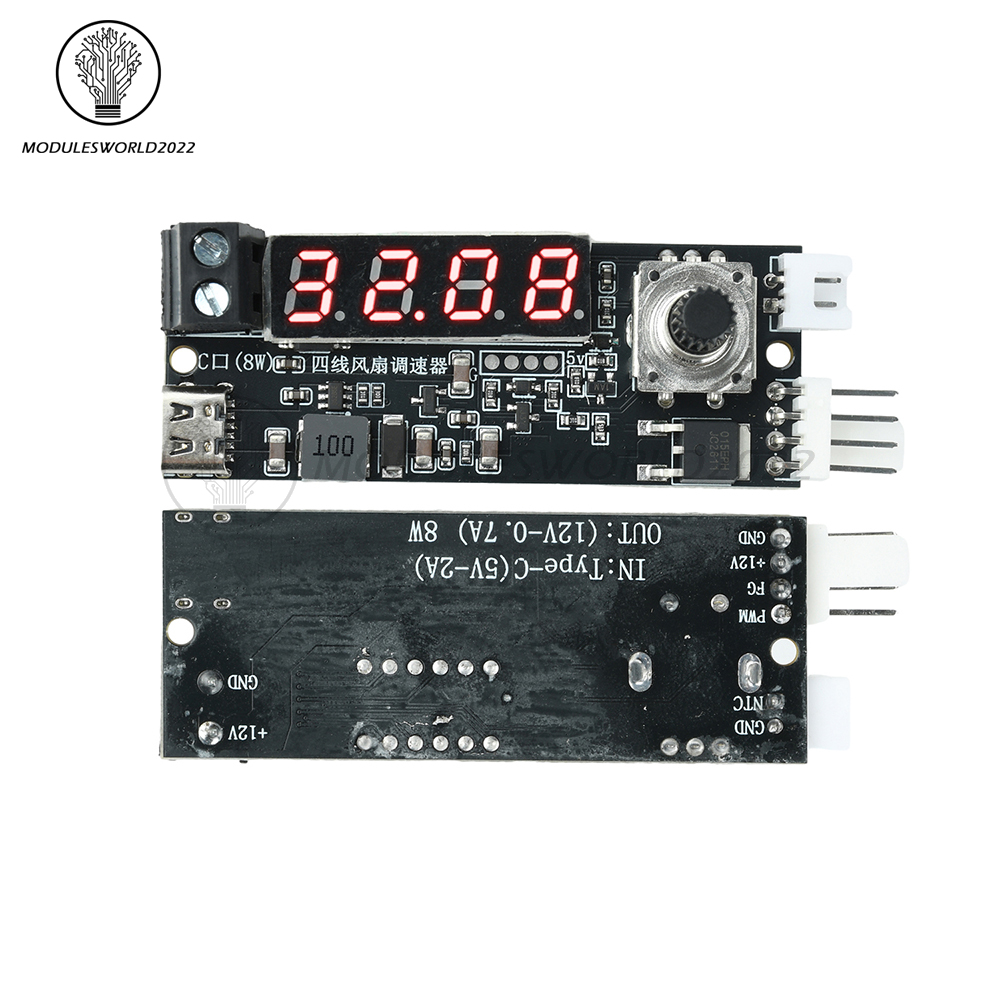

Interface Introduction
PWM output: Fan speed automatically adjusts with temperature changes
GND: Power Ground, 0V
Type C port: 5V power supply, mobile phone charging head power supply
+12V: Positive pole of fan power supply,+12V input
Encoder knob: counterclockwise decrease, clockwise increase, long press to enter settings
Digital tube: displays temperature
Temperature probe: 10K NTC
FG: Fan speed feedback pin
PWM output: Fan speed automatically adjusts with temperature changes
GND: Power Ground, 0V
Type C port: 5V power supply, mobile phone charging head power supply
+12V: Positive pole of fan power supply,+12V input
Encoder knob: counterclockwise decrease, clockwise increase, long press to enter settings
Digital tube: displays temperature
Temperature probe: 10K NTC
FG: Fan speed feedback pin

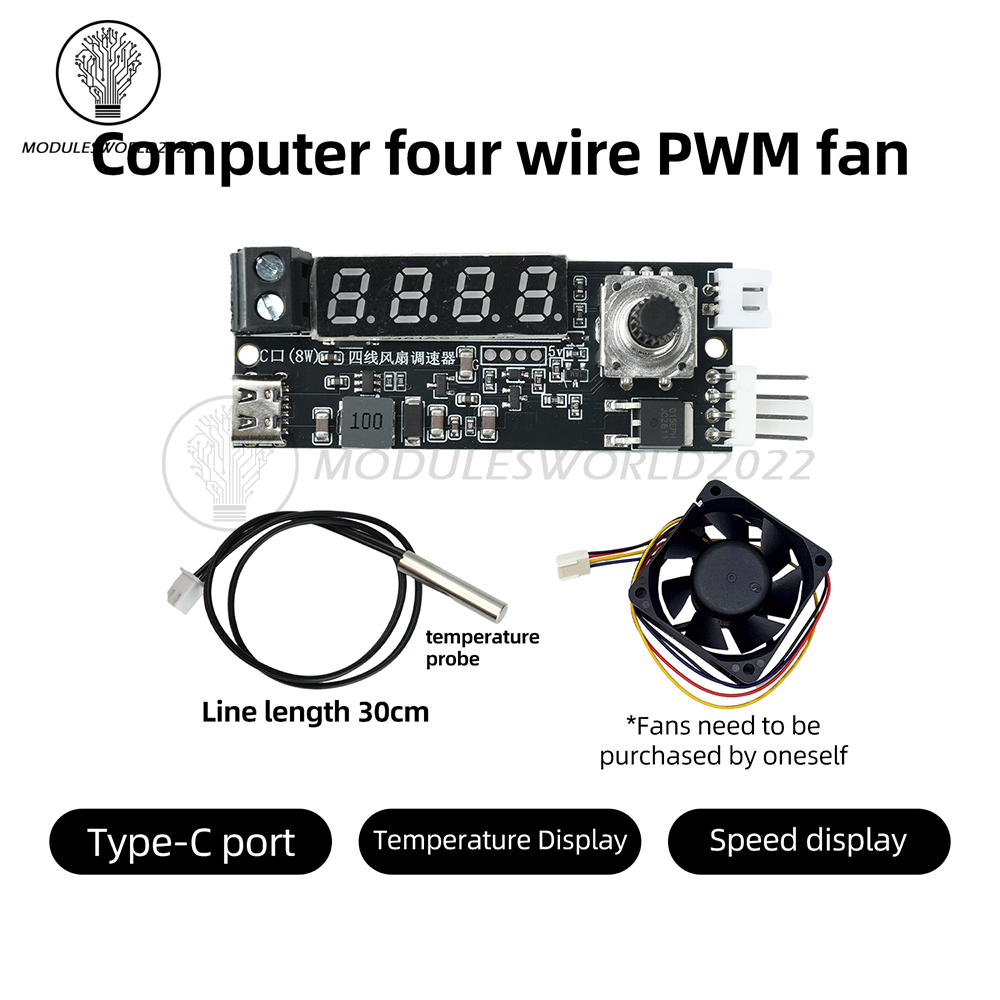

Pacckage Include
Speed regulation module * 1
10K NTC sensor * 1
Speed regulation module * 1
10K NTC sensor * 1
