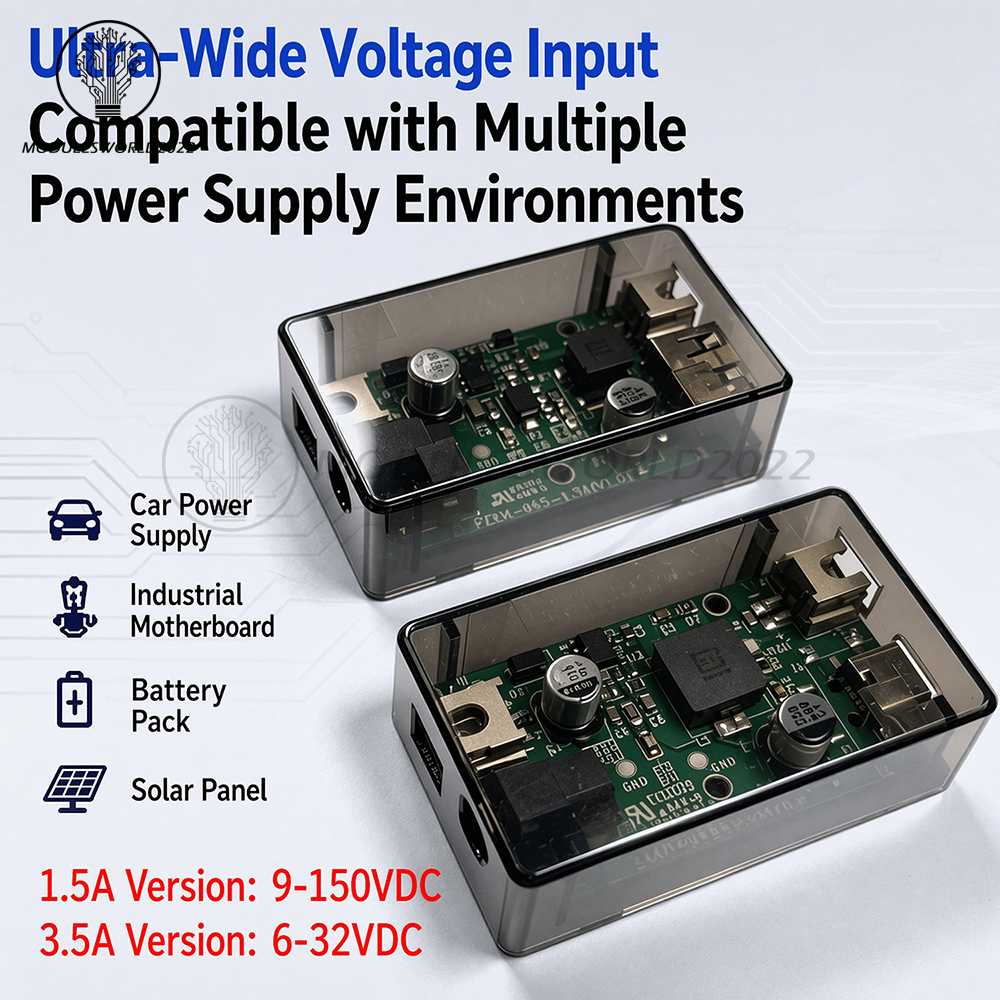

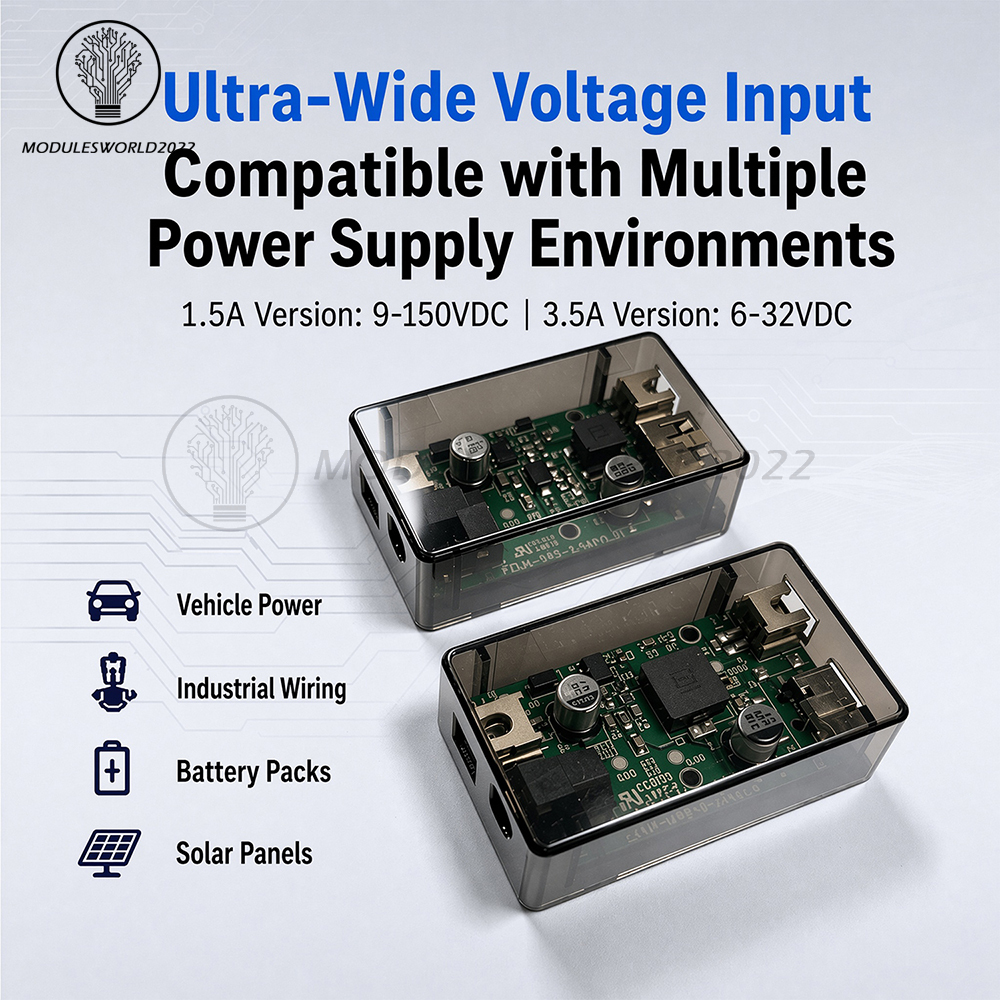

1.Supports DC 9-150V input, compatible with various power supply systems such as 12V/24V/48V vehicle power
2. Adopting an efficient voltage reduction architecture, it features high conversion efficiency and low heat generation, ensuring stable long-term load operation

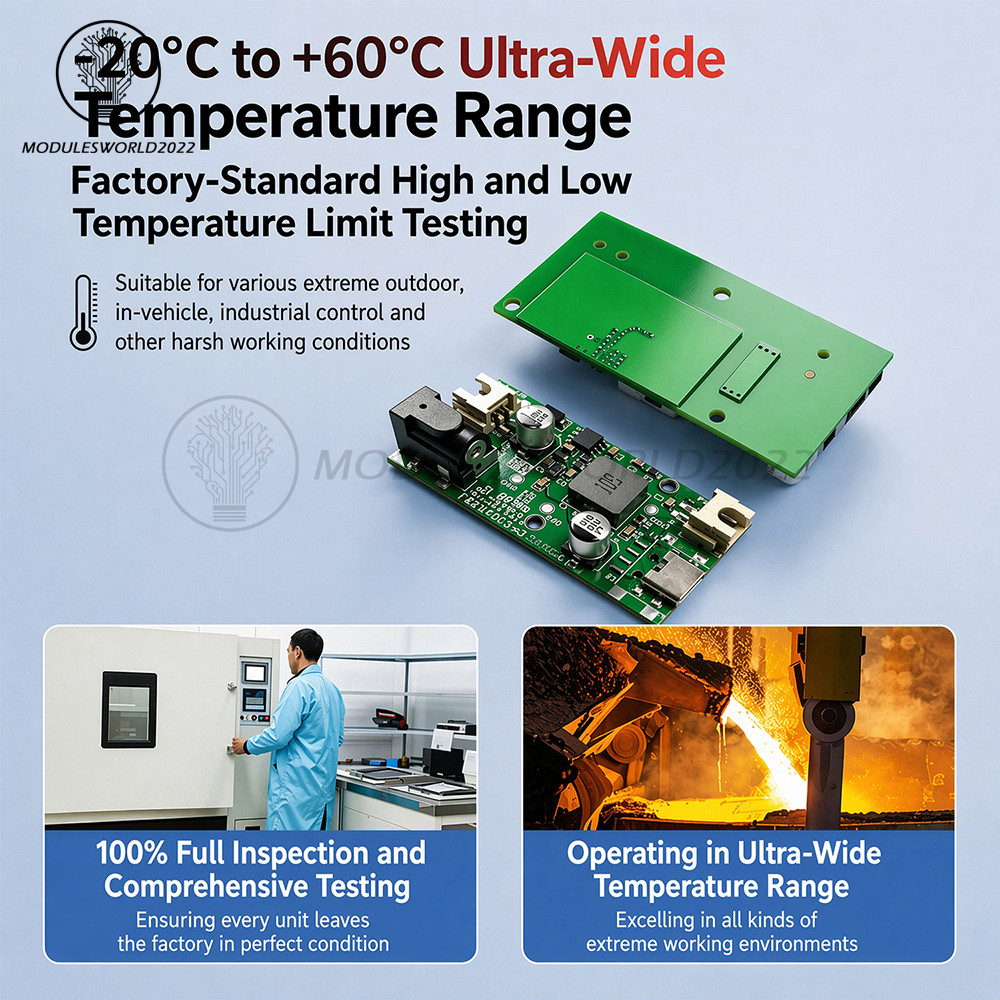

3. Supports an ultra-wide temperature range of -20°C to 60°C, suitable for various extreme conditions such as outdoor, automotive, and industrial control environments

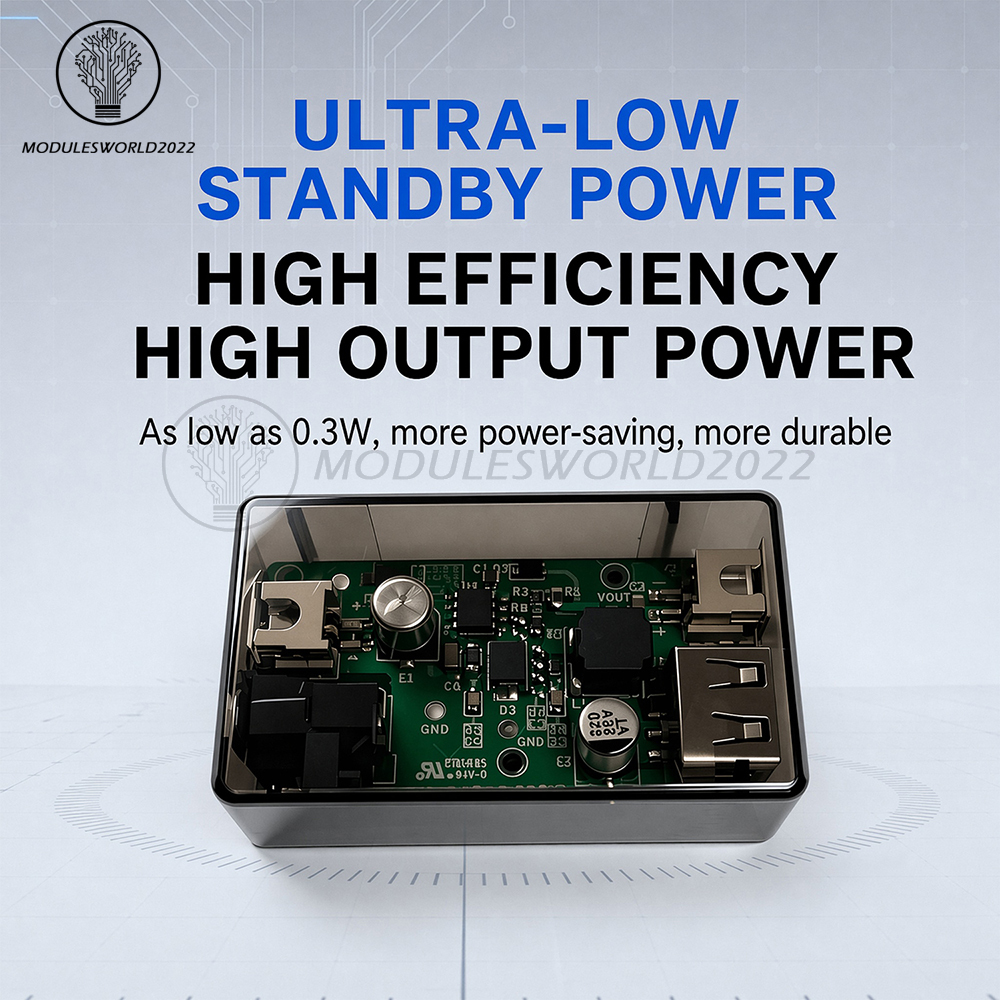

4. Ultra-low standby power consumption as low as 0.3W, high efficiency with sufficient power, more energy-saving and longer-lasting
5. Modular design, compact size with no space occupation, simple wiring, and supports quick installation
6. Suitable for various industrial fields, such as smart homes, healthcare, instrumentation, the internet, railways, and telecommunications

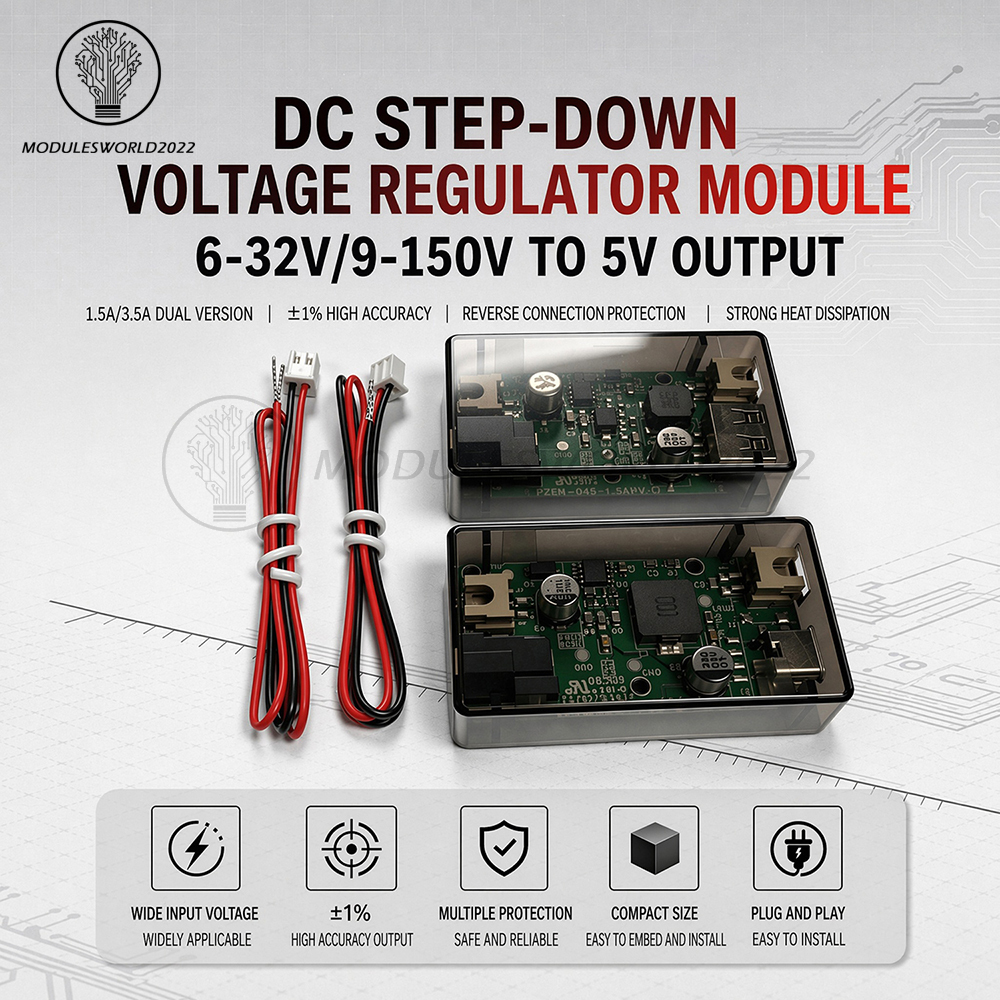

Version 1.5A
Input voltage: DC 9-150V

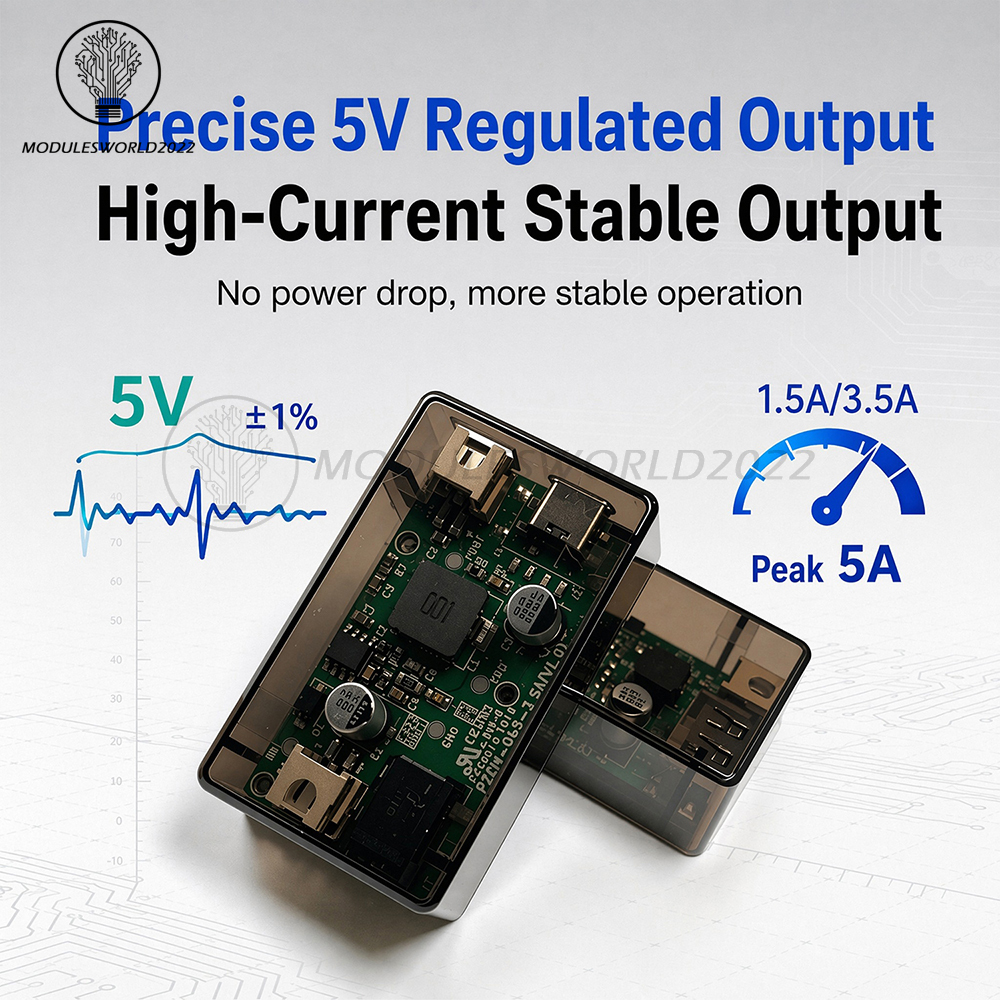

Output voltage: DC 5V
Output current: 1.5A
For high-voltage scenarios, the 1.5A version is recommended

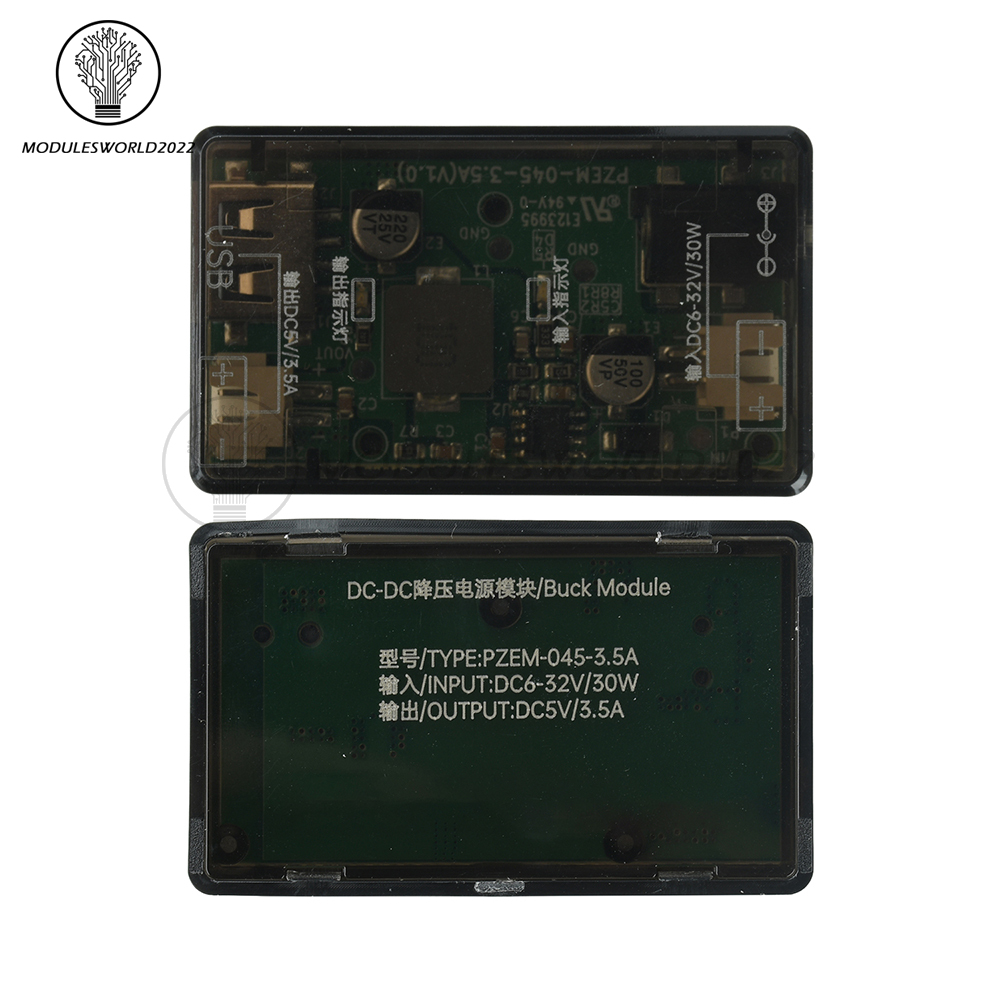

Input voltage: DC 6-32V
Output voltage: DC 5V

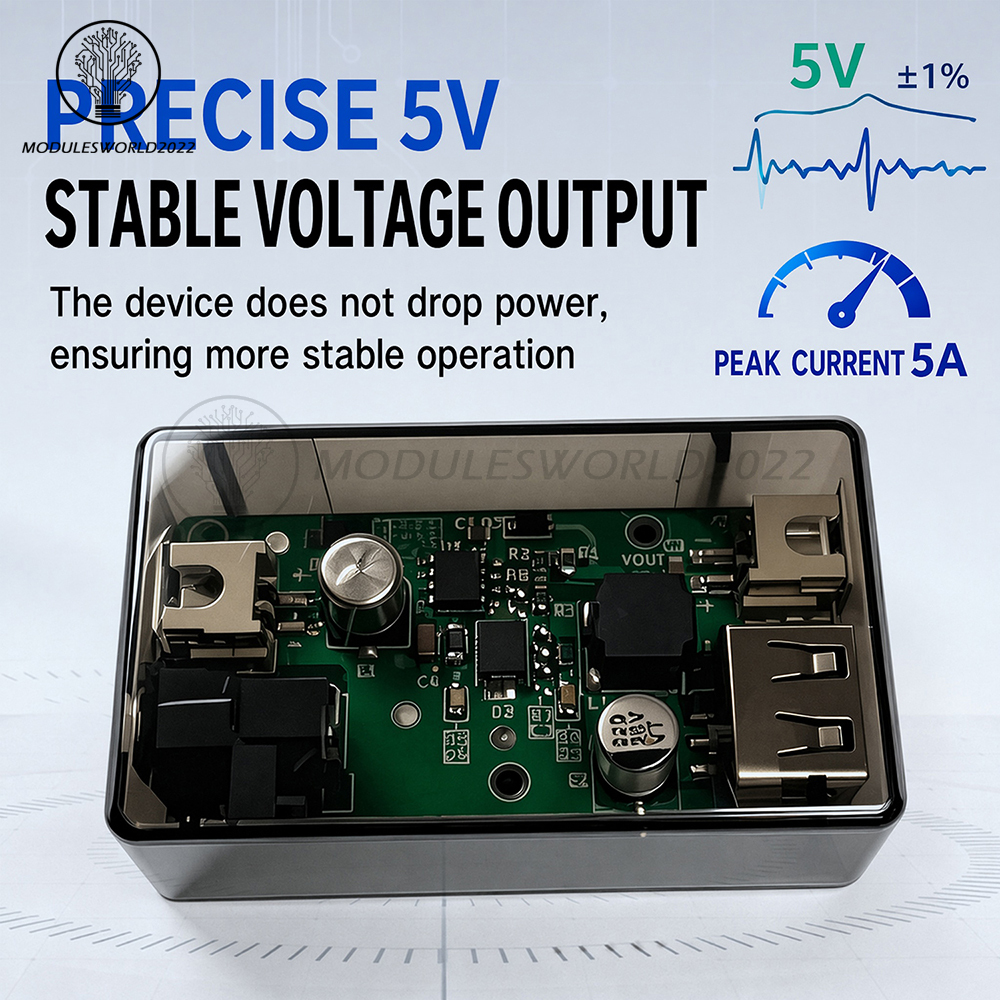

Output current: 3.5A (peak 5A)
For high-current equipment, recommend the 3.5A version

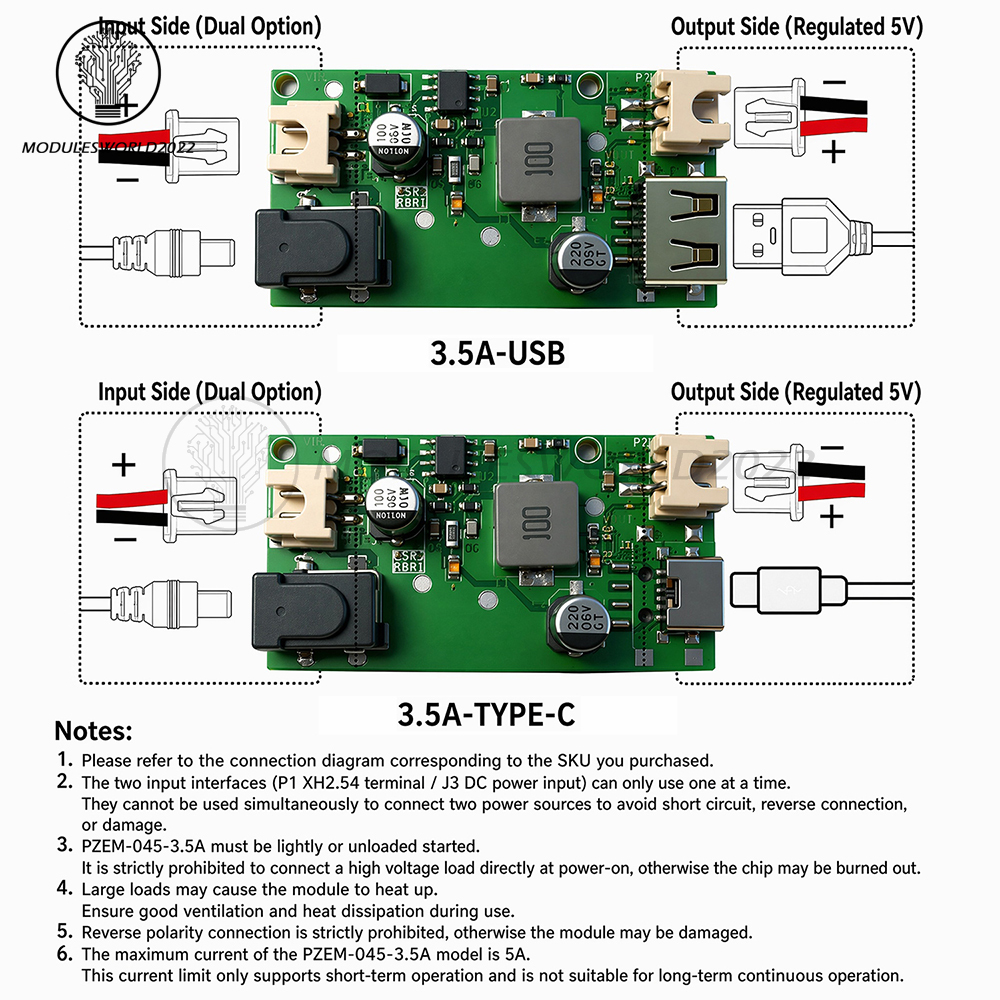

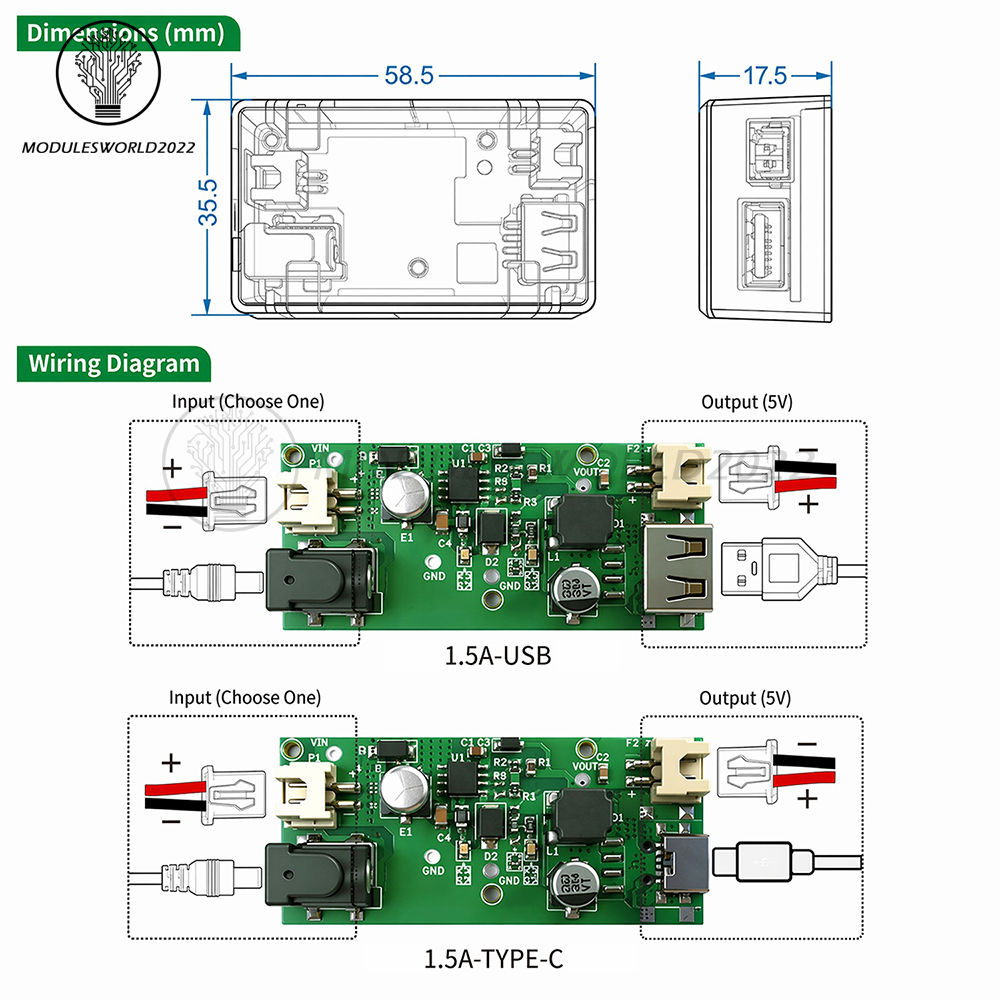

Please refer to the corresponding wiring diagram based on the purchased SKU.
2. Only one of the two input interfaces (P1 XH2.54 screw terminal/J3 DC power input) can be used at a time; connecting both power sources simultaneously is prohibited to prevent short circuits, reverse current damage, and other hazards.
Model 3.3.5A must be started under light or no load. Direct full-load operation under high voltage is strictly prohibited, as it may damage the chip.
4. An increase in load will lead to intensified module heating; ensure proper heat dissipation during operation.

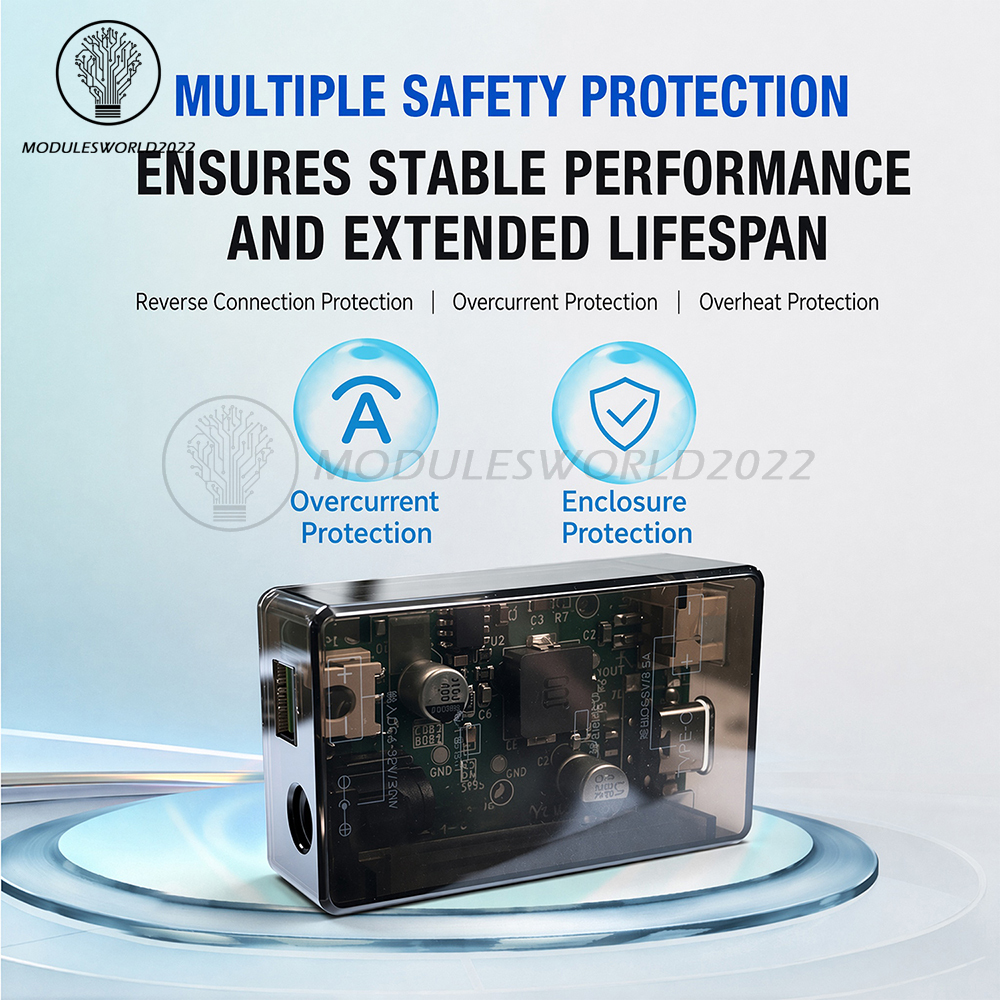

5. The input polarity must not be reversed; otherwise, the module may be damaged.
The maximum current for the 6.3.5A model is 5A, which is only suitable for short-term operation and cannot be sustained for prolonged periods.

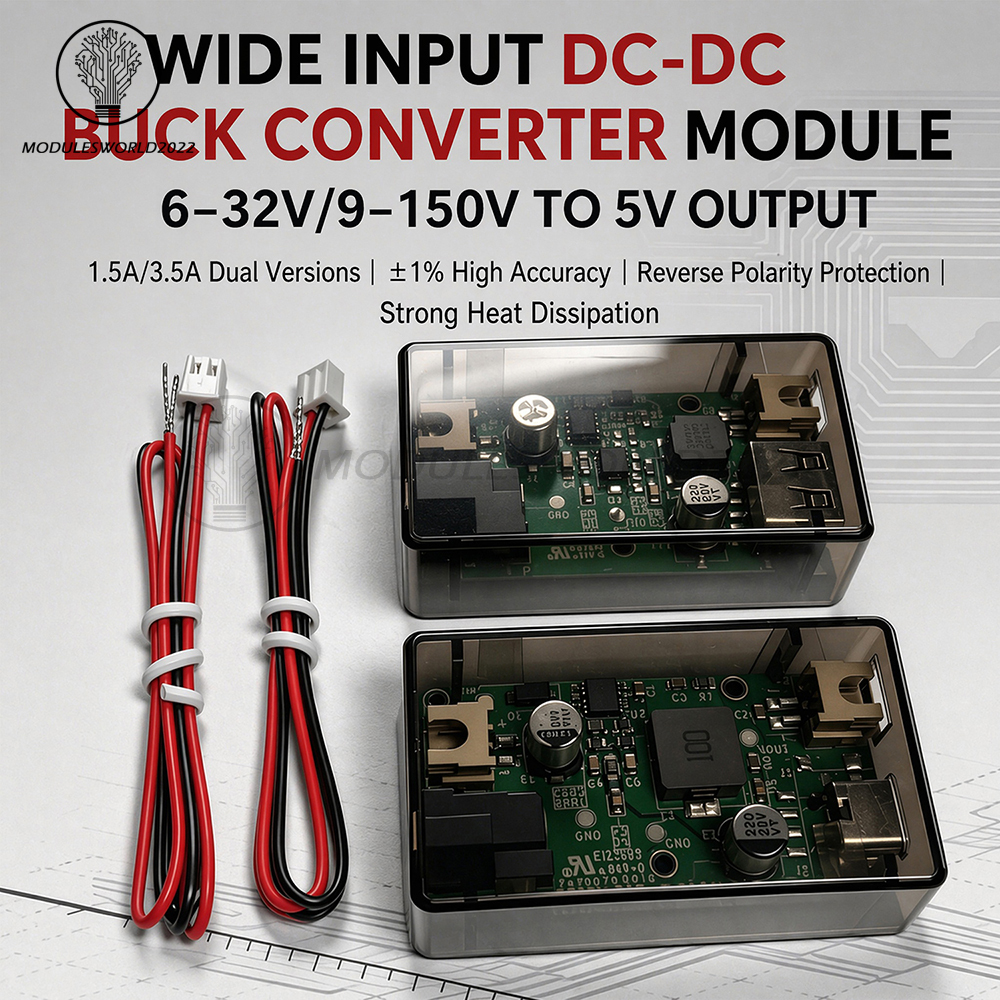

Module *1
XH2.54 wiring *2
