Package Include:

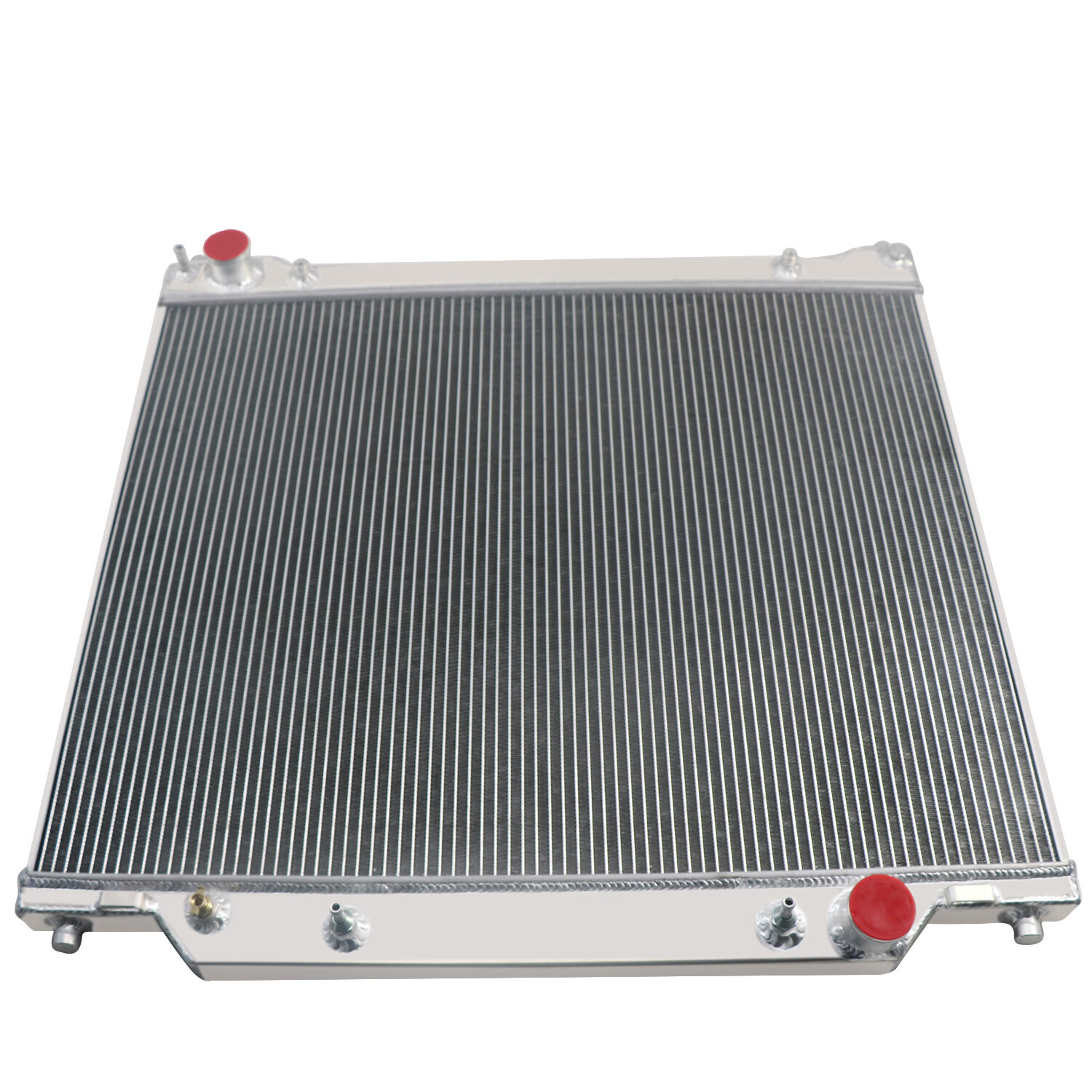

1 X 4-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
2 X 14" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Radiator Size:
Row Count: 4 Rows
Material: AA5052 Aluminum
Core Wide: 23.63in.
Core Height: 30.25in.
Overall Wide:30.24in.
Overall Height:30.4in.
Inlet Diameter: 1 3/4in
Outlet Diameter: 1 3/4in
Inlet Header:30-3/8 In. x 3-1/16 In
Outlet Header:30-3/8 In. x 3-1/16 In
Transmission Oil Cooler:M12X1.0
OEM Style Brass Petcock Drain.
Please check the connector and the size with the original part & OEM number with the original part.

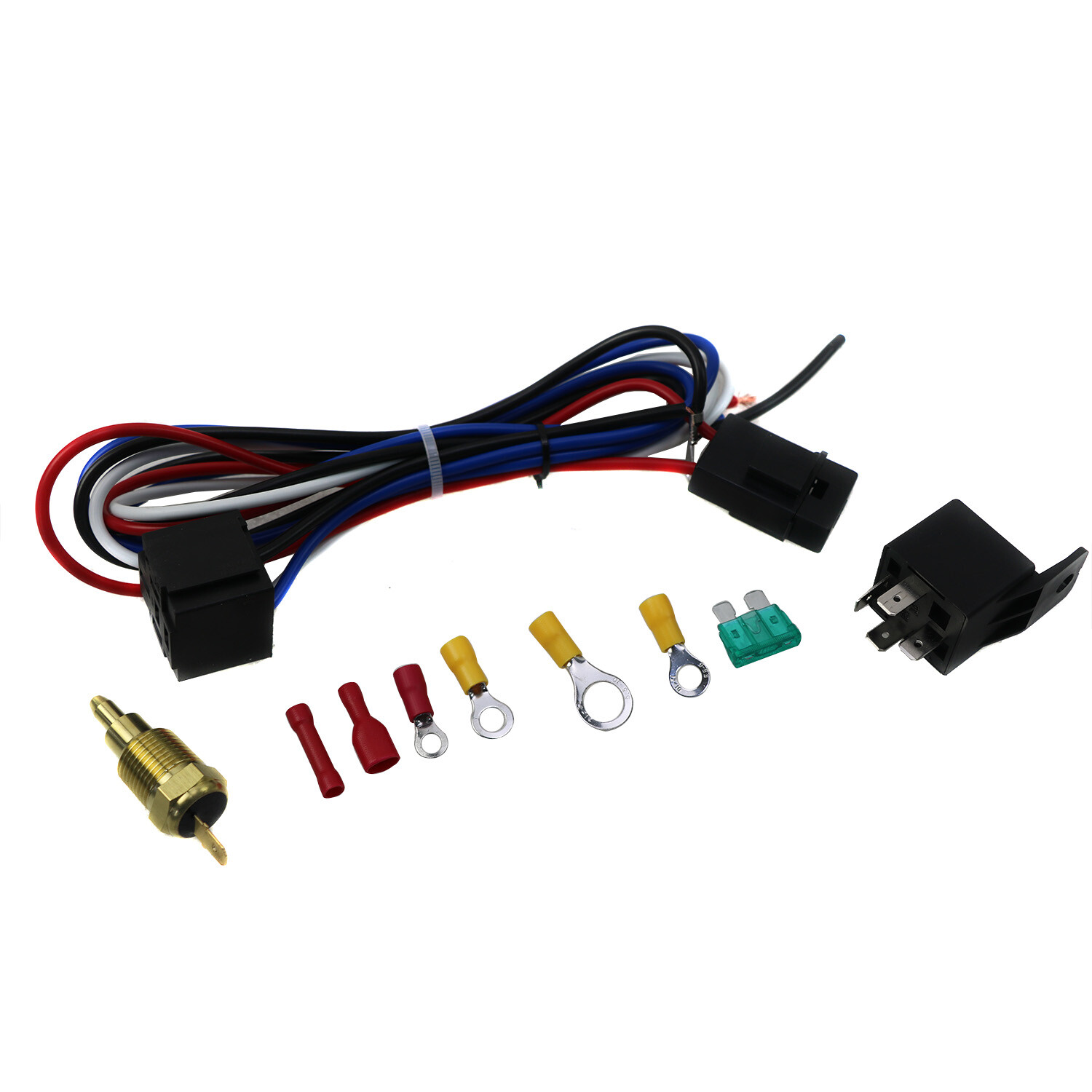

Thermostat Kit:
The thermostat kit is a universal fit, which makes it the perfect choice for any automotive vehicle and electric fan. This thermostat activates by grounding electric fans at preset temperature. It features a 180 degree Fahrenheit turn-on temperature and a 165 degree Fahrenheit turn-off temperature. The 3/8" NPT thread-in brass probe with 1/2" NPT adapter are included.
Thermostat Relay Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Fitment:
1997-2014 Ford E-150 E250 Super Duty 5.4L V8
1997-2014 Ford E-350 Econoline Club Wagon Super Duty 5.4L V8 6.8L 7.3L V10
1997-1998 Ford Club Wagon 5.4L
2003-2014 Ford E-150 5.4L
2003-2005 Ford E-150 Club Wagon 5.4L
1997-2002 Ford E-150 Econoline 5.4L
1997-2002 Ford E-150 Econoline Club Wagon 5.4L
2003-2014 Ford E-250 5.4L
1997-2002 Ford E-250 Econoline 5.4L
2004-2005 Ford E-250 Super Duty 5.4L
2003-2005 Ford E-350 Club Wagon 5.4L
2003 2005 Ford E-350 Club Wagon 6.8L
2003 Ford E-350 Club Wagon 7.3L
1997-1998 2007 Ford E-350 Econoline 5.4L
1997-1998 Ford E-350 Econoline 6.8L
1997-1998 Ford E-350 Econoline 7.3L
1997-2002 Ford E-350 Econoline Club Wagon 5.4L
1997-2002 Ford E-350 Econoline Club Wagon 6.8L
1997-2002 Ford E-350 Econoline Club Wagon 7.3L
1999-2000 2004-2014 Ford E-350 Super Duty 5.4L
1999-2000 2004-2014 Ford E-350 Super Duty 6.8L
1999-2000 Ford E-350 Super Duty 7.3L
2000 2002 2006 Ford Econoline 5.4L
2011 Ford Econoline Wagon 5.4L
Description:
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to
prevent premature engine failure. Its light-weight, and high-heat
transferring aluminum features a tube and fin design that, dramatically
increases surface area that enables the heat to dissipate more
efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones.
Most importantly, it has a much higher capacity for coolant than stock
ones, which means that your cooling system will be more efficient and
will be more resistant to temperature surges in racing applications.
1.Made of AA5052 aircraft aluminum,stronger than other popular alloys and has increased corrosion resistance.
2.Brazed core technology to guarantee optimum performance and dependability.
3.AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable.
4.Higher
density core: cooling rows are spaced 3/8" apart.giving you 25% more
rows within the core than other aluminum radiators.
5.14-16
cooling fins per inch,giving you approximately 1500 more cooling fins
than other aluminum radiators,throws off much more heat.
