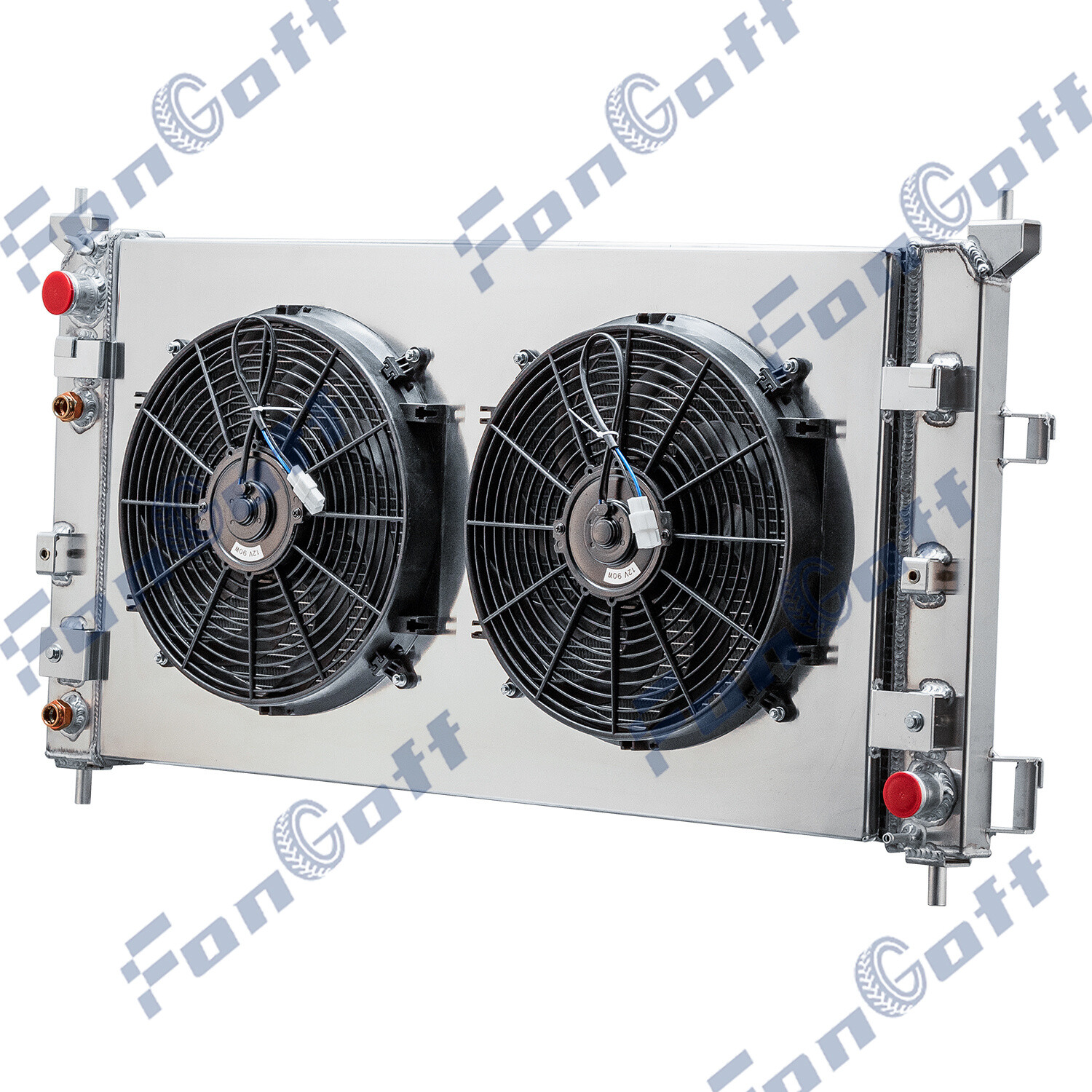

Package included:
1 X 1-ROW Aluminum Radiator
1 X Aluminum Shroud
2 X 14"Fans
Application:
2019-2023 Chevrolet Silverado 1500 V8 6.2L without Enhanced Towing Package Radiator
2019-2023 Chevrolet Silverado 1500 V8 5.3L without Enhanced Towing Package Radiator
2019-2023 GMC Sierra 1500 V8 6.2L without Enhanced Towing Package Radiator
2019-2023 GMC Sierra 1500 V8 5.3L without Enhanced Towing Package Radiator
Only For With Transmission Oil Cooler Radiator,Not Include Engine Oil Cooler
Configuration:
High Performance Racing Spec.
1-Row of tubes Core Racing Design
Material: Aluminum
Core Size : 34 8/9" W X 19 2/9" H
Overall Size: 42 1/8" W X 23 1/9" H
Upper Inlet Size:1 2/5"
Lower Outlet Size : 1 1/2"
Transmission Oil Cooler:M20*1.5
Engine Oil Cooler:Not Include
Please Check the Size Before You Buy!
Electric Fan Specification:
14 inch reversible 12 volt electric cooling fan.
Powerful 80 watt motor will keep your engine cool.
Fan Diameter (in): 13.78”
Number of Blades: 8 blades
Maximum Fan CFM: 1730 cfm
Maximum Fan RPM: 2150 rpm
Amp Draw: 12.70 amps
Blade Type: Curved
Motor Size: 80 Watts
Amp Draw: 12 Amps
Aluminum Shroud+Fan:
The fan and the fan
shroud effectively drive the heat over and out the engine compartment
rather than thrusting it into the front of the engine. The fan shroud
basically houses the fan blades securing it in place and keeping it from
damaging the other engine components that may disturb the smooth and
even operation of the engine. With excellent operating temperature
management, allowable levels of engine temperature are stabilized.
Investing in proper maintenance though will considerably benefit the
ride and driving quality in maintaining the ideal working conditions of
the engine.
Description:
This aluminum radiator
is designed to provide maximum cooling efficiency to prevent premature
engine failure. Its light-weight, and high-heat transferring aluminum
features a tube and fin design that, dramatically increases surface area
that enables the heat to dissipate more efficiently. This Aluminum
Radiator is at least 40% more efficient than stock ones. Most
importantly, it has a much higher capacity for coolant than stock ones,
which means that your cooling system will be more efficient and will be
more resistant to temperature surges in racing applications.
