Features:
1.CNC precision adjustment: support constant voltage and constant current mode, voltage and current can be precisely adjusted to meet diversified needs.
2. High-power output: maximum output 9A 585W, strong driving ability, suitable for high-power equipment 3. MPPT charging function: integrated MPPT charging technology, to enhance the efficiency of solar charging, energy saving and environmental protection

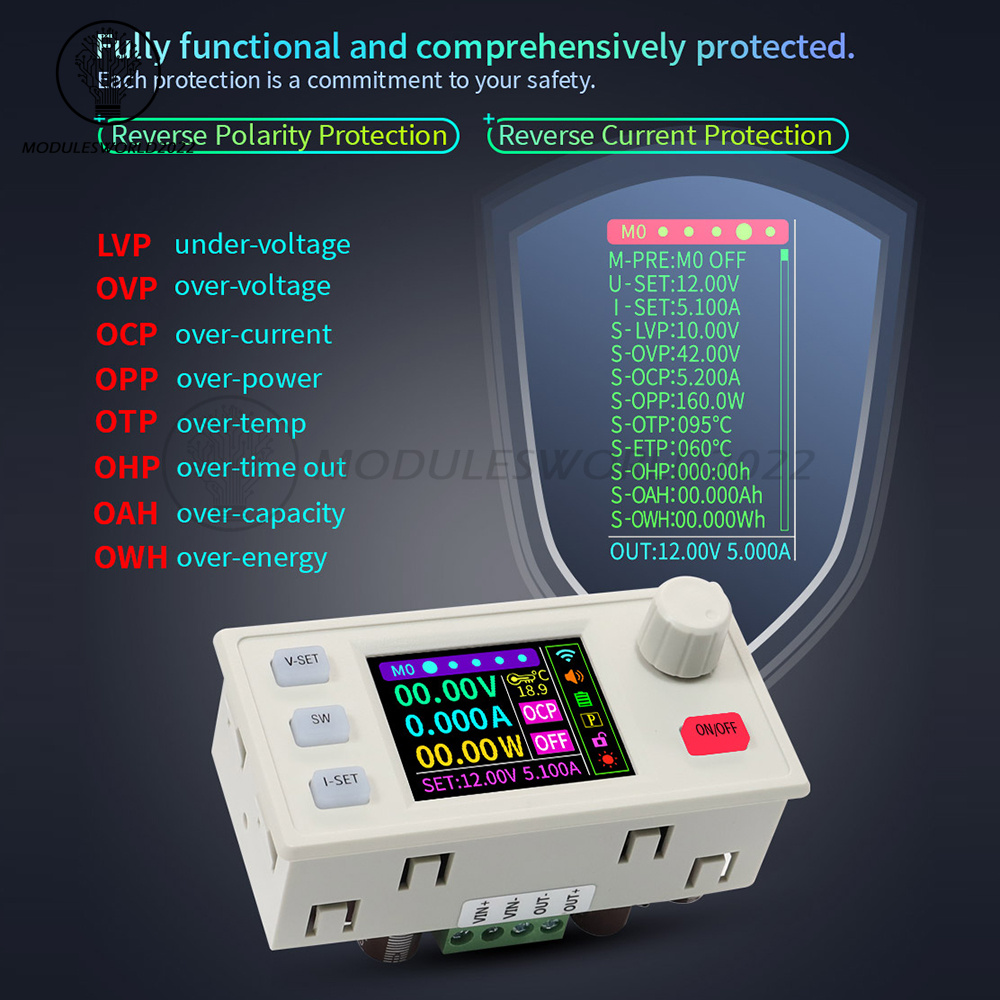

4.Multi-protection design: with input anti-reverse connection, anti-backflow function, to ensure the safe and stable operation of the equipment
5. High-efficiency voltage reduction module: adopts high-efficiency voltage reduction design, low heat generation, stable performance, suitable for long time use.

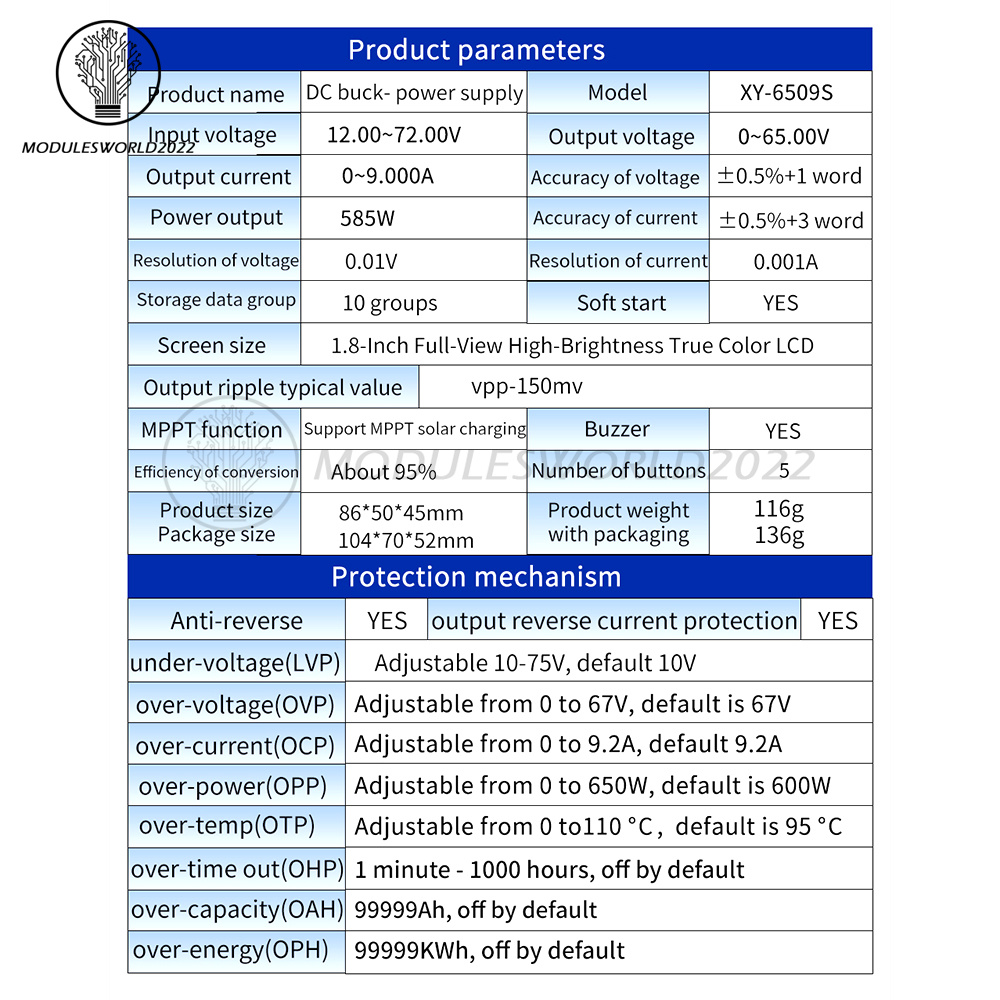

Parameter:

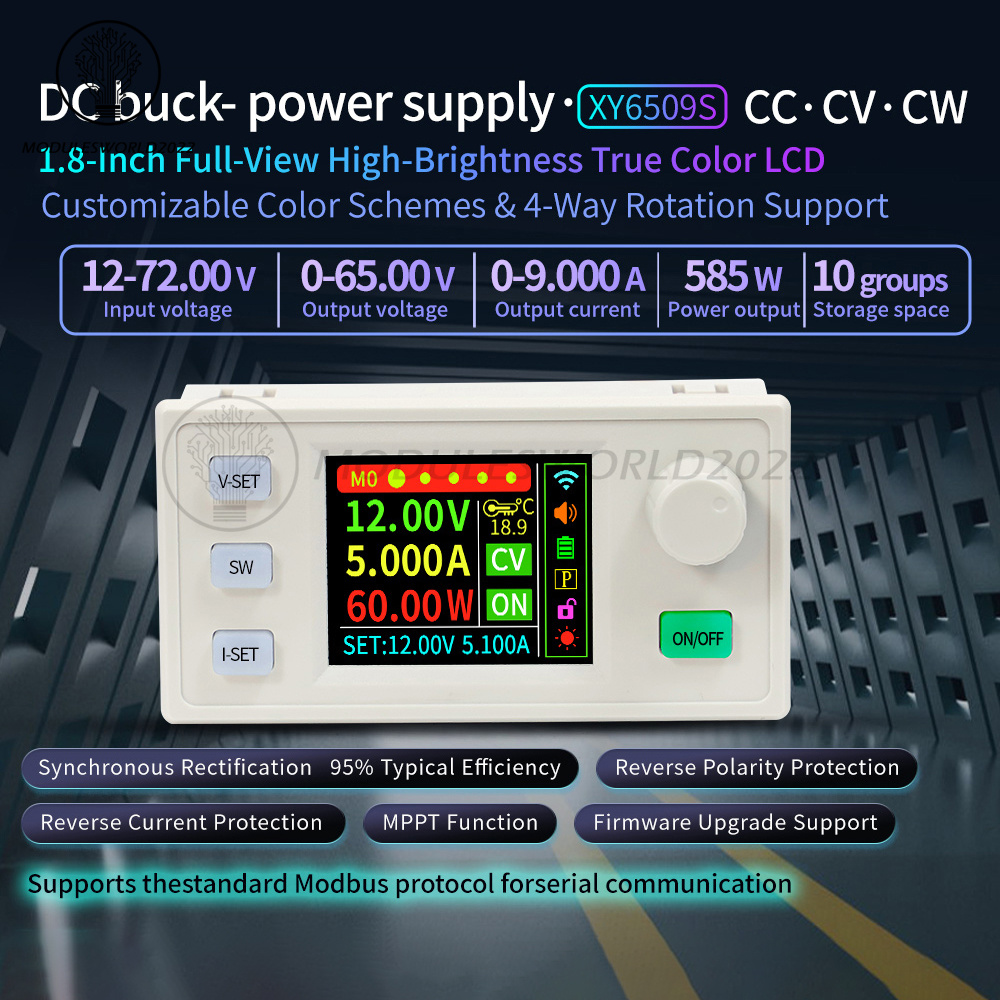

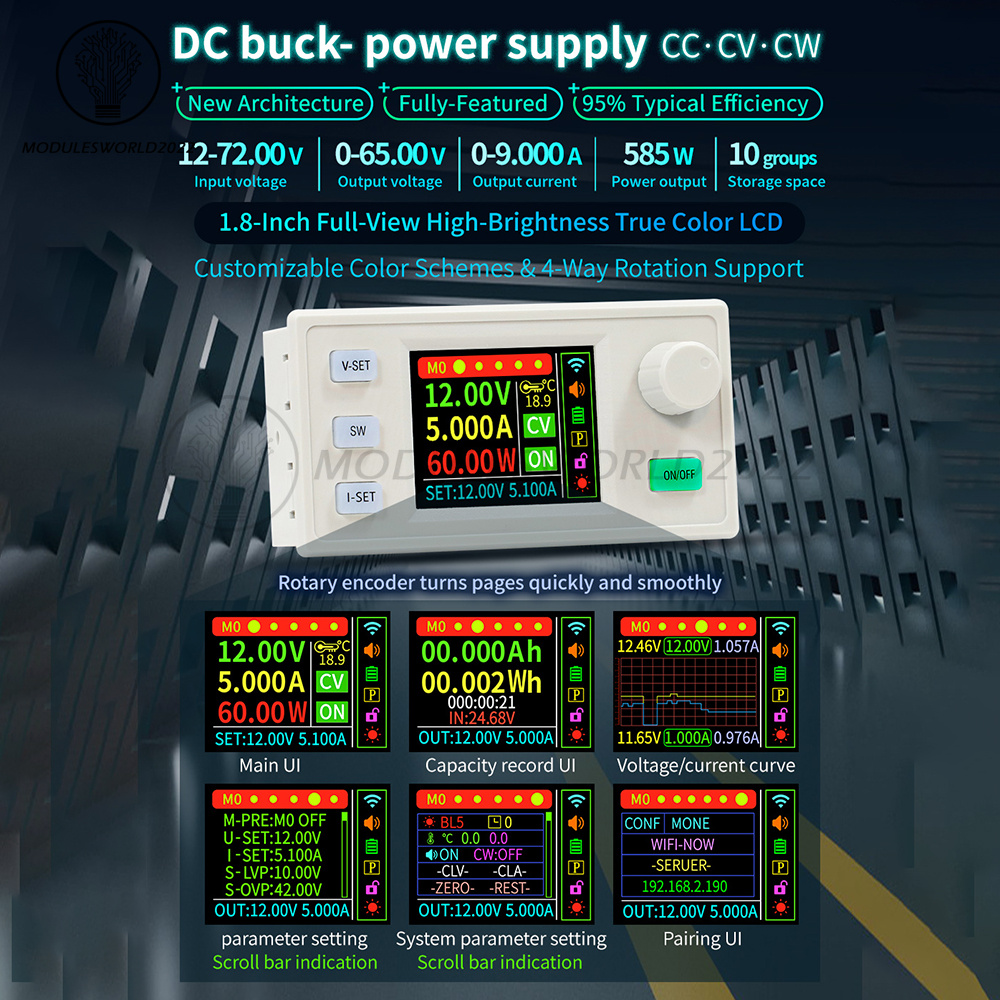

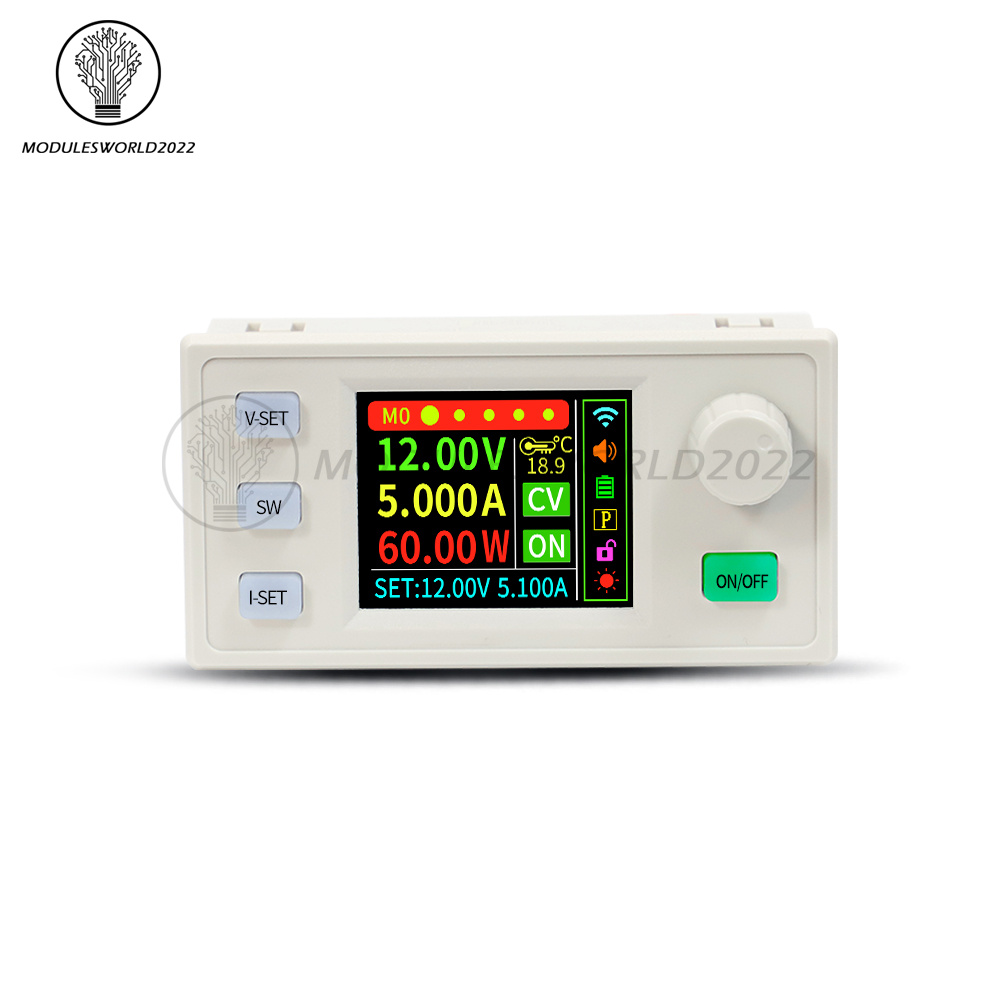

Product name: CNC DC step-down power supply
Input voltage: 12.00~72.00V
Output current: 0~9.000A
Output Voltage: 0~65.00V
Output power: 585W
Voltage Resolution: 0.01V
Storage data group: 10 groups

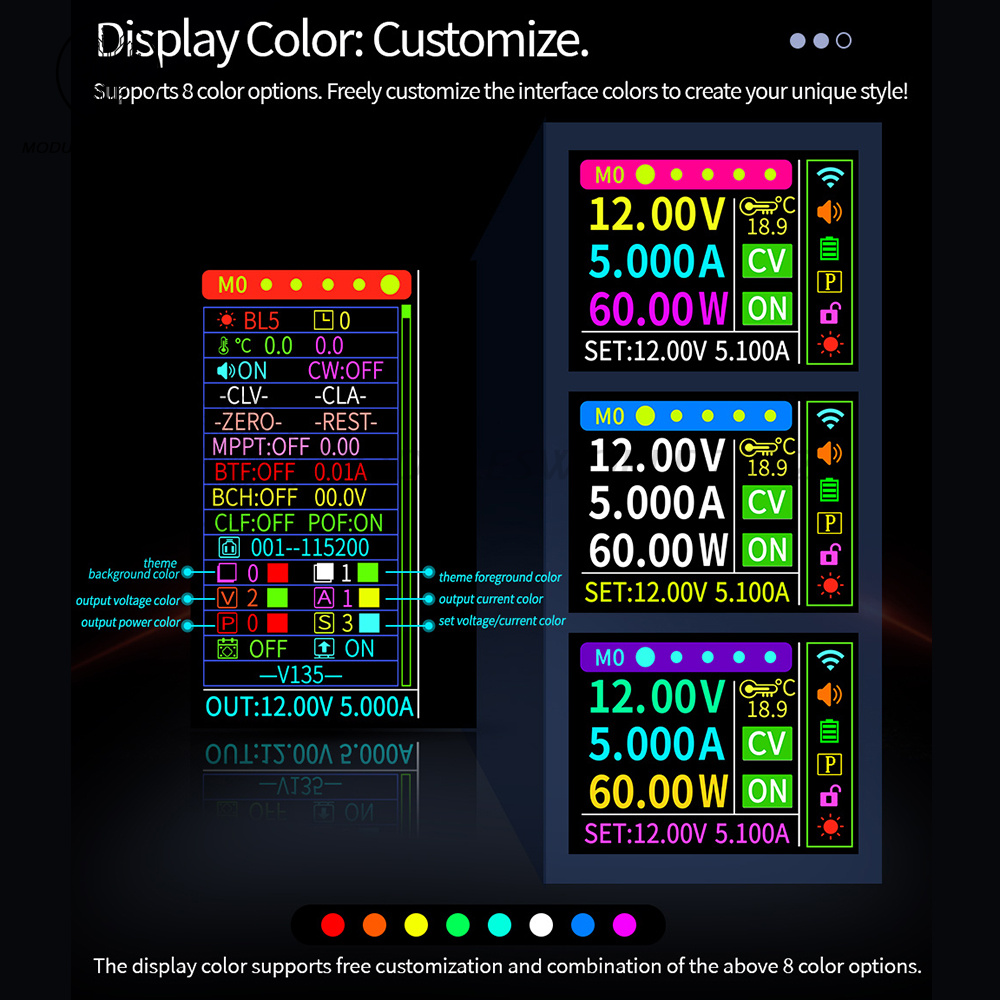

Screen size: 1.8-inch liquid crystal
Conversion efficiency: 95% or so
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A

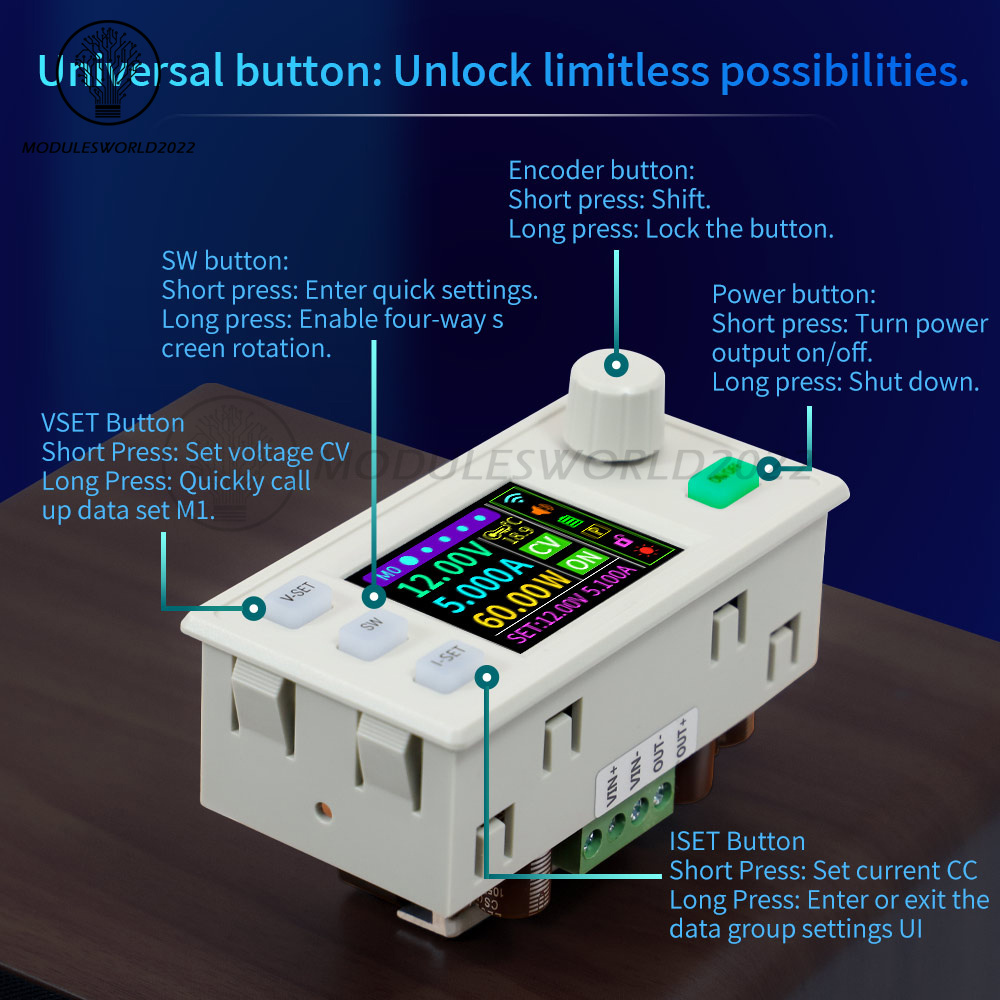

Number of buttons: 5
Buzzer: Yes
Soft Start: Yes
Typical value of output ripple: vpp-150mv

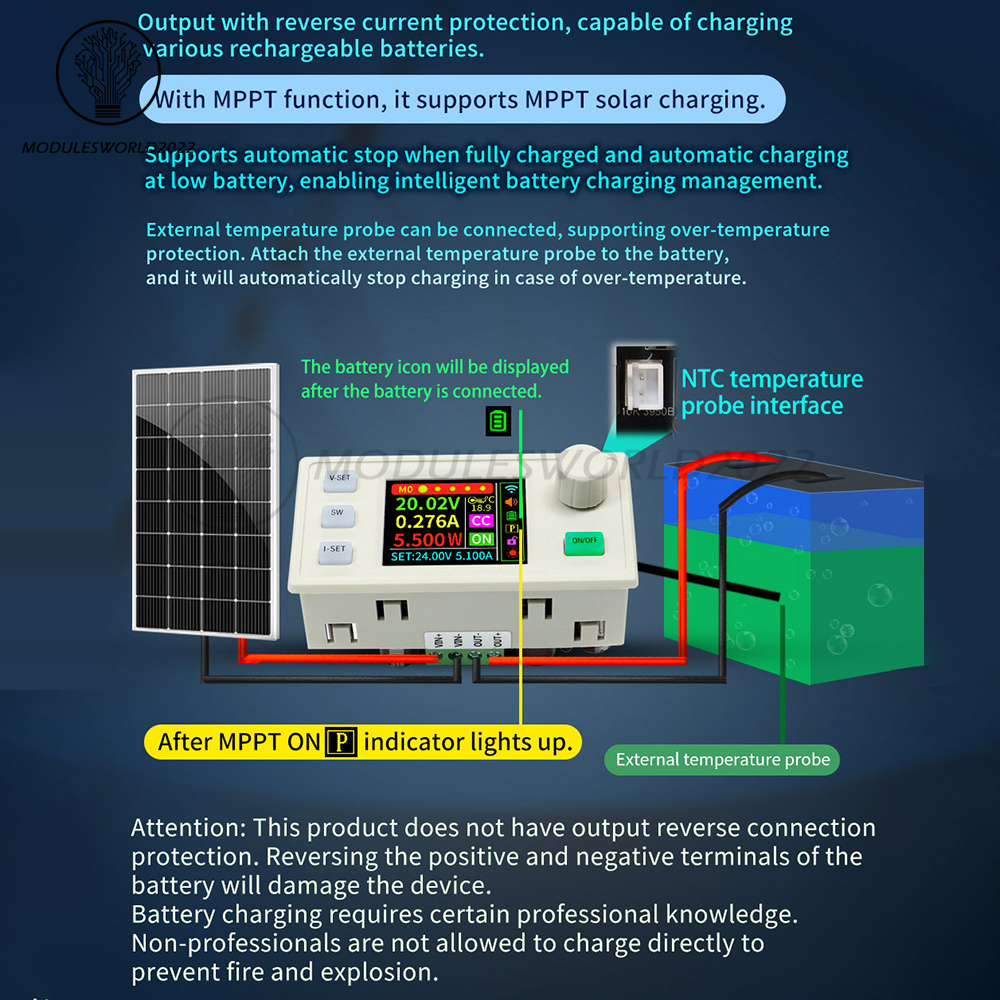

MPPT function: support MPPT solar charging
Note: This product has no output reverse connection protection, the battery positive and negative poles will be reversed to damage the equipment, battery charging requires certain expertise, non-professionals please do not charge directly to prevent fire and explosion!
Package include:
Adjustable step-down power supply * 1 (style of your choice)
