Features:
Built to strict quality control standards 100% factory tested.
Consistent starting power with a high quality solenoid that properly engages the starter drive with the flywheel in your vehicle every time the ignition key is turned.

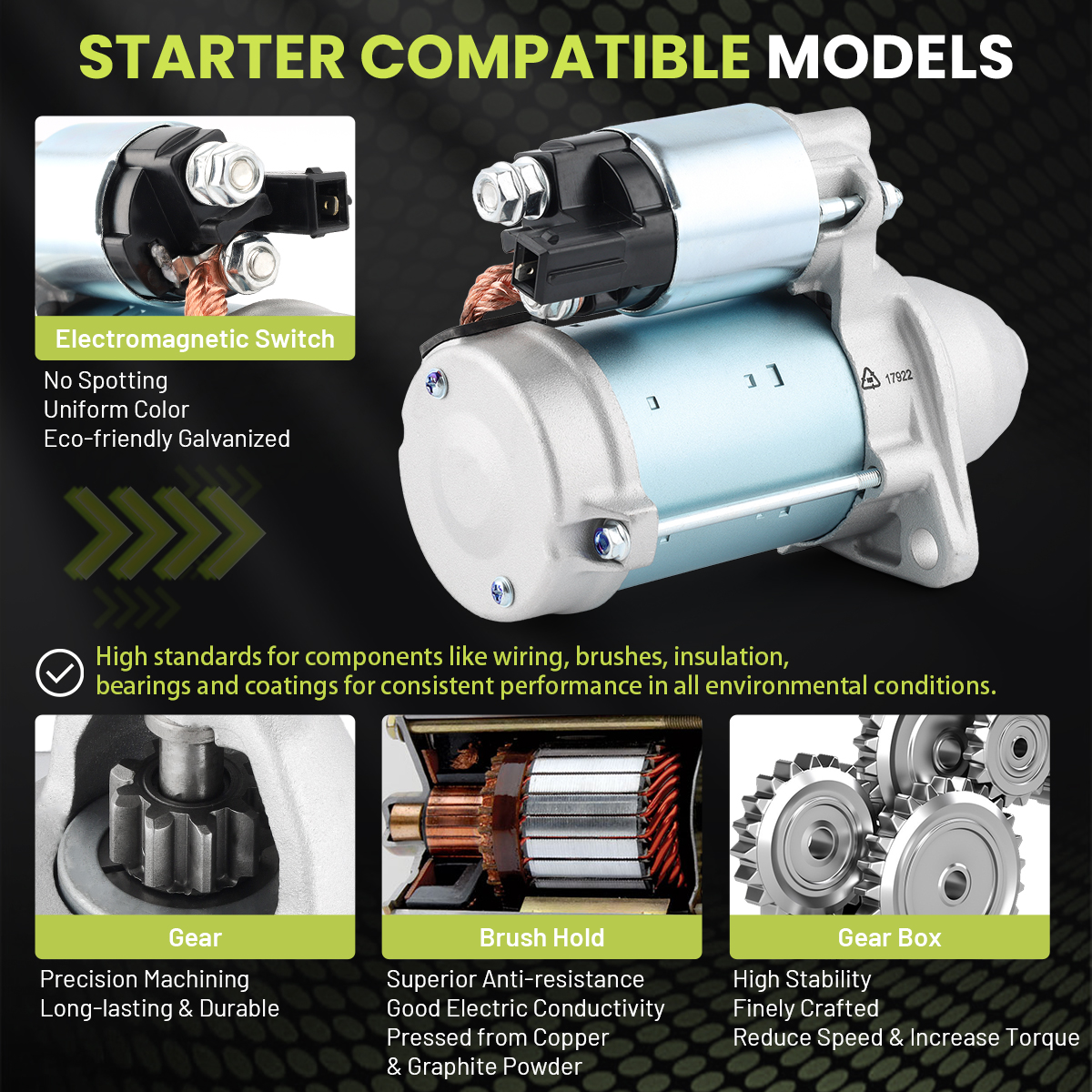

High standards for components like wiring, brushes, insulation, bearings and coatings for consistent performance in all environmental conditions.
High performance machining of the starter casing for ease of installation and solid joining of the starter housing and your vehicle's mounting surfaces

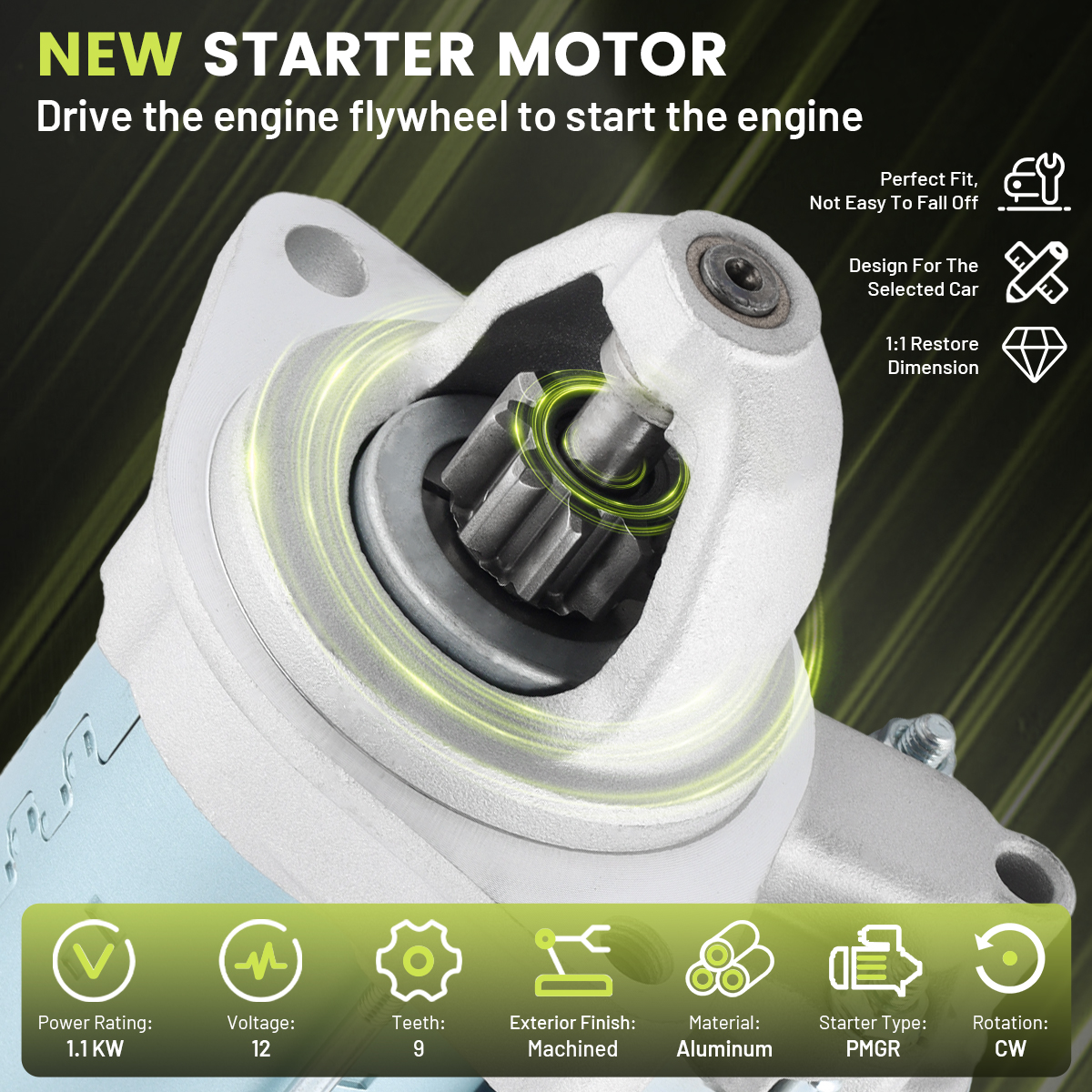

Specifications:
Material:Aluminum
Color:Silver
Placement on Vehicle:Front
Voltage:12
Rotation:CW
Teeth:9
Power Rating:1.1 KW
Starter Type:PMGR

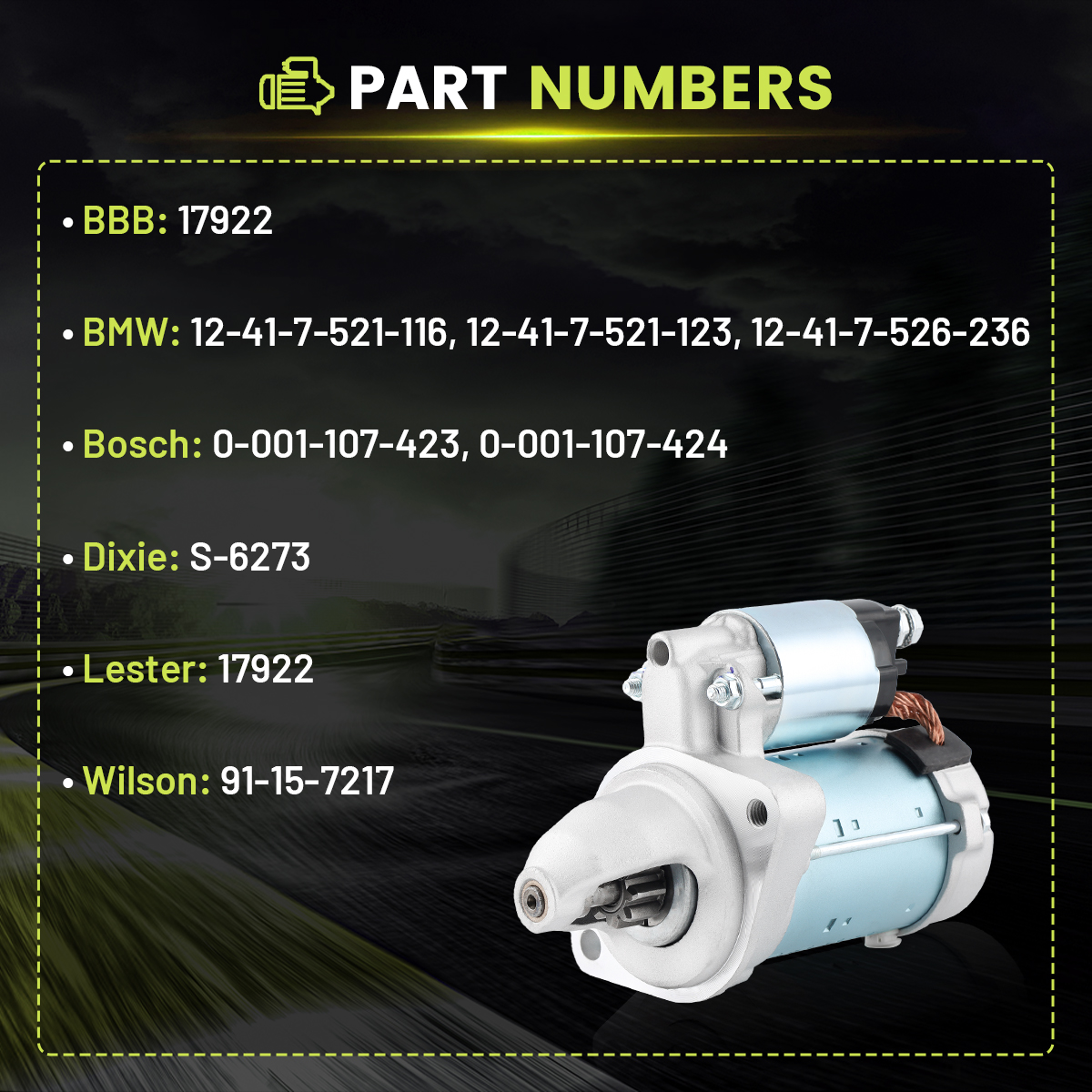

Part Numbers:
BBB: 17922
BMW: 12-41-7-521-116, 12-41-7-521-123, 12-41-7-526-236
Bosch: 0-001-107-423, 0-001-107-424
Dixie: S-6273
Lester: 17922
Wilson: 91-15-7217
Fitment:
BMW 1 Series M E87 2011-2011 L6 3.0L
BMW 128i E87 2008-2011 L6 3.0L
BMW 135i E87 2008-2011 L6 3.0L
BMW 323i E90 2007-2009 L6 2.5L
BMW 325i E90 2006-2006 L6 3.0L
BMW 325xi E90 2006-2006 L6 3.0L
BMW 328i E90 2007-2010 L6 3.0L
BMW 328i E90 2011-2011 L6 3.0L
BMW 328i xDrive E90 2009-2011 L6 3.0L
BMW 328xi E90 2007-2008 L6 3.0L
BMW 330Ci E90 2006-2006 L6 3.0L
BMW 330i E90 2006-2006 L6 3.0L
BMW 330xi E90 2006-2006 L6 3.0L
BMW 335d E90 2009-2010 L6 3.0L
BMW 335i E90 2007-2011 L6 3.0L
BMW 335is E90 2011-2011 L6 3.0L
BMW 335xi E90 2007-2008 L6 3.0L
BMW 525i E60 2006-2007 L6 3.0L
BMW 525xi E60 2006-2007 L6 3.0L
BMW 528i E60/F10 2008-2011 L6 3.0L
BMW 528i F10 2014-2016 L4 2.0L
BMW 528i xDrive E60/F10 2009-2010 L6 3.0L
BMW 528i xDrive F10 2014-2016 L4 2.0L
BMW 528xi E60 2008-2008 L6 3.0L
BMW 530i E60 2006-2007 L6 3.0L
BMW 530xi E60 2006-2007 L6 3.0L
BMW 535i F10 2011-2011 L6 3.0L
BMW 535i GT F10 2011-2011 L6 3.0L
BMW 535i GT xDrive F10 2011-2011 L6 3.0L
BMW 535xi E60 2008-2008 L6 3.0L
BMW 740i F01 2011-2011 L6 3.0L
BMW 740Li F01 2011-2011 L6 3.0L
BMW X1 E84 2013-2015 L4 2.0L
BMW X3 E83/F25 2007-2010 L6 3.0L
BMW X3 F25 2011-2011 L6 3.0L
BMW X5 E70 2007-2011 L6 3.0L
BMW X6 E71/E72 2008-2010 L6 3.0L
BMW Z4 E85/E89 2006-2010 L6 3.0L
BMW Z4 E89 2011-2011 L6 3.0L
BMW Z4 E89 2012-2013 L4 2.0L
BMW Z4 E89 2014-2016 L4 2.0L
Package include:
1 x Starter
Attention:
How to Install a Car Starter?
1. Disconnect the battery.
2. Jack up the vehicle if need be.
3. Locate the starter.
4. Disconnect the wiring to the solenoid.
5. Remove the starter retaining bolts then the starter.
6. Compare the new starter to the old one. Slide the starter into place.
7. Insert the starter retainer bolts.
8. Connect the wiring to the starter solenoid.
9. Reconnect the battery.
10. Listen to the vehicle as you attempt to start it.
11. Ensure the battery terminals are clean and secure.Charge your vehicle’s battery.
12. Check to see the starter solenoid is bad.
Note:
Starter Fault Check:
The starter often has failures and phenomena that cannot rotate or rotate slowly. In this case, check the following aspects:
1. The battery has no electricity or the electricity is weak, so the starter cannot rotate or rotate slowly.
2. The starter thread is loose or off, and the switch or adsorption switch fails.
3. The brush is worn out or the brush surface is not correct, and the spring is weak, resulting in poor contact of the rectifier.
4. Excitation coil or armature coil is short-circuited or disconnected.
5. The rectifier is fouled and the mica sheet is protruding, causing poor contact between the brush and the rectifier.
