POE Combiner Splitter Adapter, Run 2 IP Cameras on 1 Cable, Works on All POE Switches, POE NVR and POE Cameras, Mode a and B POE Compatible

Description

Unit Count	1.0 Count
Item dimensions L x W x H	6.75 x 1 x 1 inches
Mfr Part Number	IPCP-212XD
Number of Items	1
Item Dimensions	6.75 x 1 x 1 inches
Smart Home Compatibility	Not Smart Home Compatible
Brand	IPCamPower
Package Quantity	1
Connector Type	RJ45
Model Number	IPCP-212XD
Compatible Devices	Internet Protocol Camera
Item Weight	3 Ounces
Number of Ports	2
Color	Black

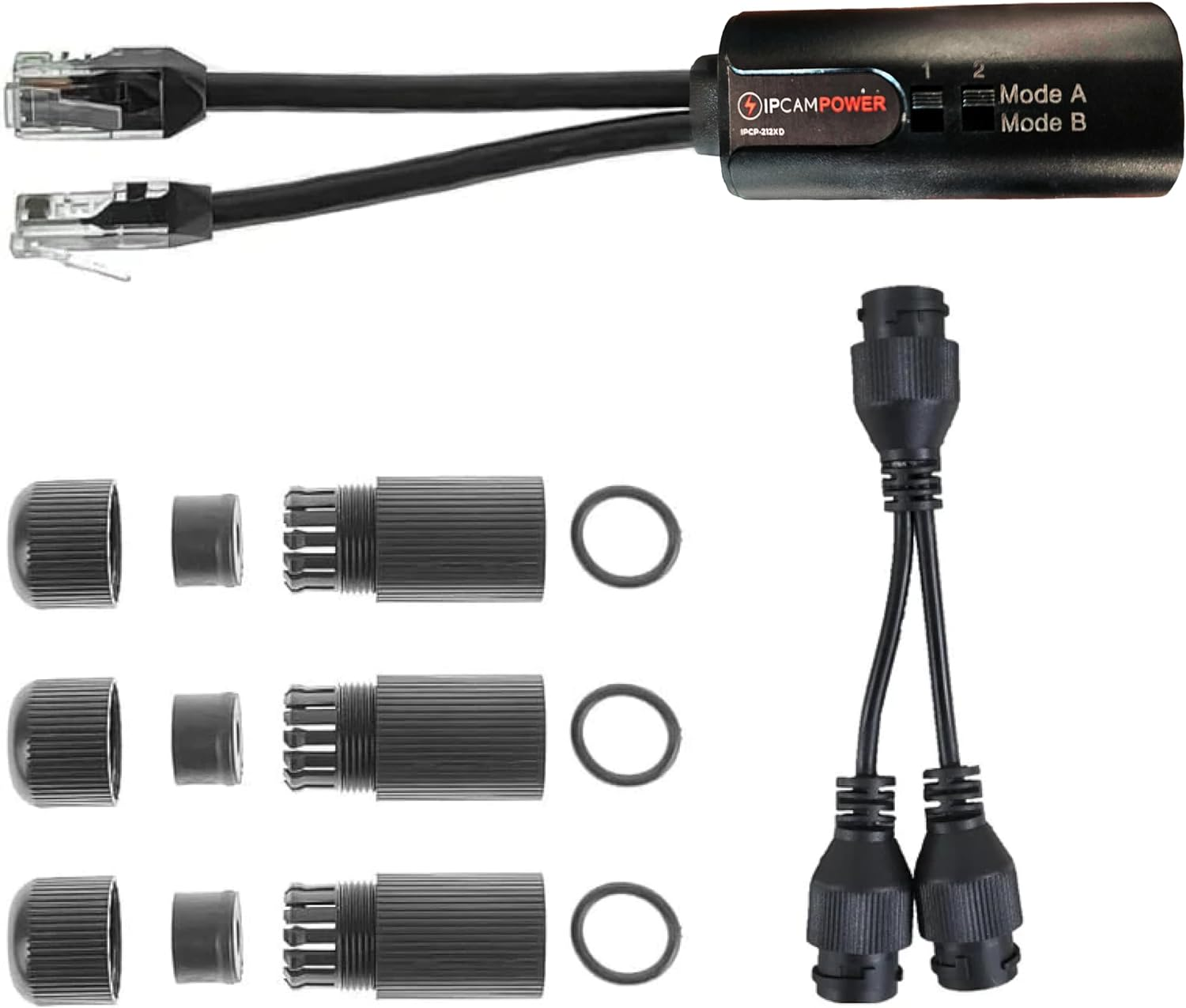

Built-In Media	Combiner, Splitter, Weatherproof Grommets
Specific Uses For Product	Network Cameras
Manufacturer	IPCamPower

• Allows you to run 1 cable run to the switch for 2 cameras that are near each other, saving on time and material costs. Set consists of a sender "Combiner" unit and a receiver "Splitter" unit. Plug Combiner unit into 2 open ports on your POE switch or POE NVR. Run one long cable to the location that has the cameras that are nearby each other and plug it into the Splitter. Connect 2 short cables to the Splitter unit and connect the other ends to your camera. Done!
• Reduces cabling costs. Let's say you are installing 2 cameras on each side of a corner. Instead of running 2 cables back to the switch or NVR, you can now just run 1. Works great for both new and existing installs. Easy and Cost Effective.
• Ever installed a camera in a location, only to find out a few days later that you need another camera right by it? What's worse, the switch is on the other side of the building and it took you hours to run that one long cable run. No worries! Just use this splitter set to make your installation much easier and avoid running another long cable.
• The Splitter Unit comes with weatherproof RJ45 connectors, allowing you to fully expose the Receiver unit to the weather elements. Full IP68 Rating gives this unit the ultimate weather protection and can directly be exposed to rain, sleet, snow, ice, and the sun.
• Simple plug n play installation. Works with all standard 802.3af/at POE switches and POE NVRs that use standard active POE. Works on most all brands POE Switches, Cameras and POE NVRs. Don't be fooled by other cheaper combiners on the market that only work on POE Switches. IPCamPower's Combiner works on all POE Switches, POE NVRs and POE IP Cameras and supports both Mode A and B POE making it the most flexible and compatible POE Combiner/Splitter on the market.

Product description

IPCamPower's POE Combiner and Splitter. A must have for all IP Camera Installers.

Setup is Easy!

Simply Plug the Combiner Unit into a POE Switch or POE NVR

This works on any standard POE Switch or POE NVR. Simply plug it in with no IP configuration needed. Your switch or NVR will "think" you are using 2 cables.

This combines the 2 ports of POE and Data into 1 cable.

The special Combiner unit then takes the 2 cables from the POE switch or POE NVR and combines the data and POE power into one cable. You entire cable run between the POE Switch/NVR and Cameras should not exceed the standard 330' allowable by a standard network run.

Then at the camera end, the splitter will split out the POE and Data into 2 shorter cables.

The splitter unit will be installed near your cameras and it takes the combined POE power and Data and splits it back out to 2 cables again.

The finished product is simple and effective.

The finished product is a simple yet effective solution that will save you time and money in your next IP Camera installation.

A Typical IP Camera Installation using a single Cable for all Cameras.

With a typical IP Camera installation, you would make a home run cable run from the POE Switch or NVR to each camera. While this is still recommended for alot of applications, what if you had areas in which you had 2 cameras side by side? Wouldn't it be nice if you could run one cable to manage both of these cameras?

An IP Camera Installation using IPCamPower's POE Combiners and Splitters

Using IPCamPower's POE Combiners and Splitters, you significantly reduce cable and labor costs by just running one long cable to the areas in which you have 2 cameras side by side.
