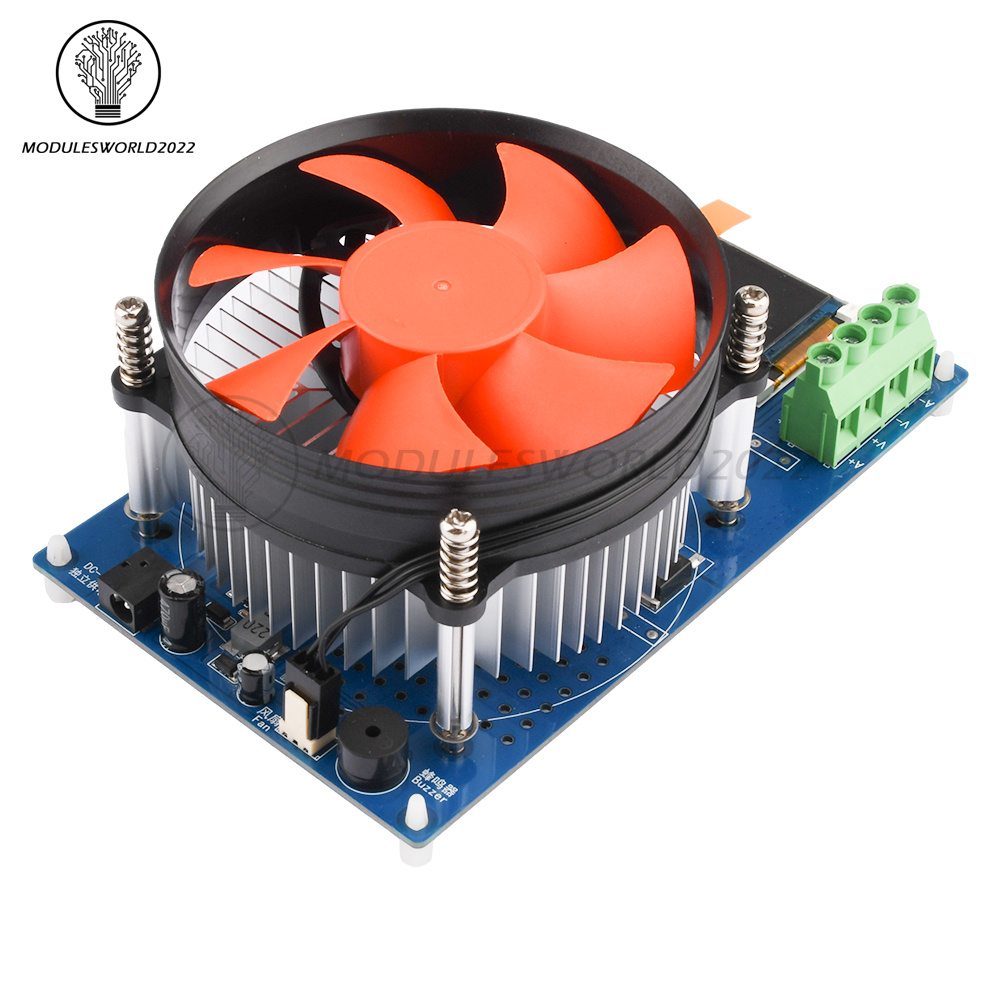

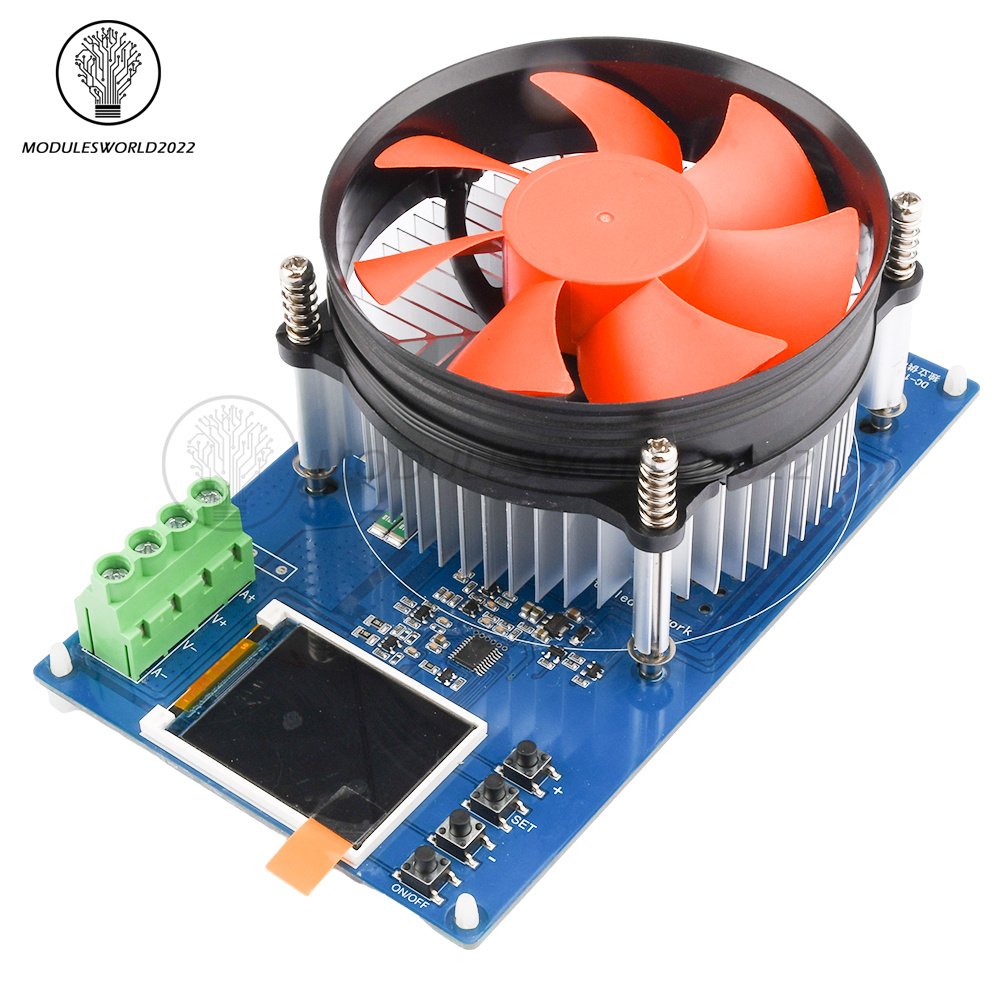

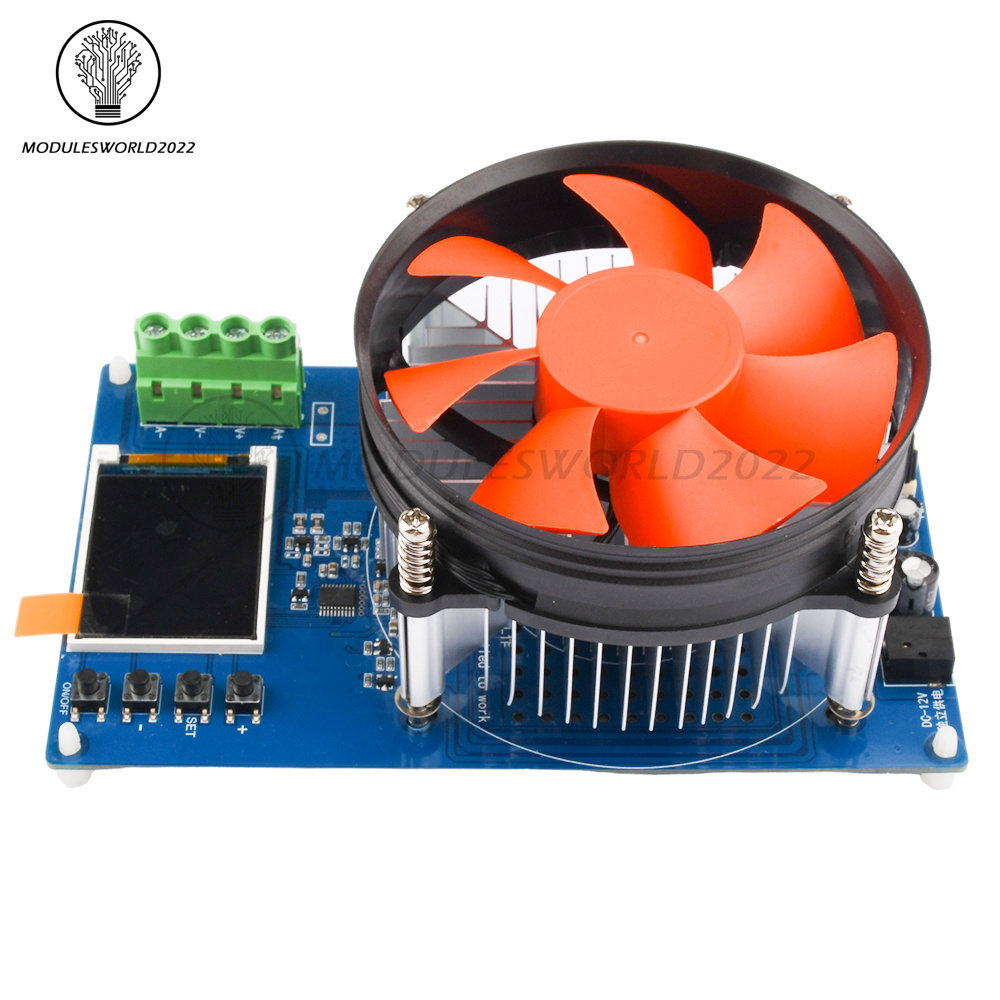

This product supports 0~150V, 0~10A within the maximum 150W load
Over-voltage, over-current, over-power, over-temperature protection and reverse connection protection below 100V
Support timing shutdown and specified voltage shutdown
Four-wire wiring system for more accurate capacity measurement

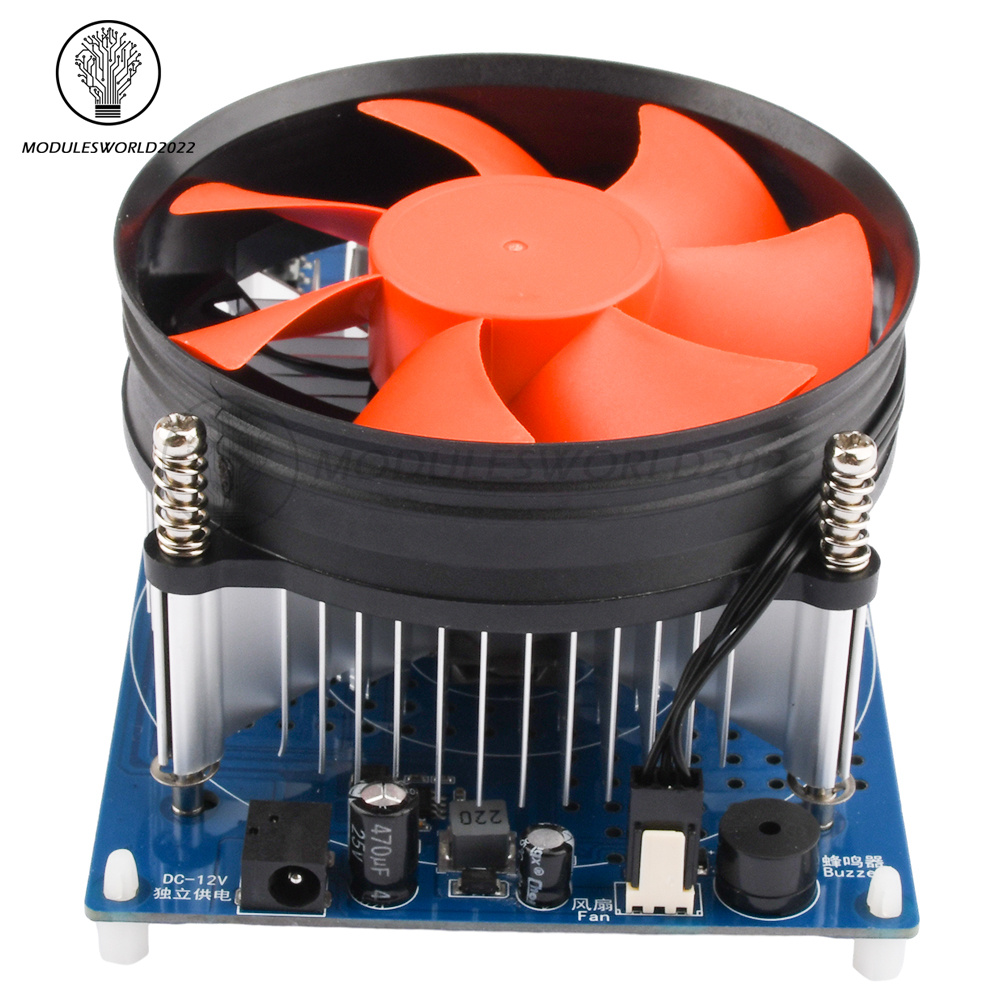

Active heat dissipation with load current above 3A or core temperature ≥40℃ to start the fan
Load voltage-U: DC0V~150V
Load current-I: 0~10A
Load power-W:U×I≤150W(max)
To avoid pulse damage, the total load power is capped at 60W when the load voltage is ≥120V
Capacity metering range:0~999999mAh
Energy measurement range:0~999999mWh

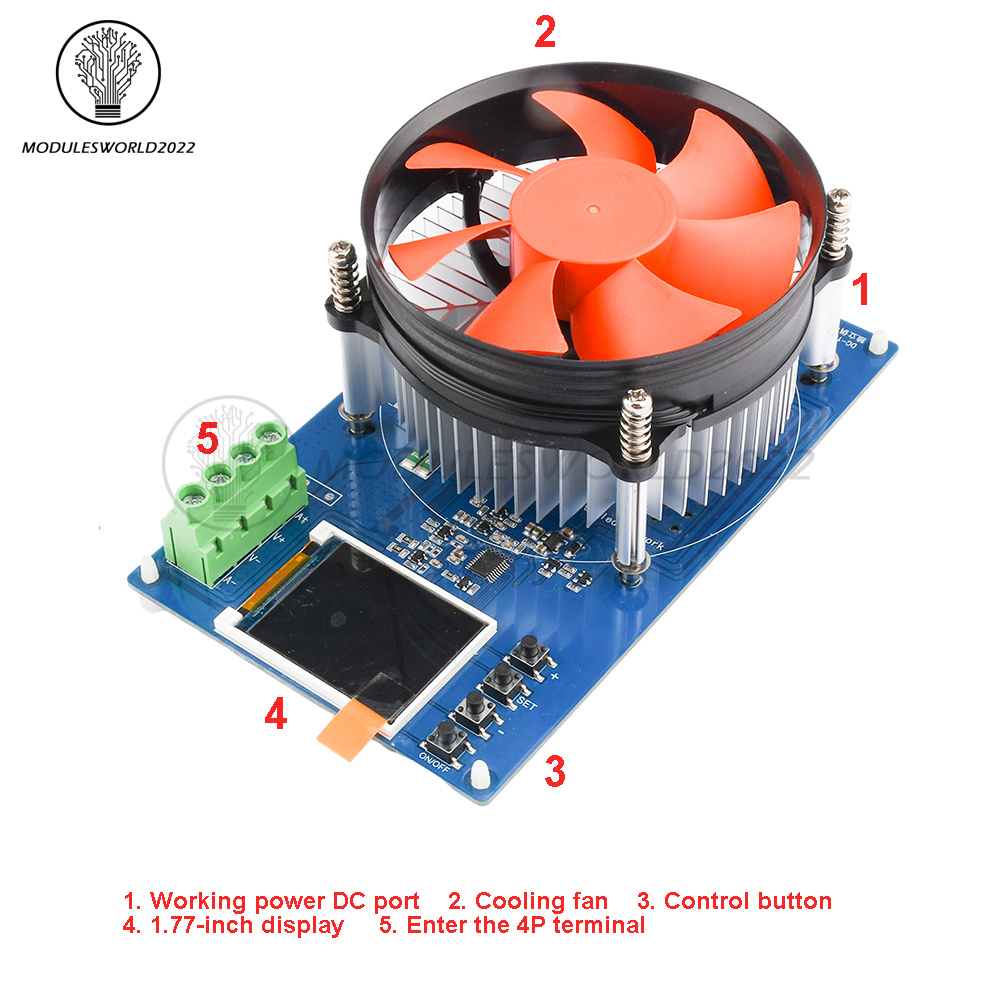

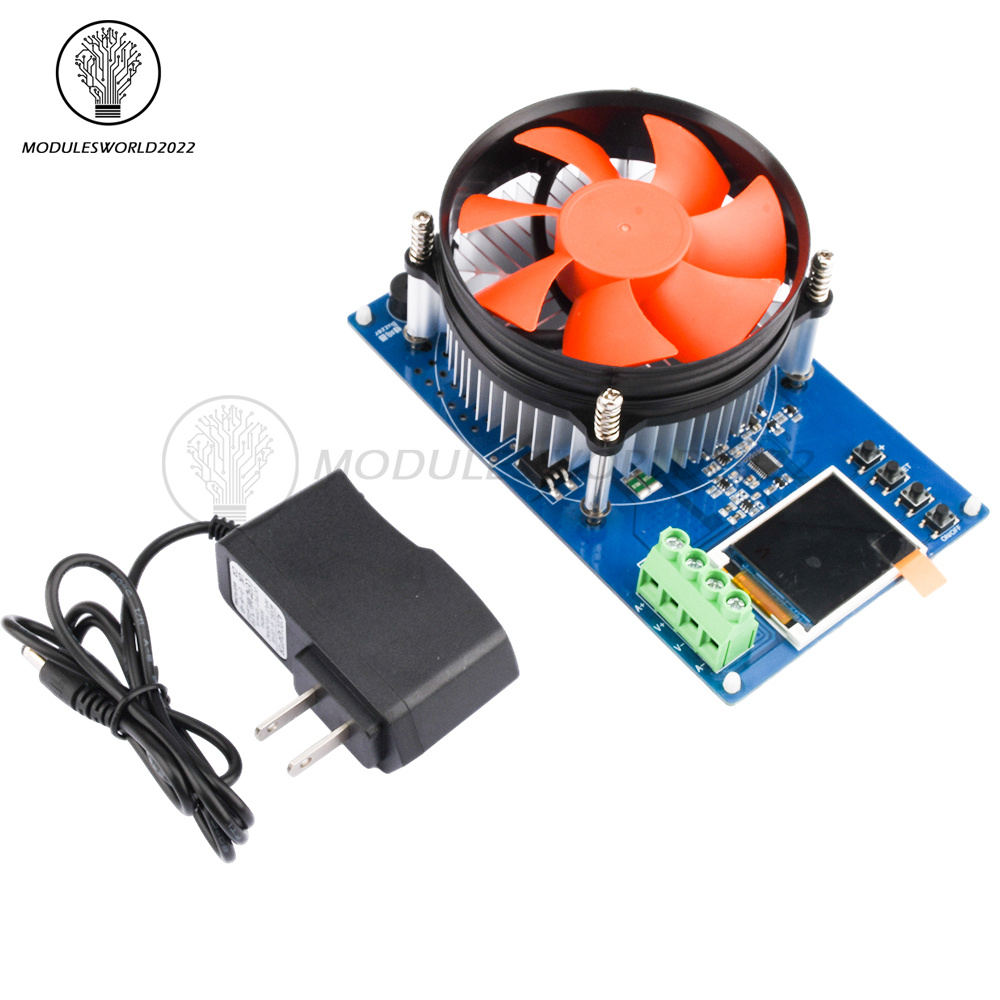

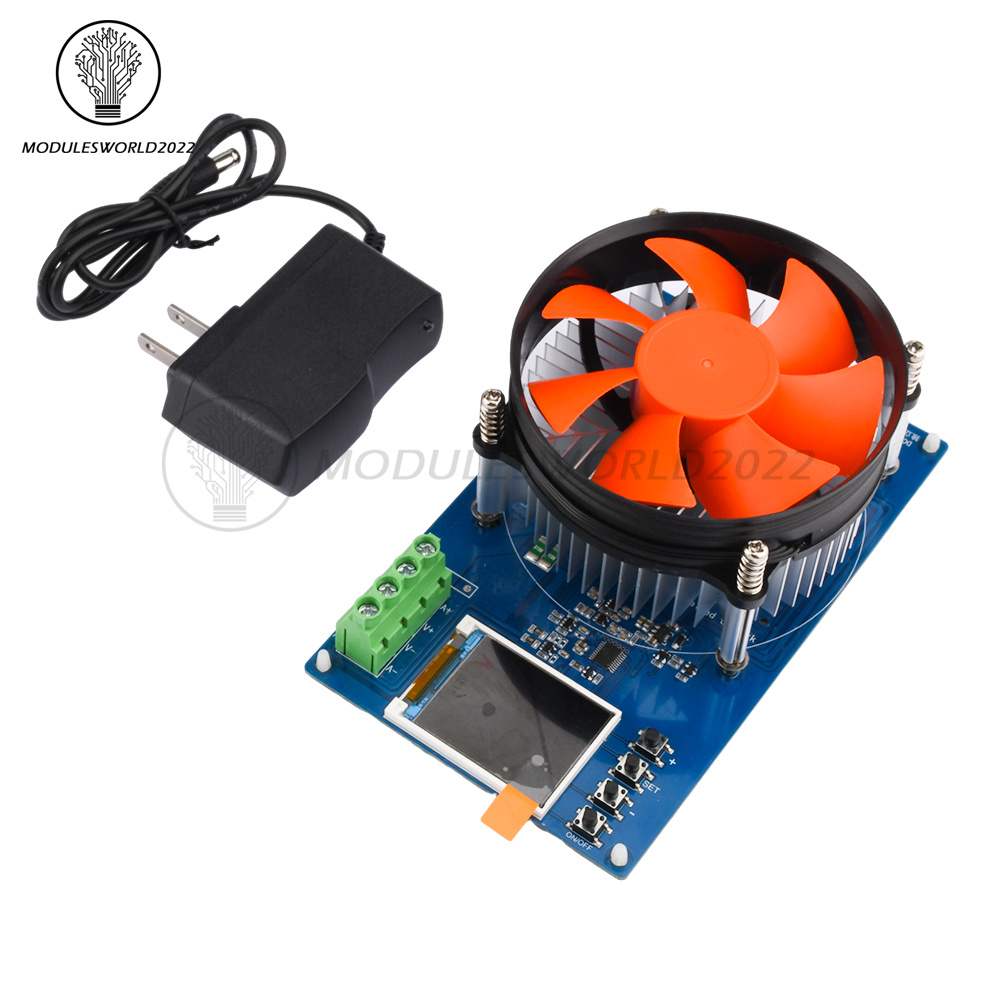

Applicable power supply: DC12V 1A

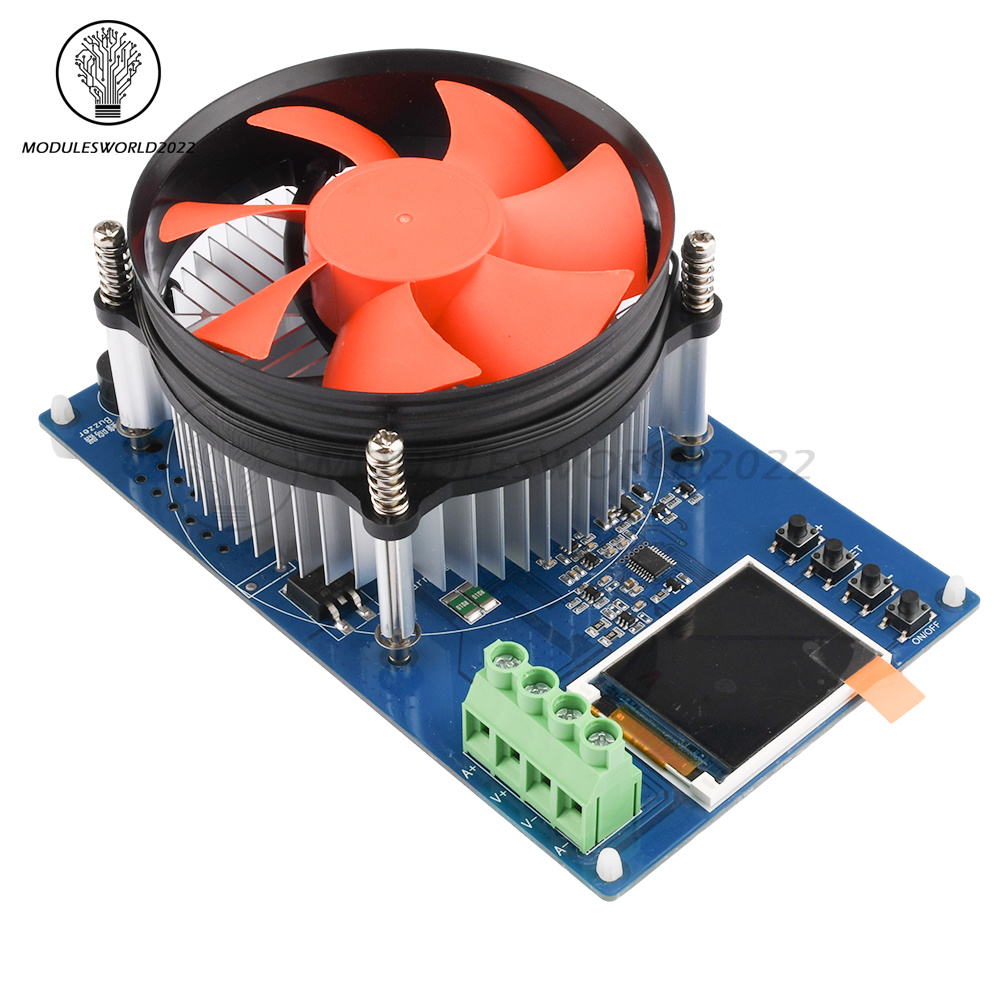

Wiring mode: four-wire system A+ V+ V- A-

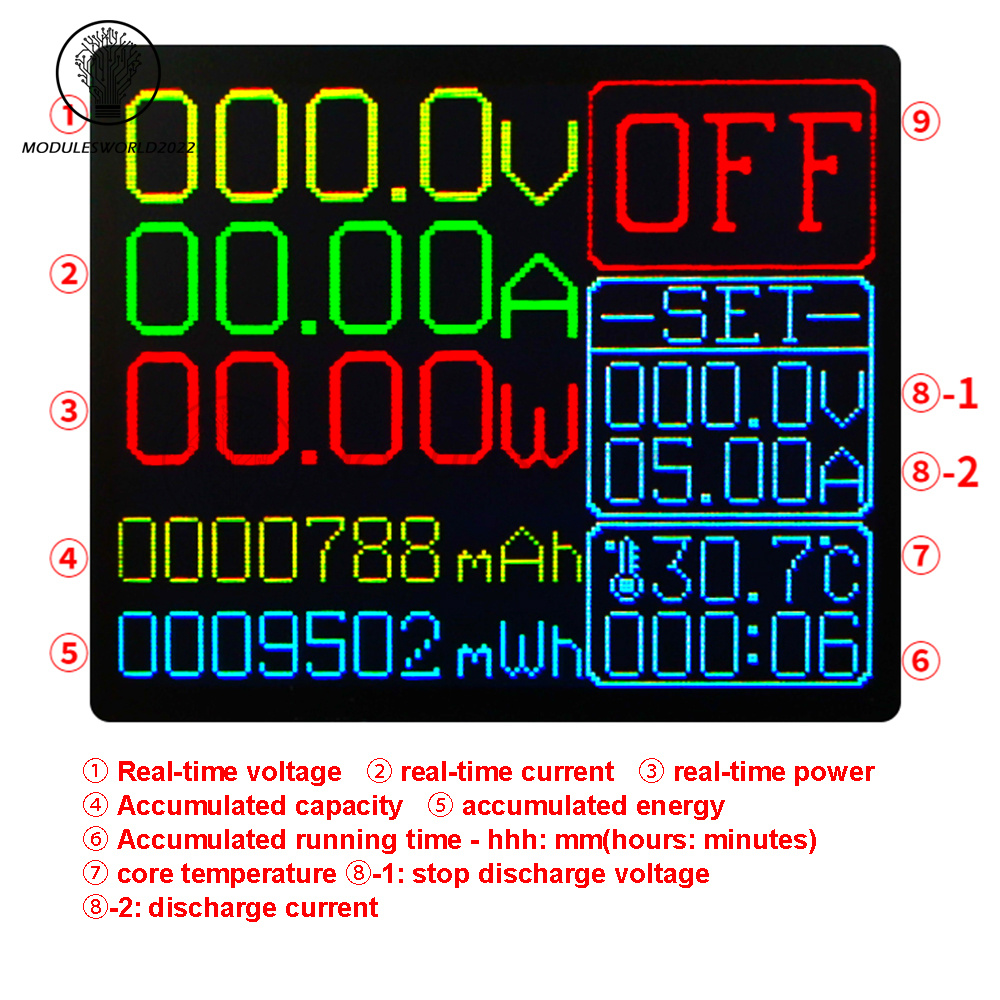

Display mode: 1.77 inch TFT color screen

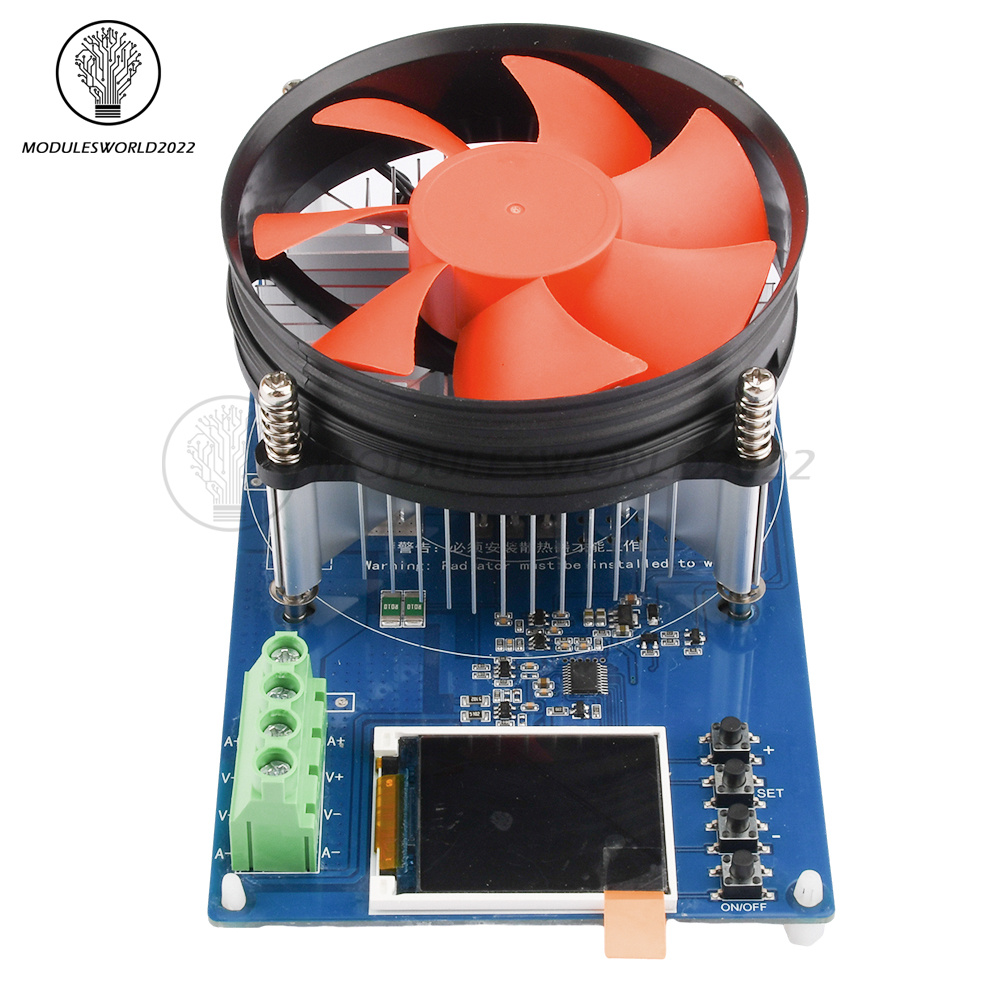

Control operation: 4 button control
Heat dissipation mode: active heat dissipation load current 3A or more or core temperature ≥ 40 ℃ to start the fan
Online view: not supported
Over-voltage protection: support
Overcurrent protection: support
Over power protection: Support
Over-temperature protection: the core temperature exceeds 80 ℃ to stop the load (non-adjustable)
Time limit discharge: Support
Power failure save: Support
Restore factory settings.
①Device power off
②Press and hold the "SET" key and do not release
③Equipment power on, wait for the display normal display and then release the "SET" key, the operation is complete
Product manual: https://www.banber.com/gather/63578117f242b10009e84574.html
Package list:
1 *150W 150V Intelligent Electronic Load Battery Discharge Tester Meter Detector
