Products Description
Item Name

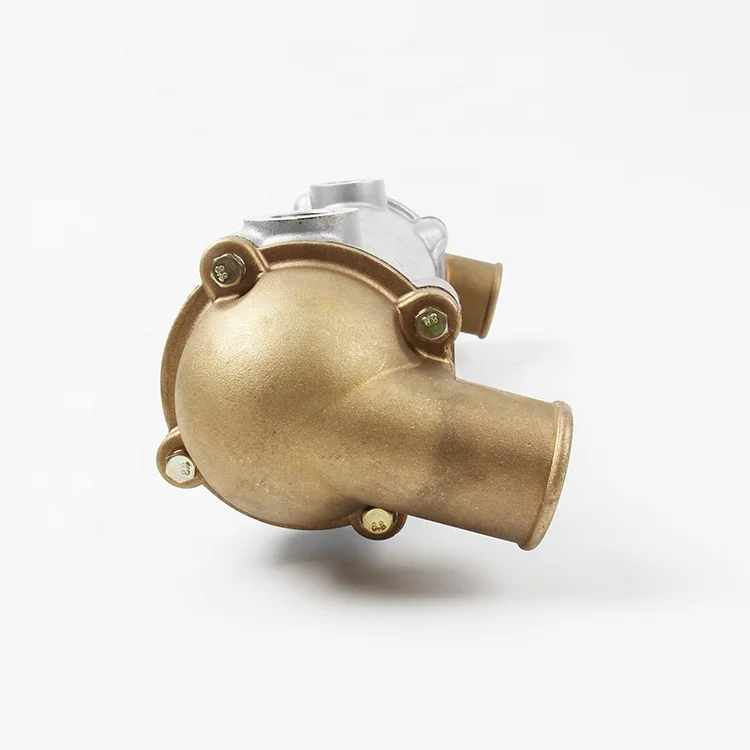

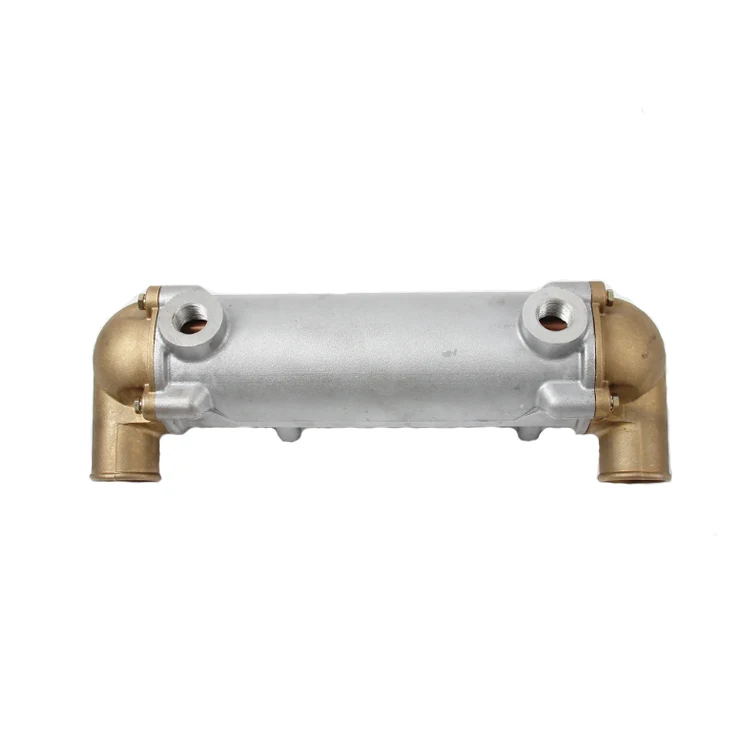

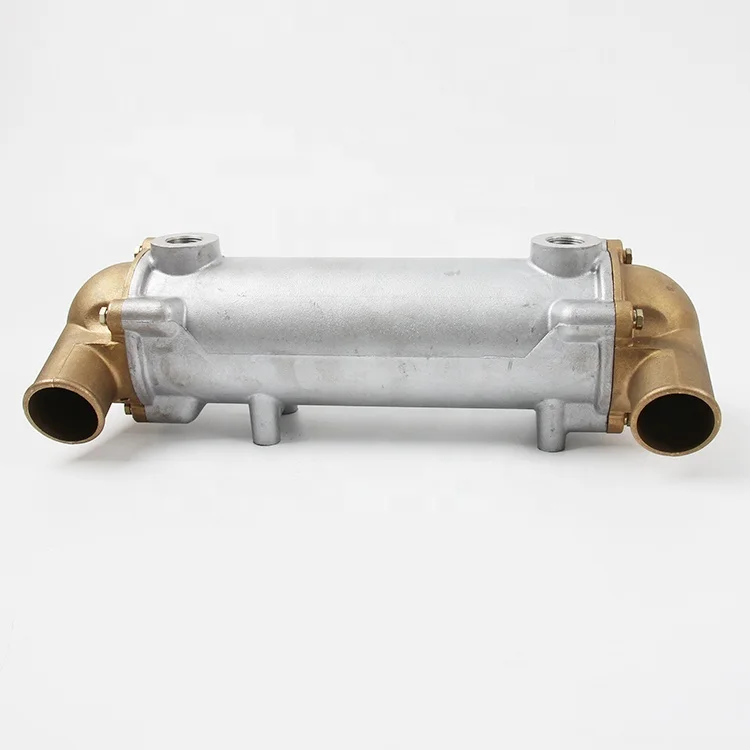

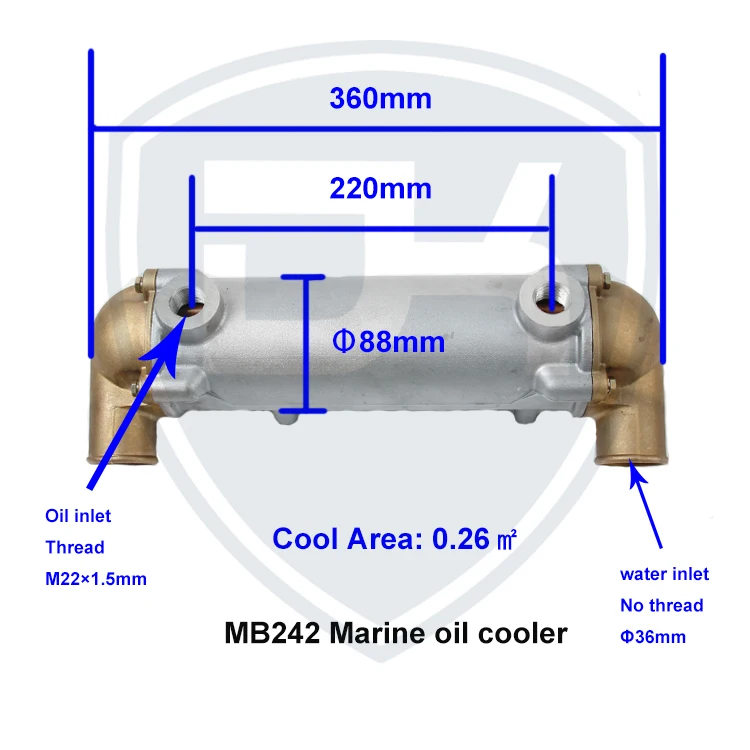

242 Marine oil cooler tube heat exchanger
Model
DK7205，MB242


Cooling surface
0.26㎡
Working medium
oil
Working oil temperature
75℃
Working oil pressure
1.8Mpa
Oil flow
1.5m³/h
Water temperature
32℃
Cooling water flow
2.0m³/h
Water pressure
0.2Mpa
Heat exchange capacity
7065w
1. The shell is made by Gravity casting, have good structure,stable sealing performance
2. The oil cooler adopts a naked tube ( with no rolled fins on the surface) type heat transfer tube,have large cooling area and nice cooling effect
3. The cooling pipe adopts high quality brass pipe and processed into finned radiating fin, has strong
corrosion proof ability and high intensity
4. 100% inspection before shipping, Make sure all the oil cooler is not leakage
5. The oil cooler is widely used in finishing, transport,working,special boats, Ocean large-power vessels
and etc
