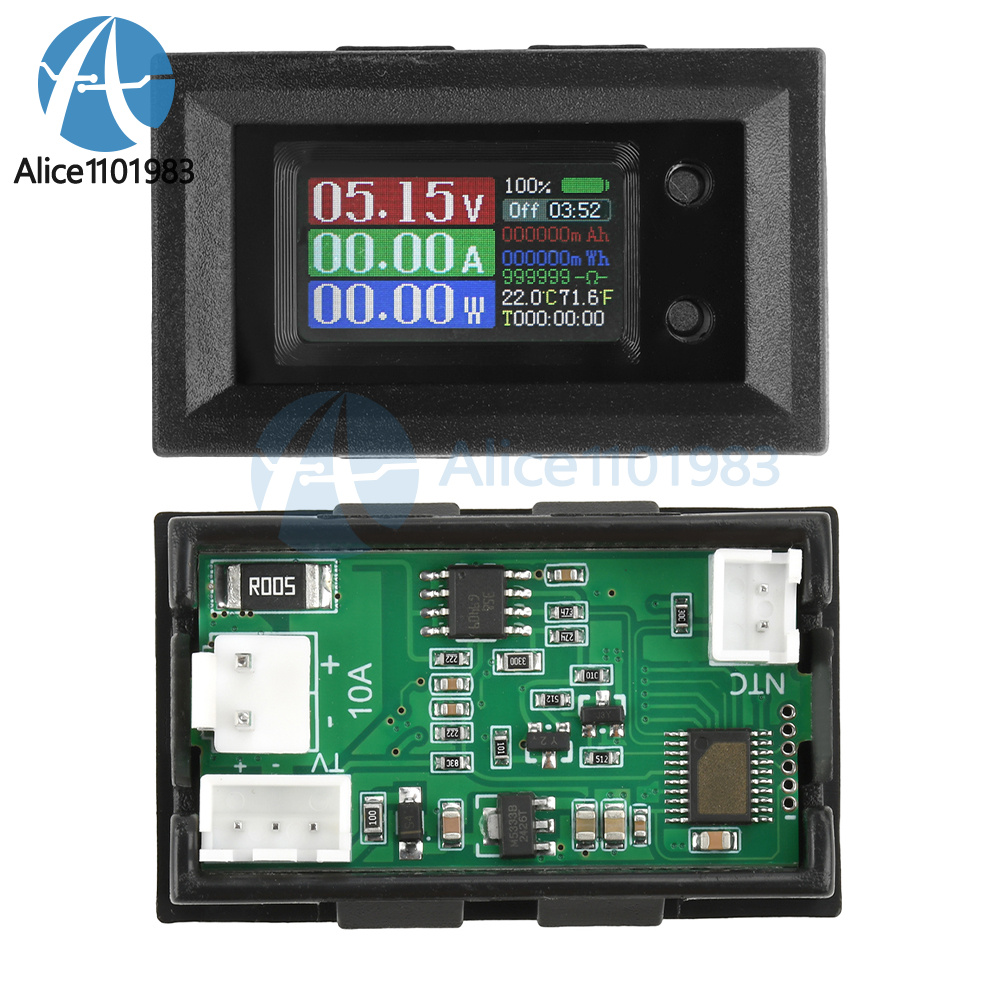

Product Details
Features:

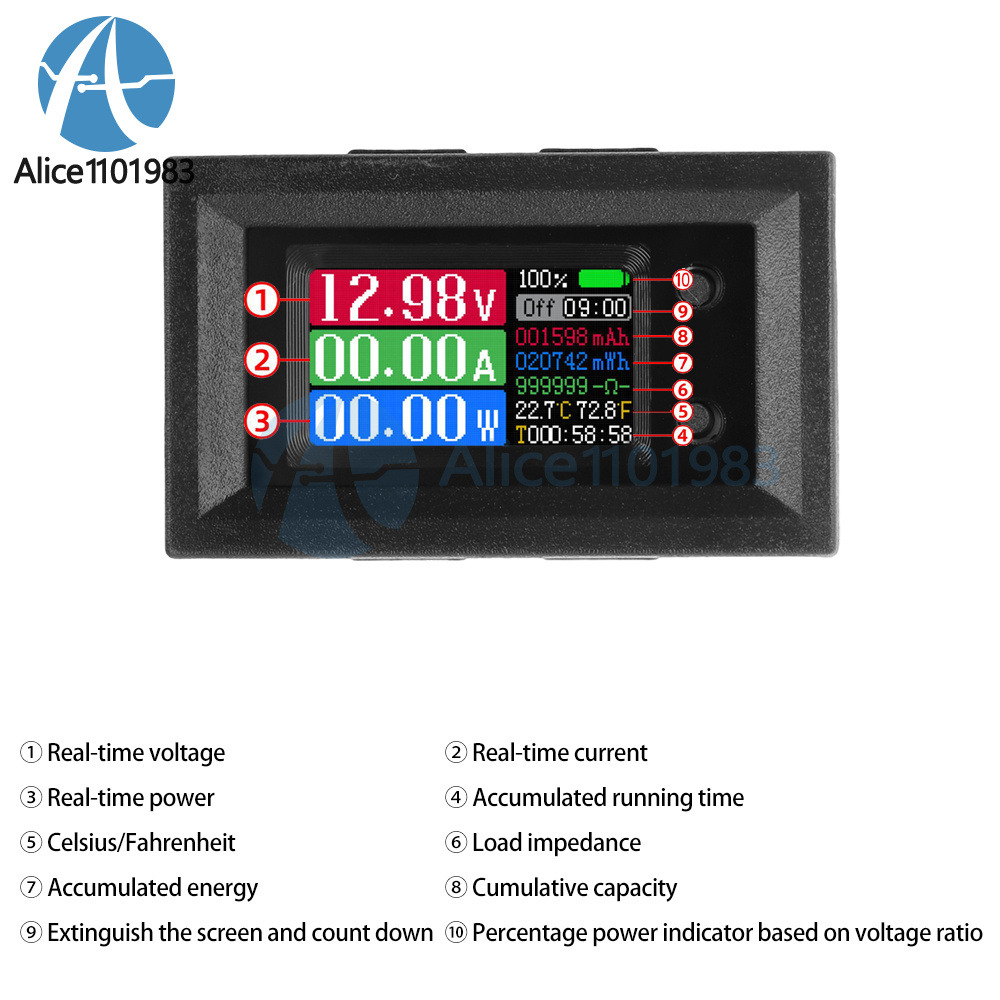

1. Comprehensive real-time monitoring, multi-parameter at a glance: can simultaneously measure and display including voltage, current, power, impedance, capacity, energy, temperature, time and power percentage
2. High-definition color screen, accurate reading: Equipped with 0.96-inch high-resolution color display, not only bright colors, high contrast, even in bright light or dim environment can also read the value clearly

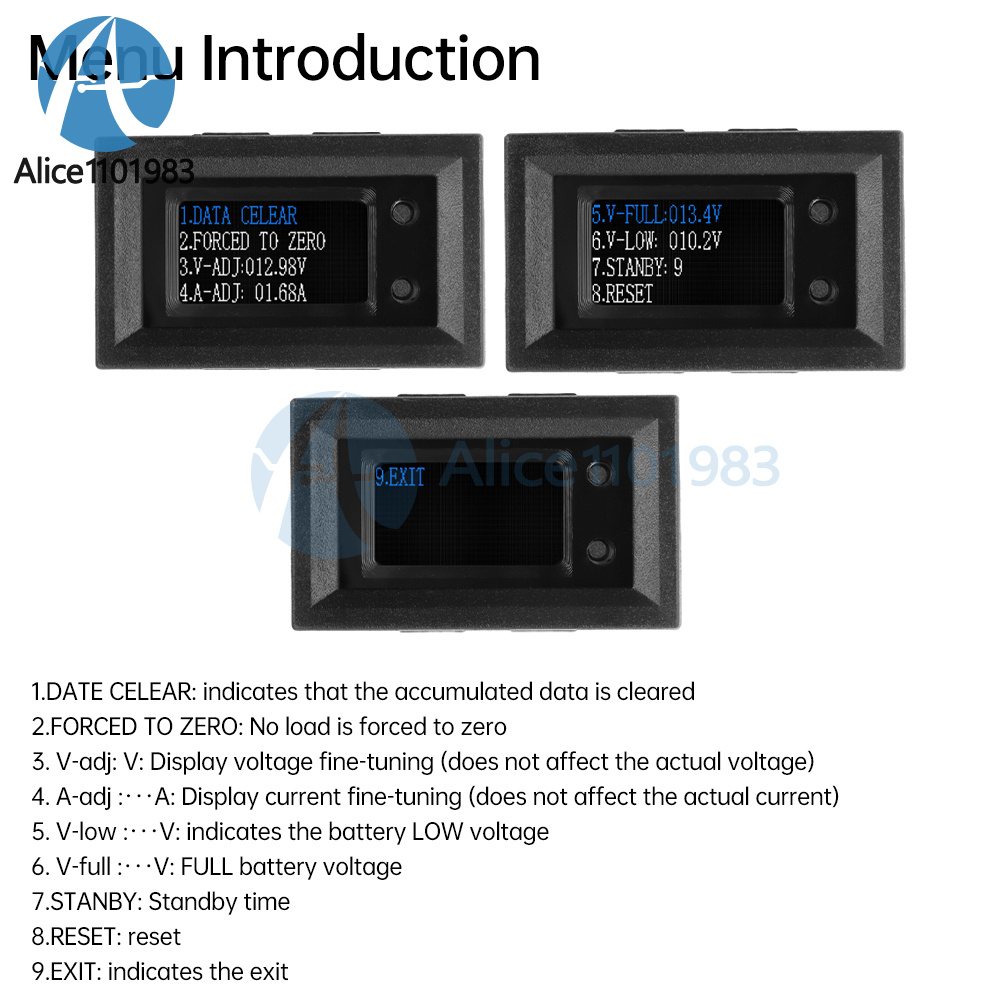

3. Fine adjustment to meet personalized needs: taking into account different application scenarios, this product is especially added to the voltage and current display fine-tuning function. Users can flexibly adjust the display value according to the actual use situation.
4. Zeroing cumulative data and zeroing without load: the former allows users to clear the history record at any time to restart the statistics; the latter can automatically zero the readings in the no-load state, effectively avoiding the accumulation of errors.
5. Intelligent power management, percentage power based on voltage reference: by manually setting the full voltage and low voltage, the device can intelligently calculate the current percentage of remaining power, which helps users to better plan the charging cycle and duration of use.
Parameter:

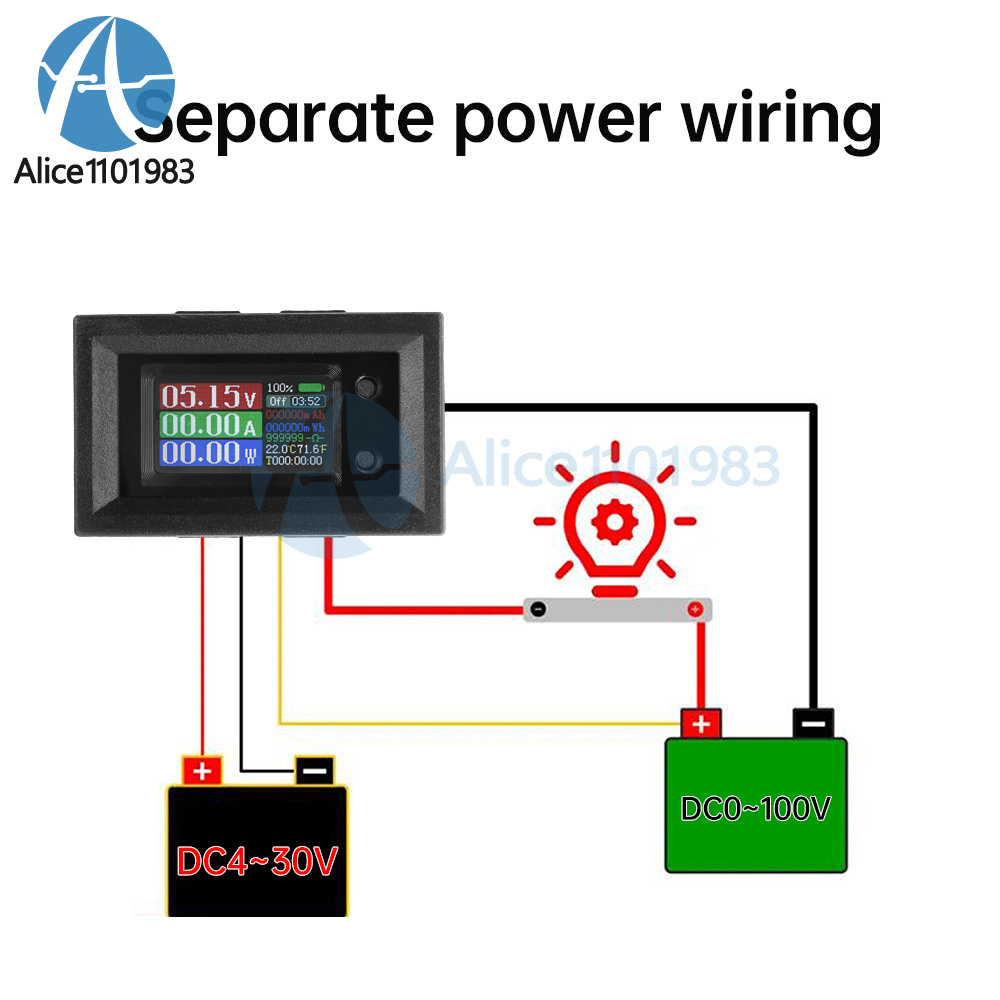

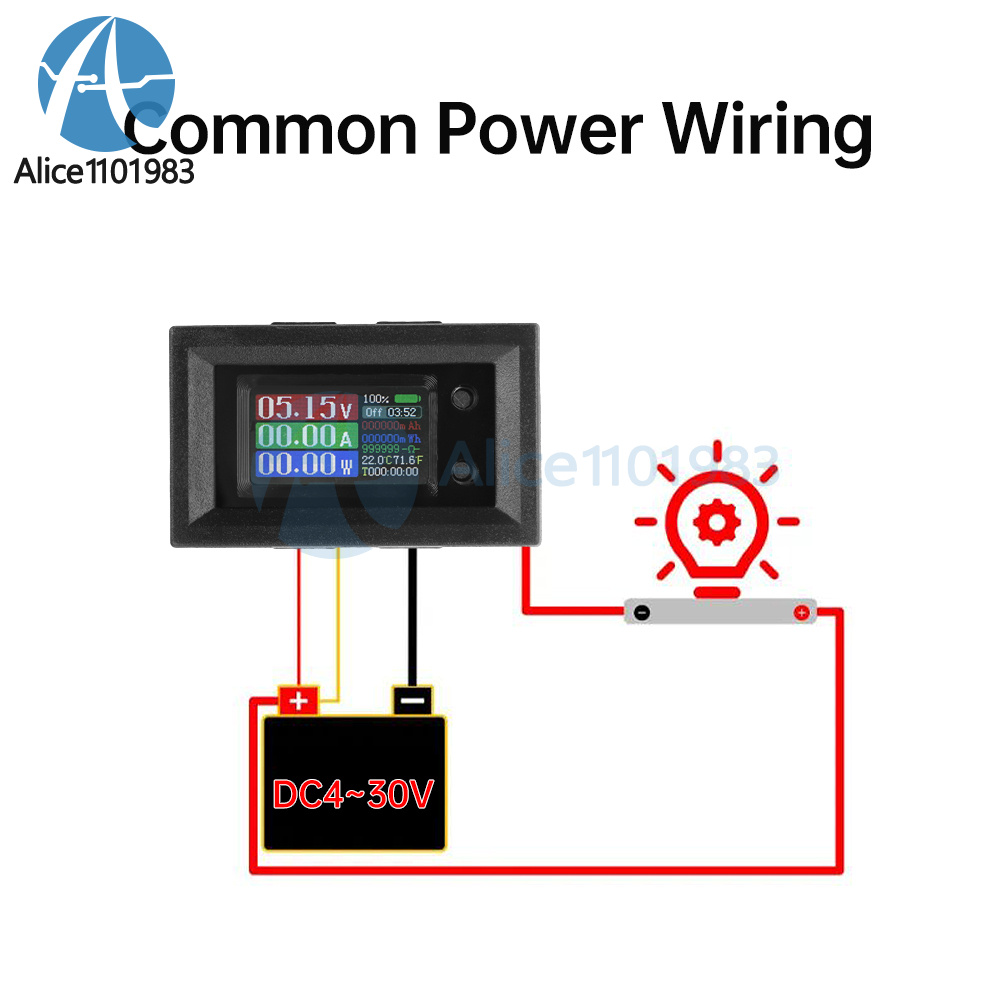

Working voltage: DC4~30V (Do not over-voltage power supply)
Voltage Measurement Range: DC0~100V Error ±1.00V 0.1V jumping
Current measurement range: unidirectional measurement, 0.00A ~ 10.00A Error ± 0.1A 0.03A jumps
Power measurement range: 00.00~1000W
Impedance display range: 0~99999Ω (non-internal resistance)
Capacity measurement range: 0~999999kAh
Energy measurement range: 0~999999kWh

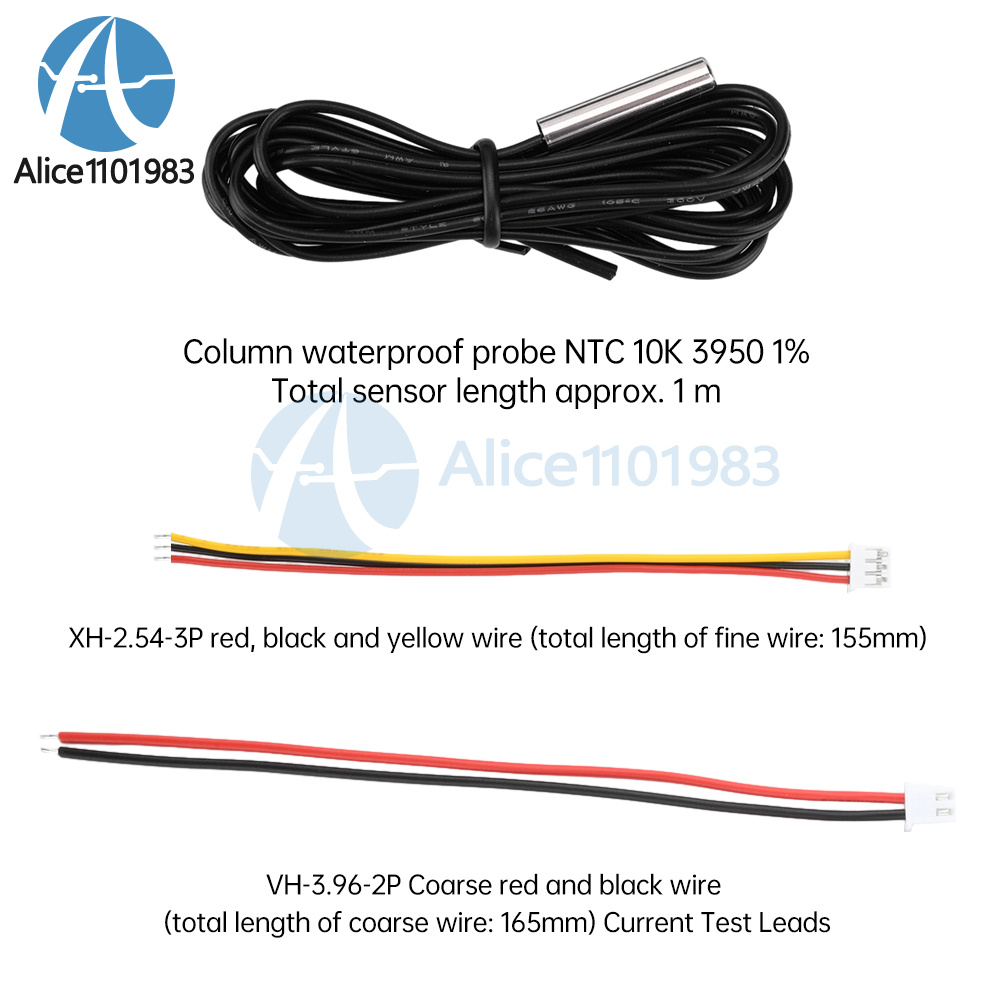

Temperature sensor: column waterproof probe NTC 10K 3950 1% sensor Total length about 1 meter
Temperature metering range: -40~120℃ (external temperature measured by NTC sensor)
Time measurement range: 0~999:59:59 (hours:minutes:seconds)
Standby energy consumption: 10mA (measured by DC12V)
Accumulated data zeroing: Support
No-load forced zeroing: support
Voltage display fine-tuning: Support
Current display fine-tuning: support
Percentage power display: Percentage power based on voltage reference (need to manually set full power and low power voltage)

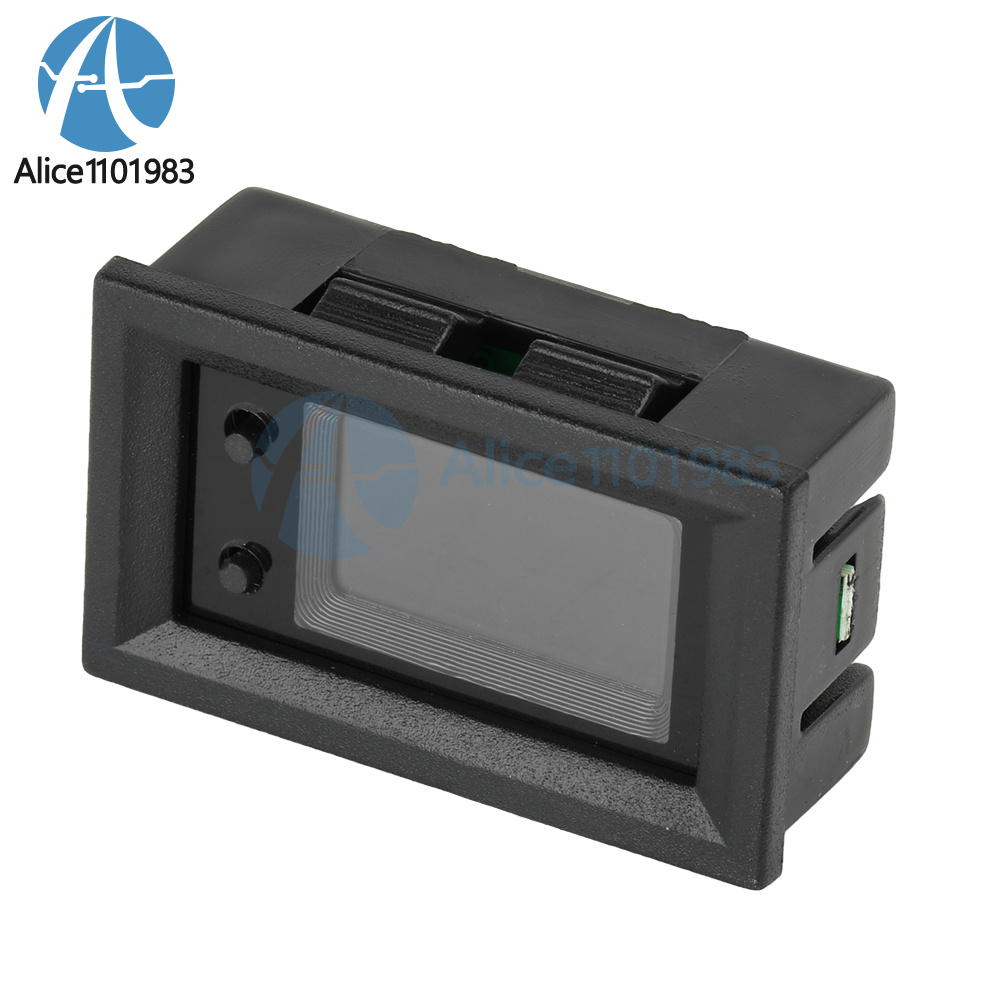

Meter size: 47.7×28.7×17.5mm
Mounting hole: 45×25.8mm
NOTE: 50A, 100A must be used with a shunt.

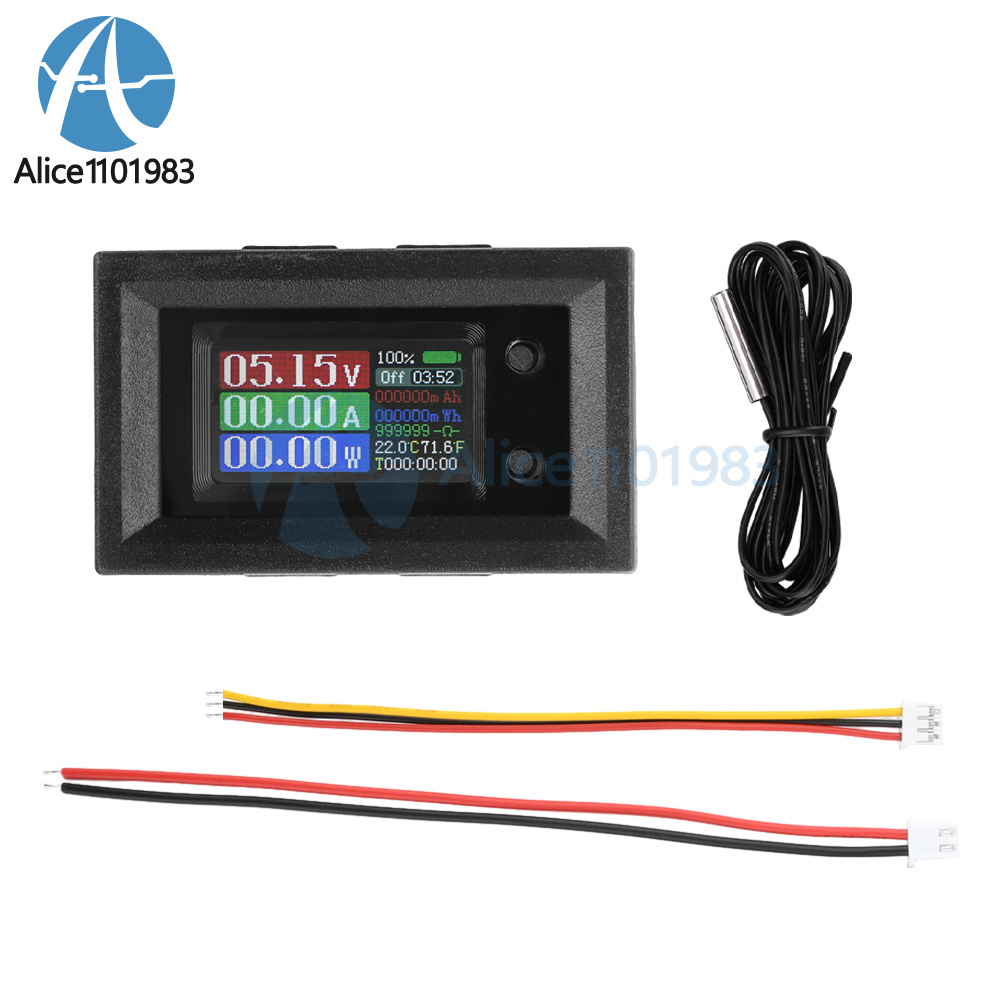

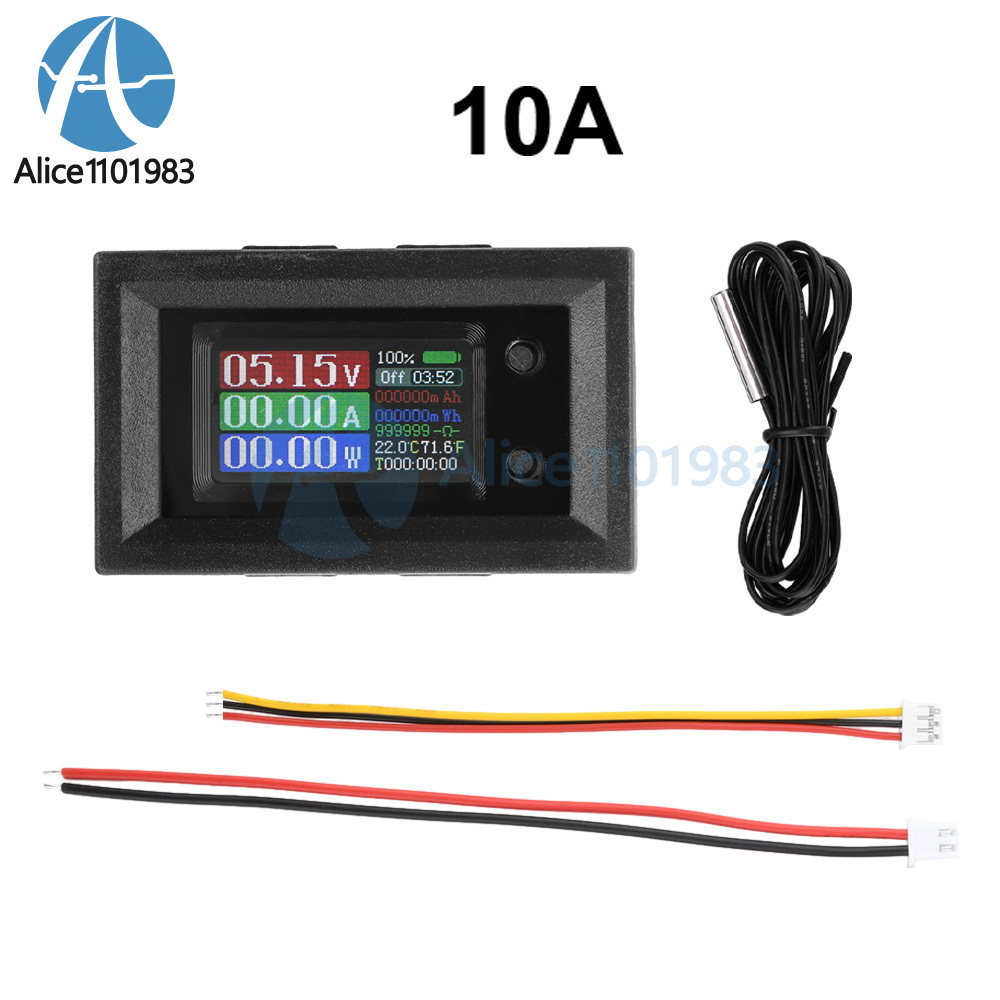

Package include:
Meter head*1
Wire*2
NTC sensor*1
