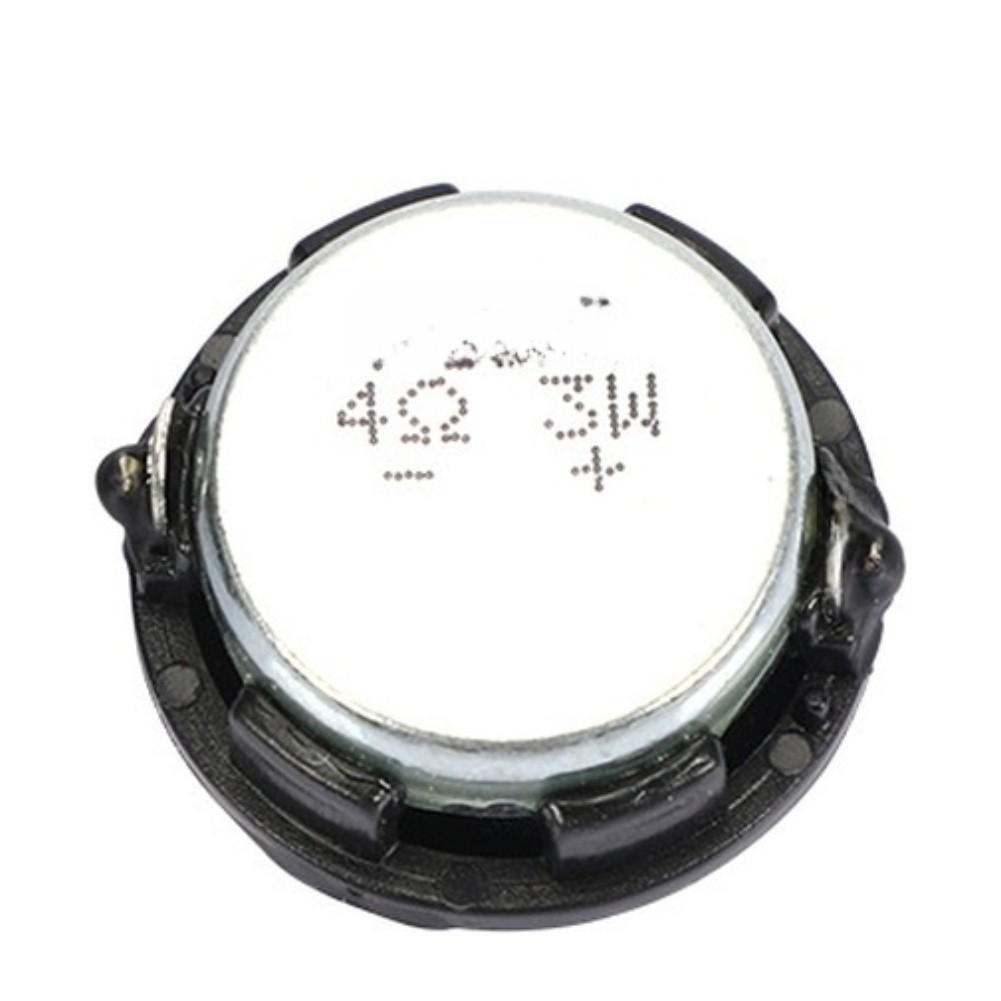

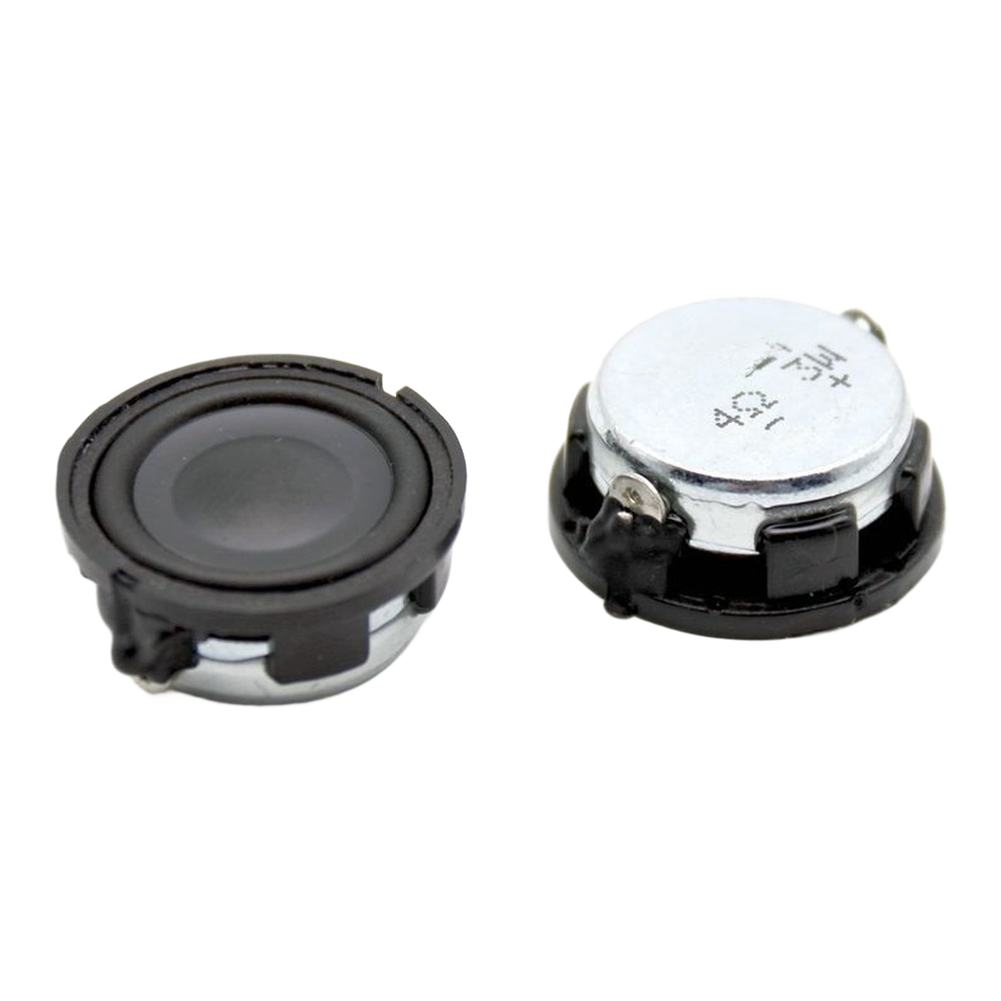

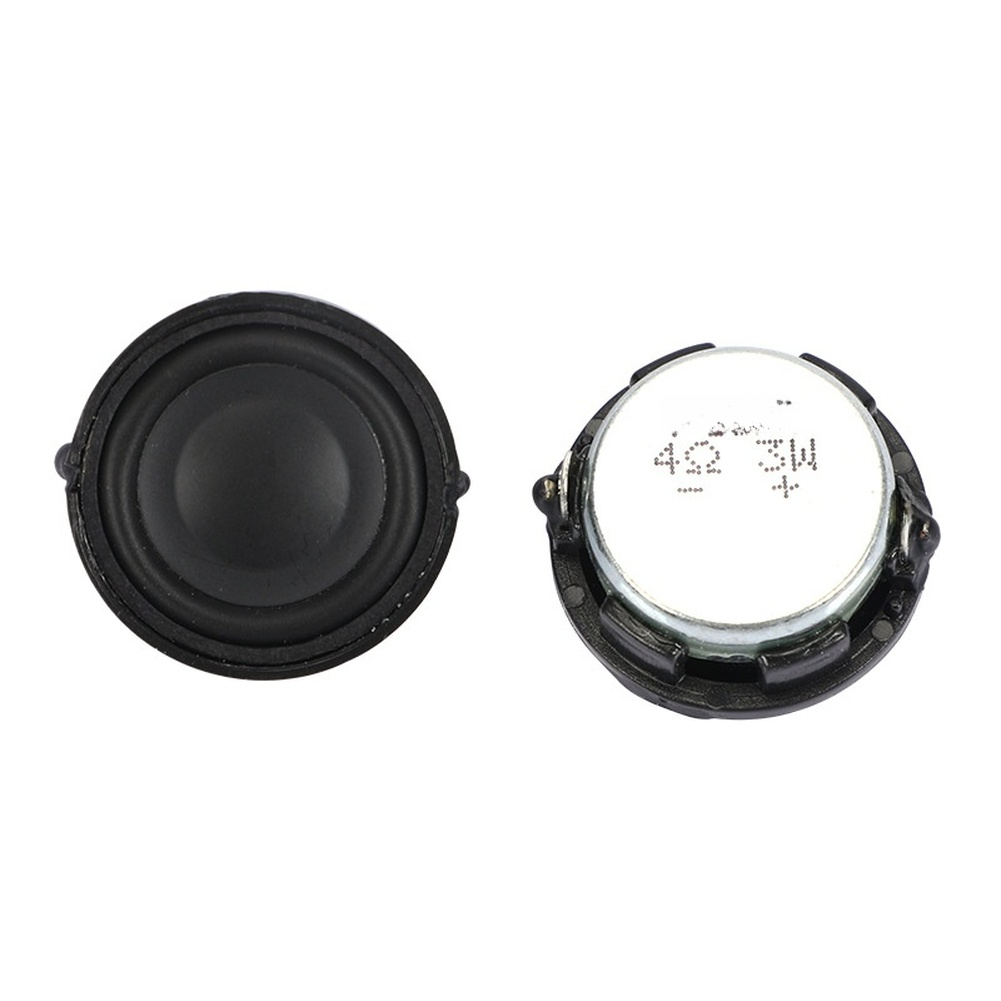

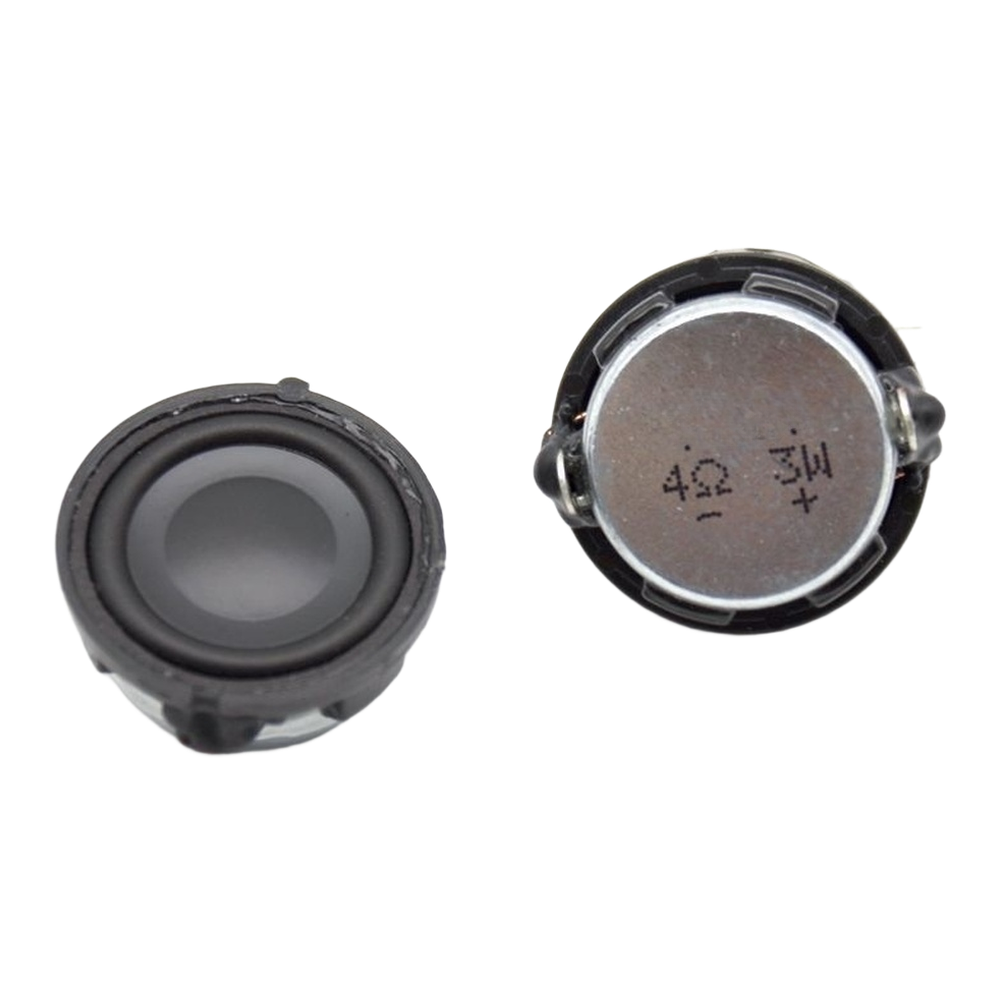

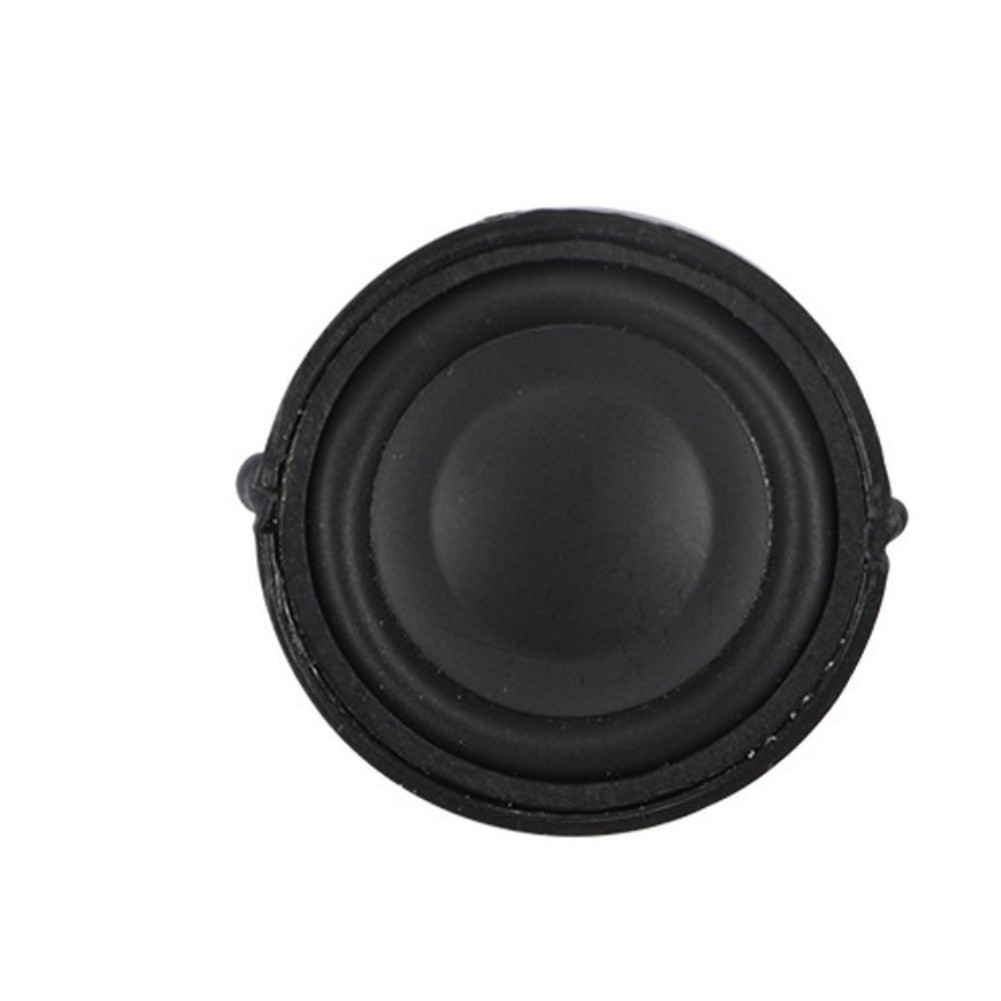

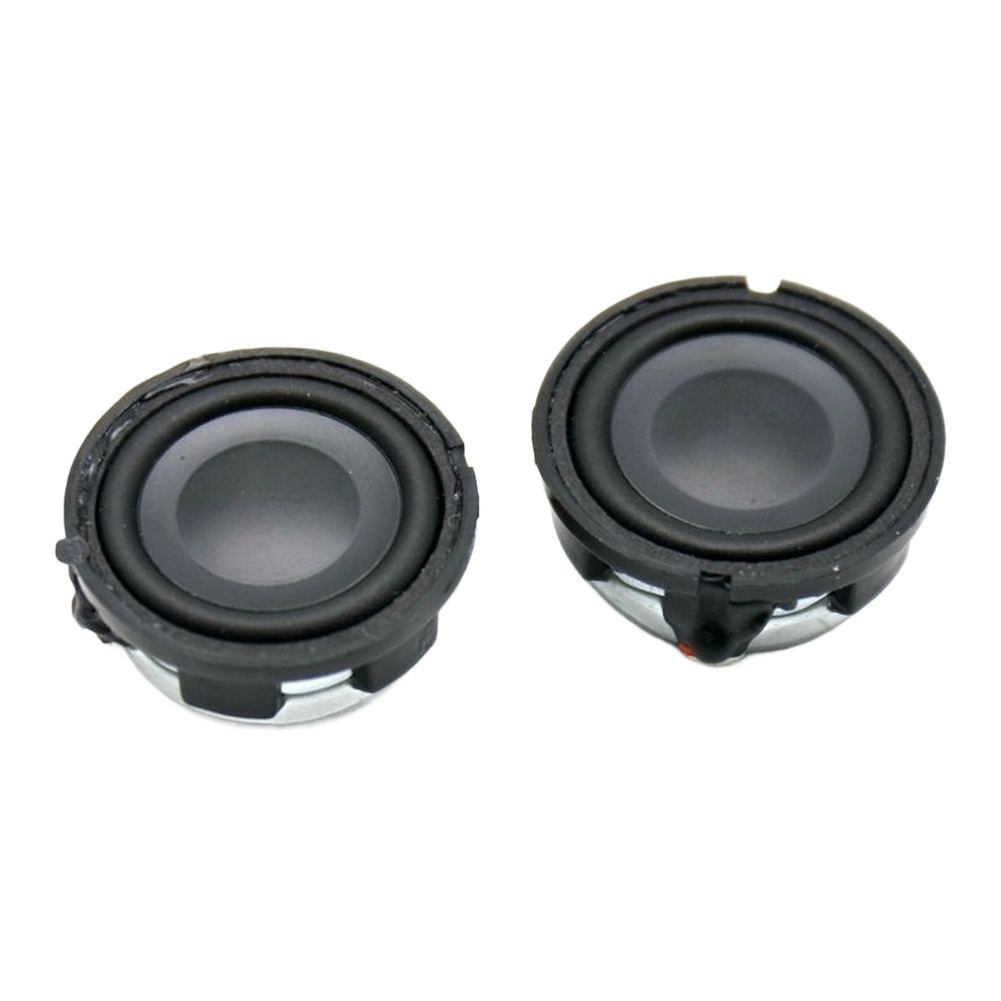

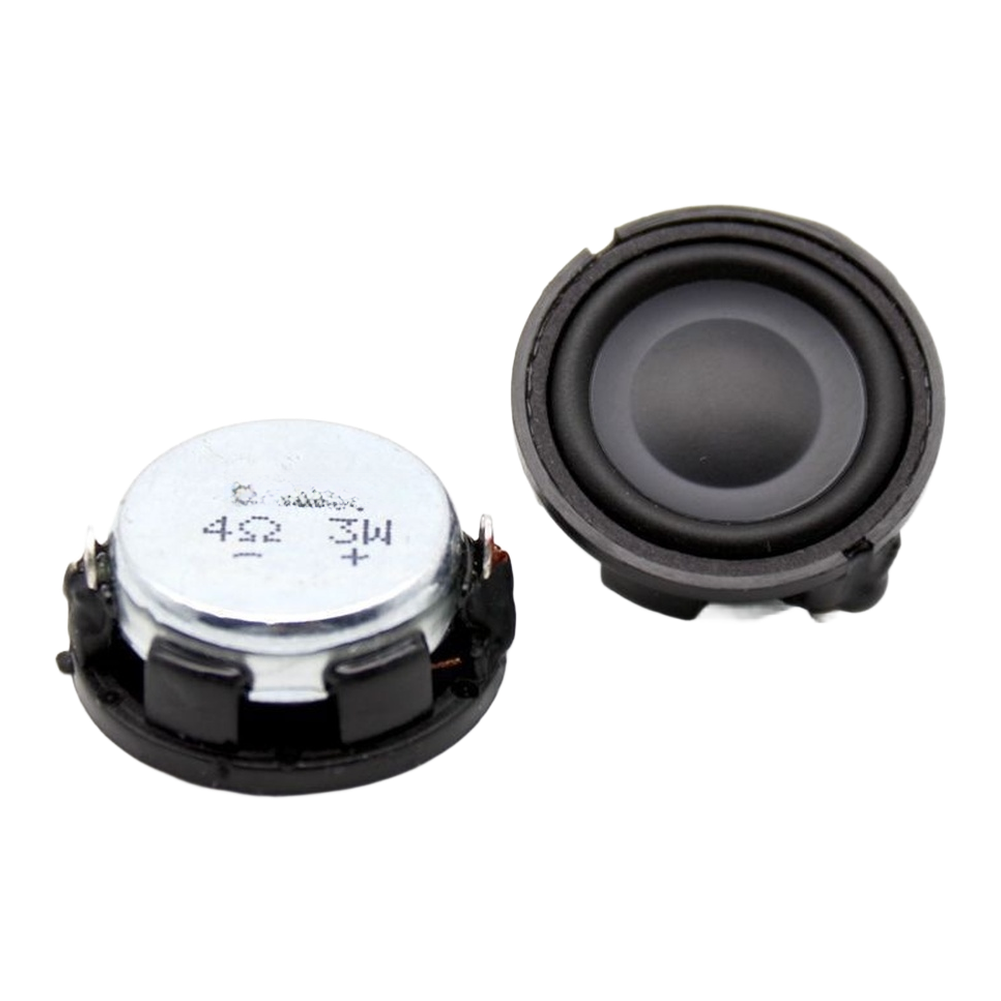

23mm Full-Range Portable Speaker 4 Ohm 3W ABS Black Wired Audio Driver
DESCRIPTION

Features:

*Compact Design: The 23mm round shape of this multimedia speaker makes it highly portable, allowing you to easily carry it wherever you go, your music travels with you.

*Full Range Audio: This speaker excels in delivering a balanced sound for across all frequencies, providing an immersive audio experience that enhances your listening pleasure for music, for podcasts, and more.

*Efficient Power Handling: With a 4 Ohm impedance, this speaker is designed for optimal power efficiency, making it compatible with various audio devices without compromising performance.

*Clear Sound Output: Capable of producing up to 3W power output, the speaker ensures clear and distortion-free audio at moderate volume levels, perfect for personal listening or small gatherings.

*Flexible Connectivity Options: The wired connectivity feature allows for solderable wire connections, offering versatility in installation and a reliable audio connection tailored to your needs.


Specifications:

Part Name:Speaker

Material:ABS

Size:23.5*23.5*10.2MM

Color:Black

Common impedance: 4 Ω± 15%, test conditions: 1kHz/1.0Vrms

Minimum resonant frequency: Fo: 420Hz ± 20%, testing conditions: no baffle

Output sound pressure: 82 ± 3dB, test conditions: 0.1m/0.1w/0.6,0.8,1.0,1.2kHz average value

Rated power: 3.0W, test conditions: 3.46Vrms

Maximum power: 3.5W, test conditions: 3.74Vrms

Effective bandwidth: FO~20kHz, testing conditions: none

Reliability test: Normal operation within the rated frequency range, test conditions: Program source 3.0W/FO~10kHz

Abnormal sound test: No noise/abnormal sound within the rated frequency range, test conditions: sine wave 3.46Vrms/FO~10kHz

Distortion (THD): ≤ 10%, test conditions: rated power input/1000Hz

Magnet: NdFeB

Working temperature: -20 ℃~+50 ℃

Storage temperature: -30 ℃~+60 ℃


Package Content:

1*Speaker

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
