Features:

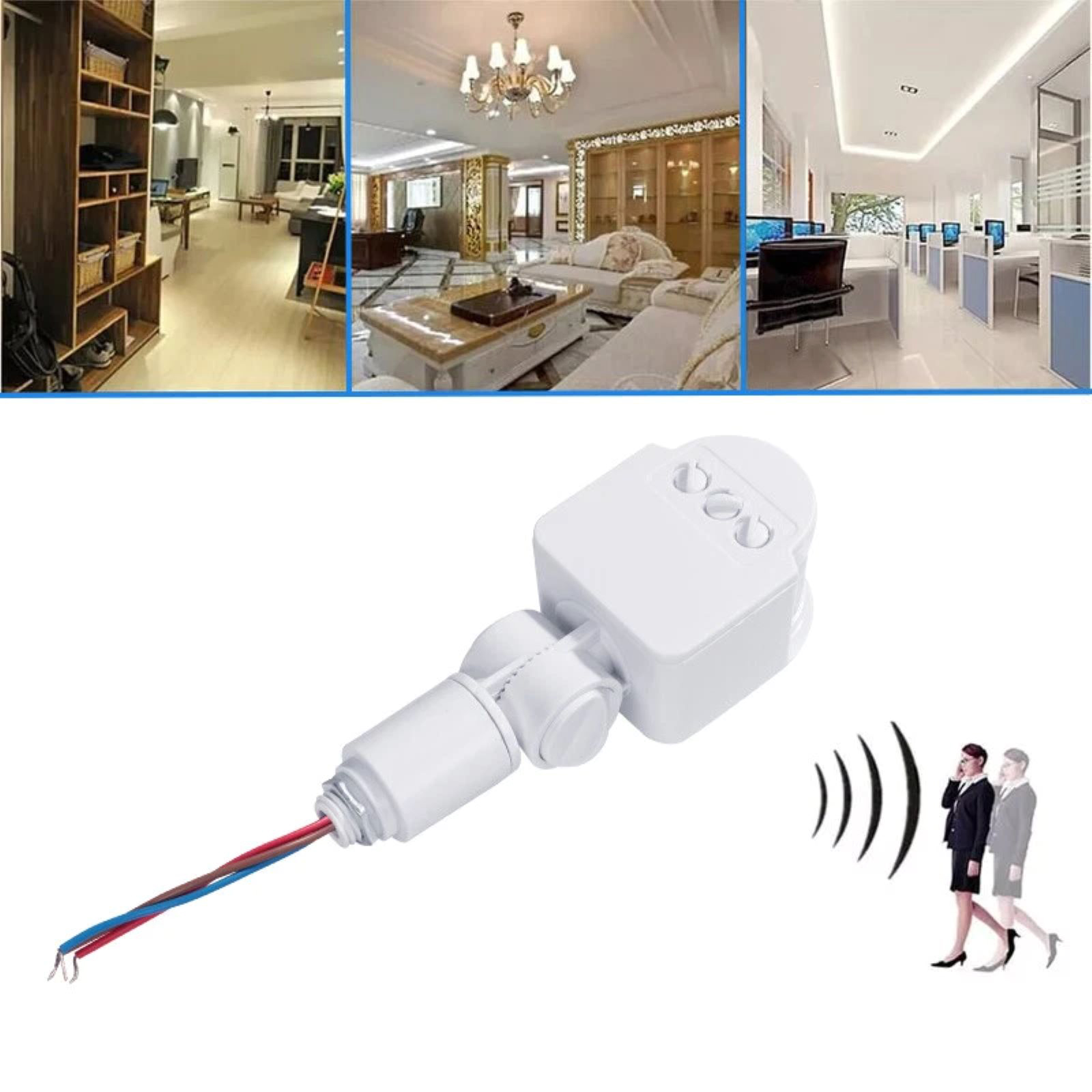

Automatic Induction: This device uses human motion infrared rays as control signal sources. As soon as someone enters the detection field, it immediately starts the controlled load, and the motion sensor can automatically distinguish between day and night.
High Sensitivity Detector: The infrared wall mount switches are equipped with a high - sensitivity detector, an integrated circuit, and SMT technology. They are safe, practical, and have a wide detection range, covering up - down and left - right service areas.
Energy Saving: It is energy efficient, generating low heat and consuming low power. The motion sensor automatically turns the lights on when motion is detected and off after a pre set time delay ranging from 5 seconds to 6 minutes.
Easy To Install: It's easy to install, featuring automatic operation, convenience, safety, and practicality.
Specifications:
Condition: 100% Brand New
Material: ABS+PC
Color: White
Quantity: 2PCS
Thread Diameter: 16mm
Detection Angle: 180°
Operating Temperature: -10℃~+40℃ (14℉~104℉)
Operating Voltage: AC 110-240V

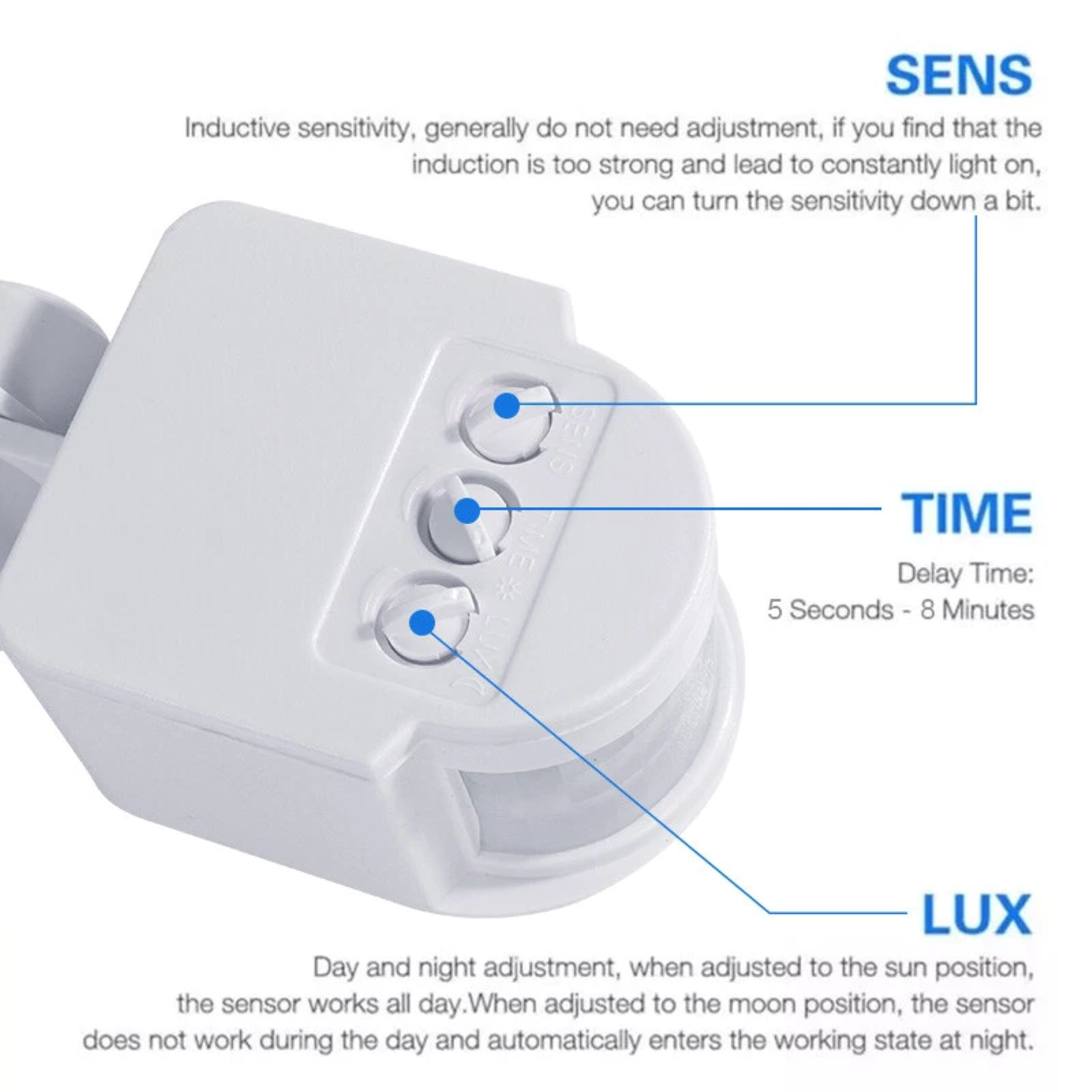

Delay Time: 5s~8min (Adjustable)

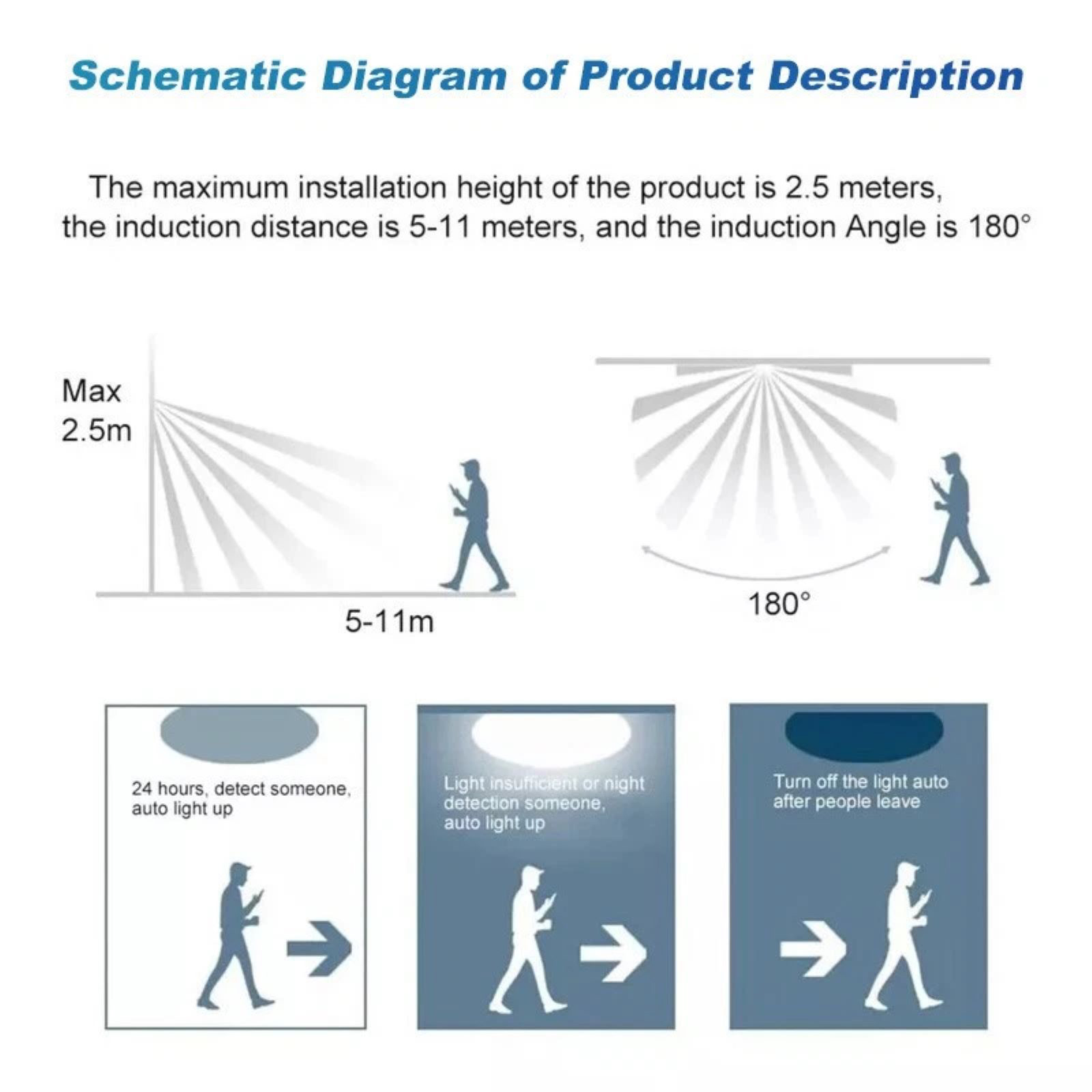

Installation Height: 1.8m To 2.5m
Detection Distance: 5m-11m
Detection Moving Speed: 0.6m/s~1.5m/s
Waterproof Class: IP65
Working Humidity: <93%RH
Power Consumption: <0.5W
Ambient Light: 2LUX~2000LUX (Adjustable)

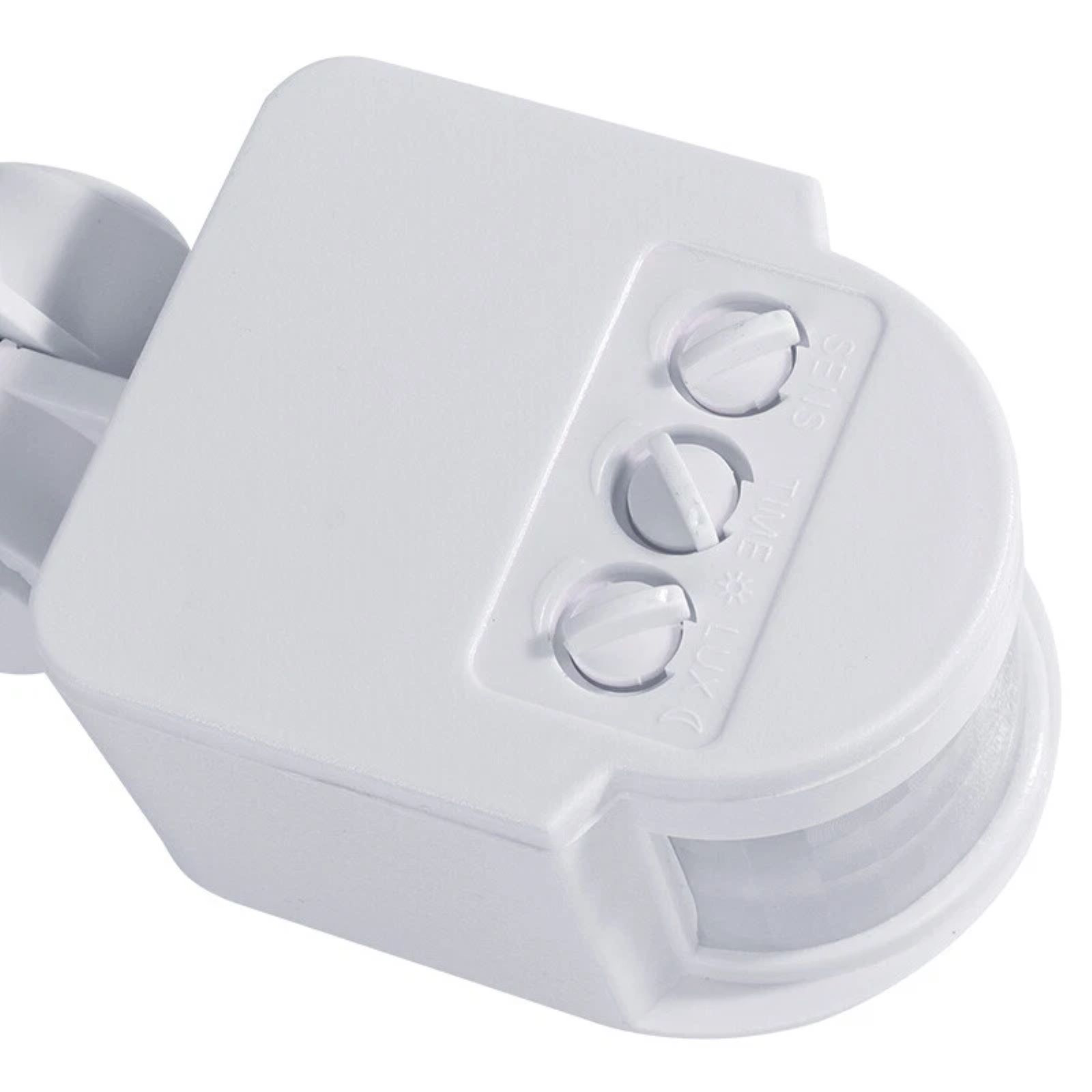

Installation Mode: Open Hole, The Adjustment Button Faces Down During Installation
Operating Frequency: 50/60Hz
Load Power: LED Lamp 60W, Tungsten Lamp 300W
Tail Line Length: 7cm~8cm

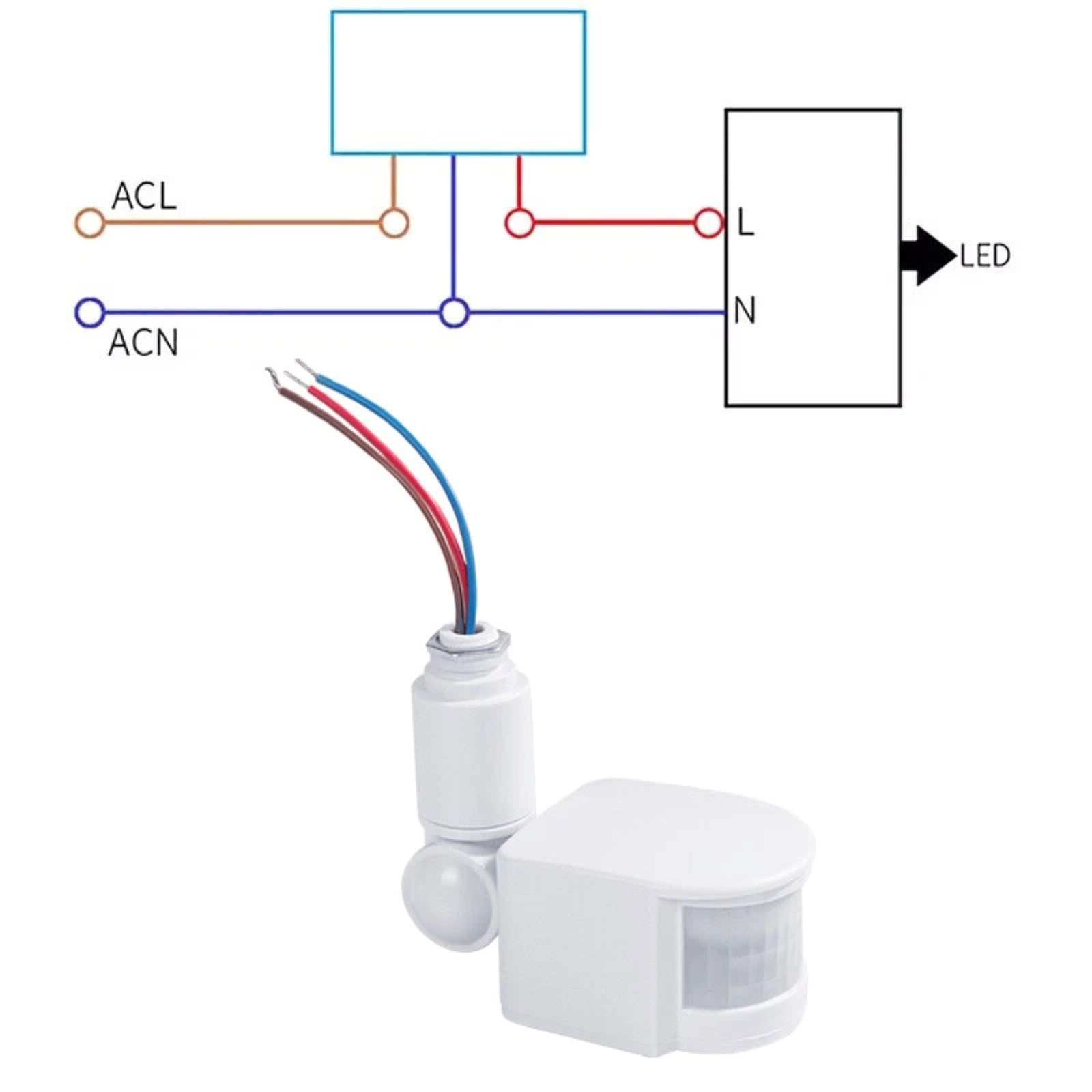

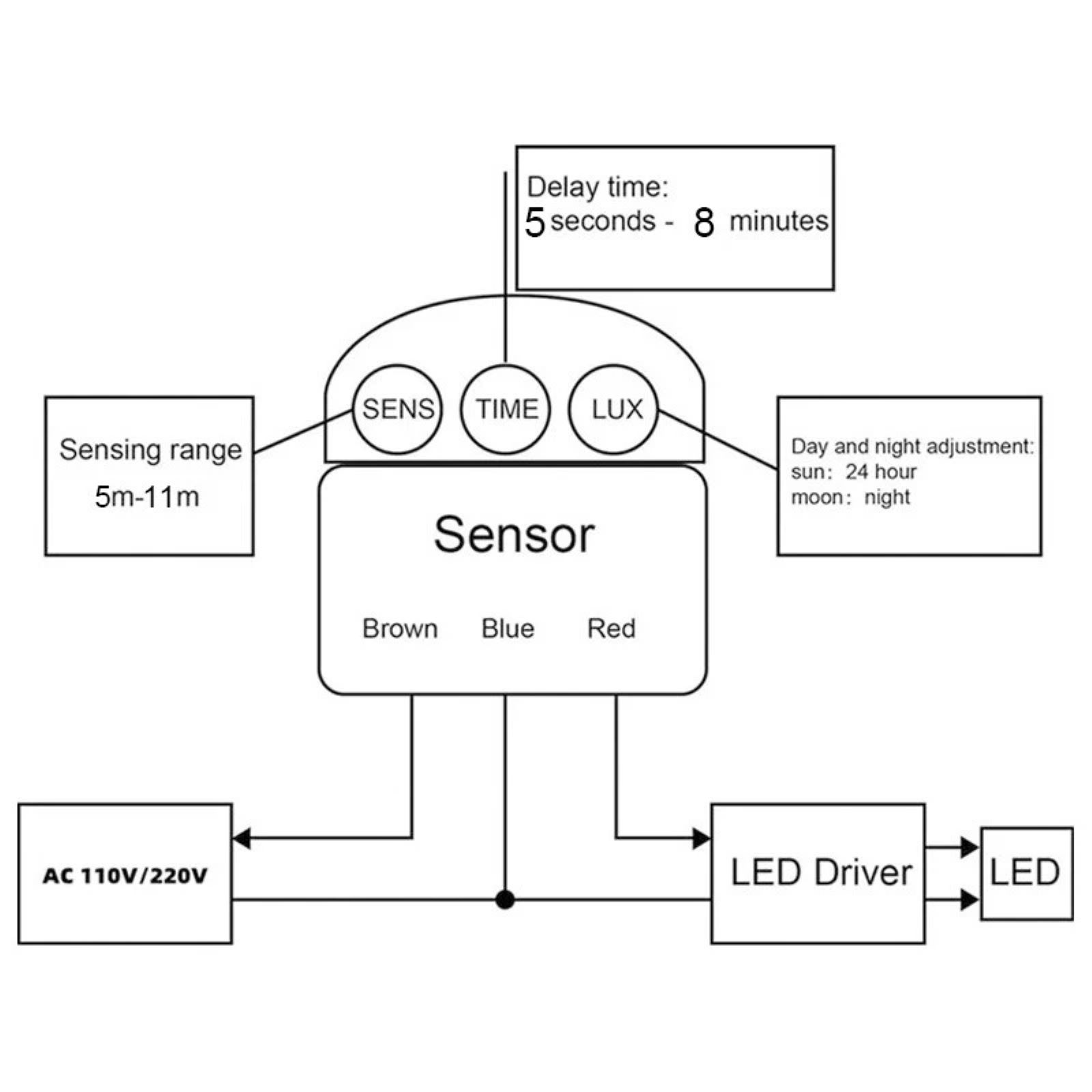

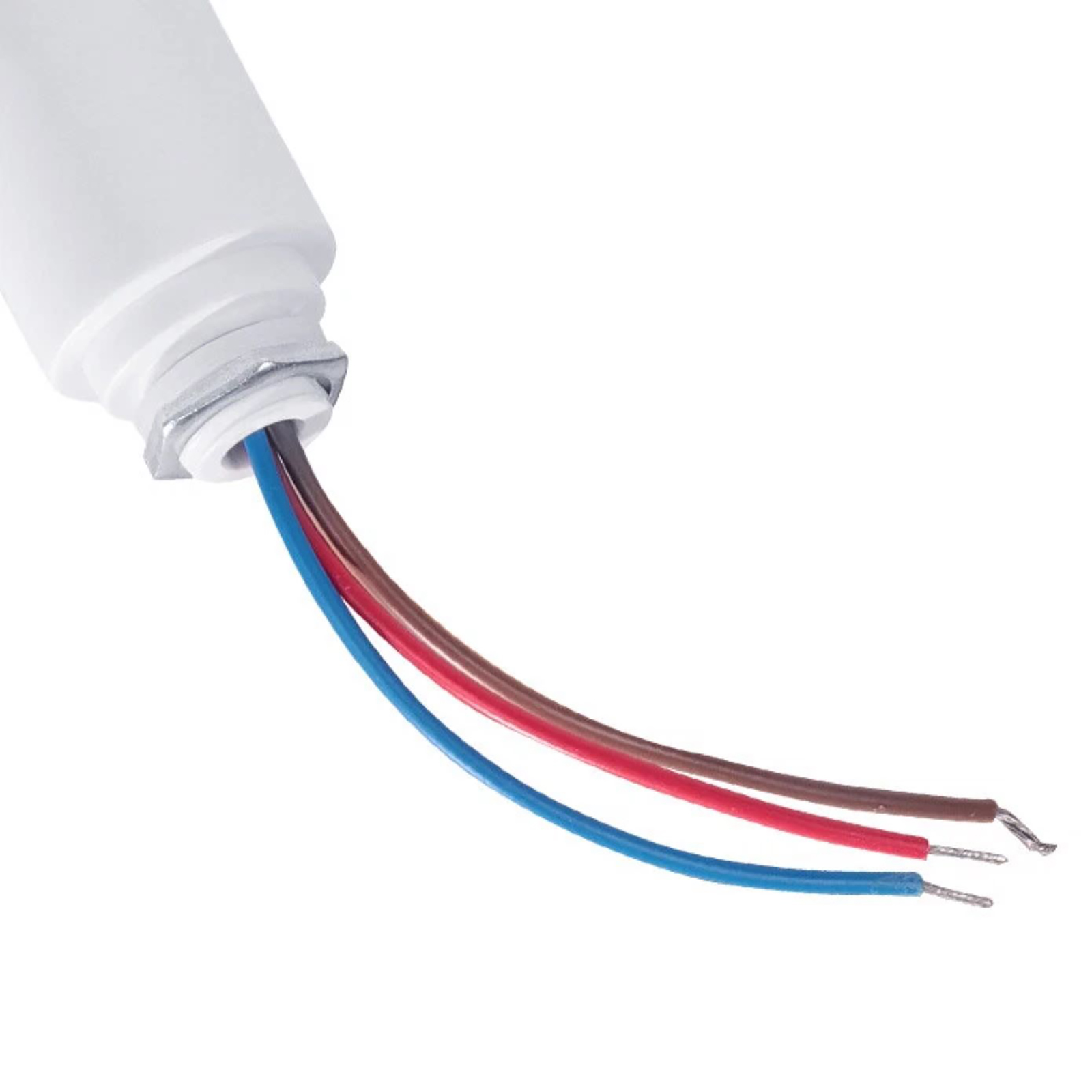

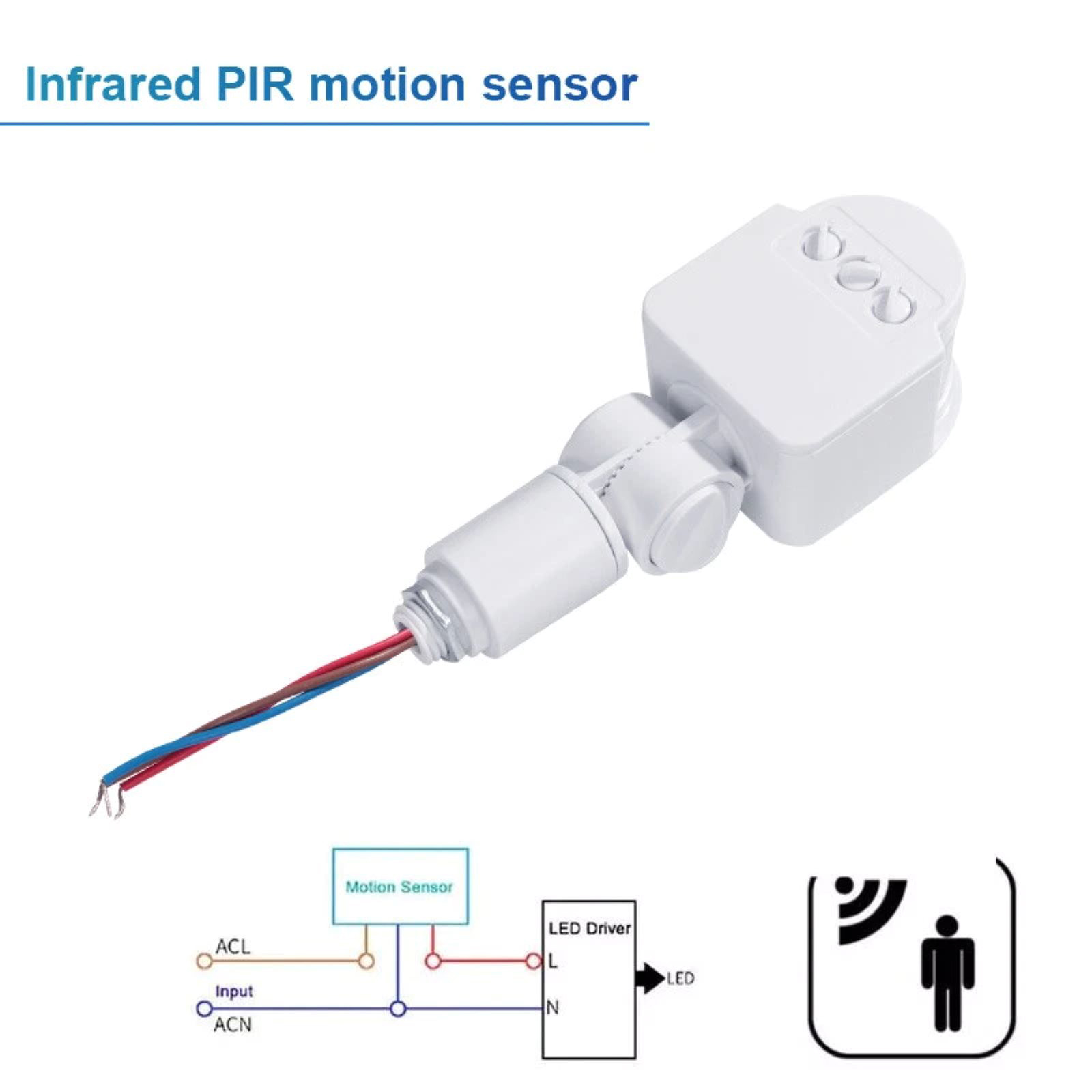

Connection:
Blue: neutral
Brown: Live wire
Red: Ground cable
Blue and brown input power
Blue and red connect load (lamps)
NOTE: To ensure optimal performance and safety of this product, we recommend installation and use by professionals with relevant expertise. Users may also refer to online installation tutorials for self-installation. In case of any issues, please feel free to contact the seller for support.

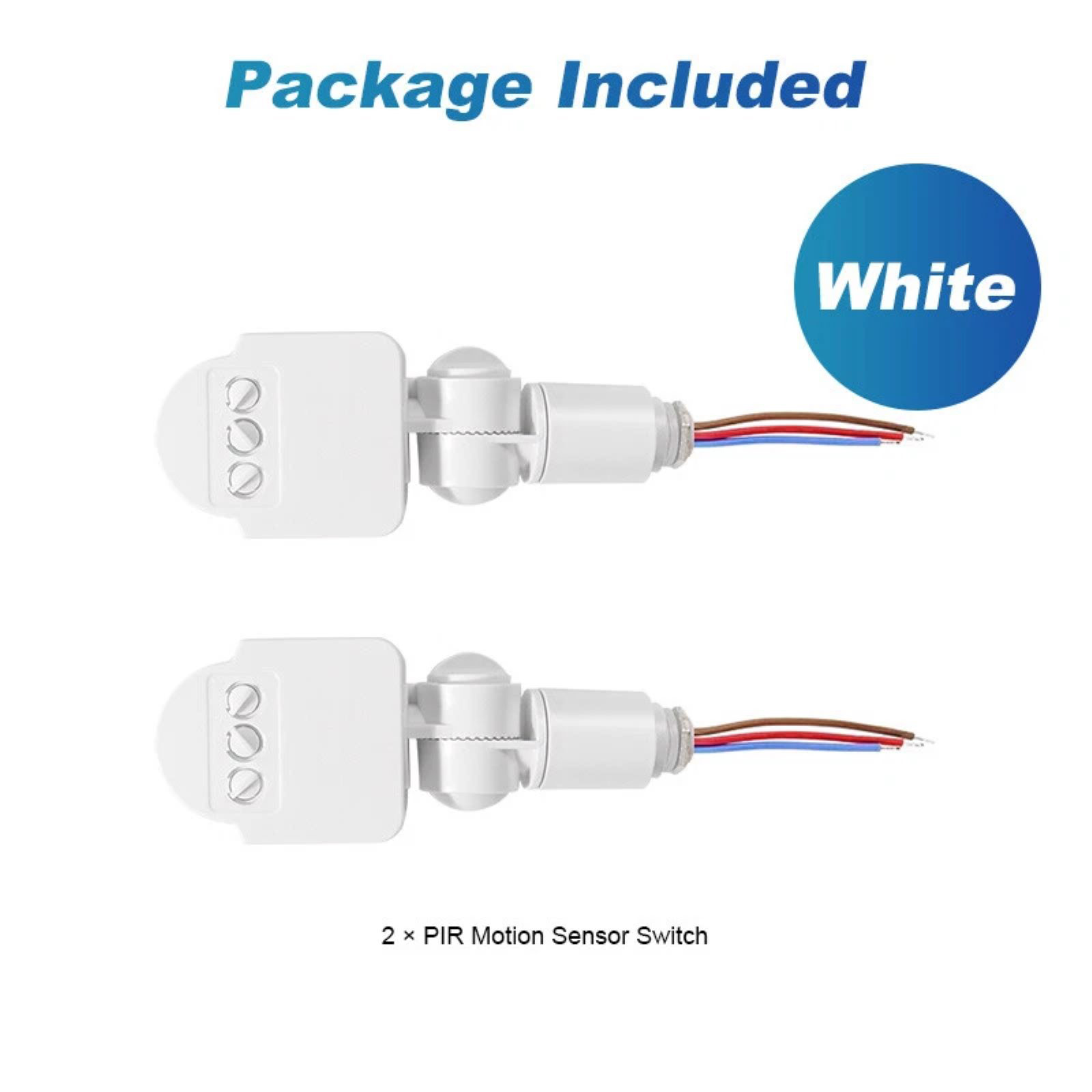

Package Included:

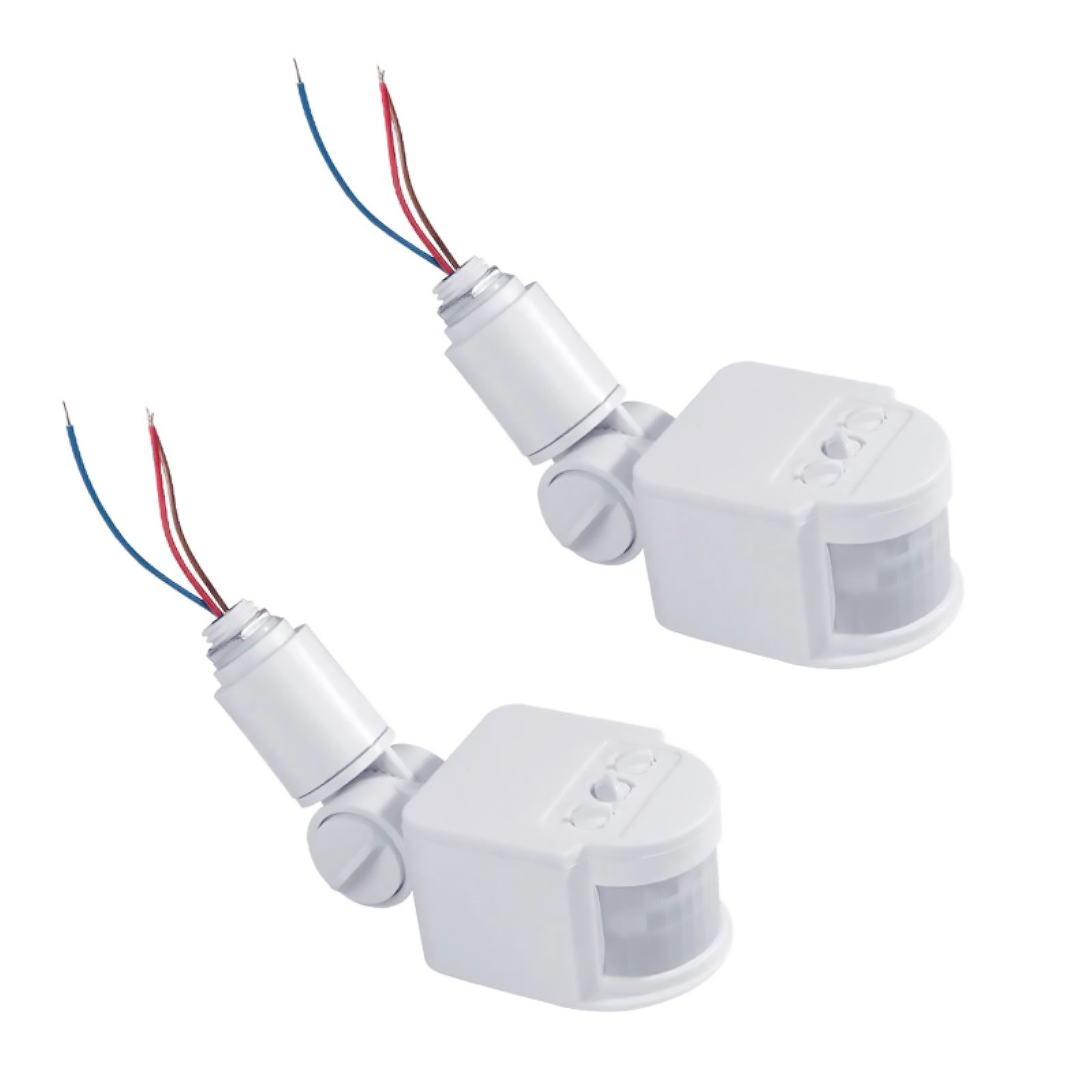

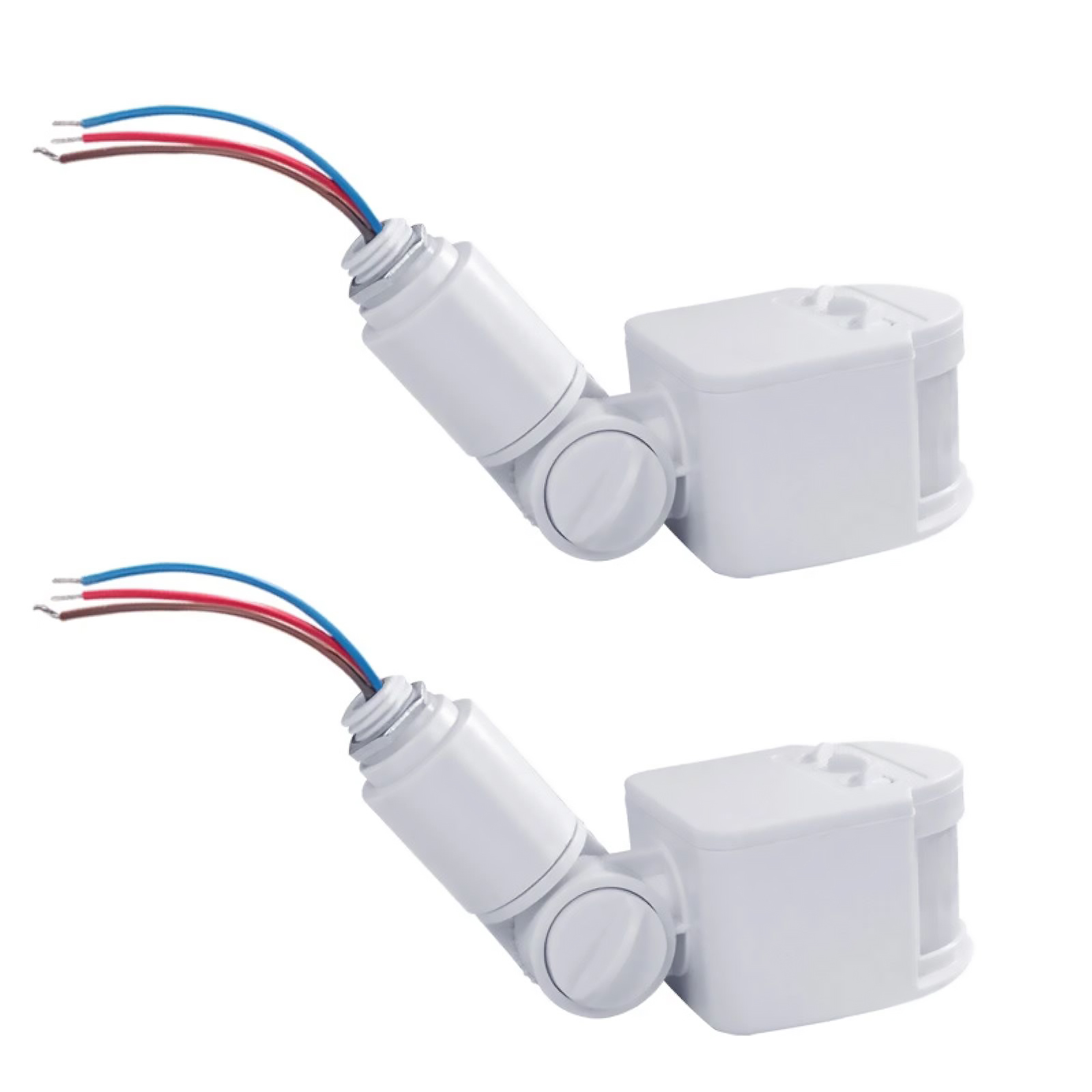

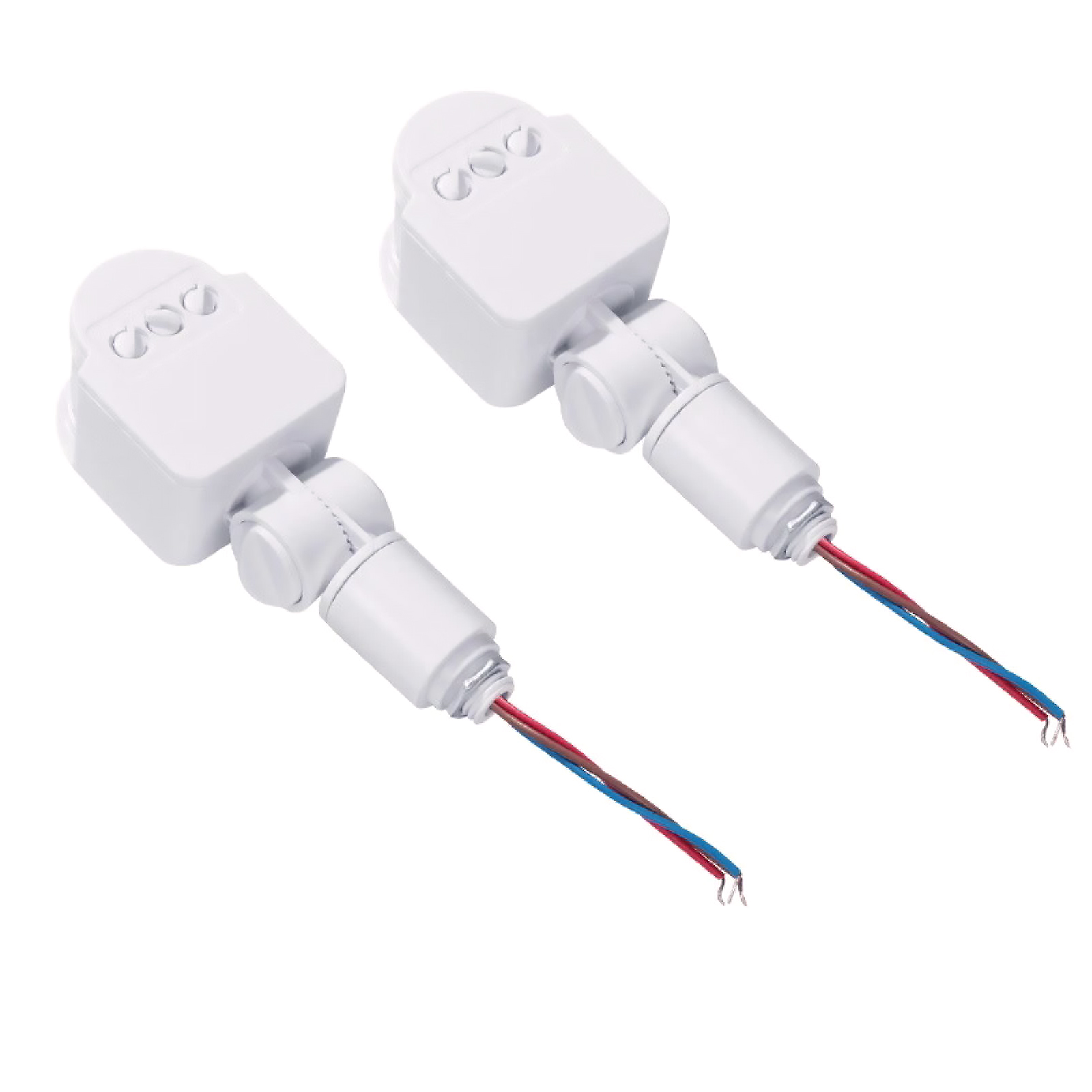

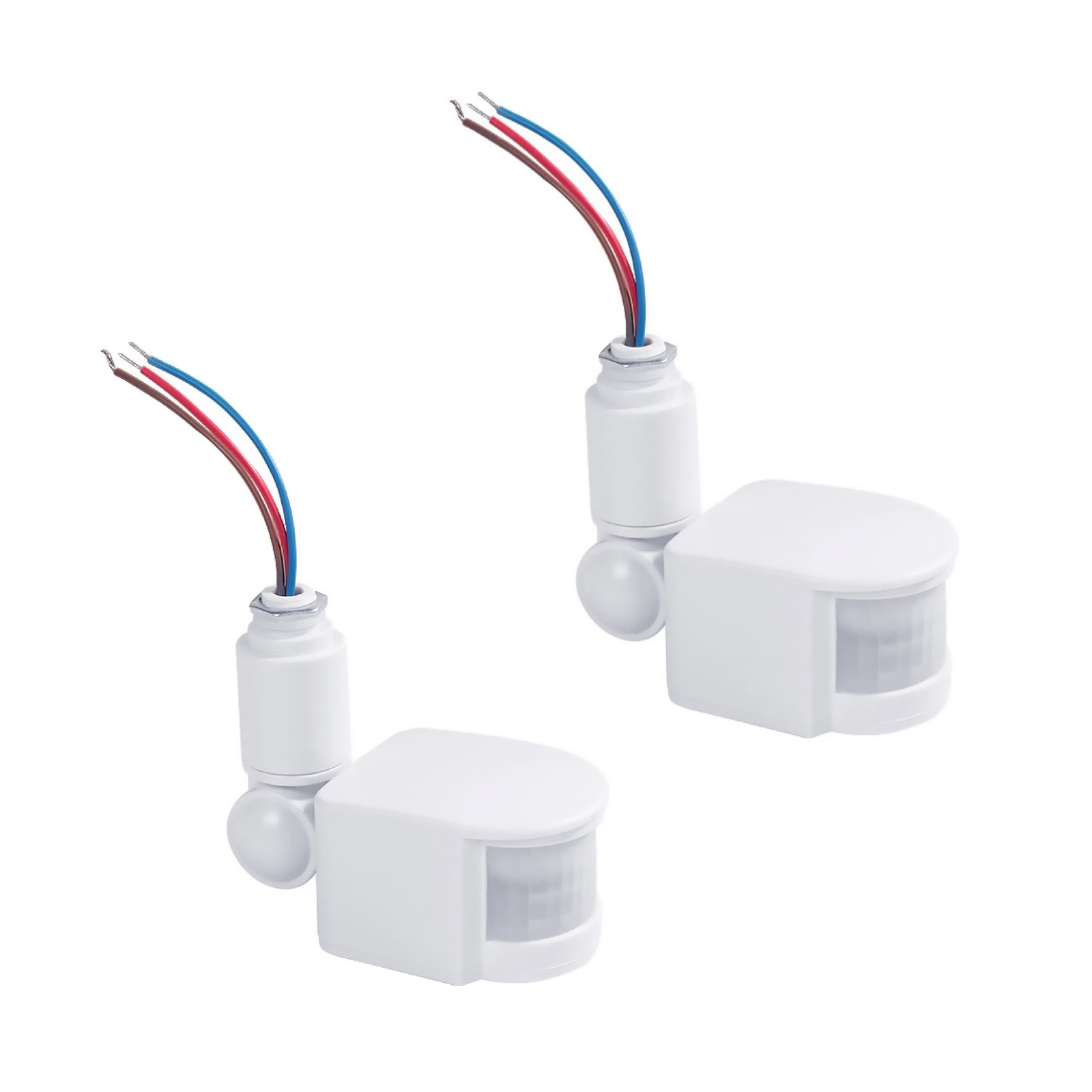

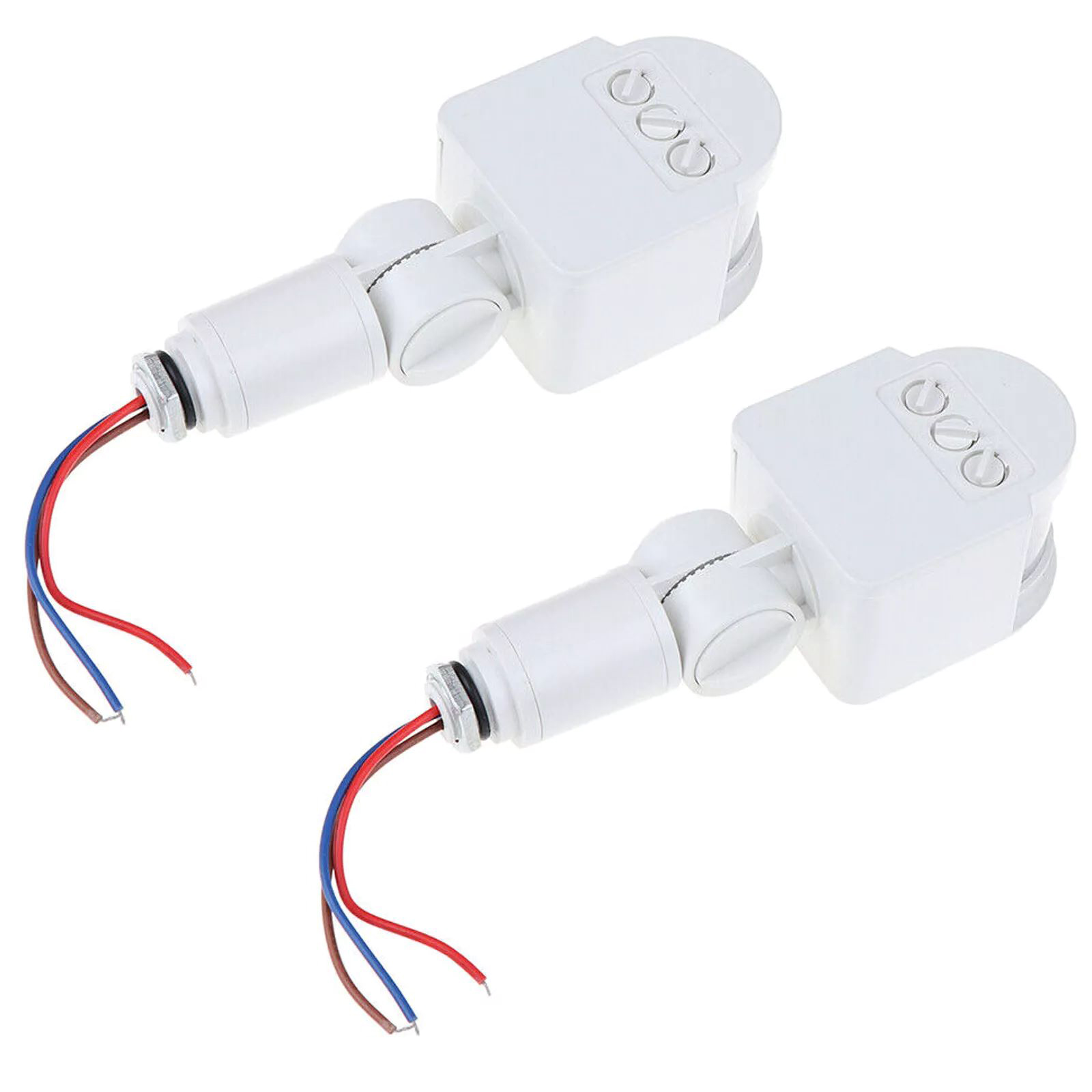

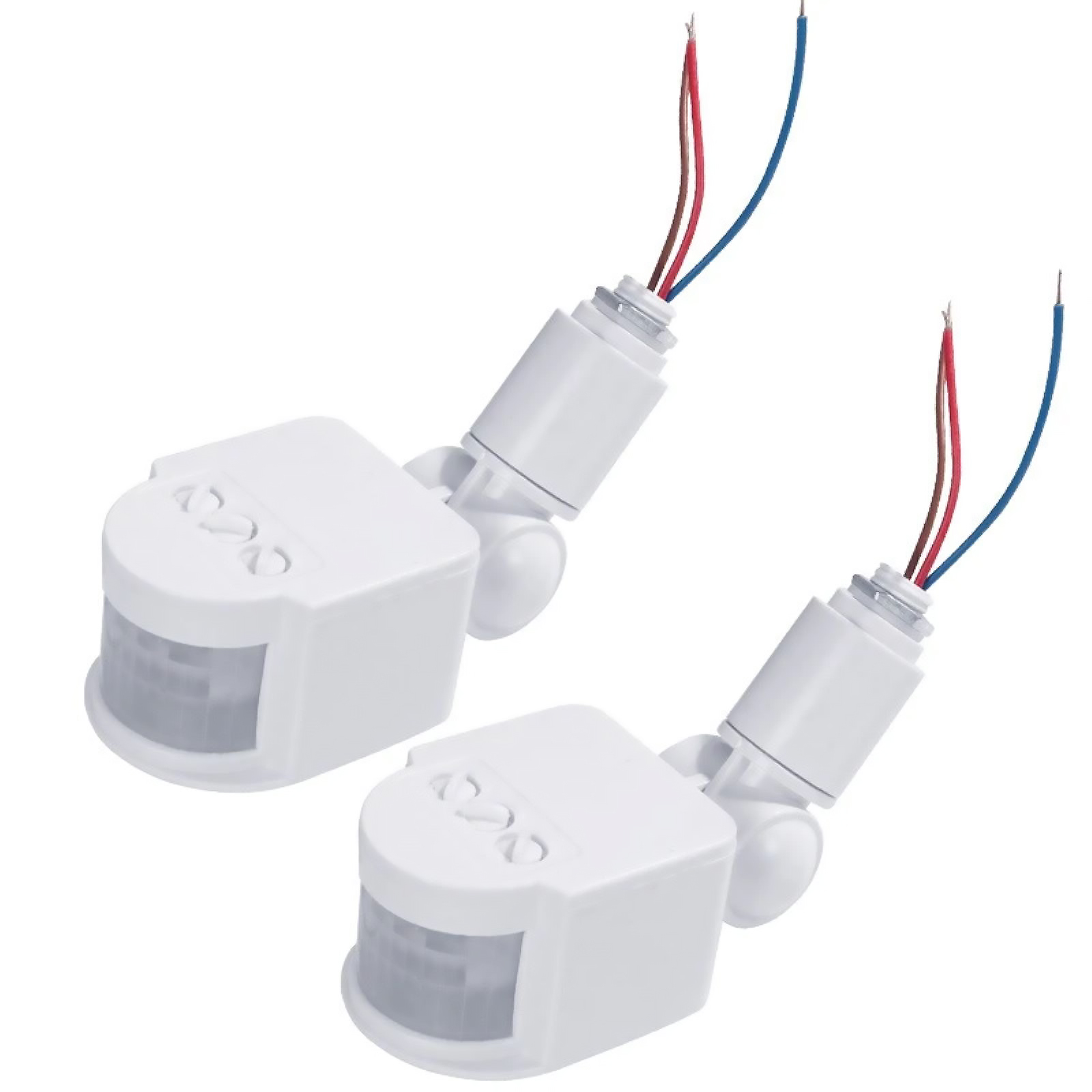

2 × PIR Motion Sensor Switch
