Product Introduction:

The smart bms can automatically identify lithium battery strings from 7S to 24S,bms built-in BT module,with UART/RS485/CAN communication,with balance function and temp sensor.Work voltage 24v/36v/48v/60v/72v,high current bms continuous current 200A 400A,peak current 600A 1000A continuous 1seconds.Can set and monitor datas in APP and PC,support LCD dislay.(please note:smart bms accessories need buy separately if need)

Product Information:

Applicable Battery Type:3.7v Li-ion/3.2v LiFePo4 Battery.

Smart BMS can support 7S 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S 18S 19S 20S 21S 22S 23S 24S.

continuous current in 200A/300A,peak current in 600A/900A for 1s.Balance current in 70-230mA.

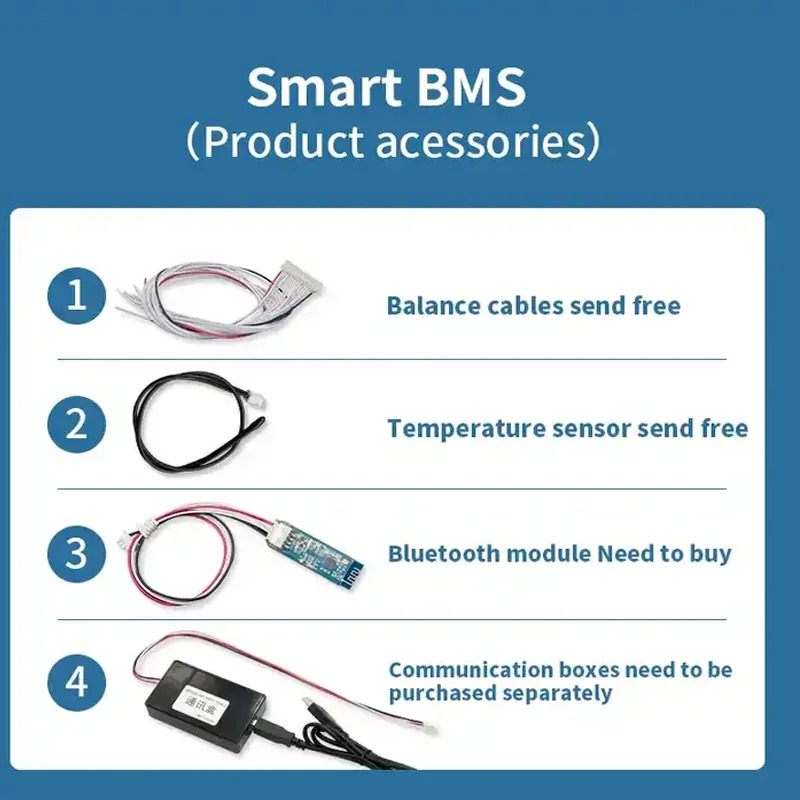

Package included:BMS*Free BT Module*Balance Wires.

Function Introduction:

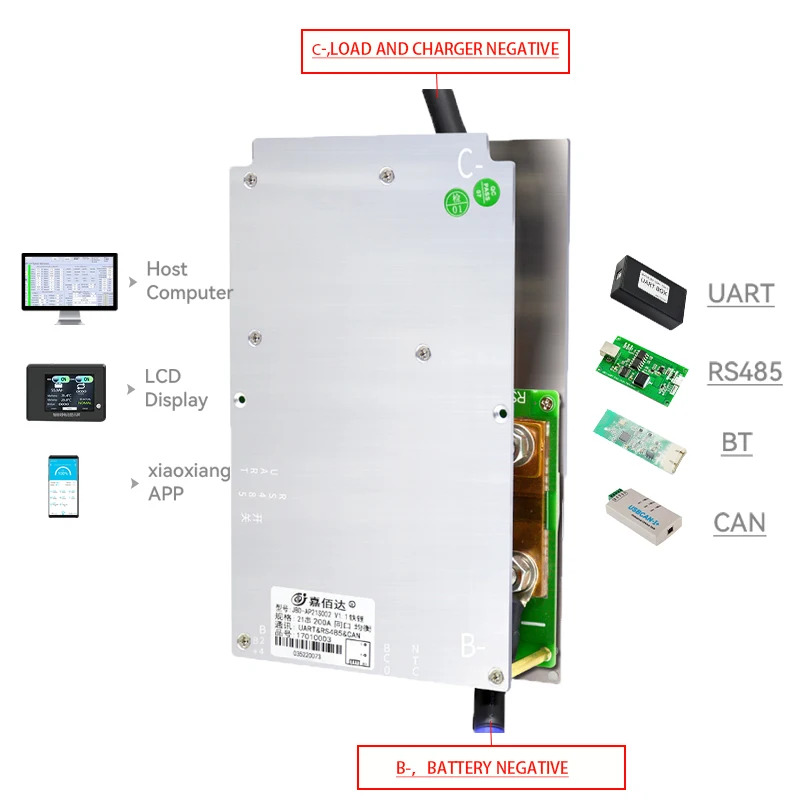

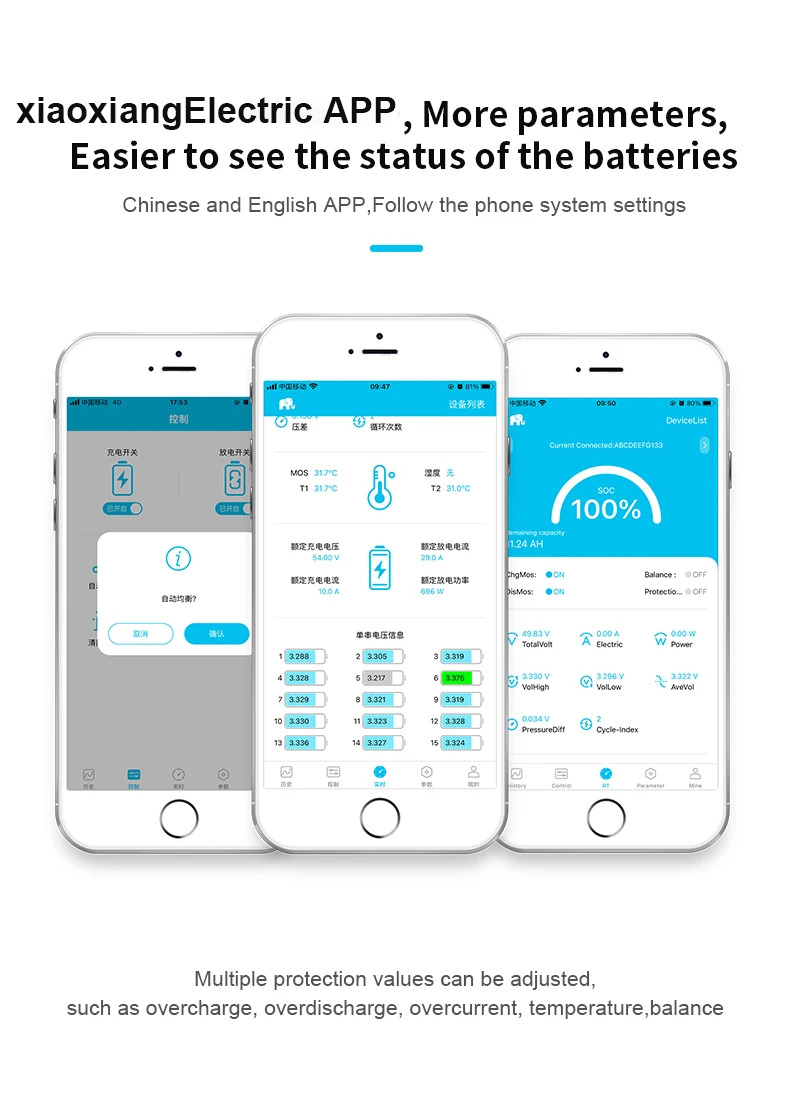

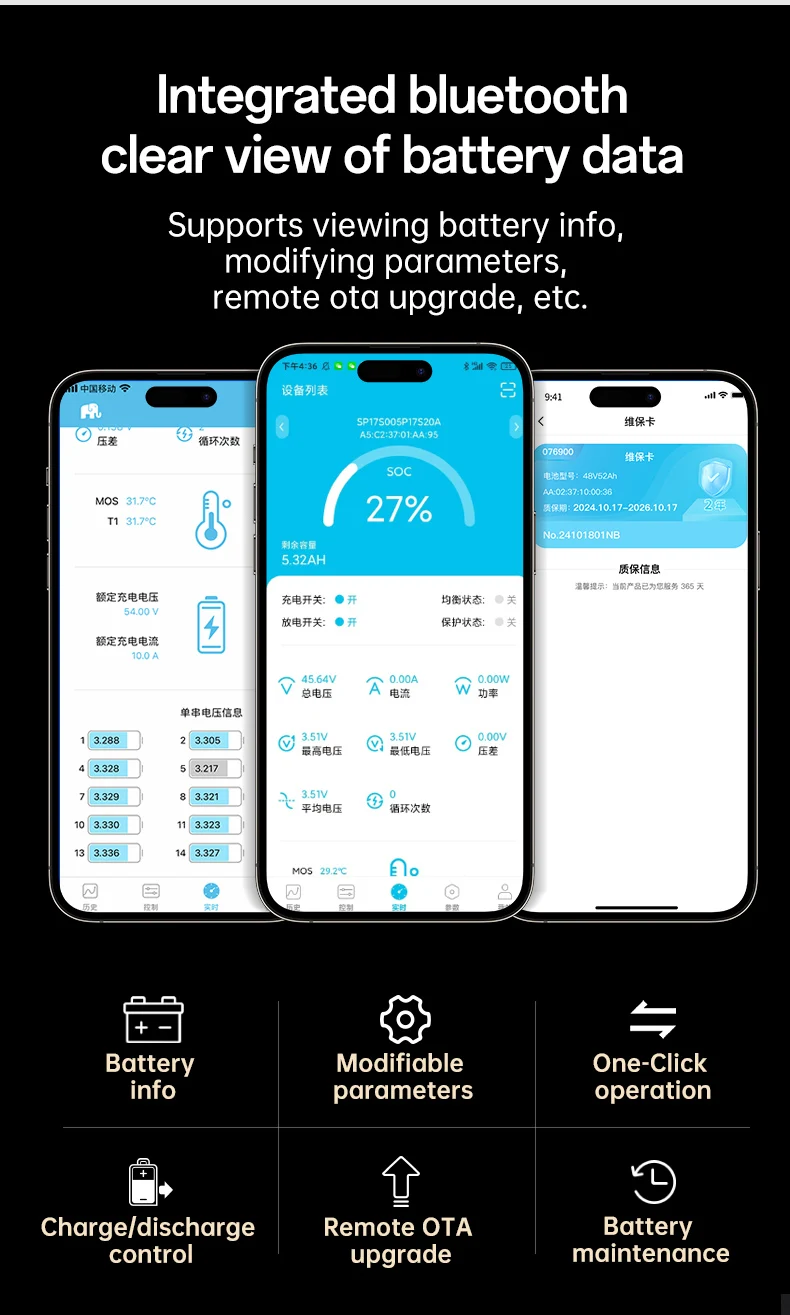

(1)BT-APP in Phone(xiaoxiangElectric App)

Support Both IOS and Android version,can monitor and change the parameters(need to be within the specified range)

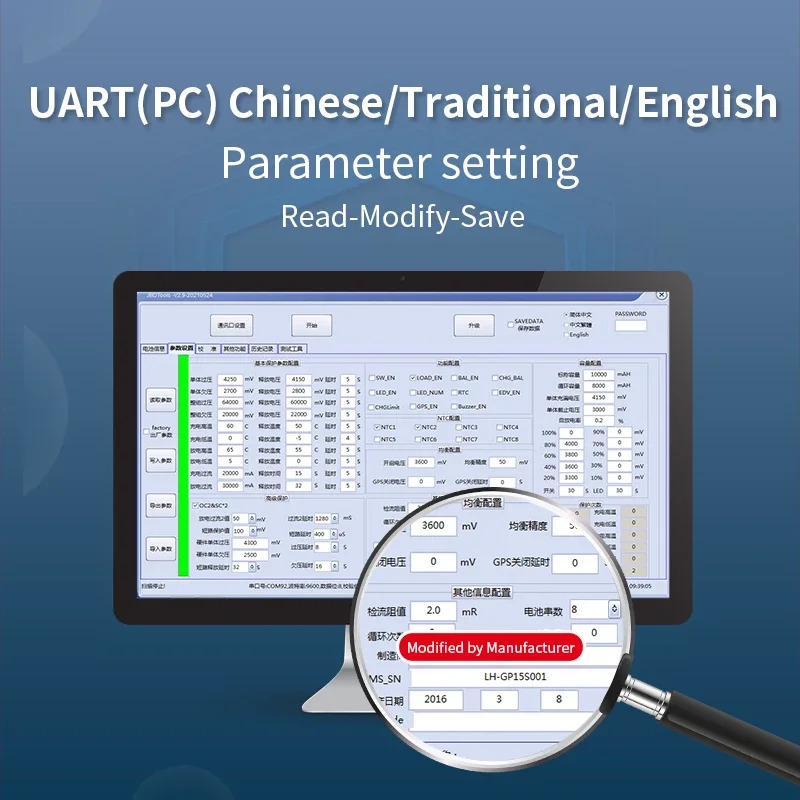

(2)UART or RS485-JBD PC Tool Box(PC Tool Software)

Monitor and Set parameters,ask for service for PC Tool Software Documents and PC tool Manual.

(3)UART or RS485 LCD Display-Can monitor parameters on LCD displayer.

Attention:

(1)UART and BT is the same ports,can't be used at the same time

(2)All smart bms has BT and UART function

(3)UART/RS485 PC Tool accessories need buy separately

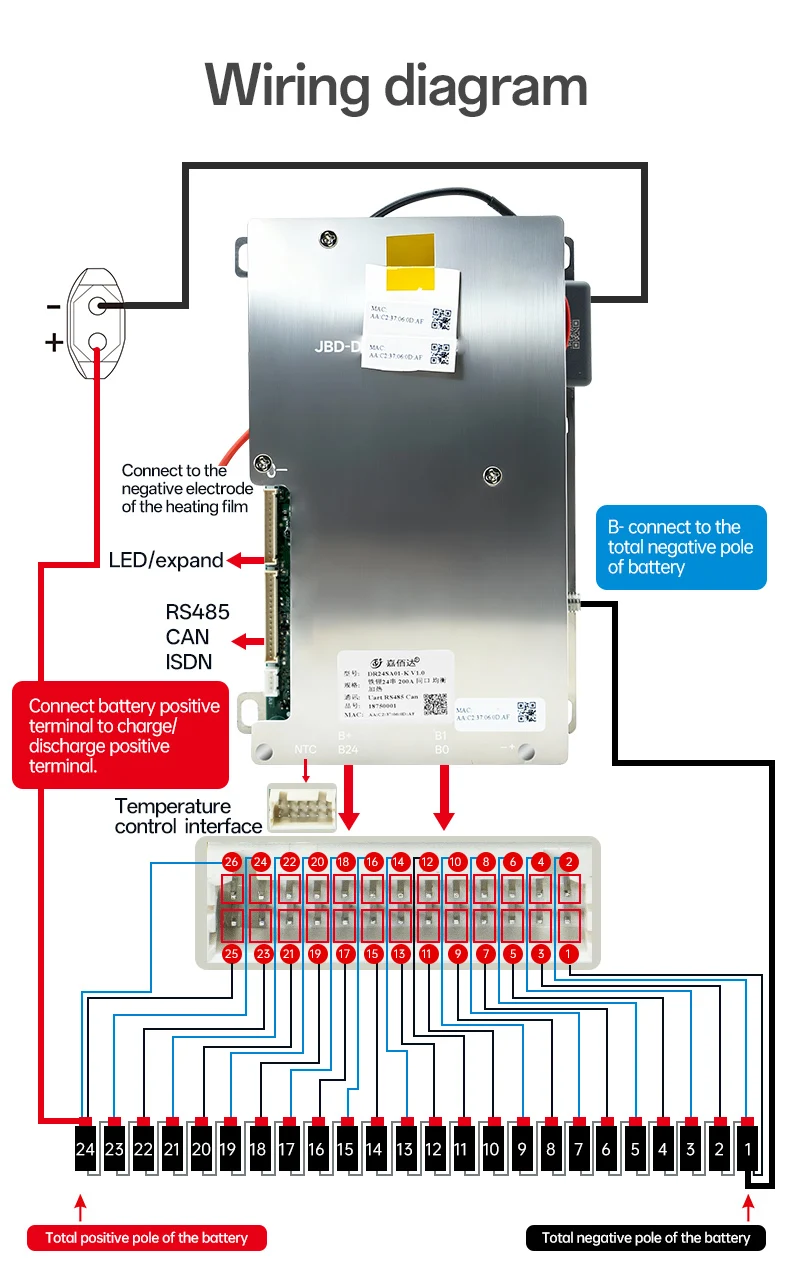

(4)APP manual/bms specification/wiring diagram: please contact customer service.
