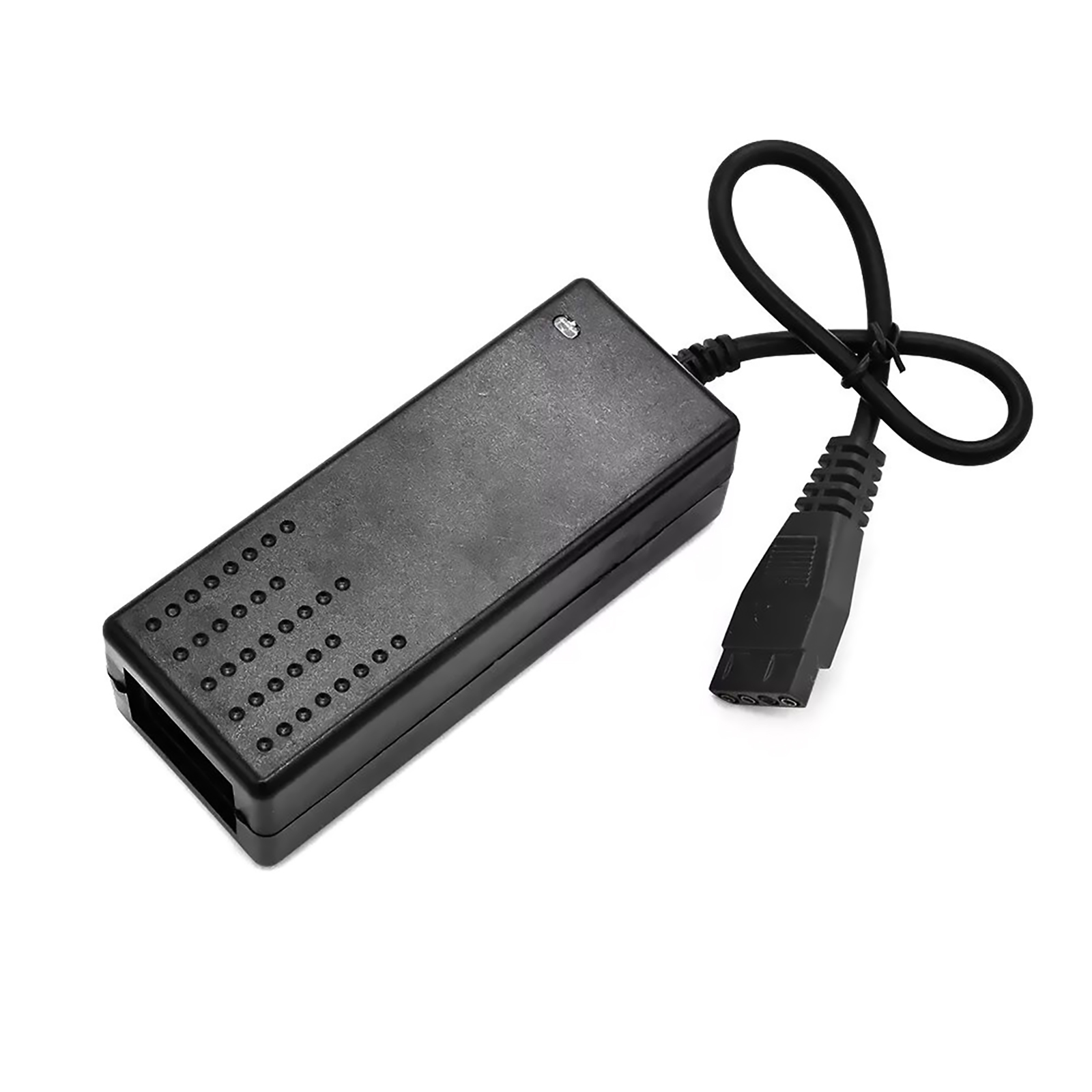

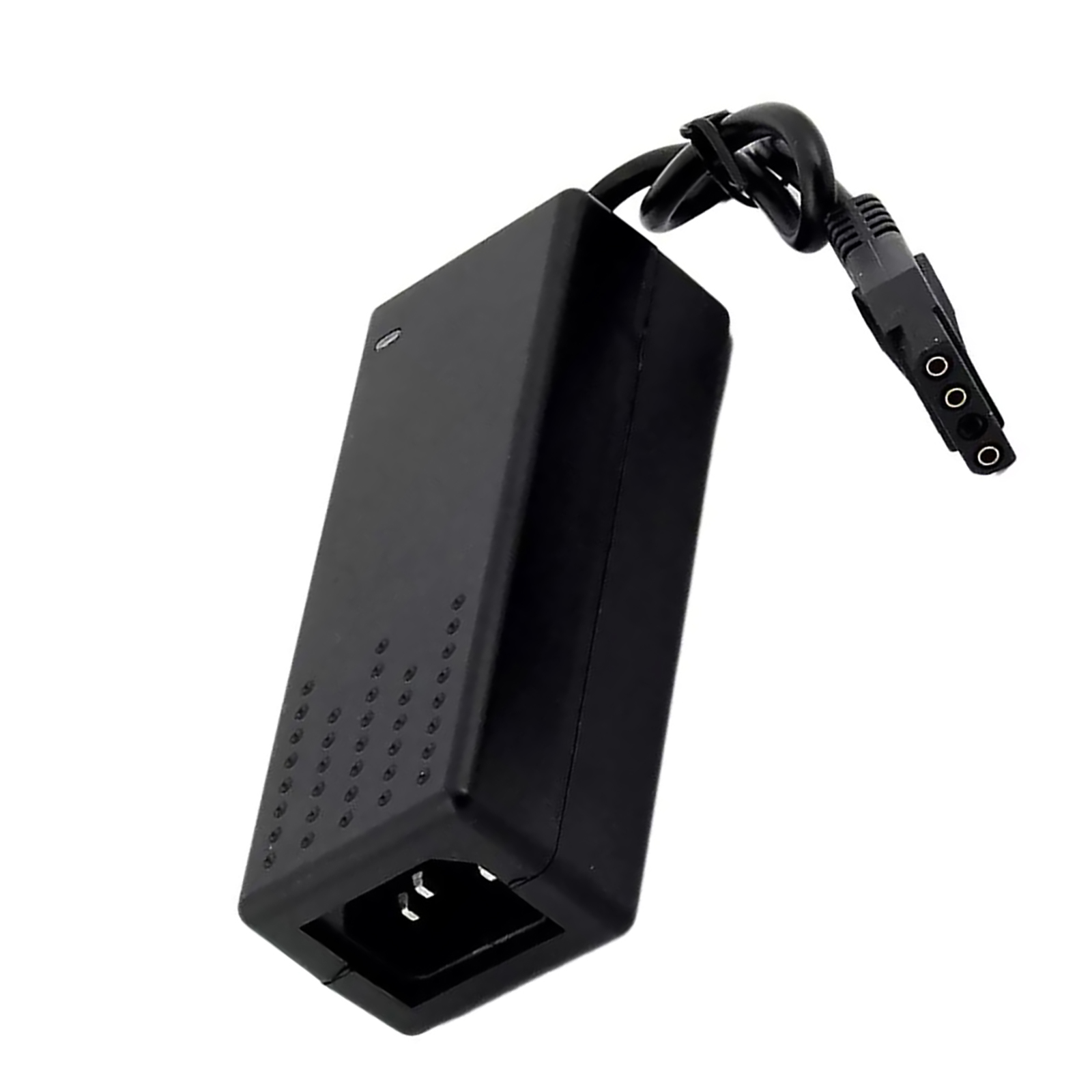

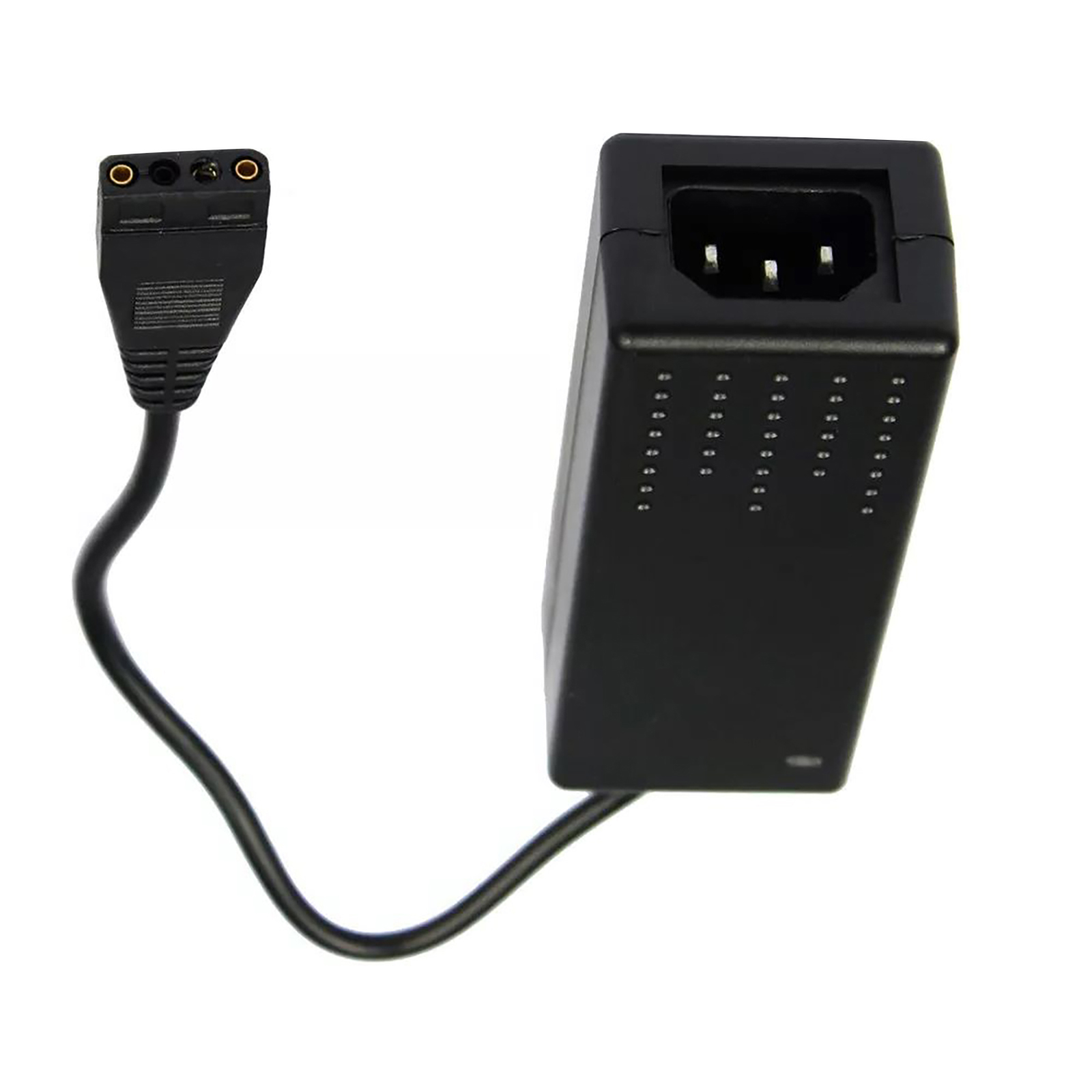

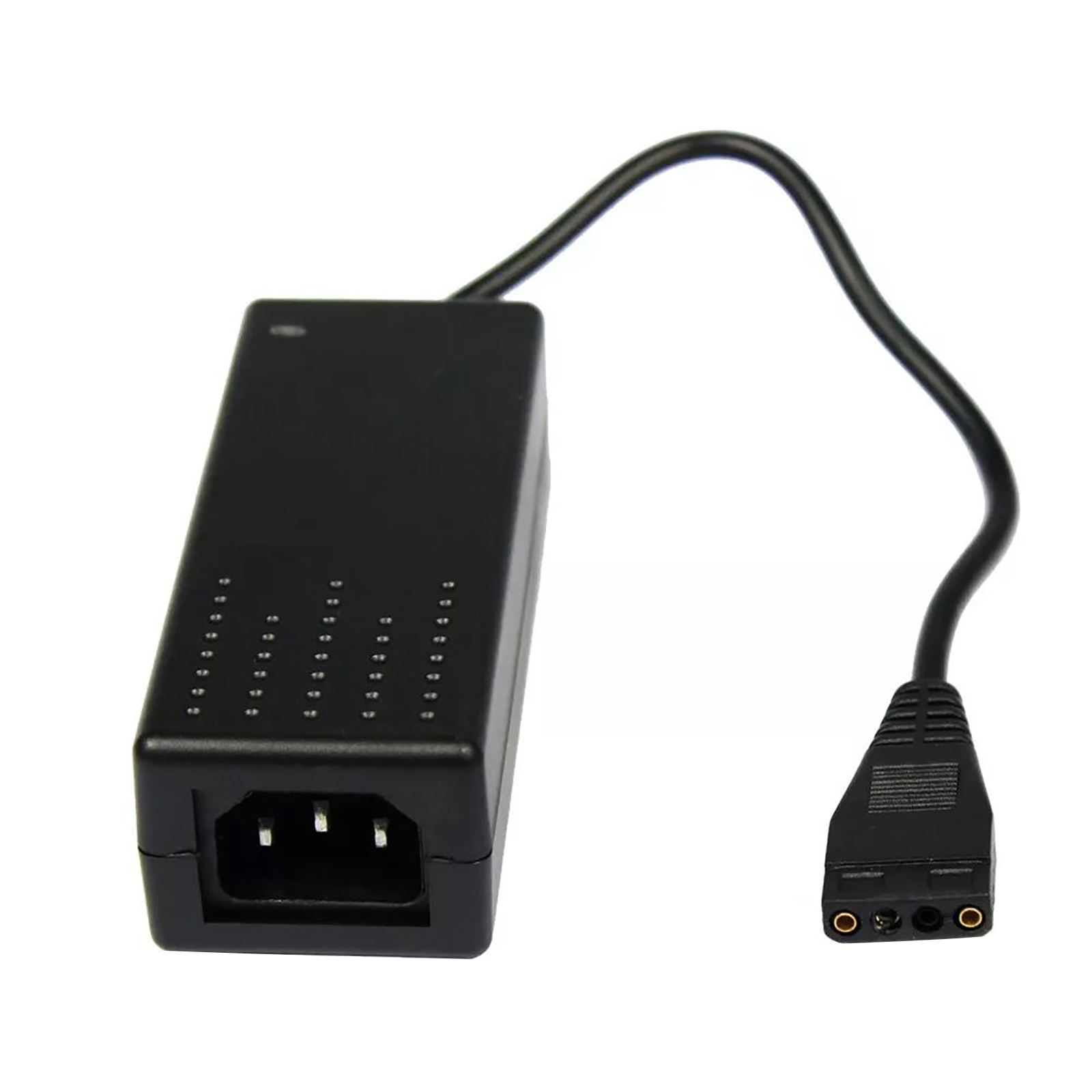

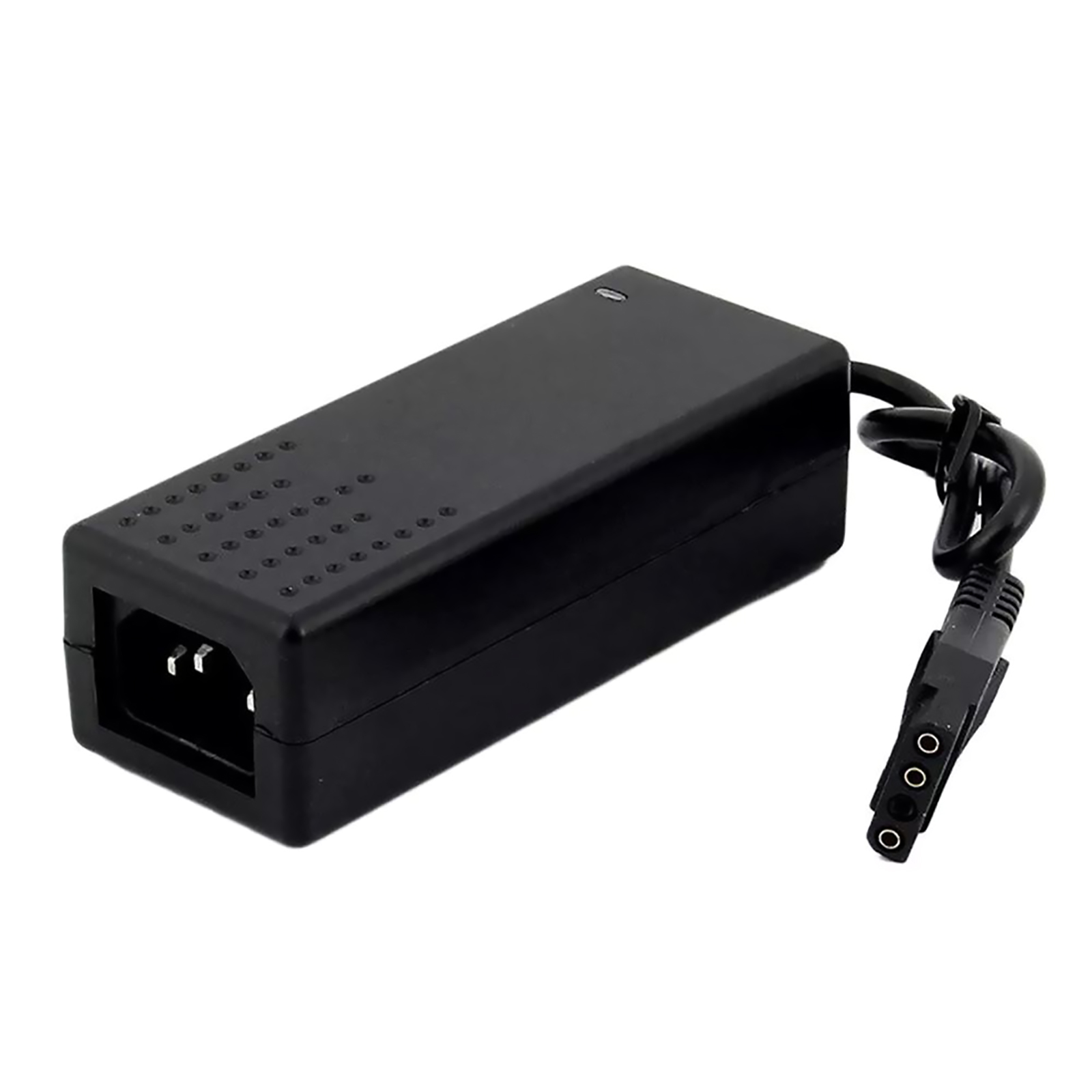

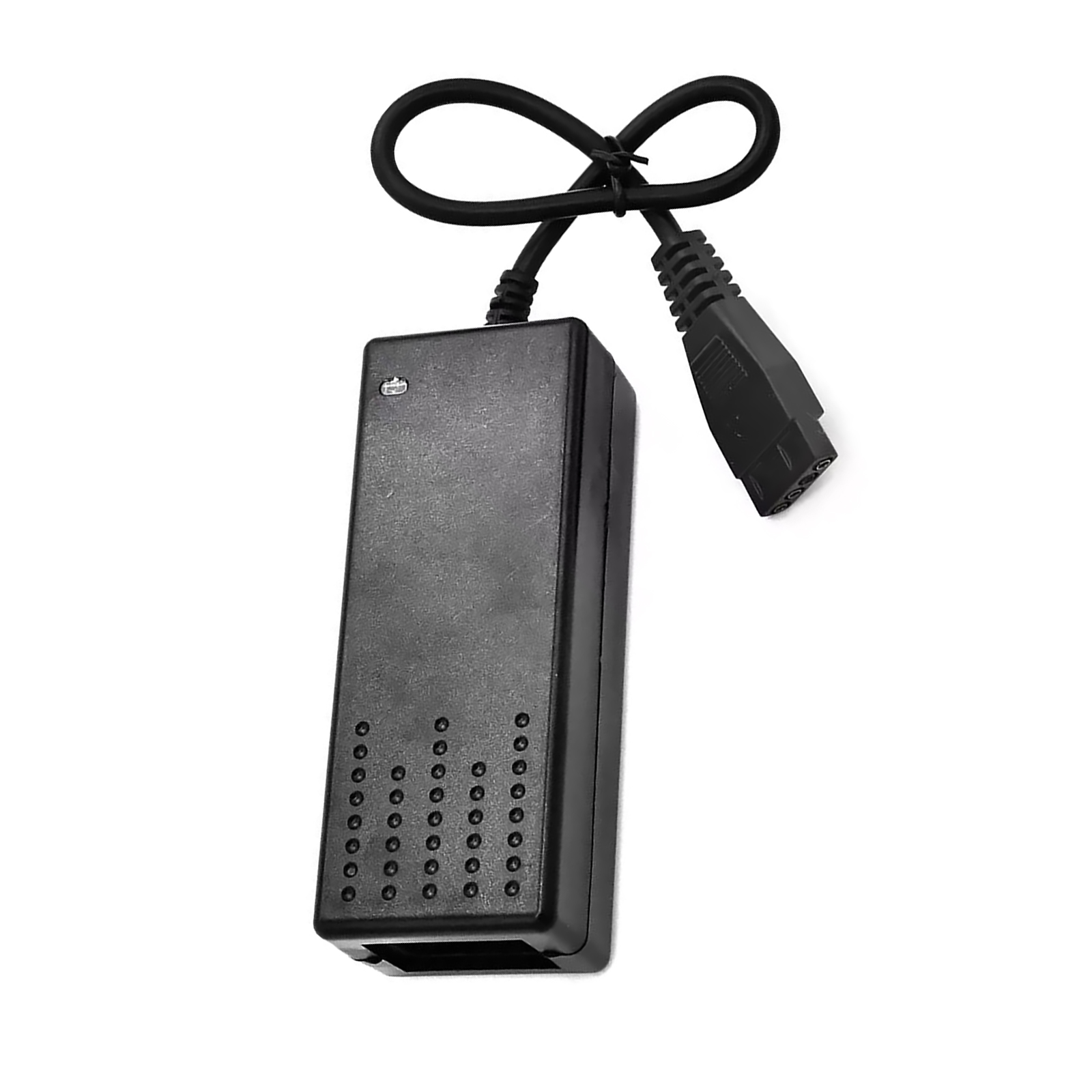

1*12V 5V 2A Optical Drive Hard Disk Power Supply USB to SATA/IDE Power Adapter
Features:
Worldwide full range of AC input voltage.
Good anti-interference performance and high reliability.
Small DC ripple and high working efficiency.
Low working temperature and long service life.
Small size, high power density.
Good insulation performance and high electrical strength.
Full load high temperature burn-in, 100% aging test.
With short circuit protection/overload protection/overvoltage protection function.
Specifications:
Input voltage range: AC100-240V
Input voltage frequency: 50-60Hz
Output voltage: 12V/5V
Output voltage regulation rate: 5%
Rated output current: 2A
Current output range: 0-2A (working time above 2A does not exceed 5 minutes)
Output ripple & noise: 100mVp-p
Working efficiency: 80-85%
Working temperature: 0℃~+50℃
Storage temperature: -20℃~+85℃
Output short circuit protection: Yes
Input plug specifications: AC socket product suffix

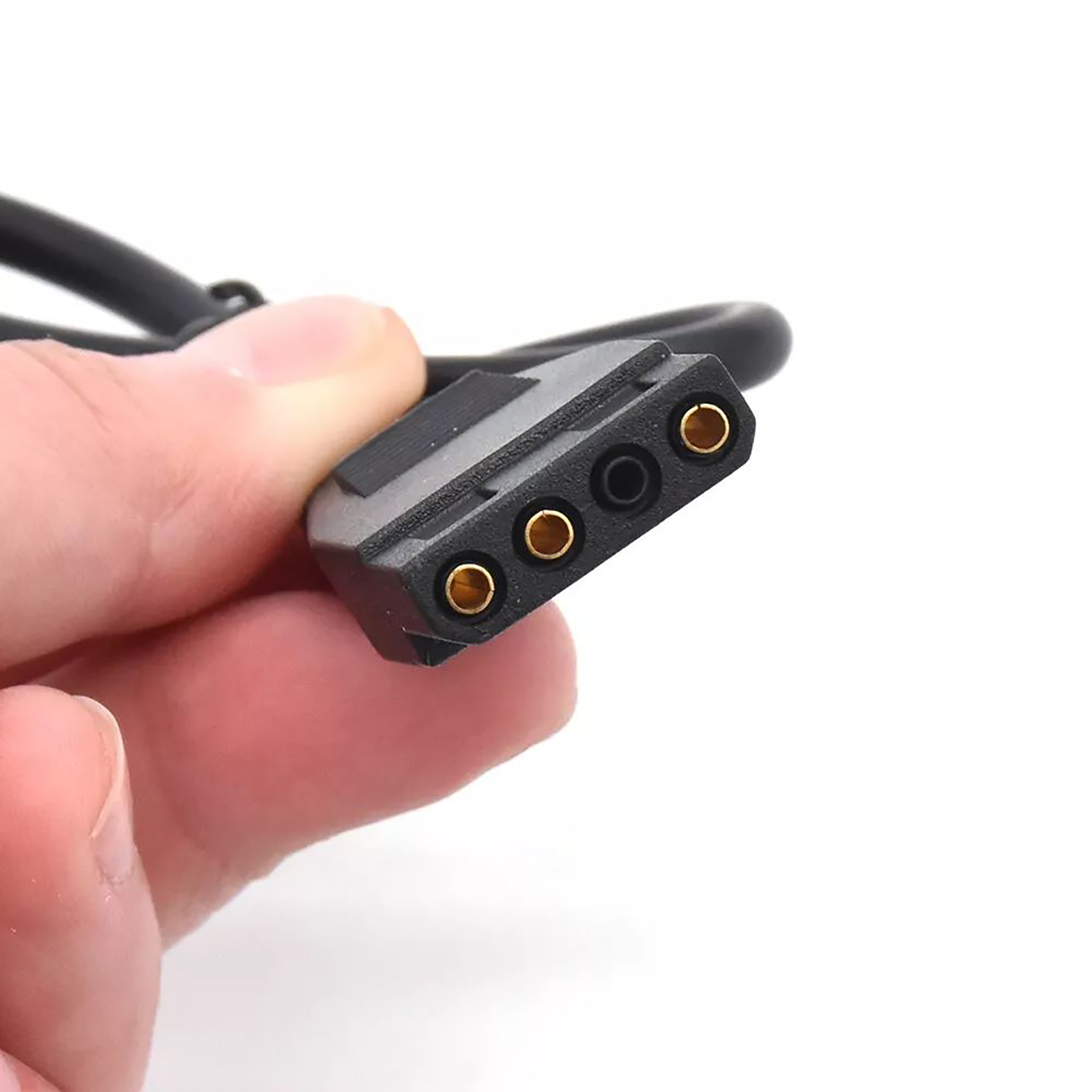

Output DC head: 4 holes
Support: 3.5 inch IDE hard disk, 5.25 inch IDE optical drive, CD/DVD-ROM, etc. Can also support SATA hard disk drive, but need to buy a SATA power adapter cable.
Package Included:
1 x Power adapter
