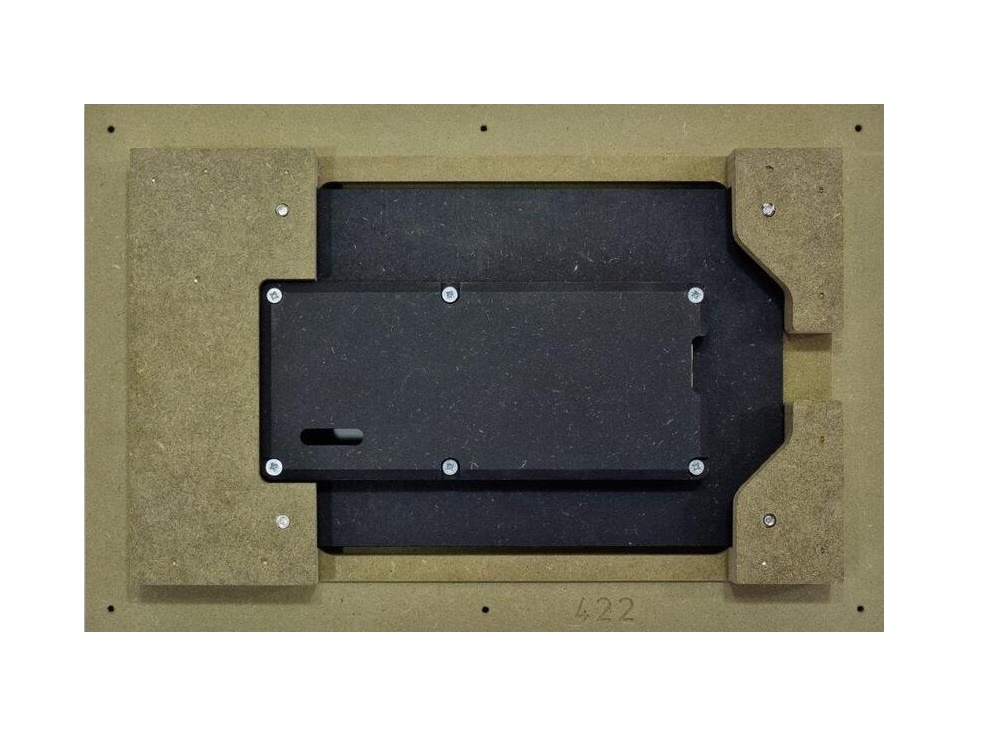

The “WS NC FOR IPAD MINI 6 WITHOUT GRILLS” is an adapter for in-wall flush installation of iPad MINI 6.

The “WS NC FOR IPAD MINI 6 WITHOUT GRILLS” firmly mounts the iPad MINI 6. while allowing easy insertion, removal and operation.

Features:

• iPad is recessed 1.4mm [0.055”] into the wall surface.
• Wall mount may be mounted in any orientation.
• Includes depth calibration mechanism.
• The wall mount does not contain audio grills.
• Paintable with the wall paint in any color and texture.
• Allows easy insertion and removal of the iPad.
• The adapter is supplied unpainted (To be painted after installation as part of the wall).
• Designed to be installed in ½” drywall. Installation of the Wall-Smart adapter is straight-forward. Installation process is similar to drywall construction procedures.
• For installation in concrete/block wall use “CONCRETE BOX 205X307” P/N 100-1-403 (sold separately) according installation instruction 10-04-00103-INS
• Designed for the use with iPad MINI 6 (by Apple) (iPad is not included).

Specifications:

• Dimensions: (W/H/D): 304.8mm (12.0")/ 203.2mm (8.0")/ 38.9mm (1.53”)
• Power Supply: Wall mount includes POE to USB converter. The installer should connect the wall mount to an IEEE 802.3at POE+ power source via CAT6 cable and RJ45 connector. (Please verify the power source can supply up to 25.5W)
• Weight: 0.8Kg, 1.76lbs.
• Material: Moisture resistant MDF (compliant with TSCA Title VI)
• To be installed in ½” drywall (for installation in 5/8” drywall use 1/8” shim pack P/N 10-01-067 (sold separately)).
