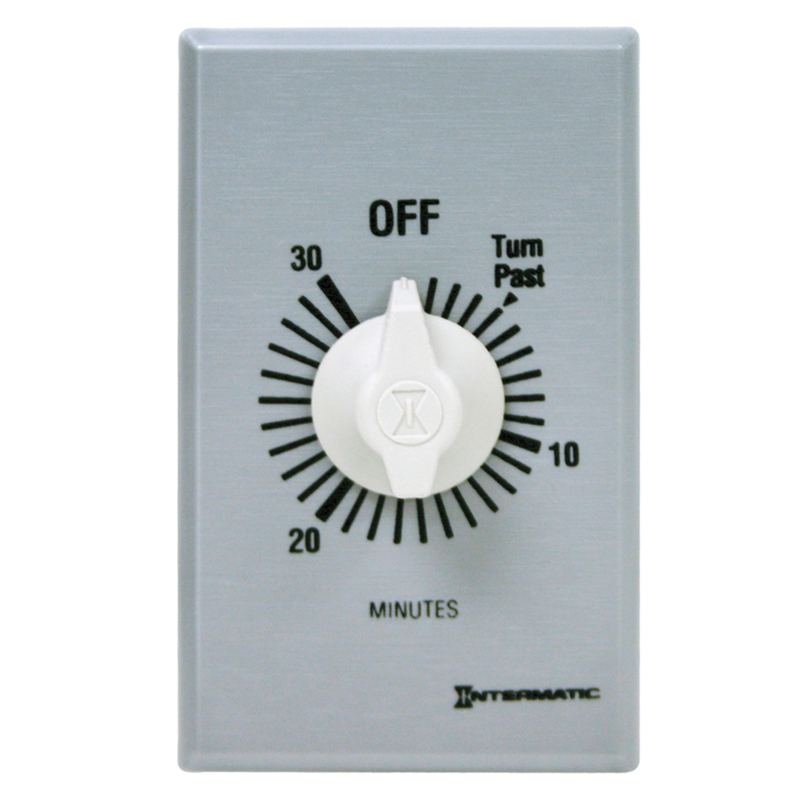

Intermatic Indoor Spring Wound Timer 277 volt Gray - Total Qty: 1

The SW Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the on times for fans, lighting, motors, heaters and other energy-consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.

• Brand Name: Intermatic
• Indoor or Outdoor: Indoor
• Product Type: Spring Wound Timer
• Color: Silver
• Packaging Type: Carded
• Application: CFL, LED and Incandescent
• Programmable: No
• Number in Package: 1 pk
• Cycles: 30 min
• UL Listed: Yes
• CSA Listed: Yes
• Warranty: 1 year
• Mechanism Type: Analog/Mechanical
• Operation Mode: Countdown
• Temperature (operation): 4 - 49 degree Celsius
• Wall Plate Configurations: Single-Gang
• Height: 4.125 in.
• Motor Load Ratings Ranges: 1 HP, 125 VAC; 2 HP, 250 VAC
• Switch Type: SPST
• Tungsten (Incandescent) Ranges: 7 A, 125 VAC, 50/60 Hz, 875 W
• Width: 1.75 in.
• Depth: 1.25 in.
• Motor Three Phase Ranges: 1 HP, 125 VAC, 2 HP, 250 VAC
• Input Voltage Range(s): 125-277 VAC, 50/60 Hz
• Resistive Heater: 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
• Wiring Configurations: Single
