Advantages:

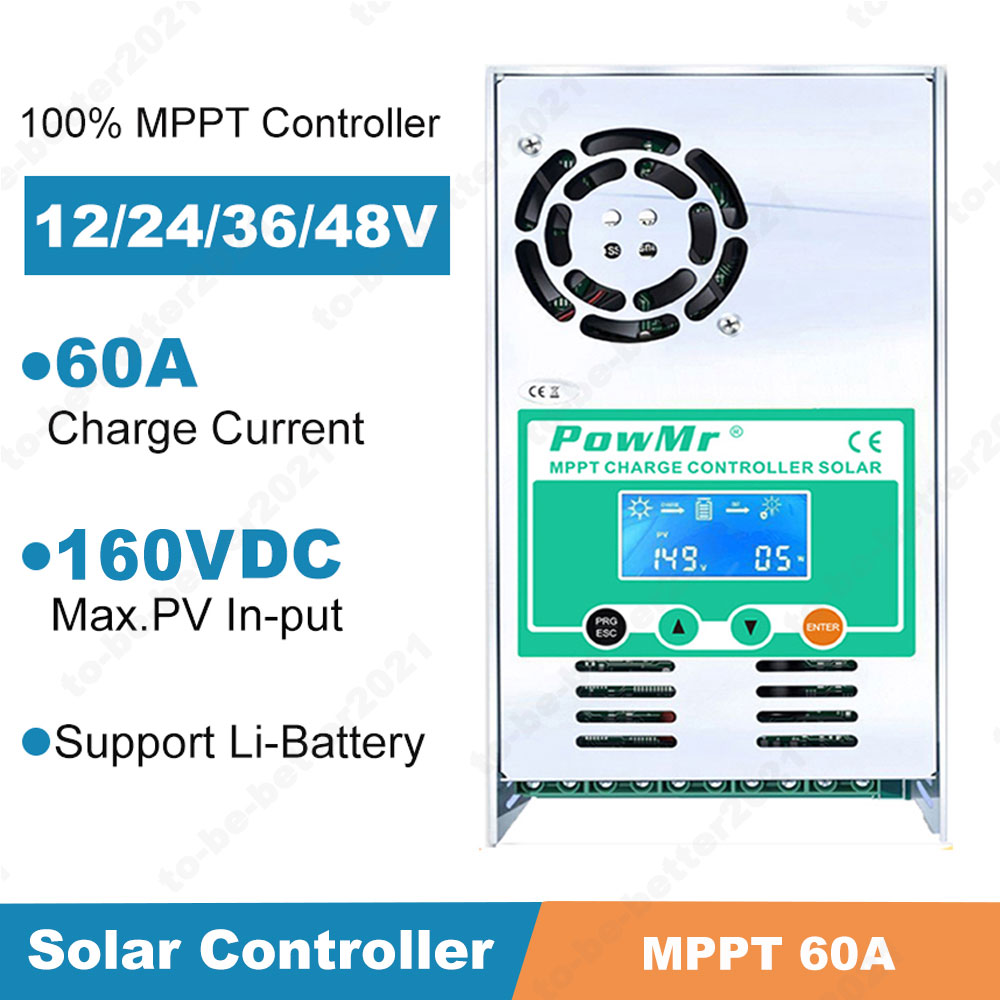

❶【Software Update MPPT Design 】100% MPPT 60A solar charge controller Intelligent,

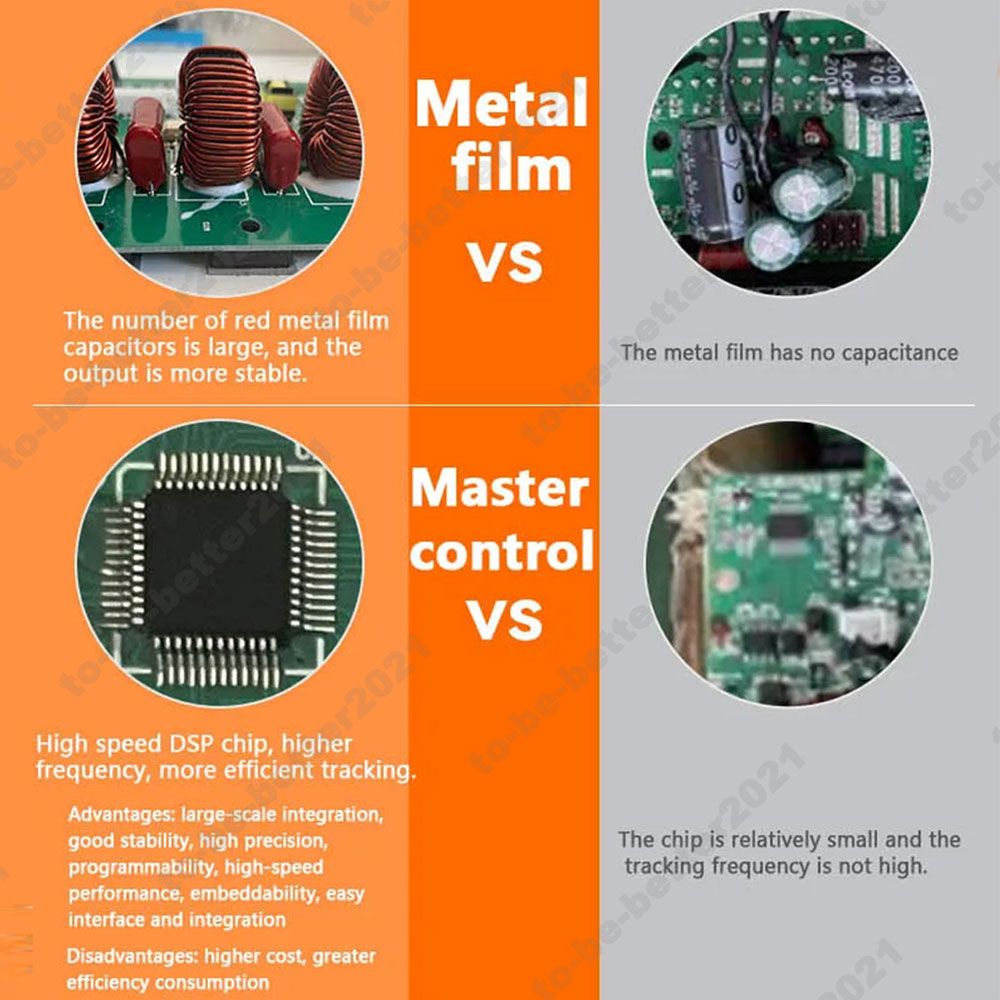

Max efficiency ≥98.1%, PV utilization ≥99%. Built-in DSP controller with high performance

Automatic battery voltage detection 12V/24V/36V/48V, Make sure batteries' voltage more

than 12V to boost controller and make sure battery has enough power to Self-detection

when connected to the controller.

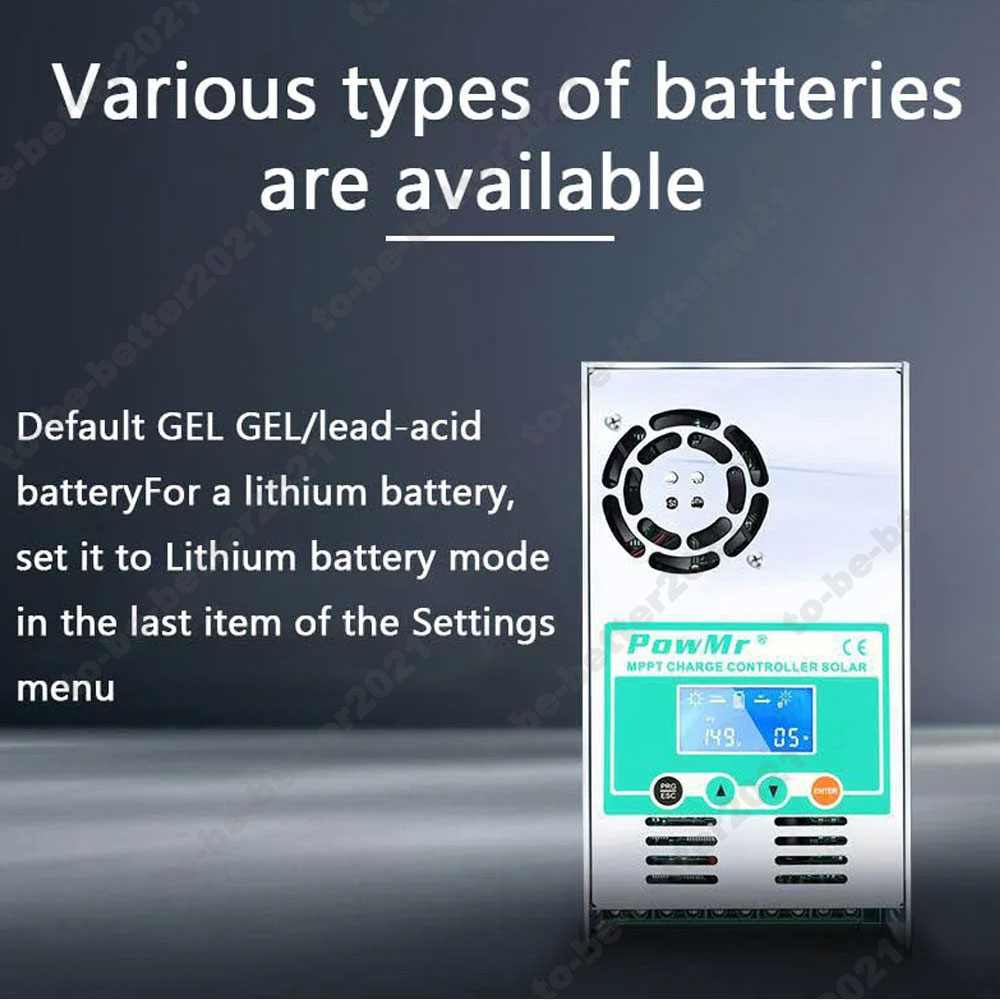

❷【Multiple Battery Adaptation】 Fit for USER(can be set Lithium, Lifepo4, Li(NiCoMn)O2)

/Vented/Flooded/Sealed/Gel/NiCd battery. User programmable for absorption voltage/Floating

voltage/Low voltage disconnect./Load Timer. Real-time energy recording.

Two connectors for each pos and negs on solar and batteries connectors. copper wires:9AWG.

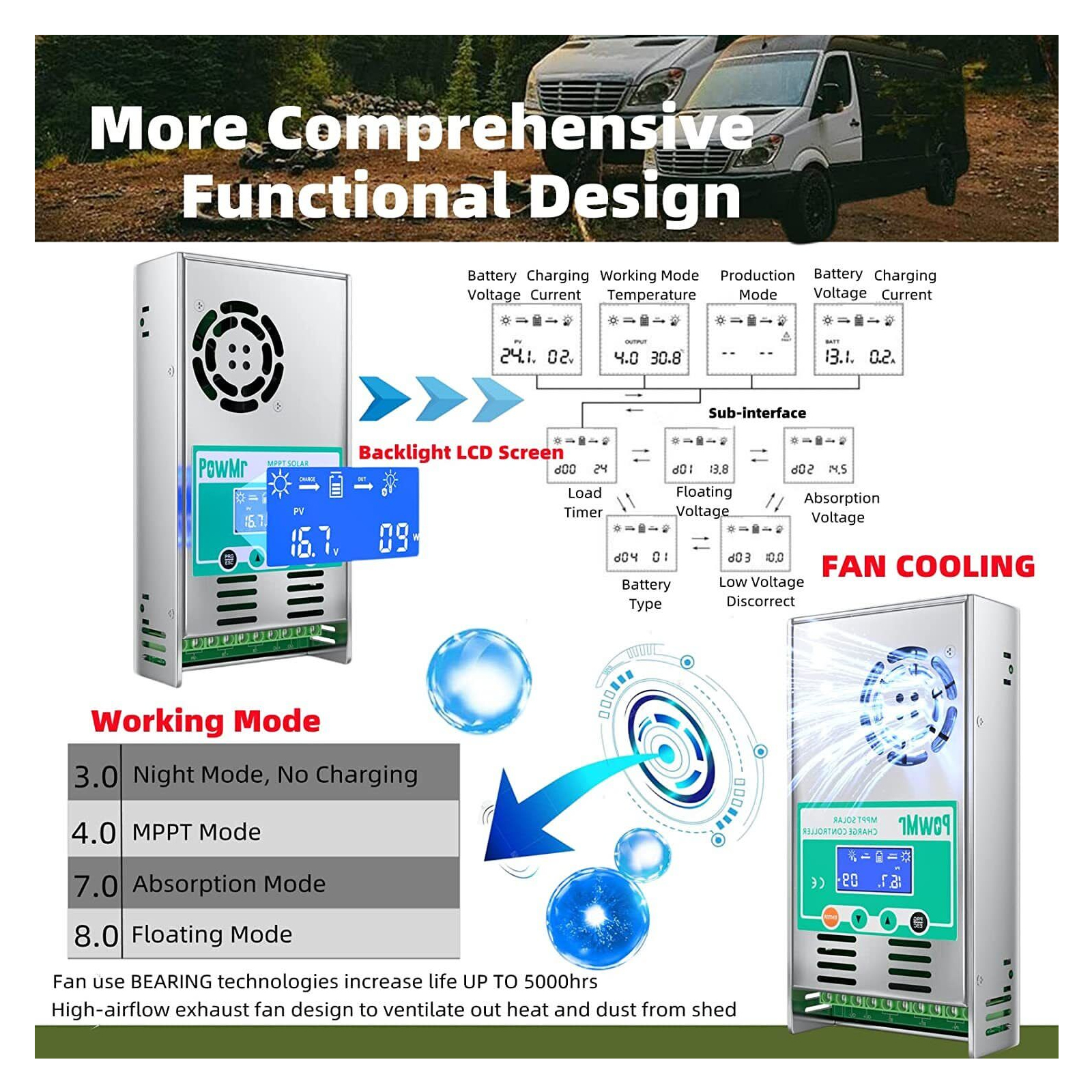

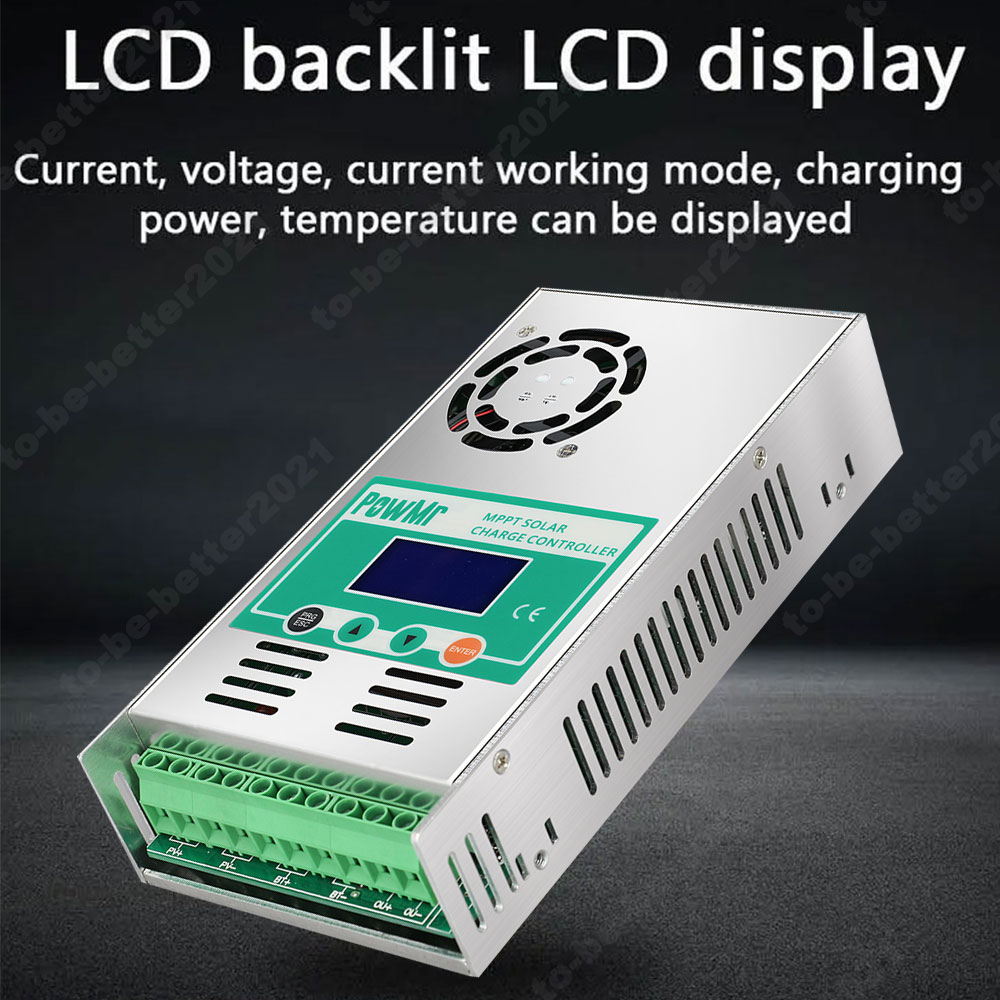

❸【Full System Protection】Backlight LCD Dispaly PV voltage/output power/Battery

voltage/charging current/working mode/Temperature. ☀ TROUBLESHOOTING function and LCD

display and can help users not only check the whole system operating data and statuses but also

quickly identify system faults and modify parameters.

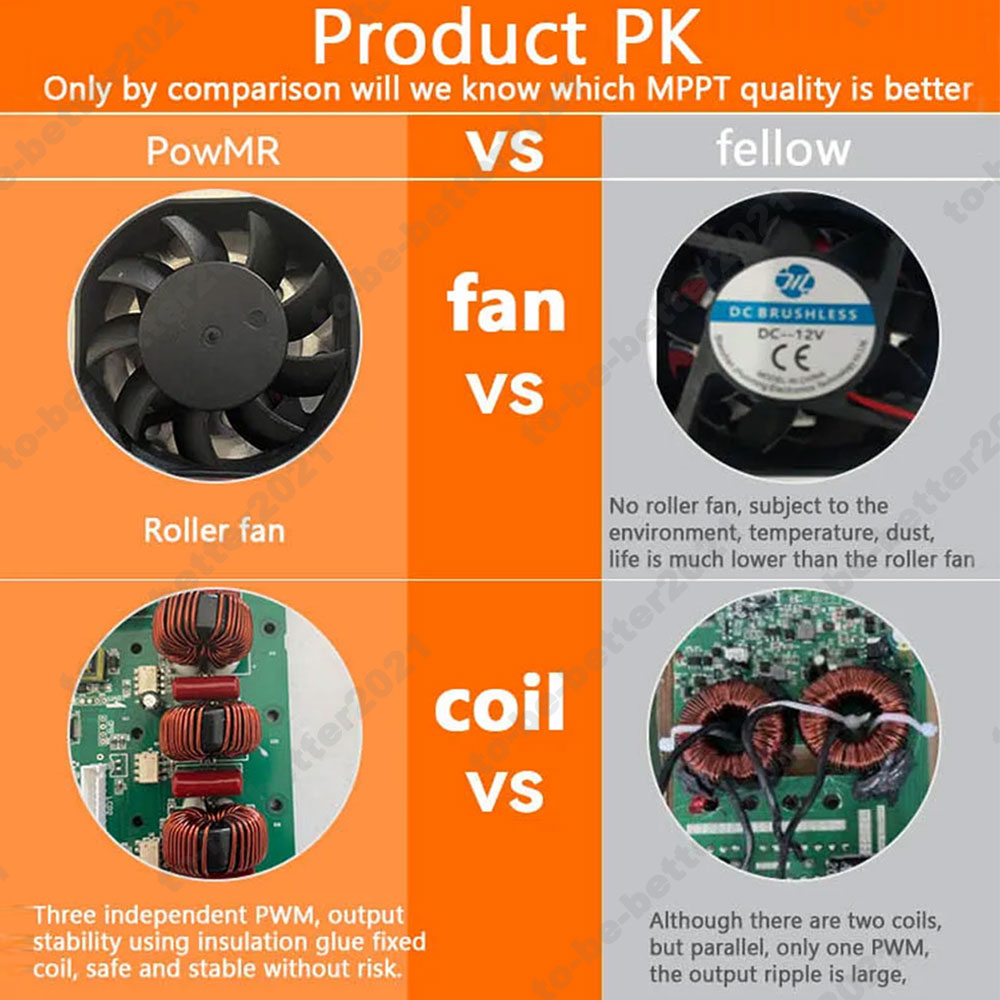

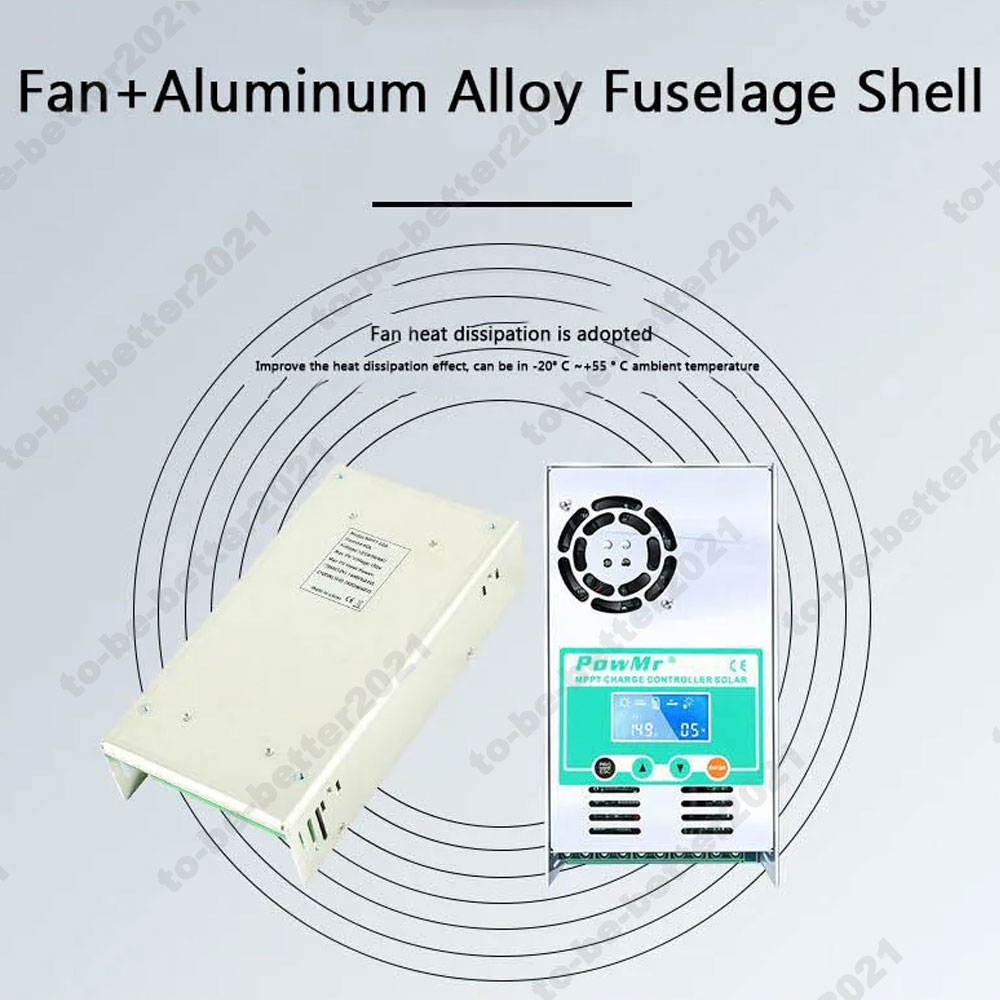

❹【Fan Heat Dissipation】Intelligence Fan-on temperature >45℃ and off < 40℃,Porous heat

dissipation.and fan use BEARING technologies increase life UP TO 5000hrs in normal use.

Suitable for RVs, Commercial Vehicles, Boats, Yachts, and Solar system.

❺【Notiction】If you use sealed lead acid, vented gel battery, and etc, you donn't need to set

any parameters, the controller can adjuste automaticly and work normally; but if you use lithium

batteries, you need to properly adjuste parameters according to the actual voltage of the battery,

becauese the voltage of lithium batteries is unstable, such as acid battery 12V is 12V, lithium

battery 12V may be 11.1V or 14.8V.

FEATURE:

Charging 3-stage: constant current(MPPT), constant voltage(Absorption Voltage), floating charge

Selectable battery type Vented / Sealed / Gel / NiCd / Lithium battery (default is Sealed)

(defined voltage for other battery by user)

Soft start time ≤1S, Dynamic response and recovery time 100us

Max efficiency ≥98.1%, PV utilization ≥99%

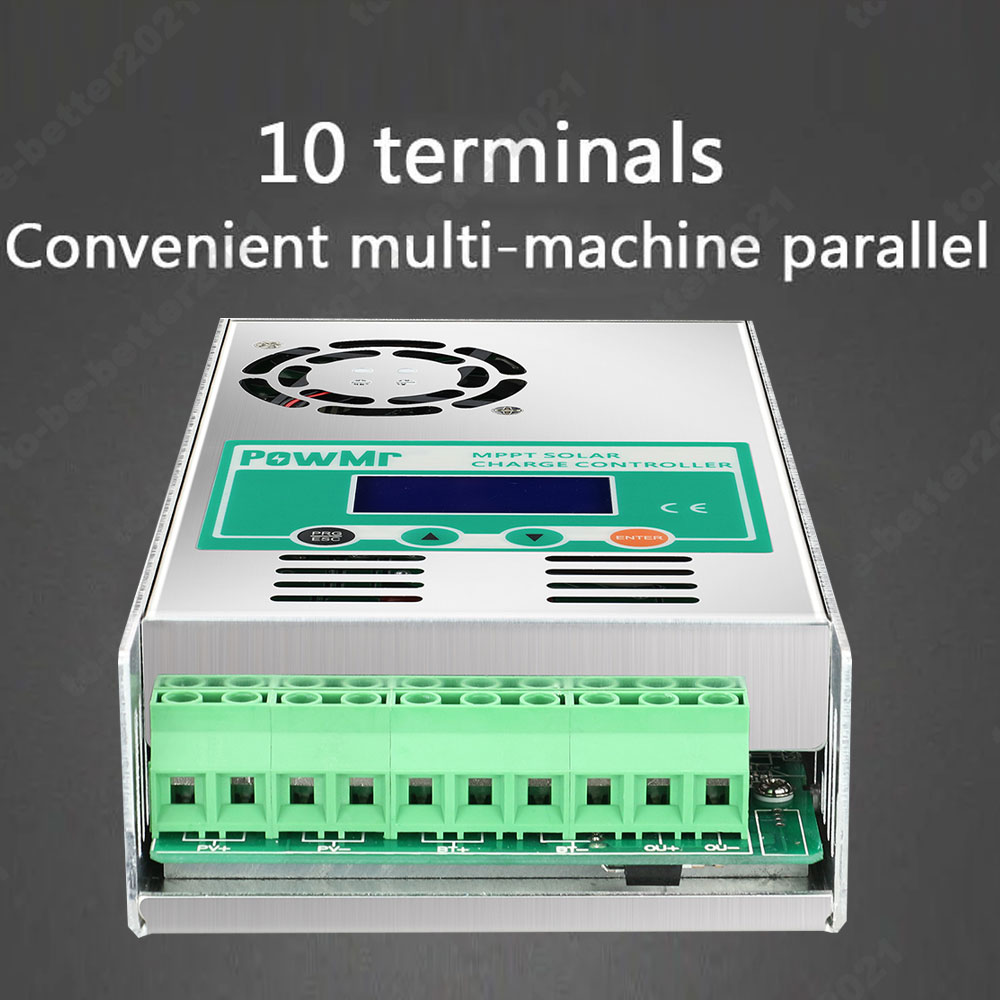

In order to reduce the cost of electricity caused by high current,

PV and battery each have two terminals

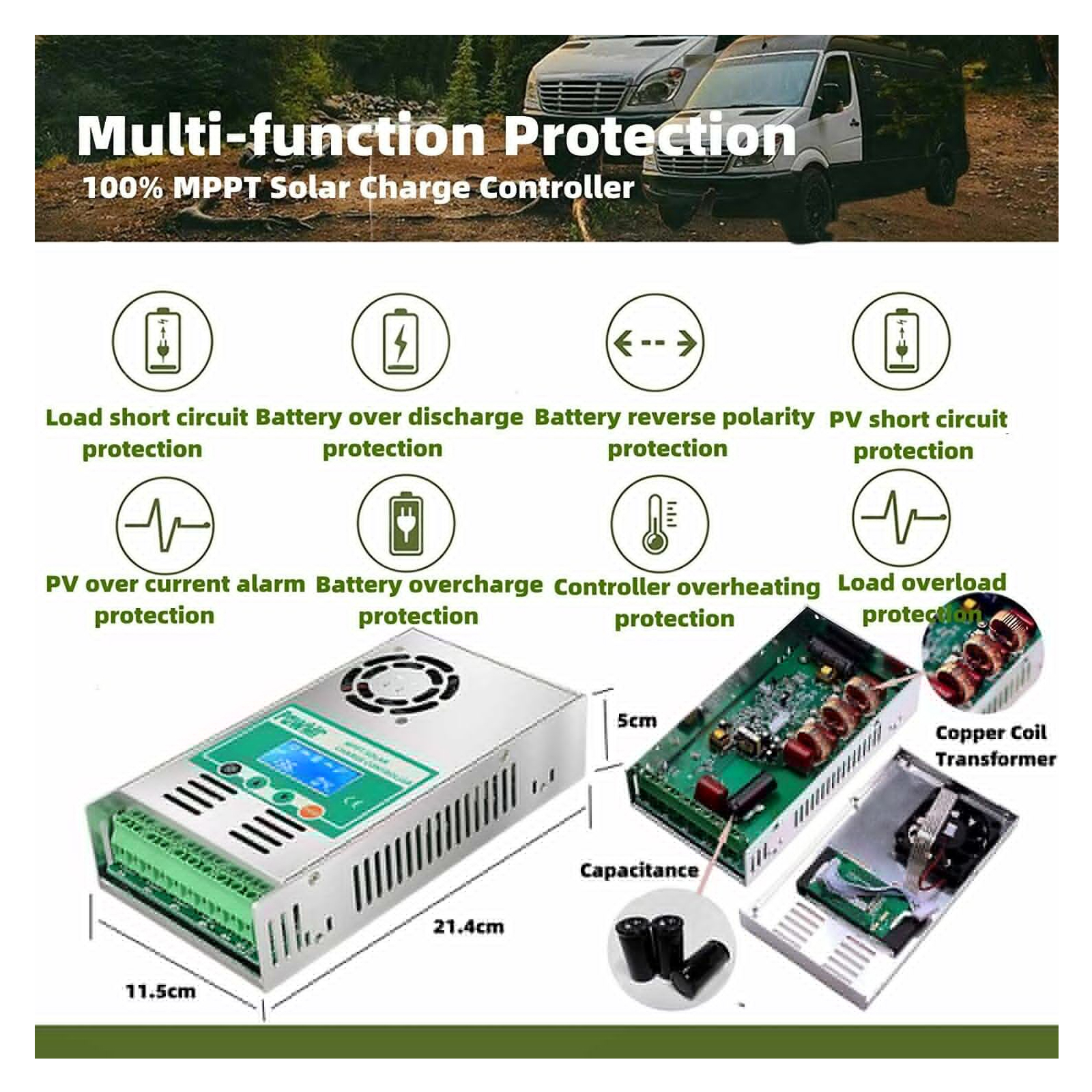

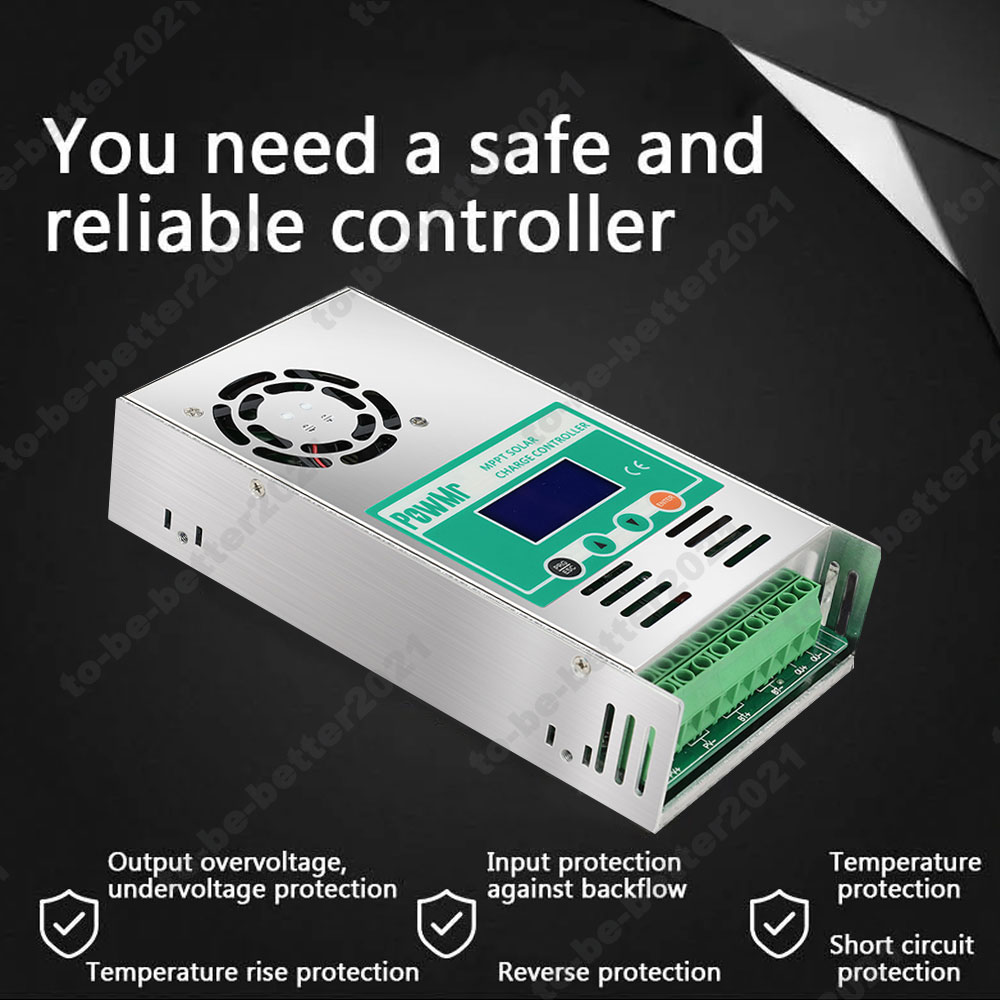

MULTIPLE ELECTRONIC PROTECTIONS

Short-circuting

Reverse-current

Overcharging

Overload

Over-discharging

Reverse polarity protection

Notes: The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V

system less 100W ),and it will be burnt if connecting to other loads.

The output for battery is no polarity reverse protection.

Remarks:

1. The maximum PV input voltage (Voc): DC160V (The controller can not work with this long

duration voltage, which will interrupt the controller. Refer to the input voltage of PV).

2. The output port is only for lamps (12V system less 60W, 24V/36V/48V system less 100W)

and will be burned if connected to other loads. The battery output is not reverse polarity protection.

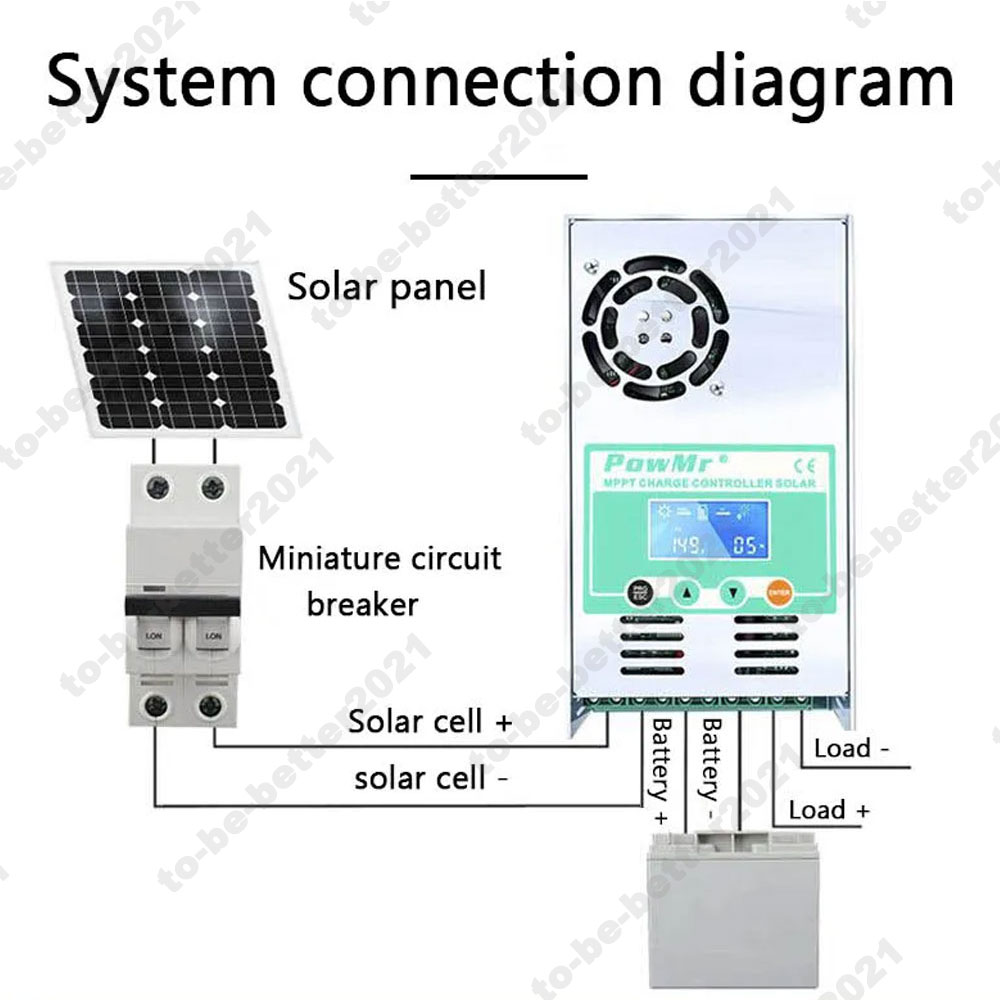

3. Always connect the battery first!!! Make sure the battery voltage is sufficient for the controller

to recognize the correct system voltage. The order of dismantling contradicts the order of wiring.

4. Do not connect any inverter/wind/generator or charger to the controller, please connect the

inverter to the battery side.

5. Ensures the solar input voltage exceeds 3V or more than the battery voltage and the total input

power exceeds the max. , the charging current is almost zero when the controller has trickle charge.

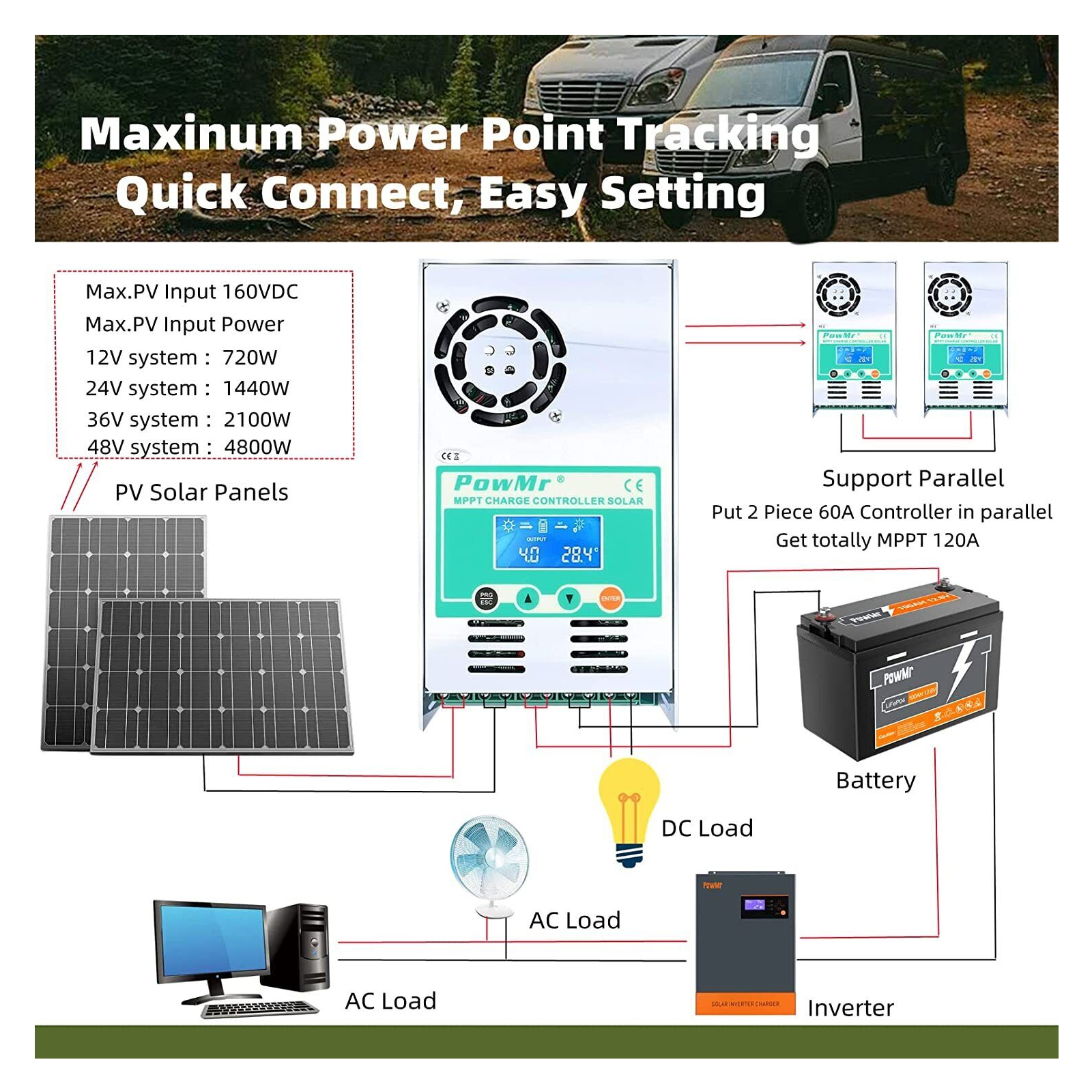

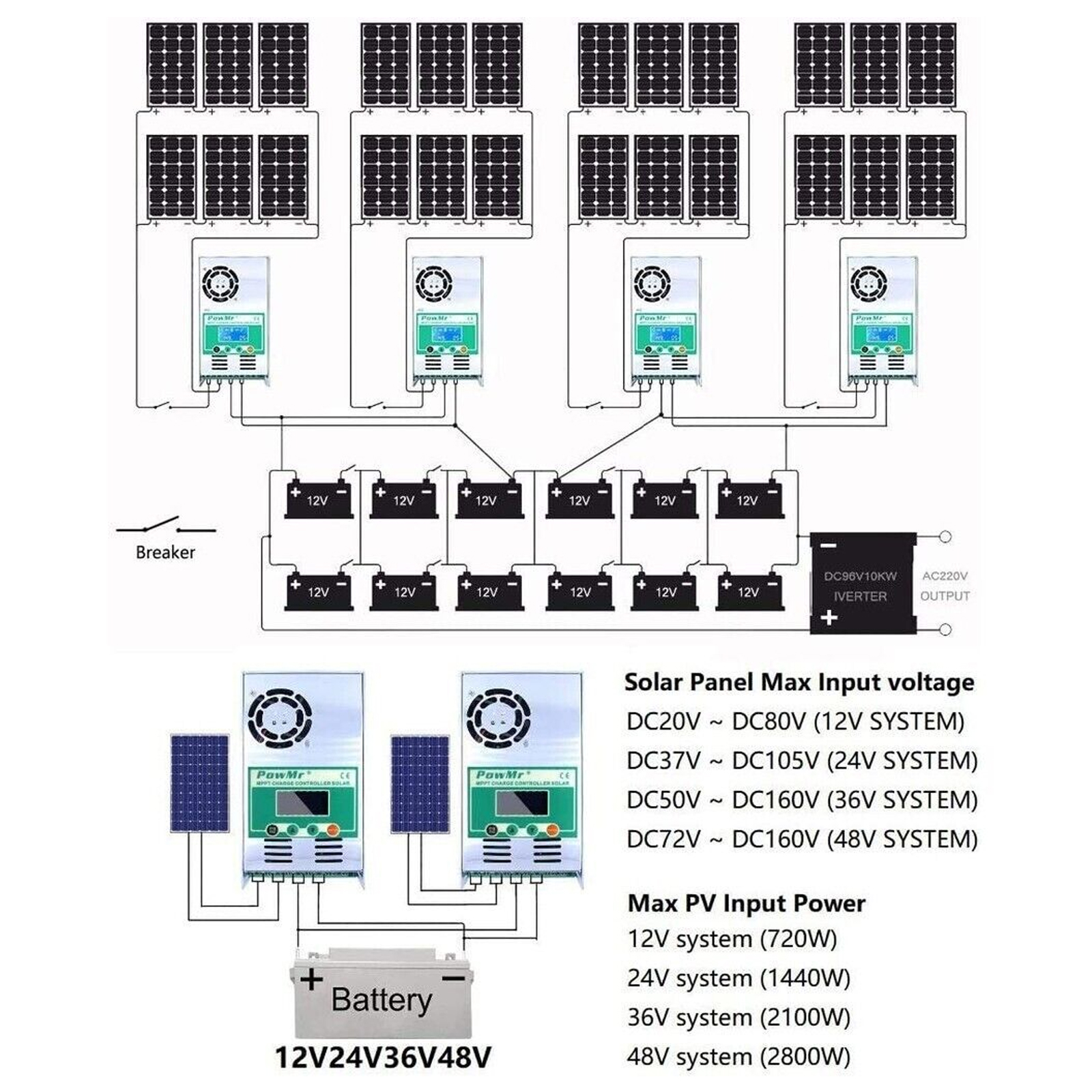

You can Put two pieces 60A in parallel ,So total is MPPT 120A.

TIPs

1.Always connect battery first!!! Make sure enough batteries’ voltage let controller recognize

the right system voltage. The disassembly sequence is contrary to the wiring order.

 NEVER connect the solar panel array to the controller without a battery

2.DO NOT connect any Inverter/ wind/ Alternator or Charger into the charge controller!

connect the Inverter directly to the battery.

3.Ensures solar input voltage higher 3V or more than batteries’ voltage and total input

power in the range. if input power is too low for max input power, it may be appears to

have been discontinued., the charging current almost be zero when controller is floating charge.

4.Parameter Setting RulesFloating voltage > Low voltage reconnect > Low voltage discharge.

5.The solar controller will stop output when the battery under 10.7V. The LCD will be blank

when the battery under 8V and it will re-output when the battery up to the 12.6V (adjustable).

6.Install the Charger controller to the battery as close as possible. Tighten the wire, Carefully

read battery manuals before operation.

7.When controller makes buzzing sound because of It's working hard to dissipate heat for your

controller. Rest your heart, it will be stop when temperature return to normal.

8.Remove all the debris around the controller ( leaving a space of approx. 5.91in ).

Make sure all connections going into and from the controller are tight.

Do NOT let the positive (+) and negative (-) terminals of the battery touch each other.

Package include

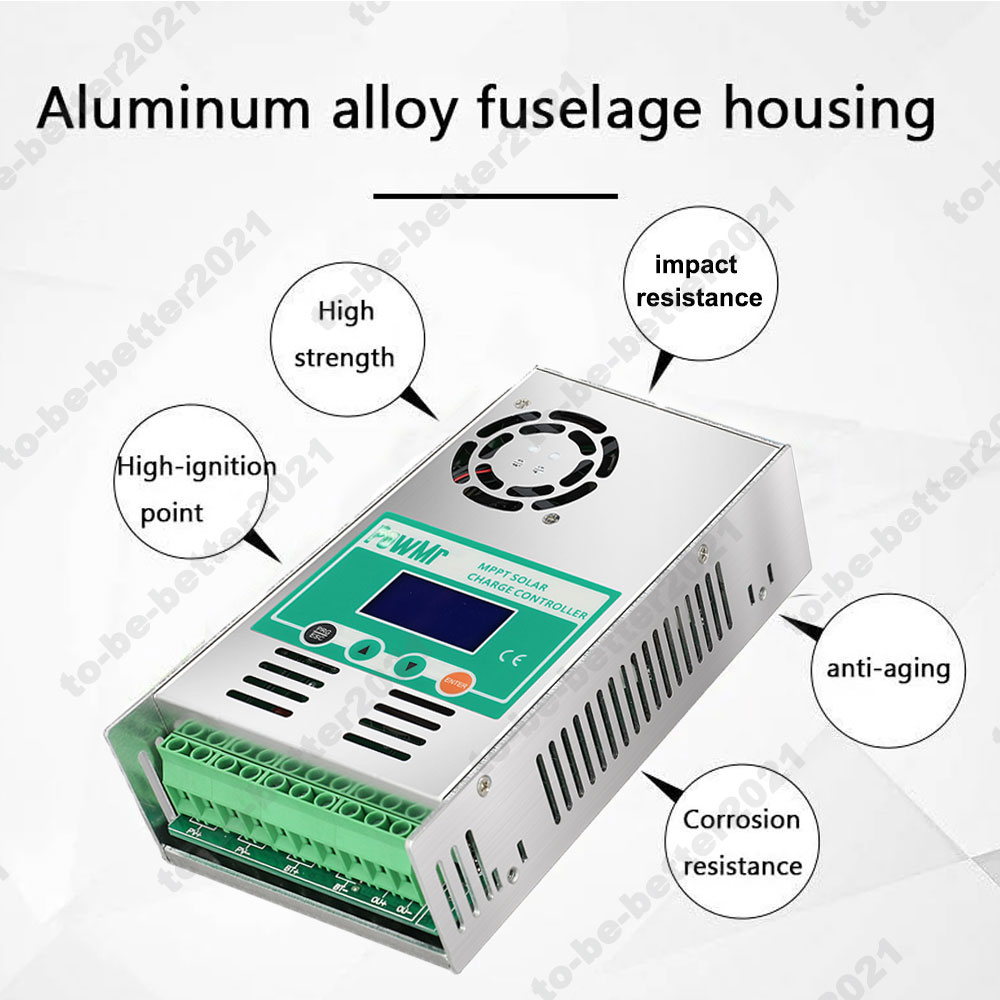

1x 60A MPPT solar controller

1x user manual

1x Mounting caps

1x Screws
